USER MANUAL ELPIF01 EPSON

User's Guide 3

HDMI/DVI-D Interface Board ELPIF01

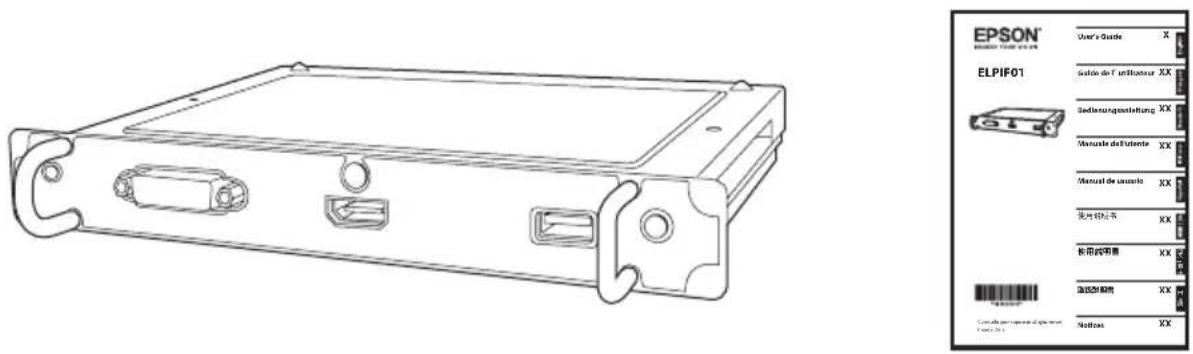

Included Items List

Check the following list to confirm that you have all of the supplied items. If any items are missing or damaged, please contact your dealer.

HDMI/DVI-D Interface Board User's Guide (this document) * To install/remove the interface boards, you need a commercially available No. 2 cross-head screwdriver.

Safety Instructions

Read this document and the User's Guide supplied with the projector carefully to use this unit safely and correctly. To allow you to solve any issues or problems quickly, keep this document close at hand. So that you can use the product safely and correctly, symbols are used in this guide and applied to the product to indicate possible harm to the user or to others and the risk of damage to property. The symbols and their meaning are as follows. Make sure you understand them properly before reading this guide.

Warning	This symbol indicates information that, if ignored, could possibly result in death or personal injury due to incorrect handling.
Caution	This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Warning

• This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
• Special techniques are required to install or remove this product, so make sure you contact a specialist or your local dealer. Failure to do so may cause electric shock or malfunctions.
• Disconnect the power cord from the projector before installing/removing this product to/from the projector. Installing/removing the product while the power cord is connected may cause electric shock.
• Do not use sprays that contain flammable gas to remove dust or lint from the product. The high heat generated inside the projector may cause a fire.
• Do not use or install in locations where it may be subject to water or rain, or high humidity, such as outdoors, in a bathroom, or shower room, and so on. Otherwise, it could cause a fire or electric shock.
• Do not place the product in a location subject to high levels of dust or humidity, or in a location subject to smoke or steam such as on a work surface or near a humidifier. Otherwise, it could cause a fire or electric shock.
• Unless you are a qualified service technician, do not open the product's case unless instructed to do so in the User's Guide. Never disassemble or remodel the product. There are high-voltage components inside the product that could cause fire, electric shock, or an accident.
• Do not place containers containing water or any chemical products and so on near this product. If anything spills or enters the product, it could cause a fire or electric shock to occur.

Caution

• Special techniques are required to install or remove this product, so make sure you contact a specialist or your local dealer. Otherwise, unexpected malfunctions could occur due to static electricity and so on.
• This product has been designed for exclusive use with Epson projectors. Before installing this product, check the projector's model number. If this product is installed on anything except for the specified projector, it may cause damage to this product or the projector.
• When installing/removing this product to/from the projector, be careful not to injure yourself on the edge of the product or the edge of the slot.
• Do not use or store in places where the product might be subjected to high and low extremes of temperature. Also, avoid any sudden changes in temperature.
• Do not store this product within reach of children. There is a risk of children swallowing screws or them getting stuck in the throat. If any screws are swallowed accidentally, contact a doctor immediately.
• Make sure that no dust or trash enters the slot when installing this product. If dust or trash enters the projector, it could cause a malfunction.
• Do not touch the connectors on this product with your hands. If this product is damaged by static electricity it will not operate correctly. Make sure you discharge any static build up before handling this product.
• When cleaning this product, do not use a wet cloth or solvents such as alcohol, benzene, or thinner. Doing so could cause an electric shock or malfunction to occur.

Part Names

Front

Name Function
1	DVI-D In port Inputs the computer DVI-D signals.
2	HDMI In port	Inputs video signals from HDMI compatible video equipment and computers.
3	DC Out port	Connects the power port for optical HDMI cables. This port is for supplying power only and cannot be use for communication. Operations for all equipment are not guaranteed. Check that you can operate your equipment when using this connector.

Rear

Name Function
1	Connector Connects to the projector's Slot ports.

Installing and Removing the Interface Board

Procedures and illustrations may differ depending on the projector you are using. For details, see the "User's Guide" supplied with the projector.

Installing

You can install boards in Slot1 or Slot2 on the projector.

1. Remove the slot cover.

Loosen the fixing screws (4 points) with a commercially available No. 2 cross-head screwdriver, and pull out the slot cover.

Store the removed slot cover in a safe place.

* The slot cover may not be attached depending on the projector you are using.

Before replacing this product with another interface board, make sure you remove the interface board from the projector first.

→ P. 8 - "Removing"

2. Make sure the interface board is not at an angle, and insert it straight into the slot.

Push the interface board firmly into the slot until it is fully inserted.

3. Tighten the fixing screws (4 points) with a commercially available No. 2 cross-head screwdriver.

Caution

- Tighten the fixing screws securely. If the interface board is not fixed securely in place, the projector may malfunction.

- Do not use an electric screwdriver when tightening the fixing screws. Doing so could damage the interface board.

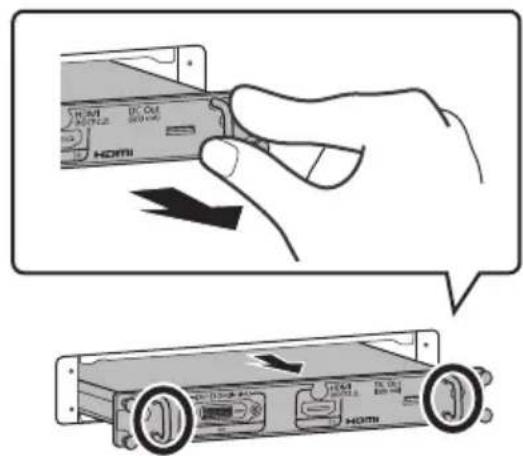

Removing

1 Loosen the fixing screws (4 points) with a commercially available No. 2 cross-head screwdriver.

② Grip the knob, and pull the interface board straight out.

Caution

Make sure the slot cover or an interface board is always installed in the slot. If dust or trash enters the projector, it could cause a malfunction.

When Images are not Displayed

• Make sure that the screws on the interface board are tightened securely. - Make sure that the projector's [Video Terminal Settings] are correct. For details, see the guides supplied with the projector. - Check that the projector or the interface board is using the latest firmware version. For inquiries, use the contact details provided in the guides supplied with the projector.

Specifications

For inquiries, use the contact details provided in the guides supplied with the projector. When disposing of this product, be sure to follow local rules and regulations. When using this product in a company, be sure to follow the company's disposal rules and regulations.

Product name ELPIFO1
External dimensions	W 180 × H 23.5 × D 133 mm (not including protruding parts)
Connection ports HD	MI In port ( ×1) HDMI HDCP 2.2 compatible
	DVI-D In port (×1) DVI-D 24 pin single	linkHDCP compatible
	DC Out port (×1, power supply only)*1	USB connector (A type)(up to 500 mA)
Supported resolutions	WQXGA*2*3, WQHD*3, QXGA*3, WUXGA*2, 1920×1080, UXGA,WSXGA+, SXGA+, SXGA, WXGA++, WXGA+, WXGA, XGA, SVGA,VGA4K (4096 × 2160, SMPTE)*3, 4K (3840 × 2160) *3, HDTV(1080i/1080p), HDTV (720p), SDTV (576i/576p), SDTV(480i/480p)
Scanning frequency (horizontal)	HDMI: 15 to 135 kHz, DVI-D: 15 to 75 kHz
Scanning frequency (vertical)	24 to 60 Hz
Dot clock frequency	HDMI: 13 to 297/594 MHz, DVI-D: 13 to 162 MHz
Power 17 Vdc, 0.5 A
Operating temperature range	0 to +50°C (no condensation)
Storage temperature range	-10 to +60°C (no condensation)
Mass Approx. 446 g

*1 Operations are not guaranteed for all USB compatible devices. *2 Only VESA CVT-RB (Reduced Blanking) signals are supported. *3 Only the HDMI In port is supported.

Supported resolutions may differ depending on the projector you are using. For details, see the guides supplied with the projector.

Trademarks

HDMI and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing LLC.

List of Safety Symbols Compliant with IEC60950-1 A2

The following table lists the meaning of the safety symbols labeled on the equipment.

No.	Symbol mark	Approved standards	Meaning
1		IEC60417No. 5007	"ON" (power)To indicate connection to the mains.
2		IEC60417No. 5008	"OFF" (power)To indicate disconnection from the mains.
3		IEC60417No. 5009	Stand-byTo identify the switch or switch position by means of which part of the equipment is switched on in order to bring it into the stand-by condition.
4		ISO7000No. 0434BIEC3864-B3.1	CautionTo identify general caution when using the product.
5		IEC60417No. 5041	Caution, hot surfaceTo indicate that the marked item can be hot and should not be touched without taking care.
6		IEC60417No. 6042ISO3864-B3.6	Caution, risk of electric shockTo identify equipment that has risk of electric shock.
7		IEC60417No. 5957	For indoor use onlyTo identify electrical equipment de-signed primarily for indoor use.
8		IEC60417No. 5926	Polarity of d.c. power connectorTo identify the positive and negative connections (the polarity) on a piece of equipment to which a d.c. power supply may be connected.
9		IEC60417No. 5001B	Battery, generalOn battery powered equipment. To identify a device for instance a cover for the battery compartment, or the con- nector terminals.
10		IEC60417No. 5002	Positioning of cellTo identify the battery holder itself and to identify the positioning of the cell(s) inside the battery holder.
11		IEC60417No. 5019	Protective earthTo identify any terminal which is in- tended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth electrode.
12		IEC60417No. 5017	EarthTo identify an earth (ground) terminal in cases where symbol No. 11 is not explicitly required.
13		IEC60417No. 5032	Alternating currentTo indicate on the rating plate that the equipment is suitable for alternating cur-rent only; to identify relevant terminals.
14		IEC60417No. 5031	Direct currentTo indicate on the rating plate that the equipment is suitable for direct current only; to identify relevant terminals.
15		IEC60417No. 5172	Class II equipmentTo identify equipment meeting the safety requirements specified for Class II equipment according to IEC 61140.
16		ISO 3864	General prohibitionTo identify actions or operations that are prohibited.
17		ISO 3864	Contact prohibitionTo indicate injury that could occur due to touching a specific part of the equipment.
18		---	Never look into the projection lens while the projector is on.
19		---	To indicate that the marked item don't place anything on projector.
20		ISO3864IEC60825-1	Caution, laser radiationTo indicate the equipment has a laser radiation part.
21		ISO 3864	Disassembly prohibitionTo indicate a risk of injury, such as electric shock, if the equipment is disassembled
22		EC60417No. 5266	Standby, partial standbyTo indicate that part of the equipment is in the ready status.
23		ISO3864IEC60417No. 5057	Caution, movable partsTo indicate that you must keep away from movable parts according to protection standards.
24		IEC60417-6056	Caution (Moving Fan Blades)As a safety precaution, stay away from the moving fan blades.
25		IEC60417-6043	Caution (Sharp Corners)To indicate sharp corners that should not be touched.
26		---	To indicate that looking into the lens while projecting is prohibited.
27		ISO7010No.W027ISO3864	Warning, light emission (UV, visible light, IR, etc.)When you are close to the light emissions, be careful not to injure your eyes or skin.
28		IEC60417No.5109	Usage prohibition in residential areasTo indicate that this is an electrical device or a device that is not suitable for use in residential areas.

1 Remove the slot cover.

① Remove the slot cover.

⚠️ Caution

① Remove the slot cover.

① Remove the slot cover.

Supplier's DECLARATION of CONFORMITY

According to 47CFR, Part 2 and 15

Class A digital devices, peripherals & switching power supplies

We: Epson America, Inc.

Located at: 3840 Kilroy Airport Way

Long Beach, CA 90806

Tel: [phone]

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class A digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR § 2.906. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON

Type of Product: Interface board

Model: ELPIF01

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

For Canadian Users

CAN ICES-3 (A) / NMB-3 (A)

English

The crossed out wheeled bin label that can be found on your product indicates that this product and incorporated batteries should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product and its batteries from other waste streams to ensure that it can be recycled in an environmentally sound manner. For more details on available collection facilities please contact your local government office or the retailer where you purchased this product. Use of the chemical symbols Pb, Cd or Hg indicates if these metals are used in the battery.

Deutsch

This information only applies to customers in the European Union, according to Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 27 January 2003 on waste electrical and electronic equipment (WEEE) and DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 6 September 2006 on batteries and accumulators and waste batteries and accumulators and repealing Directive 91/157/EEC and legislation transposing and implementing it into the various national legal systems.

For other countries, please contact your local government to investigate the possibility of recycling your product.

For users outside the Province of Buenos Aires, Argentina:

This information only applies to customers in the Province of Buenos Aires, Argentina, according to Law No. 14321 in the Province of Buenos Aires (excluding the City of Buenos Aires) on waste electrical and electronic equipment (WEEE).

For other countries and other locations, please contact your local government to investigate the possibility of recycling your product.

Indication of the manufacturer and the importer in accordance with requirements of EU directive
