USER MANUAL COOKYOO 7900 YOO DIGITAL

• Carefully read the instructions before using your appliance.
• Switch off the appliance before fitting and removing the attachment.
• Keep your fingers away from moving parts and the opening on the attachment.
• Always ensure loose articles and clothing are secured before using pasta makers attachment.
• Only use the appliance for its intended domestic use, the manufacture will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.
• Never leave the appliance to run unsupervised, especially when young children or handicapped persons are present.
• Check that the voltage rating of the appliance does in fact match that of your electrical system. Any connection error will nullify the guarantee.
• The appliance must be plugged into an earthed electrical socket.
• If you have to use an electrical extension lead, it must be earthed and you should make sure that no-one can trip over it.
• Unplug the appliance as soon as you have finished using it and when you clean it.
• Don't use your attachment and/or appliance if it has been damaged. You should contact an approved service centre.
• Any work on the appliance other than normal care and cleaning by the customer must be carried out by an approved service centre.
• Do not immerse the appliance, the power cord or the plug in water or in any other liquid.
• Do not allow the power cord to hang within the reach of children, to come close to or into contact with the hot parts of your appliance, any other source of heat or any sharp edge.
• If the power cord or the plug are damaged, don't use your appliance. To avoid any risk, these must be replaced by an approved service centre.
• Do not put any accessories containing metal in a microwave oven.
• Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
• Do not touch the whisk, mixer blade or kneading hook while the appliance is in operation.
• Only uses one attachment at a time.
• Do not operate the appliance for more than 10 minutes at one time. Allow 30 minutes rest before next use.
• This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
  Children should be supervised to ensure that they do not play with the appliance.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

ELECTRICAL REQUIREMENTS

Volts:220/240 V.A.C. Hertz: 50/60 Hz

The wattage rating for your stand mixer is printed on a tag under the mixer base. It is also listed on the trim band. If the power cord is too short, have a qualifi ed electrician or serviceman install an outlet near the appliance. The maximum rating is based on the attachment that draws the greatest load (power). Other recommended attachments may drawsignifi cantly less power.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

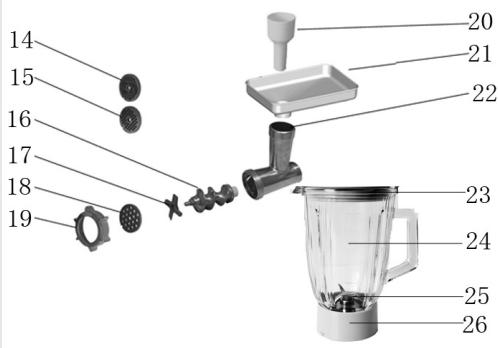

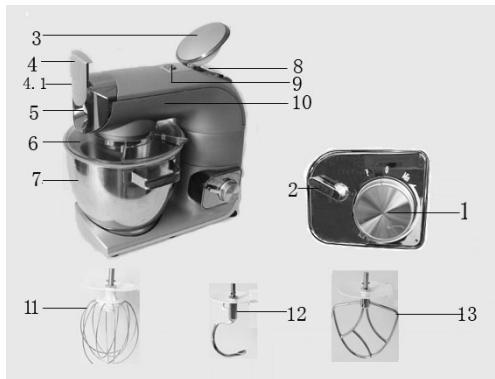

DESCRIPTION

1. Speed control switch
2. Release button for multifunction head
3. Cover
4. Removable cover for mincer outlet
   4.1. Release button for Cutter housing
5. Outlet for mincer

6. Bowl cover

7. Stainless steel bowl

8. Outlet for blender
9. Release button for Cover 3
10. Multifunction head
11. Whisk
12. Dough hook
13. Mixer blade
14. Fine grinding disc
15. Medium grinding disc

16. Worm shaft

17. Cutter blade

18. Coarse grinding disc
19. Screw ring
20. Pusher
21. Tray
22. Cutter housing
23. Cover for jug
24. Glass jug
25. Blade
26. Blade seat

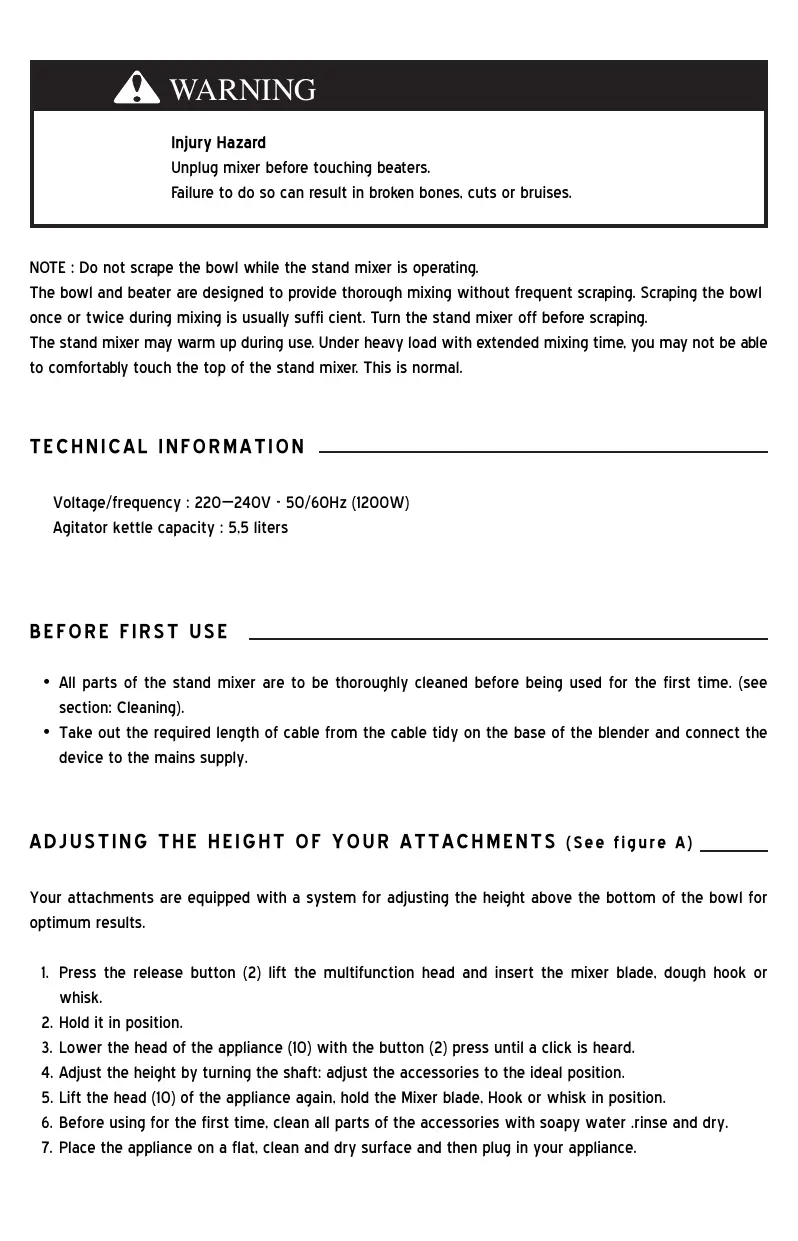

Injury Hazard

Unplug mixer before touching beaters.

Failure to do so can result in broken bones, cuts or bruises.

NOTE : Do not scrape the bowl while the stand mixer is operating.

The bowl and beater are designed to provide thorough mixing without frequent scraping. Scraping the bowl once or twice during mixing is usually suffi cients. Turn the stand mixer off before scraping.

The stand mixer may warm up during use. Under heavy load with extended mixing time, you may not be able to comfortably touch the top of the stand mixer. This is normal.

TECHNICAL INFORMATION

Voltage/frequency:220-240V·50/60Hz(1200W)

Agitator kettle capacity : 5.5 liters

BEFORE FIRST USE

• All parts of the stand mixer are to be thoroughly cleaned before being used for the first time. (see section: Cleaning).
• Take out the required length of cable from the cable tidy on the base of the blender and connect the device to the mains supply.

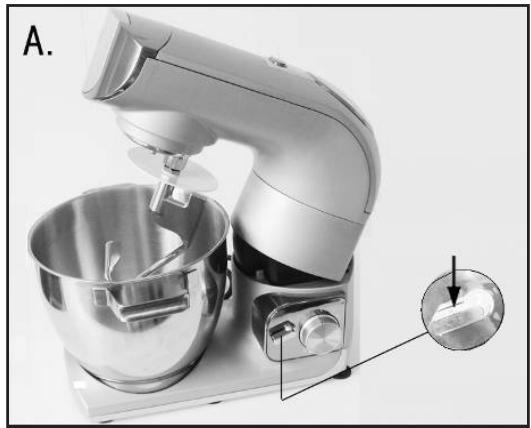

ADJUSTING THE HEIGHT OF YOUR ATTACHMENTS (See figure A)

Your attachments are equipped with a system for adjusting the height above the bottom of the bowl for optimum results.

1. Press the release button (2) lift the multifunction head and insert the mixer blade, dough hook or whisk.
2. Hold it in position.
3. Lower the head of the appliance (10) with the button (2) press until a click is heard.
4. Adjust the height by turning the shaft: adjust the accessories to the ideal position.
5. Lift the head (10) of the appliance again, hold the Mixer blade, Hook or whisk in position.
6. Before using for the first time, clean all parts of the accessories with soapy water .rinse and dry.
7. Place the appliance on a flat, clean and dry surface and then plug in your appliance.

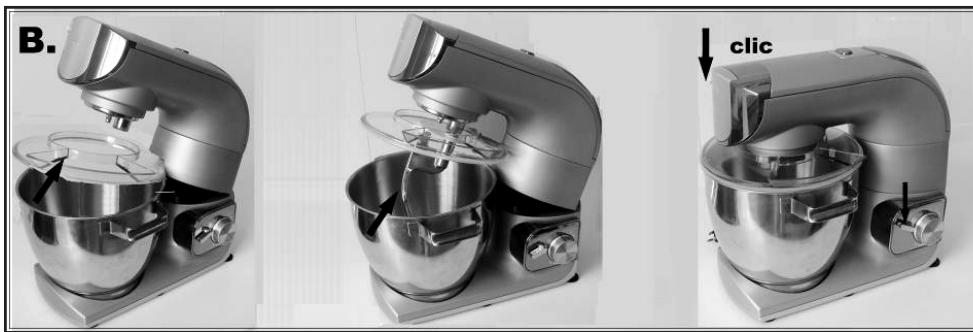

MIXING/KNEADING/BEATING/EMULSIFYING/WHISKING (See figure B)

Depending on the nature of the ingredients, the bowl (7) with its cover can be used to prepare up to 2.3 kg of dough.

1. Press button (2) to the release the multifunction head (10) and raise it to a vertical position.
2. Fit the bowl(7) onto the appliance by turning until it locks in position and place the ingredients in it, weighting them as indicated under the weighing function (see figure B).
3. Position the cover on the head with the filling opening at the front of the appliance (see figure B).
4. Fit the desired accessory (11, 12,13) in the outlet, pushing the shaft of the accessory home and turn it a quarter turn towards you to lock it in position (see figure B).
5. Lower the multifunction head of the appliance to horizontal position and press button again (a click should be heard).
6. During preparation, you can add ingredients through the opening the cover.
7. To stop the appliance, turn the knob (1) back to 0.

Depending on the nature of the ingredients, the blender can be used to prepare up to 1.4L of mixture.

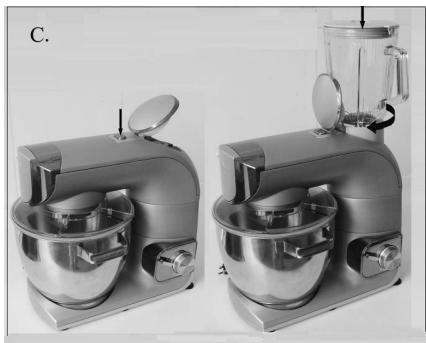

Assembling and fitting the attachment

1. Assemble the blade assembly to the seal and lock it with a quarter turn clockwise into the bottom of the jug (the jug must be upright).
2. Lower the multifunction heard of the appliance (10) to a horizontal position and press button (2) again (a click should be heard).
3. Press button (9) to open the cover (3).
4. Ensure that the appliance is at a standstill before latching on the assembled blender.
5. Fit the assembled blender and lock it in position by turning it anticlockwise.
6. Place the ingredients in the blender jug, weighing them as indicated under the weighing function and then fit the cover with the measuring plug.

WARNING

Do not run the blender empty for more than 1 minute.

Never fill the mixing jug with boiling fluids, you could allow these to

cool down to a room temperature. Otherwise, the appliance could

overheat and the glass of the mixing jug could crack.

When you use the jug operate ice, you could select nine ices each time

and the every ice size is 40MM * 40MM * 20MM .

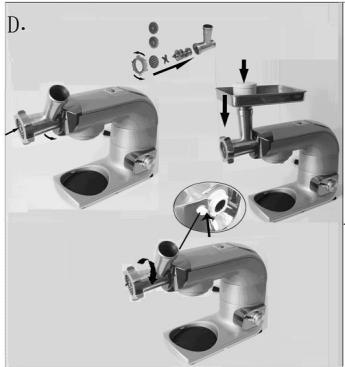

Assembling and fitting the attachment

1. Take the body (Cutter housing 22) by the feed tube with the largest opening upwards.
2. Insert the worm shaft 16 (drive pins first) in the cutter housing 22.
3. Fit the cutter blade 17 on the shaft with the cutting edges upwards.
4. Place the selected hole-plate over the blades ensuring that the two lugs fit in the two cut-outs in the body (see the figure D).
5. Screw ring (19) the cap nut fully home on the body.
6. Check the assembly .the shaft should have no play nor be able to turn on itself.
7. Play the multifunction head in the horizontal position (a click should be heard).
8. Offer up the assembled mincer attachment, titled towards you, to the outlet and engage it fully. Return the feed tube to a vertical position by turning to the rear until it stops.
9. Place the removable tray on the feed tube.

WARNING

When you disassembled the body (Cutter housing 22), you must press the button (Release button for Cutter housing, see the arrow of figure D).

Insert the pieces of meat in the feed tube piece by piece using the pusher. never push the meat with the finger or any other utensil.

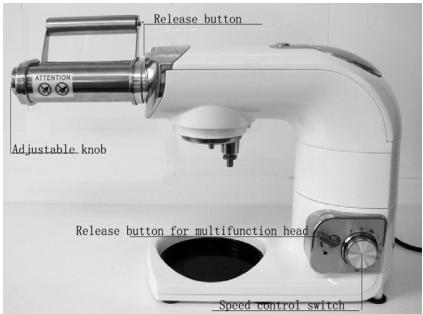

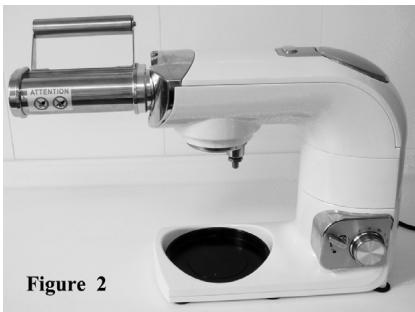

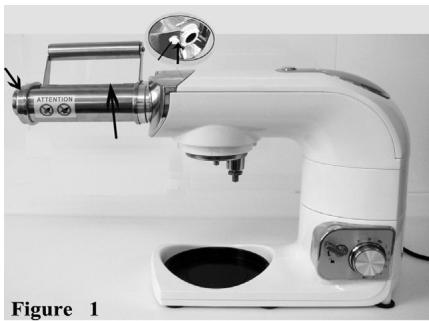

TO ASSEMBLE

1. To remove the removable cover for mincer outlet (4), slide the catch then pull off.
2. Hold the attachment one hand and press the release button another hand, then insert the attachment into the outlet drive and turn until the drive clicks into place. You may have to turn it both ways, when the drive is engaged, rotate the attachment so that the pin is in a vertical position, then engage the pin into the slot. (See figure 1)
3. Release the catch.

1. Make your pasta dough, follow one of the dough recipes supplied.
2. Set the adjustable knob on the side of the pasta attachment to number 1 by pulling the knob out and turning.
3. Flatten a piece of dough and sprinkle some flour between the rollers.
4. Turn the kitchen machine to speed 1(you will see the rollers turning).
5. Pass the piece of dough through the rollers repeating until you get a smooth surface. (folding the dough in half across its witch or length between rolling will help to achieve this).
6. Adjust the knob progressively from 1 to 9, each time re-feeding the dough through the attachment to achieve the desired thickness .pasta thickness using settings 7 to 9 is recommended.
7. Cut the rolled pasta into desired /manageable pieces, use as required.

Caution: when you use the pasta attachment, the speed control switch you could choose 3-4 speeds.

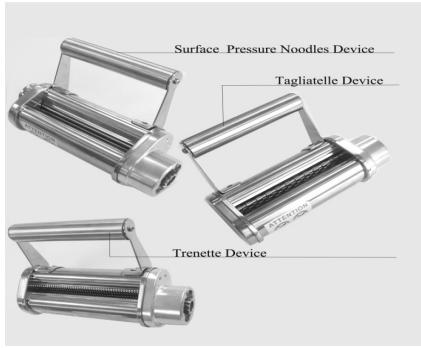

Tagliatelle (Tagliatelle device)

Trenette (Trennette device)

1. To use these attachments you must have rolled out pasta using the flat pasta attachment (surface pressure noodles device) first. (see figure 2)
2. To fit any of the additional attachments available, follow the to assemble instructions.
3. Feed the rolled out pasta through the pasta attachment and the different cutters will slice the pasta to create different pasta variations.
4. Pasta can be left for up to 4 hours before cooking.

To cook pasta

1. Bring a pan three quarters full of water to the boil, add salt to taste.
2. It is optional to add a small amount of olive oil to the water, this may help prevent the pasta from sticking.
3. Add the pasta and gently boil for approximately 2 to 4 minutes to taste.

Basic pasta dough

500g flour or plain flour

4 eggs

2.5ml salt

2.5ml oil

Water if necessary

WHOLEMEAL PASTA

500g wholemeal flour

4 eggs

2.5ml salt

2.5ml oil

Water if necessary

PASTA ROSSA

500g flour or plain flour

3 eggs

75g pureed tomato

2.5ml salt

2.5ml oil

Water if necessary

Method

1. It the flour, salt, oil and beaten eggs (eggs should be mixed with tomato puree if applicable) into the mixing bowl.
2. 1. Mix with the dough hook on speed 1-2 for approximately 2-3 minutes, adding water if the mix is too dry.
3. Switch off the machine and gather the ingredients together and knead by hand until you obtain a smooth dough.
4. For best results, wrap the dough then let it rest for approximately 15 minutes before rolling out with the pasta attachment

5. Fit the flat pasta making attachment and follow the previous instructions.

6. Unplug the appliance.

7. Never immerse the motor until in water or put it under running water wipe it with a soft dry or slight damp cloth.
8. For easier cleaning, quickly rinse the accessories after use. Completely dismantle the mixer attachment. Handle the blades with care, as some have sharp cutting edges.
9. Wash, rinse and wipe the accessories or the can be put in the dishwasher, except for the metal components of the mincer attachment body Fine grinding disc(14).Medium grinding disc(15).Worm shaft(16). Cutter blade (17).Coarse grinding disc (18) and Screw ring(19).
10. The grinding disc and the blade must be kept lubricated. Wipe them over with cooking oil after each use.
11. If your accessories are discoloured by food (carrots, oranges etc), rub them gently with kitchen towel dipped in cooking oil and then clean in the usual way.
12. Blender assembly: pour hot water with a few drops of washing up liquid into the blender jug. Close the cover. Fit it on the appliance and give a few pulses. Remove the blender, rinse the jug under running water and leave it upside down to dry .for cleaning more difficult residues, especially with thicker preparations. The blade nut assembly can be detached from the bottom of the jug, to do this, place the empty blender upside down on a flat surface, release the blade /nut assembly with a quarter turn and lift out the seal with care.

WARNING

Don't wash the pasta attachment in the dishwasher, wipe clean with a damp cloth do not immerse in water.

Accessory	Food	Maximum	Operation time	Speeds	Preparation
whisk	Cream(include 38%fat)	250ml	10 minutes	5-6	/
	Egg white	12pcs	3 minutes	5-6	/
Dough hook	Flour	1700g	10 minutes	5-6	/
	Salt	20g
	Yeast	10g
	Sugar	10g
	Water	1100g
	Lard	20g
Mixer blade	Flour	100g	5 minutes	1-4	/
	Castor sugar	100g
	Margarine	100g
	Egg	2pcs
Blender	Carrot	560g	3 minutes	P/6	15x15x15mm
	Water	840g			/
Meet Grinding	Beef	2000g	3 minutes	3-6	20x20x60mm
	Pork	2000g	3 minutes

PACKING LIST

• Main body COOKYOO 7900
• Steel bowl 5.5 L
• Dusty cover
  Beater
• Dough hook
  Whisk
• Pasta machine
• Mixer blade
• Blender
• Meet Grinding
• Wire whipe
• Instruction manual
  Warranty card

WARNING

Electrical Shock Hazard

Unplug before servicing.

Failure to do so can result in death or electrical shock.

Please read the following before calling your service center.

1. The Stand Mixer may warm up during use. Under heavy loads with extended mixing time periods, you may not be able to comfortably touch the top of the unit. This is normal.
2. The Stand Mixer may emit a pungent odor, especially when new. This is common whit electric motors.
3. If the flat beater hits the bowl, stop the stand mixer.

If your Stand Mixer should malfunction or fail to operate, please check the following :
