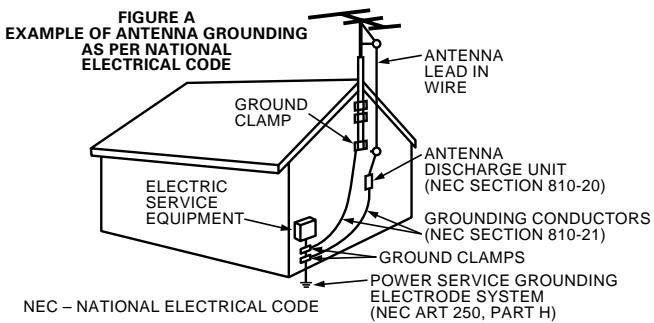

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC – NATIONAL ELECTRICAL CODE

1. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
2. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
3. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
4. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
5. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

1. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
2. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
3. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
4. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CONTENTS

① Satellite speaker system (SC-A76)....6

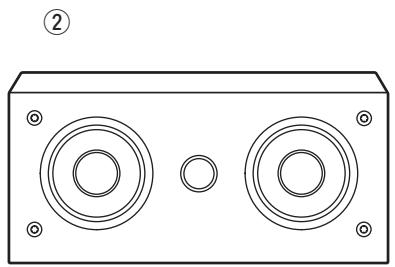

② Center speaker system (SC-C76)....1
③ Active subwoofer (DSW-76) ....1
④ Cord A (3 m)....3
⑤ Cord B (10 m)....4
⑥ Cord C (3 m, RCA PIN)....1
⑦ Anti-slip pad (4 pcs. / 1 sheet)....7
⑧ Operating instructions....1
⑨ DENON service network....1

INHALT

Technical line drawing of a speaker with concentric circles and mounting holes (no text or symbols)

Technical line drawing of a rectangular electronic device with two circular speakers and mounting holes (no text or symbols)

Diagram of a twisted cable or wire with labeled parts (4 and 5), no text or symbols present.

Line drawing of a coiled cable with a terminal connector, labeled with number 6 (no text or symbols on the cable itself)

CONTENIDO

Line drawing of a rectangular electronic device with a circular vent and base (no text or symbols)

■ PRECAUTIONS FOR INSTALLATION

Note:

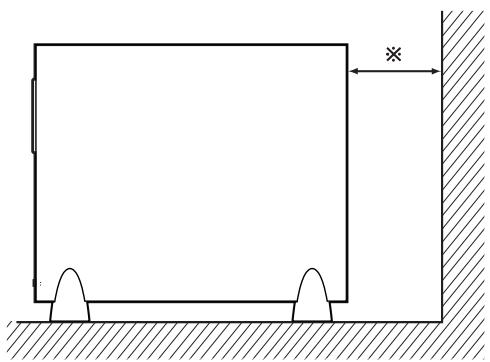

For heat dispersal, do not install this equipment in a confined space such as a book case or similar unit.

Pure technical diagram of a rectangular device with circular top and side supports, no text or symbols present

Simple line drawing of a rectangular structure with supports and a dimension arrow, no text or symbols present.

Wall

Wand

Mur

Parete

Pared

Muur

Vägg

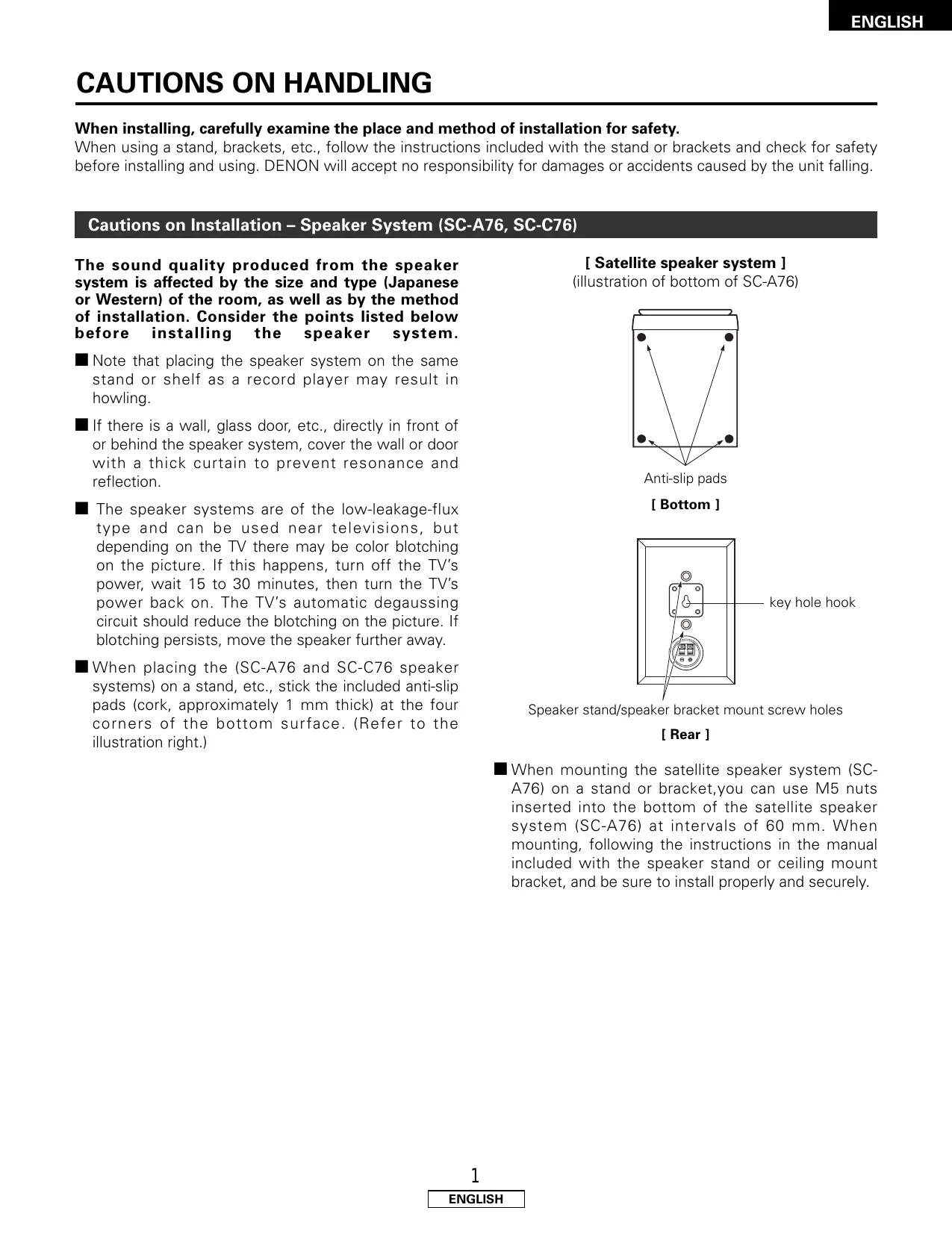

When installing, carefully examine the place and method of installation for safety.

When using a stand, brackets, etc., follow the instructions included with the stand or brackets and check for safety before installing and using. DENON will accept no responsibility for damages or accidents caused by the unit falling.

Cautions on Installation – Speaker System (SC-A76, SC-C76)

The sound quality produced from the speaker system is affected by the size and type (Japanese or Western) of the room, as well as by the method of installation. Consider the points listed below before installing the speaker system.

■ Note that placing the speaker system on the same stand or shelf as a record player may result in howling.
If there is a wall, glass door, etc., directly in front of or behind the speaker system, cover the wall or door with a thick curtain to prevent resonance and reflection.
The speaker systems are of the low-leakage-flux type and can be used near televisions, but depending on the TV there may be color blotching on the picture. If this happens, turn off the TV's power, wait 15 to 30 minutes, then turn the TV's power back on. The TV's automatic degaussing circuit should reduce the blotching on the picture. If blotching persists, move the speaker further away.
When placing the (SC-A76 and SC-C76 speaker systems) on a stand, etc., stick the included anti-slip pads (cork, approximately 1 mm thick) at the four corners of the bottom surface. (Refer to the illustration right.)

[ Satellite speaker system ]
(illustration of bottom of SC-A76)


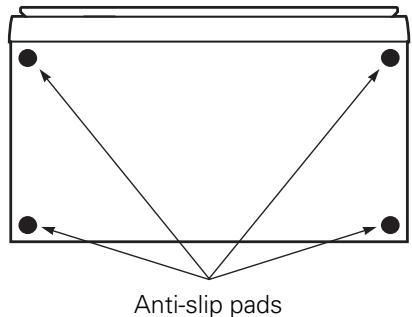

Anti-slip pads

[Bottom]

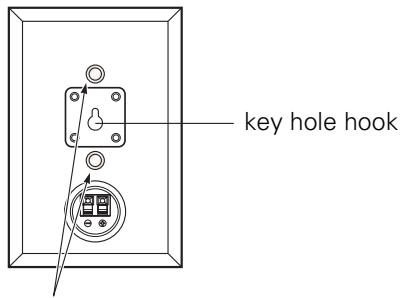

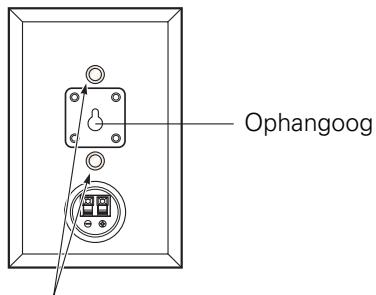

key hole hook

Speaker stand/speaker bracket mount screw holes
[ Rear ]

When mounting the satellite speaker system (SC-A76) on a stand or bracket, you can use M5 nuts inserted into the bottom of the satellite speaker system (SC-A76) at intervals of 60 mm. When mounting, following the instructions in the manual included with the speaker stand or ceiling mount bracket, and be sure to install properly and securely.

CAUTION:

• To ensure safety, do not place any objects on top or lean objects against the speaker system.
• The speaker may topple down or fall if force is applied to the sides. Be particularly careful to avoid this, as this could cause injury or other serious accidents.

WARNING:

• When installing the speaker systems on the ceiling or wall, to ensure safety, have specialists do the installation work.
• Be sure to fasten the speaker cords to a wall, etc., to prevent people from tripping over them or otherwise pulling on them accidentally, causing the speaker systems to fall.
• Be sure to check for safety after installing the speaker systems. Afterwards, perform safety inspections at regular intervals to be sure there is no danger that the speaker systems will fall. DENON will accept no responsibility for damages or accidents caused by inappropriate choice of the place of installation or improper installation procedures.

[ Center speaker system ]
(illustration of bottom of SC-C76)

Anti-slip pads

[ Bottom ]

126 mm key hole hook

[ Rear ]

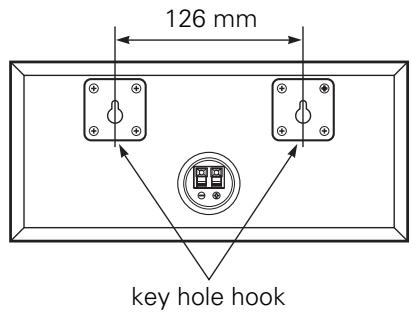

■ Using the SC-C76 mounted on a wall:

The SC-C76 can be mounted on a wall using the key hole hooks on its rear panel.

To do so, install the two screws in the wall at a distance of 126 mm from each other (equal to the distance between the wall-mount bracket holes on the SC-C76's rear panel).

Once the screws are installed in the wall, insert onto the heads of the screws.

Be sure to mount to a solid wall strong enough to support the weight of the speaker system.

Note that DENON will accept no responsibility for damages due to the speaker systems falling.

CAUTION:

- If the speaker system is set in an unstable place, it could tip over or fall, possibly resulting in serious accidents.

Other Cautions – ALL (SC-A76, SC-C76, DSW-76)

Note that color blotching may occur on a TV, etc., due to interaction with the speaker system if there is a magnet or an object generating magnetic force nearby.

Example: (a) When there are magnets on the door of the rack, stand, etc.

(b) When a health device, etc., equipped with magnets is placed nearby.
(c) When toys or other objects using magnets are placed nearby.

■ Note that the illustrations in this instructions may differ from the actual set for explanation purposes.
■ Be sure to keep the operating instructions.

After reading these operating instructions, store them in a safe place. We also recommend filling in the necessary items on the back cover.

Cautions on Installation – Active subwoofer (DSW-76)

■ Note that placing the active subwoofer on the same stand or shelf as a record player may result in howling.
The DSW-76 active subwoofer is a Lowleakage-Flux type and can be used near televisions, but depending on the TV there may be color blotching on the picture. If this happens, turn off the TV's power, move the TV and subwoofer a little apart, wait 15 to 30 minutes, then turn the TV's power back on. The TV's automatic degaussing circuit should reduce the blotching on the picture. If blotching persists, move the subwoofer and TV further away from each other.
■ Install on a firm, flat floor to prevent accidents due to toppling down.
■ Do not place a record player, CD player or other AV device on top of the active subwoofer.

Other Cautions – Active subwoofer (DSW-76)

The built-in amplifier of the active subwoofer (DSW-76) includes a muting circuit. The output signal is strongly attenuated for several seconds after the power is turned on. If the volume is adjusted during this time, the output may be extremely high when the muting circuit is deactivated. Be sure to wait for the muting circuit to be deactivated before adjusting the volume.
Note that color blotching may occur on a TV, etc., due to interaction with the subwoofer if there is a magnet or an object generating magnetic force nearby.

Example: (a) When there are magnets on the door of the rack, stand, etc.

(b) When a health device, etc., equipped with magnets is placed nearby.
(c) When toys or other objects using magnets are placed nearby.

■ Note that the illustrations in this instructions may differ from the actual set for explanation purposes.
■ Be sure to keep the operating instructions.

After reading these operating instructions, store them in a safe place. We also recommend filling in the necessary items on the back cover.

WARNING:

- Be sure to fasten the power supply cord to a wall, etc., to prevent people from tripping over it or otherwise pulling on it accidentally, causing the subwoofer to fall.

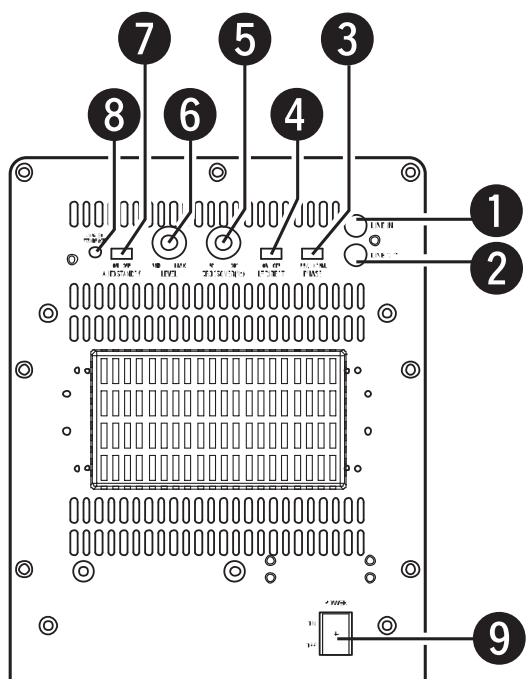

Active subwoofer (DSW-76) rear panel

7 5 3 8 6 4 1 2 I/O B I/O C I/O D I/O E I/O F I/O G I/O H I/O I 9

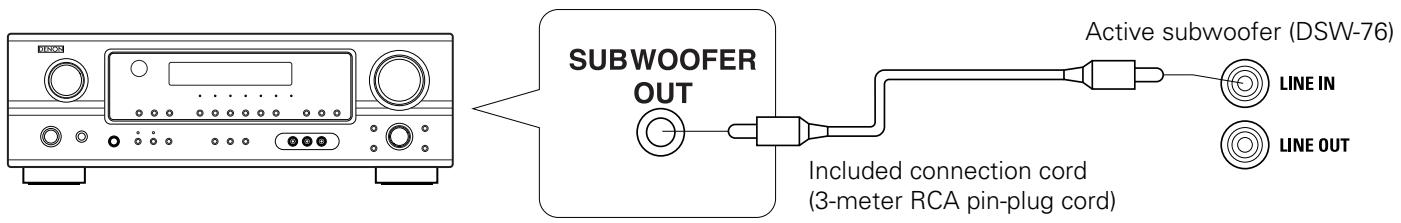

1 Line input connector (LINE IN)

• Connect this to the AV surround receiver's (or amplifier's) pre-out connector ("SUBWOOFER", "MONO OUT", etc.) using the included connection cord (3-meter RCA pin-plug cord).
• To connect with a DENON AV surround receiver (or amplifier), connect this Line input connector to the subwoofer terminal on the rear of the surround receiver.

② Line output connector (LINE OUT)

• The signal input to the line input connector is output as such from here in parallel.
• When using two active subwoofers, connect the other active subwoofer's line input connector to this connector.

③ Phase selector switch (PHASE)

• This switches the phase of the output signal with respect to the input signal.
• Normally use the active subwoofer with this switch set at the “NORM.” position. If the continuity between the sound of the active subwoofer and the left and right speakers seems unnatural, try switching to the “REV.” position, and set the switch to the position in which the sound is most natural.

4 LF direct switch (LF DIRECT)

• When using the DSW-76 active subwoofer connected to a DENON AV surround receiver (or amplifier), if this function is turned on the signals bypass the active subwoofer's crossover and volume adjustment circuits, resulting in purer, higher quality sound we recommend turning the LF DIRECT switch (4) to the "ON" position. Note that when this is done the crossover adjustment control (5) and volume adjustment control (6) will no longer function.

5 Crossover adjustment control (CROSSOVER)

• This control only functions when the LF DIRECT switch (④) is set to the "OFF" position.
• This control sets the upper limit of the frequencies reproduced by the active subwoofer.
• Setting criteria

50 Hz : For left/right speakers with diameters of 20 cm or greater

100 Hz : For left/right speakers with diameters between 10 and 25 cm

200 Hz : For left/right speakers with diameters of 12 cm or less

- When using a Dolby Digital or dts-compatible AV surround receiver (or amplifier), we recommend turning the LF DIRECT switch (4) to the "ON" position and not using this function.

※ "Dolby" is a trademark of the Dolby Laboratories Licensing Corporation.
※ “dts” is a trademark of Digital Theater Systems.

About the AV surround receiver's (or amplifier's) crossover frequency selection:

The crossover frequency of the satellite speaker/center speaker and the active subwoofer (the boundary between the frequency range produced by the active subwoofer and the other speakers) is set on the connected AV surround receiver (or amplifier), and is usually fixed at between 80 and 120 kHz.

With some AV surround receivers (or amplifiers), however, including the DENON AV surround receiver (or amplifier), this frequency can be selected. When using this type of amplifier, the crossover frequency can be selected to suit your tastes.

When using the SYS-76HT with this type of amplifier, a richer sound can be achieved by setting the crossover frequency to around 135 Hz or the nearest value. Adjust the crossover frequency to suit your tastes. For instructions on switching, refer to your amplifier's operating instructions.

When connecting to a Dolby Digital or dts-compatible AV amplifier, whether one on which the crossover frequency is fixed or one on which it can be adjusted, we recommend setting the LF DIRECT switch of the active subwoofer (DSW-76) to the "ON" position.

⑥ Volume adjustment control (LEVEL)

• This control only functions when the LF DIRECT switch (4) is set to the "OFF" position.
• Use this control to adjust the volume of the active subwoofer.
• When turned clockwise ( ) from the center position, the volume of the active subwoofer increases, and when turned counterclockwise ( ), the volume decreases. Set to the desired position.
• For some signals, a very soft sound will be produced even when the volume adjustment control("LEVEL") is turned fully counterclockwise (○) and set to the minimum ("MIN"). This is not a malfunction.

If this should happen, connect the cord connected to the set's LINE IN connector to an output connector (SUB WOOFER PRE OUT, MONO OUT, etc.) for which the signals pass through the master volume circuitry of the AV surround receiver (or amplifier), etc., before being output.

Use the set's volume adjustment control ("LEVEL") to adjust the volume difference with the speakers other than the super woofer (front, center, surround, etc.), and adjust the overall volume using the master volume control on the AV surround receiver (or amplifier), etc.

7 Auto standby selector switch (AUTO STANDBY)

ON : The auto standby function is activated OFF : The auto standby function is deactivated

Auto Standby Function:

The AV surround receiver (or amplifier) is automatically set to the standby mode if no signal is input for 5 to 11 minutes, thereby saving electricity.

The power turns on immediately when a signal is input.

8 Status indicator

- The two-colored indicates the active subwoofer's operating status, as follows: Power "ON"......Lights green Auto power off (standby mode)......Lights red Power "OFF"......Indicator off Protective circuit activated......Flashing red

9 Power switch (POWER)

• The power turns on when this switch is set to the "ON" position.
• Several seconds are required for the set to begin operating. This is because the set includes a built-in muting circuit to prevent noise when the power switch is turned on and off.
• When set to the "OFF" position, the power turns off.

CAUTION:

• Do not plug the power supply cord into an AC power outlet until all connections have been completed.
• Check the left and right channels and be sure to interconnect them properly, L (left) to L, R (right) to R.
• Plug the power supply cord in securely. An insecure connection could cause noise.
• Note that clamping pin-plug cords and power supply cords together or running pin-plug cords near the power transformer could result in humming or noise.
• Check the polarities of the speakers and AV surround receiver (or amplifier) and be sure to interconnect properly. Connect the red terminal on the speaker to the “+” speaker terminal on the AV surround receiver (or amplifier), the black terminal on the speaker to the “−” speaker terminal on the AV surround receiver (or amplifier).

(1) Connecting the line input connector (LINE IN) – Active subwoofer (DSW-76)

※ Connect this to the pre-out connector for the active subwoofer on the AV surround receiver (or amplifier) ("SUBWOOFER PREOUT", "MONO OUT", etc.) using the included connection cord (3-meter RCA pin-plug cord).

HNSK SUBWOOFER OUT Included connection cord (3-meter RCA pin-plug cord) Active subwoofer (DSW-76) LINE IN LINE OUT

CAUTION:

- If this connector is connected to the pre-out connector for the surround center channel of a stereo amplifier or AV surround receiver (or amplifier), only the center channel's bass sound will be produced, so the overall bass sound will be insufficient.

(2) Connecting the speaker terminals – Speaker System (SC-A76, SC-C76)

※ Read the AV surround receiver's (or amplifier's) operating instructions carefully before connecting, and be sure to use properly.
※ When connecting the equipment or changing the connections, be sure to turn the equipment's power switches off and unplug the power plugs from the AC power outlets.

■ Connecting the speaker terminals

1. Peel off the sheath from the tip of the connection cord, then firmly twist the wires by hand so that they do not stick out and cause short-circuits.
2. Press and lower the lever, and insert the cord's core wire into the hole.
3. Release the lever.
   Gently pull on the connection cord to check that it is firmly connected.

1

Sheath

Simple line drawing of a branching structure with a black 'X' mark on the right (no text or symbols)

2

Simple line drawing of a mechanical component with arrows indicating motion (no text or symbols)

3

Black : “−” (negative) Silver colored core wire

Pure electrical circuit lines without any symbols

Red : “+” (positive) Copper colored core wire
NOTE: Make sure the core wires do not touch each other.

Once the connections are completely, gently pull on the speaker cords to make sure they are securely connected.

CAUTION:

• Be careful to interconnect the positive (“+”, red) and negative (“−”, black) sides and the left and right speakers properly.
• Connect the side of the included connection cord with the copper colored core wires to the red speaker terminal.
• To prevent circuit problems, never short-circuit copper and silver colored core wires or the left and right cords.

Simple line drawing of a pipe with a cross mark and explosion symbol (no text or labels)

When installing, carefully examine the place and method of installation for safety.

When using a stand, brackets, etc., follow the instructions included with the stand or brackets and check for safety before installing and using. DENON will accept no responsibility for damages or accidents caused by the unit falling.

USING THE ACTIVE SUBWOOFER (DSW-76)

1. Set the power switch to the "ON" position.

2. When the unit's power supply cord is plugged into a switched AC outlet on the AV surround receiver (or amplifier), if the power switch is left at the "ON" position, the unit's power turns on and off automatically when the AV surround receiver's (or amplifier's) power is turned on and off.

3. If the power supply cord is not plugged into a switched AC outlet on the AV surround receiver (or amplifier), set the unit's power switch to the "ON" position after turning on the AV surround receiver's (or amplifier's) power. When turning the power off, set the unit's power switch to the "OFF" position before turning off the AV surround receiver's (or amplifier's) power.

4. Adjust the volume using the volume adjustment control.

※ For details, see "Part Names and Functions".

REMOVING THE SPEAKER NET (SC-A76, SC-C76)

※ The net on the front of the speaker systems (SC-A76, SC-C76) can be removed.
- To remove, grasp both sides of the net and pull forward.
- To mount, line up the holes in the four corners of the speaker net with the projecting pieces in the four corners of the cabinet and press in.

Are the connections proper?
Are you operating correctly as describe in the operating instructions?
■ Are the AV surround receiver (or amplifier) and player(s) operating properly?

If the set does not operate properly, check the items on the table below. If this does not solve the problem, the set may be out of order. Turn off the power, unplug the power supply cord from the AC power outlet, then contact your store of purchase. If your store of purchase cannot help you, please contact your DENON nearest authorized service network.

Symptom	Cause	Remedy
Active subwoofer (DSW-76): Indicator does not light and no sound is produced when power is turned on.	AC power plug is not securely connected.	Check the connection of the AC power plug.
Active subwoofer (DSW-76): Indicator lights but no sound is produced.	Cords are not securely connected.Volume adjustment control is turned all the way down.	Connect securely.Turn the control and set it to the desired position.
Active subwoofer (DSW-76): Indicator flashes and no sound is produced.	Protective circuit has been activated due to excess input or rise in temperature.	Set the power switch to the “OFF” position, wait at least 1 minute, then set the power switch back to the “ON” position. If the problem persists, unplug the power supply cord from the AC power outlet and contact your store of purchase.
Active subwoofer (DSW-76): Sound is distorted.	Volume level is too high.Sound is being distorted on connected AV surround receiver (or amplifier).	Turn the volume adjustment control counterclockwise to lower the volume.Do not amplify the bass sound on the AV surround receiver (or amplifier). (Lower the AV surround receiver’s (or amplifier’s) bass adjustment control or volume.)
Active subwoofer (DSW-76): Oscillation (loud continuous sound produced).	Volume of active subwoofer or AV surround receiver (or amplifier) set too high.	Lower the volume of the active subwoofer or AV surround receiver (or amplifier).

■ Satellite speaker system (SC-A76)

Type:	2-way, 2-speakersClosed box / Low-leakage-flux
Drive units:	9 cm cone bass-mid x 11.9 cm soft dome high range x 1
Input impedance:	6 Ω/ohms
Max. input:	40 watts (IEC)100 watts (PEAK)
Crossover frequency:	5 kHz
Frequency range:	60 Hz ~ 25 kHz
Dimensions:	120 (W) x 180 (H) x 156 (D) mm
Mass:	1.6 kg

■ Center speaker system (SC-C76)

Type:	2-way, 3-speakers
	Closed box / Low-leakage-flux
Drive units:	9 cm cone bass-mid x 2
	1.9 cm soft dome high range x 1
Input impedance:	6 Ω/ohms
Max. input:	40 watts (IEC)
	100 watts (PEAK)
Crossover frequency:	5 kHz
Frequency range:	60 Hz ~ 25 kHz
Dimensions:	266 (W) x 120 (H) x 156 (D) mm
Mass:	2.1 kg

■ Active subwoofer (DSW-76)

Type:	Reflex box / Low-leakage-fluxBuilt-in amplifier
Drive unit:	20 cm cone x 1
Frequency range:	27 Hz ~ 200 Hz(LF Direct / Off)
Rated output power:	100 watts(4 Ω/ohms load, 55 Hz, T.H.D. 0.7 %)
Input impedance:	22 kΩ/kohms
Crossover frequency:	50 Hz ~ 200 Hz (Variable)(LF Direct / Off)
Power supply:	120V / 60Hz (North America)230V / 50Hz (Europe)
Power consumption:	55 watts (UL / IEC)Less than 1 watt (Standby)
Dimensions:	262 (W) x 357 (H) x 434 (D) mm
Mass:	11.7 kg

* For improvement purpose, specifications and design are subject to change without notice.

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

Auto Standby Function:

Simple line drawing of a branching structure with a black 'X' mark on the right (no text or symbols)

2

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a pipe with a cross mark below, no text or symbols present

Technical diagram of a wall-mounted electrical outlet with two components and a central socket (no text or labels)

7 5 3 8 6 4 1 2 I/O B I/O C I/O D I/O E I/O F 9

4 LF direct switch (LF DIRECT)

Simple line drawing of a branching structure with a black 'X' mark on the right (no text or symbols)

2

Simple line drawing of a mechanical component with arrows indicating motion (no text or symbols)

3

Pure electrical circuit lines without any symbols

Diagram of a pipe with a cross mark and explosion symbol (no text or labels)

7 5 3 8 6 4 1 2 I/O B I/O C I/O D I/O E I/O F I/O G I/O H I/O I 9

4 LF direct switch (LF DIRECT)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a pipe with a cross mark below, no text or symbols present

Technical line drawing of a wall-mounted electrical socket with mounting bracket (no text or symbols)

Estante del audio/soporte del audio atornillado
[Trasero]

7 5 3 8 6 4 1 2 I/O B I/O C I/O D I/O E I/O F I/O G I/O H I/O I 9

4 LF direct switch (LF DIRECT)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a pipe with a cross mark below, no text or symbols present

Simple line diagram of a container with four circular ports and bidirectional arrows indicating flow or movement (no text or symbols)

Antislipplaatjes

[ Onderkant ]

Ophangoog

7 5 3 8 6 4 1 2 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 9

① Lijningangsaansluiting (LINE IN)

4 LF direct switch (LF DIRECT)

Bekleding

Simple line drawing of a branching structure with a black 'X' mark on the right (no text or symbols)

2

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a pipe with a cross mark and explosion symbol (no text or labels)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

3

Svart : “−” (negativ)

Silverfärgad tråd

Pure electrical circuit lines without any symbols

Röd : “+” (positiv)

Kopparfärgad tråd

Simple line drawing of a pipe with a cross mark below, no text or symbols present
