GH 2800 SUPER SILENT - Mechanical chipper GUDE - Free user manual and instructions

Type de produit	Broyeur de végétaux électrique
Marque	Güde
Modèle	GH 2800 SUPER SILENT
Puissance moteur	2800 W
Tension d'alimentation	230 V / 50 Hz
Capacité de broyage max.	Diamètre de branche jusqu'à 40 mm
Système de coupe	Rotor à lames avec contre-lame réglable
Niveau sonore	93 dB(A) (silencieux pour sa catégorie)
Dimensions (L x l x H)	60 x 40 x 90 cm
Poids	25 kg
Matériau du châssis	Acier robuste avec peinture anti-corrosion
Roues	2 roues pour un déplacement aisé
Sac collecteur	Sac de récupération inclus (60 L)
Sécurité	Arrêt automatique du moteur en cas de surcharge ; protection thermique ; interrupteur de sécurité
Entretien et nettoyage	Nettoyage régulier du rotor et de la contre-lame ; affûtage des lames possible
Pièces détachées et réparabilité	Lames, contre-lames, sacs, roues disponibles ; réparabilité assurée par le SAV Güde
Informations générales	Utilisation pour branches, feuilles, déchets de jardin ; bac de remplissage large

Frequently Asked Questions - GH 2800 SUPER SILENT GUDE

What is the maximum branch diameter that the GH 2800 SUPER SILENT can shred?

The shredder can shred branches with a maximum diameter of 40 mm.

Is the shredder as quiet as its name suggests?

Yes, the GH 2800 SUPER SILENT is designed to be quieter than standard models, with a noise level of approximately 93 dB(A).

What type of cutting system does it use?

It uses a blade rotor with an adjustable counter blade for efficient shredding.

How do I maintain the shredder?

After each use, clean off plant residue. Regularly sharpen the blades and check belt tension if applicable. Refer to the manual for specific intervals.

What are the important safety measures?

Always wear gloves and safety glasses. Never insert hands into the filling opening. The shredder has an automatic stop in case of overload.

Can I shred dead leaves with this model?

Yes, you can shred leaves and garden waste, but for optimal results, mix them with stiffer branches.

Is the collection bag provided?

Yes, a collection bag with a capacity of approximately 60 litres is included.

How do I move the shredder?

The shredder is equipped with 2 wheels and a transport handle for easy movement.

Where can I find spare parts?

Spare parts (blades, counter blades, bags) are available from Güde after-sales service or at authorized dealers.

What should I do if the motor stops during shredding?

Check that the shredder is not overloaded and clean the inlet. Wait a few minutes for the motor to cool down, then reset the safety switch.

USER MANUAL GH 2800 SUPER SILENT GUDE

Translation of the original instructions Electric garden waste shredder

GH 2800

94375

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Germany

Güde

A

B

C

Introduction

Please read this operation manual and the attached safety instructions thoroughly to enjoy your new electric garden waste shredder. We also recommend keeping the operation manual for future reference. We reserve the right to make technical changes for the purpose of improvement in the course of continuous product development.

This is the original operation manual.

Scope of supply

Unpack the appliance and check completeness and delivery of the following components:

• GH 2800 P
• filling hopper
• pusher • collection bag or box
• original user guide

Please contact your seller if you either miss some components or the components are damaged.

If assembled, weight of the appliance is 23.5 and 28 kg, respectively. If needed, two persons may lift the appliance from the packing.

Description of the appliance

Sturdy and quiet shredder with rolling technology and reverse operation feature. Ideal for cutting of branches and bushes; the garden waste is processed in fine chips by simultaneous cutting by blades and roll crushing for faster composting. Automatic drawing of crushed material up to 40 mm in diameter in, direct drive and undervoltage switch.

GH 2800 P #94375 (Fig. E)

1. overload safety feature
2. Start pushbutton (green), Stop pushbutton (red) next to it
3. forward and reverse operation pushbutton 3A. forward operation feature 3B. reverse operation feature
4. filling hopper
5. plug
6. set screw for crushed material size control (Fig. H/13)
7. collection box
8. side holder of the collection box
9. leg
10. transport wheels
11. collection box clamping lever (Attention! the appliance does not start without clamping.)

Technical data

ELECTRIC GARDEN WASTE SHREDDER GH 2800 #94375

Voltage/frequency: 230V~50Hz

Engine power: 2800W (P1;S6 40%)**

Engine max. revolutions: 2994 min^-1

Protection type: IPX4

Max. branch diameter: max. 40mm

Collection bag volume: 60l

Noise level: L WA 86dB *

Dimensions LxWxH (in mm): 640x485x860

Weight: 28kg

Noise information

Noise values were measured according to 2000/14/EC

(1.60m height, 1m distance) - measurement tolerance +-3dB

**

Operation mode S6 40% indicates load profile: 40 seconds load and 60 seconds idle operation, long-term operation is acceptable for normal operation.

General safety instructions

Read this user guide thoroughly. Make sure you know the controls and correct use of the appliance. Store the user guide safely for future reference.

Safe work

Keep your workplace tidy!

Disorder on workplace may result in injuries.

Consider surrounding conditions!

Do not expose to rain.

Do not use in moist or wet environment.

Provide good lighting.

Do not use close to flammable liquids or gases.

Keep other persons at a safe distance!

Other persons, particularly children, may not touch the device and power cable. Keep them at a sufficient distance from your workplace.

Store your device properly!

The device, if not used, should be stored in a dry and closed space, out of reach of children.

Do not overload your device!

Operate the appliance within specified working capacity.

Use correct device!

Do not use the device for purposes other than intended.

Take care of your appliance!

Observe maintenance directions and instructions.

Check appliance cable regularly and ask an authorized specialist to replace it if damaged.

Check extension cable regularly and replace if damaged. Keep handles dry, without traces of oils and greases.

Be careful!

Be aware of what you are doing. Approach your work with sound mind. Do not use the device if you are tired.

WARNING!

Use of non-compliant accessories may result in an injury.

Have your device repaired by an electrician only!

This device complies to applicable safety provisions. Repairs may be performed by an electrician with the use of genuine spare parts, otherwise the user may be exposed to injury hazard.

Safety instructions specific for this device

Turn the appliance off and unplug the appliance from socket before working with cutting mechanism.

If the power supply cable either cuts or gets damaged during operation, do not touch the cable but deactivate the safety feature of relevant electric circuit.

If the cable is damaged, do never use appliance.

Wear protective gloves, goggles,

ear protection, solid shoes and long trousers.

Longer material used for crushing, which protrudes from the appliance, may suddenly lash when drawing in and therefore, keep safety distance and work with caution.

Caution to rotating cutting blade. Do

never put your hands and legs in the hole. (Fig. D)

Make sure the bystanders are not hit

or injured by hurled materials.

Keep bystanders at a safe distance from the appliance.

Wait until all parts of the appliance have stopped before touching them.

Never use the appliance while it is running.

Never stand on the collection box.

Do not touch the filling hopper during operation. After turning off, the appliance continues to run for a while.

Children and persons unfamiliar with the appliance, as well as physically or mentally handicapped persons or persons with sensory limitations, must not operate the appliance.

The appliance must be assembled according to the user guide before turning it on.

Use an RCD (residual current device) and check it before each use.

Use only extension cables that are protected against splashing water and approved for outdoor use.

Do not touch the socket or plug if

your hands are moist or wet.

Never cross the power or extension cable; do not squeeze, pull, or jerk the cable. Protect the cable against excessive temperature, oil, and sharp edges.

No persons or animals may be present within three meters distance during operation. The operator in the working zone is responsible for third parties.

Use only genuine accessories.

Do not wear wide clothes, long strings and ties.

Use the appliance on a free place with flat and solid surface.

Do not use the appliance on either paved or gravel surface. Ejected material may cause injury.

Check all bolts, nuts and other fixing parts and their tightness as well as safeguards with respect to their placement before use. Replace damaged or illegible warning and information decals.

Make sure the filling hopper is empty before turning the appliance on.

Keep your face and body out of reach of the filling hopper.

Avoid approaching of your hands, other body parts and clothes to the filling hopper and ejection hole. (Fig. D)

Turn off the appliance before coupling and uncoupling of the collection bag.

Always ensure balance and a safe stance. Do not lean over ahead too much and do not stand higher than the appliance leg when filling the hopper.

Keep distance from the ejection zone.

To a maximum extent possible make sure the material being processed does not include metal parts, stones, bottles, cans and other foreign things.

If foreign thing gets in the appliance, turn it off; the appliance sounds abnormally or vibrates. Unplug the appliance from socket and continue as follows:

• assess damage;
• replace all damaged parts or make them repaired;
• check if the parts are free and retighten, if necessary.

Never attempt to repair the appliance, even if you are properly trained for this purpose.

Make sure the material being processed does not accumulate in the ejection shaft; otherwise, transport of the material is prevented and reverse impact in the filling hopper may take place.

If the appliance is clogged, turn it off and wait until it has completely stopped. Unplug the appliance from the socket before removing the shredded material from the appliance.

Check whether the safeguards and covers are intact and connected properly. Perform maintenance or repair, if needed, before use.

Never attempt to change engine revolution settings. In case of problems, contact a specialist.

Keep ventilation holes free of residues and other deposits to avoid engine damage and potential fire. Never lift or remove the appliance if it is on and running.

Turn the appliance off, wait until the cutting mechanism stops, and unplug the appliance every time you leave the workplace.

Never tilt the appliance during operation.

Never expose the appliance to rain and moisture. Store the appliance in a dry place only.

Never attempt to disengage the forced turning off.

Application according to intended use

The appliance is intended for shredding of fibrous and woody garden waste for composting purposes. The collection bag or collection box is intended only for collection of shredded material (not for storing). Never stand on the collection box.

Any other use contradicts the intended use. The manufacturer is not responsible for subsequent damage and injuries. Please note the appliance is intended for domestic use only.

Assembly GH 2800 #94375 (Fig. F/G)

Attention! Turn off and unplug the appliance before maintenance, cleaning, and assembly. The same procedure applies to damaged, cut, or tangled cable.

Keep power supply voltage: power supply voltage must correspond to data on the appliance product label.

Small conductor size of the extension cable significantly reduces power output of the appliance. For cables up to 25 metres, minimum cross section is 3 × 1.5mm² , for cables over 25 metres, minimum cross section is 2.5mm² . Attention! The extension cables not corresponding to the requirements must not be used. The extension cable, plug and socket must be water-proof and approved for outdoor application.

Cable connections must be dry and must not rest on ground.

If a cable drum is used, it must be unreeled.

For GH 2800 P #94375, proceed as follows:

(Fig. F, G)

• Unpack the appliance (Fig. F/2 and F/3)
• Take the collection box and attach legs to the appliance (Fig. F/4 and F/5)
• Attach the carriage and transport wheels (Fig. F/6 and F/7).
• Put the appliance body on the base (Fig. G/8) (adhere to Fig. G/8-1 and G/8-2).
• Now, attach the appliance to the base. (Fig. G/9)
• Put the collection box under the appliance (Fig. G/10) and secure by the collection box clamping lever (G/10-1 a G/10-2). Attention! The appliance does not operate without clamping!

Operation

Always put the appliance on solid and leveled surface. Do never tilt or move the appliance if it is on and running.

Attention! The engine runs down after turning off.

Remove soil from the root balls and avoid penetration of foreign objects such as stones, glass, metals, plastic materials or textiles in the filling hopper and thereby to the appliance, cutting roll; the appliance may get damaged.

The filling hopper must be empty.

Turning on

Press green Start pushbutton (Fig. A/3) or (Fig. E/2)

Turning off

Press red Stop pushbutton (Fig. A/3) or (Fig. E/2)

Safety feature against repeated running up

The safety feature against repeated running up prevents sudden engine start after power supply failure.

Reverse operation

Press and hold the reverse operation button (Fig. A/4), (Fig. A/4a) and depending on your model, press also green Start button (Fig. A/3) or (Fig. E/2), the cutting roll then rotates in reverse direction and releases the clogged material.

Overload safety feature

If the appliance is exposed to excessive load (e.g. clogging of cutting roll), the appliance halts after several seconds.

Work instructions

Material supply

Insert the shredded material only, the rotating cutting roll will draw it in automatically.

• Insert such quantity of material not to clog the hopper.
• Do not shred soft waste without solid consistency but compost it directly.
• Make sure the shredded material exits to the collection box or bag without any restrictions - danger of clogging!
• Best results are achieved if you shred fresh branches shortly after cutting.

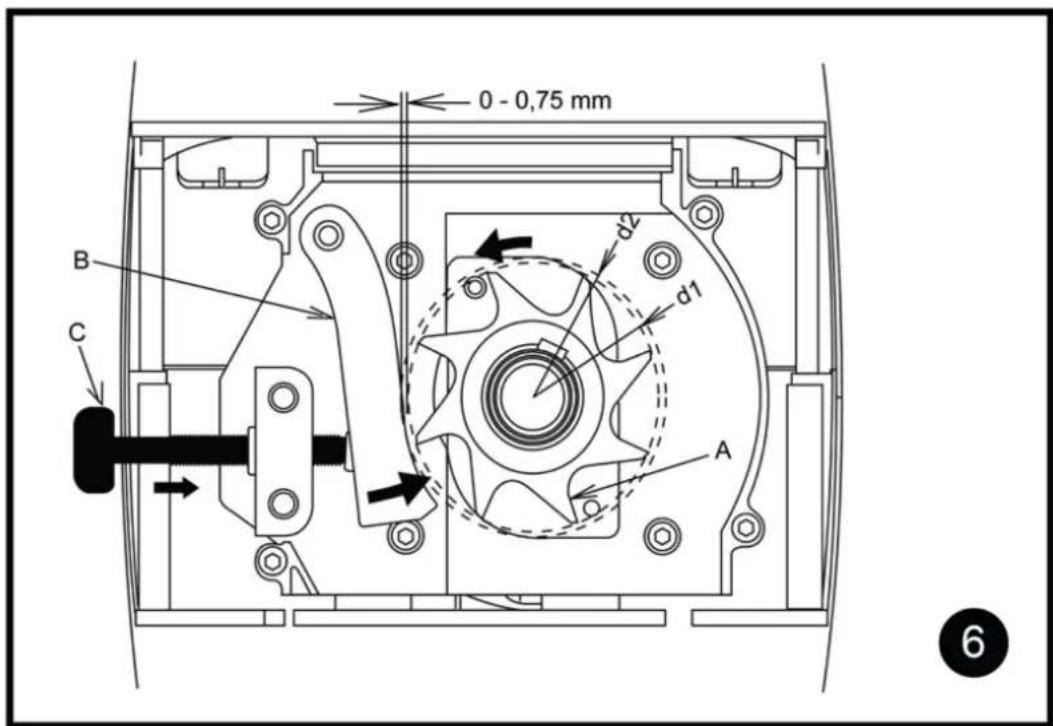

Adjustment of pressure plate

The pressure plate is calibrated by the manufacturer and requires no adjustment before first commissioning. Adjustment of the pressure plate is required in case of wear, e.g. when the branches wedge in chain each other and they can not be shredded correctly.

In this case proceed as follows:

Turn the engine on and slowly rotate the adjustment knob (Fig. A/9 or Fig. E/6) or Fig. H/13 clockwise to hear slight friction. The cutting roll sharpens the pressure plate to correct distance. Adjust the plate so that it is not worn too early.

Identification

Product safety:

CE
The product complies with relevant EU standards

Prohibitions:

No pulling the plug!	Protect against rain and moisture!

Warning:

Warning/caution			Caution! Dangerous electric voltage!
Caution! Hurled objects!			WARNING! Rotating appliance poses the risk of injury!
Not suitable for indoor use			Keep bystanders in safe distance from the appliance.

Commands:

General prohibition sign			Read operation manual before use
Use goggles and ear protection			Use protective gloves

Environment protection:

Dispose waste not to harm your environment.				Packaging material from cardboard can be recycled in a collection point.
Defective and/or disposed electric or electronic devices must be delivered to relevant collection points.

Packaging:

Protect against moisture			Packaging must direct upwards
Interseroh-Recycling

Technical data:

Connection Weight
Max power input Protection type
Branch diameter	Collection bag or box volume

Warranty

A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Residual risks and protective measures

Electric residual risks:

Risk	Description	Protective measure(s)
Direct electric contact	Electric shock	Protective switch against stray current FI
Indirect electric contact	Electric shock via medium	Protective switch against stray current FI

Other risks:

Risk	Description	Protective measure(s)
Hurled objects	Shredded material, foreign things etc. may be hurled away from the appliance and cause injury	Always wear goggles and protective gloves.
		You and bystanders must keep sufficient safety distance
Slipping, tripping or fall of persons	The power cable and appliance may be cause of tripping.	Depending on type of installation, adopt relevant measures. (Suitable place of installation, identification of place of installation etc.)

Emergency procedures

Administer first aid according to injury and call for qualified medical assistance.

Protect injured person against other injuries and keep him/her in rest.

For reasons of potential injury, a first aid box according to DIN 13164 must be available on workplace. Replenish immediately material used from the first aid box.

If you require medical assistance, give the following information:

1. Place of accident
2. Type of accident
3. Number of injured persons
4. Type of injury

Disposal

Disposal instructions are illustrated in the form of pictograms on the device or packaging. Description of the pictograms is given in "Identification" chapter.

Disposal of transport packaging

Packaging protects the device against damage during transport. Packaging materials are usually selected according to their effect on environment and disposal methods and can therefore be recycled. Returning of the packaging back to circulation saves resources and costs for packaging disposal. Parts of the packaging (e.g. foil, styropor) may be dangerous for children. Risk of suffocation! Keep these parts of the packaging out of reach of children and dispose as soon as possible.

Operator requirements

The operators must thoroughly read operation manual before use.

Qualification

Except for thorough training by an expert for use of the device, no special qualification is required.

Minimum age

The device may be operated by persons over 16 years of age. An exception is use by younger person if the use takes place under supervision of an adult trainer in the course of education.

Training

Use of the device requires corresponding guidance by an expert or operation manual only. No special training is required.

Service

Any technical questions? Complaint? Do you need spare parts or operation manual?

Go to our website www.guede.com and the section Service will help you quickly and without bureaucracy. Please, help us to help you. In order to identify your device in case of complaint, please indicate serial number, order number and year of manufacture. All information is available on the product label. To have all information always at hand, put them down.

Serial number:

Order number:

Year of manufacture:

Phone: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Maintenance and storage

Keep the air hole and body free from dust and dirt.

Use soft cloth and fine soap solution for cleaning. Avoid direct contact of the appliance with aggressive cleaning agents. Do not use aggressive, volatile or caustic products.

Have your electric garden waste shredder inspected annually by a qualified authorized specialist.

Protect the appliance against moisture and dust.

If not used for a longer period of time, store covered in a dry, safe place not accessible to children.

Troubleshooting

The table shows potential failures, their possible causes and remedies. Call your specialist if you cannot tackle the trouble.

Turn off and unplug the appliance before maintenance and cleaning.

Electric shock hazard.

Symptom	Possible cause	Remedy
Appliance does not run	Collection box not inserted properly	Insert the collection box properly
	Filling hopper not assembled correctly	Assemble the filling hopper correctly
	Defective socket	Use other socket
	Extension cable damaged	Check or replace the cable
	Safety feature activated	Replace
	Overload safety feature activated	Press overload safety feature button (Fig. A/2, Fig. E/1) and remove clogging according to description in chapter "Operation".
Shredded material not drawn in	Shredded material is wet and soft	Use pusher to draw the shredded material in the appliance
	Shredded material clogged in the appliance	Remove clogged shredded material (always wear safety gloves)
		Press reverse operation button or remove clogging according to description in "Operation".

Introduction

Interseroh-Recycling

Technical data:

Translation of the EC-Declaration of Conformity

We hereby declare that the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to the appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us, the Declaration expires.
