CR10 - Radio BLAUPUNKT - Free user manual and instructions

Product Type	Portable Radio
Brand	Blaupunkt
Model	CR10
Dimensions (approx)	180 x 120 x 60 mm
Weight (approx)	300 g
Power Supply	3x AA batteries (not included) or 5V USB
Frequency Bands	FM / AM
Audio Output	Built-in speaker, 3.5mm headphone jack
Antenna	Telescopic antenna
Controls	Volume knob, tuning knob, power/band selector
Additional Features	Analog tuning, backlight display (if applicable)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or solvents.
Safety Precautions	Keep away from moisture and heat sources. Do not disassemble.
Spare Parts & Repairability	Not user-serviceable. For repairs, contact Blaupunkt support.
Manual Download	Available at notice-facile.com

Frequently Asked Questions - CR10 BLAUPUNKT

How do I turn on the Blaupunkt CR10 radio?

Turn the volume knob clockwise until you hear a click. The radio will power on.

How do I tune to FM or AM stations?

Use the tuning knob to scroll through frequencies. For best reception, fully extend the telescopic antenna.

What type of batteries does the CR10 use?

It requires 3x AA batteries (not included). You can also power it via a 5V USB connection.

Can I use headphones with this radio?

Yes, plug headphones into the 3.5mm headphone jack. The built-in speaker will mute automatically.

How do I clean the radio?

Use a soft, dry cloth to wipe the exterior. Avoid using liquid cleaners or abrasive materials.

Why is there no sound coming from the radio?

Check that the volume is turned up, batteries are installed correctly or the USB is connected, and headphones aren't plugged in (if you want speaker sound).

How can I improve FM reception?

Fully extend the telescopic antenna and adjust its orientation. For AM, try rotating the radio itself.

Does the CR10 have an auxiliary input?

No, this model only supports radio reception (FM/AM) and does not have an auxiliary input.

How do I store the radio when not in use?

Remove the batteries to prevent leakage, and store in a dry, cool place away from direct sunlight.

Where can I download the full user manual?

The manual is available for free at notice-facile.com. Search for Blaupunkt CR10.

USER MANUAL CR10 BLAUPUNKT

Alarm clock radio with indoor humidity and temperature

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. • Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like. b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regarding standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

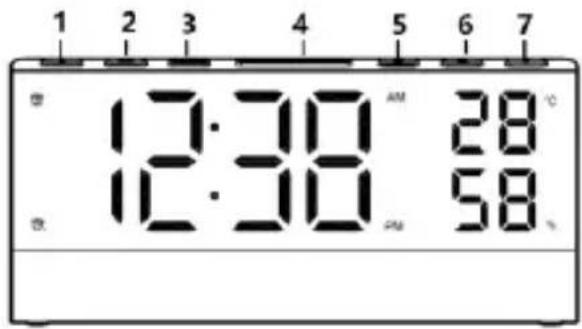

Control locations

1-down button, 5- set button, 9- DC 5V jack,

2- radio button, 3-alarm 1-2/on-off button, 6-volume button, 7-up button, 10-backup cell battery compartment.

4- snooze/dim button, 8- FM antenna,

Installation

Plug the AC/DC adaptor to an AC household outlet, and then plug the DC jack to the back of the unit. Your clock radio is ready to work for you.

Back up battery installation

Your clock radio requires one CR2032 lithium battery (not included) to provide backup power to the clock in the event of a temporary power interruption.

1. Pull out the cell battery cover on side of unit by your fingers; install one fresh CR2032 lithium battery into the battery bracket according to engraved +/- polarity.
2. Push back the battery bracket into the compartment together the installed battery.

If AC power interrupted, the LED display will go off and both the radio and the alarm will not function. The backup battery will keep the time and all settings of your unit. Make sure a fresh CR2032 lithium battery is used. A fresh CR2032 battery could backup your clock continuously for around 3 days.

Setting time, 12/24HR time and the snooze duration

1. Press set once, the hour digits flash. Press up or down button to set the current hour (hold to advance rapidly).
2. Press set again, the minute digits flash. Press up or down button to set minutes. (hold to advance rapidly).
3. Press set again, the display shows "24H" and flashes. Press up or down button to select "12H" or "24H" time format.
4. Press set again, the display shows "05" and flashes. Press up or down button to select your snooze time from 5 to 60 minutes.
5. Press set again or if no key is pressed in approx. 10 seconds to exit the setting mode. Note: when 12-hour time format is selected, the PM/AM LED will appear at the display to indicate the time.

Setting the alarms

1. Press alarm 1-2 button once, the alarm1 clock icon and the hour digits flash. Press up or down button to set the alarm 1 hour. (hold to advance rapidly).
2. Press alarm 1-2 button again to adjust minutes. Press up or down button to set the alarm 1 minutes. (hold to advance rapidly).
3. Press alarm 1-2 button again, LED displays "OFF" (alarm off). To select wake to sound sources, press up or down button to select :

rd = wake-by-radio

bu = wake-by-buzzer

OFF = alarm off

1. Press alarm 1-2 button again, the alarm2 clock icon and the hour digits flash. Press up or downbutton to set the alarm 2 hour. Repeat step 1-3 to set alarm 2.
2. Press alarm 1-2 button again or no button is pressed in around 10 seconds to exit alarm setting mode. When wake-by-radio or wake-by-buzzer is selected, the related alarm is turned on, the alarm 1 or 2 clock icon will show on the left side of the display.

Note: The alarm function can only be operated in AC mode.

Stop and reset the alarm to the coming next day.

When alarm 1 or 2 is sounding, the related alarm 1 or 2 clock icon flashes. Press the radio or alarm 1-2 button once to stop the alarm and reset it to come on the following day. After that, the alarm 1 or 2 clock icon stays on the display.

Snooze operation (default snooze duration is 5 minutes).

When the alarm is sounding, press the snooze/dim button once, the alarm will be silenced and come on again after the set snooze duration.

Note: If your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

Using the HI-LO dimmer.

Press the snooze/dim button to adjust the brightness (HI/LO/OFF) of the LED display. This can only be done when the radio is off or the unit is not sounding.

Set up the FM antenna.

Extend the FM wire antenna fully and vary the direction for the best FM reception. Do not strip, alter, or attach to other antennas.

Listen to the radio.

1. To turn on the radio, press the radio button once, the display shows "ON" and then shows the radio frequency readings in MHz.
2. Press the up or down button to tune the radio to a desired station. Press and hold the up or down button to scan for the next clear station.
3. To adjust the volume, press the volume button once. The display shows "V07". Press the up or down button to adjust the volume from V01 (minimum) to V15 (maximum).
4. Press the snooze/dim button to turn off the radio.

Remark: Keep your radio away from fluorescent lamps or other electronic devices, which may cause interference to the radio.

Using the preset memory

This clock radio features 20 preset memory of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Turn on the radio and select a radio station you like to memorize.
2. Press and hold the set button until "01" flashes. Press the up or down button to select the preset station number you desire to save, then press the set button once again to confirm and save the current station.
3. Repeat steps 1-2 to save other preset stations.
4. To access a preset station at any time, simply press the set button once while the radio is on.
5. To edit a preset station, select another station and then repeat steps 1-2. This overrides the original settings.

Using the sleep timer

In radio mode, short press the radio button repeatedly to switch the sleep time between 5/15/30/45/60/75/90 minutes or off. Choosing your desired sleep time, the unit will start to count down the playing time, and the radio sound will turn off automatically when the sleeping time is reached. Press the radio button twice to check the remaining sleeping time.

Indoor humidity and temperature: the unit can detect and show the indoor humidity in percentage and temperature in Celsius degrees on the right side of the display. Please note that the information may have some deviation depending on ambient conditions. This is not a malfunction.

Troubleshooting

If your clock displays irrelevant time or does not function properly, which may be caused by electrostatic discharge or other interference, unplug the DC jack to disconnect the AC power (and remove the backup battery). The clock radio will be reset to default settings and you need to set it again.

Care of your product

1. Place your clock radio on a stable surface, away from sources of direct sunlight or excessive heat or moisture.
2. Protect your furniture when placing your unit on natural wood and lacquered finishes by using a cloth or protective material between it and the furniture.
3. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as benzene, thinner, or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning.
4. If the unit is not to be used for a prolonged period, such as a month or longer, remove the batteries to prevent possible corrosion. Should the battery compartment become corroded or dirty, clean the compartment thoroughly and replace the batteries.

Specifications

Alarm duration: 1 hour

Snooze duration: 5 to 60 minutes

Sleep timer selections: 5, 15, 30, 45, 60, 75, 90 minutes to OFF

Volume V01 (minimum) to V15 (maximum)

Preset Memories of radio 20

Default settings:

Time format 12/24 hour

Time 0:00

Alarm 1 and 2 6:00

Volume V07 (Level 7)

Snooze duration 05 (5 minutes)

(above spec may revise with prior notice)

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	Dong guan City Shijie Hua XuElectronicsFactory,914419007946843518Room 103,No.200,Technology EastRoad,Shijie Town,DongGuan
Model identifier	HX06-0501000-AG
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.0	A
Output power	6.0	W
Average active efficiency	≥73.62	%
Efficiency at low load (10 %)	73%	%
No-load power consumption	≤0.1	W

Important information

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

Please contact our service.

Tel. [phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
