USER MANUAL HBH-30 SONY ERICSSON

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Not for Commercial Use

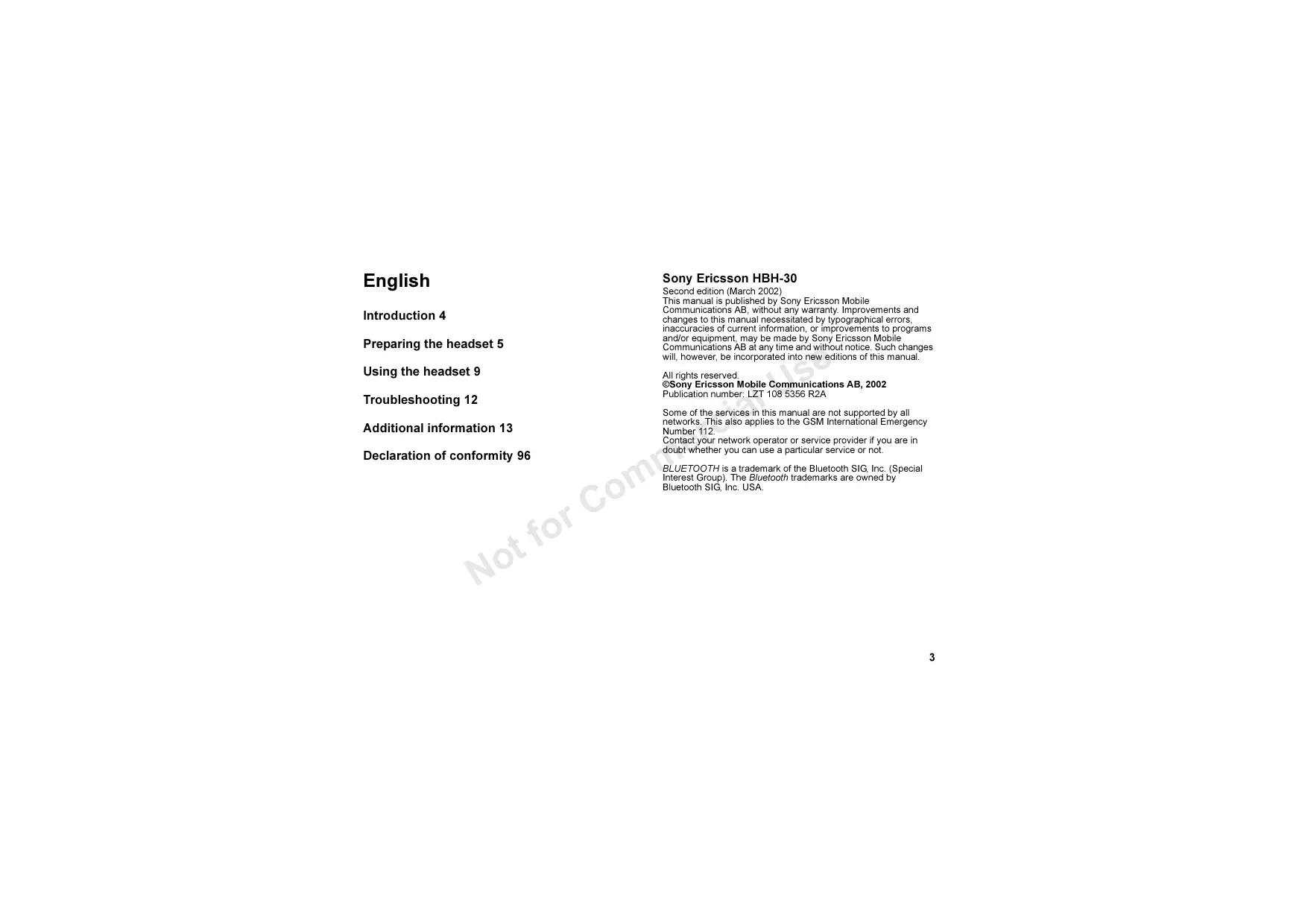

English

Introduction 4

Preparing the headset 5

Using the headset 9

Troubleshooting 12

Additional information 13

Declaration of conformity 96

Sony Ericsson HBH-30

Second edition (March 2002)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile

Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.

All rights reserved.

©Sony Ericsson Mobile Communications AB, 2002

Publication number: LZT 108 5356 R2A

Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112.

Contact your network operator or service provider if you are in doubt whether you can use a particular service or not.

BLUETOOTH is a trademark of the Bluetooth SIG, Inc. (Special Interest Group). The Bluetooth trademarks are owned by Bluetooth SIG, Inc. USA.

Introduction

The Bluetooth™ headset HBH-30 is a portable headset solution based on Bluetooth wireless technology.

See "Guidelines for safe and efficient use" on page 13 and "Limited Warranty" on page 15 before using your headset.

What is Bluetooth wireless technology?

The Bluetooth wireless technology makes it possible to connect any compatible portable and stationary communications device without using cables. The technology is based on a radio link that offers fast and reliable transmission of voice and data information. It does not require a line-of-sight connection in order to establish communication. Bluetooth wireless technology uses a globally available frequency range intended to ensure communication compatibility worldwide.

How can I use my headset?

You can connect your HBH-30 headset to your mobile phone or PC - or any device with Bluetooth wireless technology that supports the Headset profile. This user's guide focuses on how to use the headset with your mobile phone. When the headset is connected to your mobile phone, you can use voice control to make calls (if your phone supports this function). The phone can be tucked away in your pocket or in a bag. You can handle incoming and outgoing calls, and adjust the volume, using the buttons on the headset.

Preparing the headset

To be able to use the headset together with a mobile phone, you need to have a phone with built-in Bluetooth capability, or a phone with a Bluetooth adapter connected to it.

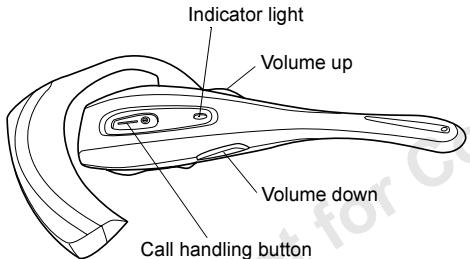

Front

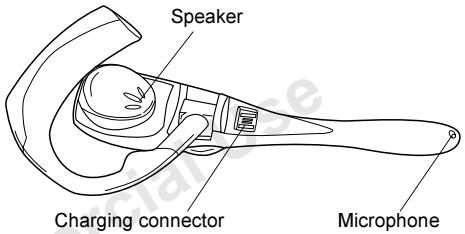

Back

Note: Always handle the headset with care!

Car holder

Use the adhesive tape on the back of the car holder to fasten it to the dashboard in your car.

Getting Started

Before you start using the headset with a phone or other device for the first time, you should:

• Charge the headset battery, using an appropriate Sony Ericsson charger.
• Pair the headset with a device, for example, a mobile phone.

Charging

The headset comes with a built-in rechargeable battery. The battery is not fully charged when you buy the headset. We recommend that you charge the battery until the headset indicator light turns green before using the headset for the first time.

• To remind you that you will soon need to recharge the battery, the headset indicator light flashes red when the headset is on.
• It takes 1 to 1.5 hours to fully recharge the battery.
• During charging, the indicator light shows a steady red light if the headset is turned off, and flashes red if the headset is on.
• When the battery is fully charged, the indicator shows a steady green light if the headset is off, or a flashing green light if the headset is on.

Compatible chargers

You can attach the following Sony Ericsson or Ericsson chargers to the HBH-30:

Travel Charger CTR-10
Standard Charger CST-13
Cigarette Lighter Adapter CLA-11

To charge the battery

• Connect the charger to the headset and to the mains.
  Make sure the flash symbol on the plug faces the speaker.

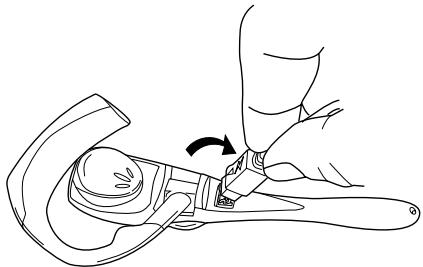

To disconnect the charger

• Tilt the charger plug downwards to remove it.

Instructions

Instructions in this user's guide are based on headset buttons and phone keys. For example, the button or the YES key on the phone can be used to answer a call.

To turn the headset on

• Press and hold until you hear a short low tone followed by a short high tone. The headset indicator light flashes green. If the battery is low, the light flashes red.

Note: The first time the headset is turned on, it will automatically be ready for pairing.

To turn the headset off

• Press and hold until you hear a short high tone followed by a short low tone. The headset indicator light is switched off.

Pairing the headset

Before you can use your headset, you must pair it with the device you want to use it with, for example, a mobile phone. Once you have paired your headset with the phone, you do not need to pair it again until you want to use it with another phone.

General pairing instructions

You pair the headset with the phone by adding it to a list of paired devices in the phone. They then recognize each other when they connect.

To pair the headset (general instructions)

1. Prepare your phone according to the phone's user documentation on pairing.
2. Press for up to 10 seconds until the indicator light on the headset flashes green and red. The headset is now ready for pairing.
3. Continue according to the instructions in the phone's user documentation. The headset passkey is 0000.

To pair the headset with a Sony Ericsson or Ericsson phone

1. With the headset turned off, press and hold for up to 10 seconds until the indicator light on the headset flashes green and red.
2. In the phone, scroll to Extras or Connect, YES, Bluetooth, YES, Paired devices, YES, Add device, YES, Phone initiates, YES.
3. A list of device types that you can pair with your phone appears. Scroll to Headset and press Yes. Make sure that the phone and the headset are not too far apart.
4. HBH-30 appears in the display. Press YES.
5. Enter the headset passkey (0000) and press YES. The phone pairing procedure starts.
6. You may now replace the given headset name with a personal name tag and then press YEs. When pairing has been completed, the headset indicator light flashes green.

Resetting the headset

You may want to reset the headset to its default settings. This also clears all current pairings.

To reset the headset

1. With the headset turned off, press and hold for up to 10 seconds until the indicator light on the headset flashes green and red. Then release the button.
2. Press and hold again until you hear two beeps, followed a moment later by another two beeps. The headset is now turned off. Keep the headset off for at least 30 seconds. The headset has now been reset.

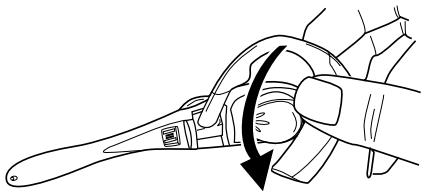

Right or left ear

If you want to wear the headset on your left ear, you have to change the orientation of the ear hook.

To adjust the ear hook for left-ear use:

• Turn the hook 180 degrees.

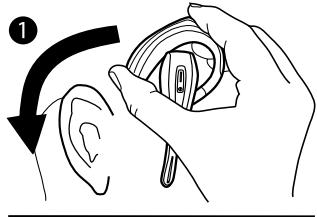

Putting on the headset

1. Put on the headset with the ear hook behind your ear.
2. Make sure the microphone is pointing towards your mouth.

Using the headset

Once you have paired the headset with your phone, you can make and receive calls using the headset as long as it is turned on and within range of the phone - up to 10m (30 ft) outdoors or up to 5m (15 ft) indoors with no solid objects in between. For best performance use the headset and phone in the same room.

If your phone supports voice dialling and it is activated, you can use this feature with the headset.

The following instructions cover the use of the headset with a Sony Ericsson or Ericsson phone with built-in Bluetooth capability, or a Bluetooth phone adapter from Sony Ericsson and a Sony Ericsson or Ericsson phone.

Note: Always make sure the Bluetooth Operation mode in the phone is on when using a Bluetooth headset.

Making calls

Phone functionality is still available when the headset is connected. You can make a call with the phone or with the headset.

To make a call using voice dialling

1. Make sure the phone and the headset are on and within range of each other. Press
2. After the beep, voice dial as you normally would. If using the Bluetooth phone adapter: Say the voice command after the phone beep (not after the headset beep). To know when the phone beeps in relation to the headset beep, make a test call using voice dialling.
3. End the call by pressing

You can also make a call using the phone's keypad or phone book (if, for example, your phone does not support voice dialling).

Answering calls

To answer a call using

1. When the headset rings, press

Note: If the phone rings first, wait until the headset rings, then press

1. End the call by pressing

To answer a second call

• You have to use the phone keypad to answer and handle a second call, but you can still use the headset for talking and listening. You cannot use the headset

buttons during a second call. Refer to the phone's user documentation on how to handle more than one call simultaneously.

To reject a call

• When the headset rings, press and hold until you hear a long beep.

To turn off the microphone

• During a call, press and release both + and - to turn off the microphone. A repeated beep is heard while the microphone is turned off.
• Press and hold both + and - again to resume the conversation.

Using voice commands

Voice commands are especially useful when you are using the headset. For information on voice commands, refer to the phone's user documentation.

Adjusting the speaker volume

You can adjust the headset speaker volume during a call.

To adjust the speaker volume

To increase the volume, press + .
To decrease the volume, press =

Adjusting the ring volume

You can adjust the headset ring volume when you are not engaged in a call.

To adjust the ring volume

To increase the ring volume, press
To decrease the ring volume, press

Note: The headset uses increasing volume. For safety reasons, it starts with a low volume level before the maximum set level is reached.

Transferring sound from phone to headset

If you make a call without using the headset, you can transfer the sound to the headset if the headset is on, paired with the phone and within range.

To transfer the sound to the headset

During a call, press and hold to transfer the sound to the headset. The headset beeps until the sound has been transferred.

If the headset is turned on after a call has been initiated, you can transfer the sound to the headset by pressing and holding

Note: To transfer the sound from the headset to the phone refer to the phone's user documentation.

Lost connection to headset

If the connection to the headset is lost during an ongoing call you must confirm the sound transfer to the phone by pressing the yes key on the phone, otherwise the call is disconnected after 30 seconds.

Headset battery status

The headset comes with a built-in battery.

To check the battery status

1. Make sure the headset is turned on. Then press and release both and .
2. The battery status is indicated by one of these three levels:

High-three green flashes
Medium - two green flashes
- Low-one green flash

Troubleshooting

This section lists some problems that you might encounter while using your headset.

No sound contact between headset and phone

The headset and the phone you are using with it have to be paired to recognize each other.

They also have to be within range of each other. The outdoor range is up to 10m (30 ft), but solid objects or the surroundings can affect the range. For best performance, it is recommended to keep the phone and headset in the same room and no more than 5m (15 ft) from each other.

The headset indicator light flashes red

This indicates that the headset has only limited talk and standby time left. Charge the headset battery for approximately 1 to 1.5 hours.

No indication of charging is shown

If you charge a headset battery that is empty, or has not been used for a long time, it may take up to 30 minutes before a light to indicate charging (a steady red light) appears.

Some headset functions do not work

If you notice that you cannot make use of all the features in the HBH-30 headset, please check with an Sony Ericsson service partner. For information about support and for User's Guides for Ericsson, Sony and Sony Ericsson mobile phones, see http://www.SonyEricsson.com.

The headset is automatically switched off

There are two reasons why the headset might be switched off automatically:

• The battery is too low. The indicator light on the headset flashes red and you hear a low beep.
  Charge the headset battery for approximately 1 to 1.5 hours.
• The headset has been exposed to extreme temperatures. Let the headset rest for a while in room temperature, then turn it on again.

Voice commands not working properly

If you fail using the voice commands you have recorded through your phone, record them through the headset instead. For more information see http://www.SonyEricsson.com.

Charging during a call

You cannot charge the headset during a call. The call will be disconnected.

Additional information

Guidelines for safe and efficient use

Note: Read this information before using your Bluetooth headset.

Changes or modifications to this Bluetooth headset not expressly approved by Sony Ericsson may void the user's authority to operate the equipment.

Please check for any exceptions, due to national requirements or limitations, in usage of Bluetooth equipment before using this product.

Product care

Please note only Sony Ericsson service partners should remove or replace the battery.

• Do not expose your product to liquid or moisture or to humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to lit candles, cigarettes, or cigars, or to open flames etc.
• Do not drop, throw or try to bend the product as rough treatment could damage it.
• Do not use any other accessories than Sony Ericsson or Ericsson originals intended for use with this product. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury. The warranty does not cover product failures which have been caused by use of non-original accessories.
• Do not attempt to disassemble your product. The product does not contain consumer serviceable or replaceable components. Only Sony Ericsson service partners should perform service.
• Do not keep the product in an area prone to dust and dirt. Only use a soft damp cloth to clean your product.
• If you will not be using the product for a while, store it in a place that is dry, free from damp, dust and extreme temperatures.

Radio frequency exposure

Your Bluetooth headset is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2400 to 2500MHz . The output power of the radio transmitter is low, 0.001 watt.

Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible Sony Ericsson or Ericsson mobile phone.

Driving

Check the laws and regulations on the use of mobile phones and hands free equipment in the areas where you drive.

Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.

RF energy may affect some electronic systems in motor vehicles such as car stereo, safety equipment etc. Check with your vehicle manufacturer's representative to be sure that your mobile phone or Bluetooth headset will not affect the electronic systems in your vehicle.

Electronic equipment

Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment is not, therefore:

Do not use your Bluetooth headset near medical equipment without requesting permission. If you are using any personal medical devices, e.g. a pacemaker or a hearing aid, please read in your mobile phone's User's Guide for further information.

Aircraft

Turn your Bluetooth headset OFF before boarding any aircraft. To prevent interference with communication systems, you must not use your Bluetooth headset while the plane is in the air.

Blasting areas

Turn off all your electronic devices when in a blasting area or in areas posted turn off two-way radio to avoid interfering with blasting operations. Construction crews often use remote control RF devices to set off explosives.

Potentially explosive atmospheres

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

Power supply

Connect the AC power adapter only to designated power sources as marked on the product.

To reduce risk of damage to the electric cord, remove it from the outlet by holding onto the AC adapter rather than the cord.

Make sure the cord is positioned so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

To reduce risk of electric shock, unplug the unit from any power source before attempting to clean it.

The AC power adapter must not be used outdoors or in damp areas.

DANGER - Never alter the AC cord or plug. If the plug will not fit into the outlet, have a proper outlet installed by a qualified electrician.

Improper connection can result in risk of electric shock.

Placing

Sony Ericsson recommends that the Bluetooth headset is worn in positions where it will not be subject to pressure since such pressure may result in bodily injury or damage to the product.

Check with your vehicle manufacturer's representative to be sure that the car holder is placed in a safe location.

Children

Do not allow children to play with your Bluetooth headset since it contains small parts that could become detached and create a choking hazard.

Emergency calls

IMPORTANT!

This Bluetooth headset and the electronic device connected to the hands free operate using radio signals, cellular and landline networks as well as user-programmed functions, which cannot guarantee connection under all conditions. Therefore you should never rely solely upon any electronic device for essential communications (e.g. medical emergencies).

Remember, in order to make or receive calls, the hands free and the electronic device connected to the hands free must be switched on and in a service area with adequate cellular signal strength. Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

Battery information

Please note that only Sony Ericsson service partners are able to remove or replace the battery in a proper way.

A rechargeable battery has a long service life if treated properly.

A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used.

Do not expose the battery to extreme temperatures, never above +55^ (+131^) . For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced.

The battery can only be charged in temperatures between +10^ (+50^) and +45^ (+113^) .

Recycling the battery in your Bluetooth headset

The battery in your Bluetooth headset must be disposed of properly and should never be placed in municipal waste. The Ericsson Service Partner removing or replacing the battery will dispose of it according to local regulations.

Limited Warranty

Subject to the conditions of this Limited Warranty, Sony Ericsson Mobile Communications AB (Sony Ericsson), S-221 88 Lund, Sweden warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your Product need warranty service, please return it to the dealer from whom it was purchased or contact your local Sony Ericsson Contact Center to get further information.

What we will do

If, during the warranty period, this Product fails to operate under normal use and service, due to defects in materials or workmanship, the Sony Ericsson authorized distributors or service partners will, at their option, either repair or replace the Product in accordance with the conditions stipulated herein.

Conditions

1. The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the Product to be repaired or replaced. Sony Ericsson reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the Product from the dealer.
2. If Sony Ericsson repairs or replaces the Product, the repaired or replaced Product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of Sony Ericsson.
3. This warranty does not cover any failure of the Product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the Product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.

4. This warranty does not cover Product failures due to improper repair installations, modifications or service performed by a non-Sony Ericsson authorized person.

5. Tampering with any of the seals on the Product will void the warranty.

6. THERE ARE NO EXPRESS WARRANTY, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY. ALL IMPLIED WARRANTYES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR ITS VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.

The warranty provided does not affect the consumer's statutory rights under applicable national legislation in force, nor the consumer's rights against the dealer arising from their sales/ purchase contract.

Supported Bluetooth functions

This product supports the Headset profile.

Deutsch

Einführung 18

Declaration of conformity 96

Sony Ericsson HBH-30

©Sony Ericsson Mobile Communications AB, 2002

Declaration of conformity 96

Sony Ericsson HBH-30

Declaration of conformity 96

Sony Ericsson HBH-30

Deuxieme edition (mars 2002)

©Sony Ericsson Mobile Communications AB, 2002

Numero de publication: LZT 108 5356 R2A

Pourmettrelecasquahors tension

Declaration of conformity 96

Sony Ericsson HBH-30

©Sony Ericsson Mobile Communications AB, 2002

Declaration of conformity 96

Sony Ericsson HBH-30

第二版（2002年3月）

©Sony Ericsson Mobile Communications AB, 2002

出版号：LZT1085356R2A

Declaration of conformity

We, Sony Ericsson Mobile Communications AB of Nya Vattentornet
221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type 850 5003

to which this declaration relates is in conformity with the appropriate standards ETS 300 328, ETS 300 826, EN 301 489-7 and EN 60950 following the provisions of Radio Equipment and Telecommunication Equipment directive 1995/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.

Lund, January 2002

Place and date of issue

C0682①

Ulf Persson, Head of Product Business Unit Accessories
