USER MANUAL WIRELESS DESKTOP MK270 LOGITECH

Getting started with

Black and white photo of a retro keyboard with mouse, showing key, buttons, and control panel (no text or symbols visible)

Contents

English	Setup, 3	Features and troubleshooting, 8
Español	Instalación, 3	Características y resolución de problemas, 21
Français	Installation, 3	Fonctions et dépannage, 34
Português	Programa de instalação, 3	Recursos e solução de problemas, 47

www.logitech.com/support, 60

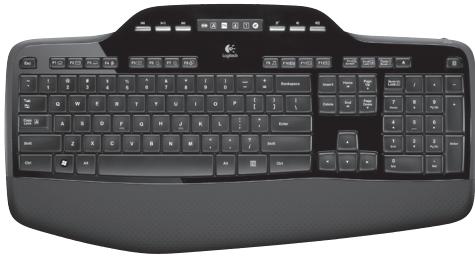

MK700

Front view of a black Logitech keyboard with standard keys and buttons (no visible text or symbols)

M705

Close-up of a Logitech 6.0 computer mouse (no visible text or symbols on the device body)

Illustration of a USB connector with coiled cable and bulb (no text or symbols)

Close-up of a CD or DVD disc showing its reflective surface and central hole (no text or symbols visible)

Getting started with Premiere utilisation Logitech Wireless Desktop MK710 logitech SC urifying

1

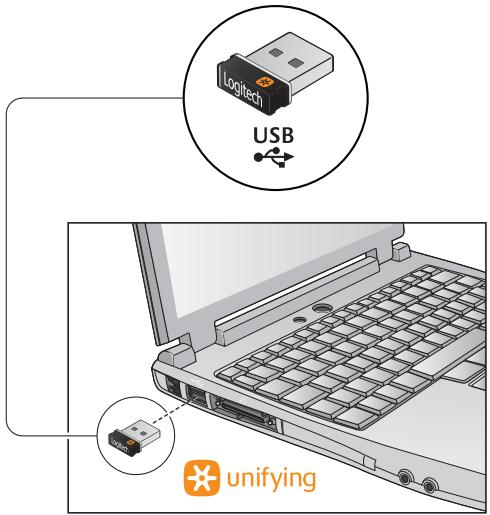

Logitech USB unifying

2

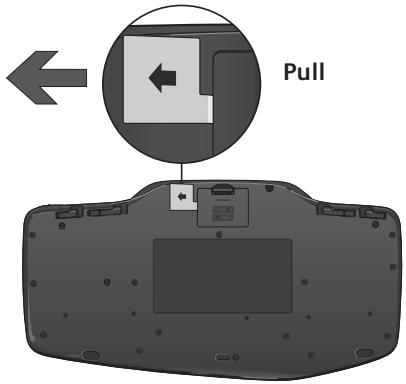

Pull

Español TIRAR

Français TIRER

Português PUXAR

Logitech 4 5 6 7 8 9 0 + - Backspace Insert Home +/-

3

Illustration of a computer mouse with arrows indicating motion or movement, no text or symbols present

Logitech MTOS B L5XAA L5XAM -

Illustration of a Logitech MTDS remote control device with an arrow indicating up movement (no text or symbols on the device itself)

Close-up of a Logitech computer mouse with a starburst graphic on the screen (no text or symbols on the device itself)

English

Your Keyboard and mouse are now ready for use. Install the Logitech ^® SetPoint ^™ Software to do the following:

• Enable some of the F-keys and customize up to 14 keys on the keyboard
• Enable the Mute icon on the LCD
• Enable the tilt wheel and customize up to 6 buttons on the mouse

Español

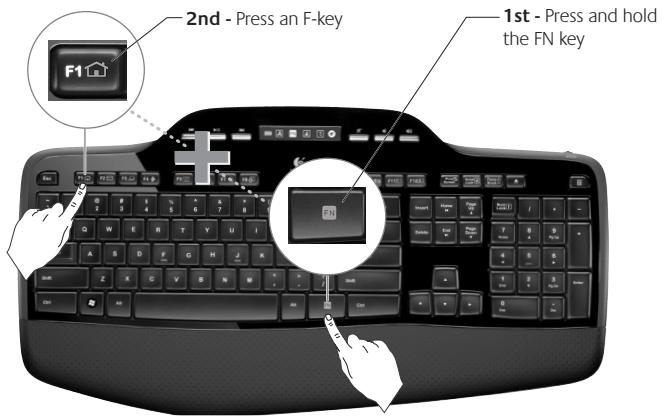

Keyboard features: F-key usage

User-friendly enhanced F-keys let you launch applications easily. To use the enhanced functions (yellow icons), first press and hold the FN key; second, press the F-key you want to use.

Tip In the software settings, you can invert the FN mode if you prefer to access directly the enhanced functions without having to press the FN key.

2nd - Press an F-key 1st - Press and hold the FN key

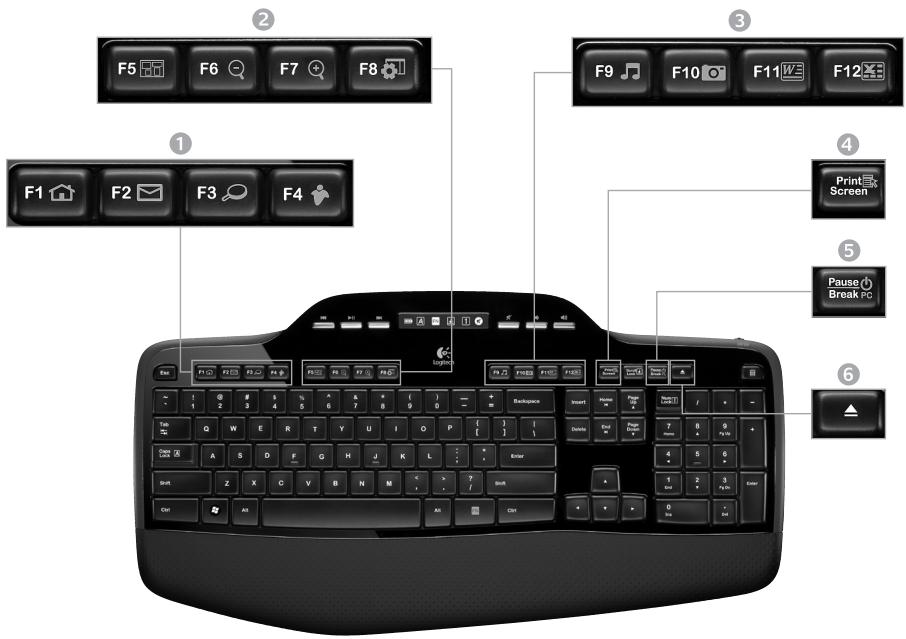

Keyboard features: F-keys and more

F5 F6 F7 F8 F1 F2 F3 F4 F9 F10 F11 F12 Print Screen Pause Break Pc ▲

1. Internet zone

Launches Internet browser

Launches e-mail application

One Touch Search ^TM*

Launches instant message application*

2. Convenience zone

Launches application switcher*

Zoom in*

Zoom out*

Windows Gadget*

3. Productivity zone

Launches media player

Launches Photo Gallery*

Launches document application*

Launches spreadsheet application*

4. Context menu

Display contextual menu of selected item.

5. PC sleep mode

Places your computer in energy-saving sleep mode.

6. Eject button\*

Opens CD/DVD-ROM drive drawer.

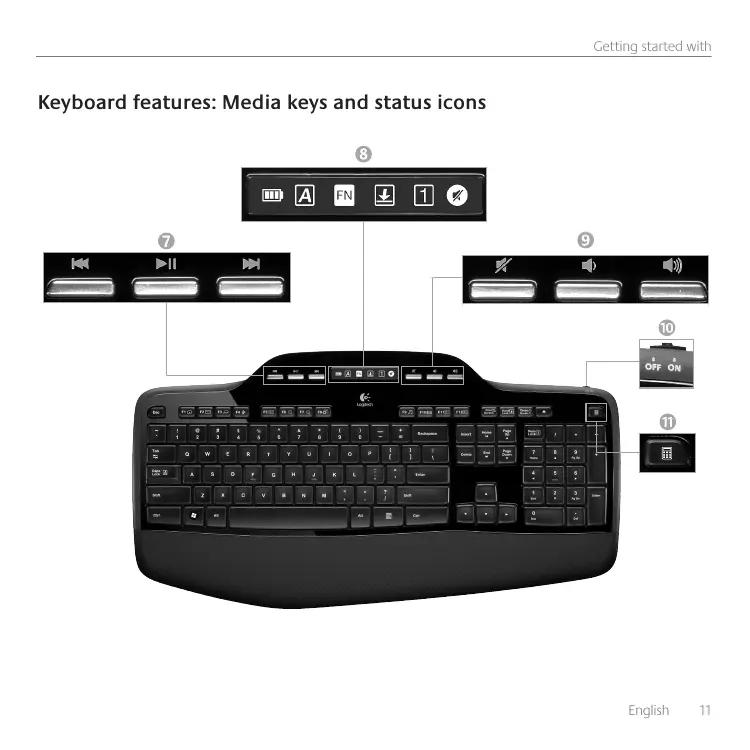

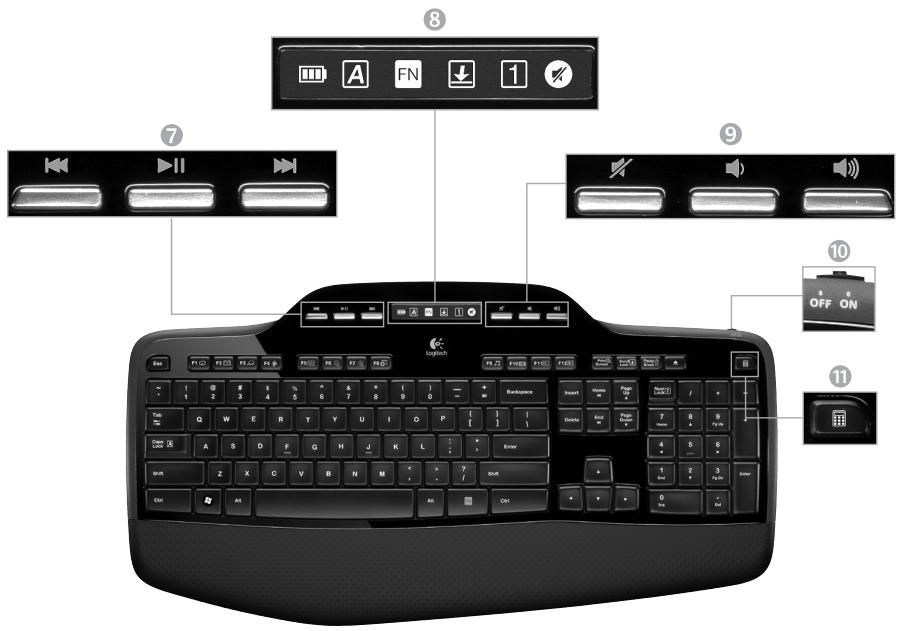

Keyboard features: Media keys and status icons

Logitech 8 7 9 10 OFF ON 11

7. Multimedia navigation

Back/previous track

Play/pause

Forward/next track

8. LCD Dashboard icon status

Battery status indicator (see Battery management for more information)

Caps lock on

FN on

Scroll lock on

Num lock on

Mute on*

* Logitech® SetPoint™ Software installation is required.

9. Volume control

Mute

Volume down

Volume up

10. Keyboard off/on switch

11. Launches calculator

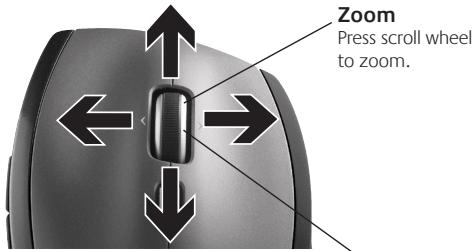

Mouse features

Zoom Press scroll wheel to zoom.

MicroGear precision scroll wheel

Tilt wheel for side-to-side (horizontal) scrolling through spreadsheets or wide documents.

The scroll wheel doubles as a middle button.

Press down to use and press again to release.

Close-up of a black computer mouse with a scroll wheel and control knob (no text or symbols visible)

Scroll toggle

With the flick of a switch, change between precision (click-to-click) scrolling and hyper-fast scrolling.

Precision scrolling

Illustration of a laptop and a circular device with directional arrows (no text or symbols)

Use click-to-click mode to navigate lists or slides.

Hyper-fast scrolling

Diagram showing a grid with downward arrows and a circular mechanical component with rotational arrows (no text or symbols)

The wheel spins freely, allowing you to fly through long documents and Web pages.

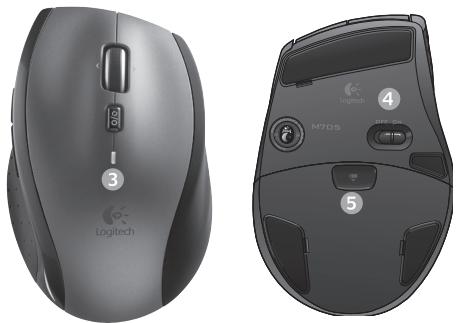

More mouse features

1. Back and Forward Buttons* – Press to flip between web pages.
2. Application Switch* – Press rubber grip to switch between applications.
3. Battery Indicator Light – Turns red when a couple weeks of battery life remain.
4. On/Off Switch – Slide to turn mouse on and off.

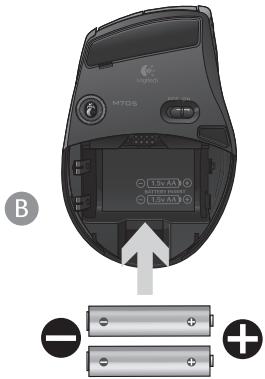

5. Battery Door Release – Press where indicated and slide door off mouse. Reduce weight by installing a single battery.
6. Receiver Storage Space Inside the Mouse

* Application Switcher and side-to-side scrolling require Logitech software. Depending on your operating system, the back, forward, and middle buttons may also require Logitech software.

Close-up of a Logitech computer mouse with no visible text or symbols on the body

Illustration of a Logitech M705 remote computer mouse with labeled buttons (no text beyond labels)

Close-up of a black computer mouse with a circular inset highlighting the interior (no text or symbols visible)

Grid of document and layout icons in grayscale, no text or symbols present

LPG MUSK 1.5k 6

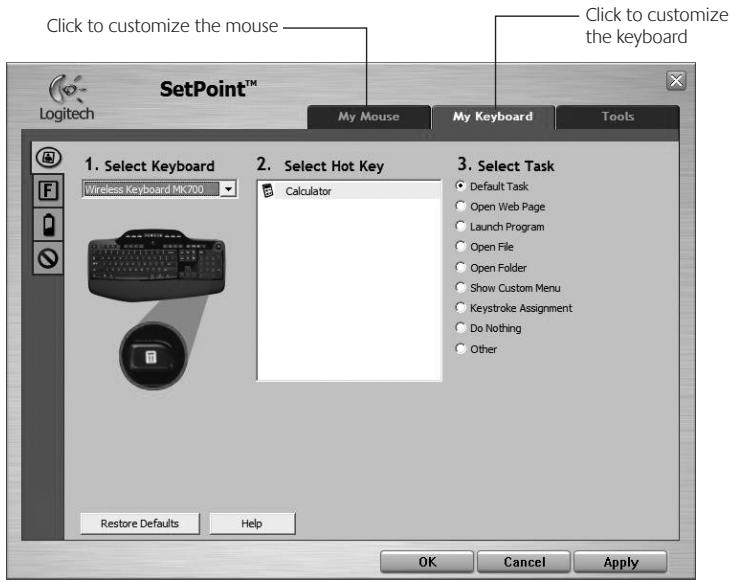

Customizing the keyboard and mouse

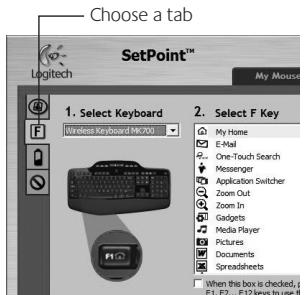

1. Double-click the Mouse and Keyboard Settings icon on the Windows ^® desktop to make changes.
2. To customize the keyboard, click the My Keyboard tab. For the mouse, click the My Mouse tab.
3. For either the keyboard or mouse, a series of tabs is shown on the left.

Click to customize the mouse Click to customize the keyboard SetPoint™ Logitech My Mouse My Keyboard Tools 1. Select Keyboard Wireless Keyboard Mk700 2. Select Hot Key Calculator 3. Select Task Default Task Open Web Page Launch Program Open File Open Folder Show Custom Menu Keystroke Assignment Do Nothing Other Restore Defaults Help OK Cancel Apply

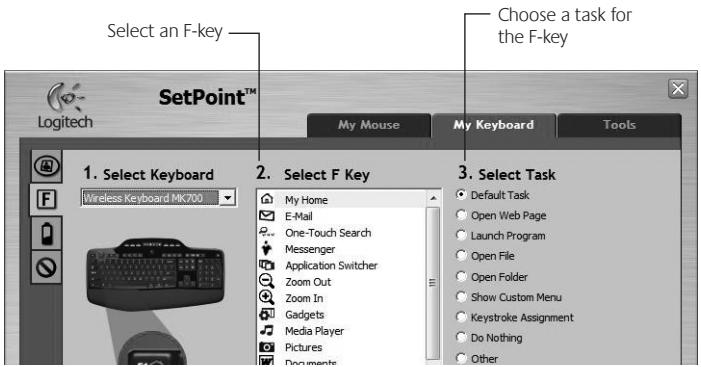

1. Choose a tab, such as the keyboard F-key Settings. A picture of the keyboard is displayed showing F-keys (list 2) to which tasks can be assigned (list 3).
2. In the 2. Select F-key list, highlight the F-key to be reassigned a task.
3. In the 3. Select Task list, highlight the new task.
4. When you are done, click OK to save the new F-key assignments.

Choose a tab Logitech SetPoint™ My Mouse 1. Select Keyboard Wireless Keyboard Mk700 2. Select F Key My Home E-Mail One-Touch Search Messenger Application Switcher Zoom Out Zoom In Gadgets Media Player Pictures Documents Spreadsheets When this box is checked, a F1-F2...F3 news to use it

Select an F-key Choose a task for the F-key Logitech SetPoint™ My Mouse My Keyboard Tools 1. Select Keyboard Wireless Keyboard MK700 2. Select F Key My Home E-Mail One-Touch Search Messenger Application Switcher Zoom Out Zoom In Gadgets Media Player Pictures Documents 3. Select Task Default Task Open Web Page Launch Program Open File Open Folder Show Custom Menu Keystroke Assignment Do Nothing Other

Keyboard F-key Settings tab

Battery management

Your keyboard and mouse have up to three years of battery life.*

Battery sleep mode

Did you know that your keyboard and mouse go into sleep mode after you stop using them for a few minutes? This feature helps limit battery usage and eliminates the need to keep switching your devices on and off. Both your keyboard and mouse are up and running immediately once you begin using them again.

Battery icon A FN 1

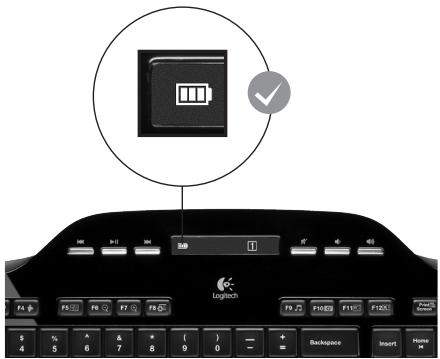

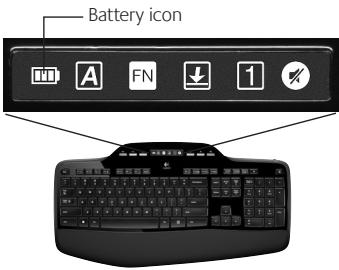

How to check the battery level for the keyboard

The battery icon on the keyboard LCD shows the current battery level for the keyboard. As the battery level decreases, the battery icon shows how much battery power remains, as shown in the image to the right.

How to check the battery level for the mouse

Option 1: Turn the mouse off then back on using the On/Off switch on the mouse bottom. If the LED on top of the mouse glows green for 10 seconds, the batteries are good. If the LED blinks red, the battery level has dropped to 10% and you have only a few days of battery power left.

Option 2: Launch the SetPoint Software, and click the Mouse Battery tab to see the current battery level of the mouse.

Mouse bottom M70S Off On On/Off switch

Mouse top LED—

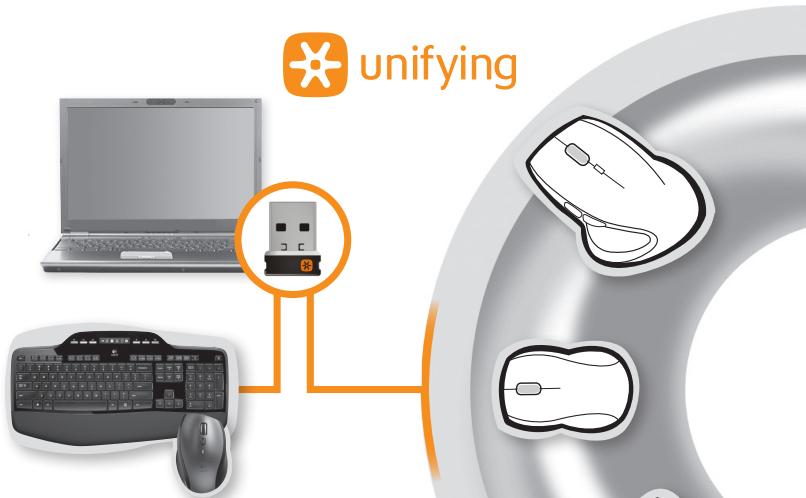

unifying

Plug it. Forget it. Add to it.

You've got a Logitech ^ Unifying receiver. Now add a compatible wireless keyboard or mouse that uses the same receiver. It's easy. Just start the Logitech ^ Unifying software* and follow the onscreen instructions. For more information and to download the software, visit www.logitech.com/unifying

*Go to Start / All Programs / Logitech / Unifying / Logitech Unifying Software

Troubleshooting

Keyboard and mouse are not working

√ Check the USB connection. Also, try changing USB ports.
√ Move closer? Try moving the keyboard and mouse closer to the Unifying receiver, or plug the Unifying receiver into the receiver extender cable to bring it closer to the keyboard and mouse.

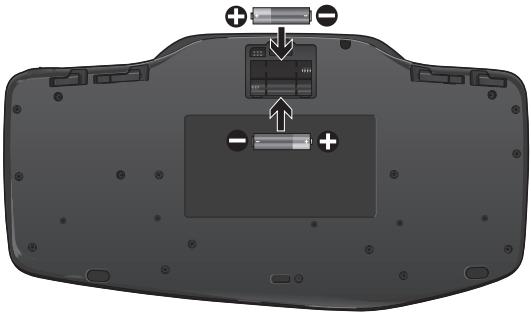

√ Check battery installation. Also check the battery power of each device. (See Battery management for more information.)

Diagram of a device rear panel with labeled buttons and battery symbols, showing internal components and directional arrows.

On the mouse bottom, slide the On/Off switch right to turn on the mouse. The Battery LED on the mouse top case should light green for 10 seconds. (See Battery management for more information.)

Laptop keyboard with a small icon showing an attached component, no text or symbols present

Diagram of a device with labeled components and an arrow indicating a process or operation, showing battery and polarity indicators.

Mouse bottom

M70s Off On On/Off switch

Troubleshooting

Are you experiencing slow or jerky cursor movement?

Try the mouse on a different surface (e.g., deep, dark surfaces may affect how the cursor moves on the computer screen).

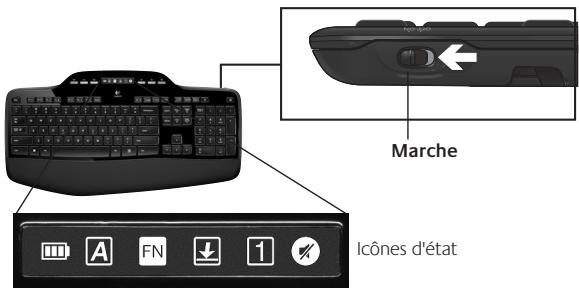

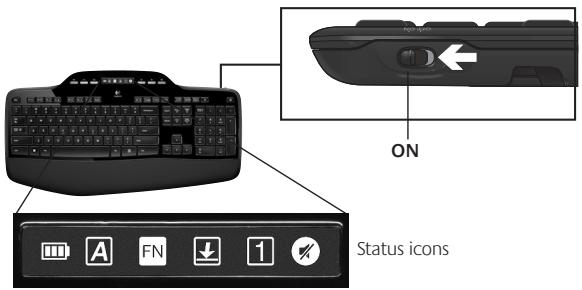

√ Is the keyboard turned on? Slide the keyboard Off/On switch to the On position, as shown in the image below. The keyboard Status icons should light up.

ON Status icons

Illustration of a computer mouse and a gray tablet with an arrow indicating rotation (no text or symbols)

√ Re-establish the connection. Use the Unifying software to reset the connection between the keyboard/mouse and Unifying receiver. Refer to the Unifying section in this guide for more information (p. 18).

For additional help, refer to the Customer Support telephone numbers on page 60. Also visit www.logitech.com/comfort for more information about using your product, and for ergonomics.

Close-up of a black computer mouse with a scroll wheel and control knob (no visible text or symbols)

Illustration of a laptop and a circular device with directional arrows (no text or symbols)

Diagram showing a grid with downward arrows and a circular mechanical component with rotational arrows (no text or symbols)

Two views of a Logitech computer mouse showing front and side views (no text or symbols on the device itself)

6. Compartimento para el receptor dentro del mouse

Close-up of a black computer mouse with a close-up inset showing the control panel (no text or symbols visible)

LG MTCG MTCG 6 TETATO 1.5V

Diagram of a device rear panel with labeled buttons and battery symbols, showing internal components and directional arrows.

Laptop keyboard with a small icon showing an attached component labeled 'unifying' (no text or symbols on the diagram itself)

Diagram of a device rear panel with labeled components and battery polarity indicators

Base del mouse

Illustration of a computer mouse and a gray tablet with an arrow indicating rotation (no text or symbols)

Close-up of a computer mouse with directional arrows indicating movement or force (no text or symbols)

Réduire/agrandir

Close-up of a black computer mouse with a control knob (no visible text or symbols)

Illustration of a laptop displaying a grid of icons next to a circular diagram with arrows (no text or symbols)

Diagram showing a grid with downward arrows and a circular mechanical component with rotational arrows (no text or symbols)

Close-up of a black computer mouse with a close-up inset showing the interior panel (no text or symbols visible)

Two views of a Logitech computer mouse showing front and side views (no text or symbols on the device itself)

LG TATAN USB 1.5V 6

100% 60% 30% 10%

Diagram of a device rear panel with labeled buttons and battery symbols, showing internal components and directional arrows.

Laptop keyboard with a small icon showing an attached component labeled 'unifying' (no text or symbols on the diagram itself)

Diagram of a device with labeled ports and battery, showing internal components and directional arrows

Illustration of a computer mouse and a gray tablet with an arrow indicating rotation (no text or symbols)

8 7 9 10 OFF ON 11 English F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 F5 Backspace Insert Enter Enter Down Exit Page Enter Enter Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Exit Next

Close-up of a black computer mouse with a scroll wheel and control knob (no text or symbols visible)

Illustration of a laptop displaying a grid layout and a circular diagram with arrows, no text or symbols present.

Diagram showing a grid with downward arrows and a circular mechanical component with rotational arrows (no text or symbols)

Two views of a Logitech computer mouse showing front and side views (no text or symbols on the device itself)

Close-up of a black computer mouse with a close-up inset showing the control panel (no text or symbols visible)

LG TATAN USB 6

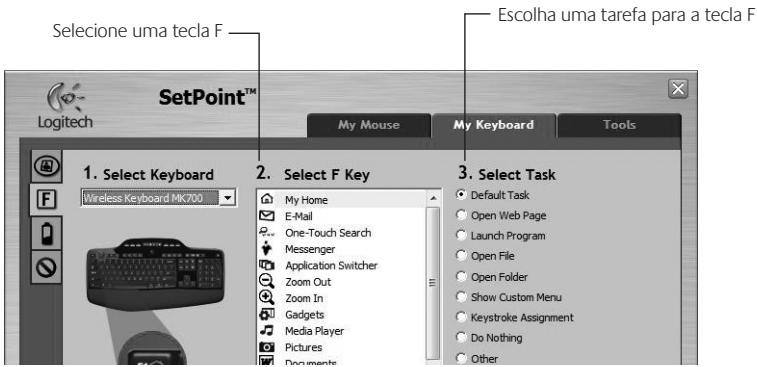

Escolha uma guia Logitech SetPoint™ My Mouse 1. Select Keyboard Wireless Keyboard Mk700 2. Select F Key My Home E-Mail One-Touch Search Messenger Application Switcher Zoom Out Zoom In Gadgets Media Player Pictures Documents Spreadsheets When this box is checked, 1 F1, F2, F12 keys to use it

Selecione uma tecla F Escolha uma tarefa para a tecla F Logitech SetPoint™ My Mouse My Keyboard Tools 1. Select Keyboard Wireless Keyboard MK700 2. Select F Key My Home E-Mail One-Touch Search Messenger Application Switcher Zoom Out Zoom In Gadgets Media Player Pictures Documents 3. Select Task Default Task Open Web Page Launch Program Open File Open Folder Show Custom Menu Keystroke Assignment Do Nothing Other

www.logitech.com/unifying

*Vá para Iniciar / Todos os programas / Logitech / Unifying / Logitech Unifying Software

Laptop keyboard with a small icon showing an attached component, no text or symbols present

Diagram of a device rear panel with labeled buttons and indicators for battery status

Diagram of a device with labeled components and directional arrows indicating movement or flow

Illustration of a computer mouse and a gray tablet with an arrow indicating rotation (no text or symbols)

www.logitech.com/support

United States	[phone]
Argentina	+00800-555-3284
Brasil	+0 800-891-4173
Canada	[phone]
Chile	1230 020 5484
Latin America	[phone]
Mexico	001 800 578 9619

EN 60950-1

M/N:C-U0003

Rating: 5V =-, 100mA

Approval No.: ETA-0035/2009/WRLO

CMIIT ID: 2009DJ1025

11059/POSTEL/2009 2100

FCC ID: JNZCU0003

IC: 4418A-CU0003

MADE IN CHINA

CCAI09LP0060T1

Z855

N231

Complies with IDA Standards DB101104

R 201 WW

09215061

DZL-C-U0003

M/N:C-U0004

Rating: 5V = =, 100mA

FCC ID: JNZCU0004

IC: 4418A-CU0004

MADE IN CHINA

M/N:C-U0007

Rating: 5V =-, 100mA

FCC ID: JNZCU0007

IC: 4418A-CU0007

MADE IN CHINA
