WIRELESS DESKTOP MK710 - Wireless keyboard and mouse LOGITECH - Free user manual and instructions

Brand	LOGITECH
Model	WIRELESS DESKTOP MK710
Product Type	Wireless Keyboard and Mouse Set
Connectivity	Wireless via Logitech Unifying Receiver
Wireless Range	Up to 10 meters
System Compatibility	Windows XP/Vista/7/8/10, Mac OS X
Keyboard Dimensions	Approximately 440 x 130 x 20 mm
Mouse Dimensions	Approximately 100 x 60 x 35 mm
Keyboard Weight	Approximately 800 g (with batteries)
Mouse Weight	Approximately 100 g (with battery)
Keyboard Power	2 AAA batteries (not included)
Mouse Power	1 AA battery (not included)
Battery Life	Up to 3 years for both keyboard and mouse
Keyboard LCD Display	Battery level indicator, Caps Lock, FN activation, Scroll Lock, Num Lock, Mute
Customizable F Keys	Up to 14 keys via SetPoint software
Multimedia Functions	Volume control, navigation (previous/next, play/pause), productivity keys
Mouse Scroll Wheel	Multidirectional scrolling (horizontal/vertical) with click-by-click and hyper-fast modes
Additional Mouse Buttons	Back/Forward buttons, application switch, On/Off switch
Zoom Function	Press the wheel to zoom
Receiver Storage	Compartment inside the mouse
Customization Software	Logitech SetPoint (free download)
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products or solvents.

Frequently Asked Questions - WIRELESS DESKTOP MK710 LOGITECH

How to install batteries in the keyboard and mouse?

The keyboard uses 2 AAA batteries. Open the compartment under the keyboard, insert batteries respecting polarity. The mouse uses 1 AA battery. Press the compartment opening button under the mouse, slide the cover, insert the battery. Close carefully.

How to connect the Unifying receiver to the PC?

Plug the Logitech Unifying receiver into an available USB port on your computer. Windows will automatically detect the device. The keyboard and mouse are pre-paired at the factory. If needed, use Logitech Unifying software to restore the connection.

What to do if the keyboard and mouse do not work?

Ensure the receiver is plugged into a working USB port. Try a different USB port. Check the battery status and proper installation. Make sure the mouse On/Off switch is set to ON. Move the peripherals closer to the receiver. Use the Unifying software to reset the connection.

How to customize the keyboard F keys?

Install Logitech SetPoint software. Double-click the Mouse and Keyboard Settings icon in the taskbar. Click the 'My Keyboard' tab, then 'F Key Settings'. Select an F key from the list, then choose the task to assign. Click OK to save.

How to activate hyper-fast scrolling on the mouse?

The Logitech MK710 mouse wheel allows switching between click-by-click (precise) and hyper-fast (free-spin) scrolling. Simply press the button behind the wheel to toggle modes. In hyper-fast mode, the wheel spins freely to quickly scroll through long documents.

How to check the battery level of the keyboard and mouse?

For the keyboard, the LCD screen displays a battery level icon. For the mouse, two options: 1) Turn the mouse off and on using the On/Off switch. If the green LED lights up for 10 seconds, batteries are good; if it blinks red, replace the battery. 2) Open SetPoint software, click the mouse battery tab.

What is the battery life?

The Logitech MK710 keyboard and mouse offer exceptional battery life of up to 3 years. This duration depends on environment and daily usage. Heavy use may reduce longevity. Batteries are not included.

Does the mouse work on all surfaces?

The optical mouse works on most surfaces, but very dark or glossy surfaces may reduce accuracy. Avoid transparent glass or reflective surfaces. Use a mouse pad for optimal performance.

How to use Logitech Unifying software to add another device?

The Unifying receiver can connect up to 6 compatible devices. To add an additional keyboard or mouse, open Logitech Unifying software (Start > All Programs > Logitech > Unifying). Follow the on-screen instructions to pair the new device.

How to clean the keyboard and mouse?

Use a soft, dry cloth to clean the surface of the keyboard and mouse. For stubborn stains, lightly dampen the cloth with water. Never use abrasive products, alcohol, or solvents. Avoid letting liquid enter the interior.

USER MANUAL WIRELESS DESKTOP MK710 LOGITECH

Getting started with

English Setup, 3 Features and troubleshooting, 8

Your Keyboard and mouse are now ready for use. Install the Logitech SetPoint Software to do the following:

• Enable some of the F-keys and customize up to 14 keys on the keyboard
• Enable the Mute icon on the LCD
• Enable the tilt wheel and customize up to 6 buttons on the mouse

Espanol

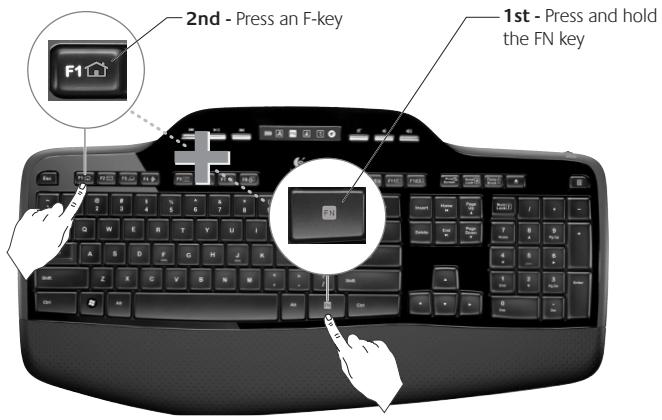

Keyboard features: F-key usage

User-friendly enhanced F-keys let you launch applications easily. To use the enhanced functions (yellow icons), first press and hold the FN key; second, press the F-key you want to use.

Tip In the software settings, you can invert the FN mode if you prefer to access directly the enhanced functions without having to press the FN key.

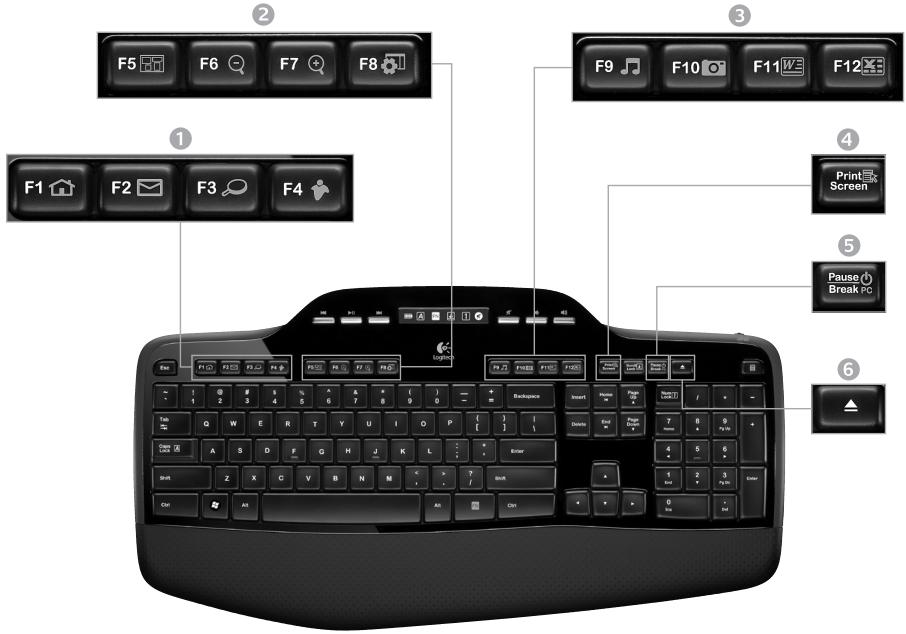

Keyboard features: F-keys and more

1. Internet zone

Launches Internet browser

Launches e-mail application

One Touch Search

Launches instant message application*

2. Convenience zone

Launches application switcher*

Zoom in*

Zoom out*

Windows

Gadget*

3. Productivity zone

Launches media player

Launchs Photo Gallery*

Launches document application*

Launches spreadsheet application*

4. Context menu

Display contextual menu of selected item.

5. PC sleep mode

Places your computer in energy-saving sleep mode.

6. Eject button*

Opens CD/DVD-ROM drive drawer.

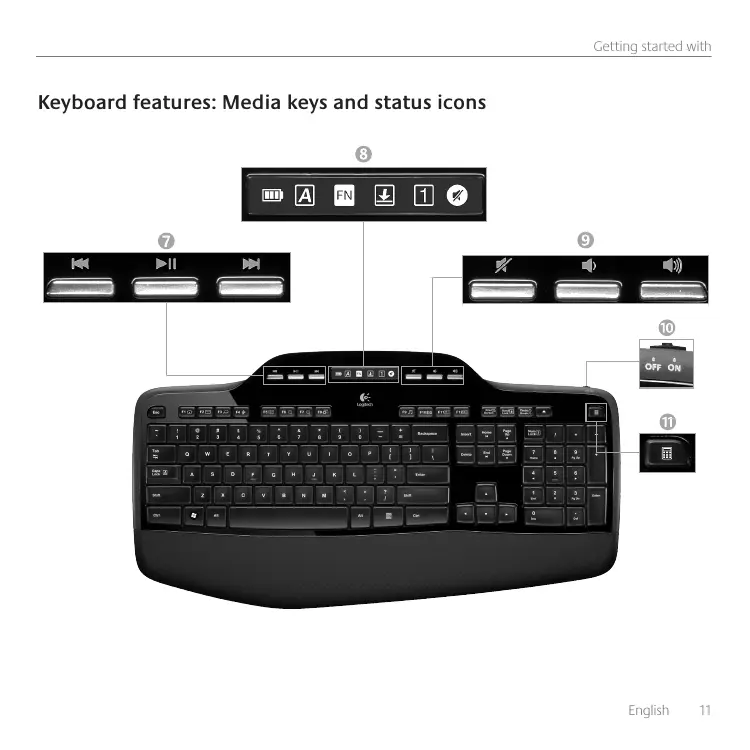

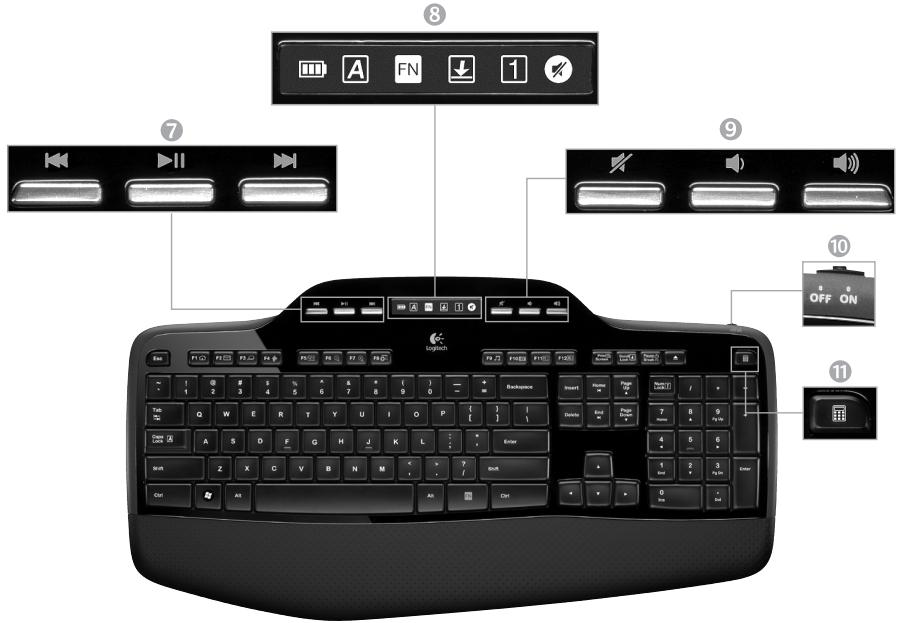

Keyboard features: Media keys and status icons

7. Multimedia navigation

Back/previous track

Play/pause

Forward/next track

8. LCD Dashboard icon status

Battery status indicator (see Battery management for more information)

Caps lock on

FN on

Scroll lock on

Num lock on

Mute on*

• Logitech® SetPoint™ Software installation is required.

9. Volume control

Mute

Volume down

Volume up

10. Keyboard off/on switch

11. Launches calculator

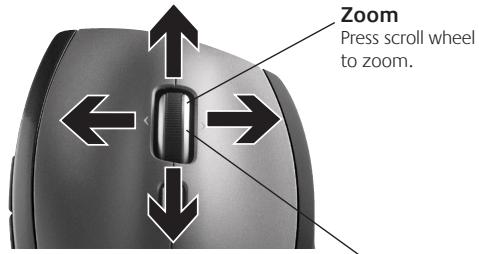

Mouse features

MicroGear precision scroll wheel

Tilt wheel for side-to-side (horizontal) scrolling through spreadsheets or wide documents. The scroll wheel doubles as a middle button. Press down to use and press again to release.

Scroll toggle

With the flick of a switch, change between precision (click-to-click) scrolling and hyper-fast scrolling.

Precision scrolling

Use click-to-click mode to navigate lists or slides.

Hyper-fast scrolling

The wheel spins freely, allowing you to fly through long documents and Web pages.

More mouse features

1. Back and Forward Buttons* - Press to flip between web pages.
2. Application Switch* - Press rubber grip to switch between applications.
3. Battery Indicator Light - Turns red when a couple weeks of battery life remain.
4. On/Off Switch - Slide to turn mouse on and off.
5. Battery Door Release - Press where indicated and slide door off mouse. Reduce weight by installing a single battery.

6. Receiver Storage Space Inside the Mouse

• Application Switcher and side-to-side scrolling require Logitech software. Depending on your operating system, the back, forward, and middle buttons may also require Logitech software.

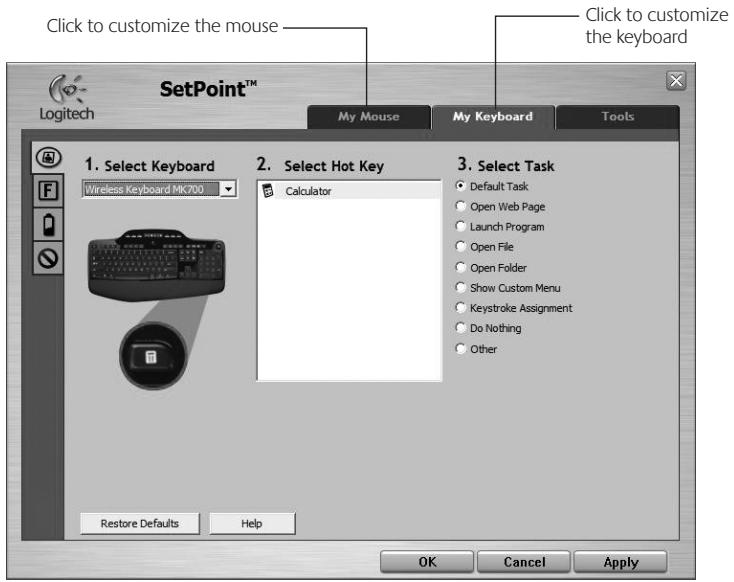

Customizing the keyboard and mouse

1. Double-click the Mouse and Keyboard Settings icon on the Windows desktop to make changes.
2. To customize the keyboard, click the My Keyboard tab. For the mouse, click the My Mouse tab.
3. For either the keyboard or mouse, a series of tabs is shown on the left.

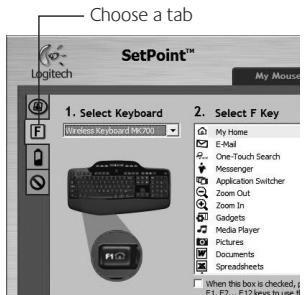

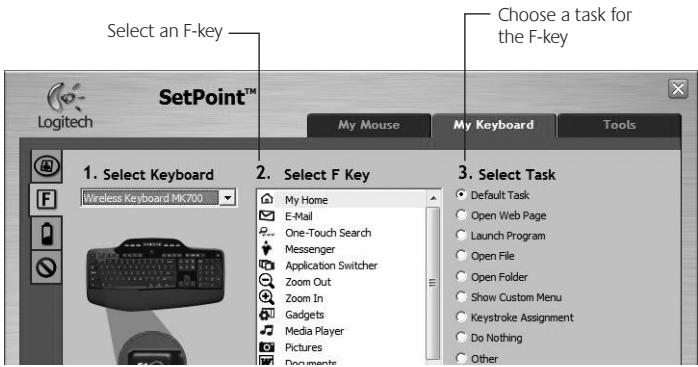

1. Choose a tab, such as the keyboard F-key Settings. A picture of the keyboard is displayed showing F-keys (list 2) to which tasks can be assigned (list 3).
2. In the 2. Select F-key list, highlight the F-key to be reassigned a task.
3. In the 3. Select Task list, highlight the new task.
4. When you are done, click OK to save the new F-key assignments.

Keyboard F-key Settings tab

Battery management

Your keyboard and mouse have up to three years of battery life.*

Battery sleep mode

Did you know that your keyboard and mouse go into sleep mode after you stop using them for a few minutes? This feature helps limit battery usage and eliminates the need to keep switching your devices on and off. Both your keyboard and mouse are up and running immediately once you begin using them again.

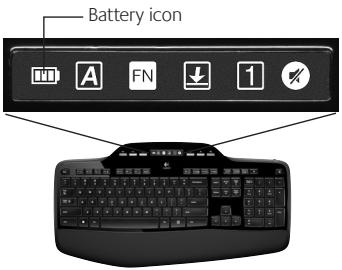

How to check the battery level for the keyboard

The battery icon on the keyboard LCD shows the current battery level for the keyboard. As the battery level decreases, the battery icon shows how much battery power remains, as shown in the image to the right.

How to check the battery level for the mouse

Option 1: Turn the mouse off then back on using the On/Off switch on the mouse bottom. If the LED on top of the mouse glows green for 10 seconds, the batteries are good. If the LED blinks red, the battery level has dropped to 10% and you have only a few days of battery power left.

Option 2: Launch the SetPoint Software, and click the Mouse Battery tab to see the current battery level of the mouse.

Mouse bottom

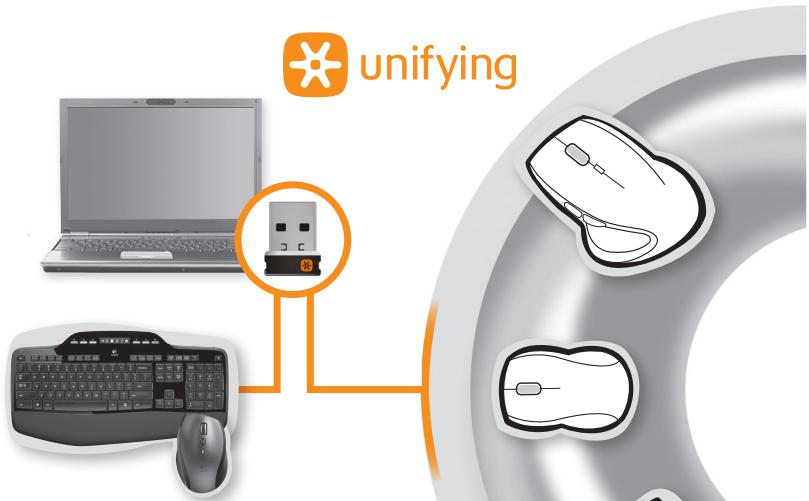

Plug it. Forget it. Add to it.

You've got a Logitech Unifying receiver. Now add a compatible wireless keyboard or mouse that uses the same receiver. It's easy. Just start the Logitech Unifying software* and follow the onscreen instructions. For more information and to download the software, visit www.logitech.com/unifying

*Go to Start / All Programs / Logitech / Unifying / Logitech Unifying Software

Troubleshooting

Keyboard and mouse are not working

Check the USB connection. Also, try changing USB ports.
Move closer? Try moving the keyboard and mouse closer to the Unifying receiver, or plug the Unifying receiver into the receiver extender cable to bring it closer to the keyboard and mouse.

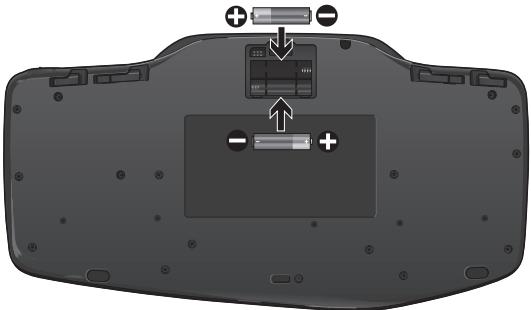

Check battery installation. Also check the battery power of each device. (See Battery management for more information.)

On the mouse bottom, slide the On/Off switch right to turn on the mouse. The Battery LED on the mouse top case should light green for 10 seconds. (See Battery management for more information.)

Mouse bottom

Troubleshooting

Are you experiencing slow or jerky cursor movement?

Try the mouse on a different surface (e.g., deep, dark surfaces may affect how the cursor moves on the computer screen).

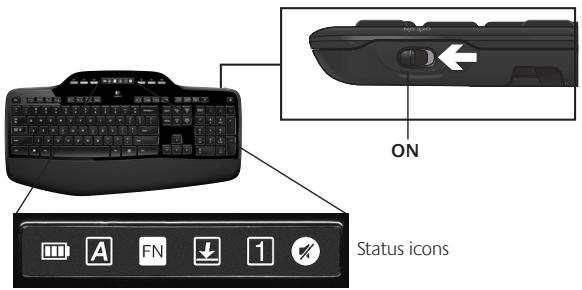

Is the keyboard turned on? Slide the keyboard Off/On switch to the On position, as shown in the image below. The keyboard Status icons should light up.

Re-establish the connection. Use the Unifying software to reset the connection between the keyboard/mouse and Unifying receiver. Refer to the Unifying section in this guide for more information (p. 18).

For more information about using your product, and for ergonomics.

www.logitech.com/support

United States [phone]

Argentina +00800-555-3284

Brasil +0 800-891-4173

Canada [phone]

Chile 12300205484

Latin America [phone]

Mexico 0018005789619

FC CE C US Listed LTZ ACCESSORY WOO	EN 60950-1
M/N:C-U0003 Rating: 5V ---, 100mA Approval No: ETA-0035/2009/WRLO CMTT ID: 2009DJ1025 11059/POSTEL/2009 2100 FCC ID: JNZCU0003 IC: 4418A-CU0003 MADE IN CHINA	M/N:C-U0004 Rating: 5V ---, 100mA FCC ID: JNZCU0004 IC: 4418A-CU0004 MADE IN CHINA
	M/N:C-U0007 Rating: 5V ---, 100mA FCC ID: JNZCU0007 IC: 4418A-CU0007 MADE IN CHINA
