| 1 | Cancel the demonstration |
| 2 | Set the clock and date |
| 3 | Set the basic settings |
- To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.
- Please keep the manual in a safe and accessible place for future reference.
WARNING
- Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
- Adjust the volume so that you can hear sounds outside the car to prevent accidents.
- Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
General:
- Avoid using the external device if it might hinder safe driving. • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
- Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
- If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.
How to read this manual
- Operations are explained mainly using buttons on the faceplate of KD-T801BT and KD-T706BT.
- English indications are used for the purpose of explanation. You can select the display language from the menu. (Page 6) • [XX] indicates the selected items. • (Page XX) indicates references are available on the stated page.
BASICS
Faceplate
KD-T801BT/KD-T709BT:
Attach
Detach
How to reset
Reset the unit within 5 seconds after detaching the faceplate.
To On the faceplate
| Turn on the power | Press SRC-∅.• Press and hold to turn off the power. |
| Adjust the volume Press VOL +/- . | • Press and hold VOL + to continuously increase the volume to 15. |
| Press ▶/□ ENTER to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause. |
| Select a source | • Press SRC ∅ repeatedly.• Press SRC ∅, then press VOL +/- within 2 seconds. |
| Change the display information | Press □→ repeatedly. (Page 29) |
| Select an item | 1 Press VOL +/- to select an item.2 Press ▶/□ ENTER to confirm. |
BASICS
Faceplate
KD-T706BT/KD-T702BT:
Attach
Detach
How to reset
Reset the unit within 5 seconds after detaching the faceplate.
To On the faceplate
| Turn on the power | Press ⬇SRC.• Press and hold to turn off the power. |
| Adjust the volume Turn the volume knob. |
| Press the volume knob to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause. |
| Select a source | • Press ⬇SRC repeatedly.• Press ⬇ SRC, then turn the volume knob within 2 seconds. |
| Change the display information | Press ⬇⋯ repeatedly. (Page 30) |
| Select an item | 1 Turn the volume knob to select an item.2 Press the knob to confirm. |
GETTING STARTED
For key layout on the faceplate, see page 3 or page 4.
Cancel the demonstration
When you turn on the power for the first time (or [FACTORY RESET] is set to [YES]), the display shows:
KD-T801BT/KD-T709BT:
"CANCEL DEMO"→"PRESS ENTER"
1 Press ▶/■ENTER.
[YES] is selected for the initial setup.
2 Press ▶/■ENTER again.
"DEMO OFF" appears.
KD-T706BT/KD-T702BT:
"CANCEL DEMO"→"PRESS"→"VOLUME KNOB"
1 Press the volume knob. [YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.
Set the clock and date
1 Press and hold □-☆ 2 Perform 'Select an item (page 3 or 4)' operation to select [CLOCK]. 3 Perform 'Select an item (page 3 or 4)' operation to adjust the clock.
[CLOCK ADJUST] set the hour and minute → [CLOCK FORMAT] →
[12H] or [24H] 4 Perform 'Select an item (page 3 or 4)' operation to set the date.
[DATE SET] set the day, month and year
5 Press to exit.
To return to the previous setting item, press Q/→
Set the basic settings
1 Press and hold 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.
To return to the previous setting item, press Q/5.
Default: [XX]
| [SYSTEM] |
| [KEY BEEP] | (Not applicable when 3-way crossover is selected.) [ON]: Activates the keypress tone. ; [OFF]: Deactivates. |
| [SOURCESELECT] |
| [AM SRC]* | [ON]: Enables AM in source selection. ; [OFF]: Disables. (Page 6) |
| [SPOTIFY SRC]* | [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 10) |
| [BUILT-IN AUX]* | [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 8) |
| [F/W UPDATE] |
| [UPDATE SYSTEM] |
| [F/W UP xxxx] | [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit |
| [FACTORY RESET] | [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. |
* Not displayed when the corresponding source is selected.
GETTING STARTED
| [CLOCK] |
| [TIME SYNC] | [ON]: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; [OFF]: Cancels. |
| [CLOCK DISPLAY] | [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. |
| [ENGLISH] | |
| [PYCCKII] | Select the display language for menu and music information if applicable. By default, [ENGLISH] is selected. |
| [ESPANOL] |
| [FRANCAIS] |
RADIO
For key layout on the faceplate, see page 3 or page 4.
Search for a station
1 Press source button repeatedly to select FM or AM. 2 Press |◀◀ / ▶▶▶ to search for a station automatically.
(or)
Press and hold ◀◀◀/▶▶▶ until "M" flashes, then press repeatedly to search for a station manually.
- "ST" or "STEREO" lights up when receiving an FM stereo broadcast with sufficient signal strength.
- The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.
Settings in memory
You can store up to 18 stations for FM and 6 stations for AM.
Store a station
While listening to a station...
Press and hold one of the number buttons (1 to 6).
(or)
1 Press and hold the following button until "PRESET MODE" flashes. KD-T801BT/KD-T709BT: ▶/■ENTER KD-T706BT/KD-T702BT: Volume knob
2 Perform 'Select an item (page 3 or 4)' operation to select a preset number.
"MEMORY" appears once the station is stored.
Select a stored station
Press one of the number buttons (1 to 6).
(or)
1 Press .Q/ 2 Perform 'Select an item (page 3 or 4)' operation to select a preset number.
RADIO
Other settings
1 Press and hold 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.
To return to the previous setting item, press Q/5.
Default: [XX]
| [TUNER SETTING] |
| [RADIO TIMER] | Tums on the radio at a specific time regardless of the current source.1 [ONCE]/[DAILY]/[WEEKLY]/[OFF]: Select how often the timer will be turned on.2 [FM]/[AM]: Select the source.3 [01] to [18] (for FM)/[01] to [06] (for AM): Select the preset station.4 Set the activation day*1 and time." ☑ lights up when complete.Radio Timer will not activate for the following cases.The unit is turned off.[OFF] is selected for [AM SRC] in [SOURCE SELECT] after Radio Timer for AM is selected. (Page 5) |
| [SSM] | [SSM 01-06]/[SSM 07-12]/[SSM 13-18]: Automatically presets up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select [SSM 07-12]/[SSM 13-18] to store the following 12 stations. |
| [LOCAL SEEK] | [ON]: Searches only FM stations with good reception.; [OFF]: Cancels.- Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. |
| [IF BAND] [AUTO]: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; [WIDE]: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain. |
| [MONO SET] | [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. |
| [NEWS SET]*2 | [ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels. |
| [REGIONAL]*2 | [ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels. |
| [AF SET]*2 | [ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels. |
| [TI]*2 | [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up) while listening to all sources except in AM. ; [OFF]: Cancels. |
| [PTY SEARCH]*2 Select a PTY code (see below).If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. |
*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1. *2 Selectable only when in FM source.
PTY code
[NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS],
[OTHER M] (music), [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music), [DOCUMENT]
AUX
Preparation:

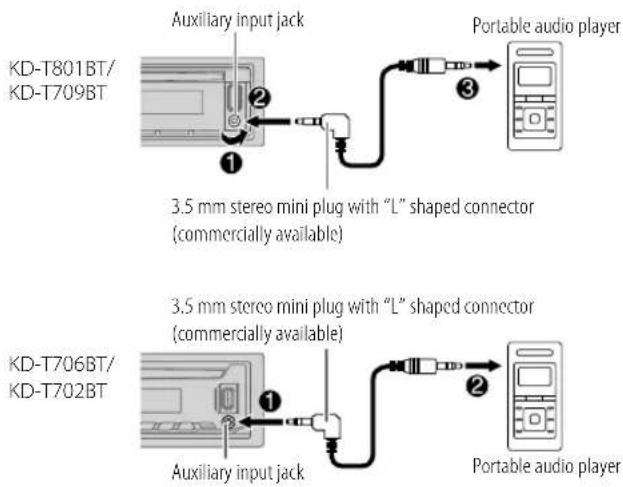

You can listen to music from a portable audio player via the auxiliary input jack.
- Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 5)
Start listening
1 Connect a portable audio player (commercially available).
2 Press the source button repeatedly to select AUX.
3 Turn on the portable audio player and start playback.
Use a 3-core plug head stereo mini plug for optimum audio output.
CD/USB/iPod/ANDROID
Start playback
The source changes automatically and playback starts.
CD
KD-T801BT/KD-T709BT: KD-T706BT/KD-T702BT:
*1 Do not leave the cable inside the car when not in use. *2 You can control the Android device using the Android device itself via other media player applications installed in the Android device.
CD/USB/iPod/ANDROID
For key layout on the faceplate, see page 3 or page 4.
Selectable source:
- KD-T801BT: CD/USB/iPod USB/ANDROID
- KD-T709BT/KD-T706BT/KD-T702BT: CD/USB/ANDROID
To On the faceplate
| Reverse/ Fast-forward*3 | Press and hold I◄◄ / ►►. |
| Select a track/file | Press I◄◄ / ►►. |
| Select a folder*4 | Press 2 ▲ / 1 ▼. |
| Repeat play*3*5 | Press 4 ↔ repeatedly. |
| [TRACK REPEAT]/[ALL REPEAT] | : Audio |
| [TRACK REPEAT]/[FOLDER REPEAT]/[ALL REPEAT] | : MP3/WMA/AAC/ WAV/FLAC file |
| [ONE REPEAT]/[ALL REPEAT]/[REPEAT OFF] | : iPod |
| Random play*3*5 | Press 3 ➡ repeatedly. |
| [ALL RANDOM]/[RANDOM OFF] | : Au |
| [FOLDER RANDOM]/[ALL RANDOM]/[RANDOM OFF] | : MP3/WMA/AAC/ WAV/FLAC file |
| [SONG RANDOM]/[ALL RANDOM]/[RANDOM OFF] | : iPod |
*3 Not applicable for ANDROID. *4 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID. *5 For iPod: Applicable only when [HEAD MODE] is selected.
Select music drive
While in USB source, press 5 MODE repeatedly.
Stored songs in the following drive will be played back.
- Selected internal or external memory of a smartphone (Mass Storage Class).
- Selected drive of a multiple drive device.
Settings to use JVC Remote application
JVC Remote application is designed to control the JVC car receiver's operations from the following devices.
KD-T801BT: iPhone/iPod (via Bluetooth
CD
or via USB input terminal)
or Android smartphone (via Bluetooth)
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via Bluetooth)
Preparation:
Audio. Install the latest version of the JVC Remote application on your device before connecting.
- For more information, visit http://www.jvc.net/cs/car/ .
You can make the settings in the same way as connection via Bluetooth. (Page 18)
Select control mode
While in iPod USB source (or iPod BT source), press 5 MODE repeatedly.
[HEAD MODE]: Control iPod from this unit.
[IPHONE MODE]: Control iPod using the iPod itself. However, you can still perform play/pause, file skip, fast-forward or fast-reverse from this unit.
CD/USB/iPod/ANDROID Spotify
Select a file from a folder/list
For iPod, applicable only when [HEAD MODE] is selected.
1 Press .Q/5 2 Perform 'Select an item (page 3 or 4)' operation to select a folder/list. 3 Perform 'Select an item (page 3 or 4)' operation to select a file.
Quick search (applicable only for CD and USB source)
If you have many files, you can search through them quickly.
Perform the following operation to browse through the list quickly.
KD-T801BT/KD-T709BT: Press and hold VOL +/- KD-T706BT/KD-T702BT: Turn the volume knob quickly
Alphabet search (applicable only for iPod USB source or iPod BT source)
You can search for a file according to the first character.
Press 2▲ / 1▼ to select the desired character (A to Z, 0 to 9, OTHERS).
- Select "OTHERS" if the first character is other than A to Z, 0 to 9.
• To return to the previous setting item, press Q/3. • To cancel, press and hold Q/3.
You can listen to Spotify on the following devices via USB input terminal (see the following) or via Bluetooth (page 19).
KD-T801BT: iPhone/iPod (via Bluetooth or via USB
input terminal) or Android smartphone
(via
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via Bluetooth)
Bluetooth
Preparation:
Install the latest version of the Spotify application on your device (iPhone/iPod touch), then create an account and log in to Spotify. - Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 5)
Start listening
1 Start up the Spotify application on your device. 2 Connect your device to the USB input terminal.
KD-T801BT:
3 Press the source button repeatedly to select SPOTIFY.
Broadcast starts automatically.
* Do not leave the cable inside the car when not in use.
Spotify
| To On the faceplate |
| Play back/pause | KD-T801BT/KD-T709BT: Press ▶/■ENTER.KD-T706BT/KD-T702BT: Press the volume knob. |
| Skip a track | Press I◄◄*1 / ►►I. |
| Select thumbs up or thumbs down *2 | Press 2 ▲ / 1 ▼. |
| Start radio Press and hold 5. |
| Repeat play*3 | Press 4 ↔ repeatedly.[ALL REPEAT], [ONE REPEAT]*1, [REPEAT OFF] |
| Random play*3 | Press 3 ✗ repeatedly *1.[ALL RANDOM], [RANDOM OFF] |
*1 Available for premium account users only.
*2 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.
*3 Available for tracks in Playlists only.
While listening to the Radio on Spotify...
Press and hold the following button to save the song information.
KD-T801BT/KD-T709BT: ▶/■ ENTER
KD-T706BT/KD-T702BT: Volume knob
"SAVED" appears and the information is stored to "Your Music" or "Your Library" on your Spotify account.
To unsave, repeat the same procedure.
"REMOVED" appears and the information is removed from "Your Music" or "Your Library" on your Spotify account.
Search for a song or station
1 Press Q/3. 2 Perform 'Select an item (page 3 or 4)' operation to select a list type. The list types displayed differ depending on the information sent from Spotify. 3 Perform 'Select an item (page 3 or 4)' operation to select the desired song or station. Perform the following operation to browse through the list quickly. KD-T801BT/KD-T709BT: Press and hold VOL +/-. KD-T706BT/KD-T702BT: Turn the volume knob quickly. To cancel, press and hold Q/5.
BLUETOOTH®
Depending on the operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.
BLUETOOTH — Connection
Supported Bluetooth profiles
- Hands-Free Profile (HFP)
- Advanced Audio Distribution Profile (A2DP)
- Audio/Video Remote Control Profile (AVRCP)
- Serial Port Profile (SPP)
- Phonebook Access Profile (PBAP)
Supported Bluetooth codecs
- Sub Band Codec (SBC)
- Advanced Audio Coding (AAC)
Connect the microphone![graph TD A["Microphone input jack"] --> B["Rear panel"] B --> C["Microphone (supplied)"] C --> D["Adjust the microphone angle"] D --> E["Secure using cord clamps (not supplied) if necessary"]](/content/2026/06/1334113/images/f841071ebc003d4bf84b301c9f87b78395ccbd9323523cb9396fb529a61e8981.jpg)
12
ENGLISH
Pair and connect a Bluetooth device for the first time
1. Press the source button to turn on the unit. 2. Search and select the name of your receiver ("KD-T8 BT"/"KD-T7 BT") on the Bluetooth device.
"BT PAIRING" flashes on the display.
- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
3. Perform (A) or (B) depending on what appears on the display.
For some Bluetooth devices, the pairing sequence may vary from the steps described below.
(A) KD-T801BT/KD-T709BT:
"Device Name" → "XXXXXX" → "ENTER-YES" → "BACK-NO"
KD-T706BT/KD-T702BT:
"Device Name" → "XXXXXX" "VOL - YES" → "BACK - NO"
"XXXXXX" is a 6-digit passkey randomly generated during each pairing.
1. Ensure that the passkeys appear on the unit and Bluetooth device are the same.
Press the following to confirm the passkey.
KD-T801BT/KD-T709BT: ▶/■ENTER
KD-T706BT/KD-T702BT: Volume knob
③ operate the Bluetooth device to confirm the passkey.
(B) KD-T801BT/KD-T709BT:
"Device Name"→ "ENTER - YES" "BACK - NO"
KD-T706BT/KD-T702BT:
"Device Name"→ "VOL - YES" "BACK - NO"
Press the following to start pairing
KD-T801BT/KD-T709BT: ▶/■ENTER
KD-T706BT/KD-T702BT: Volume knob
2 If "PAIRING" ⇒ "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.
You can change to a desired PIN code before pairing. (Page 17)
- If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.
"PAIRING COMPLETED" appears when pairing is completed and "?" will light up when the Bluetooth connection is established. For KD-T801BT/KD-T709BT, the battery and signal strength of the connected Bluetooth device is shown (see [FORMAT] on page 26).
BLUETOOTH®
• This unit supports Secure Simple Pairing (SSP). - Up to five devices can be registered (paired) in total. - Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page 16. - A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 18) - Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. - When the battery of the connected Bluetooth device runs low, "Device Name" ⇒ "LOW BATTERY" appears. - Refer to the instruction manual of the Bluetooth device for more information.
Auto Pairing (for KD-T801BT)
When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated.
Press ▶/■ ENTER to pair once you have confirmed the device name.
Automatic pairing request is activated only if:
- Bluetooth function of the connected device is turned on.
- [AUTO PAIRING] is set to [ON]. (Page 17)
BLUETOOTH — Mobile phone
For key layout on the faceplate, see page 3 or page 4.
Receive a call
When there is an incoming call:
- KD-T801BT/KD-T709BT:
The symbolic button will blink in the color you have selected in [RING COLOR]. (Page 15)
KD-T706BT/KD-T702BT:
The buttons will blink in the blinking pattern you have selected in [RING ILLUMI]. (Page 15)
- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page 15)
During a call:
KD-T801BT/KD-T709BT:
The symbolic button stops blinking and illuminates in the color you have selected in [RING COLOR]. (Page 15)
KD-T706BT/KD-T702BT:
The buttons stop blinking.
- If you turn off the unit or detach the faceplate, Bluetooth is disconnected.
BLUETOOTH®
The following operations may differ or be unavailable depending on the connected phone.
To On the faceplate
| Answer a call | Press 📞 - 🔒 or the following button.KD-T801BT/KD-T709BT: ▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
| Reject a call | Press and hold 📞 - 🔒 or the following button.KD-T801BT/KD-T709BT: ▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
| End a call | Press and hold 📞 - 🔒 or the following button.KD-T801BT/KD-T709BT: ▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
While talking on the first incoming call...
| Answer another incoming call and hold the current call | Pressor the following button.KD-T801BT/KD-T709BT:▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
| Reject another incoming call | Press and holdor the following button.KD-T801BT/KD-T709BT:▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
While having two active calls...
| End current call and activate held call | Press and hold 📁 - 🔒 or the following button. KD-T801BT/KD-T709BT: ▶/■ENTER KD-T706BT/KD-T702BT: Volume knob |
| Swap between the current call and held call | Press 🔒 - 🔒. |
| Adjust the phone volume*1[00] to [35] (Default: [15]) | Perform the following operation during a call. KD-T801BT/KD-T709BT: Press VOL +/- *2KD-T706BT/KD-T702BT: Turn the volume knob |
| Switch between hands-free and private talk modes*3 | Press Q/→ during a call. |
*1 This adjustment will not affect the volume of the other sources. *2 Press and hold VOL + to continuously increase the volume to 15. *3 Operations may vary according to the connected Bluetooth device.
■ Improve the voice quality
While talking on the phone...
1 Press and hold 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press Q/3.
Default: [XX]
| [MIC GAIN] | [LEVEL -10] to [LEVEL +10] ([LEVEL -04]): The sensitivity of the microphone increases as the number increases. |
| [NR LEVEL] | [LEVEL -05] to [LEVEL +05] ([LEVEL 00]): Adjust the noise reduction level until the least noise is being heard during a phone conversation. |
| [ECHOCANCEL] | [LEVEL -05] to [LEVEL +05] ([LEVEL 00]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. |
BLUETOOTH®
Make the settings for receiving a call
1 Press to enter Bluetooth mode. 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected or activated.
To return to the previous setting item, press Q/3.
Default: [XX]
| [SETTINGS] |
| [AUTOANSWER] | [01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected time (in seconds). ; [OFF]: Cancels. |
| [RINGCOLOR] | KD-T801BT/KD-T709BT:[COLOR 01] to [COLOR 49] ([COLOR 08]): Selects the illumination color for the symbolic button as notification when there is an incoming call and during a call. ; [OFF]: Cancels. |
| [RINGILLUMI] | KD-T706BT/KD-T702BT:[BLINK 01] to [BLINK 05] ([BLINK 02]): Selects the blinking pattern for the buttons as notification when there is an incoming call. ; [OFF]: Cancels. |
Make a call
You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.
1 Press to enter Bluetooth mode.
"(First device name)" appears.
- If two Bluetooth phones are connected, press again to switch to the other phone.
"(Second device name)" appears.
2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table).
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
To return to the previous setting item, press Q/5.
[RECENT CALL] (Applicable only if the phone supports PBAP.)
| 1 Press the following button to select a name or a phone number. KD-T801BT/KD-T709BT: VOL +/− KD-T706BT/KD-T702BT: Volume knob “<” indicates call received,“>” indicates call made,“M” indicates call missed. “NO HISTORY” appears if there is no recorded call history or call number. |
| 2 Press the following to call. KD-T801BT/KD-T709BT: ▶/■ ENTER KD-T706BT/KD-T702BT: Volume knob |
[PHONEBOOK] (Applicable only if the phone supports PBAP.)
| 1 Press 2▲ / 1▼ to select the desired letter (A to Z, 0 to 9, and OTHERS). |
| • "OTHERS" appears if the first character is other than A to Z, 0 to 9. |
| 2 Perform 'Select an item (page 3 or 4)' operation to select a name. |
| 3 Perform 'Select an item (page 3 or 4)' operation to select a phone number to call. |
| • The phonebook of the connected phone is automatically transferred to the unit when pairing. |
| • This unit can display only non-accent letters. (Accent letters such as "U" are shown as "U".) |
| [DIAL NUMBER] | 1 Perform the following operation to select a number (0 to 9) or character(*, #, +).KD-T801BT/KD-T709BT: Press VOL +/-KD-T706BT/KD-T702BT: Turn the volume knob2 Press ▶◀◀/ ▶▶to move the entry position.Repeat steps 1 and 2 until you finish entering the phone number.3 Press the following to call.KD-T801BT/KD-T709BT: ▶/■ENTERKD-T706BT/KD-T702BT: Volume knob |
BLUETOOTH®
[VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See "Make a call using voice recognition".)
Make a call using voice recognition
1 Press and hold to activate the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions. - Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
Settings in memory
You can store up to 6 contacts into the number buttons (1 to 6).
1 Press to enter Bluetooth mode. 2 Perform 'Select an item (page 3 or 4)' operation to select [RECENT CALL], [PHONEBOOK] or [DIAL NUMBER]. 3 Perform 'Select an item (page 3 or 4)' operation to select a contact or enter a phone number.
If a contact is selected, press the following to show the phone number.
KD-T801BT/KD-T709BT: ▶/■ENTER
KD-T706BT/KD-T702BT: Volume knob
4 Press and hold one of the number buttons (1 to 6).
"MEMORY P(selected preset number)" appears when the contact is stored.
To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.
Make a call from memory
1 Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the following to call.
KD-T801BT/KD-T709BT: ▶/■ENTER
KD-T706BT/KD-T702BT: Volume knob. "NO PRESET" appears if there is no contact stored.
Bluetooth mode settings
1 Press and hold 📇. 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press Q/3.
Default: [XX]
[BT MODE]
| [PHONE SELECT]* | Selects the phone or audio device to connect or disconnect. |
| [AUDIO SELECT]* | “*” appears in front of the device name when connected.“▷” appears in front of the current playback audio device. |
| [DEVICEDELETE] | 1 Perform 'Select an item (page 3 or 4)' operation to select a device to delete.2 Perform 'Select an item (page 3 or 4)' operation to select [YES] or [NO]. |
* You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time.
BLUETOOTH®
| [PIN CODE EDIT](0000) | Changes the PIN code (up to 6 digits).1 Perform the following operation to select a number.KD-T801BT/KD-T709BT: Press VOL +/-KD-T706BT/KD-T702BT: Turn the volume knob2 Press I◄◄/ ►►I to move the entry position.Repeat steps 1 and 2 until you finish entering the PIN code.3 Press the following to confirm.KD-T801BT/KD-T709BT: ►/ || ENTERKD-T706BT/KD-T702BT: Volume knob |
| [RECONNECT] | [ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels. |
| [AUTOPAIRING] | [ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels. |
| [INITIALIZE] | [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. |
| [INFORMATION] [MY BT NAME]: Displays the name of your receiver ("KD-T8 ××BT"/ "KD-T/××BT"). ;[MY ADDRESS]: Shows address of this unit. |
Bluetooth compatibility check mode
You can check the connectivity of the supported profile between the Bluetooth device and the unit.
• Make sure there is no Bluetooth device paired.
1 Press and hold
"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING PHONE" →"PIN IS 0000" scrolls on the display.
2 Search and select the name of your receiver ("KD-T8 BPT*/ "KD-T7BPT") on the Bluetooth device within 3 minutes.
(A) "PAIRING" → "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey. (B) "PAIRING"→"PIN IS 0000": Enter "0000" on the Bluetooth device. (C) "PAIRING": Operate the Bluetooth device to confirm pairing.
After pairing is done successfully, "PAIRING OK" → "Device Name" appears and Bluetooth compatibility check starts.
If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.
"TESTING" flashes on the display.
The connectivity result flashes on the display.
"PAIRING OK" and/or "HANDS-FREE OK"*1 and/or "AUD.STREAM OK"*2 and/or "PBAP OK"*3: Compatible
*1 Compatible with Hands-Free Profile (HFP) *2 Compatible with Advanced Audio Distribution Profile (A2DP) *3 Compatible with Phonebook Access profile (PBAP)
After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.
- To cancel, press and hold source button to turn off the power, then turn on the power again.
BLUETOOTH®
BLUETOOTH — Audio
For key layout on the faceplate, see page 3 or page 4.
While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.
Audio player via Bluetooth
1 Press source button repeatedly to select BT AUDIO.
- Pressing enters BT AUDIO directly.
2 Operate the Bluetooth audio player to start playback.
To On the faceplate
| Play back/pause | KD-T801BT/KD-T709BT: Press ▶/■ENTER KD-T706BT/KD-T702BT: Press the volume knob. |
| Select group or folder | Press 2 ▲/1 ▼. |
| Reverse skip/Forward skip | Press |◀◀/▶▶. |
| Reverse/Fast-forward | Press and hold |◀◀/▶▶. |
| Repeat play | Press 4 ⟶ repeatedly.[TRACK REPEAT], [ALL REPEAT], [REPEAT OFF] |
| Random play | Press 3 ⟷ repeatedly.[GROUP RANDOM], [ALL RANDOM], [RANDOM OFF] |
| Select a file from a folder/list | Refer to “Select a file from a folder/list” on page 10. |
| Switch between connected Bluetooth audio devices | Press 5.* |
* Pressing the "Play" key on the connected device itself also causes switching of sound output from the device.
Operations and display indications may differ according to their availability on the connected device.
Settings to use JVC Remote application
JVC Remote application is designed to control the JVC car receiver's operations from the following devices.
KD-T801BT: iPhone/iPod (via Bluetooth or via USB
input terminal) or Android smartphone (via Bluetooth)
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via Bluetooth)
Preparation:
• Install the latest version of JVC Remote application on your device before connecting. - For more information, visit http://www.jvc.net/cs/car/ .
1 Press and hold .
2 Perform the 'Select an item (page 3 or 4)' operation to select an item. (Page 19)
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.
To return to the previous setting item, press Q/3.
BLUETOOTH®
Default: [XX]
[REMOTEAPP] [SELECT] Selects the device (IOS or ANDROID) to use the application.
| [IOS] | [YES]: Selects iPhone/iPod to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels.If IOS is selected, select iPod BT source (or iPod USB source if your iPhone/iPod is connected via USB input terminal) to activate the application.The connectivity of the application will be interrupted or disconnected if:– You change from iPod BT source to any playback source connected via the USB input terminal.– You change from iPod USB source to iPod BT source. |
| [ANDROID] | [YES]: Selects Android smartphone to use the application via Bluetooth. ; [NO]: Cancels. |
[ANDROID LIST]* Selects the Android smartphone to use from the list.
| [STATUS] Shows the status of the selected device. |
| [IOS CONNECTED]: You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal. |
| [IOS NOT CONNECTED]: No IOS device is connected to use the application. |
| [ANDROID CONNECTED]: You are able to use the application using the Android smartphone connected via Bluetooth. |
| [ANDROID NOT CONNECTED]: No Android device is connected to use the application. |
* Displayed only when [ANDROID] of [SELECT] is set to [YES].
Listen to iPhone/iPod via Bluetooth (for KD-T801BT)
You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.
- You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page 8)
- If you plug in an iPhone/iPod to the USB input terminal while listening to iPod BT source, the source automatically changes to iPod USB. Press source button to select iPod BT if the device is still connected via Bluetooth.
Internet radio via Bluetooth
You can listen to internet radio (Spotify) on the following devices via Bluetooth on this unit. - Make sure the USB input terminal is not connected to any device.
KD-T801BT:
iPhone/iPod
touch/Android
KD-T709BT/KD-T706BT/KD-T702BT: Android device
Listen to Spotify
Preparation:
Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 5)
1 Start up the Spotify application on your device. 2 Connect your device via Bluetooth connection. (Page 12) 3 Press source button repeatedly to select SPOTIFY (for iPhone/iPod) or SPOTIFY BT (for Android device).
The source switches and broadcast starts automatically.
- You can operate Spotify in the same way as Spotify via USB input terminal. (Page 10)
AUDIO SETTINGS
For key layout on the faceplate, see page 3 or page 4.
1 Press and hold 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press Q/3.
Default: [XX]
| [EQ SETTING] |
| [PRESET EQ] | Selects a preset equalizer suitable to the music genre. Select [USER] to use the settings made in [EASY EQ] or [PRO EQ]. [FLAT]/[DRVN 3]/[DRVN 2]/[DRVN 1]/[HARD ROCK]/[HIP HOP]/[JAZZ]/ [POP]/[R&B]/[USER]/[CLASSICAL]Drive equalizer ([DRVN 3]/[DRVN 2]/[DRVN 1]) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres. |
| [EASY EQ] | Adjusts your own sound settings. The settings are stored to [USER] in [PRESET EQ]. The settings made may affect the current settings of [PRO EQ]. [SUB.W SP]*1*2: [00] to [+06] (Default: [+03] [SUB.W]*1*3: [-50] to [+10] [00] [BASS]: [LVL-09] to [LVL+09] [LVL 00] [MID]: [LVL-09] to [LVL+09] [LVL 00] [TRE]: [LVL-09] to [LVL+09] [LVL 00]) |
| [PRO EQ] Adjusts your own sound settings. The settings are stored to [USER] in [PRESET EQ]. The settings made may affect the current settings of [EASY EQ]. |
| [62.5HZ] |
| [LEVEL -09] to [LEVEL +09] ([LEVEL 00]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) |
| [ON]: Turns on the extended bass.; [OFF]: Cancels. |
| [100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[6.3KHZ]/[10KHZ]/[16KHZ] |
| [LEVEL -09] to [LEVEL +09] ([LEVEL 00]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) |
| [Q FACTOR] | [1.35]/[1.50]/[2.00]: Adjusts the quality factor. |
| [AUDIO CONTROL] |
| [BASS BOOST] | [LEVEL +01] to [LEVEL +05]: Selects your preferred bass boost level.; [OFF]: Cancels. |
| [LOUDNESS] | [LEVEL 01]/[LEVEL 02]: Boosts low or high frequencies to produce a well-balanced sound at low volume.; [OFF]: Cancels. |
| [SUB.W LEVEL]*1 [SPK-OUT]*2 | (Not applicable when 3-way crossover is selected.) [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts the output level of the subwoofer connected via speaker lead. (Page 35) |
| [PRE-OUT]*3 [SUB.W -50] to [SUB.W +10] ([SUB.W 00]): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. (Page 35) |
| [SUBWOOFER SET]*3 | [ON]: Turns on the subwoofer output.; [OFF]: Cancels. |
*1, *2, *3: (page 21)
AUDIO SETTINGS
| [FADER](Not applicable when 3-way crossover is selected.) |
| [POSITION R15] to [POSITION F15] ([POSITION 00]): Adjusts the front and rear speaker output balance. |
| [BALANCE]*4 | [POSITION L15] to [POSITION R15] ([POSITION 00]): Adjusts the left and right speaker output balance. |
| [VOLUME ADJUST] | [LEVEL -15] to [LEVEL +06] ([LEVEL 00]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.) |
| [AMP GAIN] | [LOW POWER]: Lirnits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; [HIGH POWER]: The maximum volume level is 35. |
| [SPK/PRE OUT] (Not applicable when 3-way crossover is selected.) |
| Depending on the speaker connection method, select the appropriate setting for the desired output. (See "Speaker output settings" on page 22.) |
| [SPEAKER SIZE] | Depending on the crossover type you have selected (see [X 'OVER TYPE]), 2-way crossover or 3-way crossover setting items will be shown. (See "Crossover settings" on page 22.)By default, 2-way crossover type is selected. |
| [X 'OVER] |
| [DTA SETTINGS] | For settings, see "Digital Time Alignment settings" on page 25. |
| [CAR SETTINGS] |
| [X 'OVER TYPE] | Caution: Adjusts the volume before changing the [X 'OVER TYPE] to avoid the sudden increase or decrease of the output level. |
| [2-WAY] | (Displayed only when [3-WAY] is selected.) |
| [YES]: Selects two way crossover type. ; [NO]: Cancels. |
| [3-WAY] | (Displayed only when [2-WAY] is selected.) |
| [YES]: Selects three way crossover type. ; [NO]: Cancels. |
| [SOUND EFFECT] |
| [SPACE ENHANCE] | (Not applicable for FM/AM source.) [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space. ; [OFF]: Cancels. |
| [SND RESPONSE] | [LEVEL 1]/[LEVEL2]/[LEVEL3]: Virtually makes the sound more realistic. ; [OFF]: Cancels. |
| [SOUND LIFT] | [LOW]/[MIDDLE]/[HIGH]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels. |
| [VOL LINK EQ] | [ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels. |
| [K2 TECHNOLOGY] | (Not applicable for FM/AM source and AUX source.) [ON]: Improves the sound quality of compressed music. ; [OFF]: Cancels. |
*1 Displayed only when [SUBWOOFER SET] is set to [ON]. (Page 20)
*2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (Page 22)
*3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (Page 22)
*4 This adjustment will not affect the subwoofer output.
AUDIO SETTINGS
Speaker output settings [SPK/PRE OUT]
(Applicable only if [X' OVER TYPE] is set to [2-WAY]) (page 21)
Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method.
Connection via lineout terminals
For connections through an external amplifier. (Page 35)
KD-T801BT:
| Setting on[SPK/PRE OUT] | Audio signal through lineout terminal |
| FRONT REAR/SW | |
| [REAR/REAR] Front speakers output Rear speakers output | |
| [REAR/SUB.W] (default) Front speakers output Subwoofer output | |
| [SUB.W/SUB.W] Front speakers output Subwoofer output | |
KD-T709BT/KD-T706BT/KD-T702BT:
| Setting on[SPK/PRE OUT] | Audio signal through lineout terminal |
| REAR/SW |
| [REAR/REAR] Rear speakers output |
| [REAR/SUB.W] (default) Subwoofer output |
| [SUB.W/SUB.W] Subwoofer output |
Connection via speaker leads
You can also connect the speakers without using an external amplifier but still be able to enjoy the subwoofer output with these settings. (Page 35)
| Setting on[SPK/PRE OUT] | Audio signal through rear speaker lead |
| L (left) R (right) | |
| [REAR/REAR] Rear speakers output Rear speakers output | |
| [REAR/SUB.W] Rear speakers output Rear speakers output | |
| [SUB.W/SUB.W] Subwoofer output | (Mute) |
If [SUB.W/SUB.W] is selected:
[120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available. (Page 24)
- [POSITION R02] is selected in [FADER] and selectable range is [POSITION R15] to [POSITION 00]. (Page 21)
Crossover settings
Below are the available setting items for 2-way crossover and 3-way crossover.
Caution
Select a crossover type according to how the speakers are connected. (Page 35)
If you select a wrong type:
• The speakers may be damaged.
• The output sound level may be extremely high or low.
AUDIO SETTINGS
SPEAKER SIZE
Selects according to the connected speaker size for optimum performance.
- The frequency and slope settings are automatically set for the crossover of the selected speaker.
- If [NONE] is selected for the following speaker in [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.
- 2-way crossover [TWEETER] of [FRONT]/[REAR]/[SUBWOOFER]
- 3-way crossover [WOOFER]
X'OVER (crossover)
- [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter). If [THROUGH] is selected, all signals are sent to the selected speakers.
- [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.
- [SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.
- [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.
2-way crossover setting items
| [SPEAKERSIZE] |
| [FRONT] [SIZE] | | [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10] |
| [TWEETER] | [SMALL]/[MIDDLE]/[LARGE]/[NONE] (not connected) |
| [REAR]*1 | [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]/[NONE] (not connected) |
| [SUBWOOFER]*2*3 | [16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected) |
| [X'OVER] |
| [TWEETER] [FRQ] | | [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ] |
| [GAIN LEFT] | [-08DB] to [00DB] |
| [GAIN RIGHT] | [-08DB] to [00DB] |
| [FRONT HPF] [F-HPF FRQ] | | [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH] |
| [F-HPF SLOPE] | [-06DB]/[-12DB]/[-18DB]/[-24DB] |
| [F-HPF GAIN] | [-08DB] to [00DB] |
| [REAR HPF]*1 [R-HPF FRQ] | | [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH] |
| [R-HPF SLOPE] | [-06DB]/[-12DB]/[-18DB]/[-24DB] |
| [R-HPF GAIN] | [-08DB] to [00DB] |
*1, *2, *3: (page 24)
AUDIO SETTINGS
| [SUBWOOFER LPF]*2*3 | [SW LPF FRQ] | [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH] |
| [SW LPF SLOPE] | [-06DB]/[-12DB]/[-18DB]/[-24DB] |
| [SW LPF PHASE] | [REVERSE] (180°)/ [NORMAL] (0°) |
| [SW LPF GAIN] | [-08DB] to [00DB] |
-way crossover setting items
| [SPEAKERSIZE] |
| [TWEETER] | [SMALL]/[MIDDLE]/[LARGE] |
| [MID RANGE] | [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9] |
| [WOOFER]*3 | [16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected) |
| [X'OVER] |
| [TWEETER] [HPF FRQ] | [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ] |
| [SLOPE] | [-06DB]/[-12DB] |
| [PHASE] | [REVERSE] (180°)/[NORMAL] (0°) |
| [GAIN] | [-08DB] to [00DB] |
| [MID RANGE] [HPF FRQ] | [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH] |
| [HPF SLOPE] | [-06DB]/[-12DB] |
| [LPF FRQ] | [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH] |
| [LPF SLOPE] | [-06DB]/[-12DB] |
| [PHASE] | [REVERSE] (180°)/[NORMAL] (0°) |
| [GAIN] | [-08DB] to [00DB] |
| [WOOFER]*3 [LPF FRQ] | [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH] |
| [SLOPE] | [-06DB]/[-12DB] |
| [PHASE] | [REVERSE] (180°)/[NORMAL] (0°) |
| [GAIN] | [-08DB] to [00DB] |
*1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W]. (Page 22) *2 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (Page 22) *3 Displayed only when [SUBWOOFER SET] is set to [ON]. (Page 20)
AUDIO SETTINGS
Digital Time Alignment settings
Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.
- For more information, see "Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]".
[DTA SETTINGS]
| [POSITION] | Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats• [FRONT ALL] is displayed only when [X' OVER TYPE] is set to [2-WAY]. (Page 21) |
| [DISTANCE]*1 | [OCM] to [610CM]: Fine adjust the distance to compensate. |
| [GAIN]*1 | [-8DB] to [ODB]: Fine adjust the output volume of the selected speaker. |
| [DTA RESET] | [YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default.; [NO]: Cancels. |
[CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
| [CAR TYPE] | [COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/[MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating. |
| [R-SP LOCATION]*2 | Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)]. |
Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]
If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.
1 Determines the center of the currently set listening position as the reference point. 2 Measures the distances from the reference point to the speakers. 3 Calculates the differences between the distance of the furthest speaker (rear speaker) and other speakers. 4 Sets the [DISTANCE] calculated in step 3 for individual speakers. 5 Adjusts [GAIN] for individual speakers.
Example: When [FRONT ALL] is selected as the listening position
*1 Before making an adjustment, select the speaker:
When 2-way crossover is selected:
[FRONT LEFT]/[FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]:
- [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] are selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (Page 23)
When 3-way crossover is selected:
[TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]:
[WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (Page 24)
*2 Displayed only when [X 'OVER TYPE] is set to [2-WAY] (page 21) and if a setting other than [NONE] is selected for [REAR] of [SPEAKER SIZE]. (Page 23)
DISPLAY SETTINGS
Zone identification for brightness settings
Zone identification for color settings
1 Press and hold 2 Perform 'Select an item (page 3 or 4)' operation to select an item (see the following table). 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.
To return to the previous setting item, press Q/5.
Default: [XX]
| [DISPLAY] |
| [DIMMER] | Dims the illumination.[OFF]: Dimmer is turned off. Brightness changes to [DAY] setting.[ON]: Dimmer is turned on. Brightness changes to [NIGHT] setting.(See "[BRIGHTNESS]" below.)[DIMMER TIME]: Set the dimmer on and off time.1 Perform 'Select an item (page 3 or 4)' operation to adjust the [ON] time.2 Perform 'Select an item (page 3 or 4)' operation to adjust the [OFF] time.(Default: [ON]: [18:00]; [OFF]: [6:00])[DIMMER AUTO]: Dimmer turns on and off automatically when you turn off or on the car headlights.*1 |
| [BRIGHTNESS] Sets the brightness for day and night separately.1 [DAY]/[NIGHT]: Select day or night.2 Select a zone. (See the illustration on the left column.)3 [LEVEL 00] to [LEVEL 31]: Set the brightness level. |
| [TEXT SCROLL]*2 | [SCROLL ONCE]: Scrolls the display information once.;[SCROLL AUTO]: Repeats scrolling at 5-second intervals.;[SCROLL OFF]: Cancels. |
| [FORMAT]*3 | KD-T801BT/KD-T709BT:Below information is shown on the supplementary display when Bluetooth device is connected. (Page 29)[BATT/SIGNAL]: Shows the strength of the battery and signal.;[DATE]: Shows the date. |
*1 The illumination control wire connection is required. (Page 35)
*2 Some characters or symbols will not be shown correctly (or will be blank).
*3 Functionality depends on the type of phone used.
DISPLAY SETTINGS
| [COLOR] (for KD-T801BT/KD-T709BT: Symbolic button only) |
| [PRESET]Selects an illumination color for the symbolic button. (See the illustration on page 26.)• [COLOR 01] to [COLOR 49]• [USER]: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown.• [COLOR FLOW01] to [COLOR FLOW03]: Color changes at different speeds.• Preset color: [CRYSTAL]/[FLOWER]/[FOREST]/[GRADATION]/[OCEAN]/[RELAX]/[SUNSET] |
| [DAY COLOR] Stores your own day and night illumination colors for the symbolic button.1 [RED]/[GREEN]/[BLUE]: Select a primary color.2 [00] to [31]: Select the level.Repeat steps 1 and 2 for all the primary colors. |
| [NIGHT COLOR] | • Your setting is stored to [USER] in [PRESET].• [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlights. |
| [MENU COLOR] | [ON]: The illumination color of the symbolic button changes to white color when settings are performed on menu and list search, except in color setting mode.; [OFF]: Cancels. |
REFERENCES
Maintenance
Cleaning the unit
Wipe off dirt on the faceplate with a dry silicone or soft cloth.
Cleaning the connector
Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector.
Connector (on the reverse side of the faceplate)
Handling discs
- Do not touch the recording surface of the disc.
- Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
- Do not use any accessories for the disc.
- Clean from the center of the disc and move outward.
- Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
- When removing a disc from this unit, pull it out horizontally.
- Remove burrs from the center hole and disc edge before inserting a disc.
For: — Latest firmware updates and latest compatible item list
- JVC original application
– Any other latest information
Visit .
General
• This unit can only play the following CDs:
- DualDisc playback: The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.
- For detailed information and notes about the playable audio files, visit .
REFERENCES
playablefiles
- Playable audio file:
For disc
KD-T801BT: MP3 (.mp3), WMA (.wma), AAC (.aac)
KD-T709BT/KD-T706BT/KD-T702BT: MP3 (.mp3), WMA (.wma)
For USB mass storage class device:
KD-T801BT: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)
KD-T709BT/KD-T706BT/KD-T702BT: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
- Playable disc media: CD-R/CD-RW/CD-ROM
- Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name
- Playable USB device file system: FAT12, FAT16, FAT32
Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.
The AAC (.m4a) file in a CD encoded by iTunes cannot be played on this unit.
Unplayable discs
• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.
About USB devices
- You cannot connect a USB device via a USB hub.
- Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
- This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.
About iPod/iPhone
- Via USB input terminal:
Made for
- iPod touch (5th and 6th generation)
- iPod nano (7th generation)
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Via Bluetooth:
Made for
- iPod touch (5th and 6th generation)
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- It is not possible to browse video files on the "Videos" menu in [HEAD MODE]
- The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
- You cannot operate iPod if "JVC" or "✓" is displayed on iPod.
- Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.
About Android device
- This unit supports Android OS 4.1 and later.
- Some Android devices (with OS 4.1 and later) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always plays back via AOA 2.0 as priority.
About Spotify
- Spotify application supports:
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or later)
- iPod touch (5th and 6th generation)
- Android OS 4.0.3 or later
- Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
- Some functions of Spotify cannot be operated from this unit.
- For issues using the application, please contact Spotify at .
About Bluetooth
- Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.
REFERENCES
Each time you press 📞 ⚙, the display information changes.
- If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears or display will be blank.
KD-T801BT/KD-T709BT:
*1 Date will be replaced with battery and signal strength of the connected Bluetooth device if [FORMAT] is set to [BATT/SIGNAL]. (Page 26)
| Source name Display information: Main (Supplementary) |
| FM or AM Frequency (Date) | → Frequency (Date) with Music Synchronization Effect*2→ back to the beginning |
| For FM Radio Data System stations only:Station name/Program type (Date)→ Station name/Program type (Date) with Music Synchronization Effect*2→ Radio text (Date)→ Radio text+ (Radio text+)→ Song title (Artist)→ Song title (Date)→ Frequency (Date)→ back to the beginning |
| Source name Display information: Main (Supplementary) |
| CD or USB For CD-DA: | Track title (Artist) ➔ Track title (Artist) with Music Synchronization Effect*2 ➔ Track title (Disc title) ➔ Track title (Date) Playing time (Date) ➔ back to the beginning |
| For MP3/WMA/AAC/WAV/FLAC files:Song title (Artist) ➔ Song title (Artist) with Music Synchronization Effect*2 ➔ Song title (Album title) ➔ Song title (Date) File name (Folder name) ➔ File name (Date) ➔ Playing time (Date) ➔ back to the beginning |
| iPod USB/iPod BT When [HEAD MODE] is selected (page 9):Song title (Artist) ➔ Song title (Artist) with Music Synchronization Effect*2 ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) ➔ back to the beginning |
| ANDROID Source name (Date) | → Source name (Date) with Music Synchronization Effect*2 ➔ back to the beginning |
| SPOTIFY/SPOTIFY BT Context | title (Date) ➔ Context title (Date) with Music Synchronization Effect*2 ➔ Song title (Artist) ➔ Song title (Album title) ➔ Song title (Date) Playing Time (Date) back to the beginning |
| BT AUDIO Song title (Artist) | → Song title (Artist) with Music Synchronization Effect*2 ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) ➔ back to the beginning |
| AUX Source name (Date) | → Source name (Date) with Music Synchronization Effect*2 ➔ back to the beginning |
*2 During Music Synchronization Effect, the illumination color or brightness level of the Symbolic button changes and synchronizes with the music level (depending on the color setting made for [PRESET] on page 27).
REFERENCES
KD-T706BT/KD-T702BT:
| Source name Display information: Main |
| FM or AM Frequency | → Frequency with Music Synchronization Effect* → Clock→ back to the beginning |
| For FM Radio Data System stations only:Station name/Program type → Station name/Program type with Music Synchronization Effect* → Radio text →Radio text+ → Radio text+ song title/Radio text+ artist → Frequency →Clock → back to the beginning |
| CD or USB For CD-DA: | Disc title/Artist → Disc title/Artist with Music Synchronization Effect* → Track title/Artist →Playing time Clock back to the beginning |
| For MP3/WMA/WAV/FLAC files:Song title/Artist → Song title/Artist with Music Synchronization Effect* → Album title/Artist →older name File name Playing time → Clock → back to the beginning |
| ANDROID Source name | → Source name with Music Synchronization Effect* → Clock → back to the beginning |
| Source name Display information: Main |
| SPOTIFY/SPOTIFY BT Context title → Context title with Music Synchronization Effect* →Song title→ Artist→Album title Playing Time Clock back→ to the beginning |
| BT AUDIO Song title/Artist | → Song title/Artist with Music Synchronization Effect*→ Album title/Artist→Playing time Clock back→to the beginning |
| AUX Source name | → Source name with Music Synchronization Effect*→Clock→ back to the beginning |
* During Music Synchronization Effect, the brightness level of the buttons changes and synchronizes with the music level.

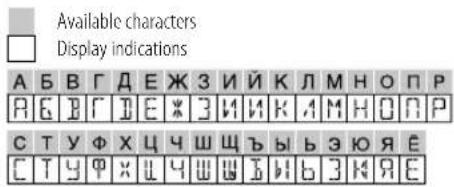

Available Cyrillic letters
TROUBLESHOOTING
| Symptom Remedy |
| General | Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections. |
| "MISWIRING CHECK WIRING THEN PWR ON" appears. | Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again. |
| "PROTECTING SEND SERVICE" appears. | Send the unit to the nearest service center. |
| Source cannot be selected. Check the [SOURCE SELECT] setting. (Page 5) |
| The unit does not work at all. Reset the unit. (Page 3 or 4) |
| Correct characters are not displayed. | • This unit can only display uppercase letters, numbers, and a limited number of symbols.• Depending on the display language you have selected (page 6), some characters may not be displayed correctly. |
| Radio | • Radio reception is poor.• Static noise while listening to the radio. | Connect the antenna firmly. |
| CD/USB/iPod | Disc cannot be ejected. | Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. |
| Noise is generated. Skip to another track or change the disc. |
| "IN DISC" appears and disc cannot be ejected. | Make sure nothing is blocking the loading slot when you eject the disc. |
| "PLEASE EJECT" appears. | Press ▲, then insert the disc correctly. |
| Playback order is not as intended. | The playback order is determined by the order in which files were recorded (disc) or the file name (USB). |
| Flapsed playing time is not correct. | This depends on the recording process earlier (disc/USB). |
| Symptom Remedy |
| CD/USB/iPod | "NOT SUPPORT" appears and track skips. | Check whether the track is a playable format. (Page 27, 28) |
| "READING" keeps flashing. • Do not use too many hierarchical levels and folders. • Reload the disc or reattach the device (USB/iPod/iPhone). |
| "UNSUPPORTED DEVICE" appears. | • Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 27, 28) • Reattach the USB device. |
| "UNRESPONSIVE DEVICE" appears. | Make sure the USB device is not malfunction and reattach the USB device. |
| "USB HUB IS NOT SUPPORTED" appears. | This unit cannot support a USB device connected via a USB hub. |
| "CANNOT PLAY" appears. | Connect a USB device that contains playable audio files. |
| • The source does not change to "USB" when you connect a USB device while listening to another source. • "USB ERROR" appears | The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. |
| The iPod/iPhone does not turn on or does not work. | • Check the connection between this unit and iPod/iPhone. • Disconnect and reset the iPod/iPhone using hard reset. |
| "LOADING" appears when you enter search mode by pressing Q/Q. | This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. |
| "NO DISC" Insert a playable disc into the loading slot. |
| "NO DEVICE" Connect a device (USB/iPod/iPhone), and change the source to USB/iPod/iPhone again. |
TROUBLESHOOTING
| Symptom Remedy |
| ANDROID | • Sound cannot be heard during playback.• Sound output only from the Android device. | • Reconnect the Android device.• Launch any media player application on the Android device and start playback.• Relaunch the current media player application or use another media player application.• Restart the Android device.• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit.(Page 28)• If USB connection does not work, connect the Android device via Bluetooth or through auxiliary input jack. |
| "NO DEVICE" or "READING" keeps flashing. | • Reconnect the Android device.• If USB connection does not work, connect the Android device via Bluetooth or through auxiliary input jack. |
| Playback is intermittent or sound skips. | Turn off the power saving mode on the Android device. |
| "CANNOT PLAY" • Make sure Android device contains playable audio files.• Reconnect the Android device.• Restart the Android device. |
| Spotify | "DISCONNECTED" USB is disconnected from the head unit. Please make sure the device is connected properly through USB. |
| "CONNECTING" • Connected via USB input terminal: The device is connecting to the head unit. Please wait.• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected. |
| Symptom Remedy |
| Spotify | "CHECK APP" The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account. |
| Bluetooth* | No Bluetooth device is detected. Search from the Bluetooth device again. Reset the unit. (Page 3 or 4) |
| Pairing cannot be made. Make sure you have entered the same PIN code to both the unit and Bluetooth device. Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 12) |
| Echo or noise is heard during a phone conversation. Adjust the microphone unit's position. (Page 12) Check the [ECHO CANCEL] setting. (Page 14) |
| Phone sound quality is poor. Reduce the distance between the unit and the Bluetooth device. Move the car to a place where you can get a better signal reception. |
| Voice calling method is not successful. Use voice calling method in a more quiet environment. Reduce the distance from the microphone when you speak the name. Make sure the same voice as the registered voice tag is used. |
| Sound is being interrupted or skipped during playback of a Bluetooth audio player. Reduce the distance between the unit and the Bluetooth audio player. Turn off, then turn on the unit and try to connect again. Other Bluetooth devices might be trying to connect to the unit. |
| The connected Bluetooth audio player cannot be controlled. Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) Disconnect and connect the Bluetooth player again. |
TROUBLESHOOTING
| Symptom Remedy |
| Bluetooth® | "PLEASE WAIT" The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again. |
| "NOT SUPPORT" The connected phone does not support Voice Recognition feature or phonebook transfer. |
| "NO ENTRY"/"NO PAIR" There is no registered device connected/found via Bluetooth. |
| "ERROR" Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried. |
| "NO INFO"/"NO DATA" Bluetooth device cannot get the contact information. |
| "H/W ERROR" Reset the unit and try the operation again. If "H/W ERROR" appears again, consult your nearest service center. |
| "SWITCHING NG" The connected phones might not support phone switching feature. |
| The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 16) |
If you still have troubles, reset the unit. (Page 3 or 4)
INSTALLATION/CONNECTION
▲ Warning
- The unit can only be used with a 12 V DC power supply, negative ground.
- Disconnect the battery's negative terminal before wiring and mounting.
- Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. • To prevent short circuit:
- Insulate unconnected wires with vinyl tape. — Be sure to ground this unit to the car's chassis again after installation.
- Secure the wires with cable clamps and wrap vinyl tape around the wires that come in contact with metal parts to protect the wires.
Caution
- For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer. • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
- Do not connect the ⊖ wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
- Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (Page 21)
- Mount the unit at an angle of less than 30°.
- If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
- Keep all cables away from heat dissipate metal parts.
- After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
- If the fuse blows, first make sure the wires are not touching the car's chassis, then replace the old fuse with one that has the same rating.
INSTALLATION/CONNECTION
Part list for installation
(A) Faceplate (×1)
(B) Trim plate (×1)
(C) Mounting sleeve (×1)
(D) Wiring harness (×1)
(E) Extraction key (×2)
Basic procedure
1. Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery. 2. Connect the wires properly. See "Wiring connection" on page 35. 3. Install the unit to your car. See "Installing the unit (in-dash mounting)". 4. Connect the terminal of the car battery. 5. Press the source button to turn on the power. 6. Detach the faceplate and reset the unit within 5 seconds. (Page 3 or 4)
Installing the unit (in-dash mounting)
1. Remove the mounting sleeve and trim plate from the unit. 2. Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).
⚠ Use only the specified screws. Using wrong screws might damage the unit.
Removing the unitInstalling the unit (w

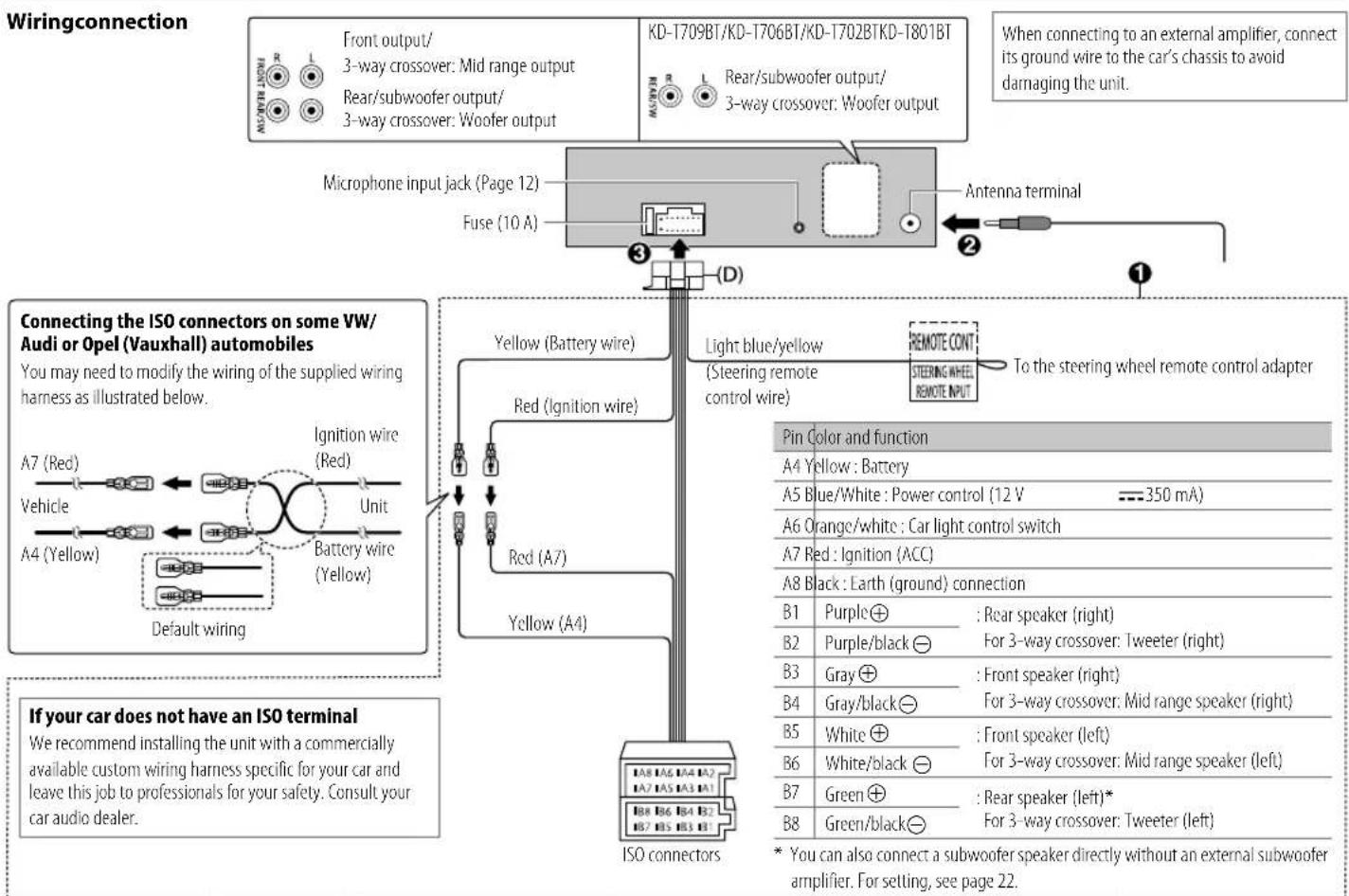

INSTALLATION/CONNECTION
SPECIFICATIONS
| Tuner | FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) |
| Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω (8.2 dBf) |
| Quiecting Sensitivity (DIN S/N = 46 dB) 2.0 μV/75 Ω |
| Frequency Response (±3 dB) 30 Hz — 15 kHz |
| Signal-to-Noise Ratio (MONO) 64 dB |
| Stereo Separation (1 kHz) 40 dB |
| AM (MW) | Frequency Range 531 kHz — 1 611 kHz (9 kHz step) |
| Usable Sensitivity (S/N = 20 dB) 28.2 μV (29 dBμ) |
| AM (LW) | Frequency Range 153 kHz — 279 kHz (9 kHz step) |
| Usable Sensitivity (S/N = 20 dB) 50 μV (33.9 dBμ) |
| CD player | Laser Diode GaAlAs |
| Digital Filter (D/A) 8 times over sampling |
| Spindle Speed 500 rpm — 200 rpm (CLV) |
| Wow & Flutter Below measurable limit |
| Frequency Response (±1 dB) 20 Hz — 20 kHz |
| Total Harmonic Distortion (1 kHz) 0.01 % |
| Signal-to-Noise Ratio (1 kHz) 97 dB |
| Dynamic Range 92 dB |
| Channel Separation | 90 dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac" files(for KD-T801BT) |
| USB | USB Standard | USB 1.1, USB 2.0 (Full speed) |
| Compatible Devices | Mass storage class |
| File System | FAT12/16/32 |
| Maximum Supply Current | DC 5 V=1.5 A |
| Digital Filter (D/A) Converter | 24 Bit |
| Frequency Response (±1 dB) 20 Hz —— 20 kHz |
| Signal-to-Noise Ratio (1 kHz) 97 dB |
| Dynamic Range | 93 dB |
| Channel Separation | 92 dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC “.aac”, ".m4a” files(for KD-T801BT) |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file, up to 24 bit/96 kHz |
| Auxiliary | Frequency Response (±3 dB) 20 Hz —— 20 kHz |
| Input Maximum Voltage | 1000 mV |
| Input Impedance | 30 kΩ |
SPECIFICATIONS
| Bluetooth | Version Bluetooth 3.0 |
| Frequency Range 2.402 GHz — 2.480 GHz |
| RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2 |
| Maximum Communication Range Line of sight approx. 10 m (32.8 ft) |
| Pairing SSP (Secure Simple Pairing) |
| Profile HFP1.6 (Hands-Free Profile) | A2DP (Advanced Audio Distribution Profile)AVRCP1.5 (Audio/Video Remote Control Profile)PBAP (Phonebook Access Profile)SPP (Serial Port Profile) |
| Audio | Maximum Output Power 50 W × 4 or | 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) |
| Full Bandwidth Power(at less than 1 % THD) | 22 W × 4 |
| Speaker Impedance 4 Ω — 8 Ω |
| Preout Level/Load (CD/USB) 2 500 mV/10 kΩ load |
| Preout Impedance ≤ 600 Ω |
| General | Operating Voltage 12 V DC car battery |
| Installation Size (W × H × D) 182 mm × 53 mm × 156 mm |
| Net Weight (includes Trimplate, 1.2 kg Mounting Sleeve) |
Subject to change without notice.
CONTENTS
"CANCEL DEMO" → "PRESS" → VOLUME KNOB"
1 Press the volume wheel.
"PAIRING OK" and/or "HANDS-FREE OK" *1 and/or "AUD.STREAM OK" *2 and/or "PBAP OK" *3 : Compatible
— iPod touch (5th and 6th generation) - iPod nano (7th generation) — iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- iPod touch (5th and 6th generation)
— iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
[YES] is the default setting.
[YES] is the default setting.
KD-T801BT: iPhone/iPod (via Bluetooth or
or Android smartphone (via
Bluetooth)
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via
Bluetooth)
Preparation:
KD-T801BT: iPhone/iPod (via Bluetooth or via
USB input connection) or Android smartphone (via Bluetooth)
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via Bluetooth)
Preparation:
BLUETOOTH — Connection
"Device name" → "XXXXXX" → "ENTER - YES" → "BACK - NO"
KD-T706BT/KD-T702BT:
"Device name" → "XXXXXX" → "VOL - YES" → "BACK - NO"
"Device name" → "VOL - YES" → "BACK - NO"
KD-T801BT: iPhone/iPod (via Bluetooth or via
USB input connection) or Android smartphone (via Bluetooth)
KD-T709BT/KD-T706BT/KD-T702BT: Android smartphone (via Bluetooth)
Preparation:
More about iPod/iPhone
• Via USB input connection:
Made for
— iPod touch (5th and 6th generation) - iPod nano (7th generation) — iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Via Bluetooth:
Made for
- iPod touch (5th and 6th generation)
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X

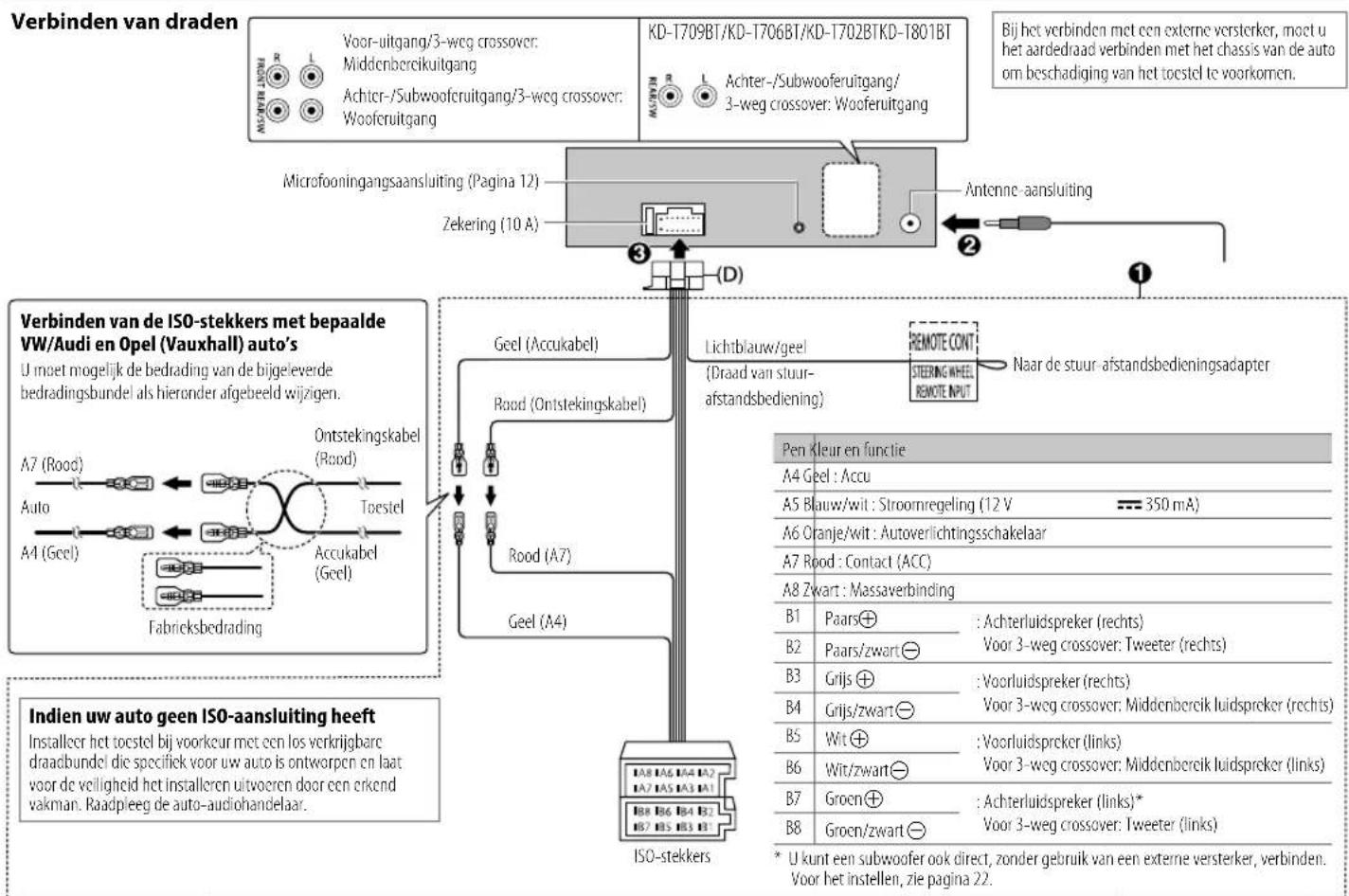

mounting sleeve)
INSTALLING/CONNECTING
- iPod touch (5th and 6th generation)
- iPod nano (7th generation)
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Via Bluetooth:
Made for
iPod touch (5th and 6th generation)
— iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- iPod touch (5th and 6th generation)
- Android 4.0.3 or later

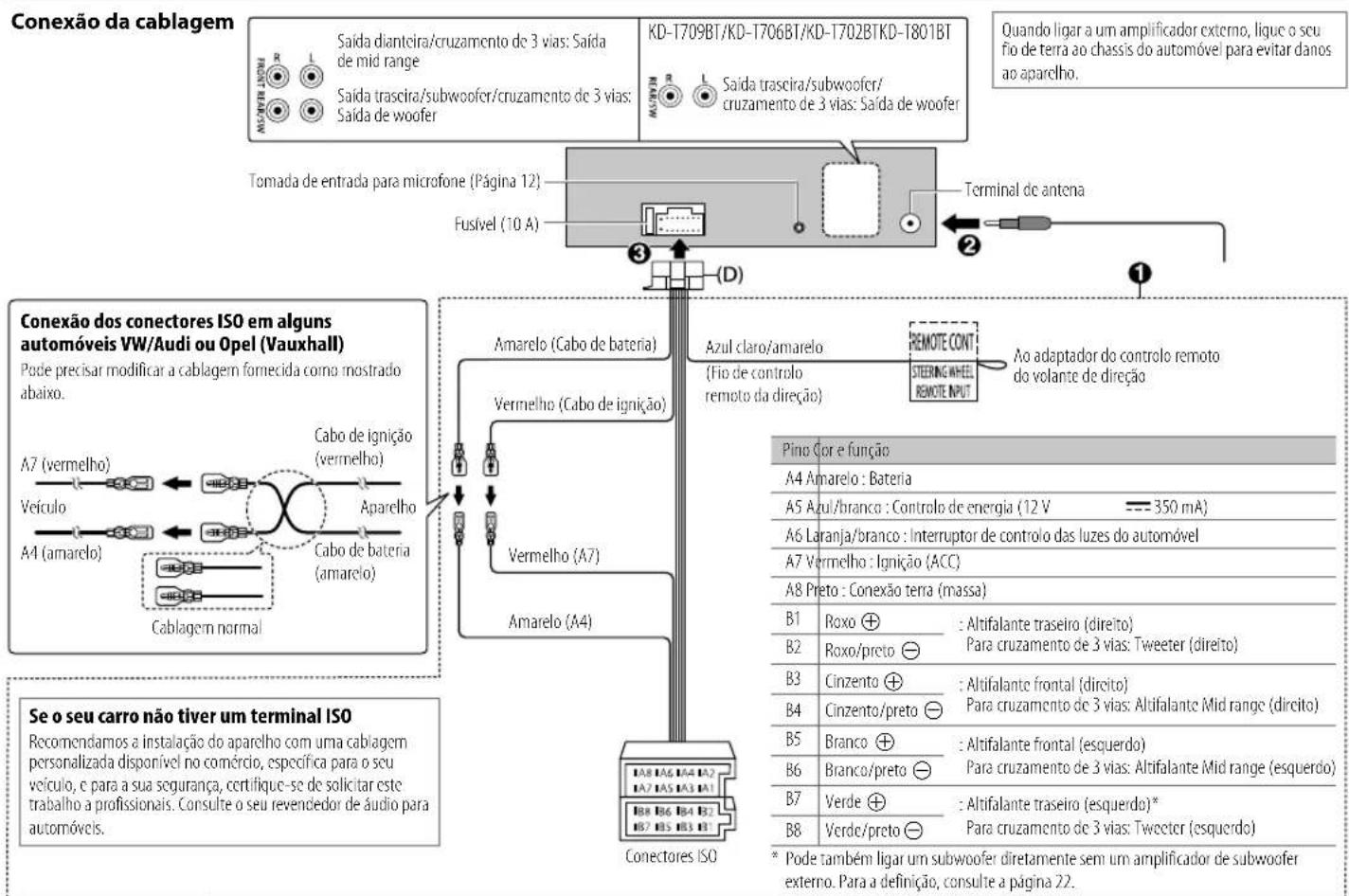

assembly)
INSTALLATION/CONNECTION
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
- Apple, iPhone, iPod, iPod nano, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
- SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. • Android is a trademark of Google LLC.
- The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
