USER MANUAL SGP 12 B2 SILVERCREST

Exterior view of a gray industrial vacuum cleaner with pipe fitting, next to a website URL (no text extraction needed)

Electric Air Pump SGP 12 B2

TARGA GMBH

Coesterweg 45

59494 SOEST

GERMANY

Last Information Update - Legutóbbi adatfrissités

Safety instructions ....6

Overview 14

First use 15

Maintenance / cleaning 18

Environmental and disposal information ....19

Conformity information 19

Warranty and servicing advice....20

Introduction

Thank you for purchasing a SilverCrest product. The SilverCrest electric air pump SGP 12 B2, hereinafter referred to as electric air pump, serves to inflate or deflate inflatable items (for example, air beds, paddling pools or dinghies).

Intended use

This electric air pump is designed to inflate or deflate inflatable items (for example, air beds, paddling pools or dinghies). Tyres cannot be inflated with this electric air pump. This electric air pump is not designed for commercial use or operation in a company, but solely for private purposes in cars, caravans or camping vehicles with 12V vehicle equipment. Any other use is not as intended.

This electric air pump meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the electric air pump that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases.

Please observe the regulations and laws in the country of use.

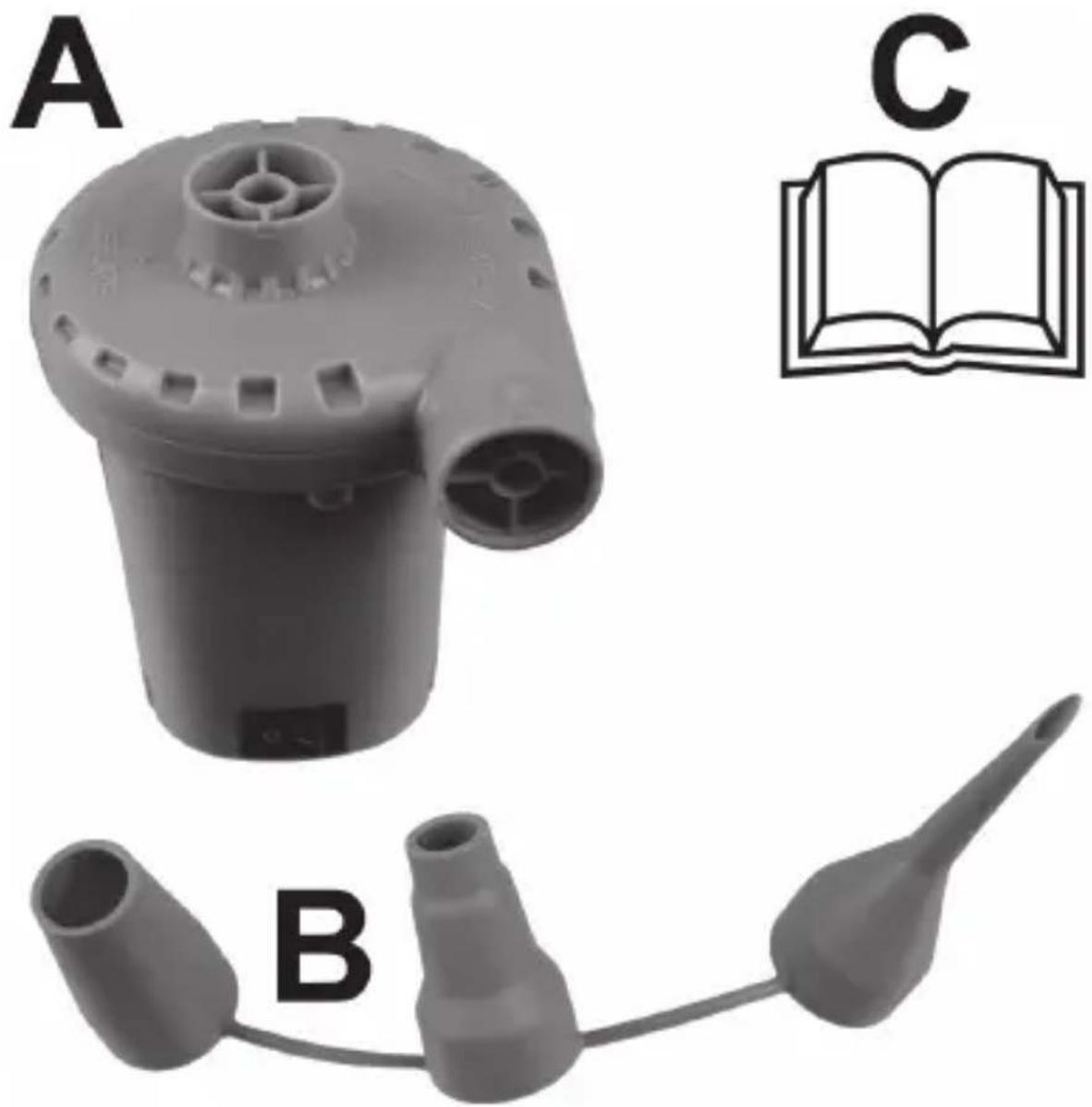

Supplied items

Three labeled diagrams: A shows a gray plastic device with a central hub, B shows two plastic parts connected by a rod, and C includes an open book icon (no text or symbols on main objects)

A SilverCrest electric air pump SGP 12 B2
B 3 valve adapters
C These operating instructions (symbolic representation)

Technical data

Dimensions (H x ∅)	approx. 12.1 x 10.8cm
Weight(including valve adapter)	approx. 370g
Input voltage 12V
Power consumption 72W
Short-time operation 30 minutes
Protection class	III
Protection rating IP20
Nominal pressure 0.052bar (5200Pa)
Air flow rate 60m3/h
Operating temperature +5°C to +35°C
Air humidity (rel. humidity) max. 85%
Safety tested by

The technical data and design may be changed without notification.

Safety instructions

Before using the electric air pump for the first time, please read the following instructions carefully even if you are familiar with using electronic devices. Store these operating instructions in a safe place for future reference. If you pass on the electric air pump to someone else, be sure to always include these operating instructions. They are an integral part of the device.

DANGER! This symbol indicates an imminent dangerous situation which, if not prevented, could result in serious injury or even death.

WARNING! This symbol indicates important information for safe operation of the device and the safety of the user.

Operating environment

The electric air pump is not designed for use in environments with a high temperature or humidity, and must be kept free from dust. Operating temperatures and operating air humidity: +5°C to +35°C, max. 85% rel. humidity.

DANGER! Ensure that

• you never touch the connection cable and electric air pump with wet hands as there is a risk of an electric shock!
• you never pull the connection cable directly and always handle it by the plug. If the connection cable is damaged, it must be replaced by the manufacturer or its customer service

representative or a similarly qualified person to prevent any safety hazards.

• you never direct the electric air pump at yourself, other people or animals during operation. There is a risk of injury!
• the electric air pump is never operated unattended. There is a risk of injury!
• the filling instructions of the inflatable item are observed as otherwise it may burst and cause serious injury.
• the electric air pump is not used if damaged in order to prevent hazards.

• no direct heat sources (e.g. heating) can affect the electric air pump because it may be damaged otherwise.

• the electric air pump is not exposed to direct sunlight or bright artificial light because it may be damaged otherwise.

• no fire sources (e.g. burning candles) are placed on or near the electric air pump because there is a risk of fire.
• all openings remain free and are not covered during operation as there will be a risk of overheating otherwise.
• no foreign objects penetrate the device because there is a risk of a short circuit.
• contact with sprayed and dripping water and corrosive liquids is prevented and the electric air pump is never operated near water; in particular, it should never be immersed (do not place any objects filled with liquids, e.g.

vases or drinks, on or near the electric air pump; there is a risk of fire and short circuits).

- the electric air pump is not exposed to extreme temperature fluctuations as this could result in condensation and electrical short circuits; there is a risk of fire. If the electric air pump was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until it has reached ambient temperature before use.

DANGER! Children and persons with disabilities

This device can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the device and understand the resulting risks. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision. Small parts can be fatal if swallowed.

Always keep plastic packaging out of reach also. It poses a suffocation risk.

WARNING! You must make sure that your vehicle has a 12V car power supply. The electric air pump must not be used with a 24V car power supply.

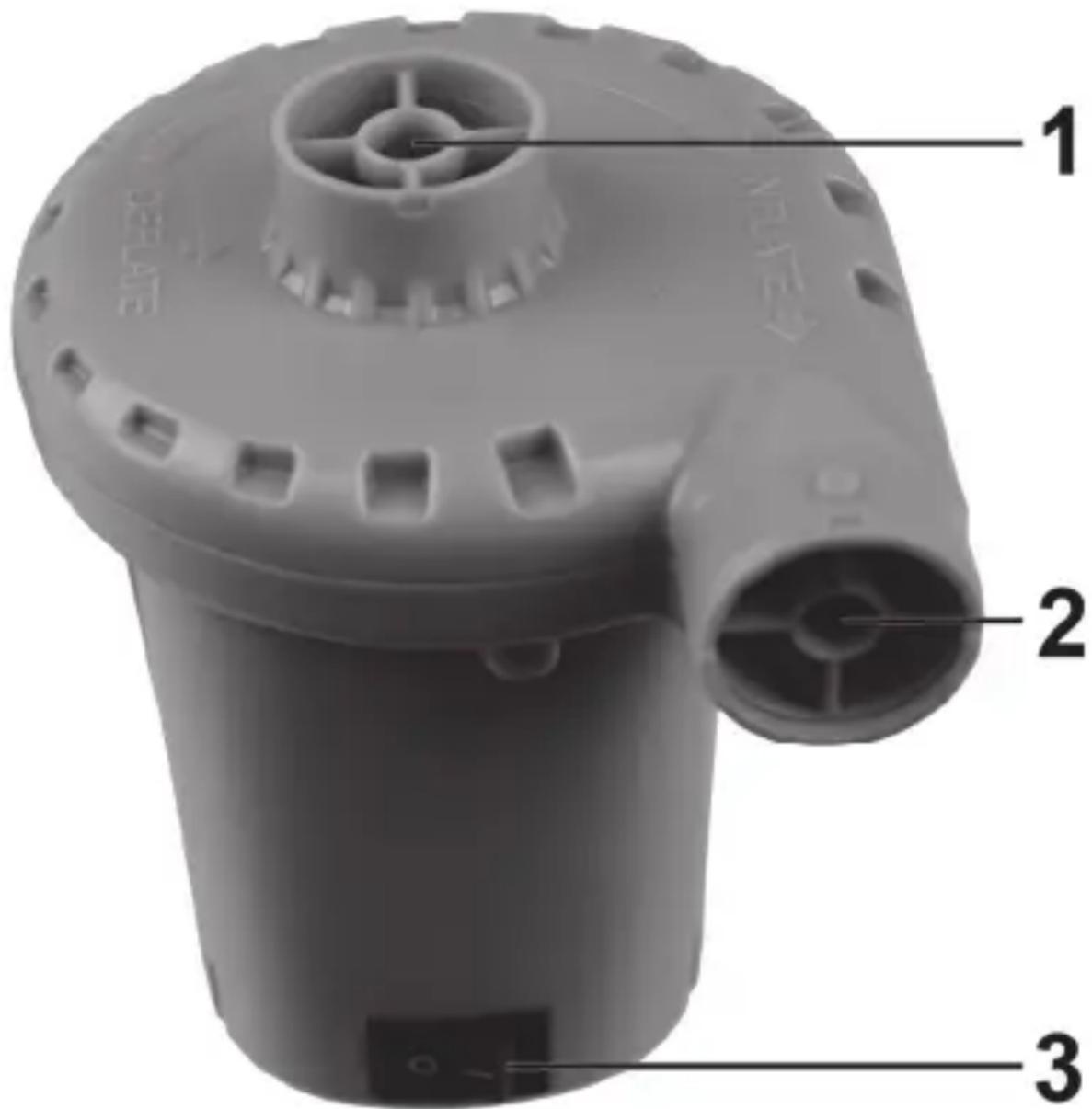

Overview

1 DEFLATE air inlet
2 INFLATE air outlet
3 On/off switch

First use

DANGER! Do not use the electric air pump while driving as otherwise there is a risk of accidents!

WARNING! You must make sure that your vehicle has a 12V car power supply. The electric air pump must not be used with a 24V car power supply.

WARNING! The short-time operation of the electric air pump is 30 minutes. Ensure that the period of short-time operation is not exceeded. A longer operating time may lead to overheating and

damage the device. Let the electric air pump cool down completely if necessary before switching it on again. The electric air pump is not suitable for continuous operation.

• Set the on/off switch (3) to the "0" position.
• Insert the plug of the electric air pump into the power outlet of your vehicle.

Inflating

• Open the valve cap of the inflatable item.
• Attach a suitable valve adapter to the INFLATE air outlet (2). Make sure that the pins of the electric air pump engage in the slot of the valve adapter. Turn the valve adapter as far as possible to the right. Now insert the valve adapter into the valve of the inflatable item.

Note: The device is cooled by the air intake. When using the smallest valve adapter on the INFLATE air outlet (2), please attach the medium-sized valve adapter to the DEFLATE air inlet (1). Thus the air flow is optimised and the device is cooled sufficiently.

- Set the on/off switch (3) to the "1" position to switch on the electric air pump. If this does not switch on the electric air pump, the vehicle ignition may need to be turned on first.

- Once the inflatable item is filled sufficiently, set the on/off switch (3) to the "0" position to switch off the electric air pump.

• Remove the valve adapter by turning it as far as possible to the left and then pulling it off.
• Remove the plug from the power outlet.

Deflating

• Open the valve cap of the inflatable item.
• Attach a suitable valve adapter to the DEFLATE air inlet (1) and to the valve of the inflatable item.
• Set the on/off switch (3) to the "1" position to switch on the electric air pump. If this does not switch on the electric air pump, the vehicle ignition may need to be turned on first.
• Once the inflatable item is completely empty, set the on/off switch (3) to the "0" position to switch off the electric air pump.
• Remove the valve adapter.
• Remove the plug from the power outlet.

Maintenance / cleaning

The electric air pump does not contain any parts that require maintenance. Ensure that the electric air pump does not become dirty. Keep the DEFLATE air inlet (1) and the INFLATE air outlet (2) clean.

DANGER! Remove the plug from the power outlet before cleaning as there is a risk of an electric shock!

WARNING! Clean the electric air pump with a slightly damp cloth if it becomes dirty. Do not use any solvents, corrosive or gaseous cleaning agents. The electric air pump could be damaged.

Environmental and disposal information

Symbol of a trash bin crossed with two crossed arms, above a solid black rectangle (no text or labels)

When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU.

All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

CE

This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU.

The complete EU Declaration of Conformity is available on request at: [e-mail]

Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: 020 - 70 49 04 03

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 02 - 20 09 025

E-Mail: [e-mail]

IAN: 273447
