SFR 36 A1 - Razor SILVERCREST - Free user manual and instructions

Product Type	Electric Shaver (Foil)
Model	SFR 36 A1
Brand	SilverCrest
Dimensions (H x W x D)	Approx. 15 x 5 x 4 cm
Weight	Approx. 180 g
Power Supply	Rechargeable battery (NiMH or Li-ion)
Charging Time	Approx. 1 hour
Usage Time	Approx. 45 minutes
Cutting System	Double foil with trimmer
Trimmer Type	Pop-up trimmer
Display	LED charging indicator
Wet/Dry Use	Yes (waterproof IPX4)
Cleaning	Rinse under running water, brush included
Foil Replacement	Every 18 months (SilverCrest SFR 36 A1 foil)
Cutter Replacement	Every 18 months (SilverCrest SFR 36 A1 cutter)
Voltage	Auto-sensing 100-240V, 50/60Hz
Safety	Overcharge protection, automatic shut-off
Accessories	Protective cap, cleaning brush, charging cable

Frequently Asked Questions - SFR 36 A1 SILVERCREST

How do I clean the SilverCrest SFR 36 A1 shaver?

Remove the foil and cutter, rinse under running water, and use the included brush. Do not use harsh chemicals. Dry before reassembly.

How long does it take to fully charge the shaver?

Charge time is approximately 1 hour for a full charge. The LED indicator will show when charging is complete.

Can I use the shaver while it's charging?

No, the SFR 36 A1 must be unplugged during use for safety reasons. Only charge with the provided adapter.

How often should I replace the foil and cutter?

For optimal performance, replace the foil and cutter every 18 months or when signs of wear appear. Use genuine SilverCrest parts.

Is the shaver waterproof?

Yes, it has an IPX4 rating, meaning it can be rinsed under water but not submerged. Suitable for wet shaving with gel or foam.

What is the battery life after a full charge?

A full charge provides approximately 45 minutes of cordless shaving, enough for about two weeks of use.

How do I know when the battery is low?

The LED indicator will flash or change color when the battery is low. Charge the shaver soon.

Can I use the shaver for trimming sideburns or mustache?

Yes, the pop-up trimmer is designed for precise trimming of sideburns, mustache, and beard edges.

What should I do if the shaver stops working?

Check if the battery is charged, clean the foil and cutter, and ensure the head is properly attached. If issues persist, contact SilverCrest customer service.

Does the shaver come with a warranty?

Yes, SilverCrest offers a 2-year warranty against manufacturing defects. Keep the purchase receipt for proof.

USER MANUAL SFR 36 A1 SILVERCREST

Operating instructions

DE

HERREN-RASIERER

Bedienungsanleitung

IAN 100057

GB IE DE

Contents

1. Overview ....3
2. Intended purpose ....4
3. Safety information ....4
4. Items supplied 7
5. Charging 7
6. Operation ....7

6.1 Before switching on for the first time 7
6.2 Switching on and off 8
6.3 Transport lock.... 8
6.4 Shaving 8

1. Cleaning and maintenance of the device 9

2. Storage 10

3. Replacing shaving foils/cutter blocks 10

4. Disposal 11

5. Troubleshooting .... 12
6. Technical specifications ....12
7. Warranty of HOYER Handel GmbH ....13

1. Overview

1 Shaving foils

2 Shaving foil frame

3 Shaving head

4 Release buttons for shaving foil frame (on both sides)

5 Shaving head hinge

6 Only Off switch

7 00 /... / 100 Display in battery operation: status display of the battery capacity 00 is shown / display is lit red: battery is almost discharged, start charging Display in mains operation: charging indicator, battery symbol flashes

Battery symbol flashes continuously in mains operation Lock symbol flashes: shows the transport lock

8 Socket for connection to the plug-in power unit cable

9 Release button for shaving head

10 Protective lid / Designer stubble attachment

11 Long hair trimmer

12 Cutter block

Not shown:

13 Plug-in power unit with corresponding cable

14 Cleaning brush

15 Storage pouch

Thank you for your trust!

Congratulations on your new men's shaver.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
- Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.
- If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new men's shaver!

2. Intended purpose

This men's shaver is intended for cutting human hair only. The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

Do not use the device to cut artificial hair or animal hair.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

- This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without supervision.

- Keep children under the age of 8 away from the device and the power cable.

- This symbol indicates that you can clean the cutter blocks 12 and the shaving foil frame 2 in the shaving head 3 under running water. DANGER! Disconnect the device from the plug-in power unit prior to doing so.

- Only use the included original power adaptor for mains operation.

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation!

- Keep the device out of the reach of children.

DANGER! Risk of electric shock due to moisture

- The hand-held device and the plug-in power unit are not waterproof and are therefore not allowed to be used in a shower/bath.

- The device must never be charged in the vicinity of a bathtub, a shower, a filled hand basin or similar.

- If the device is used in a bathroom, the plug-in power unit must be disconnected after use, as the proximity of water represents a danger, even when the device is switched off.

- The plug-in power unit and the corresponding cable must not be put into water or other liquids and must not be rinsed under running water.

- Never touch the plug-in power unit with wet hands in order to plug it into or pull it out of a wall socket.

- Do not operate the device with wet hands if the plug-in power unit is connected.

- If the device has fallen into water, pull out the plug-in power unit immediately, and only then remove the device from the water. Do not use the device again, but have it checked by a specialist.

- Installation of a residual current device (FI/RCD) with a rated residual operating current of no more than 30 mA is recommended to provide additional protection. Ask your electrician for advice. The installation should only be carried out by a qualified electrician.

DANGER! Risk of electric shock

- Only connect the plug-in power unit to a properly installed and easily accessible wall socket, whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the plug-in power unit cable cannot be damaged by sharp edges or hot surfaces. Do not wrap the plug-in power unit cable around the device.

- When using the device, ensure that the plug-in power unit cable cannot be trapped or crushed.

- When removing the plug-in power unit from the wall socket, always pull the plug and never the cable.

- Pull the plug-in power unit out of the wall socket, ... ... if there is a fault, ... when you are not charging the device, ... during thunderstorms and ... before removing battery for disposal.

- Do not use the device if there is visible damage on the device, the plug-in power unit, or the corresponding cable.

- If the plug-in power unit or the corresponding cable of this device are damaged, they must be replaced by the manufacturer or its customer service department or a similarly qualified person, to prevent any hazard.

DANGER from batteries

• Do not expose the device to direct sunshine or heat. The ambient temperature should not be lower than 0 °C or higher than +40 °C.
• The charge contacts on the device must not be connected by metallic objects.
• The battery may only be charged with the original accessory (power adaptor).

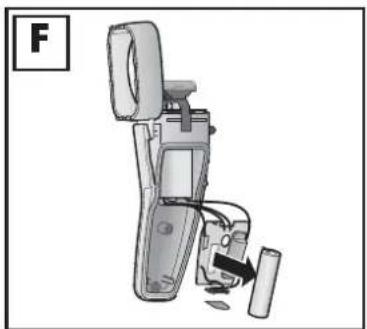

• When the battery has reached the end of its service life, the battery must be removed and the device and the battery must be disposed of (chapter "Disposal" on page 11). Do not try to replace the battery.
• The battery only removed for disposal must not be reused or disassembled.
• Protect the battery against mechanical damages. Fire hazard!
• Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse immediately with plenty of clean water and consult a doctor. The electrolyte solution can cause irritation.
• The removed battery must not be thrown into a fire or short-circuited. The battery may overheat and explode.

WARNING! Risk of injury

• Place the plug-in power unit cable in such a way that no one trips over it or steps on it.
• Do not switch on the device if the shaving head has been flipped open.
• The cutting blades are sharp. Handle with care.
• Do not use the device if the shaving foil or the shaving head are damaged.
• Do not use the device on open wounds, cuts, sunburn or blisters.

WARNING! Risk of material damage

• Use the original accessories only.
• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.
• Do not cover the plug-in power unit to prevent overheating.
• Do not use any astringent or abrasive cleaning agents.

4. Items supplied

1 Men's shaver
1 Protective lid 10
1 Plug-in power unit with corresponding cable 13
1 Cleaning brush 14
1 Storage pouch 15
1 Operating Instructions

5. Charging

NOTES:

• Charge the battery for at least 2 hours before using the device for the first time. After that, a charging time of 90 minutes is sufficient.
• In order to increase the service life of the battery, we recommend ... ... to use the device regularly and without long storage times, ... to discharge the battery prior to the charging procedure (LED 007 is shown, display is lit red).

• T h e d i s p l a y 7 charging state of the battery in percent (00, 10, ..., 100 in increments of ten).

• The display ... ... is lit blue, when the device is switched on or being charged. ... is lit red, if the battery is almost discharged. After the display lighting changes to red only one normal shave is still possible. The display is still lit red for a short time when charging, until the battery has reached a capacity of approx. 10%.

• It takes about 5 minutes to charge the device sufficiently for one shave.

• When the battery is fully charged, the device can be used for approximately 90 minutes without being connected to the power supply.

• Switch off the device with the on/off switch 6 if necessary.

• Connect the plug-in power unit 13 to the socket 8 on the device.
• Insert the plug-in power unit 13 in into an easily accessible wall socket, the voltage of which corresponds to the rating plate.
• The battery symbol on the display 7 flashes and the battery is charged. When the battery is fully charged, 100 is shown.

6. Operation

6.1 Before switching on for the first time

CAUTION: after unpacking, there could show the oil residues on the shaving foils. Remove these with an absorbent, lint-free cloth before using the device for the first time.

6.2 Switching on and off

Irrespective of the battery's charging status, the device can be used at any time in mains operation.

1. In order to use the power pack, ensure that the device is switched off.
2. Connect the plug-in power unit 13 to the socket 8 on the device.
3. Insert the plug-in power unit 13 in into an easily accessible wall socket, the voltage of which corresponds to the rating plate.
4. Remove the protective lid 10 before switching on.
5. To switch on the device, push the on/off switch 6.
6. When switching on ... ... the display is lit blue, ... the charging state is shown, ... the lock symbol briefly appears on the display 7.
7. To switch off the device, push the on/off switch 6 again.

6.3 Transport lock

If the transport lock is activated, a lock symbol appears on the display 7.

• Press and hold the on/off switch 6 for approx. 3 seconds, in order to switch the transport lock on/off.
• Connecting the plug-in power unit 13 deactivates the transport lock, which cannot be activated during mains operation.

6.4 Shaving

DANGER! Risk of electric shock!

- The hand-held device and the plug-in power unit are not waterproof and are therefore not allowed to be used in a shower/bath.

WARNING!

• Do not use the device on open wounds, cuts, sunburn or blisters.
• Do not place excessive pressure on the shaving foils 1. They are thin and can be damaged easily.

NOTES:

• The device is suitable for both dry and wet shaving (Wet & Dry).
• Initial use may cause temporary irritation or redness of the skin, as the skin has to adjust to shaving. This is normal and usually lasts between 2 and 4 weeks.

Dry shaving (Rechargeable battery and mains operation)

• Hold the device at a right angle to the skin surface and gently guide it over your face.
• Shave against the direction of your beard growth.
• Stretch your skin in complicated areas, such as the chin, to achieve better results.
• Switch off the device after shaving, clean the parts carefully (chapter "Cleaning and maintenance of the device" on page 9) and place the protective lid 10 onto the shaving head 3 to protect the shaving foils 1 and the long hair trimmer 11.

Wet shaving (only for battery operation)

DANGER! Risk of electric shock!

- The hand-held device and the plug-in power unit 13 are not waterproof. Wet shaving is only allowed when using battery power.

WARNING! Risk of material damage! For wet shaving use shaving foam or lather only; never use shaving gel or shaving cream. This could adhere to the cutter blocks 12.

• Before shaving, smooth a thin layer of shaving foam on your face.
• Shave your face as described in the chapter "Dry shaving (Rechargeable battery and mains operation)".
• If shaving foam should clog the shaving head 3, clean the shaving head under running water (chapter "Cleaning and maintenance of the device" on page 9).

Cutting long hair

Use the long hair trimmer 11 on the back of the shaver to shorten your beard and side-burns.

1. Take off the protective lid 10.
2. Push the long hair trimmer 11 up.
3. Switch on the shaver with the on/off 6 switch.
4. After use, switch the device off, slide the long hair trimmer 11 back to its original position and clean the device (chapter "Cleaning and maintenance of the device" on page 9).

Designer stubble

NOTE: depending on beard growth and shaving, the appearance of a designer stubble can vary greatly.

To maintain a designer stubble look, shave dry with an attached protective lid 10 regularly. In this case, the protective lid acts as a designer stubble attachment.

- Shave your face as described in the chapter "Dry shaving (Rechargeable battery and mains operation)".

7. Cleaning and maintenance of the device

DANGER! Risk of electric shock!

• The shaving head 3 can be cleaned under running water. Disconnect the device from the plug-in power unit cable 13 prior to doing so.
• The plug-in power unit and the corresponding cable 13 must not be held under running water and must not be immersed in other liquids.

WARNING! Risk of material damage!

• Do not use any astringent or abrasive cleaning agents.
• Do not place excessive pressure on the shaving foils 1. They are thin and can be damaged easily.
• Use the cleaning brush 14 for cleaning the cutter block 12 only. Under no circumstances should the shaving foils 1 be cleaned with it.

NOTE: to ensure a consistently smooth shave, the device must be cleaned and maintained regularly.

Cleaning after every dry shave

1. Press both release buttons 4 and take off the shaving foil frame 2.
2. Tap the shaving foil frame 2 carefully.
3. Clean the cutter blocks 12 with the cleaning brush 14.
4. Place the shaving foil frame 2 on the device in such a way that it locks into place.

Cleaning after every wet shave/occasionally after dry shave

1. If necessary, wipe the device (not the shaving foils 1) with a slightly moistened cloth.
2. Press the release button 9. The shaving head 3 opens up.
3. Hold the device facing down and rinse the cutter blocks 12 and the shaving foil frame 2 in the shaving head 3 under running water.
4. Allow the parts to dry completely.

- Depending on the intensity of usage, but at least every 6 months, carefully spread a small amount of sewing machine oil on the shaving foils 1, the cutter blocks 12 and the long hair trimmer 11.

8. Storage

DANGER! Keep the device out of the reach of children.

• When the device is not being used, place the protective lid 10 on the shaving head 3.
• The device and accessories can be stored in the storage bag 15.

9. Replacing shaving foils/cutter blocks

WARNING! Do not use the device if the shaving foils 1 are damaged.

NOTE: replacement shaving foils and cutter blocks can be ordered:

-on www.hoyerhandel.com
- or at the service centre hotline (chapter "Warranty of HOYER Handel GmbH" on page 13)

The shaving foils 1 and the cutter blocks 12 must be replaced, ...

... when you can see signs of damage,
... when you feel pinching when shaving or if the shave is not close, and if this is not remedied by oiling of the shaving foils 1 and the cutter blocks 12 (see chapter "Cleaning and maintenance of the device" on page 9) and
... depending on the intensity of use, but generally after one year.

1. Figure A: press both release buttons 4 and take off the shaving foil frame 2.

2. Press the release button 9. The shaving head 3 opens up.

3. Figure B: take an old cutter block 12 on both ends between your thumb and index finger and pull it off the shaver carefully. Ensure that the spring, which is located between the cutter block and the white bracket, does not fall out.

4. Take a new cutter block 12 on both ends between your thumb and index finger and insert it into the white bracket carefully. Press the cutter block right down once until it engages audibly.
5. Close the shaving head 3.
6. Press the new shaving foil frame 2 down on the shaving head until it engages audibly.

10. Disposal

Removing the battery

• This device is operated with a rechargeable lithium-ion battery, which you must remove before disposing of the device.
• You must be technically minded to remove the battery, otherwise there is the danger of injuring yourself. If you do not have any experience with tools, you should have the battery removed by a person who is qualified to do this.

DANGER from batteries!

• Ensure that the battery is not damaged as you remove it. Fire hazard!
• The removed battery must not be disassembled.
• Never short-circuit the battery. The contacts on the removed battery must not be connected by metallic objects. The battery may overheat and explode.
• Only remove the battery to dispose of the device. The device is destroyed by

removing the battery. Never try to operate a disassembled device.

1. Disconnect the plug-in power unit 13 from the device.
2. Switch on the device and let it run until the battery is discharged.
3. Figure C: remove the decorative strip on the side, along with any adhesive residues and lever the top cover plate off with a screwdriver.
4. Figure D: loosen the 4 screws with a Phillips screwdriver.
5. Figure E: use a screwdriver to lever open the side seam and take the two halves of the housing apart.
6. Figure F: release the connections between the battery and the board with a pair of pliers/wire cutters. Remove the exposed battery. Take the battery and the device separately to suitable disposal.

The lithium-ion battery used for this device may not be treated as household waste. The battery must be disposed of properly. Contact battery distributors or local waste disposal points for this.

Li-ions

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union.

This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices. Recycling helps to reduce the consumption of raw materials and protect the environment.

GB

11

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Inspect the connections.Is the battery empty?
The device cannot be switched on.	Is the battery empty?Has the transport lock been activated?
Cutting performance is deteriorating	Shaving foils 1 and cutter blocks 12 cleaned and oiled?
Battery cannot be charged or the battery performance is very low	The battery have reached the end of its service life. The battery must be removed and the device must be disposed of (see chapter "Disposal" on page 11).

12. Technical specifications

Model: SFR 36 A1
Plug-in power unit (Model SW-050080BS):	Input:100-240 V ~50/60 Hz, 0.2 A maxOutput:-[IMAGE]5 V === , 800 mA
Protection class of the plug-in power unit: II	[IMAGE]
Type of protection of the plug-in power unit: IP44 (splashproof)
Device: Input: 5 V	, ===800 mAIII [IMAGE]
Battery,rechargeable:	1x 3.7 V Li-Ion,800 mAh,Type 14500
Ambient conditions:	Only approved for indoor use
Operating temperature: 0 °C to +40 °C

Subject to technical modification.

CE

13. Warranty of HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts.

Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 100057 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN: 100057

Supplier

Please note that the following address is

no service address. First contact the

aforementioned Service Centre.

HOYER Handel GmbH

Kühnehöfe 5

22761 Hamburg

Germany

14

GB

Inhalt

HOYER HANDEL GMBH

Kühnehöfe 5

22761 Hamburg

Germany
