BL-4431 - Food Processor TRISTAR - Free user manual and instructions

Brand	TRISTAR
Model	BL-4431
Product type	Food processor
Voltage	AC 220-240 V ~ 50 Hz
Power	600 W (estimated)
Bowl capacity	1 L (estimated)
Bowl material	Plastic
Number of speeds	3 (0, 1, 2) + intermittent mode
Functions	Mixing, slicing, grating
Included accessories	Metal blade, grating/slicing disc, plastic disc, pusher
Blade type	Stainless steel (blade), double-sided disc
Safety	Bowl and lid locking, overheating protection
Non-slip feet	Yes
Evacuation opening	Yes, for output of prepared foods
Cleaning of parts	In warm soapy water, do not put in dishwasher
Cleaning of base	Wipe with a soft, damp cloth
Warranty	24 months
Usage	Household use only
Weight	1.5 kg (estimated)
Dimensions (L×W×H)	20 × 18 × 30 cm (estimated)

Frequently Asked Questions - BL-4431 TRISTAR

How to assemble the Tristar BL-4431 food processor?

Place the base on a flat surface. Mount the bowl by turning counterclockwise until it clicks. Insert the desired accessory (blade or disc), then close the lid by turning until it locks. Plug in and select the speed.

How to use the grating/slicing disc?

Place the plastic disc in the bowl, then the grating/slicing disc on top. For slicing, the side with the slot should be facing up; for grating, turn the disc over. Insert food into the chute and use the pusher.

What to do if the appliance does not start?

Check that the bowl and lid are properly locked (you should hear a click). Make sure the speed selector is not on 0. If the problem persists, let the motor cool down for 15 minutes before trying again.

Can I wash the parts in the dishwasher?

No, the removable parts (bowl, lid, accessories) are not designed for the dishwasher. Wash them in warm soapy water, rinse and dry thoroughly.

How to clean the motor base?

Never immerse the base in water. Clean it with a soft, clean, damp cloth. Dry immediately.

What types of food can I prepare?

With the metal blade: for chopping, mixing or blending preparations. With the grating/slicing disc: for grating hard vegetables (carrots, potatoes) or slicing fruits and vegetables (cucumbers, onions).

How to avoid injuries with the blades?

The blades are very sharp. Never touch the blades with bare hands. Always use the pusher to introduce food into the chute. Unplug the appliance before changing accessories.

What to do in case of motor overheating?

The appliance is equipped with overheating protection. If the motor stops, set the selector to 0, unplug and let it cool for at least 15 minutes before using again.

What is the warranty period?

The appliance has a 24-month warranty from the date of purchase. Keep the receipt for any claim. The warranty covers manufacturing defects, but not normal wear or misuse.

Where can I find spare parts?

Contact your retailer or Tristar after-sales service. Use only original accessories recommended by the manufacturer.

USER MANUAL BL-4431 TRISTAR

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• This appliance is only to be used for household purposes and only for the purpose it is made for.

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

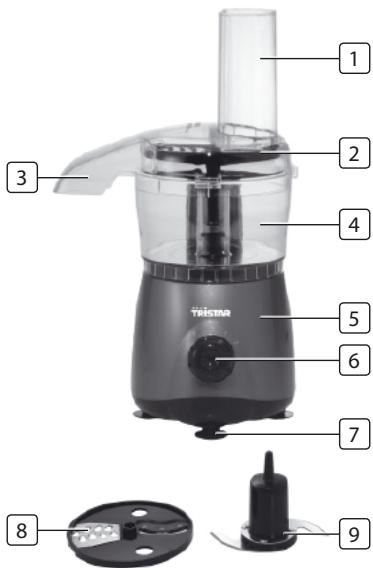

PARTS DESCRIPTION

1. Lid with feeding shaft
2. Plastic disc
3. Eject gap
4. Bowl
5. Base
6. Speed selector
7. Anti split feet
8. Slicing and chopping disc
9. Chopping blade

BEFORE FIRST USE

• Remove all packaging of the device.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage : AC220-240V 50Hz.
• Always place the unit on a flat stable surface and ensure at least 10 cm. free space around the unit. This device is not suitable for outdoor installation or use.
• Wash before using the device for the first time all supplied loose parts in a warm soapy water. Rinse and dry thoroughly. These parts are not dishwasher proof.
• Caution! Never immerse the base (no. 5) in water or other liquid. Clean the base with a clean soft, damp cloth.
• Beware! The blades of the slicing and chopping disk (no. 8) and the chopping blade (no. 9) are very sharp, avoid physical contact, you can seriously injure.

Use of the device with the chopping blade

Safety closure

• Place the base (no. 5) on a flat stable surface and not near a sink filled with water or something, make sure the plug is not placed in the socket and the speed selector (no. 6) is selected on the 0 mode.
• Place the bowl (no. 4) on the base and turn it counter clockwise until you hear a click, otherwise the device will not work for safety reasons. Place the chopping blade (no. 9). Place the ingredients in the bowl.
• Turn the lid counter-clockwise on the can and make sure the appendix of the lid slides in the safety lock, otherwise the device will not work for safety reasons.

For a slow working select mode 1, mode 2 for faster, 0 for disable mode. For a short fast operation, select the Pulse mode, you should continue to hold down the switch in this position, due to possible overheating of the engine. Allow the unit to cool down before further use.

Use of the device with the cutting and chopping disk

Safety closure

This appendix should be clicked in the safety closure

• Place the base (no. 5) on a flat stable surface and not near a sink filled with water or something, make sure the plug is not placed in the socket and the speed selector (no. 6) is selected on the 0 mode.
• Place the bowl (no. 4) on the base and turn it counter clockwise until you hear a click, otherwise the device will not work for safety reasons. Insert the supplied plastic disc (no.2) in the bowl, place the slicing and chopping disc on the plastic disc. For cutting discs ensure that the knife is at the top. For grating turn the disc, so that the grating part is at the top.
• Turn the lid with the filling shaft (no. 1), counter clockwise, on the can and ensure that the appendix of the lid slides in the safety closure, otherwise the device will not work for safety reasons.

For a slow working select mode 1, mode 2 for faster, 0 for disable mode. For a short fast operation, select the Pulse mode, you should continue to hold down the switch in this position, due to possible overheating of the engine. Allow the unit to cool down before further use.

• Place the cutting and shredding fruits and vegetables in the filling shaft. Always use the supplied pistil to press the fruit and vegetables into the shaft. Never do this with your hands, you can seriously injure by touching the rotating blades. Also do not use other objects, the device may malfunction.

• Always place a large bowl under the eject gap (no. 2), to catch the cut or grated fruit and vegetables.

CLEANING AND MAINTENANCE

• Always remove the plug from the outlet before storage or cleaning the device.
• Clean the loose parts in a warm soapy water. Rinse and dry thoroughly. These parts are not dishwasher proof.
• Clean the outside of the device with a clean soft, damp cloth. Never immerse the device in water or any other liquid.

Caution! The blades of the slicing and chopping disk (no. 8) and the chopping blade (no. 9) are very sharp, avoid physical contact, you can seriously injure.

GARANTEE

• Tristar is not liable for damages occurred through:

o In case the appliance has fallen.

o In case the appliance has been technically changed by the owner or another third party.

o In case of improper use of the appliance.

o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
• This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage

at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Geachte klant,

5015 BH Tilburg, The Netherlands

www.tristar.eu
