KH 4011 TAPIS DE MASSAGE AVEC CHAUFFAGE INTEGRE - Massage mats KOMPERNASS - Free user manual and instructions

Product type	Massage mat
Brand	KOMPERNASS
Model	KH 4011
Rated voltage	12 V DC / 800 mA
Power supply	230 V mains adapter or 12 V cigarette lighter adapter
Use	At home or in the car (vehicle stationary)
Massage functions	Pulsation, tapping, kneading, rolling
Massage zones	Shoulders, back, hips, right thigh, left thigh
Intensity adjustment	Yes (high, medium, low)
Speed adjustment	Yes (fast, medium, slow)
Integrated heating	Yes, with indicator light
Automatic shut-off	After 15 minutes of operation
Remote control	With On/Off, Massage mode, Zones, Intensity, Speed, Heat, Pause, Auto/Select buttons
Cleaning	Clothing brush and slightly damp cloth
Maintenance	Do not immerse in water or other liquids
Safety	Unplug before cleaning; do not use in bathtub or shower; consult a doctor if you have a medical condition
Included accessories	1 massage cushion, 1 mains adapter, 1 12 V adapter, 1 instruction manual, 1 warranty card
Warranty	According to the accompanying leaflet
Repairability	Competent after-sales service

Frequently Asked Questions - KH 4011 TAPIS DE MASSAGE AVEC CHAUFFAGE INTEGRE KOMPERNASS

How do I clean the massage mat?

Before any cleaning, unplug the massage mat. Use a clothing brush to remove lint. For stains, use a slightly damp cloth. Never immerse the device in water.

Can I use the massage mat in my car?

Yes, provided the vehicle is stationary. Plug the 12 V adapter into the cigarette lighter, then connect the small plug to the remote control. Do not use while driving to avoid any risk of accident.

Does the massage mat turn off automatically?

Yes, after 15 minutes of operation, the mat turns off automatically. To turn it back on, press the On/Off button.

How do I change the massage type?

Press the Massage mode button on the remote control. By default, the massage is pulsation. One press gives tapping massage, two presses give kneading, three presses give rolling.

How do I activate the heating?

Press the Heat button on the remote control. The red LED on the remote lights up to indicate that heating is activated. Press again to deactivate.

Can I use the massage mat if I have a medical condition?

Before any use, consult your doctor if you are undergoing medical treatment or have health issues. Do not use the heating function on sensitive skin or if you have circulatory problems.

Is the massage mat suitable for all types of seats?

The mat is designed to be placed on a seat (sofa, armchair, car seat). Ensure it is flat and the remote control is accessible. Avoid unsuitable or unstable surfaces.

What should I do if the massage mat stops working?

First check the connections: the adapter must be properly plugged into the socket and into the remote control. If the problem persists, contact the after-sales service indicated in the warranty.

How do I adjust the massage intensity?

Use the Intensity button on the remote control. Press multiple times to cycle through the levels: high, medium, low. The setting applies immediately.

Is the massage mat safe for children?

Do not let children handle the device without supervision. Sensitive or uninformed persons may not assess the risks. Use the device only under adult supervision.

USER MANUAL KH 4011 TAPIS DE MASSAGE AVEC CHAUFFAGE INTEGRE KOMPERNASS

Keep this manual for future reference – and pass it on with the appliance to any future users!

To avoid life-threatening electric shocks:

• Only allow customer service to replace damaged cables, before you continue using the appliance.
• Use the appliance in dry areas only. Do not use outdoors, in the bathtub or in the shower.
• Do not touch the massage mat, if it is wet. Pull out the plug from the power socket.

To prevent the risk of fire or injury:

• Plug the massage mat in only into a 230 V power socket or a 12 V cigarette lighter. For this purpose, only use the appropriate adapter supplied with the appliance.
• Do not allow children and elderly persons to handle the appliance unsupervised. They are not always able to recognize potential dangers correctly.
• Consult your doctor before using the massage mat, in case you are being treated for some ailment.
• Do not use the heating function if you have a sensitive skin or poor circulation.

Accident hazard!

• Operate the massage mat in the car only when the vehicle has been stopped.

1. Intended Use

This massage mat is intended exclusively for private, household use. It is intended for the relaxation massage of shoulders, back, hips and thighs.

This massage mat is not suitable for any other use. It is not intended for use in medical/ therapeutic or commercial fields.

2. Delivery Contents

1 massage mat
1 mains adaptor
1 12 V adaptor
1 Operating Manual
1 Warranty card

3. Technical Data

Nominal voltage: 12 V DC / 800 mA

4. Connection

Accident hazard!

• Operate the massage mat in the car only when the vehicle has been stopped.

If you want to use the massage mat in the car...

firstly insert the plug of the 12V adaptors into the remote control jack provided for the purpose...
and then insert the large plug into the cigarette lighter of your car.

GB IRL

If you want to use the massage mat at home...

first of all, insert the small plug of the mains adaptor into the remote control jack provided for the purpose...
and then insert the power plug into the power socket.

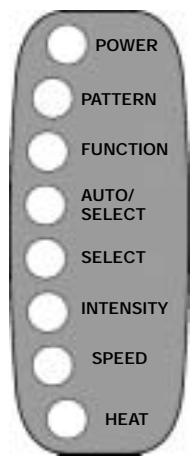

5. Operate with the remote control

With the remote control function keys, you can easily control the individual functions of the massage mat:

POWER

Press this key...

once to switch on the massage mat,
once again to switch off the massage mat.

The massage mat switches off automatically after 15 minutes of operation. To switch on the massage mat again,

press the Power key again.

PATTERN

You can set the massage pattern with this function key.

When you switch on the massage mat, you receive a vibrating massage.

Press the PATTERN key...

once for a tapping massage,
twice for a kneading massage,
thrice for a undulating massage.

FUNCTION

You can select the sequence of the massage zones with this function key.

Several zones can be cativated at the same time.

1 Shoulders
2 Back
3 Hips
4 right thigh
5 left thigh

The zones active at a particular time are displayed with green flashing diodes on the right edge of the remote control. Thus, the topmost diode is for zone 1, the second for zone 2, etc.

When you switch on the massage mat, the standard sequence is as follows:

$$ 1 \rightarrow 2 \rightarrow 3 \rightarrow 4 \rightarrow 5 \rightarrow 5 \rightarrow 4 \rightarrow 3 \dots $$

Press the FUNCTION key...

once for the following sequence:

$$ 1 + 2 + 3 \rightarrow 4 + 5 \rightarrow 1 + 2 + 3 \dots $$

GB IRL

twice for the following sequence:

$$ 1 + 2 \rightarrow 2 + 3 \rightarrow 3 + 4 \rightarrow 4 + 5 \rightarrow $$

$$ 4 + 5 \rightarrow 3 + 4 \dots $$

thrice for the following sequence:

$$ 3 \rightarrow 2 + 4 \rightarrow 1 + 5 \rightarrow 1 + 5 \rightarrow 2 + 4 \dots $$

AUTO/SELECT

Keeping this key pressed, interrupts all the massage processes.

SELECT

You can specifically select one or more massage zones with this function key.

During the massage, press the AUTO/SELECT key to retain the zone that is active at the moment.
Press the FUNCTION key to change the massage zones.
Press the FUNCTION key to simultaneously activate several zones.
Press the AUTO/ SELECT key once again to deactivate the function. The massage mat goes back to the standard cycle again.

INTENSITY

You can control the intensity of the massage with this key.

Press this key for the desired massage intensity: high medium low

SPEED

You can control the massage motor cycle speed with this key.

Press this key for the desired speed:

Fast medium slow

HEAT

Press this key to switch on and switch off the heating function.

The lower diode on the edge of the remote control flashes red light if the heating function is on.

7. Cleaning

Warning!

Pull out the plug from the power socket, before you clean the massage mat.
- Never immerse the massage mat in water or other liquids for cleaning.

Remove fluff with a clothes brush.
You can treat stains with a slightly wet cloth.

9. Disposal

Inquire with your municipal authorities or local government about options for the environment-friendly and appropriate disposal of the appliance.

10. Warranty & Service

The warranty conditions and service address can be found in the enclosed warranty slip.
