IR 111 - Lamp SILVERCREST - Free user manual and instructions

Product Type	Infrared Heat Lamp
Model	IR 111
Brand	SilverCrest
Power Supply	220-240 V, 50/60 Hz
Power Consumption	100 W
Heat Output	Infrared radiation, adjustable
Dimensions (approx.)	30 x 25 x 20 cm
Weight	1.2 kg
Bulb Type	Infrared bulb (replaceable)
Timer	15-minute automatic shut-off
Heat Settings	2 levels (low/high)
Swivel Head	Yes, adjustable angle
Safety Features	Overheat protection, tip-over switch
Housing Material	Heat-resistant plastic
Cleaning	Wipe with damp cloth, unplug first
Application	Targeted heat therapy for muscles
Certifications	CE, RoHS
Included Accessories	User manual

Frequently Asked Questions - IR 111 SILVERCREST

Q1: Can I use the lamp on any part of my body?

A: Yes, but avoid sensitive areas like eyes and open wounds. Keep a distance of at least 30 cm.

Q2: How long can I run the lamp continuously?

A: The lamp has a 15-minute timer for safety. You can restart after a cool-down period.

Q3: Is the bulb replaceable?

A: Yes, replace with an identical infrared bulb (100W, R125 type). Unplug before replacing.

Q4: Can I leave the lamp unattended?

A: No, never leave the lamp on unattended. It has automatic shut-off but supervision is recommended.

Q5: How do I clean the lamp?

A: Unplug and allow to cool. Wipe the housing with a soft damp cloth. Do not use abrasive cleaners.

Q6: What is the recommended distance for use?

A: Maintain a distance of 30-50 cm to avoid burns and ensure effective heat therapy.

Q7: Can I use an extension cord?

A: Yes, but ensure it is rated for at least 1000W and fully unwound to prevent overheating.

Q8: What does the indicator light mean?

A: A red light indicates the lamp is heating. When it turns green, the lamp is ready for use.

Q9: Is the lamp suitable for pets?

A: It can be used for pets under supervision, but never leave unattended and maintain safe distance.

Q10: What should I do if the lamp tips over?

A: The tip-over switch will automatically turn off the lamp. Reset by placing it upright.

USER MANUAL IR 111 SILVERCREST

Infrared Lamp SRL 150 A1

GB CY

Operating Instructions Infrared Lamp ....Page 3

HR

Upute za uporabu infracrvene svjetiljke .... Stranica 11

RO

Electrical Properties ....3

General Safety Precautions ....4

Special Safety Precautions ......6

Intended Use ....7

Introduction 7

Initial Use ....7

How the Infrared Lamp Helps ......7

Caring for Your Appearance ....8

Important for the Sportsman ....8

Treatment of Animals 8

When Should I Seek Medical Advice? ....9

Cleaning 9

Lamp Durability 9

Changing the Bulb 9

Ambient Conditions for Transport/Storage 9

Repairing Possible Faults 9

Disposal 10

WARRANTY 10

Warranty card....59

Please read the instructions carefully before using the unit – they contain a number of important and useful pieces of information.

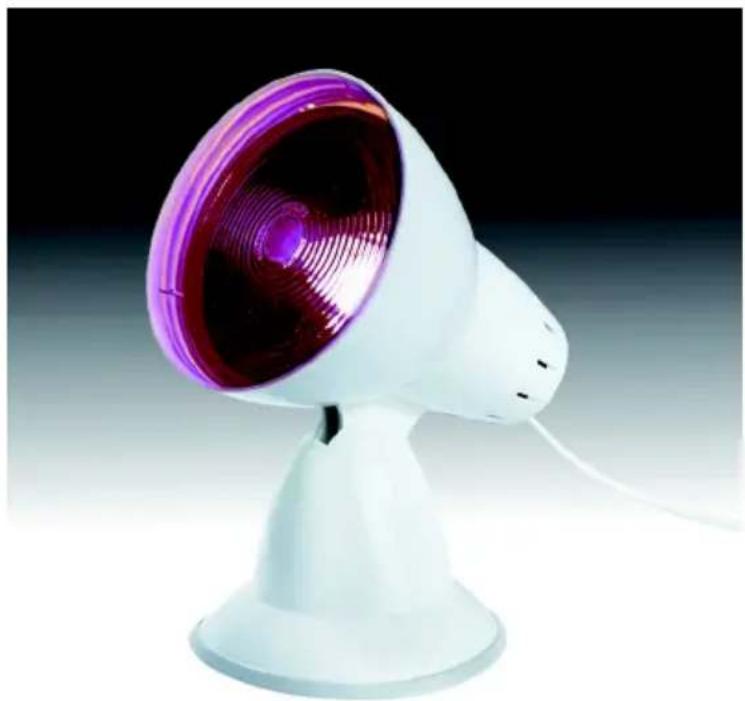

The Appliance

View of the unit, see page 2:

A Infrared lamp
B Lamp housing
C Lamp stand
D Mains cable

Manufacturer

Luxoplast Kunststofftechnik GmbH, Wernher-von-Braun-Str. 3 - 5, 84539 Ampfing Germany.

Electrical Properties

Rated voltage 230 V AC

Nominal power consumption max. 150 W

Rated frequency 50 Hz

Explanation of symbols

	Protective category II unitThis symbol means that the unit is double insulated.
	Caution:consult the accompanying documentation!No unsupervised use.
	This symbol means that it offers information about how to use the unit correctly.
Danger	Danger warning symbol – draws attention to risk of personal injury.
Caution	Caution warning symbol – draws attention to risk of material damage.
Number	LOT symbol with a four-digit number represents the date of production.
	An explanation of these symbols can be found in the Disposal section of the instructions for use.
	Type B application component
	Hot Surface / Burn Hazard

General Safety Precautions

Danger

Always disconnect the plug from the mains socket in the event of faults, when changing the bulb, before cleaning and when the appliance is not in use. Never pull on the mains cable!

Do not touch the lamp during operation or without first allowing a sufficient cooling period. Never immerse the appliance in water and do not allow it to come into contact with rain or other moisture! Should the appliance fall into water, disconnect the plug from the mains socket before removing the appliance from the water.

Afterwards, do not use the appliance again before it has been checked by a member of authorised customer service personnel. This also applies if the mains cable or the appliance has fallen or been dropped.

Place the appliance on a stable, level surface. Ensure an area of at least 30 cm of free space around the unit in order to avoid overheating.

Do not place the appliance on hot surfaces or near to heat sources and lay the mains cable in such a way that it does not come into contact with hot or sharp-edged objects.

Do not use the appliance whilst standing on a wet floor or if your hands or the appliance are wet.

Do not bend the mains cable and do not wind it around the appliance.

Do not leave the appliance unattended during operation. Use only proper extension leads. Do not operate the appliance outdoors, as this may subject it to rain or other moisture.

Do not operate the appliance outdoors, as this may bring it into contact with rain or other moisture.

Repairs are to be carried out only by authorised customer service personnel. Never attempt to open the appliance or e.g. to get into the inside using metal objects.

If the appliance is not used properly or if it is operated incorrectly, no liability can be accepted for any damage which occurs as a result.

Persons (including children) who are unable to operate the appliance correctly due to their physical, sensory or mental capabilities or lack of experience or knowledge should not use this appliance without supervision or instruction by a responsible person.

Electrical appliances are not children's toys! Therefore, use and store the appliance out of the reach of children. Do not allow the mains cable to hang down.

If the mains cable is damaged, it must be replaced only by a repair workshop nominated by the manufacturer (see guarantee card), in order to avoid any danger.

This appliance is designed solely for use in private households, not for commercial use.

Keep the operating instructions in a safe place and pass them on with the appliance.

Special Safety Precautions

When using infrared emitters

The unit must not be used for serious conditions (diabetes, skin cancer, heart disease, acute inflammation, multiple sclerosis, thrombosis, blood clotting problems), skin conditions or if seemingly harmless symptoms last too long! In such cases, consult a doctor. If you have taken painkillers or consumed alcohol, only use the appliance on your doctor's advice as your sensitivity to heat may be impaired.

The UV radiation of the unit can damage the cornea and retina. When using the appliance, always keep your eyes closed.

Do not use the appliance near to bathtubs, washbasins or other vessels containing water. There is a danger even when the appliance is switched off. Remove the plug from the mains socket after use.

Installing a residual-current protector with a nominal trigger current of no more than 30 mA offers additional protection. Contact your electrician.

Ensure that the voltage specified on the light bulb is the same as that of the local mains supply.

The housing becomes very hot when the appliance is switched on – danger of burns!

Heat sensitivity may be reduced after taking painkillers and anaesthetics, after local anaesthetic and by certain illnesses. In these cases, the distance must be at least 80 cm.

1) Use the infrared emitter only with a Philips PAR 38 E, 230 V, 150 W infrared bulb. Do not use any other bulb and if any bulb is purchased subsequently, ensure that it is identical with the version supplied here.
2) Do not place any flammable objects in the area of irradiation: combs, spectacle frames etc. can catch fire and textiles may be singed.
3) Avoid sudden cooling (e.g. of the head) immediately after treatment.
4) Protect the lamp from strong impacts, including setting down harshly.
5) Remember not to put the appliance away immediately after switching it off, but allow it to cool first for a few minutes.
6) Disconnection from the mains supply is only guaranteed if the plug is removed from the socket.

Intended Use

The appliance may only be employed for its intended use – for heat therapy and treating illnesses. The infrared lamp is designed solely for use in private households and is not intended for commercial use. Any other use or modification to the appliance does not constitute an intended use and is fundamentally forbidden. No liability can be assumed for damage caused by use for purposes other than the intended use or in the event of improper operation.

Introduction

It is a long-known fact that heat can relieve pain and in many cases accelerate healing. This healing heat is provided particularly effectively by the infrared lamp, from which the infrared radiation penetrates through the skin and deep into the tissue beneath. There is increased perfusion of the blood in the area, the blood vessels expand, more body-builders are taken to the irradiated point and the body breaks down more “roughage”. The recovery process can be accelerated by the healing heat from the infrared lamp.

Initial Use

Place the appliance on a level surface and insert the mains plug into a properly installed plug socket. The infrared lamp will be illuminated.

Irradiation Distance

The distance should be such that the heat is felt to be comfortable.

Generally, the distance is 40 - 60 cm.

Irradiation Duration

The best results are achieved with a treatment of 2 x 15 minutes per day.

How the Infrared Lamp Helps

Rheumatism, muscle pain and lumbago – Continue the daily treatment until no more pain is felt. In the case of articular rheumatism, seek the advice of your doctor.

Colds – The start of a cold can be suppressed. If you already have a cold, repeated treatment can provide significant relief. However, only genuine colds should be treated. In the case of maxillary sinus, frontal sinus and throat infections, treatment should only be undertaken

with the doctor's consent.

Bruises and sprains – Start the treatment around 12 hours after the accident and continue until any pain and all stiffness has disappeared.

Dermatitis, boils – Healing is promoted by regular infrared irradiation, if used in conjunction with remedies prescribed by the doctor.

Wounds – Wounds heal quicker with treatment using the infrared lamp. At the same time, the risk of infection is reduced.

For infected wounds and for cases in complex locations, consult the doctor first.

Chilblains and cold feet – Chapped skin, chilblains, numb fingers, occasional cold feet etc are caused by reduced blood flow. Treatment with the infrared lamp makes the blood vessels expand and stimulates circulation. However, it is important to start the treatment in good time.

Caring for Your Appearance

Healthy and cared for skin primarily demands sufficient circulation. Daily treatment with the infrared lamp proves time and again to be indispensable for beauty care, as this infrared heat has depth effect.

The skin also takes in cosmetic compounds more quickly if the infrared lamp is used before and after application. It makes no difference whether skin is dry and greasy.

Hair loss – Infrared treatments combined with a scalp massage, can help remedy temporary hair loss.

Massage – The effect of massage is significantly increased by transitional or simultaneous infrared irradiation. The muscles are relaxed more. Bruising and the

undesired build-up of fat disappear more quickly.

Important for the Sportsman

If the infrared lamp is used when participating in the various forms of sport, the blood flow is intensified.

This may help to improve sporting performance.

The infrared lamp can also be used during a break, in conjunction with a massage, in order to relieve tiredness, muscle cramp and stiffness. Small injuries such as sprains, bruises and strains can be combated effectively.

Treatment of Animals

The healing heat of the infrared lamp can also be used for sick or injured pets: e.g. in the case of bruising, sprains, muscle pains (race horses and dogs), eczema, bald patches, skin and teat infections, swollen ankles and poorly healing wounds. Infrared treatments have proven to be advantageous even after dogs have been trimmed.

When Should I Seek Medical Advice?

For serious conditions (diabetes, skin cancer, heart disease, acute inflammations, multiple sclerosis, thrombosis, blood clotting problems), skin conditions or if seemingly harmless symptoms last too long, you should consult your doctor. In cases where the healing can be accelerated by heat, the doctor will recommend infrared irradiation.

Cleaning

Always disconnect the plug from the mains socket before cleaning and allow the unit to cool completely before cleaning and storing it!

To clean the outside of the unit, use a dry or at most slightly damp, well-wrung cloth. Then dry it well. Do not use aggressive or abrasive cleaning agents.

If necessary, wipe off the cooled lamp with a dry cloth.

Lamp Durability

All appliances are subject to rigorous testing before leaving the factory. If you use the infrared lamp as described in these instructions, the performance will remain constant for the entire lifetime of approx.

300 constant operating hours (= approx. 1200 treatments of approx. 15 minutes). The guarantee does not cover light bulbs.

Changing the Bulb

Before changing the bulb disconnect the plug from the mains socket. Only change the bulb when it is cool! When replacing the bulb, ensure that a bulb of the same type (Philips, PAR 38 E, 230 V, 150 W) is used.

Ambient Conditions for Transport/Storage

• Ambient temperature between -15°C and +40°C
  • Relative humidity between 30% and 75%
  • Air pressure between 700 hPa and 1060 hPa

Repairing Possible Faults

95% of all complaints are unfortunately attributable to operating errors and can be easily remedied. If you are unable to remedy the problem using the troubleshooting list below, please contact our After-Sales Service by telephone or e-mail. We would therefore ask you to contact us before sending your appliance to the After-Sales Service.

[e-mail]

You can remedy the following faults yourself:

Fault Cause Remedy
– Appliance does not function.	> Not connected to the plug socket.	>>Insert mains plug into the plug socket.
	>Bulb is faulty. >> Procure	a replacement bulb of type Philips (PAR 38 E, 230 V, 150 W) and replace it as described in the operating instructions.

Disposal

The product packaging is made of recyclable materials.

The packaging material can be delivered to public collection points for recycling.

Old appliances must not be disposed of along with other household waste!

At the end of its service life, the old appliance must be disposed of in an orderly manner in accordance with the statutory regulations. The material used in the old appliance can then be recycled, resources conserved and the environment protected. More detailed information is available from the responsible local authority or local waste disposal company.

WARRANTY

We give a 3 year warranty on material and manufacturing faults in the product.

The guarantee does not apply to:

Damage caused by improper use

Parts subject to wear and tear

Bulbs

Faults that were known to the customer at the time of purchase

Damage caused by the customer

The customer's statutory warranty rights are not affected by the manufacturer's warranty. In order to make a guarantee claim within the period of the guarantee, the customer must produce proof of purchase. The warranty claim must be made within a period of 3 years from the date of purchase. In the event of a warranty claim, the customer has the right to have the product repaired in our own workshops or by workshops authorised by us. The customer is not granted any further right on the grounds of the warranty.
