Operating Instructions BATTERY CHARGER Thank you for purchasing Panasonic product. Please read these instructions carefully before using this product, and save this manual for future use. Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Use the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel. The socket outlet shall be installed near the equipment and shall be easily accessible. ∫ Product identification marking Product Battery Charger 2 DVQX1351 (ENG) Location Bottom DVQX1351ZA.book 3 ページ ２０１７年８月３１日

ENGLISH ∫ About the battery pack CAUTION Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.
• Do not use the battery pack with equipment other than the specified unit.
• Do not get dirt, sand, liquids, or other foreign matter on the terminals.
• Do not touch the plug terminals (i and j) with metal objects.
• Do not disassemble, remodel, heat or throw into fire. If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor. CAUTION
• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed. Warning Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC (140 oF) or incinerate. ∫ About the AC adaptor (supplied) CAUTION! To reduce the risk of fire, electric shock or product damage,
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

• The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet. (ENG) DVQX1351

DVQX1351ZA.book 4 ページ ２０１７年８月３１日

(For the U.S.A. and CANADA) AC Adaptor This AC Adaptor operates on AC between 110 V and 240 V. But

• In the U.S.A. and Canada, the AC Adaptor must be connected to a 120 V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration. THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Support Contact: 4 DVQX1351 (ENG) http://shop.panasonic.com/support DVQX1351ZA.book 5 ページ ２０１７年８月３１日

THE FOLLOWING APPLIES ONLY IN CANADA. CAN ICES-3(B)/NMB-3(B) -If you see this symbolDisposal of Old Equipment Only for European Union and countries with recycling systems This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. (ENG) DVQX1351

DVQX1351ZA.book 6 ページ ２０１７年８月３１日

• This battery charger*1 is dedicated for Panasonic battery pack*2. Please use genuine Panasonic batteries. *1 Indicated as battery charger or charger in the text. *2 Indicated as battery pack or battery in the text.
• Please also read the manual of your digital camera.
• Refer to our latest catalog or website for information about compatible batteries.
• The instructions provided in this document use the battery charger illustrations of DMW-BTC12 as examples. Accessories and Intended battery pack Check that all the accessories are supplied before using the product. Product numbers correct as of November 2017. These may be subject to change. DMW-BTC12 PP 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815F K1HY04YY0106

• Intended battery pack:

DMW-BLH7PP/DMW-BLG10PP/DMW-BLC12PP

DMW-BLH7E/DMW-BLG10E/DMW-BLC12E

DMW-BTC12 E 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815K K1HY04YY0106

• Intended battery pack: DMW-BLH7E/DMW-BLG10E/DMW-BLC12E 6 DVQX1351 (ENG) DVQX1351ZA.book 7 ページ ２０１７年８月３１日 DMW-BTC12 EB 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815L K1HY04YY0106

• Intended battery pack: DMW-BLH7E/DMW-BLG10E/DMW-BLC12E DMW-BTC12 GN 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815M K1HY04YY0106

• Intended battery pack: DMW-BLH7E/DMW-BLG10E/DMW-BLC12E DMW-BTC13 PP 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815F K1HY04YY0106

• Intended battery pack: DMW-BLF19PP/DMW-BLF19E DMW-BTC13 E 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815K K1HY04YY0106

• Intended battery pack: DMW-BLF19E (ENG) DVQX1351

DVQX1351ZA.book 8 ページ ２０１７年８月３１日 DMW-BTC13 EB 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815L K1HY04YY0106

• Intended battery pack: DMW-BLF19E DMW-BTC13 GN 1 Battery Charger 2 AC Adaptor 3 USB Connection Cable

VSK0815M K1HY04YY0106

• Intended battery pack: DMW-BLF19E Charging the Battery ≥ Always use genuine Panasonic batteries (P6, 7, 8). ≥ If you use other batteries, we cannot guarantee the quality of this product.

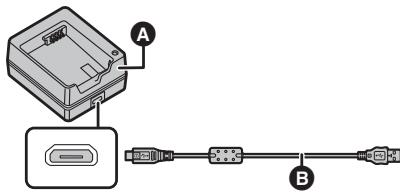

A Battery charger C AC adaptor (supplied) B USB connection cable (supplied) D To power outlet

1 Connect the battery charger and the AC adaptor (supplied) with the USB connection cable (supplied). ≥Check the direction of the terminals and plug in/out straight holding onto the plug. (It may result in malfunction by the deforming of the terminal if it is plugged in obliquely or in wrong direction.) 2 Insert the AC adaptor (supplied) into the power outlet. 8 DVQX1351 (ENG) DVQX1351ZA.book 9 ページ ２０１７年８月３１日

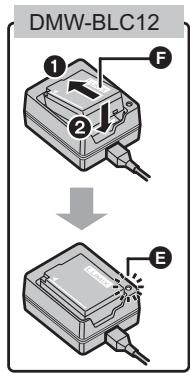

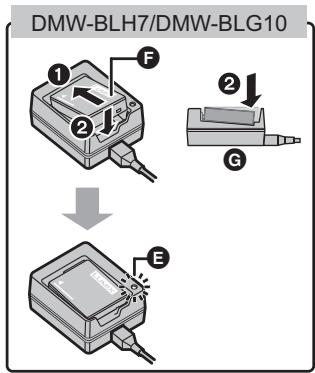

For the DMW-BTC12 3 Insert the battery in the correct direction.

• The [CHARGE] indicator E lights up and charging begins. DMW-BLH7/DMW-BLG10 DMW-BLC12

For the DMW-BTC13 3 Attach the battery by paying attention to its direction, then slide the battery in until it is secure.

• The [CHARGE] indicator H lights up and charging begins. ∫ About the [CHARGE] indicator The [CHARGE] indicator turns on: The [CHARGE] indicator is turned on during charging. The [CHARGE] indicator turns off: The [CHARGE] indicator will turn off once the charging has completed without any problem. (After charging is complete, disconnect the AC adaptor (supplied) from the power outlet and remove the battery.) ≥ When the [CHARGE] indicator flashes
• The battery temperature is too high or too low. It is recommended to charge the battery again in an ambient temperature of between 10 oC and 30 oC (50 oF and 86 oF).
• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth. ∫ Removing the battery To remove the battery, follow the steps for inserting it in the reverse order. (ENG) DVQX1351

DVQX1351ZA.book 10 ページ ２０１７年８月３１日

• Charging is not possible if the battery is inserted in a wrong way. In that case, remove the battery first, and then reinsert it by following the correct steps.
• Do not use any other USB connection cables except the supplied one.
• Do not use any other AC adaptors except the supplied one.
• Do not use a USB extension cable.
• The AC adaptor (supplied) and the USB connection cable (supplied) are intended solely for use with this battery charger. Do not use them with other devices.
• Remove the battery after charging is complete. (The battery will be exhausted if left for a long period of time after being charged.) ∫ Charging time Battery DMW-BLH7 DMW-BLG10 DMW-BLC12 DMW-BLF19 Charging time Approx. 110 min Approx. 150 min Approx. 175 min Approx. 190 min ≥ The indicated charging time is for when the battery has been discharged completely. The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for a long time may be longer than normal. Note
• The battery becomes warm after using it and during and after charging. The charger also becomes warm during charging. This is not a malfunction.
• The battery can be recharged even when it still has some charge left, but it is not recommended that the battery charge be frequently topped up while the battery is fully charged. (Since characteristic swelling may occur.) Cautions for Use
• The charger and AC adaptor may generate whirring sounds when they are being used. This is not a malfunction.
• Keep the charger and AC adaptor at least 1 m (3.3 feet) away from radios.
• Do not put heavy objects or step on the charger or AC adaptor. 10 DVQX1351 (ENG) DVQX1351ZA.book 11 ページ ２０１７年８月３１日

Specifications Specifications are subject to change without notice. Battery Charger DMW-BTC12 Input: Output: DMW-BTC13 Input: Output: Dimensions Mass (weight)

5.0 V

8.4 V

1.8 A

0.75 A

5.0 V

8.4 V

1.8 A

0.85 A

DMW-BTC12: Approx. 65.0 mm (W)k31.2 mm (H)k54.0 mm (D) [2.56q (W)k1.23q(H)k2.13q (D)] (excluding the projecting parts) DMW-BTC13: Approx. 65.0 mm (W)k24.7 mm (H)k54.0 mm (D) [2.56q (W)k0.97q(H)k2.13q (D)] (excluding the projecting parts) DMW-BTC12: Approx. 48 g/0.106 lb DMW-BTC13: Approx. 40 g/0.088 lb The symbols on this product (including the accessories) represent the following:

Class II equipment (The construction of the product is double-insulated.) For the U.S.A. Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 http://shop.panasonic.com For CANADA Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.com Printed in China (ENG) DVQX1351
