WindTunnel Canister Cleaner with Powered Hand Tool

Review this manual before operating cleaner. www.hoover.com

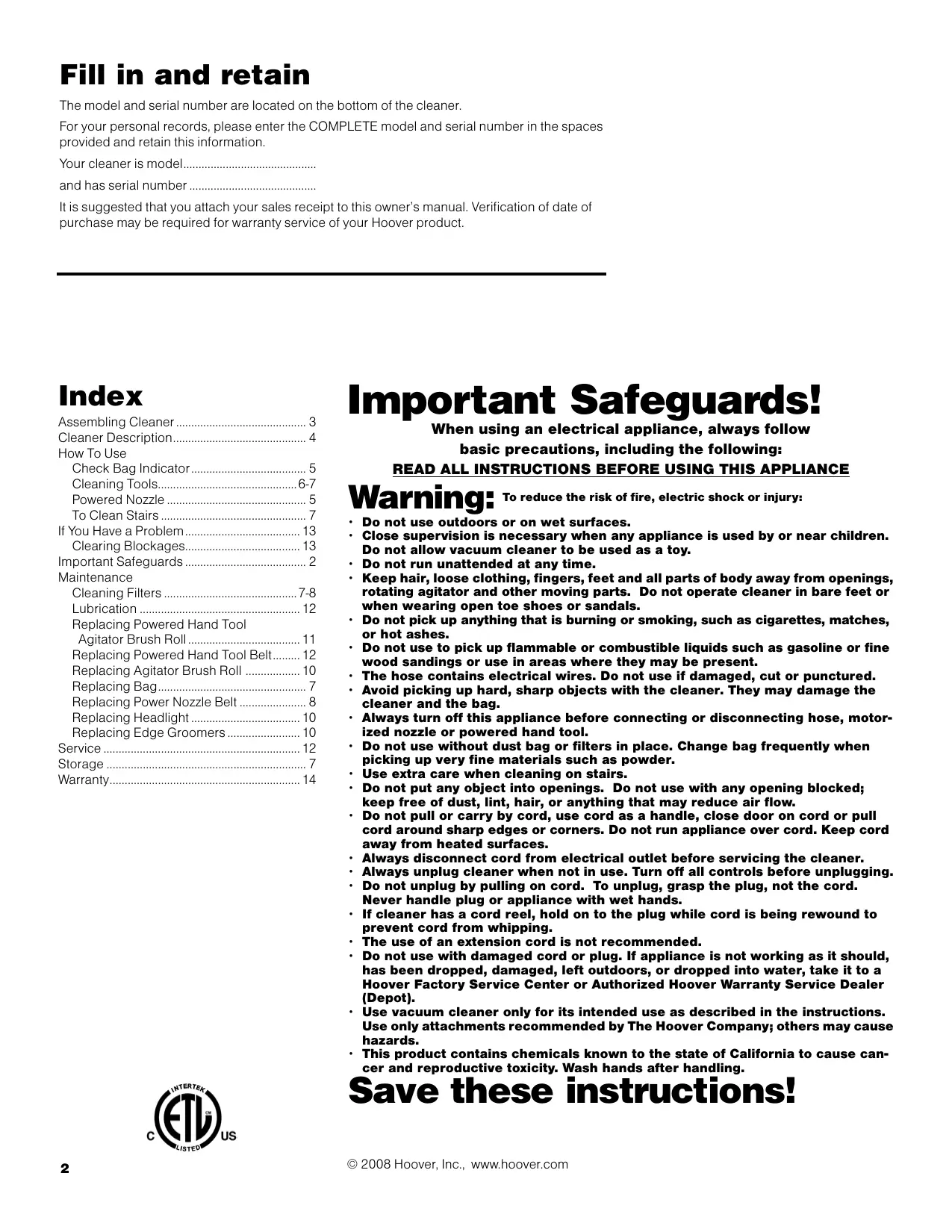

The model and serial number are located on the bottom of the cleaner. For your personal records, please enter the COMPLETE model and serial number in the spaces provided and retain this information. Your cleaner is model and has serial number It is suggested that you attach your sales receipt to this owner’s manual. Verification of date of purchase may be required for warranty service of your Hoover product.

When using an electrical appliance, always follow basic precautions, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Warning:

To reduce the risk of fire, electric shock or injury:

• Do not use outdoors or on wet surfaces.

• Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to be used as a toy. • Do not run unattended at any time. • Keep hair, loose clothing, fingers, feet and all parts of body away from openings, rotating agitator and other moving parts. Do not operate cleaner in bare feet or when wearing open toe shoes or sandals. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use to pick up flammable or combustible liquids such as gasoline or fine wood sandings or use in areas where they may be present. • The hose contains electrical wires. Do not use if damaged, cut or punctured. • Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner and the bag. • Always turn off this appliance before connecting or disconnecting hose, motorized nozzle or powered hand tool. • Do not use without dust bag or filters in place. Change bag frequently when picking up very fine materials such as powder. • Use extra care when cleaning on stairs. • Do not put any object into openings. Do not use with any opening blocked; keep .free of dust, lint, hair, or anything that may reduce air flow. • Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. • Always disconnect cord from electrical outlet before servicing the cleaner. • Always unplug cleaner when not in use. Turn off all controls before unplugging. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Never handle plug or appliance with wet hands. • If cleaner has a cord reel, hold on to the plug while cord is being rewound to prevent cord from whipping. • The use of an extension cord is not recommended. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot). • Use vacuum cleaner only for its intended use as described in the instructions. Use only attachments recommended by The Hoover Company; others may cause hazards. • This product contains chemicals known to the state of California to cause cancer and reproductive toxicity. Wash hands after handling.

Save these instructions!

© 2008 Hoover, Inc., www.hoover.com

1. Assembling cleaner

This cleaner was inspected and packaged carefully before being shipped from the factory. If you should happen to need assistance during assembly or operation, call 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only) OR 1-800-263-6376 to speak with a representative in our Consumer Response Center Mon-Fri 8AM-7PM EST. OR Visit us online at www.hoover.com to find the service outlet nearest you (click on the “Service” button).

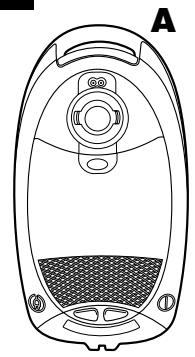

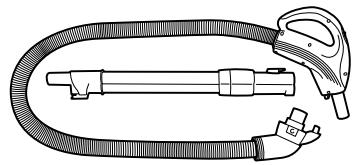

A D B C E Unpack cleaner from carton and identify the parts shown. Remove and dispose of cardboard packing.

A. Canister cleaner with tools B. WindTunnel™ powered nozzle C. Extra paper bag (one bag is installed in cleaner) D. Telescopic wand and hose E. Powered Hand Tool F. Hard Floor Tool

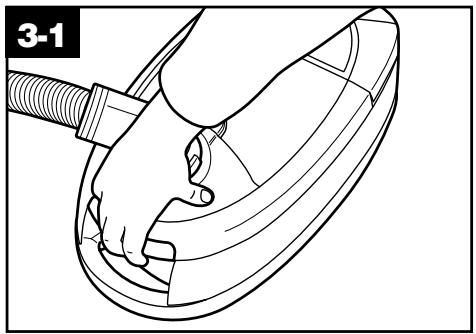

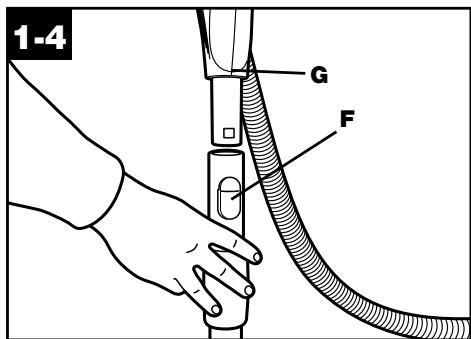

F Connect hose, wands and nozzle

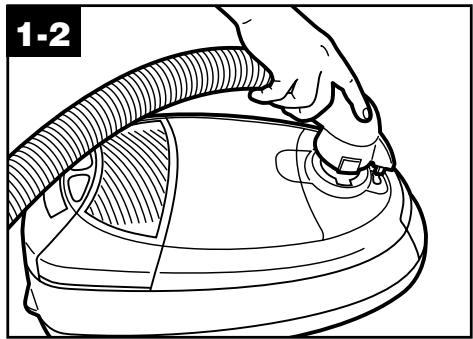

With hose toward rear of cleaner, push hose connector into opening in bag lid.

Note: The flexible hose contains electrical wires for connection to the power nozzle and should not be used if damaged. The wires should not be seen through the outer skin.

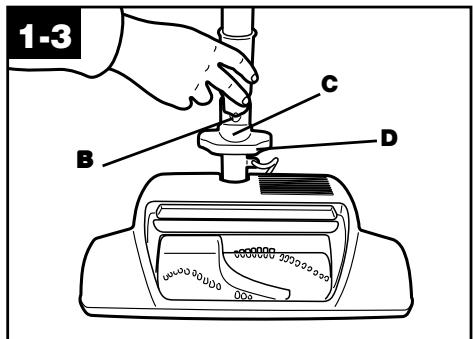

D Attach nozzle and wand

The wand with the storage clip connects to the power nozzle. Attach it to power nozzle by fitting button projection (B) on wand into nozzle connector (C) opening. Be sure nozzle is locked in place.

F To attach the hose to the telescopic wand,

Push the hand grip (G) down onto wand so that the locking latch of the release button (F) locks the hand grip into place.

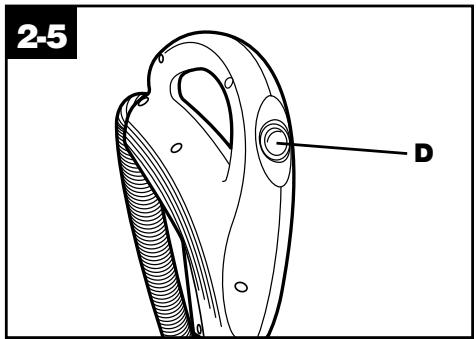

To release, press down on wand release pedal (D) and remove wand.

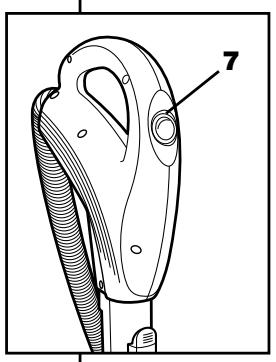

Cleaner description 2-1 7 6 5 19

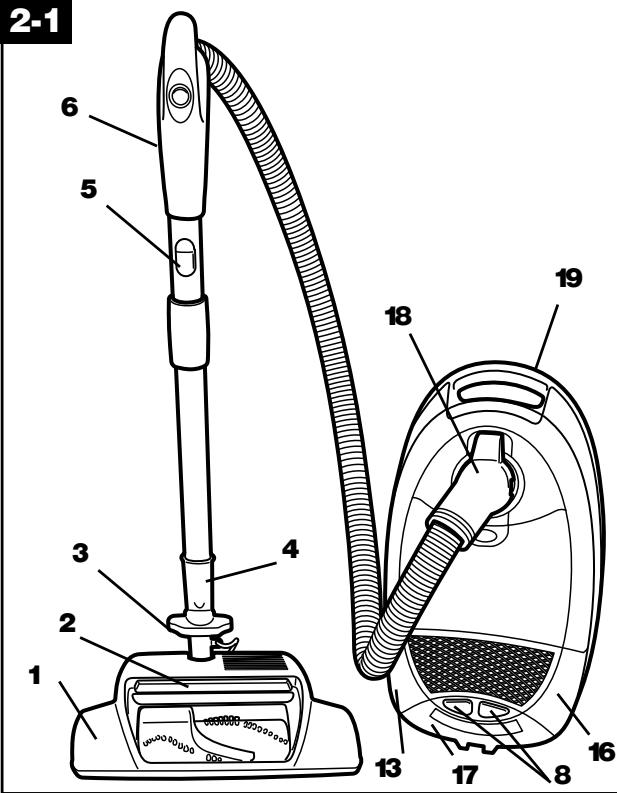

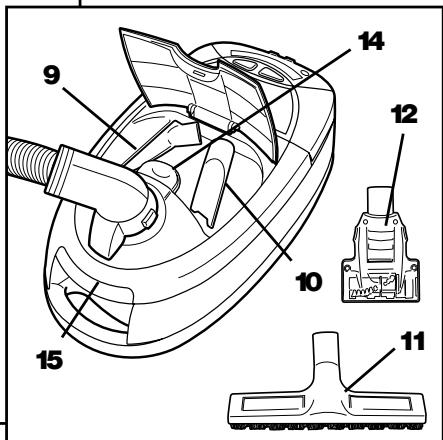

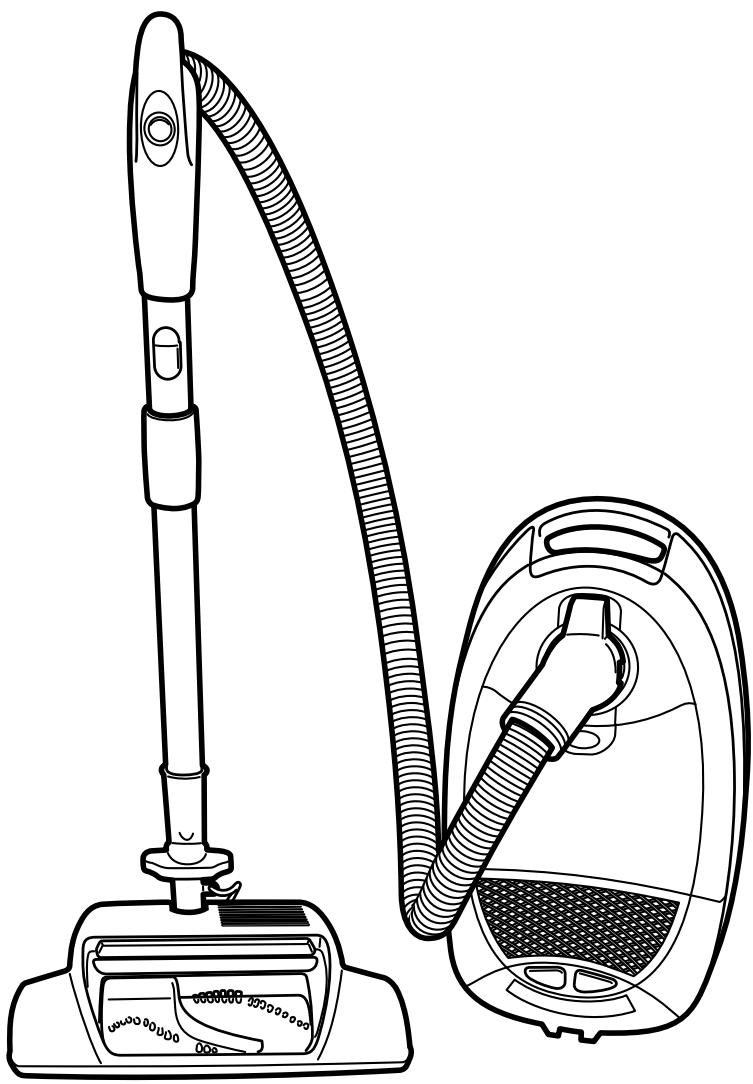

The assembled cleaner will look like the drawing.

1. WindTunnel™ carpet and floor power nozzle: Automatically adjusts to . different carpet pile heights. 2.Headlight 3. Wand release pedal: Locks and releases telescopic wand from power nozzle. 4.Wand storage clip: Located on the backside of the telescopic wand, place cleaner on its end and hook clip onto bot-. tom of cleaner. 5.Wand/release latch: Used to lock/ unlock hand grip. 6.Hand grip 7. Brushroll ON/OFF switch: Located on the hand grip for convenient cleaner operation. 8.Variable speed control: Allows user to manually select cleaner speed on this canister. 9. Dusting brush/furniture nozzle 10. Crevice tool 11. Hard floor tool 12. Powered hand tool 13. Cord rewind pedal: Step on pedal to rewind cord for storage. Hold plug until cord is rewound. 14. Tool lid latch: Push the release latch. 15. Bag lid latch: Lift to open bag lid. 16. ON/OFF pedal: Conveniently located on top of cleaner.

17. Check bag indicator: Shows red when paper bag should be checked for fullness.

18. Hose connector 19. Carrying handle Operate cleaner only at voltage specified on data plate on bottom of cleaner. This cleaner is intended for household use. Not intended for commercial use in any household or for any other commercial purpose.

An internal thermal protector has been used in your cleaner to prevent overheating if a large item or clog gets caught in the nozzle or at the opening of the bag.

When the blockage is not removed, the thermal protector will trip and cleaner will stop running. If this happens, turn cleaner OFF and disconnect cleaner from electrical outlet. Then disconnect nozzle and remove obstruction. Within 30 minutes the thermal protector will cool and automatically reset and cleaning may resume. If cleaner does not operate, allow additional time for thermal protector to reset. Note: The canister must remain unplugged during the 30 minute cooling period.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

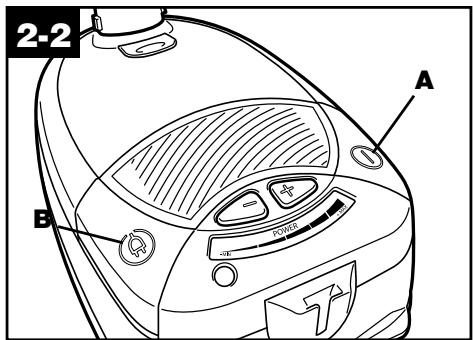

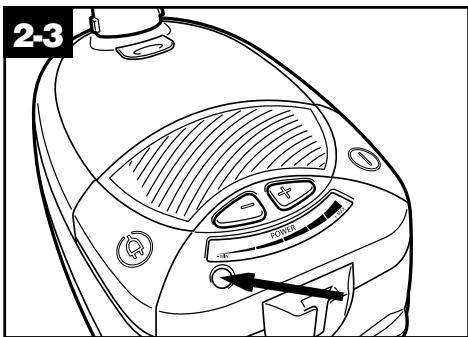

After assembling cleaner, plug cord into electrical outlet. Turn cleaner on by depressing

ON-OFF pedal (A). To turn cleaner off, depress pedal again. Note: Pedal opposite ON-OFF pedal is Cord Rewind Pedal (B).

The indicator will show a red light as bag fills with dirt. There are three conditions that will cause the indicator to become completely red: 1. The bag is full; change the bag. 2. Very fine materials (such as powder) have been picked up, clogging the bag pores; change the bag, even if it is not full. 3. There is a blockage in the nozzle, hose, tools, or at the bag opening; remove the blockage.

E D WindTunnel power nozzle

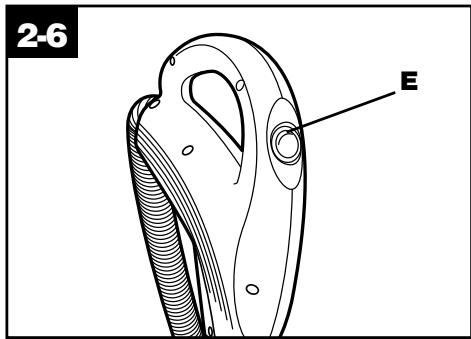

Floor surface selector

Hard surface floor cleaning

Carpet or rug cleaning

When using the power nozzle for carpet and rug cleaning, push the floor surface selector button toward “ON” (D). This setting provides the suction and agitator action necessary to deep clean carpets. The nozzle adjusts automatically to various carpet pile heights.

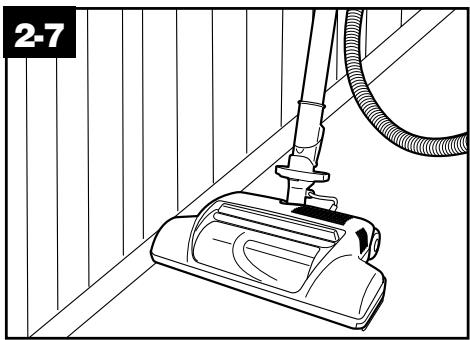

The power nozzle can be used for cleaning hard surface floors such as wood, linoleum, vinyl, asphalt and rubber tile, sealed cork, concrete and terrazzo, as well as carpet.

To set the power nozzle for hard surface floor cleaning, push the floor surface selector button toward “OFF” (E). This setting provides suction and no agitator action. If you prefer, you may use the hard floor tool to clean bare floors. You will find it particularly convenient when cleaning lightweight area rugs to set the floor surface selector button on “OFF” and continue cleaning the surrounding floor surfaces.

The handle has two positions when used with the power nozzle: upright and operating.

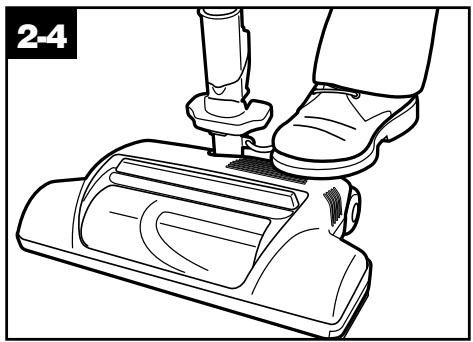

To lower handle to operating position, place your foot firmly on the power nozzle and pull handle back.

Note: Turn surface selector switch to the

"OFF" position before turning on canister.

Note: The headlight will be ON in both the

“ON” and “OFF” floor surface modes.

Special edge groomers are provided on both sides of the nozzle to remove dirt in carpet near baseboards and furniture. Guide side of nozzle parallel to edge of carpet or furniture as shown.

The cleaning tools are conveniently stored in the cleaner underneath the tool lid (M). Push the tool lid release latch to open (N).

The cleaning tools have many uses. Select the tool best suited for the cleaning task from the following descriptions.

F Variable speed control

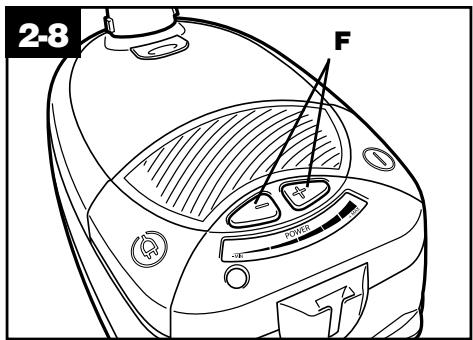

The variable speed control (F) is located on the canister.

Push the (—) button to reduce energy consumption and to clean lightly soiled areas or delicate fabrics. Push the (+) button for maximum cleaning power in heavily soiled areas. If the power nozzle is difficult to push, push the (—) button to reduce the power.

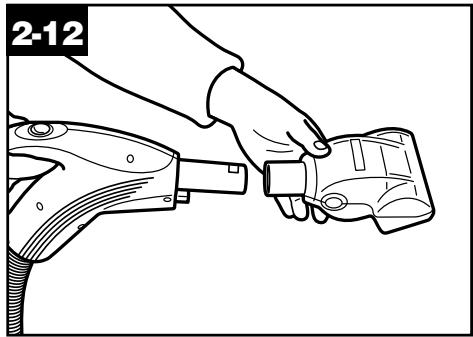

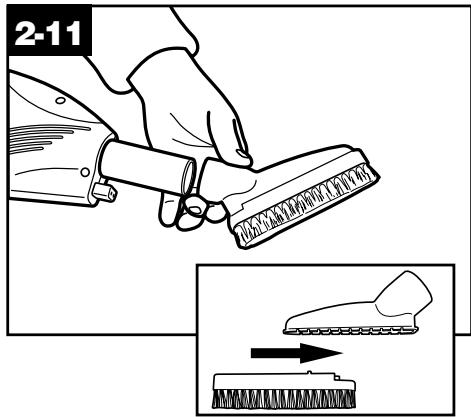

Tools may be attached directly to the hand grip or to the wand. Firmly push tool into the hand grip or wand. Twist tool slightly to tighten or loosen connection.

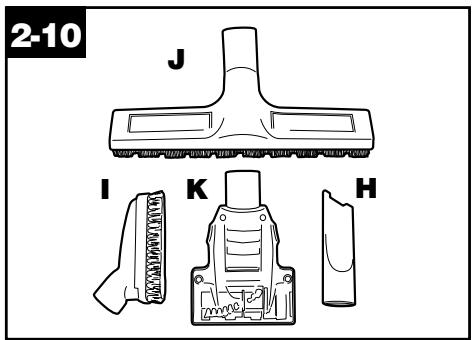

M N Select the proper tool

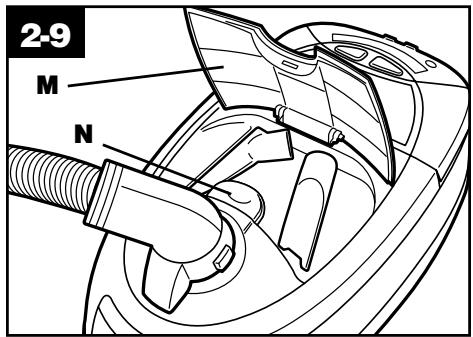

H. Crevice tool may be used in tight spaces, corners, and along edges in such places as dresser drawers, upholstered furniture, stairs and baseboards. I. Combination tool may be used for carved furniture, table tops, books, lamps, lighting fixtures, venetian blinds, baseboards, shutters and registers. May also be used for upholstered furniture, draperies, tapestries, mattresses and clothing. J. Hard floor tool may be used for walls and very irregular hard surface floors such as brick and slate. K. Powered hand tool may be used for upholstered furniture, carpeted stairs, and hard to reach places.

Slide combination tool apart to reveal second tool.

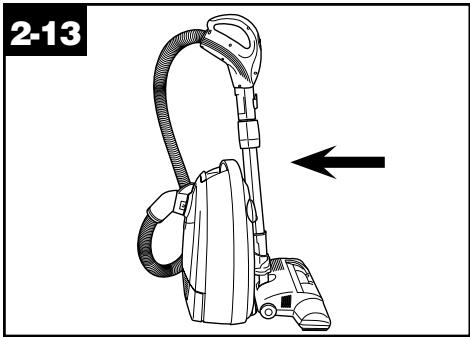

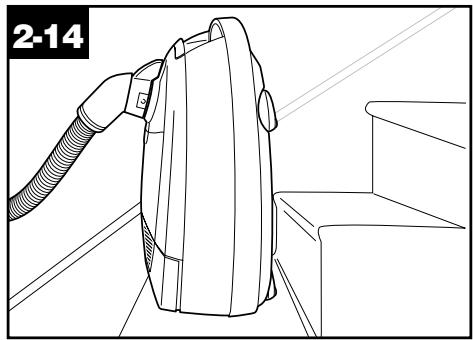

To save storage space, stand the cleaner on end and hook wand storage clip on bottom of cleaner. The nozzle must be positioned down as shown.

Clean stairs by placing cleaner on end.

Clean stairs from bottom to top.

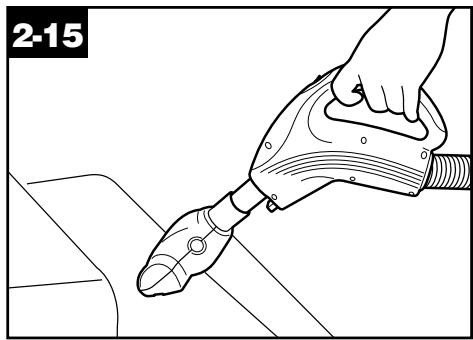

The powered hand tool is ideal for cleaning carpeted stairs.

Use light pressure when cleaning with the powered hand tool as excessive pressure may cause the brushes to stall.

Lift up on wand to remove storage clip from cleaner.

Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness.

Check the Filter Bag when the Full Bag Indicator Light shows Red. When the Filter Bag is filled with dirt, the cleaner will not operate efficiently. Discard the used Filter Bag and replace with a new one. NOTE: The Full Bag Indicator is designed to notify the user when the Filter Bag is full. If the Filter Bag is full of pet hair, carpet fibers, etc., the Full Bag Indicator may not light up due to sufficient air flow of the Filter Bag. Discard the used Filter Bag and replace with a new one. CAUTION: The Full Bag Indicator Light may come on when picking up fine materials, such as face powder, flour, cornstarch, fireplace ashes or fireplace soot. These materials may seal the pores of the Filter Bag and may cause the Filter Bag to burst even though the Filter Bag is partially full of dirt. It is advised to change the Filter Bag often when removing material of this nature.

Filter bags may be purchased from Authorized Hoover Dealers (Depots), Leading Retailers, Hoover Factory Service Centers, or through Hoover, Inc., online at www.hoover.com

Filtration Type S disposable filter bags.

Allergen Filtration (P/N 4010100S) and Regular HOOVER® Type S (P/N 4010064S) disposable bags also fit your cleaner and will give satisfactory performance. To assure that your HOOVER cleaner operates at peak performance, it is imperative that you use only genuine HOOVER filter bags made by The Hoover Company. HOOVER bags can be identified by these trademarks—

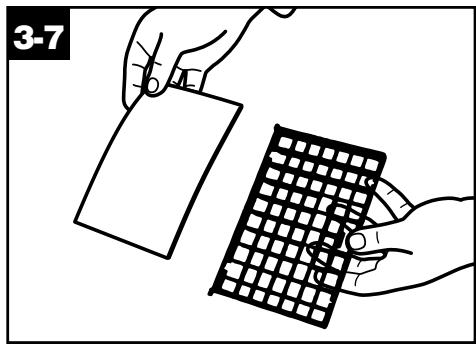

Form new bag into a box-like shape. Slide bag collar firmly into holder.

Disconnect cleaner from electrical outlet.

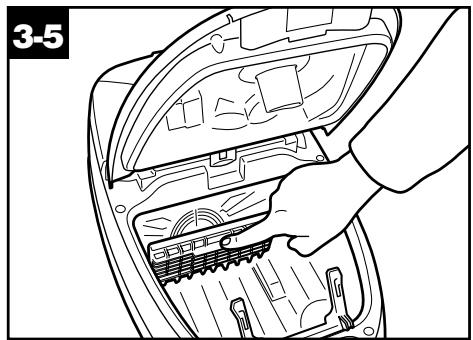

Rotate hose to the side, lift bag lid latch and open bag lid.

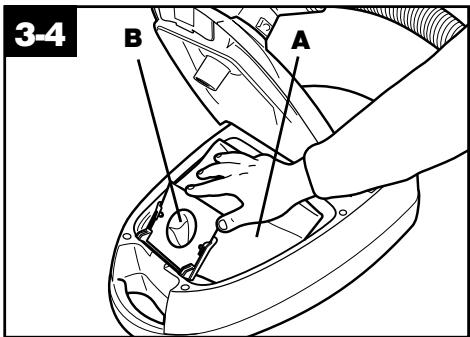

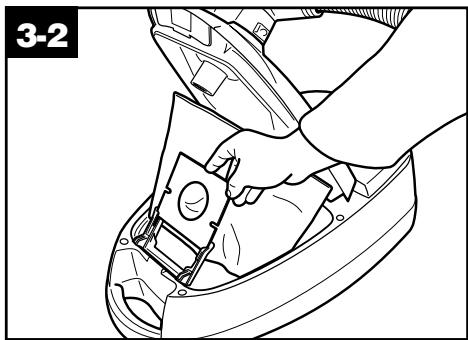

B A Push rear edge of bag into bag cavity below seal (A).

Clear bag opening (B) by pushing the pierced paper through opening toward bag interior. Close bag lid. Note: The canister bag lid will not close without a filter bag in place.

In order to maintain the original cleaning effectiveness and superior filtration qualities of your cleaner, use only Genuine HOOVER® Hepa (P/N 4010808S)

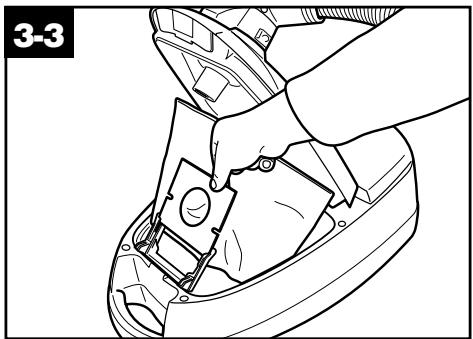

Carefully pull out used bag.

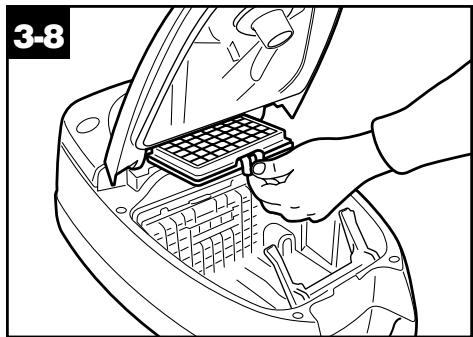

Filters: secondary and exhaust

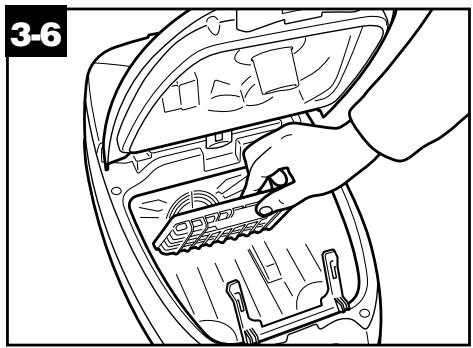

How to clean Disconnect cleaner from electrical outlet. The secondary filter, located behind the grill in the bag compartment, protects the motor from dirt particles. If filter becomes dirty, pull off grill and lift out filter. Wash filter in warm water or replace it with a new one. A dry filter must be put back into cleaner. Do not operate cleaner without secondary filter in place.

When purchasing a new secondary filter, ask for HOOVER part no. 59142009.

Power Nozzle belt replacement

The belt in your power nozzle drives the agitator. It has been designed specifically for use in this cleaner and is important for effective operation.

The high efficiency exhaust filter aids in the filtration process to return clean air to the room. To remove this filter, open bag lid, unsnap the filter latch and pull the filter out. Replace with a new filter. NOTE: The filter should be replaced annually.

When purchasing a new filter, ask for Hoover part no. 40120104.

There are other belts manufactured that are similar in shape and size, but are not designed for the HOOVER power nozzle. Such belts do not operate the agitator correctly and may create stress which could damage your power nozzle. Use only a genuine HOOVER Belt part no. 40201180 when a belt replacement is necessary.

The belt should be checked from time to time to be sure it is in good condition. To check, remove the hood (see following section). Replace the belt if it is stretched, cut, or broken.

Disconnect cleaner from electrical outlet and disconnect power nozzle from extension wands. To remove hood, turn nozzle over and unscrew the 4 recessed Phillips head screws. Note: Do not remove the 3 screws in the triangle formation as these hold the motor in place.

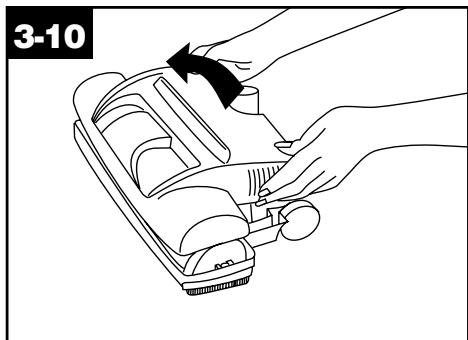

Return nozzle to original position and lift off hood.

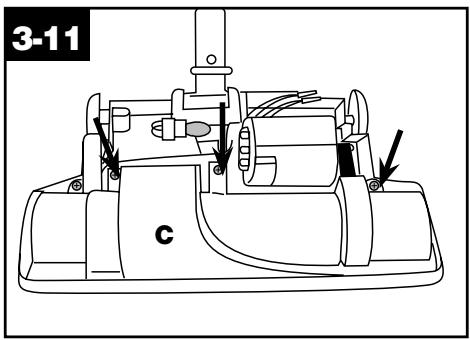

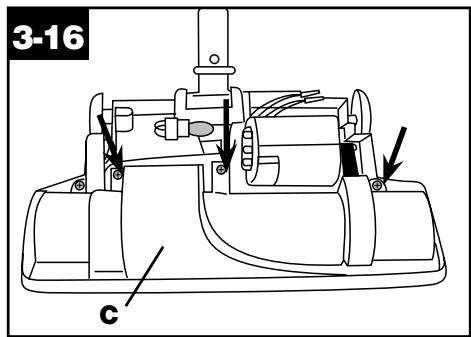

C C D Remove brush roll cover (C) by removing the

3 Phillips head screws.

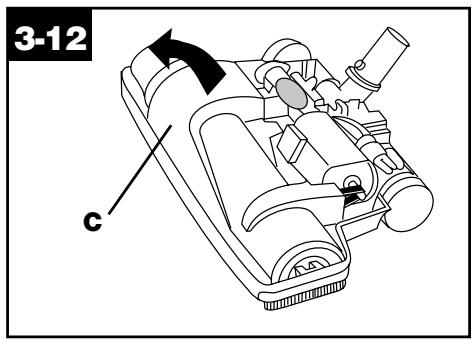

Lift off brush roll cover (C).

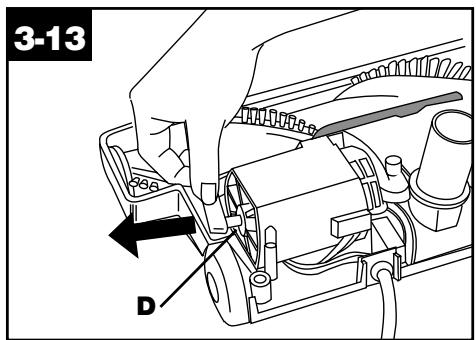

If belt is not broken but is stretched or cut, pull it off the motor pulley (D).

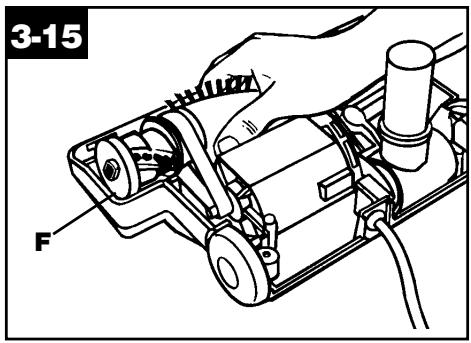

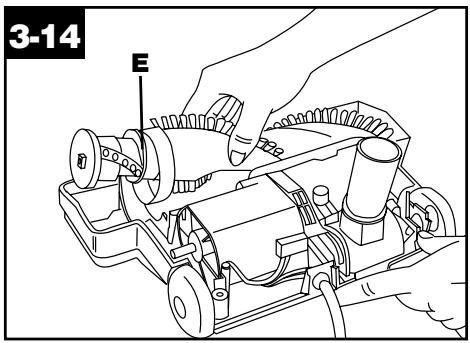

E F C Lift up end of agitator brush roll. Remove old belt from agitator pulley (E) and replace with new belt. Lettering on belt must be visible.

Stretch belt back and attach to motor pulley.

Hold opposite end of agitator brush roll in place. Push belt end forward, rotating end plate (F) until it slides into place. Turn agitator, making sure it rotates freely.

Replace brush roll cover over agitator brush roll. Replace 3 short screws.

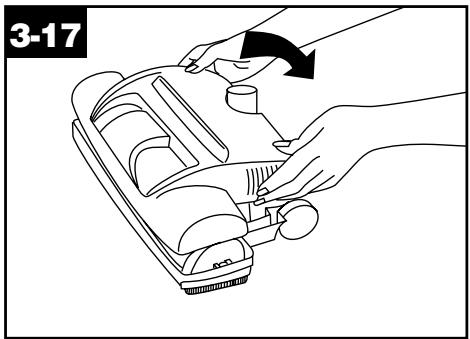

Position hood on top of nozzle base.

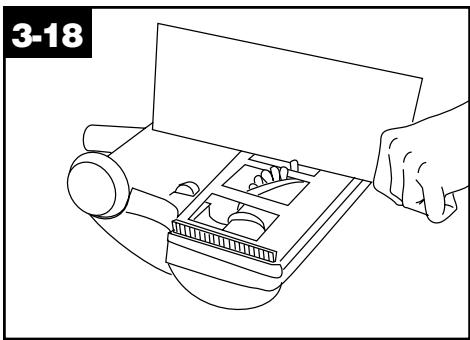

Turn nozzle over. Replace 2 short screws at the back of nozzle and 2 long screws at the front.

When purchasing a new agitator brush roll, ask for HOOVER part no. 48414071.

Disconnect cleaner from electrical outlet. 1. Remove hood, duct cover, belt and brush roll as shown in Figs. 3-9 to 3-14. 2. Discard old brush roll.

Agitator brush roll replacement

3. Replace new brush roll and belt as shown in Figs. 3-15 to 3-17.

Disconnect cleaner from electrical outlet.

When agitator brush roll brushes are worn, the brush roll should be replaced. To check condition of brushes, move edge of a card across bottom plate while turning brush roll. To maintain cleaning effectiveness, replace brush roll if brushes do not touch card.

Headlight replacement

The headlight, located on top of the power nozzle, operates when the cleaner is turned on. Use only HOOVER part no.

27317307, which is a fused bulb, when replacing the headlight.

Disconnect cleaner from electrical outlet and disconnect power nozzle from extension wands.

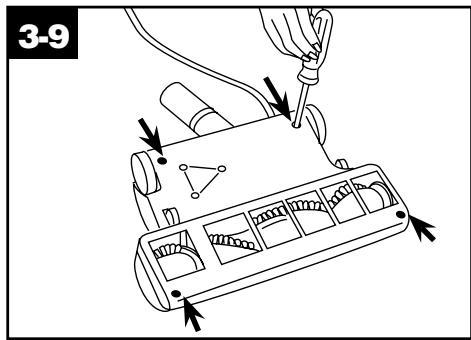

1. Remove the hood as shown in Figs. 3-9 and 3-10.

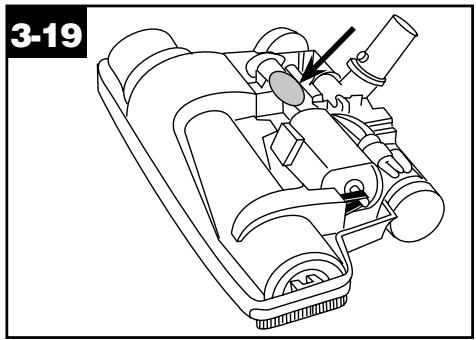

2. Push old bulb into socket and twist to remove. Push new bulb into socket and twist into place.

The edge groomers, located on both sides of the nozzle, should be replaced when they no longer extend past the surface of the bottom plate.

When purchasing edge groomers, ask for Hoover part no. 39511004.

Disconnect cleaner from electrical outlet. 1. Remove hood and brush roll cover as shown in Figs. 3-9 to 3-12. 10

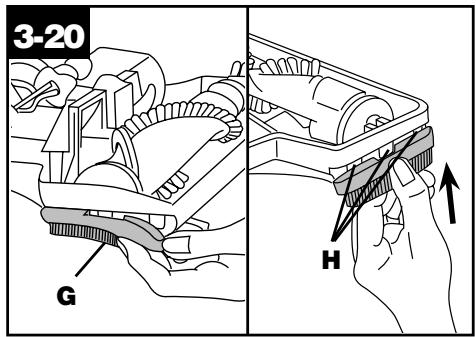

2. Pull off both old edge groomers (G).

3.Push each new groomer onto the 3 tabs (H), starting with one of the end tabs. Then push the groomer onto the middle and remaining end tab. 4. Replace brush roll cover and hood as shown in Figs. 3-16 and 3-17.

Agitator brush roll replacement

B When agitator brush roll brushes are worn, the brush roll should be replaced.

Ask for HOOVER part no. 48414088.

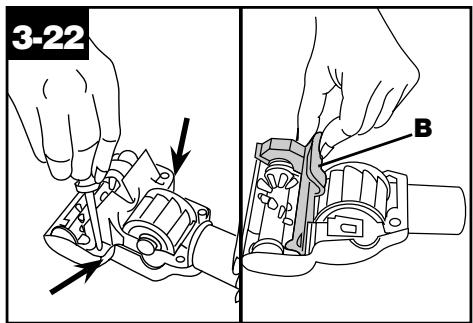

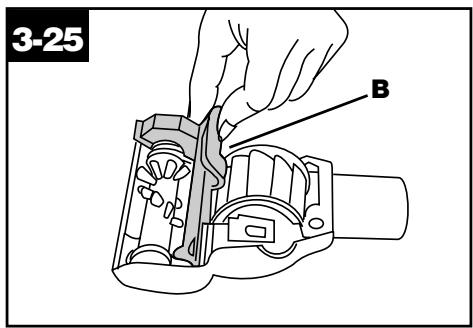

2. Unscrew the two Philips screws and remove belt guard (B).

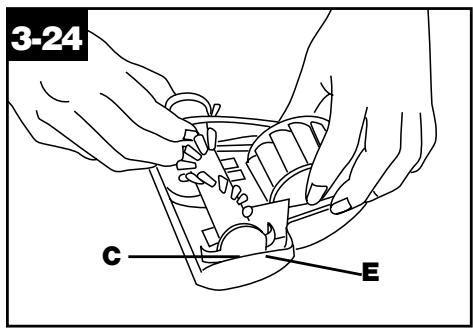

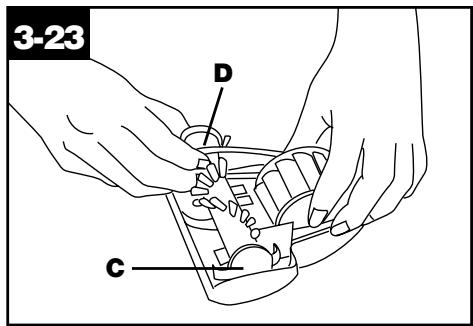

3. Remove agitator including end plates (C) and discard.

4. Inspect belt to ensure that it is in good condition. If belt is cracked, gouged or broken, replace it (see following section). 5. Insert brush roll through belt and position belt over gear teeth (D) on brush roll.

Disconnect cleaner from electrical outlet.

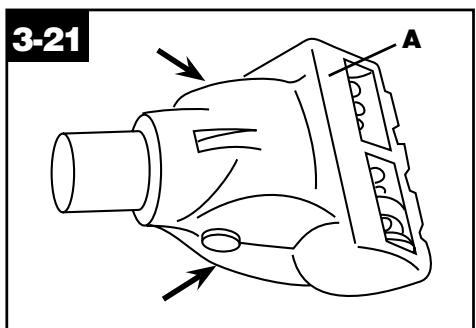

1. Remove tool from hose and turn it so bottom faces up. Press the latches on either side of tool and remove bottom plate (A).

6. With curved ends down, slide end plates

(C) of brush roll into slots (E) on tool.

7. Replace belt guard (B) making sure not to pinch brush bristles in guard.

Turn agitator, making sure it rotates freely. Replace and tighten screws.

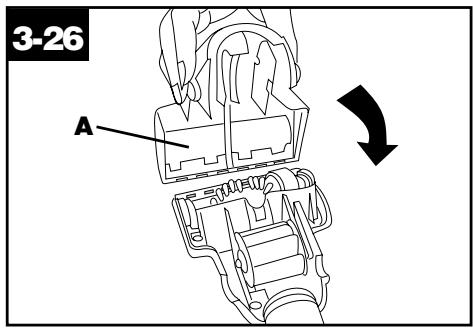

8. To replace bottom plate (A), insert the four tabs on edge of bottom plate into slots on front of tool.

Pivot bottom plate down and snap closed.

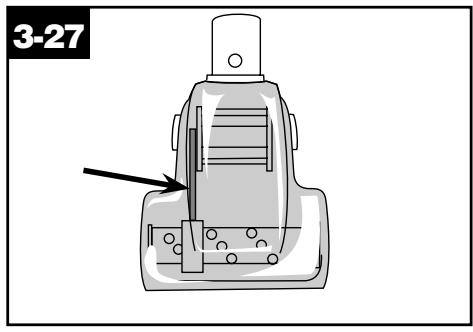

F Inspecting the belt

E The powered hand tool belt is designed to last a long time and is not normally replaced.

However, if the belt is cracked, gouged or broken, it should be replaced.

When replacing belt, ask for HOOVER part no. 38528037.

1. Remove bottom plate, belt guard and brush roll as described in Figs. 3-21 through 3-23. The belt can be seen through the top of the nozzle or by removing the bottom plate and belt guard (Figs. 3-21 and 3-22).

The motor is equipped with two bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Therefore, do not add lubricant to either motor bearing. The agitator brush roll is equipped with two ball bearings that should be lubricated periodically by a Hoover Factory Service Center or an authorized Hoover Warranty Service Dealer (Depot).

2. Grasp turbine (E) and pull firmly to remove.

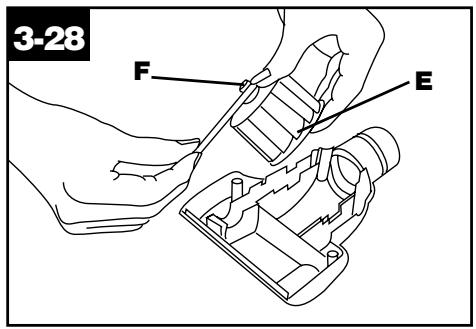

3. Remove belt from turbine pulley (F). Replace with new belt.

To obtain approved HOOVER service and genuine HOOVER parts, locate the nearest

Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot) by: • checking the Yellow Pages under “Vacuum Cleaners - Household” OR • calling 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only) OR• checking the Service section of Hoover, Inc., online at www.hoover.com Please do not send your cleaner to The Hoover Company in Glenwillow for service, this will only result in delay. If further assistance is needed, contact Hoover, Inc., Consumer Response Center, Glenwillow, Ohio 44139, Phone: 1-800-263-6376 Mon-Fri 8AM-7PM EST. In Canada, contact Hoover Canada, Etobicoke, Ontario M8W 3R9, Phone: 1-800-263-6376 Mon-Fri 8AM-7PM EST. Always identify your cleaner by the complete model number when requesting information or ordering parts. (The model number appears on the bottom of the cleaner.)

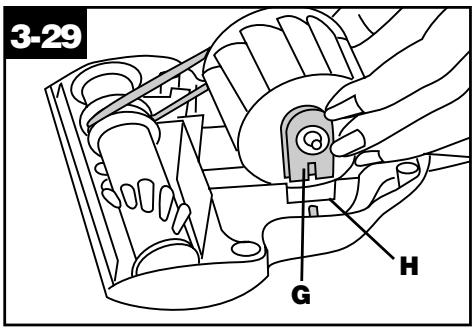

4. With flat sides of turbine retainers (G) pointing down, slide retainers into grooves

(H) on both sides of tool housing and snap into place. 5. Replace brush roll, belt guard, and bottom plate as described in Figs. 3-23 through 3-26.

4. If you have a problem

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below.

Problem: Cleaner won’t run

Possible cause Possible solution • Not “ON” at cleaner. • Turn “ON” at cleaner. • Not firmly plugged in. • Plug unit in firmly. • No voltage in wall plug. • Check fuse or breaker. • Blown fuse or tripped breaker. • Replace fuse/reset breaker. • Needs Service. • Take to service center. To find nearest location visit www.hoover.com or call 1-800-944-9200. • Thermal Protector Activated. • Allow cleaner to cool per instructions on page 4.

Problem: Cleaner suction low

Possible cause Possible solution • Bag full. • Replace paper bag. • Blockage in nozzle connector, hose or wands. • Remove blockage. • Secondary filter dirty. • Clean filter. • Bag not opening. • Open bag by pulling folds. • Power set too low. • Increase power setting. • Hose not properly connected to cleaner. • Ensure hose is properly connected.

• Thermo Protector Activated

• Switch OFF and unplug the vacuum cleaner. Leave for 30 minutes before switching the vacuum back on.

A Problem: Powered hand tool brush roll won’t turn

Possible cause Possible solution • Too much pressure being applied to tool. • Continue using tool applying light pressure. • Blockage in turbine channel. • Remove blockage • Broken or worn belt. • Replace belt.

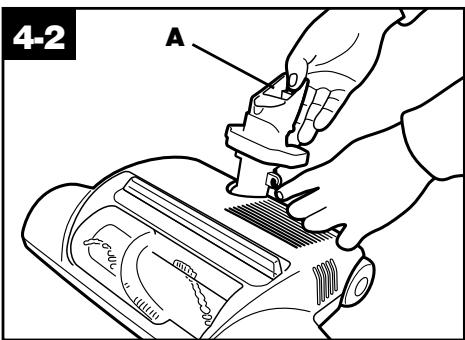

4.Make sure power nozzle is disconnected from wand. Then check for blockage in nozzle connector (A).

• Low cleaner suction.

• Check items under “Cleaner suction low”.

Problem: Nozzle won’t pick up

Possible cause Possible solution • Low cleaner suction. • See section “Cleaner suction low”. • Blockage in nozzle connector. • Remove blockage • Agitator brush roll not running. • See section “Agitator brush roll won’t run”

5. Disconnect powered hand tool from hose.

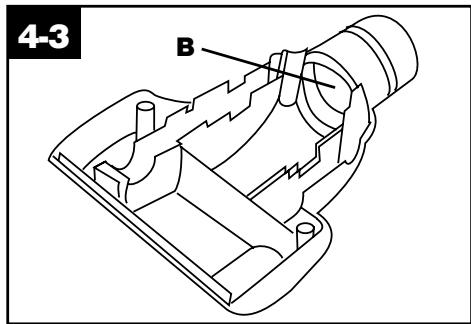

Remove bottom plate, belt guard and turbine as described in Figs. 3-21, 3-22 and 3-29. Remove any blockage from turbine channel (B). Replace belt, turbine, brush roll, belt guard and bottom plate.

• Agitator brush roll brushes worn.

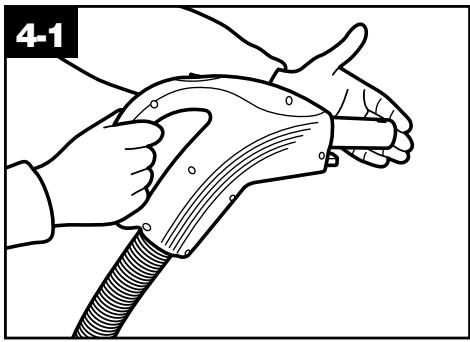

Low suction or pick up may be due to a blockage in the system. Refer to the following steps to check for blockages, continuing with each step until the blockage is found: 1.Turn cleaner off and disconnect from electrical outlet; then disconnect power nozzle and wand from hand grip.

Problem: Power nozzle agitator brush roll won’t run

Possible cause Possible solution • Hose power cord not firmly plugged in. • Plug firmly into receptacle on cleaner base. • Broken or worn belt. • Replace belt. • Floor surface switch set to “OFF”. • Set floor surface switch to “ON”.

2. Plug cleaner in, turn on, and check hose end for suction. Remove any obstructions.

3. Remove power nozzle from wand and attach wand to hose. Check for suction and remove any blockages.
