USER MANUAL HWF5516E HOOVER

Contents Page Introduction General delivery notes Safety notes Quick start Installation & testing Useful washing advice Description of controls Detergent drawer Detergents, washing aids and amounts to use Programme selector Main wash Programme Table Cleaning and routine maintenance Trouble shooting Power failure Technical data Customer service

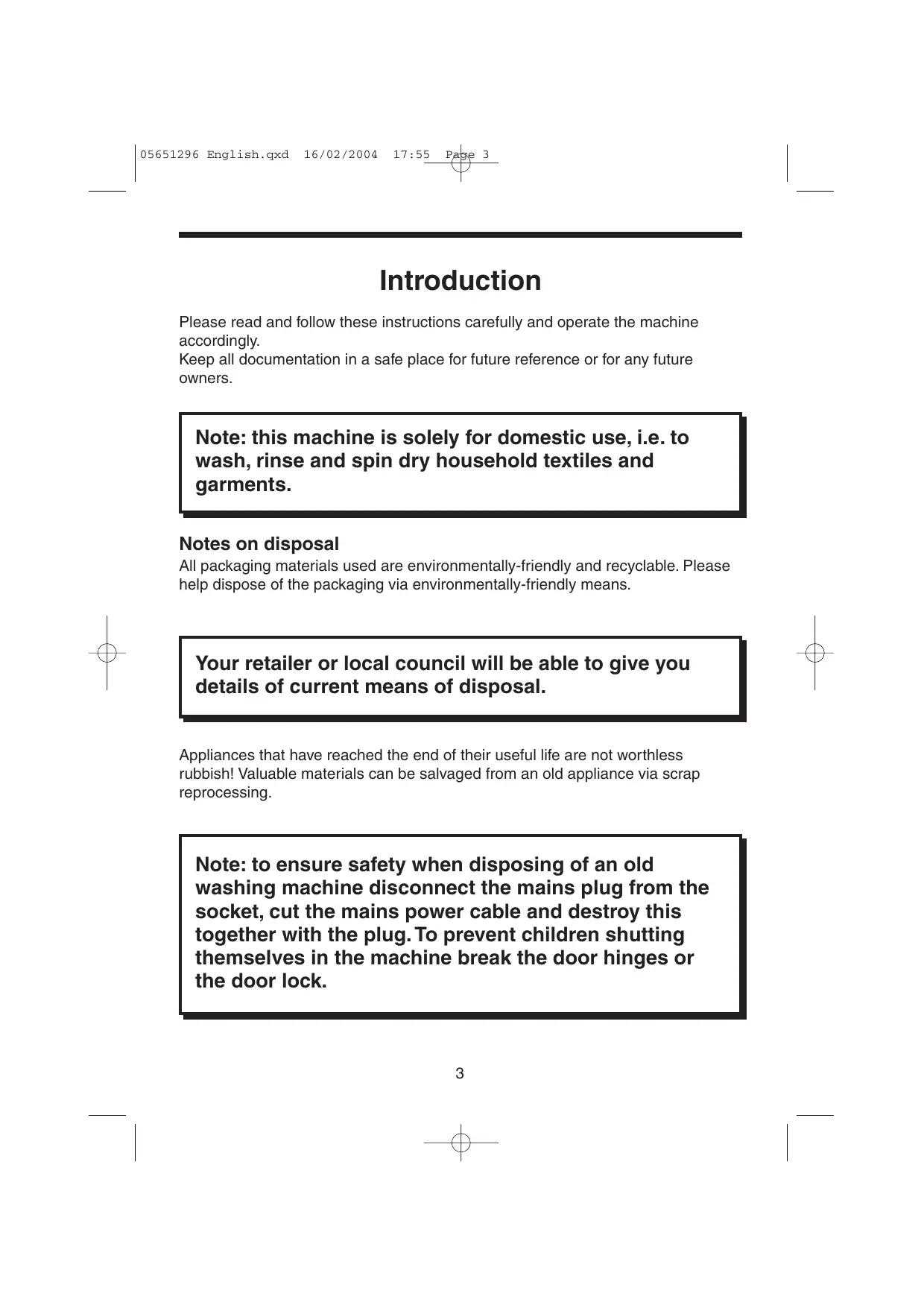

05651296 English.qxd 16/02/2004 17:55 Page 3 Introduction Please read and follow these instructions carefully and operate the machine accordingly. Keep all documentation in a safe place for future reference or for any future owners. Note: this machine is solely for domestic use, i.e. to wash, rinse and spin dry household textiles and garments. Notes on disposal All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your retailer or local council will be able to give you details of current means of disposal. Appliances that have reached the end of their useful life are not worthless rubbish! Valuable materials can be salvaged from an old appliance via scrap reprocessing. Note: to ensure safety when disposing of an old washing machine disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

05651296 English.qxd 16/02/2004 17:55 Page 4 General delivery notes Please check that the following items are delivered with the appliance: – Instruction manual – Guarantee card – Blanking plug – Inlet hoses & bracket – Base panel and x2 push clips Check that no damage has occurred during transit. If it has, call the GIAS Service, Hoover Service or an authorised Hoover Dealer. Please see Customer Service. Safety notes Note: before carrying out any cleaning or maintenance of the washing machine. A) Disconnect the plug from the mains supply. B) Turn off the water supply. C) Ensure that the mains power supply is earthed, if not, seek assistance from a qualified electrician. This appliance must be earthed. D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet. E) The use of adapters, multiple connectors and/or extensions is not recommended. F) Caution: water temperature can reach 90°C during the whites wash cycle and as a result the door glass may get very hot.

05651296 English.qxd 16/02/2004 17:55 Page 5 G) Check there is no water visible in the drum before opening the door. H) Do not allow children or unauthorised persons to use the appliance without supervision.

I) Do not pull the power cable or the appliance itself to remove the plug from the

socket. J) The appliance must not be exposed to weather conditions (rain, direct sun, etc...). K) When moving the appliance never lift it by the controls, the detergent drawer, the hoses or the power cable. To avoid damaging the door when moving the appliance never rest the door against objects e.g a trolley. L) IMPORTANT! If the appliance is installed on a carpeted floor ensure that the ventilation through the base of the appliance is not obstructed. M) When lifting the machine always use two people to help avoid back injuries. N) If the appliance is not running properly or breaks down, switch it off, disconnect the plug from the socket, turn off the water supply and do not tamper with the appliance. Consult Hoover or GIAS Service for possible repair. Failure to comply with the above can compromise the safety of the appliance. O) If the appliance’s power cable is damaged it must be replaced by a special cord which is only available from GIAS Service, Hoover Service or an authorised Hoover dealer. P) After the machine has been installed, ensure that the mains plug and water supply valves are easily accessible. Q) Glass fibre curtains should never be put into this machine. R) Lint or fluff must not be allowed to collect on the floor around the outside of this machine. S) Always ensure that the door locked indicator neon has switched itself off before opening the door. By doing so the machine is allowed to cool down before the laundry is handled. T) Always ensure that the base panel is fitted to the machine.

Open the door with the DOOR OPEN button Select laundry and put it in the machine Close the door Put detergent in the dispenser compartments, compartment I for prewash and compartment II for all other programmes Select programme by turning the programme knob Select any function buttons required and then press the START/PAUSE button Drying This washer dryer gives you the opportunity to wash and dry a complete 5kg cotton load in one cycle. Select the appropriate drying programme via the large programme knob ie, high heat (cottons), low heat (synthetics). Always read the wash care label on laundry to ensure that it is suitable for tumble drying. – Select the drying time via the drying time dial until the required time aligns with the indicator on the dial. – Switch on the machine by pressing the button. If the drying time is selected before the wash cycle is completed the machine will automatically commence the drying programme. After washing – Wait about two minutes for the door locking device to disengage. The door locked neon will go out – Switch off the washing machine by turning the programme knob to the “OFF” position – Open the door and remove the laundry

05651296 English.qxd 16/02/2004 17:55 Page 7 Installation & testing Remove the machine from the packaging - close to where it will finally be positioned - and proceed as follows: On the back of the machine

1) Remove the central screw A and

side screws B and pull out the transit bracket C along with the red locator.

enclosed in the instructions bag.

4) Adjust the two feet at the front to

5) Tilt the machine forward and locate

the base panel by (1) removing the paper backing from the adhesive tape, (2) locate the base panel in the front of the machine, (3) offer the base panel up to the base of the washing machine and locate the two push clips.

05651296 English.qxd 16/02/2004 17:56 Page 8 Note: we recommend you keep the transit bracket and screws to protect the machine for future transit. The Manufacturers will not be responsible for any damage to the machine caused by not following the instructions relating to releasing the transit protection. The user is responsible for all installation costs. Connecting the fill hose This machine has an inlet hose with 19 mm (3/4”) threaded ferrules fitted to the ends to attach between the threaded connector on the appliance and the water supply. Only use the new hose supplied to connect the machine and ensure that the sealing washers are in place inside the hose connectors. Do not re-use old hoses which are attached to existing installations. Do not over-tighten the connections. Hand tight is sufficient. Do not trap or kink the hoses. Connect the straight end of the hose to the stop taps.

05651296 English.qxd 16/02/2004 17:56 Page 9 If the inlet hose’s connection point is changed, check that the 3/4” threaded ferrule on the inlet hose is firmly attached to the electrovalve connector. Water supply requirements Connect the machine to the drainage system used by household sinks.

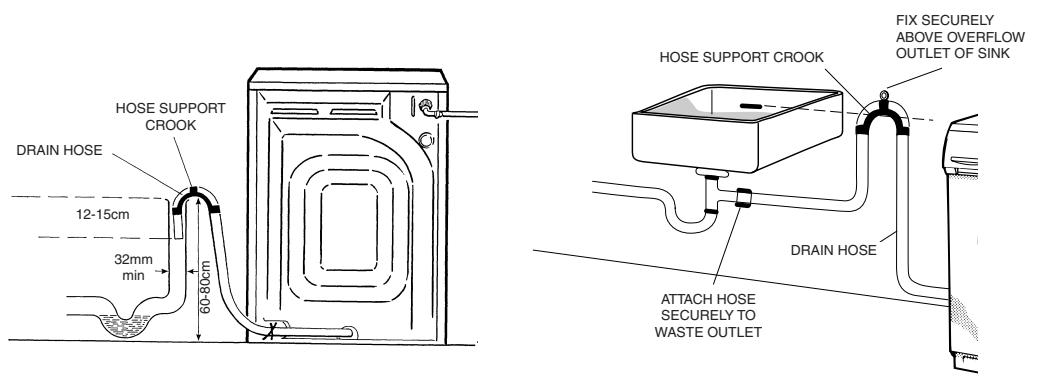

THIS MACHINE MUST BE CONNECTED IN

ACCORDANCE WITH THE WATER SUPPLY

REGULATIONS. WATER BYELAWS PROHIBIT

CONNECTION TO A SURFACE WATER DRAIN. No other appliance should be plumbed into the standpipe. There are two possible arrangements which can be seen below :-

HOSE SUPPORT CROOK DRAIN HOSE 12-15cm DRAIN HOSE 60-80cm 32mm min ATTACH HOSE SECURELY TO WASTE OUTLET For the washing machine to function properly the outlet end of the drain hose must be at a minimum of 60 cm and a maximum of 80 cm from the ground.

05651296 English.qxd 16/02/2004 17:56 Page 10 Testing the installation Refer to the programme guide for details of how to select programmes.

1. Turn on the water supply and check for leaks from fill hoses.

2. Switch on the electricity supply.

3. Select a spin programme and then press the

button to start the machine. Allow the programme to continue for one minute and then cancel the programme (please refer to “Description of Controls” section for cancelling the programme). This will remove any water remaining in the machine from factory testing.

4. To check for cold water filling to the machine:

Select a rinse programme and press the button to start the machine. Allow the tumble action to continue until the water has pumped out. Check that the drain outlet is not leaking or overflowing.

5. Switch off the machine at the end of the cycle by turning the programme knob

to the “OFF” position.

6. To check for hot water filling to the machine:

Select programme 1 and press the button to start the machine. Allow the wash action to continue for one minute, then cancel the programme. Alternatively, both inlets can be connected to the cold water supply by using a suitable adaptor.

7. Select a spin programme and press the

button to switch the machine on. If the machine takes longer than one minute to empty check the drain hoses for kinks. Installation testing is now complete.

05651296 English.qxd 16/02/2004 17:56 Page 11 To ensure the drum is thoroughly clean after testing and storage, select programme 2 and run the machine for a complete cycle using only wash detergent and water. If the machine is not to be used immediately, switch off the mains power supply and remove the plug from the power socket. We also recommend that the water stop taps are turned off. Note: it is advisable to isolate the washing machine from the water and electricity supplies after each wash. Electricity supply and safety advice Washing machines are supplied to operate at a voltage of 220 V-230 V, 50 Hz single-phase. Check that the conductor is powerful enough to supply at least

3.0 kW, then connect the plug to an earthed socket.

Electricity can be extremely dangerous. This washing machine must be earthed. The socket outlet and the plug on the appliance must be of the same type. It is not advisable to use multiple adapters and/or extension leads. The wires in the mains lead are coloured in accordance with the following codes: Blue Brown Green & Yellow – NEUTRAL LIVE EARTH If the mains cord on this appliance is damaged, it must be replaced by a special cord which is only available from the Hoover spares service or an authorised Hoover dealer.

05651296 English.qxd 16/02/2004 17:56 Page 12 Useful washing advice Tips on using your appliance in the most environmentally-friendly and economical way Loading your washing machine To make further reductions of energy, water and detergent consumption, we recommend that you put a full load into your machine. Energy savings of up to 50% can be achieved by washing one full load compared to two half loads. When is prewashing really needed? Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for less dirty laundry. Which wash temperature should you choose? Using stain removers before machine washing reduces the need to wash at temperatures over 60°C. Energy savings of up to 50% can be made by using a 40°C wash temperature. Heavily soiled laundry To ensure the best performance when washing a particularly dirty load, we recommend that you reduce the amount of items to be put into the machine. If the drum is not crammed full, the items will circulate more freely and will wash cleaner. ARIEL – Chosen and recommended by Hoover When we produce a new washing machine we subject it to every test possible. And one of the most important tests is the one that enables our experts to identify the most suitable detergent for solving laundry problems. Ariel was able to meet our needs: to make the washing machine function efficiently, not compromise the machine’s lifespan and produce the best wash results. Consistently excellent results, which was the main aim of the test we carried out, determined our choice and our recommendation. The prime function of a detergent that answers all washing requirements is to work with the water to remove dirt from fabrics, holding it in suspension until it is removed when the water is pumped out, and to control the amount of foam forming in the washing machine, without damaging the fibres of the items being washed. Ariel fully satisfies all these requirements, as it contains high quality elements, the result of the most advanced research, ensuring excellent results under all conditions.

05651296 English.qxd 16/02/2004 17:56 Page 13 Description of Controls All the controls on your product’s control panel are listed as follows. The button function is selected when the button neon is lit. Carefully read the relevant descriptions detailed below: START/PAUSE START After selecting the programme press the button once to start the machine. The neon will illuminate and there will be a short time delay to the start of the programme while the machine sets the wash parameters for the selected programme. The START neon in the CHRONOVISION indicator will illuminate. If the duration of the programme you have selected is shorter than 60 minutes, then the time remaining indicator will illuminate accordingly. PAUSE The programme may be paused at any time during the wash cycle by holding down the button for about two seconds. When the machine is in the paused mode, the time remaining for the programme in the CHRONOVISION indicator and function buttons will flash. To restart the programme press the button once again. CANCEL To cancel the programme the button must be pressed down for five seconds. To signify that the programme has been cancelled the STOP light in the CHRONOVISION indicator will light. Door open button A special safety device prevents the door from being opened immediately after the end of the cycle. The light is illuminated when the door is fully closed. Wait for 2 minutes after the wash cycle has finished and the neon has gone off before opening the door. As a safety measure check that there is no water evident in the drum.

05651296 English.qxd 16/02/2004 17:56 Page 14 Maxi Load This option can only be utilised for cotton programmes. Hoover has designed a special wash boost system specially for Large Wash Loads – by selecting this, the volume of water within the selected wash cycle and the length of time of the programme are increased to improve the wash performance for the bigger load. Time Saver This option can be utilised on cottons and synthetics. By selecting the Time Saver option, the wash time may be reduced by up to 50 minutes, depending on the selected programme, temperature and load, without giving up a good wash quality. Energy Saver This option can be utilised on all programmes. By selecting the option the wash temperature is limited to the water inlet temperature. This is particularly useful in the case of lightly soiled fabrics, and allows you to save 80% of energy compared with the normal 60°C programme. Extra Rinse This option causes more water to be added at the rinse stage. This is important to avoid skin irritation from detergent residues for people with particularly sensitive skin. Selecting the button is also recommended when washing heavily soiled fabrics, requiring the use of a lot of detergent, or when the wash load contains items made of towelling whose fabrics have a greater tendency to retain detergent. PROGRAMME Selector Note: do not press the button before selecting the programme. If this does happen, cancel the programme (that you have accidentally selected) by pressing the button for five seconds (see “Programme Cancelled” description). The tables in the washing section describe the various programmes and illustrate the number or symbol to select for them.

05651296 English.qxd 16/02/2004 17:56 Page 15 DRYING TIME Selector For tumble drying select the appropriate drying programme via the drying time selector. For drying cotton fabrics select the high heat option via the selector and for synthetic fabrics select the low heat option . Turn the drying time selector until the indicator aligns with the desired time. Note: if the drying time is selected before the wash cycle is completed the machine will automatically commence the drying programme. Note: this model is fitted with an electronic “sensor” device that checks the load is balanced correctly. If the load is slightly unbalanced the machine will re-balance it automatically to then carry out the normal spin. If, after several attempts, balance is not restored a reduced spin speed will be used. If loads are seriously unbalanced the spin stage will be cancelled. This helps limit vibration, reduce noise and improve the washing machine’s reliability and life. Detergent drawer was Pre-wder Main w powder h The detergent draw is split into 3 compartments:

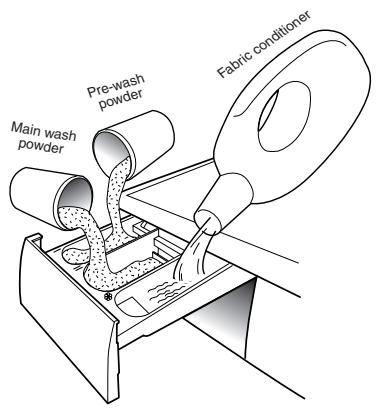

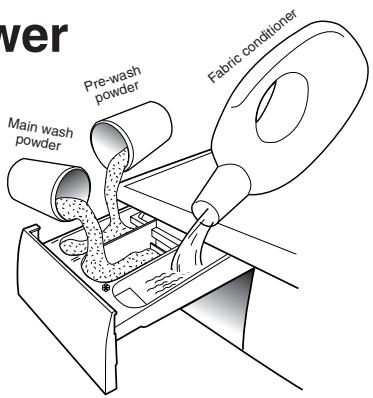

the first, labelled “I”, is for detergent utilised during Prewash.

the second, labelled “II”, is for detergent utilised during the main wash.

05651296 English.qxd 16/02/2004 17:56 Page 16 Note: some forms of detergents are difficult to dispense from the drawer e.g. concentrated powders. For these, we recommend you use the recommended dispenser which is placed inside the drum. This ensures that the liquid detergent is dispersed in the drum only when needed.

the third, labelled “ ” is for special additives, fabric softeners, fragrances, starch, brighteners etc. The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles. Note: only put special additives, fabric softeners, fragrances, starch, brighteners, etc, in the third compartment. Detergents, washing aids and amounts to use Choice of detergent General purpose detergents – Powder detergents, for a thorough wash, with bleaching agents, are particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. – Liquid detergents, are particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil. These detergents are not suitable for washing stained laundry, as they do not contain bleach. – Biological detergents, not all the products available give a really thorough wash.

05651296 English.qxd 16/02/2004 17:56 Page 17 Special detergents – Detergents for coloureds and delicates, without added bleach, also often without any optical brightening agents, to preserve the colour. – Detergents for a thorough wash, without added bleach or enzymes, particularly suitable for handling woollen fibres. – Detergents for curtains with optical brightening agents, resistant to light, to prevent yellowing from sunlight. – Special detergents for programmed use of chemical substances, depending on fabric type, degree of soiling and water hardness. Here basic detergents, softeners, bleaches/stain removers can be added separately. Additional laundry aids – Water softener, means less detergent can be used where water hardness is classed as hard to very hard. – Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents. – Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. Tumble drying will soften clothes even without the use of a fabric softener. Do not put solvents in the washing machine! Keep detergents and other laundry products out of children’s reach. Before pouring in the detergent check that there are no foreign bodies in the detergent drawer. Dosage details are usually shown on the detergent packaging. Follow those instructions!. Dosages Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose. The amount of detergent to use depends on:

16/02/2004 17:56 Page 18 water hardness, depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent. The softer the water supply, the less detergent is required. the degree of soiling, it is possible to reduce the amount of detergent used depending on the degree of soiling. Use less detergent for less soiled items. amount of laundry, it is possible to reduce the amount of detergent when washing only a small amount of laundry. For smaller loads use less detergent. The amounts shown on pack for detergents for washing delicates often already refer to a reduced wash size. Follow the dosage instructions! Dosage for powder detergent For normal and low concentration detergents: for normally soiled laundry choose a programme without prewash. Put the detergent in compartment II of the drawer. For heavily soiled laundry, choose a programme with prewash. Put 1/4 of the detergent in compartment I, 3/4 in compartment II of the drawer. When using water softeners, first put in the detergent, then add the softener to compartment II. For highly concentrated detergents not in single dose format, follow exactly what is shown on pack with regards to type and amount of dosage. To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging. Liquid detergent dosage Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programmes without prewash, by using the recommended dispenser which is placed in the drum.

05651296 English.qxd 16/02/2004 17:56 Page 19 Programme selector The washing machine has 3 different programme groups according to type of wash, temperature, spin speeds and duration for handling the various types of fabric and their level of soiling (see wash programme guide).

The programmes are designed for maximum washing and rinsing. With spin cycles in between, they guarantee the laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry as much as possible up to the maximum speed.

2. SYNTHETICS and mixed fabrics

Washing and rinsing performance is optimised through drum rotation speeds and water levels. The delicate action spin (at 400 rpm) minimises creasing.

This is a new concept in washing, with a cycle that comprises of alternate periods of activity and pauses, particularly suitable for washing very delicate fabrics, such as Pure New Wool. Wash and rinsing are carried out using a high water level to provide the best results.

4. SPECIAL PROGRAMMES

i) AA SPECIAL PROGRAMME at 40°C

This special programme has been studied to allow you to obtain the best washing performance, even at full load, as the 60°C Cotton programme (the standard cycle), but with the double advantage of: - washing cotton and mixed in the same cycle - energy saving due to 40°C temperature, instead of 60°C.

ii) DAILY WASH 40°C - FAST PROGRAMMES

By maintaining exceptional washing performance, these programmes allow you to know in advance the necessary time for your everyday laundry. In fact, this washing machine is equipped with two daily rapid programmes at 40°C, that were just studied for: - lightly soiled fabrics; - medium or little load.

A complete washing cycle (wash, rinse and spin), able to wash in approximately 29 minutes: a maximum load of 2 kgs;

16/02/2004 17:56 Page 20 lightly soiled fabrics (cotton and mixed fabrics). We recommend, with this programme, a 20% detergent loading dose (compared to the normal one), in order to avoid detergent waste.

DAILY WASH 40°C - FAST 44'

A complete washing cycle (wash, rinse and spin), able to wash in approximately 44 minutes: a maximum load of 3.5 kgs; lightly soiled fabrics (cotton and mixed fabrics). We recommend, with this programme, a 30% detergent loading dose (compared to the normal one), in order to avoid detergent waste. Auto half load Main wash The washing machine is fitted with a self adjusting water level system. This system enables the machine to use the optimum amount of water needed to wash and rinse the laundry in relation to the particular load. This results in a reduction of the water and electricity used without in any way compromising the washing and rinsing performance. In fact, the amount of water and electricity used will always be appropriate for the clothes load. The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment. Sorting the laundry

It is recommended you wash only items which are washable with water and detergent and not dry-clean items. If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. Sort the laundry according to fabric type, degree of soiling and wash temperature: follow the labelling on the garments. Examples: Laundry for hot wash Coloured, easy-care materials

Delicates and wool Items labelled with the following symbols are not suitable for machine washing: Wash by hand

16/02/2004 17:56 Page 21 Dry clean For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag. Woollen items must be labelled with the “Pure New Wool” symbol if they are to be washed in the machine, and must also be labelled “non-matting” or “machine washable”. Please check the laundry item for the label. Colour often leaks from new coloured items. This can then colour other lighter items being washed. We therefore recommend that coloured items should be washed for the first time separately. For future washes, non colourfast items can only be washed with white laundry up to 40°C. Do not wash Note: when sorting laundry – check there are no metal objects in the laundry (such as paper clips, safety pins, pins, coins etc...); In the event of a machine failure during the warranty period and foreign objects are found to be the cause of the failure a labour charge may be made for the call out of an engineer. – button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords; – remove curtain hooks; – pay close attention to the labels on items – if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

16/02/2004 17:56 Page 22 We do not recommend washing a full load of just towelling items as they absorb a lot of water and may become too heavy for the drum. The correct way to wash Preparing the laundry A) Select and sort the laundry according to the wash care labels found on each garment. Always check the care labels. Loading the laundry B) Open the door. C) Put the laundry in the washing machine. Close the door again, ensuring that no items of laundry are obstructing the lock or door seal. Putting detergent in machine D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer’s instructions and read the detergent advice and adding of any other laundry aids described in this manual. Add any other laundry aids. Close the drawer again. Liquid detergents that are to be placed directly into the drum should use the recommended dispensing device. ash Pre-w der pow

Main was powder h Selecting the wash programme Refer to the programme guide or the programme descriptions on the front of the machine to select the most suitable programme. The programme is selected by turning the programme selector clockwise and aligning the programme number with the indicator. Check that the tap is turned on and that the discharge hose is positioned correctly. Press the begin. button. The indicator illuminates and the programme will When the programme has finished Wait for the door lock to be released (about 2 minutes after the programme has

05651296 English.qxd 16/02/2004 17:56 Page 23 finished). Switch off the machine by turning the programme dial to the “OFF” position, and open the door by pressing the button. Remove the laundry. Disconnect the plug from the mains power supply and turn off the water supply after every use. Tumble drying programmes Note: Dispensers used for concentrated powders and liquid detergents must be removed from the drum before commencing the tumble drying programmes The load is dried in thermostatically controlled warm air. The drum changes direction during the drying cycle to prevent the laundry from tangling and hence produce even drying. Cool air is used during the last ten minutes of the drying cycle to minimise creasing. Note: actual drying time will depend:

• the materials in the load
• the level of moisture in the load
• the required level of drying To test the laundry for dryness: Cancel the programme by pressing the button for five seconds, the stop light will illuminate to indicate the programme has ended. To restart the cycle, close the door and press the button. The neon will light after a few seconds and the programme will restart. The drying phase will run for the time remaining on the dryer timer.

Whites Colourfast fabrics Cotton, linen, hemp Intensive - heavily soiled

Coloureds Non Fast Cotton, mixed fabrics Coloureds Non Fast Lightly soiled - delicate coloureds

Mixed Fabrics Mixed & synthetic fabrics, colourfast mixed fabrics Heavily soiled

Coloureds Mixed fabrics, cotton, synthetics Normal soiling

Acrylics Synthetics (Nylon), coloured mixed fabrics Heavily soiled

Acrylics Synthetics (Nylon), coloured mixed fabrics Lightly soiled

Woollens Machine washable wool, very delicate fabrics, synthetic knits Lightly soiled

Drain Mixed delicate fabrics Drains water from the drum with no spin action

High heat Cottons, Linen High heat tumble drying

Low heat Synthetics Low heat tumble drying

Special AA 40°C Cottons, Mixed fabrics Energy saving at 40°C

Daily fast 44” Cottons, Mixed fabrics Lightly soiled

Daily fast 29” Cottons, Mixed fabrics Lightly soiled

Hand wash “Hand wash only” garments Hand washing of delicate garments

Sportswear Mixed fabrics Thorough wash for small loads

Points to consider: When washing heavily soiled laundry it is recommended the load is reduced by about 1-1.5 kg. By doing so the laundry is allowed to circulate more freely. Energy label data based on programme 3 tested in accordance with EN60456.

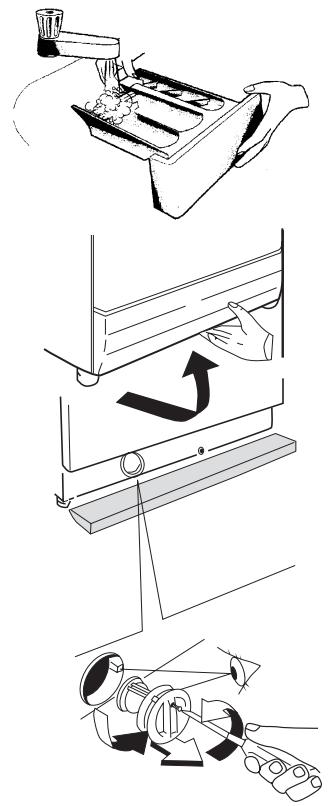

05651296 English.qxd 16/02/2004 17:56 Page 26 Cleaning and routine maintenance Do not use alcohol-based scourers and/or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: Cleaning the drawer compartments. Cleaning the filter. Cleaning the drawer Clean the compartments occasionally to remove detergents and additives. To do this you just need to pull the drawer out firmly from the machine, but without forcing it. Clean the compartments and the syphon cap under running water. Replace the drawer. Cleaning the filter The washing machine is fitted with a special filter to prevent items such as coins, buttons, etc. blocking the discharge hose. These may be retrieved by: Removing the kickplate by gently pulling it from the bottom in an outwards and upwards direction. Use the kickplate to collect the water still in the filter. Use a screwdriver to loosen the screw holding the filter, turn the filter anticlockwise until it stops, remove it and clean it. After cleaning it, reassemble following the above instructions in reverse order. Replace the kickplate. We recommend that the filter be cleaned frequently, at least once a month.

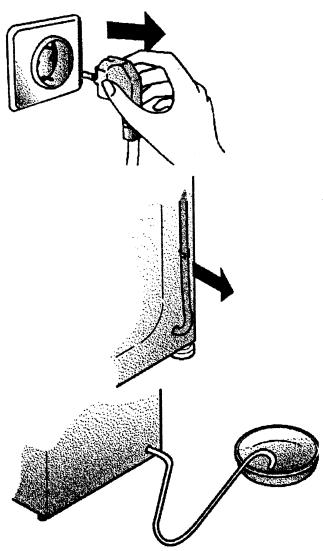

05651296 English.qxd 16/02/2004 17:56 Page 27 Transporting or storing the appliance for long periods when appliance is not in use If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from all hoses. Ensure mains power plug is disconnected, then unclip the discharge hose and lower it into a basin on the floor until all the water has emptied out. When transporting the appliance refit the transit bracket, central screw and side screws.

05651296 English.qxd 16/02/2004 17:56 Page 28 Trouble shooting What might be the cause of... Defects you can remedy yourself Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone. PROBLEM CAUSE REMEDY Fuse blown. Door open. Plug it in. Switch on. Check and refer to ‘Power Failure’ section. Check. Close door.

2. Does not fill with water

See cause 1. Water supply turned off. Programme selector not correctly positioned. Check. Turn on water supply. Position programme selector correctly.

3. Water does not drain away

Kink in discharge hose. Foreign bodies in filter. The machine has been plumbed in incorrectly. Straighten discharge hose. Examine filter. Check installation.

4. Water on floor around the washing

machine Leaking gasket between tap and water inlet hose. Strand of clothing or dirt between door rubber gasket and door glass. Incorrect plumbing. Replace gasket and tighten connection. Re-load the machine and keep rubber door gasket/door glass clean. Check plumbing.

Water has not yet drained away. Wait a few minutes for machine to empty. Check.

1. Does not work on any programme

Plug not in socket. Not switched on. Power failure. ‘Spin Cancel’ option selected (certain models only). Unbalanced load. Rearrange load evenly.

6. Machine vibrates a lot during spin

Washing machine not completely level. Adjust the special adjustable feet. Rearrange the laundry evenly. Load not distributed evenly. Remove transit brackets. Transit brackets not removed.

7. Door will not open

Two minutes have not elapsed since the programme finished.

8. The control knob turns a full circle

quickly during a programme None. The control knob was not at the expected position when automatically This action is normal if the knob has been moved accidentally during a checked by the machine. cycle.

Wait two minutes. 05651296 English.qxd 16/02/2004 17:56 Page 29 It is unlikely that water will be visible in the drum! This is due to the latest technology that achieves the same standard of washing and rinsing but with far less water consumption. Note: The use of environmentally-friendly, phosphate-free detergents (check detergent information on pack) can have the following effects: – waste water from rinsing may be cloudier because of the presence of a white powder (zeolites) held in suspension, without the rinse performance being adversely affected; – presence of white powder on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric. – The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing. – Carrying out more rinse cycles does not serve any purpose in such cases.

05651296 English.qxd 16/02/2004 17:56 Page 30 Power failure If there is a power failure the wash cycle will be interrupted, the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme. The load can be removed from the machine during a power failure as follows: The water can be drained from the machine by:

1. Switch off the machine both via the programme knob and on the mains power

supply. Remove the plug from the mains power supply socket.

2. Carefully move the machine so the rear of the machine is accessible. Please

follow the safety precautions which we recommend under the ‘safety notes’ section of this manual.

3. Unclip the drain hose from the rear panel of the machine and lower the hose

into a bowl on the floor. Important: the water may be very hot! When the bowl is full raise the end of the drain pipe to a height higher than the top of the appliance to stop the flow of water. Empty and replace the bowl and continue draining the machine until empty.

4. Once the machine is fully drained of water, clip the hose to the rear of the

machine. Press the button and remove the load. The door can be opened approximately 2 minutes after the power failure by simply pressing the button. Do not force open the door. Important: the water and the load may be very hot!

• Height 60cm 65cm 85cm NB: For specifications regarding electrical data, see the data plate on the front of the washing machine (door area). You will also need to refer to the information on the data plate should you need to contact the GIAS Service for any advice.

05651296 English.qxd 16/02/2004 17:56 Page 32 Customer Service The appliance is covered by a certificate of guarantee which allows you free use of the Hoover Technical Support Service except for the price of the call, for a period of one year from the date of purchase. Remember to send off the guarantee certificate for validation within 10 days of the date of purchase. You should retain the receipt issued by the retailer when you purchased the machine to show to the call out engineer, should you need to consult one. If your washing machine shows signs of a defect or is not working properly, before you contact Service we recommend you carry out the checks detailed within the Trouble shooting section. If the problem with the machine persists after completing all the recommended checks, please call the Hoover Service Support. For the cost of a telephone call, you will be connected directly to a Hoover Support Service. It is important you tell the advisor your product’s model number and serial number, which you will find on the rating label (16 characters, beginning with the number 3), found on the front of the washing machine (door area). By doing this, your enquiry will be responded to more efficiently.

Licht bevuild fijne was

• Max. lading met droge was 5 kg
