USER MANUAL 4600 FLECK

3 - INSTRUCTIONS DE MISE EN SERVICE

A I S Aspiration / Rinçage lent

A I S INCIDENT CAUSE INCIDENT

CAUSE REMÈDE F R A N

A I S TABLE OF CONTENTS Inlet water hardness

Water hardness after mixing valve

Quantity of salt per regeneration

CYCLE Preliminary rinse

Backwash Brine draw and slow rinse Rapid rinse Resin settling Brine refill

X X X X X X HYDRAULIC SETTINGS Pressure regulator

Drain line flow control (DLFC) Brine line flow control (BLFC)

230V/50Hz 24V/50-60Hz with transformer 24V/50-60Hz without transformer Valves complying european regulations: - Nr. 89/336/EEC, “Electromagnetic compatibility”, - Nr. 73/23/EEC, “Low voltage” 11

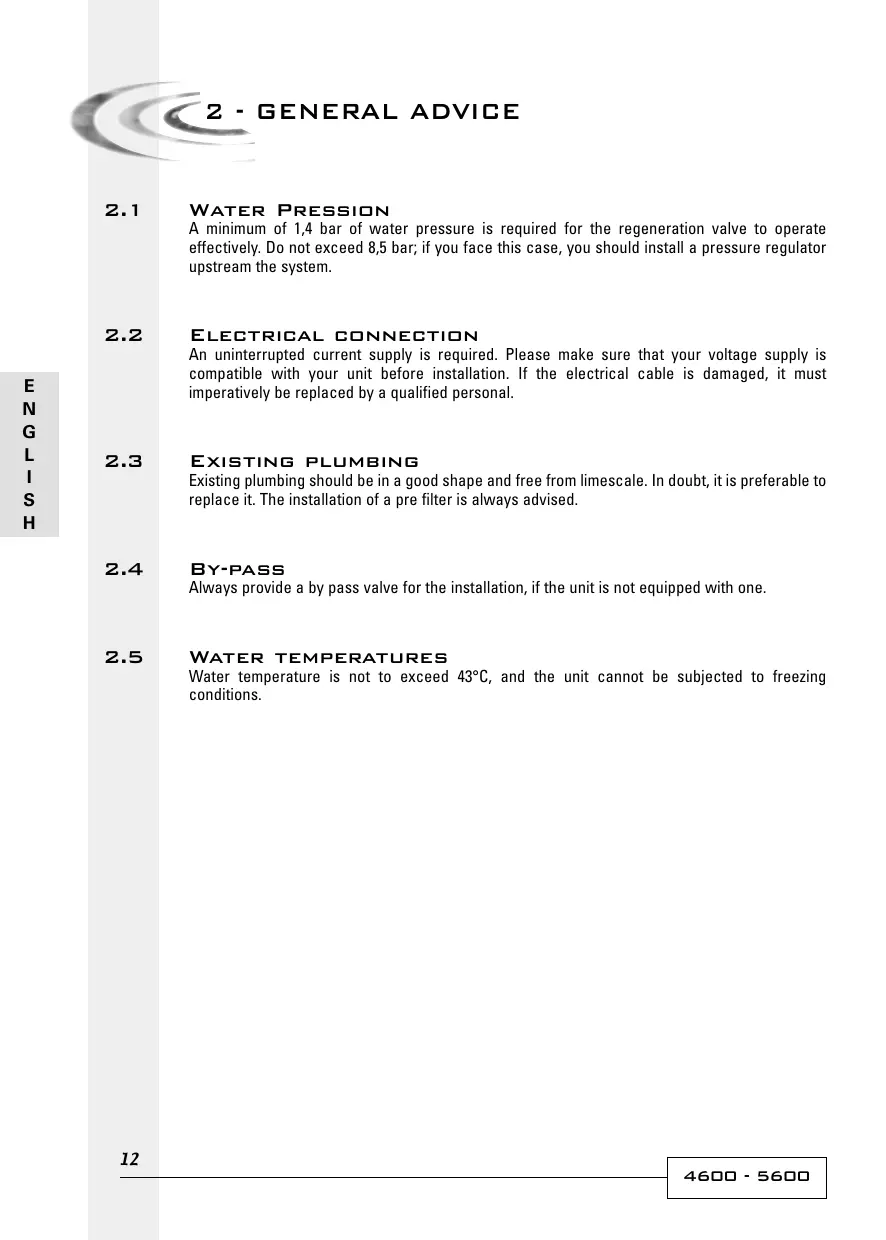

A minimum of 1,4 bar of water pressure is required for the regeneration valve to operate effectively. Do not exceed 8,5 bar; if you face this case, you should install a pressure regulator upstream the system.

E N G L I S H Electrical connection

An uninterrupted current supply is required. Please make sure that your voltage supply is compatible with your unit before installation. If the electrical cable is damaged, it must imperatively be replaced by a qualified personal.

Existing plumbing should be in a good shape and free from limescale. In doubt, it is preferable to replace it. The installation of a pre filter is always advised.

Always provide a by pass valve for the installation, if the unit is not equipped with one.

Water temperature is not to exceed 43°C, and the unit cannot be subjected to freezing conditions.

3 - INSTALLATION INSTRUCTIONS

Install the softener pressure vessel(s) in a chosen place on a flat firm surface.

During cold weather, it is recommended to bring the valve back to room temperature before operating.

All plumbing for water inlet, distribution and drain lines should be done correctly in accordance with legislation in force at the time of installation. Install without tension or bending stresses.

The distribution tube should be cut flush with the top of the tank. Slightly bevel the ridge in order to avoid deterioration of the seal whilst fitting the valve.

Lubricate the distribution tube joint and the joint with a 100% Silicon lubricant. Never use other types of greases that may damage the valve.

All soldering on main plumbing and to the drain line should be done before fitting the valve.

Failing to do so can generate irreversible damages.

Use Teflon ® tape if necessary in order to seal between the drain fitting and the outlet flow control.

On units with by-pass, place in by-pass position. Turn on the main water supply. Open a cold water tap nearby and let run a few minutes or until the system is free from foreign material

(usually solder) that may have resulted from the installation. Once clean, close the water tap.

Place the by-pass in service position and let water flow into the mineral tank. When water flow stops, slowly open a cold water tap nearby and let run until the air is purged from the unit.

Plug the valve to a power source. Check that the valve is in service position

Fill approximately 25mm of water above the grid plate, (if used). Otherwise, fill to the top of the air check in the brine tank. Do not add salt to the brine tank at this time.

Initiate a manual regeneration, bring the valve into « brine draw and slow rinse position » in order to draw water from the brine tank until the blockage of the air check; the water level will be approximatively in the middle of the air check.

Open a cold water tap and let the water run in order to drain the air out of the circuit.

Bring the valve in brine refill position and let it get back to service position automatically.

Now you can add salt to the brine tank, the valve will operate automatically.

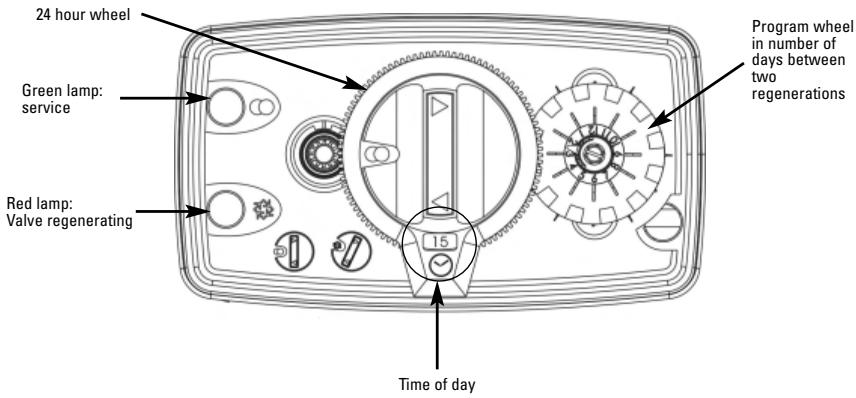

4 - POWER HEAD Time clock

Program wheel in number of days between two regenerations

E N G L I S H Time of day

Program wheel in m3 between two regenerations

24 hour wheel clutch

Brine draw/ Slow rinse

4 - POWER HEAD Metered

Set the capacity of soft water between 2 regenerations using the following formula:

Water capacity in m3 = exchange capacity in m3°tH – reserve capacity in m3 Water hardness °tH To do so, lift the transparent disc with the label and display the capacity facing the white dot. Example for the following drawing, the capacity set is 6.6 cubic meters between two regenerations.

Use the same formula as for metered version and divide by daily water consumption to obtain the number of days between 2 regenerations.

There are two time clock wheels: - 7 days: based on the week, number 1 will refer to Monday, number 7 to Sunday. - 12 days: allows to set a regular interval every 2, 3, 4, or 6 days. To set up, push the pins out. Example: on the drawing one regeneration every 2 days.

Time of day Press the clutch on the 24 hour wheel, red gear, then turn the hour wheel to display the correct hour in the window. Salt volume per regeneration Here is a table, usually used in water treatment. Salt weight n g / litre of resin 80 125 180

Exchange capacity in °tH / m3 / litre of resin

Salt weight in g / °tH / m3

On the brine cam, there is a segment and a indication Label in Kilogram.

This segment with an indicator ensures the function of brine refill. Based on the table, set the amount of salt in Kg necessary for the resin regeneration. This way, the valve will send the correct volume of water in the brine tank in order to dissolve the necessary volume of salt for regeneration. Example: 15 litres of resin x 125 g = 1875 g (1.9 kg of salt) Place the indicator slightly under 2 kg. 15

5 - TROUBLESHOOTING INCIDENT

1. Softener fails to regenerate

CAUSE A. Interrupted power

B. Defective power head C. Unpluged meter cable D. Blocked meter E. Defective motor F. Wrong programming

2. Softener delivers hard water

A. By-pass in “by-pass” position

B. No salt in the brine tank

SOLUTION A. Restore electrics (mains, fuse)

B. Change power head C. Check connections of the time rand on the meter cover. D. Clean or change meter E. Change motor F. Check programming and modify if necessary

J. Wrong programming

A. Put by pass in “service” position

B. Add salt in the brine tank and keep salt level above water level C. Clean or replace filtre or injector D. Check brine tank filling time and clean flow regulator E. Repeated flushing of the hot water tank F. Ensure the distributor tube has no cracks, Check the O’ring G. Change seals & spacers and/or piston H. Unblock the meter I. Check cable connections in the power head and on the meter cover J. Check programming and modify if necessary

3. Excesssive salt consumption

A. Improper brine refill setting

B. Too much water in the brine tank C. Wrong programming

A. Check use of salt and setting of brine refill.

B. See problem n°6 C. Check programming and modify if necessary

4. Water pressure drop

A. Iron deposit in the softener inlet

B. Iron deposit in the softener C. Valve inlet obstructed by foreign elements

B. Clean valve and resin C. Remove piston and clean valve

5. Loss of resin through drain line

A. Top distributor missing or broken

B. Air in water system

A. Add or replace the top distributor

B. Ensure the presence of air check system in the brine tank C. Ensure the drain line flow control is sized correctly

C. Blocked injector and/or filter

D. Not enough water in the brine tank E. Hardness arriving from hot water supply F. Leak at the distributor tube G. Internal valve leak H. Blocked meter I. Meter cable unplugged

C. Drain line flow control is the wrong size

6. Iron presence in softener

A. The resin bed is dirty

B. Iron concentration exceeds recommended parameters

7. Too much water in the brine tank

A. Plugged drain line flow control (DLFC)

B. Faulty brine valve C. Wrong programming

A. Check backwash, brine draw and brine refill.

Regenerate more often and increase backwash cycle time B. Contact dealer

A. Check flow regulator

B. Change brine valve C. Check programming and modify if necessary

5 - TROUBLESHOOTING INCIDENT

8. Salted water in in service line

CAUSE SOLUTION A. Filter and injector blocked

B. Power head not operating proper cycles C. Foreign elements in brine valve D. Foreign elements in the brine line flow control (BLFC) E. Low water pressure F. Wrong programming

A. Clean injector and filter

B. Change power head C. Change brine valve seat and clean it

D. Clean BLFC A. Plugged drain line flow control (DLFC)

B. Plugged filter and injectors C. Low water pressure D. Internal valve leak E. Wrong programming F. Power head not operating properly

A. Clean drain line flow control

B. Clean filter and injector, change if necessary C. Increase inlet pressure to 1,8 bar minimum D. Change seals, spacers and/or piston assembly E. Check programming and modify if necessary F. Change power head

10. The valve regenerates constantly

A. Faulty power head

B. Faulty microswitch or wiring loom C. Defective or badly set cycle cam

A. Change power head

B. Change microswitch or wiring loom C. Reposition or change cycle cam

11. Constant leakage to the drain

A. Foreign elements in the valve

A. Clean valve and check it in the different regeneration positions

B. Change seals & spacers and/or piston assembly C. Change seals & spacers and/or piston assembly D. Change motor and check gear teeth E. Change power head

B. Internal valve leak

C. Valve blocked in brine refill or backwash D. Defective or blocked timer motor E. Powerhead not operating properly

E. Raise inlet pressure to 1,8 bar minimum

F. Check programming and modify if necessary

Hot water available only on the 4600 valve: The use of specific materials allows the valve to work at temperatures higher than 43°C: Up to 82°C for a timeclock version or 65°C for a metered version. Immediate Regeneration: As opposed to time clock or metered valves that regenerate at 2 A.M. this option allows the valve to regenerate immediately after the set capacity is consumed Fast Regeneration (FR): This option allows the valve to regenerate in 90 minutes instead of 180 minutes. This valve can only be fitted with vessels up to 10”. Low water usage piston (L.W.U.): With this piston, water consumption during regeneration can be reduced.
