USER MANUAL PMR 16 AUDIOLINE

3 Bedienelemente

Handset

1 Safety Information ....2

Intended use 2

Ambient conditions 2

Batteries 2

Medical equipment 2

Disposal 2

Declaration of Conformity 3

2 Preparing the Walkie-Talkies for Use ....4

Safety information 4

Checking the package contents 4

Inserting the batteries 4

Belt clip 4

3 Operating Elements ....5

4 Operating the Walkie-Talkies ....6

Switching the walkie-talkie on/off 6

Volume control 6

Transmitting and receiving 6

Transmit ringing tone 7

Confirmation signal 7

Selecting a channel 7

5 Appendix 8

In Case of Problems ....8

Technical Properties 8

Maintenance / Guarantee 9

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

These walkie-talkies have been conceived for communication with other walkie-talkies complying to the same standards. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the devices or complete any repair work yourself.

Ambient conditions

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the walkie-talkies in potentially explosive areas.

Batteries

Caution: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.

Medical equipment

Caution: Never use the walkie-talkies in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out. Walkie-talkies can cause an unpleasant humming sound in hearing aids.

Disposal

You are obliged to dispose of consumable goods according to legal requirements. The adjacent symbol indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separate from domestic waste.

Electrical and electronic devices must be disposed of at suitable collection points provided by the public waste authorities.

Batteries must be disposed of at the point of sale or at appropriate collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

Caution: The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directives:

• 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
• 2005/32/EU directive "Energy-using products".

Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

Please refer to the free download in our Website www.audioline.de for complete declaration of conformity.

This product has been developed for use within Germany. It operates on an EU-harmonised frequency band (446 MHz) and, thus, may be used outside Germany in all other EU member states.

2 Preparing the Walkie-Talkies for Use

Safety information

Caution: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents

- 2 walkie-talkies with belt clip - 1 operating manual

Inserting the batteries

Open the battery compartment cover. Insert 3 pieces AAA batteries. Pay attention to correct polarity Close the battery compartment cover.

Caution: Only use batteries of the same type in the set (3 pieces). If necessary change all batteries of the set (3 pieces). Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Note

When not in use, turn the units OFF to save battery power. Remove the batteries if the units will not be used for a long period of time.

Belt clip

For removing the belt clip insert your finger nail and pull up the belt clip latch away from the unit. While pulling the belt clip latch push up the belt clip as shown.

For attaching the belt clip slide it into the slot until a "click" indicates that it is locked into its position.

3 Operating Elements

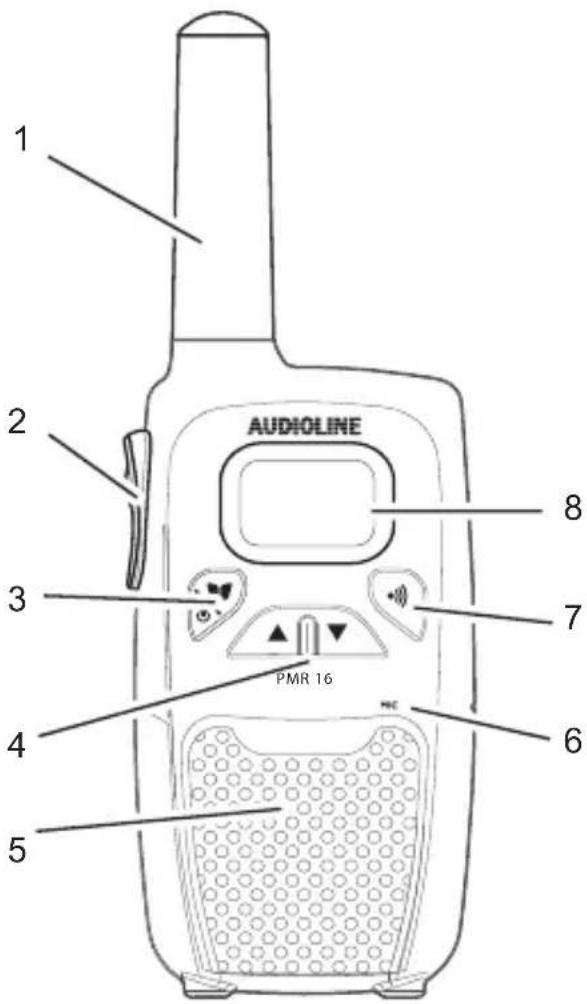

Handset

1 Antenna
2 PTT button
3 On/Off key / Menu key
4 Up/Down keys for changing channels and volume
5 Loudspeaker
6 Microphone
7 Transmit ring tone
8 Display

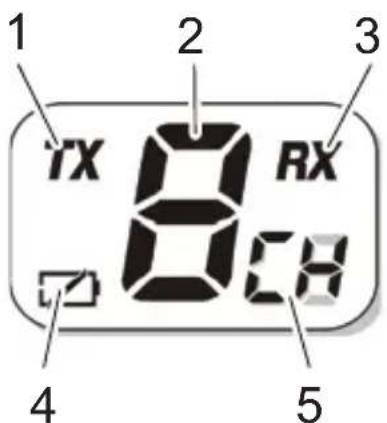

Display

1 Displayed when transmitting a signal
2 Channel Number
3 Displayed when receiving a signal
4 Displayed when battery level goes low
5 CH - Channel selection LE - Volume selection

4 Operating the Walkie-Talkies

Switching the walkie-talkie on/off

For switching on the walkie-talkie press and hold down the On/Off / menu key. A "beep" sound will be heard and the LCD screen will display the current channel.

For switching off the walkie-talkie press and hold down the On/Off / menu key. A "beep" sound will be heard and the LCD screen will turn blank.

Volume control

Press ▲ or ▼ to increase or decrease the volume. The volume level will be indicated in the display.

Transmitting and receiving

Transmitting Press the PTT button. TX will be displayed on the LCD screen.

Hold the walkie-talkie approx. 5 to 7 cm from your mouth and speak at a normal volume. In order to talk to other subscribers, the respective walkie-talkies must be set to the same channel.

Receiving The unit is continuously in receive mode when the unit is turned ON and not transmitting. When a signal is received on the current channel, the receive signal icon RX will be displayed on the LCD screen.

Radio signals cannot be received when the PTT button is being pressed.

Transmit ringing tone

The ringing tone indicates to other subscribers that you want to talk to them. A condition for this is that the other subscribers are using the same channel.

Send ringing tone.

Confirmation signal

The confirmation signal is issued on releasing the PTT button. This signals to the caller that you have ended transmission.

Selecting a channel

Press the On/Off / menu key.

Press ▲ or ▼ to select the desired channel. The channel number is shown in the display.

Channel Frequency (MHz) Channel Frequency (MHz)

1	446.00625	5	446.05625
2	446.01875	6	446.06875
3	446.03125	7	446.08125
4	446.04375	8	446.09375

Press the On/Off / menu key to confirm your setting and return to the standby mode.

5 Appendix

In Case of Problems

Should problems arise with the walkie-talkies, please refer to the following information first. In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems	Solutions
Equipment does not function - Batteries exhausted
Transmission not possible - Press PTT button in fully to transmit- Channel is being used by other subscribers
No reception - Release PTT button- Volume setting is too low- You are outside the range of reception, change your position- Obstructions such as trees and buildings impair the range- Channel is being used by other subscribers

Technical Properties

Feature	Value
Output power 0.5 W
Range Up to 5 km in open space
Typical usage time Up to 14 h (based on 5 % "send", 5 % "receive" and 90 % stand-by-time)
Max. talk time Up to 100 min
Batteries 3 x AAA

Maintenance / Guarantee

Maintenance

Clean the housing surfaces with a soft, fluff-free cloth.

Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products.

The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge.

Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If the product becomes defective during the guarantee period, please return it to the retailer from which it was purchased together with the purchase receipt. All rights to claims under the terms of the guarantee in accordance with this agreement must be pursued with the retailer.

After two years from the date of purchase, claims under the guarantee are no longer valid.
