Product Type	PMR446 two-way radio
Brand	Audioline
Model	PMR Easy 011
Frequency Band	446 MHz (PMR446)
Number of Channels	8 PMR channels
Sub-channels (CTCSS)	38 privacy codes
Maximum Transmit Power	0.5 W (ERP)
Range (Urban)	Up to 1 km (typical)
Range (Open Field)	Up to 10 km (theoretical)
Power Supply	3 x AAA batteries (1.5V each)
Battery Life	Approx. 20 hours (typical usage)
Weight (with batteries)	Approx. 120 g
Dimensions (H x W x D)	165 x 55 x 30 mm
Display	LCD with backlight
Key Features	VOX, Keypad lock, Monitor, Scan, Headphone jack, Belt clip
Material	ABS plastic
Color	Black / Orange
Cleaning and Maintenance	Wipe with a soft, dry cloth. Remove batteries during prolonged storage.
Safety Precautions	Do not use near water or explosive atmospheres. Keep away from children under 3 years.
Spare Parts Available	Battery cover, belt clip, earpiece
Repairability	Designed for non-disassembly; contact authorized service for repairs.

Frequently Asked Questions - PMR Easy 011 AUDIOLINE

How do I pair two PMR Easy 011 radios?

Ensure both radios are set to the same channel and sub-code (if any). Press the PTT button to talk. They are ready to use out of the box on channel 1.

What type of batteries does the radio use?

It uses three AAA alkaline batteries (1.5V each). Rechargeable NiMH AAA batteries can also be used, but charging is not supported internally.

What is the maximum range?

In open field conditions, the theoretical range is up to 10 km. In urban environments, range may be significantly less, typically up to 1 km.

How do I activate the VOX function?

Press the MENU button until the VOX icon flashes. Use the +/- buttons to turn VOX on or off. Confirm by pressing PTT or waiting a few seconds.

Can I use the radio while charging?” (Adjust: No internal charger, so ask about batteries)

The PMR Easy 011 does not have a built-in charger. You must remove the batteries and charge them externally if using rechargeables.

How do I lock the keypad?

Press and hold the LOCK button (usually marked with a key icon) for 2 seconds until the lock icon appears on the display.

What is the CTCSS sub-code for?

CTCSS sub-codes allow multiple user groups to share the same channel without interference. Both radios must have the same code to communicate.

Can I use headphones with this radio?

Yes, it has a standard 3.5 mm headphone jack. Plugging in headphones will mute the internal speaker.

How do I clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use water or cleaning solvents.

What should I do if the radio does not power on?

Check that the batteries are installed correctly with the correct polarity. Replace with fresh batteries if necessary. If problem persists, contact customer support.

USER MANUAL PMR Easy 011 AUDIOLINE

Operating instructions ____ 19

Name: MANFRED ZINNOW

1 Operational Elements ...... 22
2 Commissioning 23

2.1 Check contents of pack 23
2.2 Fitting the batteries ....23
2.3 Fitting or remove the belt clip .....24
2.4 Accessory set....25

3 Operation.... 26

3.1 Display indicators....26
3.2 Switching the radios on and off .....27
3.3 Volume control....27
3.4 Channel selection .....27

3.4.1 Changing the call code (CTCSS) .....28

3.5 Calling another subscriber....29
3.6 Switching on VOX mode....30
3.7 Keypad lock 31
3.8 Range of the radios 32
3.9 Increasing the maximum range 32
3.10 Automatic energy saving mode 33
3.11 Channel search (scan mode) 33
3.12 Selecting a call tone....34
3.13 Switching key tones on and off....35
3.14 Using the radio as a stopwatch 35

4 Important information.... 36

4.1 Technical data....36
4.2 Care instructions....36
4.3 Warranty 37
4.4 Declaration of Conformity 38

- Operational Elements -

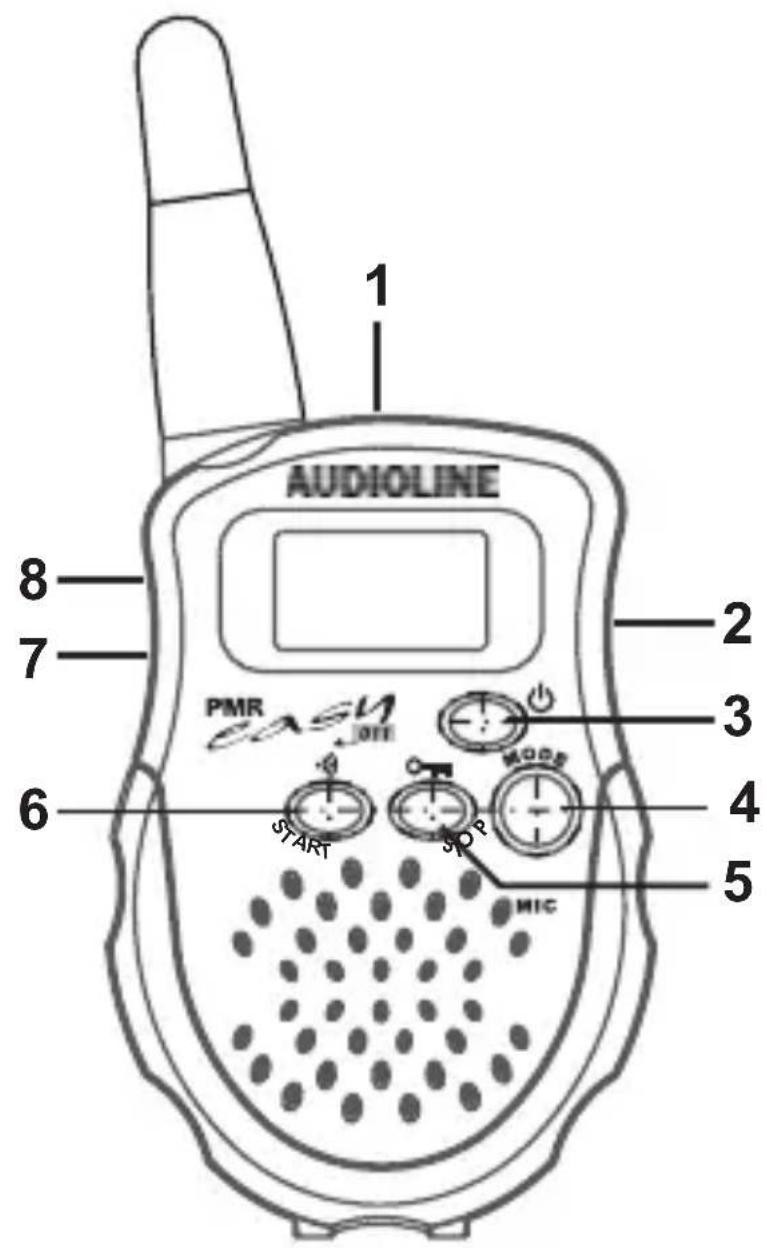

1 Operational Elements

1. Microphone and headphone connection
2. Volume louder/softer select buttons

3. On/Off button

4. Mode button

5. Keylock button
6. Call button
7. Auto-Squelch button
8. Talk button

- Commissioning -

2 Commissioning

2.1 Check contents of pack

The following items are supplied

two radios with belt clip one instruction manual

2.2 Fitting the batteries

The batteries required are not supplied with the unit. For each unit you will require three type AAA 1.5V batteries. Please use new high-quality alkaline batteries.

1. To release the belt clip, pull gently on the upper tab and slide the belt clip upwards (see 2.3).
2. Then open the compartment by pulling the cover upwards by the catch.
3. Now insert the batteries taking care to ensure that the polarity is correct. Incorrect polarity can damage the unit.
4. Close the battery compartment and re-fix the belt clip (see 2.3).

The current battery capacity is shown in the display.

full

half full

batteries are discharged.

- Commissioning -

Note: The batteries must be changed as soon as the indicator flashes in the display.

When the battery is fully charged, the symbol will appear.

Do not throw batteries into the fire or immerse in water. Do not dispose of old or defective batteries with the normal household waste.

2.3 Fitting or remove the belt clip

To remove the belt clip, pull gently on the upper tab (B) and slide the belt clip upwards.

Slide the belt clip from above onto the guide (A) until it audibly snaps into place.

- Commissioning -

2.4 Accessory set

An accessory set, consisting of two battery packs, a charging station with mains plug-in power supply and two headsets, is also available for both radios. Order over the specialized trade or www.audioline.de.

Battery packs: With the rechargeable battery packs, each radio has a standby time of up to 66 hours and a talk time of ca. 22 hours.

Charging station: The radios can be recharged in 12 hours by means of the charging station.

Note: Please do not use different battery packs, normal rechargeable batteries or other power supplies, as these can damage the radios.

Connecting the headset : The radios can be used with an external microphone and earpiece, a so-called headset. In this way, you can keep your hands free for other activities. The connection will be found on the top underneath a cover.

Open the cover on the top of the radio and insert the plug into the socket. The loudspeaker in the radio is switched off when the headset is in use. Make sure that the microphone opening remains unobstructed. When using the headset, we recommend that the keypad lock on the radio is activated so that no settings can be changed unintentionally.

- Operation -

3 Operation

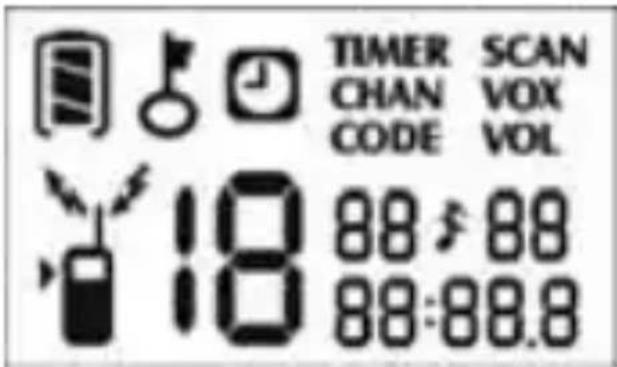

3.1 Display indicators

VOL	Indication of the set volume.
	Indication of the channel set from 1 to 8
	Indication of battery capacity.
	Keypad lock is activated
	Transmit/receiveappears when transmittingappears when receiving. The symbol alsoappears when someone is transmitting on thesame channel but is using a different CTCSScode. These signals can not then be heard.
	This symbol appears when the battery savingmode is switched on.
	Display of the CTCSS code from 01 to 38. If – isdisplayed, the CTCSS function is switched off.

- Operation -

$	This symbol appears when the button tones are switched off.
TIMER	The stopwatch function is switched on.
SCAN	The scan function is switched on.
VOX	The VOX mode is switched on.

3.2 Switching the radios on and off

To switch on the radio, hold the On/Off button ⏻ pressed until a signal tone sounds. The display will be illuminated for some seconds and all the symbols will be shown in the display. After this the display will show the currently selected channel and other information.

To switch the radio off, hold the On/Off button ⏻ pressed once more until a signal tone sounds.

3.3 Volume control

The volume of the built-in loudspeaker can be displayed in 16 volume steps using the ▲ and ▼ buttons on the right. The volume set will be shown in the display.

3.4 Channel selection

The radios have 8 different transmission channels, which are released by the European Committee for Radio Communications as "Private Mobile Radio" channels, known as PMR for short.

- Operation -

In order to be able to speak between two radios, both units must be set to the same channel.

1. Press the MODE button once. The CHAN indicator will flash in the display.
2. Select the required channel using the ▲ and buttons.
3. Confirm the selection with the talk button on the left-hand side.

3.4.1 Changing the call code (CTCSS)

Normally, all calls on the selected channel are sent to all radios that are in receiving range. You may therefore also hear calls that are not intended for you when other people are using radios on the same channel in the vicinity. In order to prevent this, it is possible to define a call code. Check between yourselves which code has been selected.

1. Press the MODE button twice. The CODE indicator and the current call code will flash in the display.
2. A new code between 01 and 38 can now be selected using the ▲ and ▼ buttons. If the code -- is selected, all calls will be made on the selected channel.
3. Confirm the selection with the talk button on the left-hand side.

- Operation -

Radio 1

3⁰⁵

Radio 2

3⁰⁵

Note: The selected channel and the call code must correspond for you to be able to talk to one another.

3.5 Calling another subscriber

When you want to talk to other subscribers, proceed as follows: The two radios must be switched on and set to the same channel and to the same call code.

Press the small button once. A ringing tone will sound on the called unit. Now wait until the person called answers. To speak yourself, press the talk button. Hold the unit about 5 cm from your mouth and speak in a normal voice. When you have finished, release the talk button. The person you are speaking to will hear a brief noise when you release the call button. This will indicate to the other party that you have finished speaking and are waiting for a reply.

However, in spite of this, we recommend that you finish your message with the word "End" so that the person you are calling knows exactly when he can reply.

- Operation -

The volume of the incoming call signal depends on your volume setting. 16 volume levels can be set using the and ▼ buttons.

Note: While you are holding the talk button, you will not be able to hear any incoming calls. As is usual with radio units, only one of the two participants in the call can speak at any one time.

Therefore, always wait until you hear the signal tone before pressing the talk button again.

While you are pressing the TALK button, the symbol will appear in the display. When you receive a call, the symbol will appear in the display.

3.6 Switching on VOX mode

In VOX mode, the radio will automatically start to transmit as soon as your voice or another noise is detected. It is not necessary to press the talk button. Transmission will always take place for 2 seconds, even when you speak for less than 2 seconds.

Three sensitivity levels from 1 to 3 can be set for VOX mode. With setting 1, even softer noises will be transmitted whereas, with setting 3, only loud signals will be sent. In setting 0, VOX mode is switched off (standard setting).

- Operation -

1. Press the MODE button five times. The VOX indicator will flash in the display.
2. Select the required sensitivity using the ▲ and buttons. In setting 0, VOX mode is switched off.
3. Confirm the selection with the TALK button on the left-hand side.

3.7 Keypad lock

In order to prevent settings from being changed unintentionally, you can switch on the keypad lock. To do this, press and hold the 🔊 button for one second. The

symbol will appear in the display and the keys will be locked. It will still be possible to use the talk, auto-squelch and on/off button. While the talk button is being pressed, a call tone can be transmitted using the ▲ button.

To turn the keypad lock off once more, press and hold the button again for one second. The symbol will disappear and the keypad lock will be deactivated.

Each time the radio is switched on afresh, the keypad lock is automatically switched off again.

- Operation -

3.8 Range of the radios

The radios have a range of up to 3-5 km. This maximum range can be reduced under certain circumstances. You can achieve maximum range in open, flat conditions. If there are buildings or trees in the signal path then the range will be reduced. The range is even further reduced in hilly terrain.

3.9 Increasing the maximum range

The radios are equipped with a so-called Auto-Squelch system, by means of which weak transmissions and undesirable noises are automatically filtered out during use. This Auto-Squelch system can be temporarily switched off in order to increase the range.

Press and hold the AUTO-SQUELCH button on the left-hand side. The automatic suppression will be switched off and it will now be possible for even very weak signals to be received. If the AUTO-SQUELCH button is kept pressed until a signal tone sounds, the Auto-Squelch will be switched off completely. To switch the Auto-Squelch on again, press the AUTO-SQUELCH button once more.

- Operation -

3.10 Automatic energy saving mode

The radios are designed with a power saving mode. If no transmissions take place within a certain time, the unit switches itself off automatically. The time can be set to 1, 2 or 3 hours. In setting 0, energy saving mode is switched off.

1. Press the MODE button seven times. The will flash in the display.
   indicator
2. Select the required sensitivity using the ▲ and ▼ buttons. Energy saving mode is switched off with the setting 0.
3. Confirm the selection with the talk button on the left-hand side.

The indicator appears in the display when the energy saving mode is switched on.

3.11 Channel search (scan mode)

When channel search (scan) is switched on, all 8 channels are continuously polled until the radio finds a channel that is being used for speech. Even if other radios are speaking on one of the 38 call codes, the radio is found channel. If the call code should not agree with your settings, you must adjust these by hand.

- Operation -

1. Press the MODE button three times. The SCAN indicator will flash in the display.
2. Channel search is switched on with the ▲ button and switched off with the ▼ button.
3. Confirm the selection with the talk button on the left-hand side.
4. All channels will now be scanned one after the other. As soon as a channel is found that is currently in use, channel search will be interrupted for 2 seconds. Press the TALK button during this time if you want to keep the channel that has been found and exit the channel search. Channel search can be switched off at any time with the MODE button.

3.12 Selecting a call tone

You can transmit a call tone to the other radios using the button (see 3.5) when you want to begin a call. 10 different melodies are available.

1. Press the MODE button four times. The CA TONE indicator will flash in the display.
2. Select the required call tone between 1 and 10 using the ▲ and ▼ buttons.
3. Confirm the selection with the talk button on the left-hand side.

- Operation -

3.13 Switching key tones on and off

Normally, a confirmation tone will sound each time a button on the radio is pressed. These confirmation tones can be switched off as follows. To switch on again, repeat steps 1 and 2.

1. Switch the radio off with the ⏻ button.
2. To switch on again, hold the AUTO-SQUELCH button on the left side pressed and press the ⏻ button again. The display will show the ✿ indicator.

3.14 Using the radio as a stopwatch

Your radio can also be used as a stopwatch.

1. Press the MODE button six times. The TIMER indicator will flash in the display and the stopwatch display will appear.
2. The stopwatch function is switched on with the ▲ button and switched off with the ▼ button.
3. Confirm the selection with the talk button on the left-hand side. When the stopwatch is switched on, the stopwatch display appears in hours, minutes and seconds.

Starting the stopwatchPress the START button.	Stopping the stopwatchPress the STOP button
Resetting the displayPress STOP again while the stopwatch is stopped.	Reading intermediate timesPress the START button while the stopwatch is running. Press the START button again to update the display once more.

- Important information -

4 Important information

4.1 Technical data

PMR channel frequencies (MHz):

Channel 1: 446.00625 Channel 5: 446.05625

Channel 2: 446.01875 Channel 6: 446.06875

Channel 3: 446.03125 Channel 7: 446.08125

Channel 4: 446.04375 Channel 8: 446.09375

38 CTCSS call frequencies:

CH1=67.0Hz CH11=97.4Hz CH21=136.5Hz CH31=192.8Hz
CH2=71.9Hz	CH12=100.0Hz	CH22=141.3Hz	CH32=203.5Hz
CH3=74.4Hz	CH13=103.5Hz	CH23=146.2Hz	CH33=210.7Hz
CH4=77.0Hz	CH14=107.2Hz	CH24=151.4Hz	CH34=218.1Hz
CH5=79.7Hz	CH15=110.9Hz	CH25=156.7Hz	CH35=225.7Hz
CH6=82.5Hz	CH16=114.8Hz	CH26=162.2Hz	CH36=233.6Hz
CH7=85.4Hz	CH17=118.8Hz	CH27=167.9Hz	CH37=241.8Hz
CH8=88.5Hz	CH18=123.0Hz	CH28=173.8Hz	CH38=250.3Hz
CH9=91.5Hz	CH19=127.3Hz	CH29=179.9Hz
CH10=94.8Hz	CH20=131.8Hz	CH30=186.2Hz

Channel separation 12.5 kHz

Standby with three 1,5V AAA Batteries ca. 88 hours

Mixed operation with three1.5V AAA Batterien ca. 29 hours

Technical data are subject to change without previous notice.

4.2 Care instructions

The surface of the case can be cleaned with a dry, soft and lint-free cloth. Never use cleaning agents, particularly aggressive solvents.

Never leave the unit in a damp or dusty place. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

- Important information -

4.3 Warranty

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The warranty period is 24 months from the day of purchase. This warranty is not applicable to the batteries or battery packs used in the various products.

Warranty conditions: Within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

- Important information -

4.4 Declaration of Conformity

WE

AUDIOLINE

GmbH

OF Hellersbergstr. 2a, D-41460 Neuss, GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: PMR Easy 011

DESCRIPTION: Walkie Talkie Frequency 446 MHz

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE: 1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name:

MANFRED

ZINNOW

Position in the company: MANAGING DIRECTOR

Date of issue: 10.11.2003

A copy of this declaration will be retained for 10 years after cessation of production.

SUPPLIER: AUDIOLINE GmbH,

Hellersbergstr. 2a, D-41460 Neuss

PRODUCT: PMR Easy 011

CE0678

This product was developed for the operation within

Germany. This product transmits in a non-EU-harmonised frequency band (466MHz) and

may thus only be used in Germany.

AUDIOLINE GmbH

Neuss

Service Hotline [phone]
