Product Type Electronic Drum Module
Brand Roland
Model TD-9
Dimensions (L x D x H) 160 x 88,5 x 259,5 mm
Weight (without AC adapter) 850 g
Power Supply DC 9V AC adapter, 500 mA consumption
Display Graphic LCD 64 x 128 dots, backlit
Number of drum kits 50 preset kits
Number of sounds Over 500 (drums and percussion)
Effects Ambience (reverb) and 3-band equalizer
Polyphony 32 voices (estimate)
Trigger inputs 1 DB-25 connector for main pads, 2 additional inputs (CRASH2, AUX)
Audio outputs OUTPUT L/Mono, R (6.35 mm jack), PHONES (6.35 mm jack)
Audio input MIX IN (stereo mini jack)
MIDI connectivity MIDI IN, MIDI OUT/THRU
USB port For USB flash drive (data backup/loading)
Built-in metronome Yes, with tempo, sound, and time signature settings
Recording Quick Rec (up to 32,000 notes)
Internal songs 50 backing tracks
Included accessories AC adapter, connection cable, tuning key, wing bolt, mounting plate
Compatible options PD-85/PD-105 pads, FD-8/VH-11 hi-hat pedal, MDS-9 stand

Frequently Asked Questions - TD-9 ROLAND

How to turn on and off the TD-9?
Press the POWER button to turn on. To turn off, hold down POWER until 'POWER OFF' appears on the screen. Make sure to lower the volume before powering off.
How to connect pads to the module?
Use the included DB-25 cable. Plug it into the TRIGGER INPUT on the module, then connect each pad and pedal to the corresponding jacks (labels indicate which pad to connect). Follow the connection diagram in the manual.
How to select a drum kit?
Press the KIT button to display the DRUM KIT page. Use the [+]/[-] buttons or the dial to scroll through the 50 preset kits. The kit number and name appear on the screen.
How to save my settings?
Settings are saved automatically when you turn off the TD-9 with the POWER button. To save to a USB flash drive, go to SETUP > UTILITY > USB > SAVE and choose 'BACKUP' to save all settings.
Can I use headphones with the TD-9?
Yes, plug stereo headphones (6.35 mm jack) into the PHONES jack. The OUTPUT jacks remain active even with headphones connected.
How to adjust pad sensitivity?
Press SETUP, then F2 (BASIC) to access sensitivity settings. Select the pad by hitting it, then adjust the Sensitivity and Threshold parameters with the dial or the +/- buttons.
The metronome sound is not heard, why?
Check that the metronome is activated by pressing CLICK (TEMPO) (the button should light up). Make sure the metronome volume is not at zero: hold SHIFT + CLICK (TEMPO), then press F2 (INST) to adjust the volume.
How to perform a cross stick on the snare?
Enable the Cross Stick function by pressing KIT > F3 (XSTICK) (the icon appears). Play by striking only the rim of the pad to produce the cross stick sound. This function is only available with compatible snare instruments (marked with *X in the list).
The module does not turn on, what to do?
Check that the AC adapter is properly connected to the module and to a working outlet. Make sure the adapter's indicator light is on. If the problem persists, try another compatible adapter (DC 9V, 500 mA).
How to update the firmware of the TD-9?
Roland does not offer public firmware updates for the TD-9. If an update is needed, contact Roland customer support. To restore factory settings, go to SETUP > UTILITY > RESET and follow the on-screen instructions.

User questions about TD-9 ROLAND

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Electronic drum in PDF format for free! Find your manual TD-9 - ROLAND and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TD-9 by ROLAND.

USER MANUAL TD-9 ROLAND

m = 311 ;

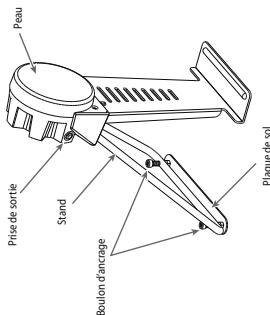

ROLAND TD-9 - 1
Plaque de sol

m = 311 ;

#

#

NOTE

* Line out

one at

fonction

#

#

aee aee eae aee aee aee aee aee

#

aansananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara

annnd

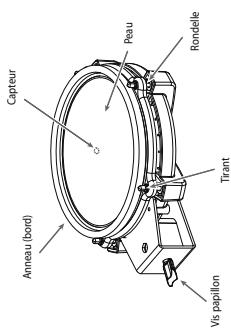

ROLAND TD-9 - # - 1

#

3⊥ON

http://os.unis.in

11

ROLAND TD-9 - # - 1

ROLAND TD-9 - # - 2

NOTE

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

ROLAND TD-9 - NOTE - 1

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

Pour le Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

[F1] (SCAN) 48
[F2] (RIM) 49
[F3] (HI-HAT) 49

Pods (ex: PD-105/PD-85)

Head Shot

Cymbales (ex: CY-8, CY-12R/C)

Frappe sur le corps

HI-HAT
Cymbal Size1"~40"
Fixed Hi-HatNORMAL, FIXED1-4
INST EDIT [CRASH1] Cymbal Size 160 Sustain 100CRASH1-2
Cymbal Size1"~40"
Sustain1~100
RIDE
Cymbal Size1"~40"
Sustain1~100
BELL
Cymbal Size1"~40"
Sustain1~100
INST EDIT [ AUX]HEAD
Pitch-240~ +240
Decay1~100

[F1] (AMB): Ambience

Wall WOOD, PLASTER, GLASS

Mic LOW, HIGH

Shape 0~100

Level 0~100

ROLAND TD-9 - Frappe sur le corps - 1

[F3] (EQ)

SwitchON, OFF
High Freq1~8kHz
High Gain-12~+12
Low Freq20Hz~1kHz
Low Gain-12~ +12

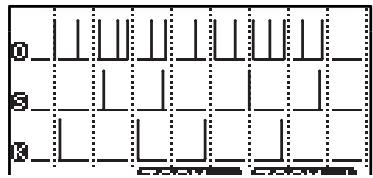

ROLAND TD-9 - Frappe sur le corps - 2
Timing correct
Timing incorrect

MEMO

58Custom S
59Custom SR*X
60VintMaple S
61VintMaple SR*X
62SolidMaple S
63SolidMapleSR*X
6430'sBrass S
6530'sBrass SR*X
66Medium S
67Medium SR*X
68MediumSt S
69MediumSt SR*X
70MediumBr S
71MediumBr SR*X
72Vintage S
73Vintage SR*X
74VintCustom S
75VintCustomSR*X
76Birch S
77Birch SR*X
No.Nom
78WhiteAsh S
79WhiteAsh SR*X
80PiccoloSt S
81PiccoloSt SR*X
82PiccoloBr S
83PiccoloBr SR*X
8413" S
8513" SR*X
86Dry S
87Dry SR*X
88Fat S
89Fat SR*X
90FatBr S
91FatBr SR*X
92Heavy S
93Heavy SR*X
94Dirty S
95Dirty SR*X
96Brush S
97Brush SR*X
98Copper S
99Copper SR*X
100Reggae S
101Reggae SR*X
102CrossStick1
103CrossStick2
104CrossStick3
105CrossStick4
106CrossStick5
SNARE OTHER
107Whack S
108Cruddy S
109HardComp S
110ShortBuzz S
111Dance S
112Hip S
113BreakBeat S
114House S
115Garage S
116HouseDpn S
No.Nom
117Clap S
118Punch S
119Radio S
120NoisyXStick S
121DenseClick S
122Gate S
123Reverse S
124Industrial S
125Voice S
126TR808 S
127TR808 SR *X
128TR808 XStick
129TR909 S
130TR909 SR *X
131TR909 XStick
132Elec1 S
133Elec2 S

TOM

13410"Maple T1
13510"Maple T1R
13612"Maple T2
13712"Maple T2R
13814"Maple T3
13914"Maple T3R
14016"Maple T4
14116"Maple T4R
14210"Birch T1
14310"Birch T1R
14412"Birch T2
14512"Birch T2R
14614"Birch T3
14714"Birch T3R
14816"Birch T4
14916"Birch T4R
15012"Custom T1
15112"CustomT1R
15214"Custom T2
15314"CustomT2R
15416"Custom T3
15516"CustomT3R
No.Nom
15618"Custom T4
15718"CustomT4R
15812"Coated T1
15912"CoatedT1R
16014"Coated T2
16114"CoatedT2R
16216"Coated T3
16316"CoatedT3R
16418"Coated T4
16518"CoatedT4R
166Beech T1
167Beech T2
168Beech T3
169Beech T4
170Oyster T1
171Oyster T2
172Oyster T3
173Oyster T4
174Rose T1
175Rose T2
176Rose T3
177Rose T4
178Vintage T1
179Vintage T2
180Vintage T3
181Vintage T4
182Booth T1
183Booth T2
184Booth T3
185Booth T4
186Dry T1
187Dry T2
188Dry T3
189Dry T4
190Fiber T1
191Fiber T2
192Fiber T3
193Fiber T4
194Slap T1
195Slap T2
196Slap T3
197Slap T4
19810"Roto T1
No.Nom
19912"Roto T2
20014"Roto T3
20119"Roto T4
202Oct T1
203Oct T2
204Oct T3
205Oct T4
206Brush T1
207Brush T2
208Brush T3
209Brush T4
21010"PluggedT1
21112"PluggedT2
21213"PluggedT3
21316"PluggedT4
214Buzz T1
215Buzz T2
216Buzz T3
217Buzz T4
218Big T1
219Big T2
220Big T3
221Big T4
222TomRimClick1
223TomRimClick2
224TomRimClick3
225TomRimClick4
TOM OTHER
226Gate T1
227Gate T2
228Gate T3
229Gate T4
230Dirty T1
231Dirty T2
232Dirty T3
233Dirty T4
234Lo-Fi T1
235Lo-Fi T2
236Lo-Fi T3
237Lo-Fi T4
238Jet T1
239Jet T2
No.Nom
240Jet T3
241Jet T4
242Voice T1
243Voice T2
244Voice T3
245Voice T4
246TR808 T1
247TR808 T2
248TR808 T3
249TR808 T4
250TR909 T1
251TR909 T2
252TR909 T3
253TR909 T4
254Elec T1
255Elec T2
256Elec T3
257Elec T4
258ElecBend T1
259ElecBend T2
260ElecBend T3
261ElecBend T4
262Custom HH
HI-HAT
263Custom HHE
264Dark HH
265Dark HHE
266Oldies HH
267Oldies HHE
268Brush HH
269TambourineHH
270TambourinHHE
271Clave HH
272Clave HHE
273Club HH
274Club HHE
275Industry HH
276Industry HHE
277Lo-Fi HH
278Lo-Fi HHE
279Jingle HH
280Jingle HHE
No.Nom
281HandCym HH
282Voice HH
283Voice HHE
284TR808 HH
285TR909 HH
286CR78 HH
287Metal78 HH
288Maracas HH

CRASH

28916"Dark CrBw
29016"Dark CrE
29118"Dark CrBw
29218"Dark CrE
29316"Thin CrBw
29416"Thin CrE
29518"Thin CrBw
29618"Thin CrE
29716"PaperCrBw
29816"Paper CrE
29918"PaperCrBw
30018"Paper CrE
30116"Fast CrBw
30216"Fast CrE
30318"Fast CrBw
30418"Fast CrE
30516"PowerCrBw
30616"Power CrE
30718"PowerCrBw
30818"Power CrE
30916"Mallet Cr
31016"Brush Cr
31118"Brush Cr
31218"BrshSzICr
31310"Medium Sp

SPLASH/CHINA

31410"MediumSpE
31510"Rude Sp
31610"Rude SpE
31712"Thin Sp
3186"Cup
31918"Medium Ch
32018"MediumChE
No.Nom
32120"Heavy Ch
32216"Swish
32319"PiggyBack
324Piggy-Crash

RIDE

32520"Custom Rd
32620"CustomRdE
32720"CustomRdB
32822"Clean Rd
32922"Clean RdE
33022"Clean RdB
33120"Bright Rd
33220"BrightRdE
33320"BrightRdB
33424"Heavy Rd
33524"Heavy RdE
33624"Heavy RdB
33720"Oldies Rd
33820"OldiesRdE
33920"OldiesRdB
34020"Sizzle Rd
34120"SizzleRdE
34220"SizzleRdB
34320"Brush Rd
34420"Brush RdE
34520"Brush RdB
34618"Crash Rd
34718"Crash RdE
348ShortTail Rd
349ShortTailRdE
350ShortTailRdB
351Lo-Fi Rd
352Lo-Fi RdE
353Lo-Fi RdB

CYMBAL OTHER

354Lo-Fi Cr
355Sweep Cr
356Phase Cr
357Ambient Cr
358Reverse Cr
359Reverse Ch
360Reverse Rd
No.Nom
361Voice Cr
362TR808 Cr
363Elec Cr
364Bongo Hi

PERCUSSION

365Bongo Lo
366Conga Open
367Conga Mute
368Conga Slap
369Conga Lo
370Timbale Hi
371Timbale Rim
372Timbale Lo
373TimbalePaila
374Cajon Open
375Cajon Slap
376Cajon Bass
377Cowbell1
378Cowbell1 Tip
379Cowbell2
380Cowbell3
381Claves
382Maracas
383Shaker
384SmallShaker
385Tambourine1
386Tambourine2
387Tambourine3
388Guiro Long
389Guiro Short
390RainStick
391VibraSlap
392Quijada
393Cabasa
394Surdo Open
395Surdo Mute
396SurdoL Mt/Op
397PandeiroThmb
398PandeiroSlap
399PandeiroJngl
400RepiniqueM/O
401RepiniqueRim
No.Nom
402Agogo Hi
403Agogo Lo
404Whistle
405WhistleShort
406Caxixi
407Cuica Hi
408Cuica Lo
409Djembe
410Djembe Slap
411Djembe Bass
412MetalCrasher
413AfricaJingle
414Bendir
415PotDrum
416PotDrum Mute
417Tabla Na
418Tabla Te
419Tabla Ti
420Tabla Tin
421Tabla Tun
422Baya Ge
423Baya Gin
424Baya Ka
425Baya Slide
426Sagat Mt/Op
427TempleBell
428TempleBlock
429Taiko
430Wa-Daiko
431ConcertBD
432ConcertBD Mt
433Timpani G
434Timpani C
435HandCymbal
436HandCym Mute
437Castanet
438WoodBlock Hi
439WoodBlock Lo
440Triangle
441TrianglCI/Op
442Crotale
443BellTree
444Sleighbell
No.Nom
445TreeChimes
446TinyGong
447Gong
448SteelDrum
449Glockenspiel
450Kalimba
451Marimba
452Vibraphone
453808Cowbell1
454808Cowbell2
455808Maracas
456808Claves
457808Conga
45878Cowbell
45978Guiro
46078Maracas
46178Tambourine
46278Bongo
46378Claves
464Sticks

SOUND EFFECT

465Click
466TekClick
467Metro Click
468Metro Bell
469Beep
470Pyon
471HI-Q
472MetalNoise
473MetalPhase
474SuperLow
475Clap1
476Clap2
477HouseClap
478BuzzClap
479NoizeClap
480MetalClap
481MetalSlap
482Snaps
483Snappin'
484Scratch1
485Scratch2
No.Nom
486Scratch3
487Stamp
488Ratchet
489AirDrive
490Hammer
491Barrel
492TrashCan
493CoroCoro
494Bubbles
495Punch
496HeartBeat
497AfroStomp
498CarDoor
499RandomProp
500Bomb
501Thunder
502Laser
503Martian
504Nantoka!
505Hoo...
506Mystery
507Chemistry
508OrchHit Maj
509OrchHit Min
510Reverse Bell
511Reverse Voco
512Voice-Yeah
513Voice-Ahhh
514Voice-Haaa
515Voice-Dat
516Voice-Doot
517Voice-Boom
518Voice-Tun
519808Clap
520909Clap
52178MBeat
522Sin 440Hz
OFF
523OFF

Remarques

*X (Cross Stick):

Instruments "Snare/Tom"

Function...TransmittedRecognizedRemarks
Basic ChannelDefault Changed1-16, OFF 1-16, OFF1-16, OFF 1-16, OFF*1 Memorized
ModeDefault Messages AlteredMode 3 X *****Mode 3 X *****
Note Number :True Voice0-127 *****0-127 0-127Memorized
VelocityNote On Note OffO 9nH, v = 1-127 O 8nH, v = 64O O
After TouchKey's Channel'sO XO X
Pitch BendXX
Control Change0, 32 1 4 16O *2 O *3 O *3 O *3O *2 O *3 O *3 O *3Bank Select Modulation Foot Controller General Purpose Controller 1
16
O 0-49 ******O 0-49 0-49
System ExclusiveOODevice ID = 17 (10H)
System Common: Song Position : Song Select : Tune RequestX X XX X X

TD-9: Module de percussion

- Sons

Head Tuning, Muffling

SNARE:

Head Tuning, Muffling

TOM:

Head Tuning, Muffling

HI-HAT:

Cymbal Size, Fixed Hi-Hat

CYMBAL:

Cymbal Size, Sustain

Autres:

Pitch, Decay

- Types d'effets

Ambience (9 types)

Egaliseur 2 bandes

- Paramètres 'Ambience'

Room Type, Room Size, Wall Type, Mic Position, Room Shape

One shot, Loop, Repeat

Tempo: 20~300

Quick Rec

Prise Trigger Input (type DB-25)

Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control

Prises MIDI (IN, OUT/THRU)

PD-8, PDX-8, PD-85, PD-105, PD-125

Cymbales:

CY-5, CY-8, CY-12R/C, CY-14C, CY-15R

Tapis V-Drums TDM-20, TDM-10

Delete Backup data 59
DRUM 36
DRUMKIT 22

E

Effacer Quick Rec 59
EQ 28
Equalizer 28
Etouffement 24
EXIT 13
EXTERNAL SONG 35

F

Head Tuning 25-26
HH Closed (Bow) 32
HH Closed (Edge) 32
HH Compatibility 53
HH Note# Border 53
HH Open (Bow) 32
HH Open (Edge) 32
HH Pedal 32
High Freq 28
High Gain 28
Hi-Hat Type 49

1

Informations de morceau 37
INSERT 29,56-57
INST 25
Inst 25,40

Instrument 25, 54
Instrument de batterie 67
Instruments de percussion 54
Interval 40

K

Al Fanny Trading Office 9, EBN Hagar Al Askalany Street, ARD E1 Golf, Heliopolis, Cairo 11341,EGYPT TEL: (022)418-5531

REUNION

Maison FO-YAM Marcel 25 Rue Jules Hermann, Chaudron-BP79 97491 Ste Clotlide Cedex, REUNION ISLAND TEL:0262)218-429

SOUTH AFRICA

T.O.M.S. Sound & Music (Pty)Ltd.
2 ASTRON ROAD DEN
JOHANNEBURGZA 2
SOUTH AFRICA
TEL: (011)4173400

Paul Bothner(PTY) Ltd.
Royal Cape Park, Unit 24
Londonderry Road, Otery 7800
Cape Town, SOUTH AFRICA
TEL: (021) 7994900

ASIA

CHINA

Roland Shanghai Electronics Co., Ltd.
5F. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: (021) 5580-0800

Roland Shanghai Electronics Co., Ltd. (BEIJING OFFICE) 10F. No.18 3 Section Anhuaxil Chaoyang District Beijing

TEL: (010) 6426-5050

HONG KONG

Tom Lee Music Co., Ltd.
Service Division
22-32 Pun Shan Street, Tsuen Wan, New Territories, HONG KONG
TEL: 2415 0911

Parsons Music Ltd.
8th Floor, Railway Plaza, 39 Chatham Road South, T.S.T, Kowloon, HONG KONG
TEL: 2333 1863

INDIA

Rivera Digitec (India) Pvt. Ltd. 411, Nirman Kendra
Mahalaxmi Flats Compound Off. Dr. Edwin Moses Road, Mumbai-400011, INDIA
TEL: (022) 2493 9051

INDONESIA

PT Citta IntiRama
Jl. Cideng Timur No. 15J-15O
Jakarta Pusat
INDONESIA
TEL: (021) 6324170

KOREA

Cosmos Corporation 1461-9, Seocho-Dong, Seocho Ku, Seoul, KOREA TEL: (02) 3486-8855

MALAYSIA

Roland Asia Pacific Sdn. Bhd. 45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TEL: (03) 7805-3263

VIET NAM

Suoi Nhac Company, Ltd 370Cach Mang Thang Tam St. Dist.3, Ho Chi Minh City, VIET NAM Tel:9316540

PHILIPPINES

G.A. Yupangco & Co. Inc.
339 Gil J. Puyat Avenue
Makati, Metro Manila 1200,
PHILIPPINES
TEL: (02) 899 9801

SINGAPORE

SWEE LEE MUSIC COMPANY PTE. LTD. 150 Sims Drive, SINGAPORE 387381 TEL:6846-3676

TAIWAN

ROLAND TAIWAN
ENTERPRISE CO., LTD.
Room 5, 9fL. No.112 Chung Shan N.Road Sec.2, Taipei,
TAIWAN, R.O.C.
TEL: (02) 2561 3339

THAILAND

Theera Music Co., Ltd.
100-108 Soi Verm
Nakornkasem, New
Road, Sumpantawongse,
Bangkok 10100 THAILAND
TEL: (02) 224-8821

AUSTRALIA/ NEW ZEALAND

AUSTRALIA/

NEW ZEALAND

Roland Corporation Australia Pty.,Ltd. 38 Campbell Avenue Dee Why West. NSW 2099 AUSTRALIA

For Australia
Tel: (02) 9982 8266
For New Zealand
Tel: (09) 3098 715

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.
Av.Santa Fe 2055
(1123) Buenos Aires
ARGENTINA
TEL: (011) 4508-2700

BARBADOS

A&B Music Supplies LTD 12 Webster Industrial Park Wildley, St.Michael, Barbados TEL: (246)430-1100

BRAZIL

Roland Brasil Ltda.
Rua San Jose, 780 Sala B
Parque Industrial San Jose
Cota - Sao Paulo - SP, BRAZIL
TEL: (011) 4615 5666

CHILE

Comercial Fancy II S.A.
Rut.: 96.919.420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: (02) 688-9540

COLOMBIA

Centro Musical Ltda.
Cra 43 B No 25 A 41 Bododega 9
Medellin, Colombia
TEL: (574)3812529

COSTA RICA

JUAN Bansbach Instrumentos Musicales
Ave.1. Calle 11, Apartado 10237,
San Jose, COSTA RICA
TEL: 258-0211

CURACAO

Zeelandia Music Center Inc.
Orionweg 30
Curacao, Netherland Antilles
TEL:(305)5926866

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez
Calle Proyecto Central No.3
Ens.La Esperilla
Santo Domingo,
Dominican Republic
TEL: (809) 683 0305

ECUADOR

Mas Musika Rumichaca 822 y Zaruma Guayaquil-Ecuador TEL:(593-4)2302364

EL SALVADOR

OMNI MUSIC
75 Avenida Norte y Final
Alameda Juan Pablo II,
Edificio No.4010 San Salvador,
EL SALVADOR
TEL: 262-0788

GUATEMALA

Casa Instrumental
Calzada Roosevelt 34-01, zona 11
Ciudad de Guatemala
Guatemala
TEL: (502) 599-2888

HONDURAS

Almacen Pajaro Azul S.A. de C.V.
BO.Paz Barahona
3 Ave.11 Calle S.O
San Pedro Sula, Honduras
TEL: (504) 553-2029

MARTINIQUE

Musique & Son
Z.I. Les Mangle
97232 Le Lamantin
Martinique F.W.I.
TEL: 596 596 426860
Gigamusic SARL
10 Rte De La Folie
97200 Fort De Franc
Martinique F.W.I.
TFL: 596 596 715222

MEXICO

Casa Veerkamp, s.a. de c.v.
Av. Toluca No. 323, Col. Olivar
de los Padres 01780 Mexico
D.F. MEXICO
TEL: (55) 5668-6699

NICARAGUA

Bansbach Instrumentos
Musicales Nicaragua
Altamira D'Este Calle Prinl
de la Farmacia Sta.Avenida
1 Cuadra al Lago.#503
Managua, Nicaragua
TEL: (505)277-2557

PANAMA

SUPRO MUNDIAL, S.A.
Boulevard Andrews, Albrook, Panama City, REP. DE
PANAMA
TEL: 315-0101

PARAGUAY

Distribuidora De Instruments Musicale J.E.Oleary EYSQ.Mand Asuncion PARAGUAY TEL59521 492147

PERU

Audionet
Distribuciones Musicales SAC
Juan Fanning 530
Mirafores
Lima - Peru
TEL: (511) 4461388

TRINIDAD

AMR Ltd
Ground Floor
Maritime Plaza
Barataria Trinidad W.I.
TEL: (868) 638 6385

URUGUAY

Todo Musica S.A.
Francisco Acuna de Figueroa 1771
C.P.: 11.800
Montevideo, URUGUAY
TEL: (02) 924-2335

VENEZUELA

Instrumentos Musicales
Allegro,C.A.
Av.las industrias edf.Guitar import

7 Zona Industrial de Turumo

Caracas, Venezuela
TEL: (212) 244-1122

EUROPE

AUSTRIA

Roland Elektronische Musikinstrumente HmbH. Austrian Office Eduard-Bodem-Gasse 8, A-6020 Innbruck, AUSTRIA TEL: (0512) 26 44 260

BELGIUM/FRANCE/

HOLLAND

LUXEMBOURG

Roland Central Europe N.V. Houtstra 3, B-2260, Oevel (Westerlo) BELGIUM TEL: (014)575811

CROATIA

ART-CENTAR
Degenova 3.
HR-10000 Zagreb
TEL: (1) 466 8493

CZECH REP.

CZECH REPUBLIC DISTRIBUTOR s.r.o Voctarova 247/16 CZ-180.00 PRAHA 8 CZECHFED

TEL: (2) 830 20270

DENMARK

Roland Scandinavia A/S
Nordhavnsvej7, Postbox 880, DK-2100 Copenhagen
DENMARK
TEL: 3916 6200

FINLAND

Roland Scandinavia As, Filial Finland
Elannontie 5
FIN-01510 Vantaa, FINLAND
TEL: (09) 68 24 020

GERMANY

Roland Elektronische Musikinstrumente HmbH. Ostrasse 96,22844 Norderstedt, GERMANY TEL: (040)5260090

GREECE/CYPRUS

STOLLAS S.A.
Music Sound Light
155, New National Road
Patras 26442, GREECE
TEL: 2610 435400

HUNGARY

Roland East Europe Ltd.
Warehouse Area 'DEPO' Pf.83
H-2046 Torokbalint,
HUNGARY
TEL: (23) 511011

IRELAND

Roland Ireland
G2 Calmont Park, Calmont
Avenue, Dublin 12
Republic of IRELAND
TEL: (01) 4294444

ITALY

MOCO INC.
No.41 Nike St., Dr.Shariyati Ave., Roberoye Cerahe Mirdamad Tehran, IRAN
TEL: (021)-2285-4169

ISRAEL

Halilit P. Greenspoon & Sons Ltd.
8 Retzif Ha'alia Hashnia St.
Tel-Aviv-Yafo ISRAEL
TEL: (03) 6823666

JORDAN

MUSIC HOUSE CO. LTD. FREDDY FOR MUSIC P.O.Box 922846 Amman 11192 JORDAN TEL: (06)5692696

KUWAIT

EASA HUSAIN AL-YOUSIFI & SONS CO.
Al-Yousifi Service Center
P.O.Box 126 (Safat) 13002
KUWAIT
TEL: 00 965 802929

LEBANON

Chahine S.A.L.
George Zeidan St., Chahine
Bldg., Achrafieh, P.O.Box: 16-5857
Beirut, LEBANON
TEL: (01) 20-1441

OMAN

TALENTZ CENTRE LLLC. Malatlan House No.1 Al Noor Street, Ruwi SULTANATE OF OMAN TEL:24783443

QATAR

Al Emadi Co. (Badie Studio & Stores) P.O.Box 62, Doha, QATAR TEL:4423-554

SAUDI ARABIA

aDawliah Universal Electronics APL Behind Pizza Inn Prince Turkey Street aDawliah Building, PO Box 2154, Alkohbar 3195 SAUDI ARABIA

TEL: (03) 8643601

SYRIA

Technical Light & Sound Center
Rawda, Abdul Qader Jaza
Bldg. No. 21, P.O.BOX 135
Damascus, SYRIA

TEL: (011) 223-5384

TURKEY

ZUHAL DIS TICARET A.S.
Galip Dede Cad. No.37
Beyoglu - Istanbul / TURKEY
TEL: (021) 249 85 10

U.A.E.

Zak Electronics & Musical Instruments Co. L.L.C.
Zabeel Road, Al Sherooq Bldg., No. 14, Ground Floor, Dubai, U.A.E.
TEL: (04) 3360715

NORTH AMERICA

CANADA

Roland Canada Ltd. (Head Office) 5480 Parkwood Way Richmond B.C.,V6CANADA TEL: (604)270 6626

Roland Canada Ltd. (Toronto Office) 170 Admiral Boulevard Mississauga On L5T 2N6 CANADA TEL: (905) 362 9707

U.S.A.

Roland Corporation U.S. 5100 S.Eastern Avenue Los Angeles, CA 90040-2938, U.S.A.
TEL: (323) 890 3700

ROLAND TD-9 - U.S.A. - 1
m = 311 ;

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.
DE Dieses Symbol beteutet, dass这点 Product in EU-Ländern getrennt vom Haumull gesammelt werden muss gemäß den regionalen Bestimmungen. Mit这点 Symbol gekennzeichene Produkte dürfen nicht zusammen mit den Haumull entsorgt werden.
FR Ce symbole indique que dans les pays de l'Union europeenne, ce produit doit être collecté séparément des ordures menagères selon les directives en vigueur dans chacun de ces pays. Les produits portant ce symbole ne doivent pas été mis au rebut avec les ordures menagères.
Questo significato indica che nei paesi della Comunità europea questo prodotto devesse smalitto separatamente dai normali rifuti domestici, seconda la legislazione in vigore in ciascun paese. I prodotti che riportano questo significato non devono essere smalitti insieme ai rifuti domestici. Ai sensi dell'art. 13 del D.Lgs. 25 luglio 2005 n. 151.
Es Este symbolo indica que en los payses de la Union Europea this producto debe recogerse aparte de los residuos domesticos, tal como estregulado en cada zona. Los productos con este symbolo no se deben depositar con los residuos domesticos.
Este symbolo indica que nos paises da UE, a recolha deste produits devar se feita separamente do lixo domestico,de accordo com os regulamentos de cada regiao. Os produits que aparecem este symbolo nãodeferao sereliminadosjuntamente com o lixo domestico.
NL Dit symbool geeft aan dat in landen van de EU dit product gescheiden van huishoudelijk afval要去 worden aangeboden, zoals bepaald per gemeente of regio. Producten die van dit symbool maar voorzien,月至en samet hem huishoudelijk afval worden verwijderd.
Dette symbol angiver, at i EU-lande skal dette produit opsamples adskilt fra hushholdningsaffald, som defineret i herself enkelt region. Produktter med dette symbol må ikke smides udammen med hushholdningsaffald.
NO Dette symbolet indikerer at produit tã behaves som spesialavfall i EU-land, htt. til retningsliner for den enkete regionen, og ici kastes sama n med vanlig husholdningsavfall. Produkter som er merket med dette symbolet, ma ici kastes sama med vanlig husholdningsavfall.

ROLAND TD-9 - U.S.A. - 2

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ROLAND

Model : TD-9

Category : Electronic drum
