Product Type	Digital Accordion
Brand	Roland
Model	FR-3XB BK
Dimensions (L x D x H)	Approx. 500 x 230 x 410 mm
Weight	Approx. 11 kg
Power Supply	DC 9V AC adapter or 8 LR6 (AA) batteries
Treble Keys	37 keys (C to C)
Bass	120 buttons
Built-in Sounds	Over 100 sounds (accordion, organ, synth, etc.)
Speakers	Built-in stereo speakers
Maximum Polyphony	128 notes
Effects	Reverb, chorus, etc.
Connectivity	MIDI output, USB, audio (line out), headphones
Storage	Internal memory, USB key slot
Cleaning and Maintenance	Clean with a soft, dry cloth. Avoid moisture.
Safety	Do not expose to moisture, shock, or extreme temperatures.
Spare Parts and Reparability	Parts available from Roland after-sales service.
General Information	User manual available free in PDF format at notice-facile.com.

Frequently Asked Questions - FR-3XB BK ROLAND

How to change the sound of the accordion?

Use the sound selection buttons on the right side of the panel. Press the Sound button then turn the dial to choose from over 100 sounds.

Can I connect my accordion to a computer?

Yes, via the USB port on the back. The accordion will appear as a MIDI device, allowing you to use music or recording software.

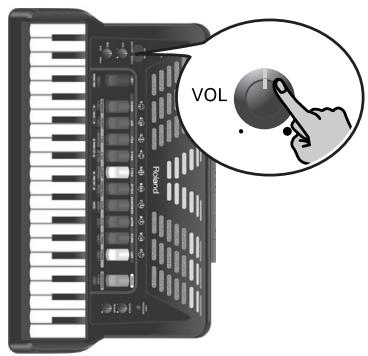

How to adjust the speaker volume?

Turn the Master Volume knob on the front panel. For headphone volume, use the headphone jack and adjust the volume with the same knob.

What type of batteries to use?

Use 8 alkaline LR6 (AA) batteries. For optimal battery life, prefer Ni-MH rechargeable batteries.

How to save my custom settings?

Press the Write button, select a memory location with the +/- buttons, then confirm. Settings are retained even after power off.

The accordion emits a hissing sound, what to do?

Check that the volume is not too high. If the hissing persists, reduce the reverb or gain. Turn the device off and on again.

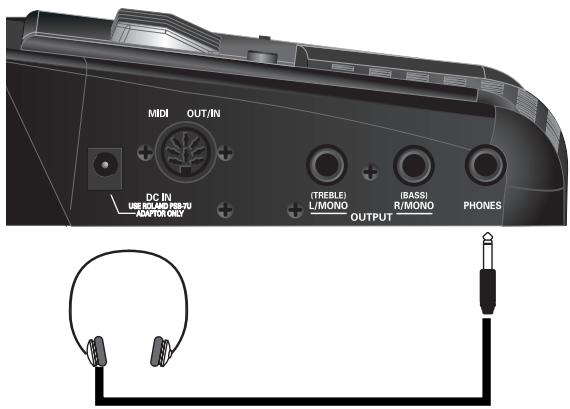

Can I use headphones?

Yes, plug stereo headphones into the Phones jack on the front. The speakers are automatically muted.

How to clean the accordion?

Use a soft, dry cloth. Never use chemicals or solvents. For the keys, you can gently wipe with a slightly damp cloth then dry.

What to do if the accordion does not turn on?

Check that the AC adapter is properly connected or that batteries are correctly inserted and not discharged. If the problem persists, contact after-sales service.

Where to find the full manual?

The user manual is available free in PDF format at notice-facile.com. You can also request a translation in your language.

USER MANUAL FR-3XB BK ROLAND

Black and white photo of a Poland-based accordion with visible branding and buttons (no text extraction needed)

For EU countries

This product complies with the requirements of European Directive EMC 2004/108/EC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

Roland

FR-3X

Owner's Manual

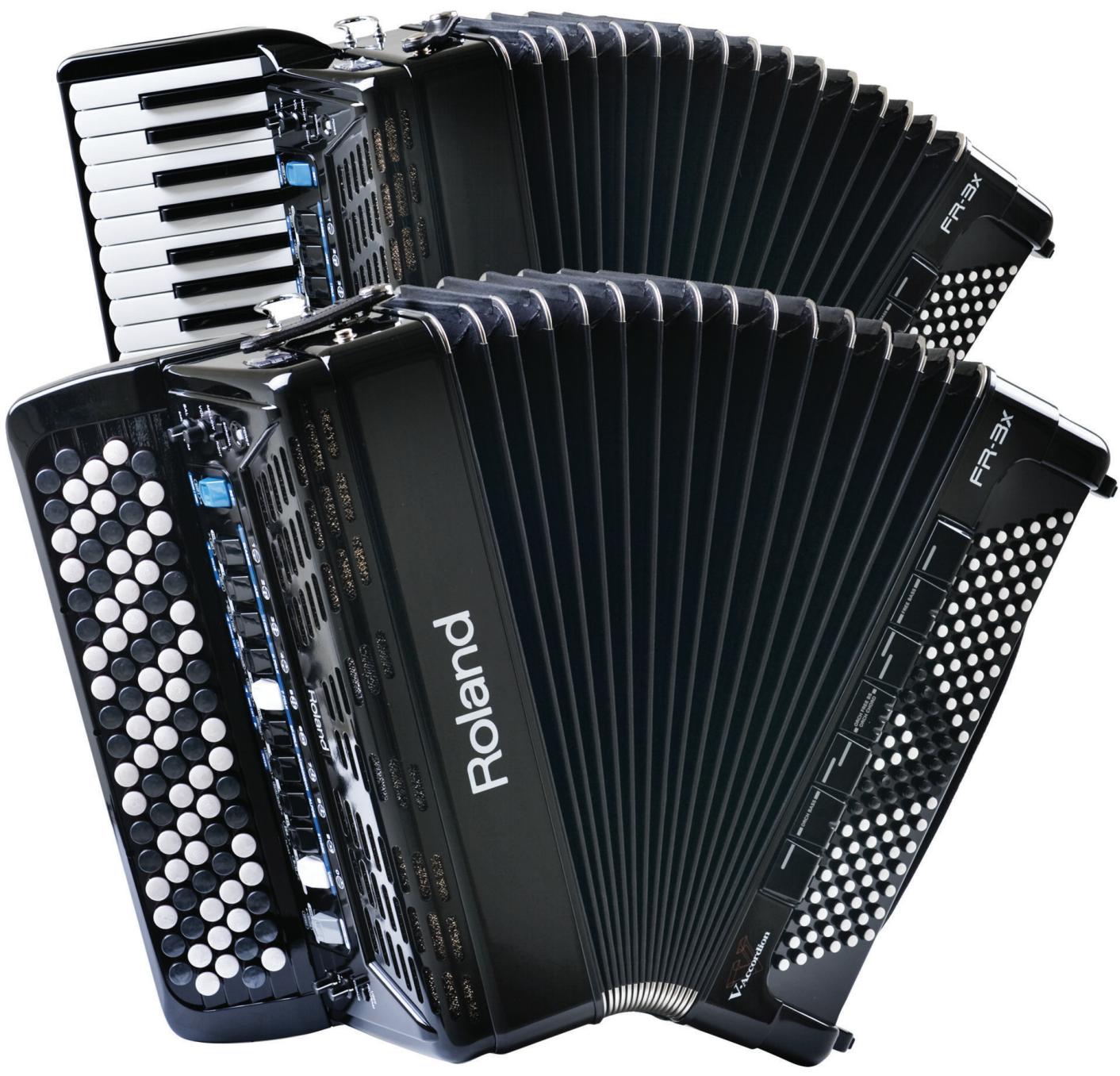

Introduction

Thank you and congratulations on your choice of the Roland FR-3x V-Accordion.

To ensure that you obtain the maximum enjoyment and take full advantage of the FR-3x's functionality, please read this owner's manual carefully.

About this manual

You should first read the chapter "Before you start playing" (p. 15) of the owner's manual. It explains how to connect the AC adaptor or install batteries and turn on the power. This Owner's Manual explains everything, from the FR-3x's basic operations to more advanced functions.

Conventions in this manual

In order to explain the operations as clearly as possible, this manual uses the following conventions:

• Text enclosed in square brackets [ ] indicates the name of a button or knob. Example: the [USER PROGRAM] button.
• Lines that begin with "NOTE" are cautionary statements that you must read.
• The numbers of pages that you can turn to for additional, related information are given like this: (p. **).

The explanations in this manual include illustrations that depict what should typically be shown by the display. Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the display may not always match what appears in the manual.

Before using this instrument, carefully read "Using the unit safely" (p. 7) and "Important notes" (p. 9). Those sections provide information concerning the proper operation of the FR-3x. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, the manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Contents

1. Features ....6
2. Important notes....9
3. A first look at your FR-3x....11

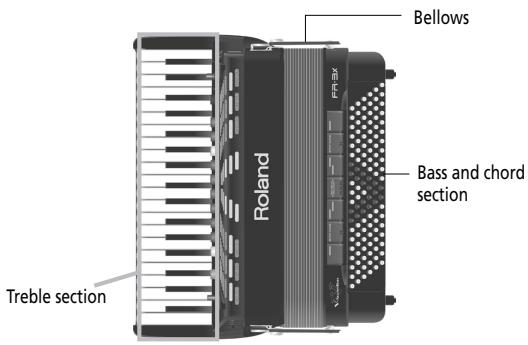

The sections of your FR-3x 11

Bellows resistance regulator....11

1. Panel descriptions....12

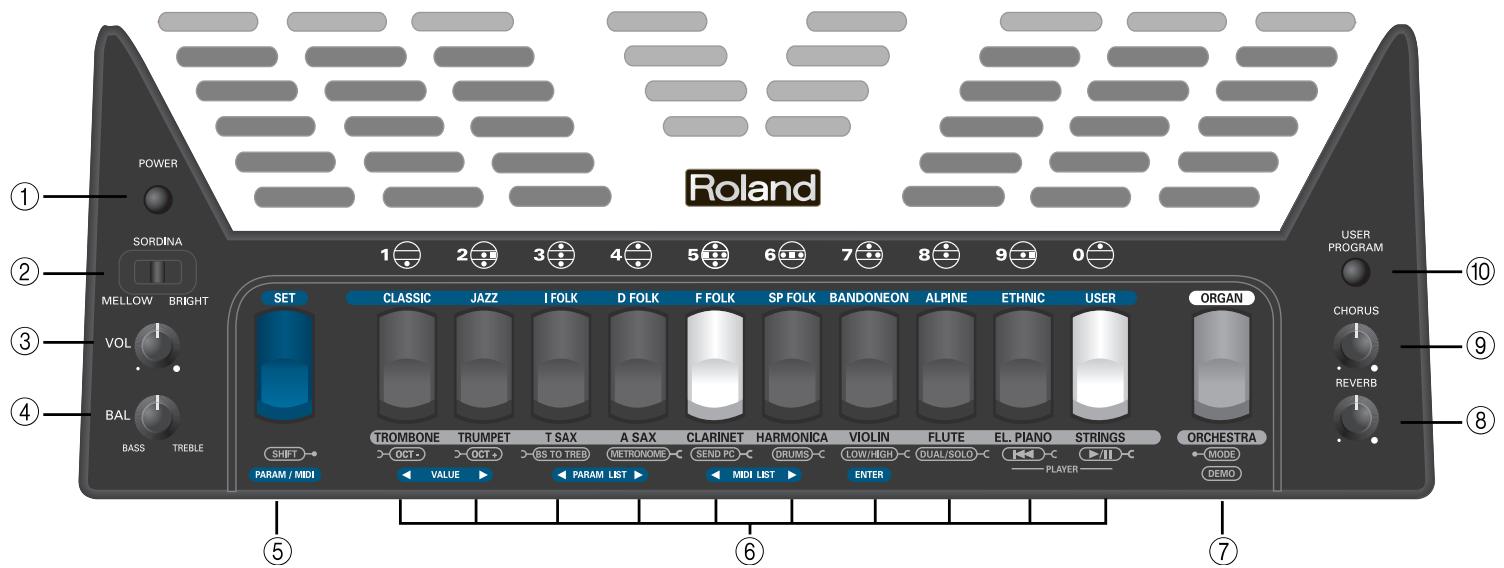

Treble control panel 12

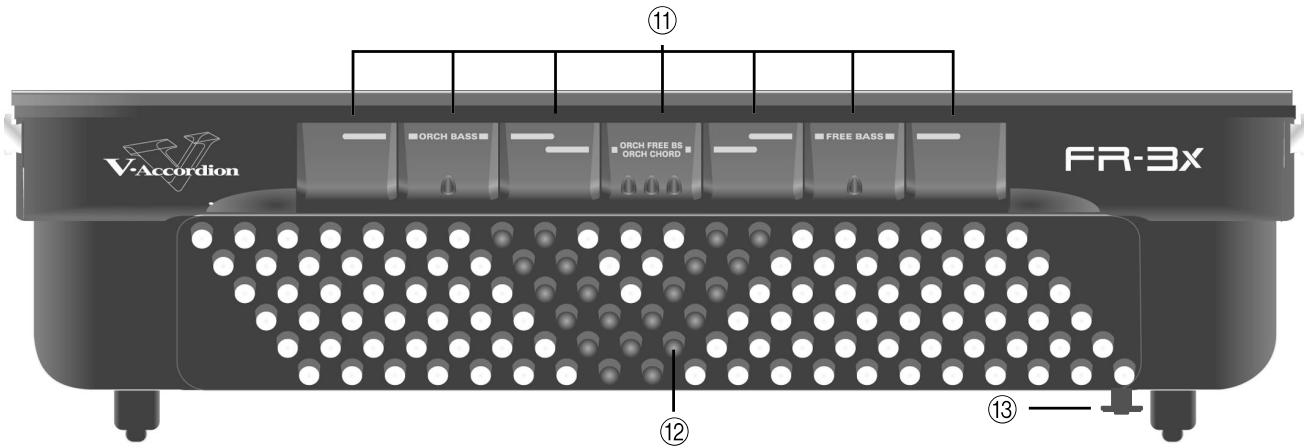

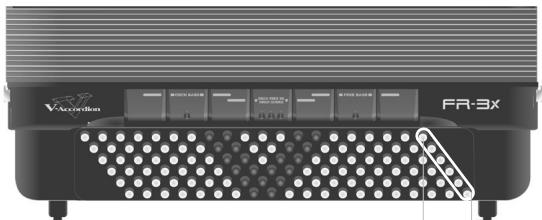

Bass control panel....13

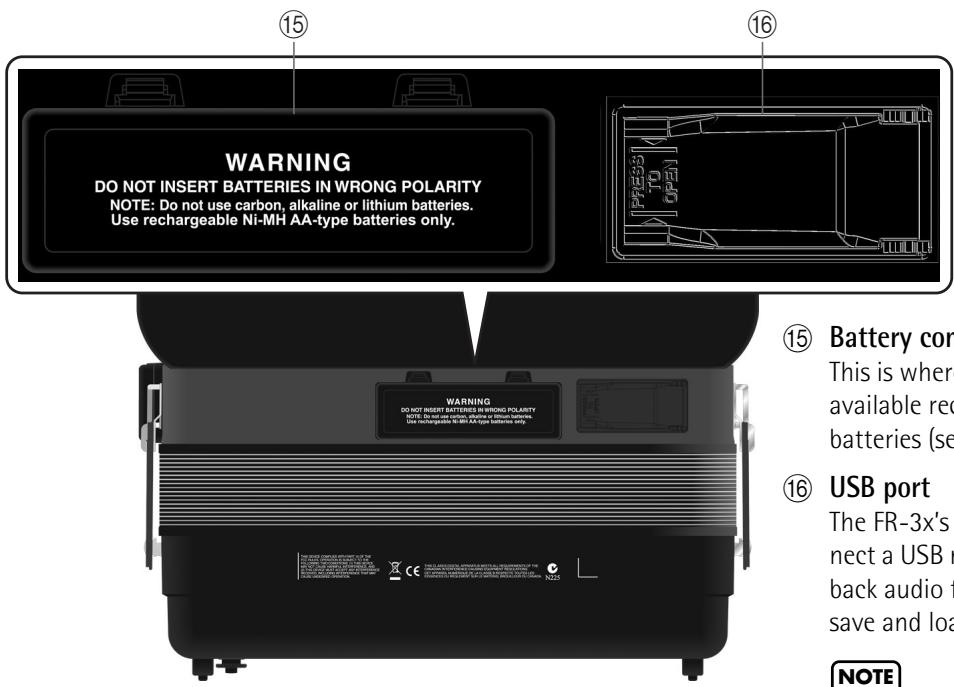

Battery compartment and USB port 14
Connection panel 14

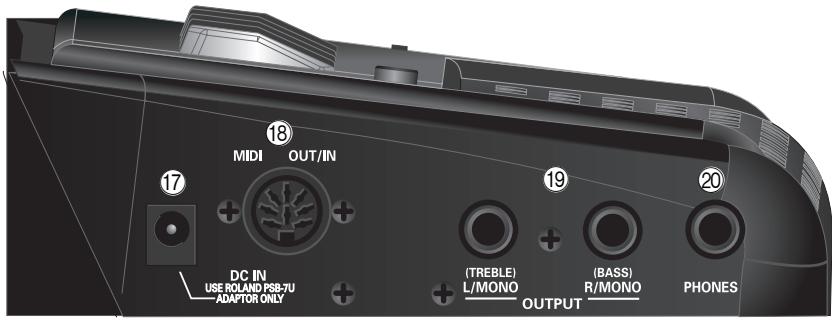

1. Before you start playing....15

Getting ready to play 15

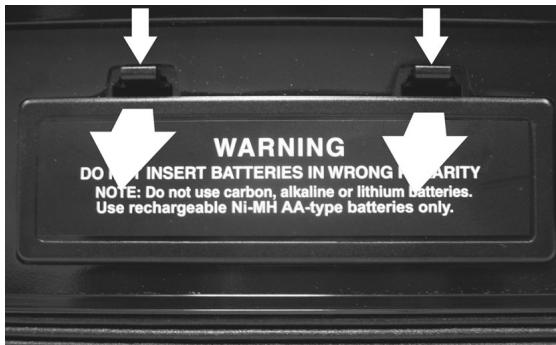

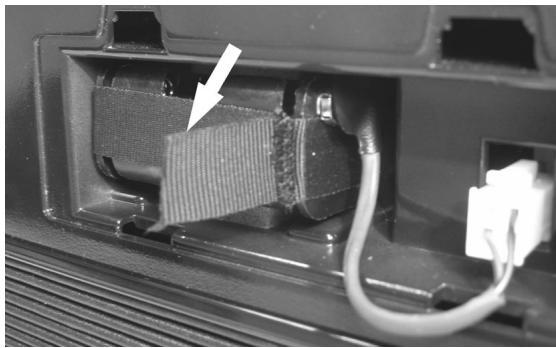

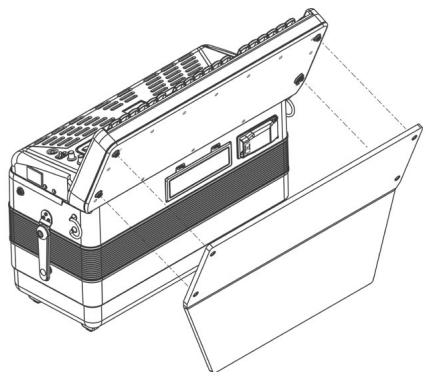

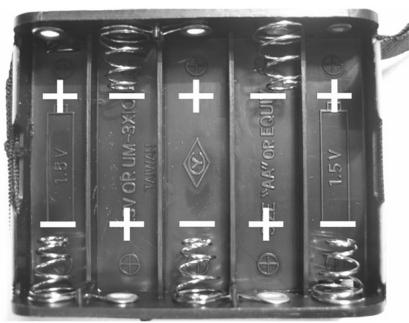

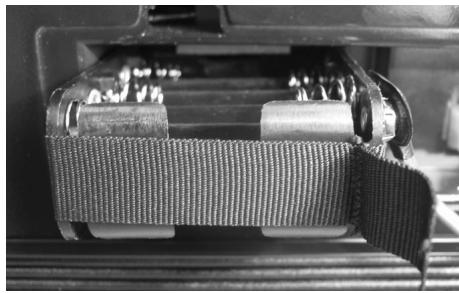

Installing and removing batteries 16

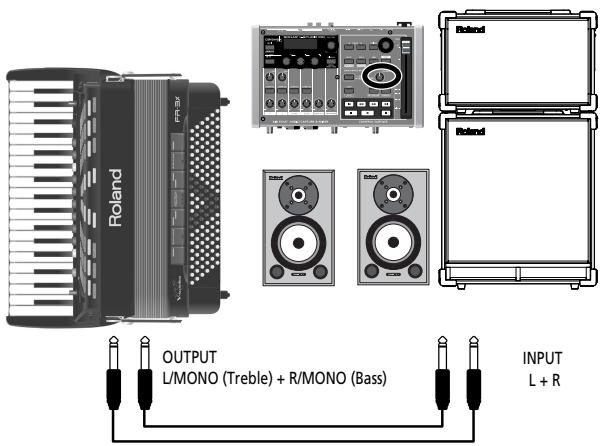

Connecting the FR-3x to an amplifier, mixer, etc. 17

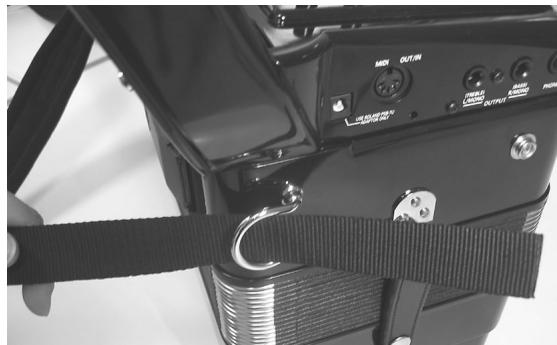

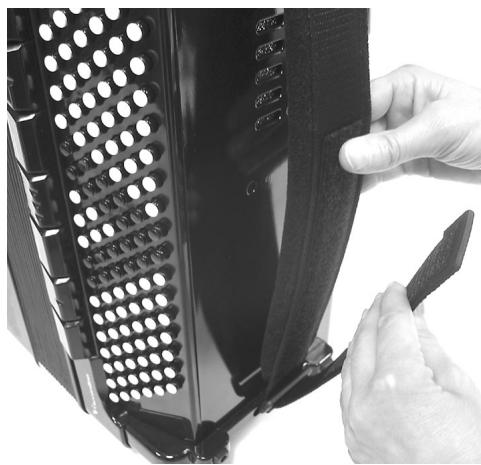

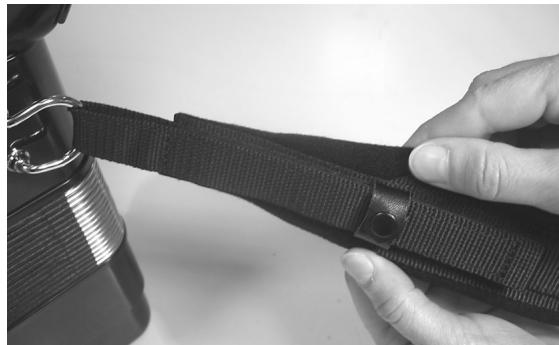

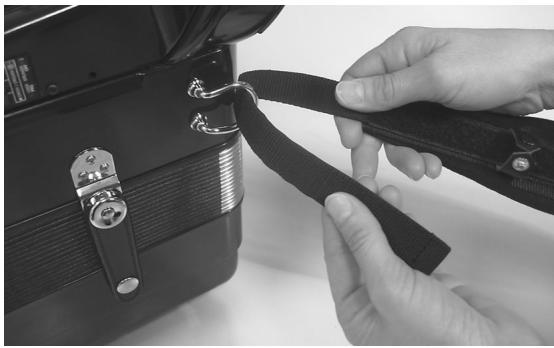

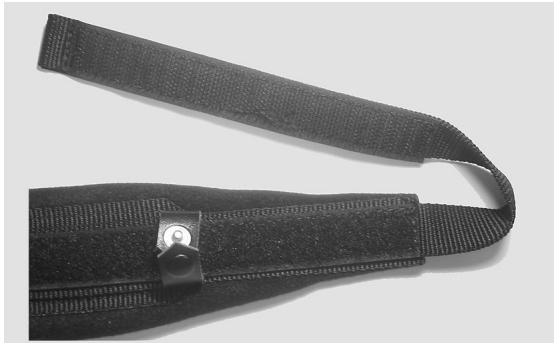

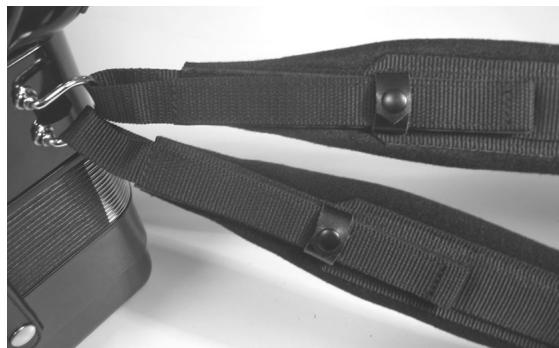

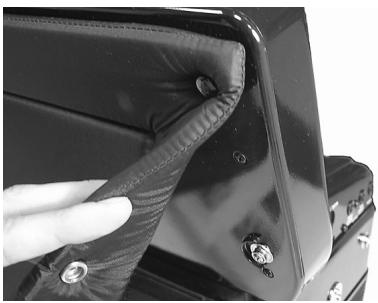

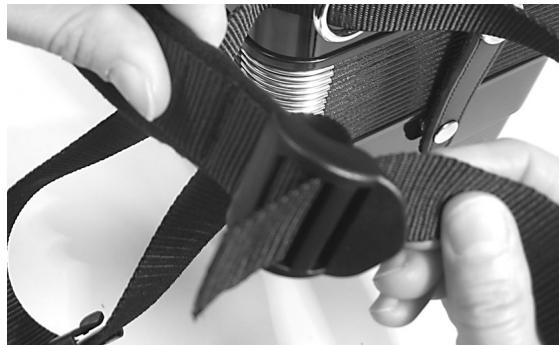

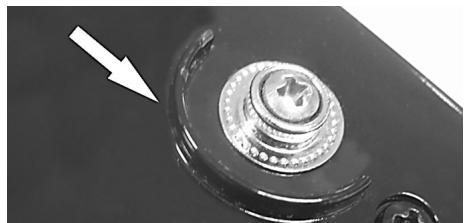

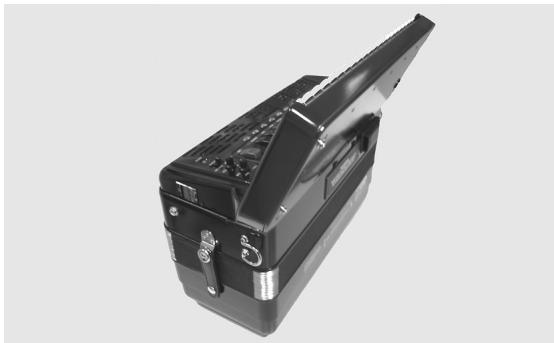

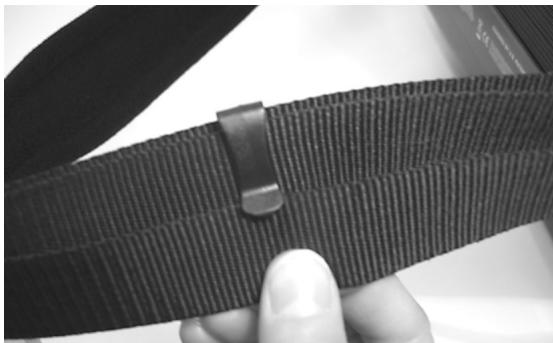

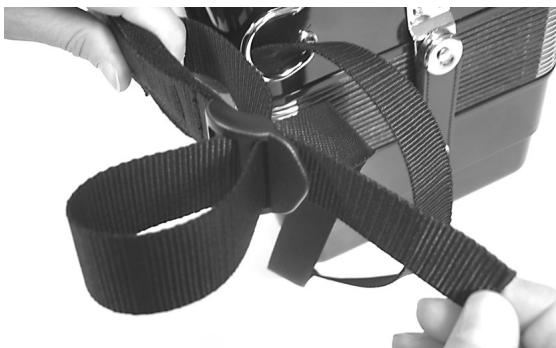

Attaching the straps....18

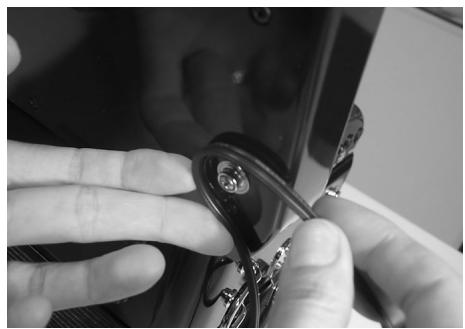

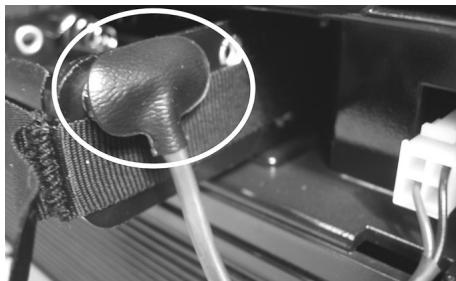

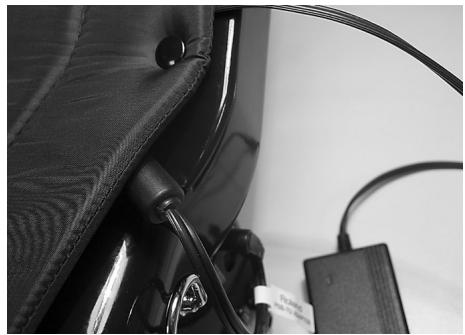

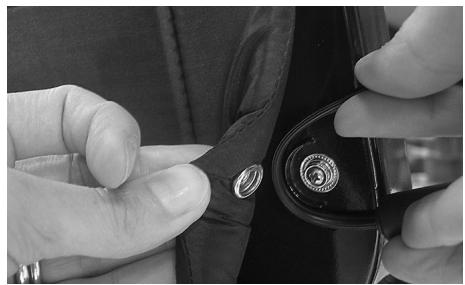

Securing the adapter and/or MIDI cable....20

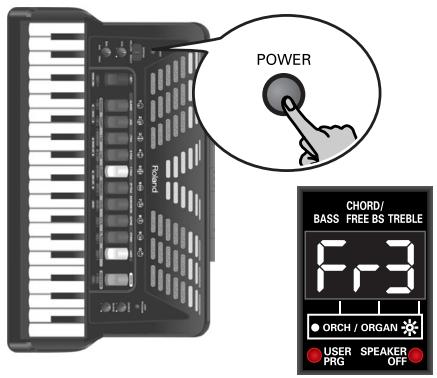

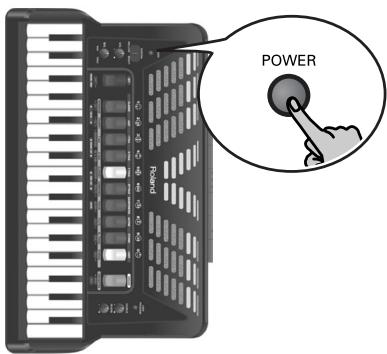

Switching the power on and off 21
Using headphones....21

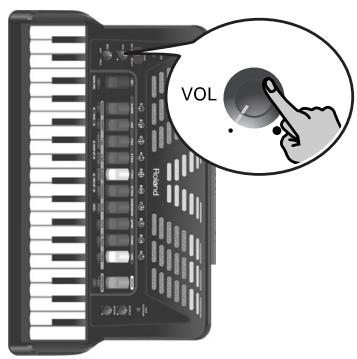

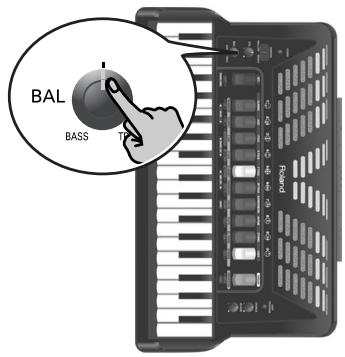

Adjusting the volume and balance 22

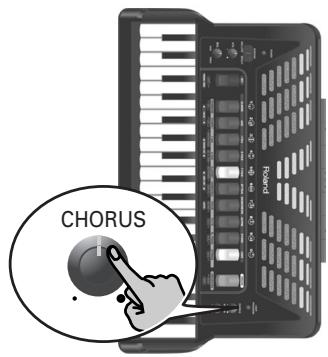

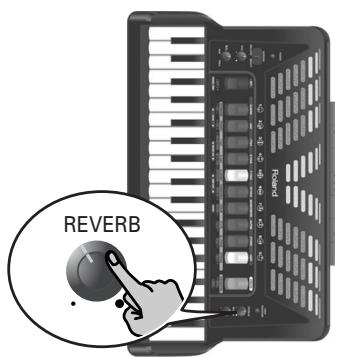

Adjusting the chorus and reverb effects....22

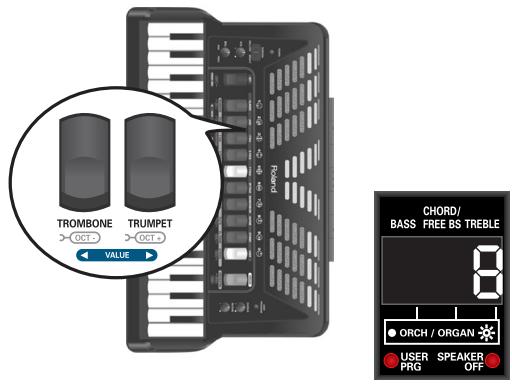

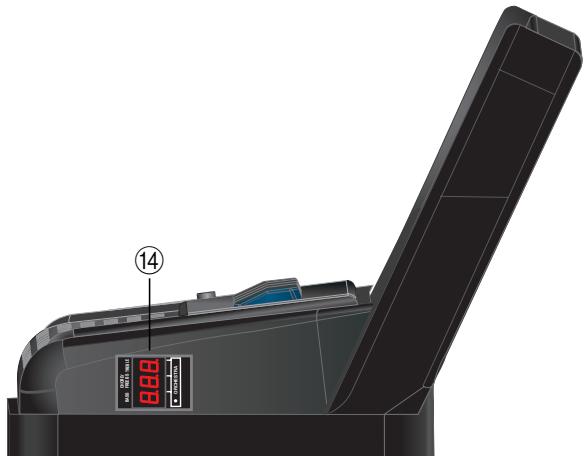

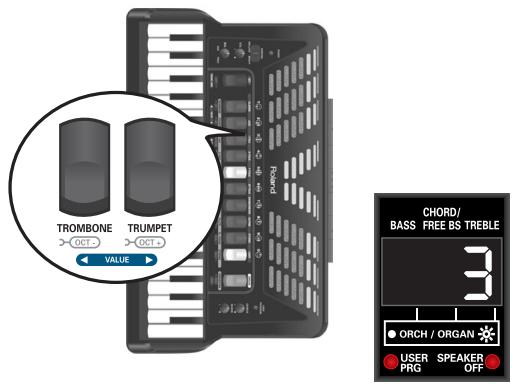

How to read the display....23

1. Listening to the demo songs .....24

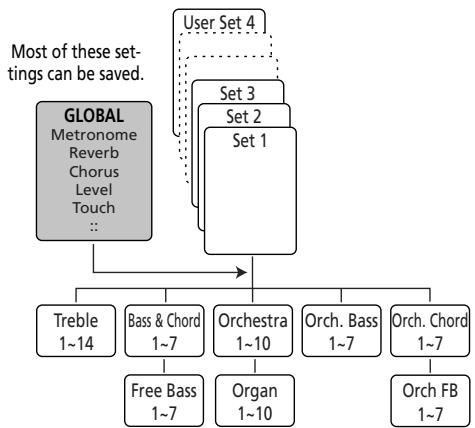

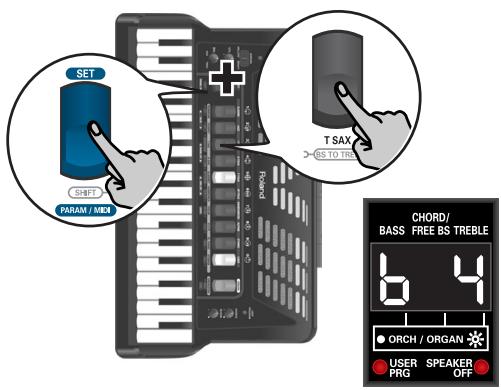

2. Using Sets....25

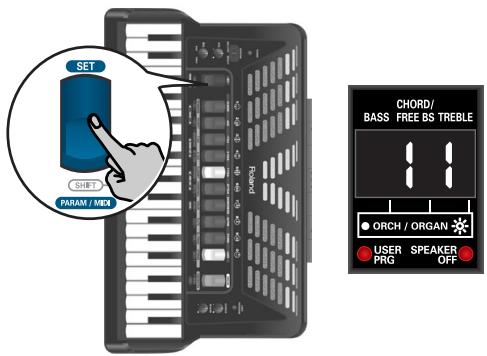

Selecting Sets. 25

1. Selecting and playing sounds....26

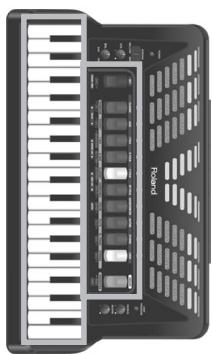

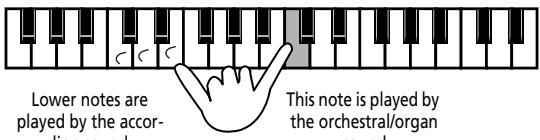

Treble section....26

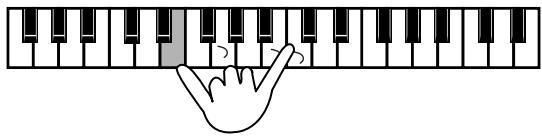

Playing the bass part with your right hand (Bass-to-Treble) 29

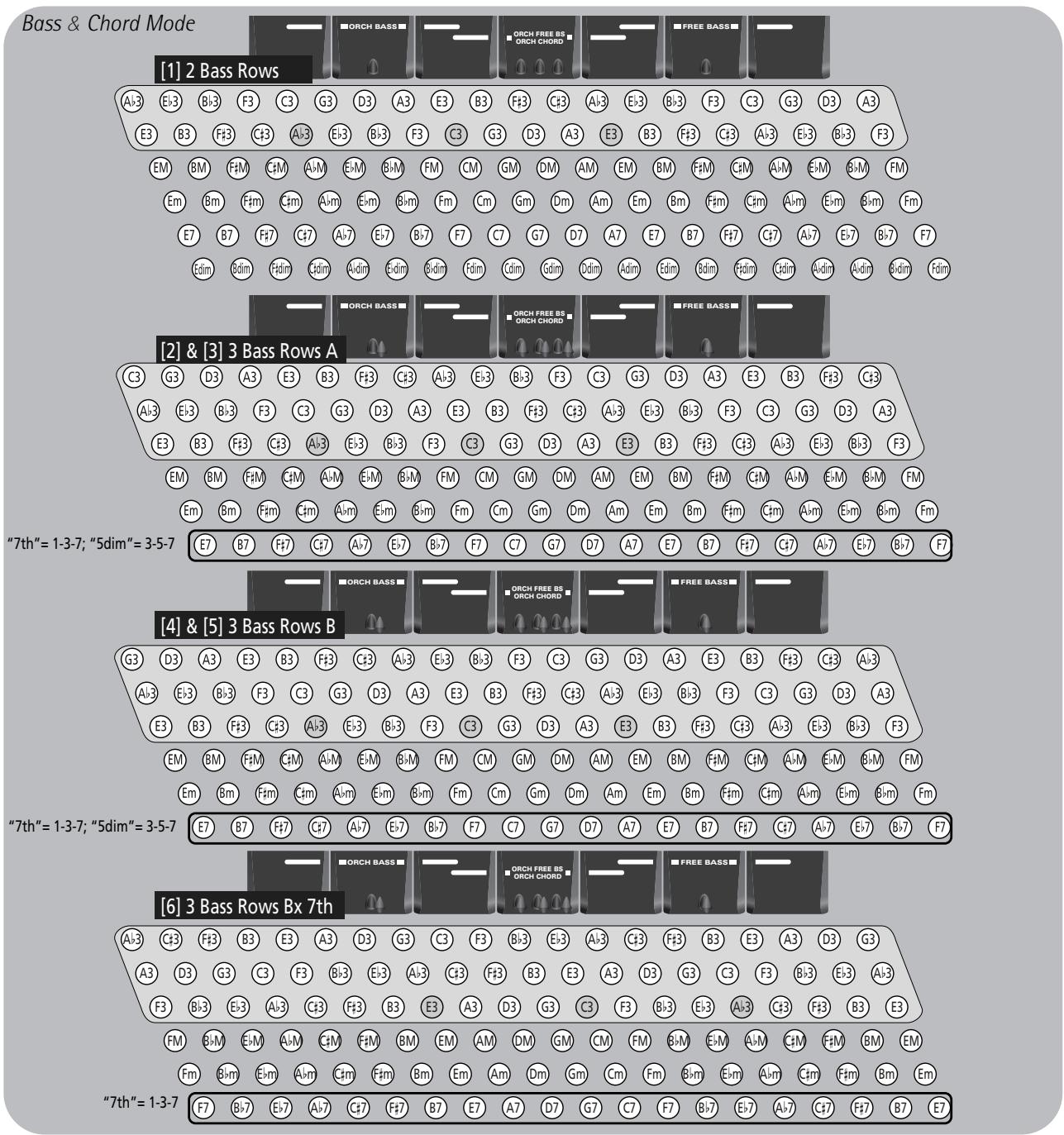

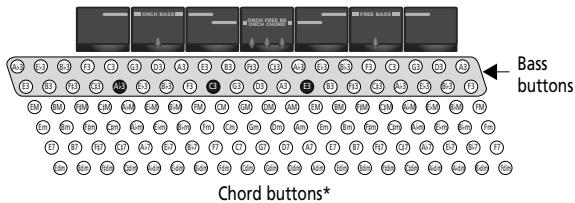

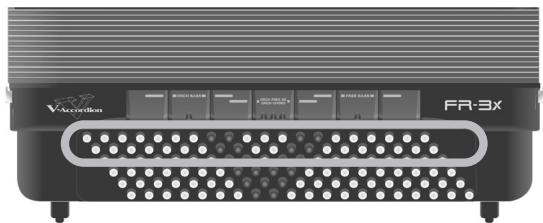

Bass and chord section 30

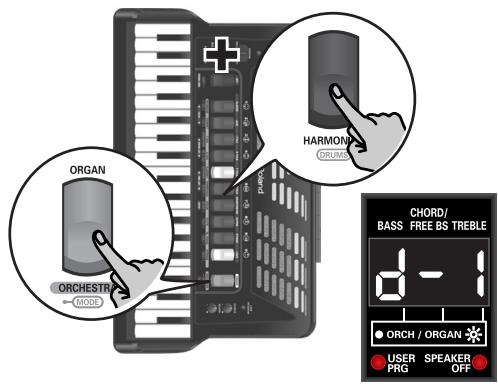

Playing drum/percussion sounds 31

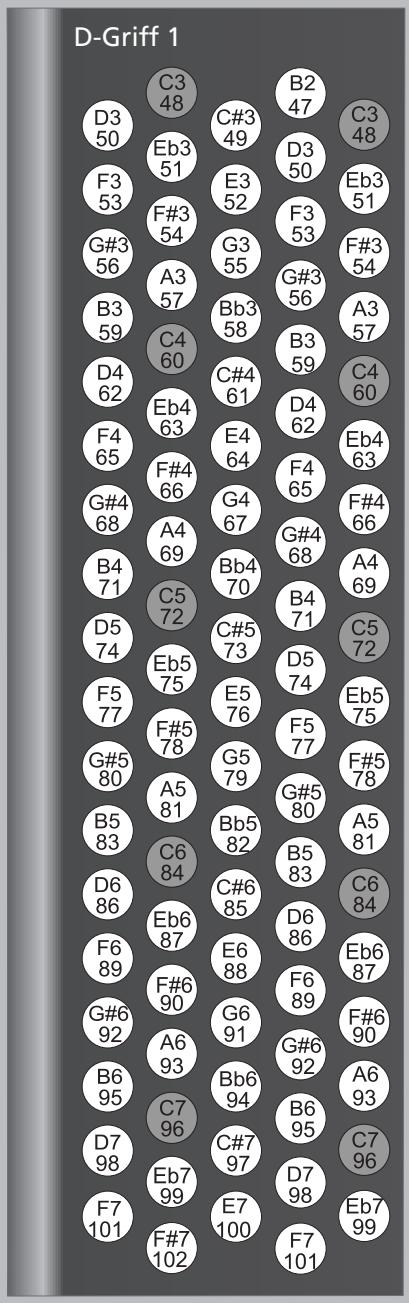

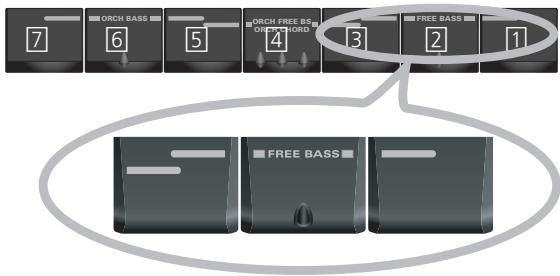

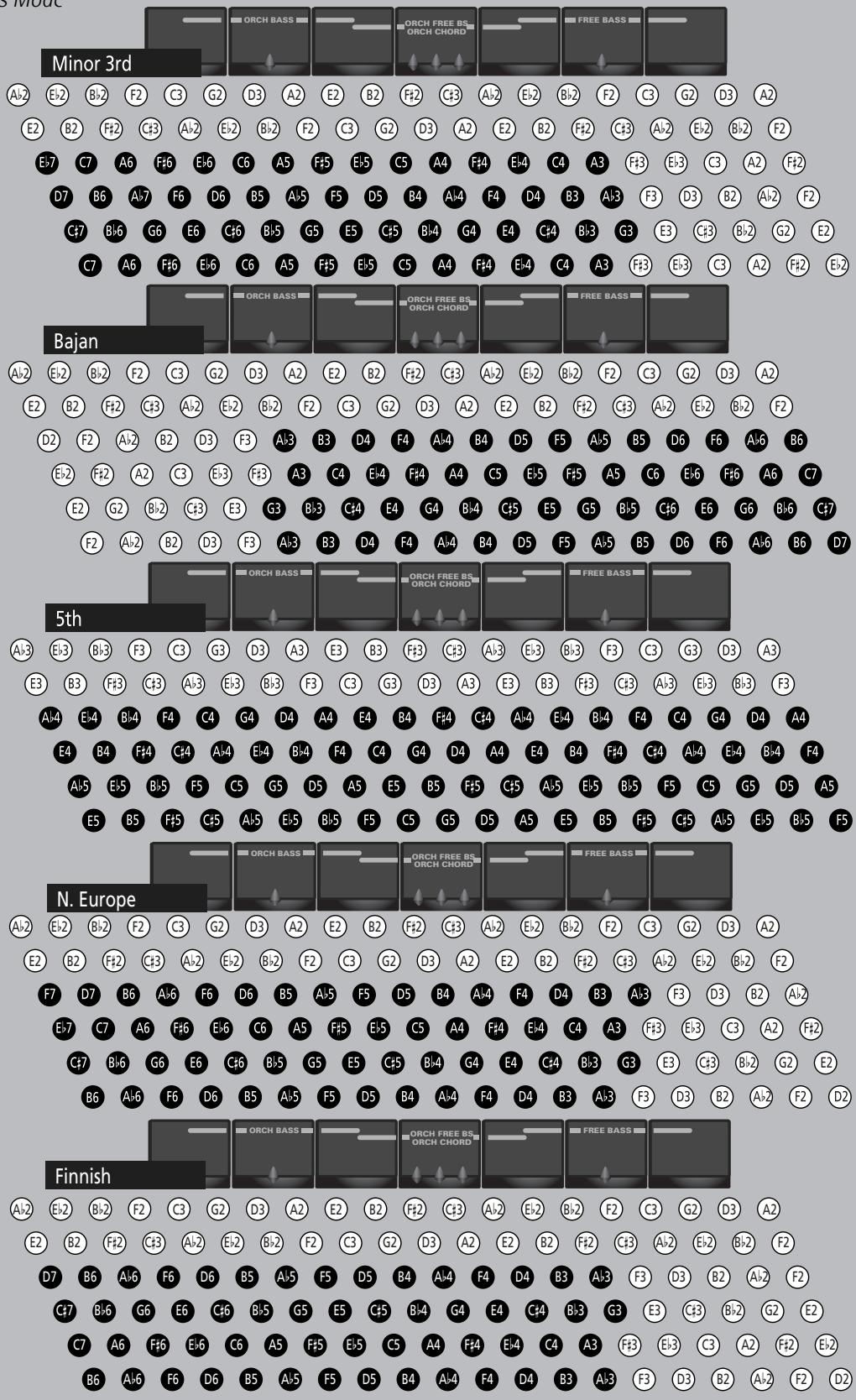

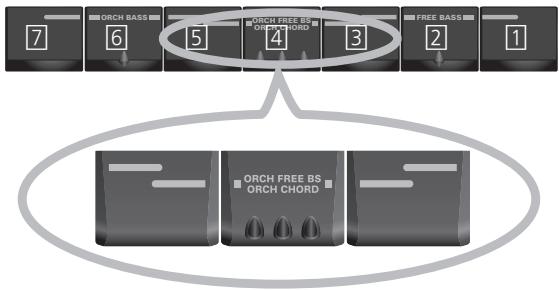

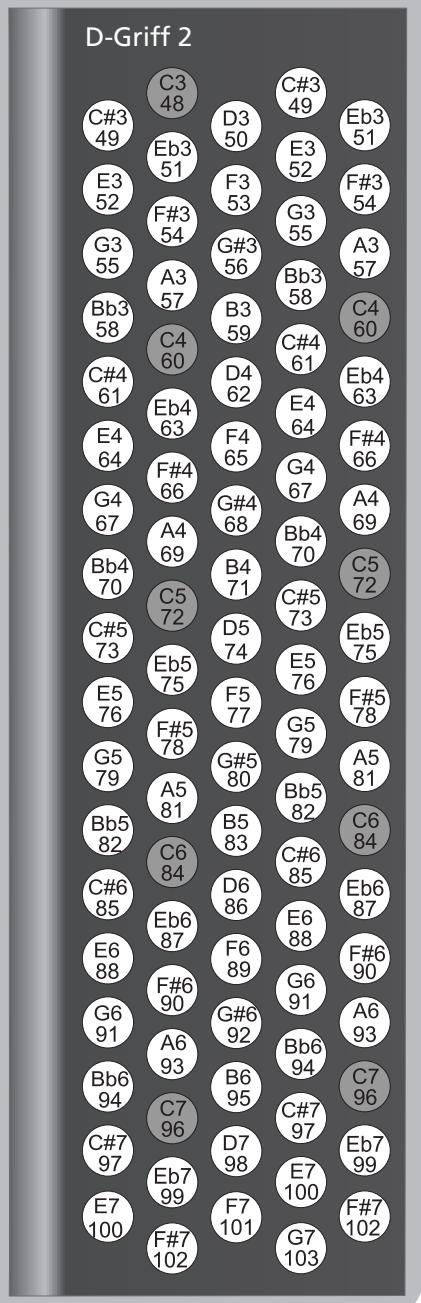

Playing only bass notes with your left hand (Free Bass mode)....32

1. Using the FR-3x's audio player ....34

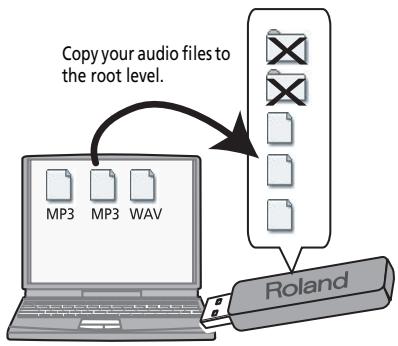

Copying audio files to a USB memory....34

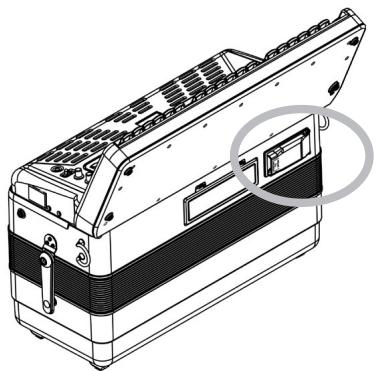

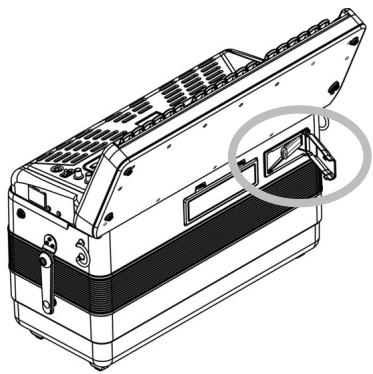

Connecting an optional USB memory....34
Playing back audio files 35
Selecting audio files 35
Adjusting the playback level 36

1. Highlighting some practical functions .....37

Using the metronome 37
Changing the key of the keyboard (transpose) 37
Musette Detune....37
Switching off the internal speakers (Speaker Mode) 37

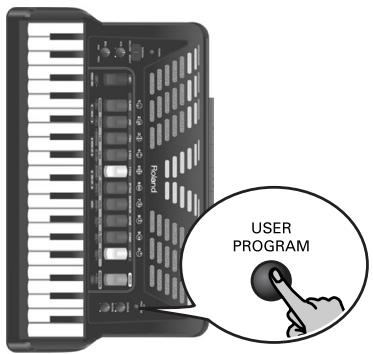

1. Saving your settings (User Program)....38

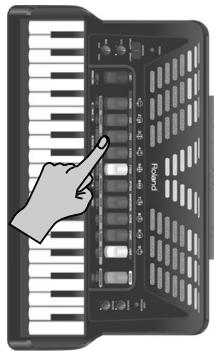

Saving the current settings....38

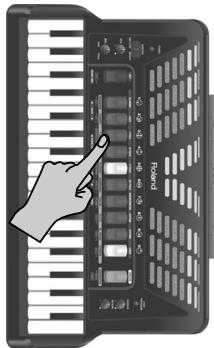

Recalling a User Program 39
Editing a User Program 39

1. Data management via the FR-3x's USB port 40

Saving User Program memories to USB memory (optional) 40
Loading User Program memories from USB memory (optional)....40
Loading User Set memories from USB memory (optional) 41
Loading new sounds from a USB memory (optional)....41
Importing the settings of a previous FR-3 model 42

1. Other settings ...... 43

Important remark about saving your settings....44

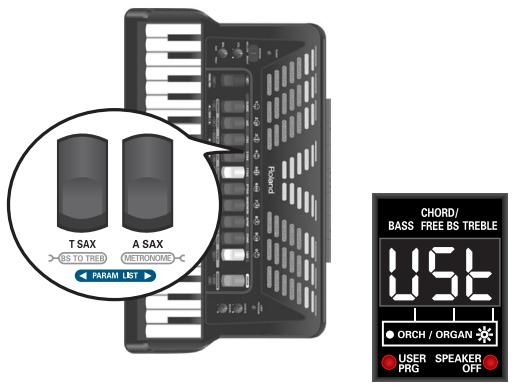

Selecting the desired parameter....44

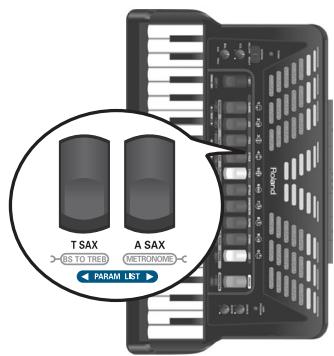

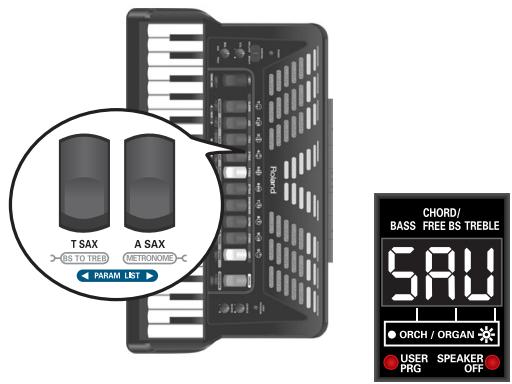

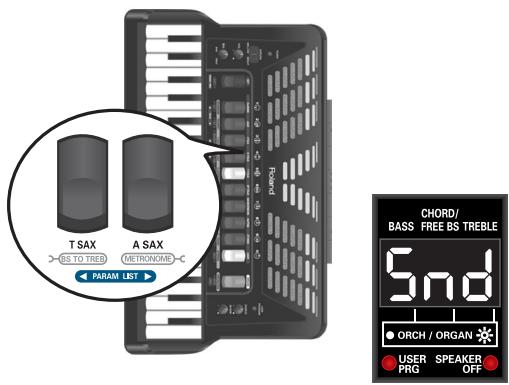

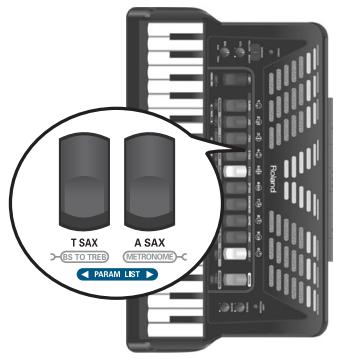

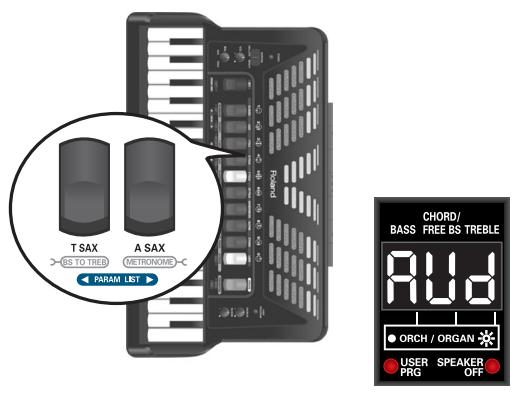

PARAM LIST parameters....45

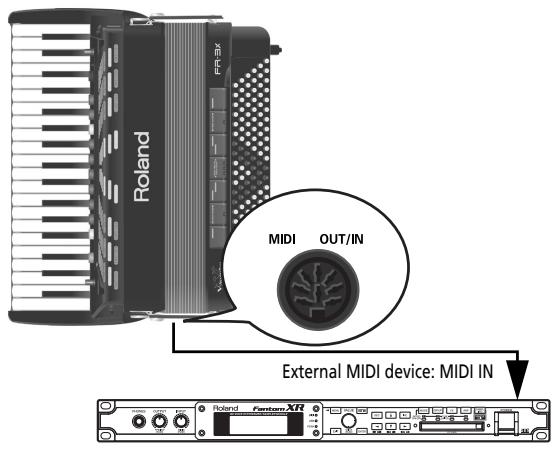

1. Connecting to MIDI devices....56

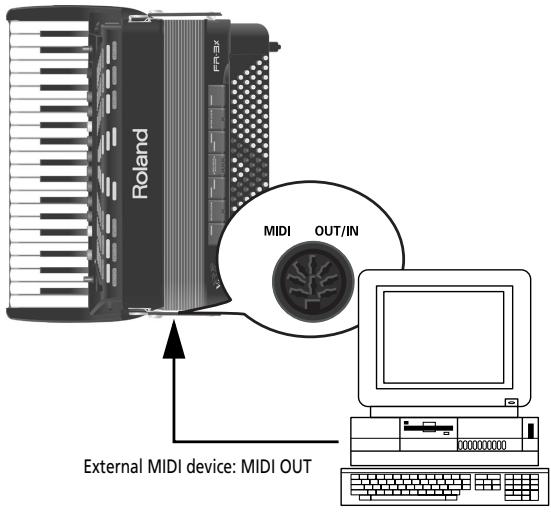

Connecting an external MIDI device to the FR-3x 56

MIDI parameter list....57

Selecting the desired MIDI LIST parameter....58

MIDI LIST parameters....58

Sending program change messages to external devices 62

1. Restoring the factory defaults....64

2. Troubleshooting 65

3. Error messages....66

4. Specifications 67

5. Appendix ...... 69

Factory Sets 69

Demo Songs....69

Ways in which the FR-3x displays alphabetic characters of file names .....70

MIDI implementation....71

MIDI Implementation Chart 73

1. Information 74

2. Index....75

1. Features

Stand-alone electronic instrument

Though the FR-3x is a fully electronic instrument, you do not need to connect it to an amplifier in order to produce sounds. Its onboard amplification system is powerful enough for small venues, restaurants, etc.

The FR-3x can also be powered using 10 commercially available rechargeable Ni-MH batteries, so that you don't need to connect it to a wall outlet.

PBM (Physical Behavior Modeling)

The FR-3x V-Accordion is based on Roland's sound generation technology called "PBM" (Physical Behavior Modeling) whose sonic result is very close to the sound of traditional accordions.

Super realistic accordion simulations

All sounds the FR-3x produces were obtained by sampling popular traditional acoustic accordions.

This V-Accordion allows you to switch from an Italian jazz accordion to German folk, French musette or a historic bandoneon sound – without changing your technique.

Different tuning systems are also available.

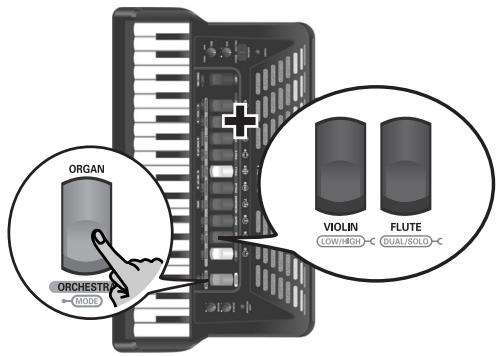

Orchestral sounds

10 orchestral sounds can be used in combination with traditional accordion sounds – complete with full bellows articulation, and unique keyboard modes (Solo, Dual, High and Low).

Tonewheel organ sounds

The FR-3x allows you to play amazing organ sounds in almost the same way as an organ player using the treble section. You can add a rotary effect (slow/fast).

Drum sounds

You can also use the FR-3x to play simple drum parts with your left hand (bass and chord sections).

Sound expansion

The FR-3x provides two internal memories that allow you to add new sounds.

Sophisticated bellows response

Faster response and higher sensitivity and precision plus detection of bellows opening/closing with new bellows pressure sensing circuitry.

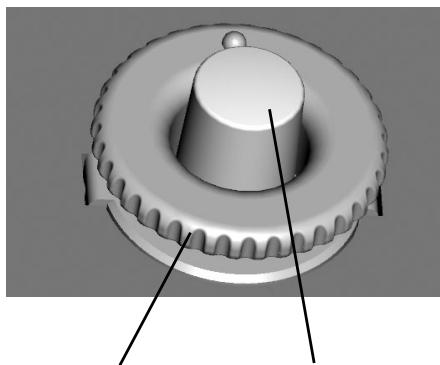

A bellows resistance regulator knob allows you to adjust the bellows' inertia to your preference.

USB-based audio player

The FR-3x contains an audio player function that allows you to play back mp3 and WAV files directly from a connected USB memory.

Save your settings to a USB memory

You can save your settings by connecting an optional USB memory to the FR-3x's USB port.

The digital advantage

The V-Accordion includes all functions and sounds of a traditional accordion, thus conveying a truly natural feel and sound. Yet it also provides the advantages only an electronic musical instrument can give you:

• reduced overall weight;
• possibility to choose among a wide variety of sounds;
• various selectable Free Bass modes (Minor 3rd, Bayan, North Europe, Finnish);
• tuning stability over time and wear resistance of all mechanical parts;
• you can sound in a different key than the one you are playing in (transpose function);
• you can play with headphones, i.e. without disturbing your neighbors or family.

Superb performance flexibility

The FR-3x allows you to control external MIDI-compatible instruments. The Treble keyboard and chord/bass buttons are velocity-sensitive, while the bellows controller provides more articulation possibilities than any other MIDI keyboard, MIDI wind instrument, etc., you may know.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

⚠ WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
⚠ CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The ⊙ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

- Do not open (or modify in any way) the unit or its AC adaptor.

- Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

- Never install the unit in any of the following locations.

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and shakiness.

- Make sure you always have the FR-3x placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

- Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

- Use only the supplied power-supply cord. Also, the supplied power cord must not be used with any other device.

- Do not excessively twist or bend the power cord, or place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

WARNING

- The FR-3x, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

- Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the FR-3x.

- Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when: - The AC adaptor, the power-supply cord, or the plug has been damaged; or - If smoke or unusual odor occurs - Objects have fallen into, or liquid has been spilled onto the unit; or - The unit has been exposed to rain (or otherwise has become wet); or - The unit does not appear to operate normally or exhibits a marked change in performance.

- In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the FR-3x.

- Protect the FR-3x from strong impact. (Do not drop it!)

WARNING

- Do not force the FR-3x's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the exte cord's outlet must never exceed the power rating (watts/a for the extension cord. Excessive loads can cause the insul the cord to heat up and eventually melt through.

- Before using the FR-3x in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

- Batteries must never be recharged, heated, taken apart, or thrown into fire or water.

- Never expose batteries to excessive heat such as sunshine, fire or the like.

CAUTION

- The unit and the AC adaptor should be located so its location or position does not interfere with their proper ventilation.

- Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

- At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

- Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

- Never climb on top of, or place heavy objects on the unit.

- Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

- Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

- Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (see p. 15).

- Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

CAUTION

- If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions.

- Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.

- Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.

- Remove the batteries whenever the unit is to remain unused for an extended period of time.

- If a battery has leaked, use a soft piece of cloth or paper towel to wipe all remnants of the discharge from the battery compartment. Then install new batteries. To avoid inflammation of the skin, make sure that none of the battery discharge gets onto your hands or skin. Exercise the utmost caution so that none of the discharge gets near your eyes. Immediately rinse the affected area with running water if any of the discharge has entered the eyes.

- Never keep batteries together with metallic objects such as ball-point pens, necklaces, hairpins, etc.

- Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.

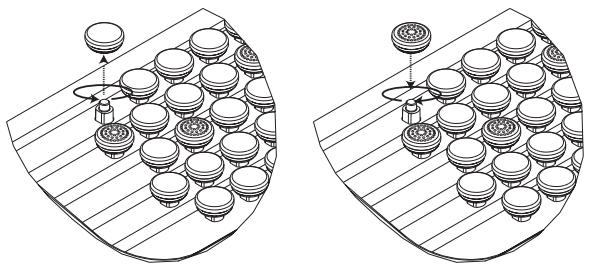

- Keep the included button caps in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

2. Important notes

In addition to the items listed under "Using the unit safely" on p. 7, please read and observe the following:

Power supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• The use of the supplied AC adaptor is recommended as the unit's power consumption is relatively high. Should you prefer to use batteries, please use the rechargeable Ni-MH type.
• When installing or replacing batteries, always turn off the power on this unit and disconnect any other devices you may have connected. This way, you can prevent malfunction and/or damage to speakers or other devices.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not allow objects to remain on top of the keyboard. This can be the cause of malfunction, such as keys ceasing to produce sound.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface.
  You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.

Maintenance

• For everyday cleaning wipe the FR-3x with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a mild, non-abrasive detergent. Afterwards, be sure to wipe the instrument thoroughly with a soft, dry cloth.
• Never use benzine, thinner, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and data

- Please be aware that all data contained in the unit's memory may be lost when the unit is sent for repairs. Important data should always be backed up on a USB memory or written down on paper (when possible). During repairs, due care is taken to avoid the loss of data. However, in certain cases (such as when circuitry related to memory itself is out of order), we regret that it may not be possible to restore the data, and Roland Europe S.p.a. assumes no liability concerning such loss of data.

Precautions for batteries (not supplied)

• The temperature range for use of the batteries depends on the battery type being used. Please see the documentation that came with the batteries.
• Do not use or store batteries at high temperature, such as in strong direct sunlight, in cars during hot weather or directly in front of heaters. This may cause battery fluid leakage, impaired performance and shorten the batteries' service life.
• Do not splash fresh or saltwater on a battery or allow the terminals to become damp. This may cause heat generation and formation of rust on the battery and its terminals.
• If newly purchased batteries exhibit rust, generate heat or seem abnormal in any other way, do not use them. Take them back to your dealer.
• Keep the batteries out of reach of babies or small children.
• Be sure to carefully instruct any person on the proper way of handling a battery.
• Never dispose of the battery in a fire. Never heat it. Doing so may melt the insulation, damage the gas release vents or protective devices, cause combustion through chemical reaction with generated hydrogen, ejection of battery fluid, bursting or fire.
• Do not use batteries with the positive (+) and negative (−) terminals reversed, as this may drain the batteries or cause abnormal chemical reactions.
• Do no strike or drop the batteries. Strong impact can cause leakage of battery fluid, heat generation, bursting or fire.
• Never try to connect several batteries in parallel as this may cause leakage of battery fluid, heat generation, bursting or fire.
• Do not alter or remove protective mechanisms or other parts. Never disassemble the batteries.
• If any fluid from a battery comes in contact with the eyes, flush the eyes immediately, washing them thoroughly with clean water from a tap or other source and consult a doctor. Strong alkaline fluid can damage the eyes and lead to permanent loss of eyesight.
• If skin or clothing comes in contact with any fluid from the battery, wash the area immediately with clean water from a tap. Battery fluid can cause skin damage.
• When a battery is no longer usable, dispose of it in accordance with all applicable local laws and regulations.
• If a battery leaks fluid, changes color or shape or changes in any other way, do not use it, otherwise it may cause heat generation, bursting or fire.

Additional precautions

• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically save a backup copy of important data you have stored in the unit's memory to a USB memory.

• Unfortunately, it may be impossible to restore the contents of data that was stored on a USB memory once it has been lost. Roland Europe S.p.a. assumes no liability concerning such loss of data.

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Battery handling

- Incorrect handling of batteries, rechargeable batteries, or a battery charger can cause leakage, overheating, fire, or explosion. Before use, you must read and strictly observe all of the precautions that accompany the batteries, rechargeable batteries, or battery charger. When using rechargeable batteries and a charger, use only the combination of rechargeable batteries and charger specified by the battery manufacturer.

Storage devices that can be connected to the FR-3x's USB port

• The FR-3x allows you to connect commercially available USB memories. You can purchase such devices at a computer store, a digital camera dealer, etc.
• Use USB memory sold by Roland. We cannot guarantee operation if any other USB memory is used.

Before using external USB memories

• When connecting a USB memory, firmly insert it all the way into the FR-3x's USB port.
• Do not touch the pins of the FR-3x's USB port or allow them to become dirty.
• While using an external storage device, please observe the following points when handling it:
• To prevent damage from static electrical charges, discharge any static electricity that might be present in your body before handling a USB memory.
• Do not touch the terminals with your fingers or any metal object.
• Do not bend or drop a USB memory, or subject it to strong impact.

• Do not leave a USB memory in direct sunlight or in locations such as a closed-up automobile.

• Do not allow a USB memory to become wet.

• Do not disassemble or modify your external USB memory.
• When connecting a USB memory, position it horizontally with the FR-3x's USB port and insert it without using excessive force. The USB port may be damaged if you use excessive force when inserting a USB memory.
• Do not insert anything other than a USB memory (e.g., wire, coins, other types of device) into the USB port. Doing so will damage the FR-3x's USB port.
• Do not apply excessive force to the connected USB memory or the FR-3x's USB port.
• Never connect your USB memory to the FR-3x via a USB hub.

Liability and copyright

• The FR-3x's audio player is designed to allow you to reproduce material to which you have copyright, or material which the copyright owner has granted you permission. Accordingly, the reproduction of music or other copyrighted material without permission of the copyright owner avoiding technical prohibiting features of second-generation and later copying, like SCMS or other solutions, constitutes copyright infringement and may incur penalties even in case such reproduction is for your own personal use and enjoyment (private use).
  Consult a copyright specialist or specialized publications for more detailed information on obtaining such permission from the copyright holders.
• Do not use the FR-3x for purposes that could infringe on a copyright held by a third party. Roland assumes no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this unit.

About audio files

- Audio files in the following formats can be played back:

• WAV format
• 16-bit linear
  • Sampling frequency: 44.1kHz
• Stereo/mono

- mp3 files:

• MPEG-1 Audio Layer 3
  • Sampling frequency: 44.1kHz
• Bit rate: 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps, VBR (variable bit rate)

Notice

• MPEG Layer-3 audio compression technology is licensed from Fraunhofer IIS Corporation and THOMSON Multimedia Corporation.
• Roland and V-Accordion are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
• MMP (Moore Microprocessor Portfolio) refers to a patent portfolio concerned with microprocessor architecture, which was developed by Technology Properties Limited (TPL). Roland has licensed this technology from the TPL Group.
• All product names mentioned in this document are trademarks or registered trademarks of their respective owners.

3. A first look at your FR-3x

Let us first take a look at how the FR-3x is organized and how it is operated.

The sections of your FR-3x

Let's briefly look at the various "sections" of your instrument, as that will help you understand how your V-Accordion works.

■ Treble section (right-hand manual)

This section is normally used for playing the melody. The FR-3x's treble section is velocity sensitive.

■ Bass and chord section

This section is normally used to play the accompaniment. There are two general categories: one is called "Stradella", and the other "Free Bass". The FR-3x allows you to use either type.

The "Stradella" system, also called the "standard bass system" uses the first 2 (or 3) button rows to play bass notes. The remaining button rows are used to play chords.

If you select the "Free Bass" system, all buttons are used to play single bass notes.

The FR-3x's bass and chord section is velocity sensitive.

Bellows

The bellows is an important part of the accordion.

The movement of the bellows indeed lends expression and dynamics to the sound. Several techniques are available, one of which is called "bellows shake" (rapid opening and closing movements).

The bellows' inertia can be set with the resistance regulator and air button.

Bellows resistance regulator

Your FR-3x is equipped with a bellows resistance regulator and air button that allows you to specify the bellows' inertia (the force needed to push and pull it).

3D rendered mechanical component with concentric rings and a central conical feature (no text or symbols)

Bellows resistance regulator. Press and turn to select the bellows' resistance.
Air button. Press to purge remaining air after playing.

Located next to one of the bellows clips and mounted onto the air button (which allows you to release remaining air from the bellows without producing sound).

• Press the wheel and rotate it clockwise to select a stronger inertia.
• Press the wheel and rotate it counterclockwise to select a lighter inertia.
• Press the air button to purge the remaining air from the bellows after closing it.

4. Panel descriptions

Treble control panel

① POWER button

Press this button to switch the V-Accordion on (the button lights) and off (button dark).

NOTE

If you need to turn off the power completely (when using the supplied AC adaptor), first turn off the [POWER] switch, then disconnect the AC adaptor's plug from the wall outlet.

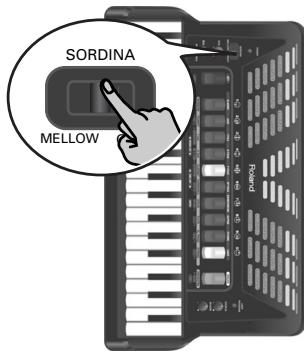

② SORDINA switch

This MELLOW/BRIGHT switch allows you to switch the simulation of the wooden resonance chamber on ("BRIGHT") and off ("MELLOW").

③ VOL knob

This knob allows you to set the V-Accordion's overall volume.

④ BAL knob

This knob allows you to set the balance between the Bass/Chord and the Treble sections.

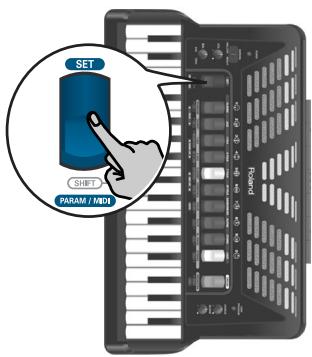

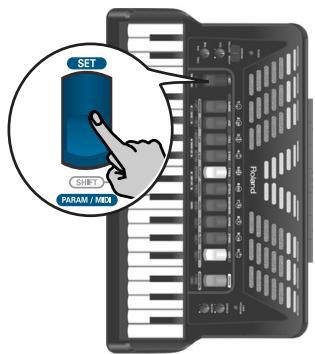

⑤ SET register

This register is used to recall one of 25 Sets from one of the 10 Set families: press the [SET] register and one of the 10 treble registers.

The [SET] register has three additional functions:

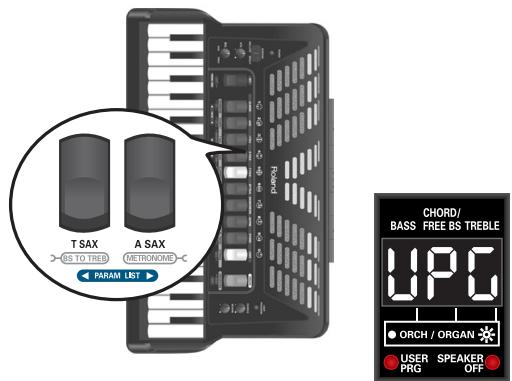

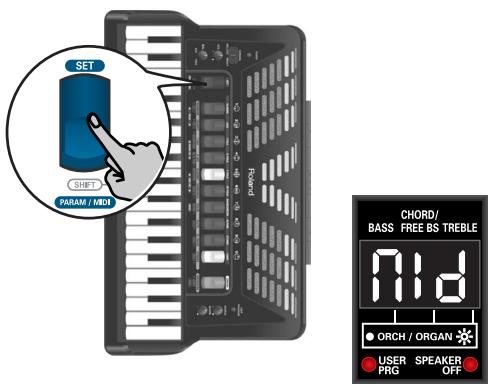

- To edit function and MIDI parameters: press and hold [SET].

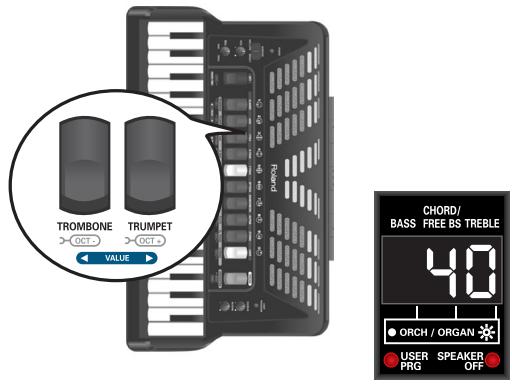

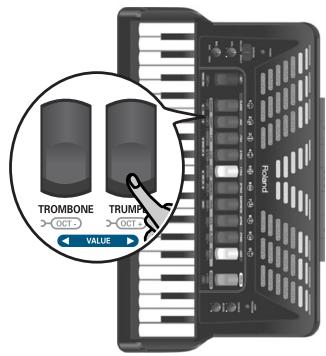

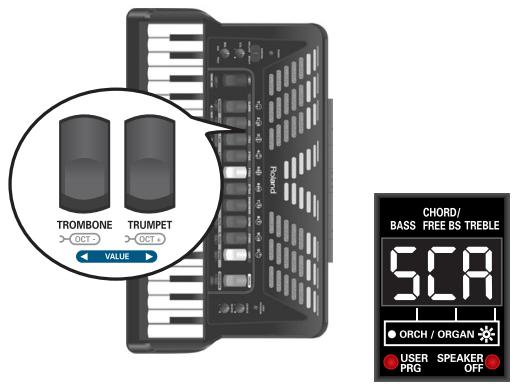

- To change octaves: press and hold [SET] and press [1/OCT-] or [2/OCT+].

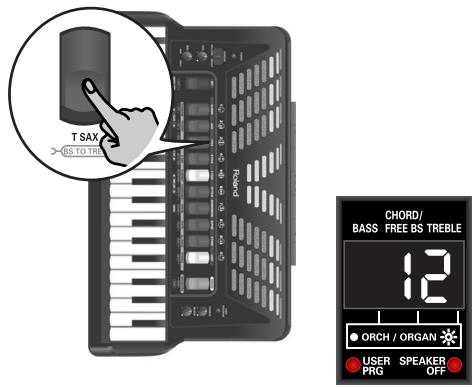

- To activate Bass-to-Treble mode: press and hold [SET] and press [3] BS TO TREB.

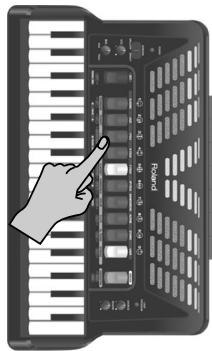

⑥ Treble registers

The Treble section contains 10 registers that allow you to select accordion, orchestral and organ sounds, Sets and User Programs.

NOTE

By pressing and holding any register, you can switch off the treble or Treble Orchestra and Organ section. Press another register to switch it back on.

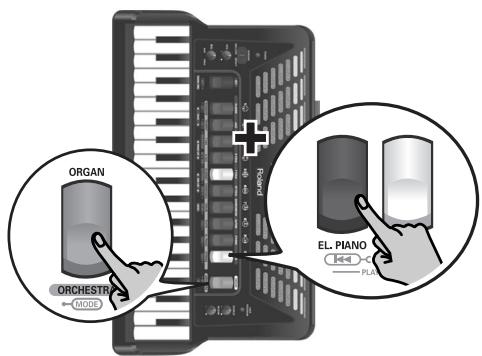

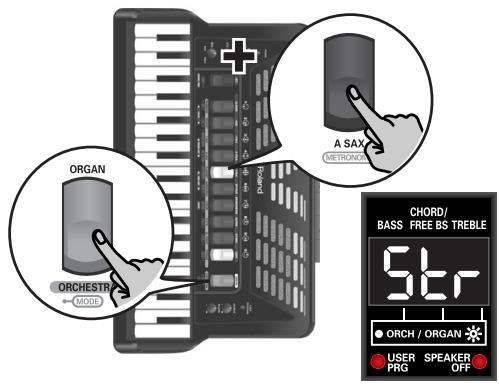

⑦ ORGAN/ORCHESTRA register

Pressing [ORGAN/ORCHESTRA] followed by one of the treble registers recalls an orchestral or organ sound.

This register has two additional functions:

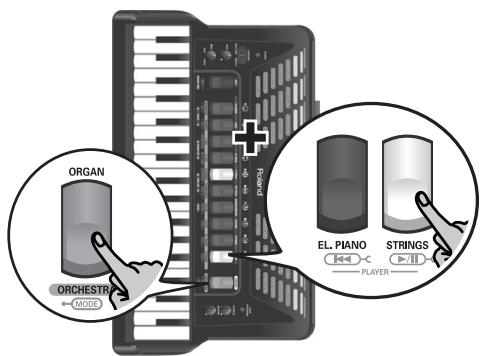

• To activate the demo song function: press and hold [ORGAN/ORCHESTRA].

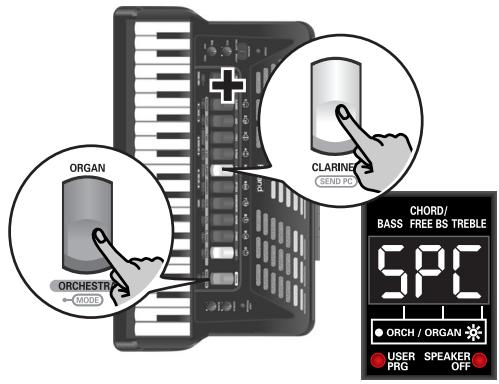

• To select other functions: press and hold [ORGAN/ORCHESTRA] and press one of the treble registers [4]\~[0].

⑧ REVERB knob

Use this knob to set the level of the reverb effect (see p. 22).

⑨ CHORUS knob

Use this knob to set the level of the chorus effect (see p. 22).

⑩ USER PROGRAM button

This button is used to recall one of 10 User Programs: first press [USER PROGRAM] and then one of the treble registers.

Bass control panel

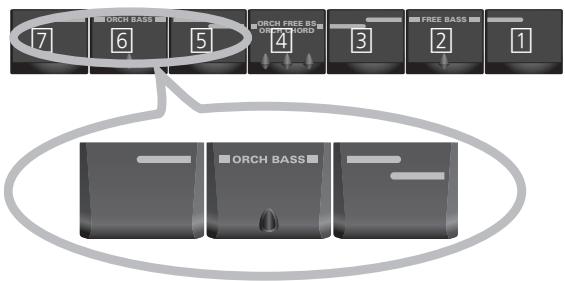

⑪ Bass registers

These switches allow you to select the desired bass sound.

NOTE

By pressing and holding any register, you can switch off the Bass (or Free Bass) section. Press another register to switch it back on.

⑫ Bass and chord buttons

These 120 buttons are used to play bass notes and chords (they are velocity-sensitive). They also allow you to play drum sounds.

⑬ Bellows resistance and air button

This wheel allows you to specify the bellows' inertia (the force needed to push and pull it). See page 11. By pressing it you can purge the air that still remains in the bellows after playing.

⑭ Display

The display keeps you informed about the FR-3x's status and helps you locate the functions you may wish to set.

Battery compartment and USB port

⑮ Battery compartment

This is where you install 10 commercially available rechargeable AA-type Ni-MH batteries (see p. 16).

⑯ USB port

The FR-3x's USB port allows you to connect a USB memory. It can be used to play back audio files (mp3 and WAV) and to save and load settings.

NOTE

Use a USB memory sold by Roland. We cannot guarantee operation if any other USB memory is used.

Connection panel

⑰ DC IN socket

This is where you need to connect the supplied power adapter (PSB-7U). Note that you can also purchase 10 rechargeable AA-type Ni-MH batteries and use the FR-3x without the adapter.

⑱ MIDI OUT/IN socket

This socket can be used to receive or transmit MIDI data.

⑲ OUTPUT L/MONO (TREBLE) & R/MONO (BASS) sockets

These sockets can be connected to an amplifier, a mixing console or a wireless system. If you use both connectors, the FR-3x's output is stereo. In that case the signals of the Treble section is transmitted to the L/MONO socket, while the R/MONO socket transmits the bass (and chord) signal. If you only use one jack (connected to the "L" or "R" socket), the FR-3x's output is mono.

NOTE

On the FR-3x, connecting jacks to these sockets does not mute the internal speakers.

NOTE

Using these sockets and switching off the FR-3x's speakers (see "Speaker Mode" on p. 55) allows you to save battery power.

⑳ PHONES socket

This is where you can connect stereo headphones (Roland RH-25, RH-50, RH-200 or RH-300).

NOTE

Connecting a pair of headphones mutes the internal speakers.

5. Before you start playing

Getting ready to play

The FR-3x is an electronic instrument that requires some form of electrical power. This chapter explains how to power your FR-3x using the supplied adaptor or 10 commercially available rechargeable batteries (AA-type Ni-MH). In addition, you will learn how to connect your FR-3x to an external amplification system.

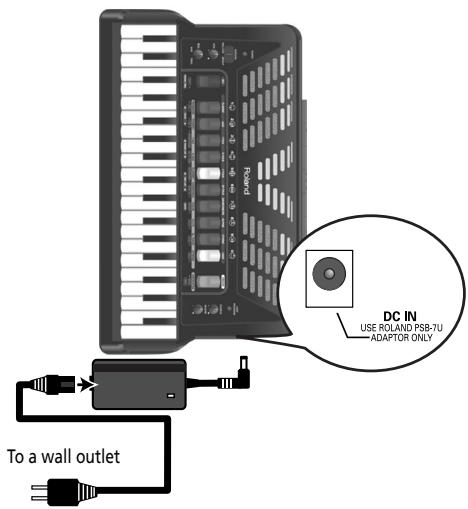

Connecting the AC adaptor

NOTE

To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

1. Turn the [VOL] knob all the way towards the small dot to minimize the volume.

2. Connect the included power cord to the AC adapter.

The indicator will light once you plug the AC adapter into a wall outlet.

To the FR-3x's DC IN connector

Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards.

NOTE

Depending on your region, the included power cord may differ from the one shown above.

NOTE

We recommend that you keep batteries installed in the unit even if you'll be powering it with the AC adaptor. That way, you'll be able to continue a performance even if the cord of the AC adaptor gets accidentally disconnected from the unit.

NOTE

Be sure to use only the AC adaptor supplied with the unit (PSB-7U). Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

3. Connect the AC adaptor to the FR-3x's DC IN jack.

4. Plug the power cord into a power outlet.

Now that the FR-3x is connected to a wall outlet, you can continue with the section "Switching the power on and off" on p. 21. To use the FR-3x with batteries, see "Installing and removing batteries" on p. 16.

NOTE

If the FR-3x is to remain unused for an extended period of time, unplug the adaptor.

NOTE

To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the AC adaptor jack, anchor the power cord. See "Securing the adapter and/or MIDI cable" on p. 20.

Installing and removing batteries

Your FR-3x has a compartment that contains a special holder unit into which you can install 10 rechargeable AA-type Ni-MH batteries (not supplied). You can therefore play your instrument without connecting the supplied adapter.

1. Switch off the FR-3x.
2. Remove the cushion located between the treble keyboard and the bellows.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

1. Remove the cover from the FR-3x's battery compartment by pressing the two tabs and lifting the cover.

You should now see a tab that allows you to remove the battery case:

Close-up of a mechanical component with visible wiring and a white arrow pointing to a component (no text or symbols)

1. Use the tab to pull the battery case out of the compartment and turn the case around.

Close-up of a mechanical component with textured internal structure (no visible text or symbols)

The battery case is connected to the FR-3x by means of a cable with a padded connector strip. You can disconnect the cable from the battery case by pulling off the padded connector strip.

Close-up of a mechanical component with a magnified inset showing a textured grip (no visible text or symbols)

This is unnecessary if you manage to install (or remove) the batteries without disconnecting the connector strip.

1. Insert 10 rechargeable AA-type Ni-MH batteries into the compartment (5 on either side), taking care to orient them in accordance with the "+" and "-" indications.

Black battery pack with four electrolytic cells and three 15V batteries, no visible text or symbols on the cells themselves.

1. Insert the battery case with the 10 (5 + 5) batteries into the compartment.
2. Close the FR-3x's battery compartment and re-install the cushion.

NOTE

Though it is perfectly possible to use rechargeable batteries, be aware that they cannot be recharged simply by leaving them in the FR-3x's compartment and connecting the adapter. You will need an external charging unit.

NOTE

We recommend using rechargeable AA-type Ni-MH batteries.

NOTE

When replacing batteries, be sure to insert them correctly (ensure correct polarity).

NOTE

Remove the batteries whenever the FR-3x is to remain unused for an extended period of time.

Battery charge indication

If, while using batteries, the "bAt" message appears in the display, the remaining battery power is low. Replace the batteries at your earliest convenience. A flashing "bAt" message means that you need to replace the batteries right away (or use the supplied adaptor).

NOTE

The battery charge indication is only an approximation.

Battery duration

New or fully charged batteries should last about 9 hours (for 2000mAh Ni-MH batteries) during continuous operation while the internal speakers are off (see "Speaker Mode" on p. 55), or 5 hours while the speakers are on.

NOTE

Actual battery life varies according to usage conditions, the quality of the batteries and the number of charging cycles.

Energy saving function

The FR-3x contains an energy saving function that switches the instrument off when it is left unattended for more than 10 minutes. You may therefore have to switch it on again from time to time. You can specify how long the FR-3x should wait before powering off automatically. See "Auto Power Off" on p. 55.

Connecting the FR-3x to an amplifier, mixer, etc.

The FR-3x is equipped with an internal speaker system and thus does not need to be connected to an amplifier at all. There may be times, however when using an external amplification system is more convenient.

NOTE

If you are using optional batteries and need to connect the FR-3x to a PA system or mixer, we recommend using a commercially available wireless system to avoid having to use excessively long signal cables.

NOTE

To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

1. Turn the [VOL] knob all the way towards the small dot to minimize the volume.
2. Switch off all devices.
3. Connect the FR-3x's OUTPUT jacks to the inputs of your external device.

Use either a long signal cable (10m or more) or an optional wireless system (recommended).

Please choose unbalanced (mono) cables with 1/4" jacks at one end (for the FR-3x). The connectors at the other end need to match the input sockets of the device to which you are connecting the FR-3x.

NOTE

If you use a commercially available wireless transmitter, the FR-3x's output signals may distort. In that case, change the FR-3x's output level (see "Output Level Attenuation" on p. 55).

NOTE

If your amplifier is monaural, you only need to connect the L/MONO socket.

NOTE

You can also use a pair of headphones (Roland RH-25, RH-50, RH-200 or RH-300).

Important remark

After connecting any cable to the FR-3x, be sure to never place it on the side when not using it.

• Always stand the V-Accordion on its rubber feet (and in the corresponding direction) to avoid damaging the plugs.
• Always handle and move the FR-3x with care and pay special attention to the cable slack to avoid damaging or bending the cables.
• If you place the FR-3x on your lap, ensure that the audio and adapter cables run between your legs (not sideways) to avoid damaging or bending the cables.

Attaching the straps

Proceed as follows to attach the straps to your FR-3x:

1. Unpack the straps.

The FR-3x comes with two straps, each with two ends: the upper end is fitted with a velcro strip and the clip, the lower end is not. See the illustration below:

Close-up of a black athletic belt buckle with a small inset showing a button (no text or symbols visible)

1. Put the FR-3x on a stable surface as shown in the illustration below.

Black electronic device with open lid and metallic buttons, no visible text or symbols

1. Slide the upper end (with the velcro strip) of one strap through the left holder ring (see the illustration).

Close-up of hands adjusting a black athletic strap with a key inserted into a briefcase (no text or symbols visible)

1. Attach the strap's upper part to the velcro layer below it.

2. Close the security clip to ensure that the strap cannot come loose.

Close-up of a hand adjusting a black textured belt or strap (no text or symbols visible)

1. Repeat steps 3\~5 for the other strap.

The upper strap ends should look as follows:

Close-up of a black athletic belt buckle with straps and mounting clips (no text or symbols visible)

1. Slide the lower end of one strap through the right holder ring as shown.

Close-up of a camera body panel with attached strap and control buttons (no visible text or symbols)

1. Slide the strap end through the upper eyelet of its plastic buckle (see the illustration).

Close-up of hands adjusting a black textured belt with a metal clip, no visible text or symbols

1. Turn the strap end around and insert it into the lower eyelet, then pull it tight.

Close-up of hands adjusting a black belt buckle with a key inserted (no text or symbols visible)

NOTE

You may want to adjust the length first to suit your preference.

1. Slide the plastic clip over the loose and long lower strap ends to secure the strap.

Close-up of a hand holding a black textured strap with a metal clip, no visible text or symbols

1. Repeat steps 7\~9 for the other lower strap end.

Bass strap

The FR-3x's bass strap (used to move the bellows in and out) is made of fabric and fitted with a velcro strip that allows you to adjust its slack.

Close-up of hands installing a black plastic component with a strap, no visible text or symbols

Securing the adapter and/or MIDI cable

Proceed as follows to ensure that the adapter cable –or a MIDI cable– doesn't come loose while you are playing.

1. Unclip the indicated part of the cushion at the back of the FR-3x.

The cushion is attached with several clips. You only need to unclip the part shown in the illustration below.

Close-up of a hand pressing down on a leather jacket with a circular button (no visible text or symbols)

Note the guide next to the right clip closest to the connection panel.

Close-up of a metallic mechanical component with a white arrow pointing to it, no visible text or symbols.

2. Connect the small plug of the AC adaptor cable to the FR-3x's DC IN socket and wind the cable around the guide:

Close-up of hands installing a black plastic key on a mechanical component (no visible text or symbols)

You can also connect the MIDI cable to the MIDI OUT/IN socket and wind it around the guide like the adapter cable.

3. Reinstall the cushion, taking care to secure the adapter cable and/or MIDI cable you have just installed.

Close-up of hands adjusting a zipper on a dark garment (no visible text or symbols)

When finished, the FR-3x should look as follows:

Close-up of a black leather bag with attached cables and a power adapter, no visible text or symbols

4. Reverse these steps to remove and disconnect the adapter when you want to stop playing.

Switching the power on and off

NOTE

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

Turning on the power

1. Turn the [VOL] knob all the way towards the small dot to minimize the volume.

See "Adjusting the volume and balance" on p. 22. If you connected the FR-3x to an amplifier, etc., set its volume to the minimum value as well.

1. To switch the FR-3x on, press and hold down its [POWER] button until the display shows "Fr3".

The [POWER] button lights.

NOTE

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

1. Turn the [VOL] knob clockwise to set the volume to an appropriate level.

1. Adjust the volume of the receiving audio device (if connected).

Turning off the power

1. Turn the [VOL] knob all the way towards the small dot to minimize the volume. If you connected the FR-3x to an amplifier, etc., set its volume to the minimum value as well.
2. Press the FR-3x's [POWER] button (its indicator goes dark).

Using headphones

The FR-3x has one jack for plugging in headphones. This allows you to play without having to worry about bothering others around you, even at night.

1. Plug the headphones into the [PHONES] jack located on the FR-3x's connection panel.

NOTE

Use stereo headphones. Please use only Roland headphones. Headphones from other manufacturers may be unable to provide sufficient volume.

NOTE

The FR-3x's speakers are switched off when you connect headphones.

1. Use the FR-3x's [VOL] knob to adjust the headphone volume.

■ Cautions when using headphones

- To prevent damage to the cord's internal conductors, avoid rough handling. When using headphones, mainly try to handle either the plug or the headset.

• Your headphones may be damaged if the volume of a device is already turned up when you plug them in. Minimize the volume before you plug in the headphones.
• Excessive input will not only damage your hearing, but may also strain the headphones. Please enjoy music at an appropriate volume.

Adjusting the volume and balance

Here is how to adjust the volume on your FR-3x.

NOTE

If headphones are connected, the [VOL] knob controls the listening level.

1. Use the [VOL] knob to set the desired volume.

Adjust the volume while you play the FR-3x and move the bellows to produce sound.

Turning the [VOL] knob clockwise increases the volume, turning it counterclockwise decreases it.

1. Use the [BAL] knob to adjust the volume balance between the bass/chord and treble sections.

Turning it towards "BASS" decreases the treble section's volume. Turning it towards "TREBLE" decreases the bass/chord section's volume.

The selected balance setting ("t1"\~"t63", "0", "b1"\~"b63") is briefly shown in the display.

Adjusting the chorus and reverb effects

The FR-3x contains two digital effects: Chorus and Reverb. The chorus effect gives the impression that several instruments of the same type are playing at the same time (it is similar to detuning several reeds of a register). The reverb effect gives the impression that you are playing in a concert hall, a church or a room. It adds "depth" to the sound.

1. Rotate the [CHORUS] knob to adjust the level of the chorus effect.

Adjust this setting while playing the FR-3x and moving the bellows to produce sound. The chorus level you select (0\~127) is briefly shown in the display.

1. Rotate the [REVERB] knob to adjust the level of the reverb effect.

Adjust this setting while playing the FR-3x and moving the bellows to produce sound. The reverb level you select (0\~127) is briefly shown in the display.

1. Turn the [CHORUS] or [REVERB] knob all the way towards the small dot if you don't need the effect in question.

NOTE

See p. 47 for how to select a different chorus or reverb type.

How to read the display

The FR-3x's display keeps you informed about the FR-3x's status and helps you locate functions you may wish to set. The display can show up to three alphanumeric characters, either with or without a dot.

The main page contains the following information:

Digit	Explanation
First	Refers to the bass register you are currently using.
Second	The digit in the middle refers to the Chord/Free Bass register you are currently using.
Third	Refers to the treble register you are currently using.

A dot to the right of a digit has the following meaning:

Status	Explanation
Dark	You are using an accordion sound.
Lit	You are using an orchestral sound.
Flashes	You are using an organ sound.

In addition to the above, the display also shows information that refers to the selected function. Messages (information) are displayed only temporarily.

6. Listening to the demo songs

The FR-3x contains several demo songs. Here is how to play back those demo songs and fully appreciate the sounds contained in the FR-3x.

1. Switch on the FR-3x.

See "Switching the power on and off" on p. 21.

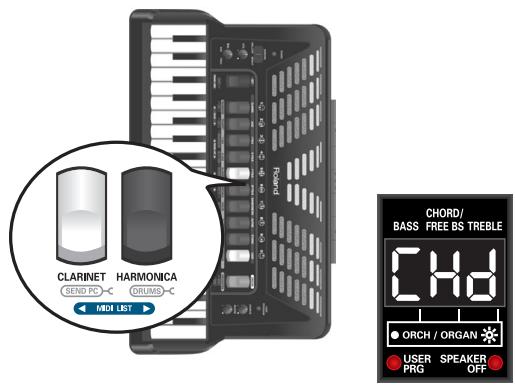

1. Press and hold the [ORGAN/ORCHESTRA] register until the display looks as follows:

Playback starts automatically with the first demo song (there are 33 demo songs in all). At the end of the first song, the FR-3x starts playing songs "2", "3" etc.

You can also directly jump to the song you're interested in:

1. Use treble registers [1] and [2] (VALUE

◀▶) to select the demo song you want to listen to.

(4) Use the [VOL] knob to change the volume if it is too loud or too soft.

All demo songs are copyright ©2010 by Roland Europe S.p.a. Public performance or recording of these songs is prohibited.

1. Press [ORGAN/ORCHESTRA] again to leave demo song mode.

7. Using Sets

The FR-3x is a "virtual" accordion. It recreates the sounds of various accordion instruments and can even generate orchestral sounds (like trumpet, flute, etc.), organ and drum sounds.

Recalling a Set is similar to switching to a different accordion.

The FR-3x contains 25 Sets divided over 10 families. 9 Set families have been programmed at the factory ("CLASSIC"\~ "ETHNIC", see the legends above the treble registers), while one family ("USER") can be used to load User Sets from an optional USB memory.

Each Set family may comprise several Sets (see "Factory Sets" on p. 69). Recalling a Set immediately changes the settings of the sections presented on p. 26 and configures the treble and bass registers.

Selecting Sets

To select the desired Set, proceed as follows:

1. Press the [SET] register.

The number of the selected Set flashes in the display. The first digit from the left refers to the Set family, the second to the Set memory within that family. If, after pressing [SET] once, you do not press a treble register, the display returns to the main page after a while.

In that case, press [SET] again and proceed with step 2.

NOTE

If you hold down [SET] for more than 2 seconds without pressing another register, the FR-3x switches to PARAMETER mode. In that case, press [SET] again to leave that mode, then repeat step 1.

2. Press one of the treble registers [1]\~[0] to select the Set family.

Set selection is handled in the following way:

- If the Set family you select is the same as the one you have been using so far, the FR-3x selects the next Set within that family.

Example: Pressing [1] CLASSIC while the display shows "11" selects Set memory "12" (still within the "CLASSIC" family).

To go from Set "11" to Set "14", you therefore need to press register [1] three times after pressing [SET].

- If you select a different Set family, the FR-3x switches to the newly selected Set family and recalls the last memory you selected within that family.

NOTE

For the User Set memories, the display shows a "U" and the number of the selected User Set (1\~4). There are four User Sets.

NOTE

See the table on page 69 for the factory-programmed Sets.

NOTE

While the USER PRG indicator below the display lights, it is impossible to select Sets.

8. Selecting and playing sounds

Treble section

The Treble section can be played using the 37-key "piano" keyboard or the 92 treble buttons.

The sound it produces is determined by the register [1]\~[0] you pressed last. This section can be used to play accordion, orchestral and organ sounds.

Top-down view of a black electronic device with a white piano keyboard and a grid of buttons (no visible text or symbols)

Selecting sounds for the right hand

This section explains how to select accordion, orchestral and organ sounds for the treble section (right hand). On p. 27, you will learn how to combine accordion notes with an orchestral or organ sound.

Sounds are selected using treble registers [1]\~[0]. To select an orchestral or organ sound, you first need to press [ORGAN/ORCHESTRA], and then a treble register.

1. Switch on the FR-3x.

See "Switching the power on and off" on p. 21.

1. If you wish to select a treble accordion register, skip to step 5.

NOTE

After switching on the FR-3x, the treble registers select accordion sounds.

1. Press the [ORGAN/ORCHESTRA] register once if you wish to select an orchestral sound, or twice to select an organ sound.

(If you press [ORGAN/ORCHESTRA] a third time, the treble registers once again allow you to select accordion sounds.)

The number of the last sound you selected for that group (orchestra or organ) is indicated by the right-most digit in the display.

In some cases, the display shows a dot to the right of the treble register number. Here is what that means:

Dot status	Explanation
Dark	You are using an accordion sound.
Lit	You are using an orchestral sound.
Flashes	You are using an organ sound.

1. Play a few notes to check whether you have selected the correct sound family (accordion, orchestral or organ).

Do not forget to move the bellows in order to hear the notes you are playing.

If you did not select the correct sound family, return to step 3.

1. Press one of the 10 treble registers ([1]\~[0]) to select the desired sound.

The rightmost digit in the display changes and indicates the number of the sound you have just selected.

NOTE

See "Adjusting the volume and balance" on p. 22 if you need to change the volume or balance setting, and "Adjusting the chorus and reverb effects" on p. 22 for the effects settings.

Additional information about the accordion section

The FR-3x allows you to select among 14 accordion sounds (even though there are only 10 treble registers). Four treble registers are assigned to two different sounds. These are shown in black in the illustration below. The little square in the reed configuration also alerts you to the fact that the registers in question (2, 5, 6 and 9) allow you to select two sounds:

Registers [2], [5], [6] and [9] allow you to select two different accordion sounds.

Pressing register [2], [5], [6] or [9] once selects the "A" sound. Pressing it again selects the "b" sound. For these registers, the display briefly shows both the register number and an "A" or a "b".

The following accordion sounds are available:

Treble registers
1	[Baun]	Bassoon	6a	Tremolo
2a	[Baun]	Bandon	6b	Musette
2b	[Caun]	Cello	7	Violin
3	[Baun]	Harmon	8	Oboe
4	[Caun]	Organ	9a	Clarinet
5a	[vaun]	Accord	9b	Celeste
5b	[Gaun]	Master	0	Piccolo

Additional information about the orchestral section

The [ORGAN/ORCHESTRA] register allows you to use treble registers [1]\~[0] to select from among 10 different orchestral sounds:

ORCHESTRA sounds
1	Trombone	6	Harmonica
2	Trumpet	7	Violin
3	T Sax	8	Flute
4	A Sax	9	El. Piano
5	Clarinet	0	Strings

Additional information about the organ sounds and the Rotary effect (organ section)

The FR-3x allows you to recall 10 organ sounds with treble registers [1]\~[0].

Pressing the register of the selected organ sound again allows you to switch between the fast and slow speeds of the Rotary effect.

The FR-3x contains the following organ sounds:

Organ sounds
1	Perc Jazz	6	Popular Organ
2	Jazz Ballad	7	Light Jazz
3	Distort Organ	8	Bossa
4	Full Organ	9	Latin
5	Overdr Organ	0	Light Latin

Switching off the treble section

1. To switch off the treble section, press and hold any single register ([1]\~[0]) for a while.

The section in question must be assigned to the registers. See above for how to decide which section can be muted.

1. To switch the treble section back on, briefly press any of its registers.

NOTE

This only switches off the section that is currently selected. Remember that the treble section can control both an accordion and an orchestral or organ sound. While in Orchestra mode, you thus only switch off (or activate) the orchestral/organ section. And while in accordion mode, you only switch off the treble accordion section.

NOTE

Even if you switch off the treble section, it still transmits MIDI messages.

Using the Sordina

The [SORDINA] switch allows you to attenuate the sound (make it softer) by selecting "MELLOW".

On an acoustic accordion, this closes the wooden resonance chamber inside the instrument.

The FR-3x simulates this effect electronically.

NOTE

The Sordina only applies to the treble section.

Selecting the ORGAN/ORCHESTRA mode

The orchestral or organ sound assigned to the treble section can be played in isolation or together with the treble accordion sound. There are several combinations: SOLO, DUAL, HIGH and LOW.

1. Select an orchestral or organ sound.

See "Selecting sounds for the right hand" on p. 26.

1. Hold down the [ORGAN/ORCHESTRA] register and press treble register [7] to select "LOW/HIGH" or register [8] for "DUAL/SOLO".

NOTE

If you hold down [ORGAN/ORCHESTRA] for more than 2 seconds without pressing another register, the FR-3x switches to demo song mode. In that case, press [ORGAN/ORCHESTRA] again to leave demo song mode, then repeat step 2.

■ DUAL/SOLO mode (register [8])

Pressing register [8] while holding down [ORGAN/ORCHESTRA] allows you to alternate between DUAL and SOLO modes. (After switching on the FR-3x, pressing this register once selects SOLO mode.)

SOLO mode

DUAL mode

In SOLO mode, the treble keyboard only plays the selected accordion, orchestral or organ sound. DUAL mode means that the orchestral or organ sound is added to the treble accordion sound.

■ LOW/HIGH mode (register [7])

Pressing register [7] while holding down [ORGAN/ORCHESTRA] alternates between HIGH and LOW modes.

HIGH mode

LOW mode

If you select HIGH mode and play just one note, you hear the orchestral or organ sound. If you keep holding that key while pressing another (lower) key to its left, the lower notes are played by the treble accordion sound. This is perfect for situations where you need to play chords and a solo line using different sounds. Something like this:

Played by the orchestral/organ sound

Played by the accordion

LOW mode is the opposite of HIGH: notes above the one whose key you are holding down are sounded by the accordion register. This can be used in situations where the melody (or counter-melody) lies above the notes you wish to hold.

Played by the accordion

Played by the orchestral/organ sound

NOTE

You can change the volume level of the orchestral or organ sound to create the desired mix between the treble accordion and the organ or orchestral sound. See "Orchestra Level" on p. 46 or "Organ Level" on p. 46.

Transposing the treble section in octave steps

The FR-3x's treble keyboard has a maximum range of 3 octaves. There may be times, however, when you need to play higher or lower notes than the piano or button keyboard allows. Unlike an acoustic accordion, the FR-3x allows you to transpose the piano or button keyboard one octave up or down.

An additional advantage of this functionality is that you can play the selected orchestral or organ sound in a different octave in DUAL mode (see "Selecting the ORGAN/ORCHESTRA mode" on p. 27).

1. To transpose one octave down, hold down the [SET] register and press treble register [1] (OCT-).

NOTE

If you hold down [SET] for more than 2 seconds without pressing another register, the FR-3x switches to PARAMETER mode. In that case, press [SET] again to leave that mode, then repeat step 1.

2. To transpose one octave up, hold down the [SET] register and press treble register [2] (OCT+).

The display briefly confirms your setting:

One octave up

One octave down

No octave transposition

NOTE

The transposition function does not apply to Bass-to-Treble mode (see below).

Playing the bass part with your right hand (Bass-to-Treble)

The FR-3x provides a mode in which it can be used like a bassoon accordion. In this mode, the bass part is played with the right hand. The bass and chord buttons are inactive (a real bassoon accordion doesn't have bass/chord buttons and can only be played with one hand).

1. Press and hold the [SET] register and press treble register [3] ("BS TO TREB").

NOTE

If you hold down [SET] for more than 2 seconds without pressing another register, the FR-3x switches to PARAMETER mode. In that case, press [SET] again to leave that mode, then repeat step 1.

2. Use the treble registers [1]\~[0] to select the desired bass-to-treble sound.

There are seven accordion sounds that can be selected using treble registers [1]\~[5] (press register [1] or [2] a second time for sounds 6 and 7). The numbers in the table below refer to the treble registers you need to press.

Bass-to-Treble accordion sounds
Treble register	Accordion sound
Press [1] once	Low
Press [2] once	High
Press [3]	Low+High
Press [4]	Low+HighLow
Press [5]	LowLow+High
Press [1] again	HighLow+High
Press [2] again	Low High

In addition, there are seven orchestral sounds that can be selected using treble registers [6]\~[0] (press register [6] or [7] a second time for orchestral sounds 6 and 7):

Bass-to-Treble orchestral sounds

Treble register	Orchestral sound
Press [6] once	Acoustic
Press [7] once	Bowed
Press [8]	Fingered
Press [9]	Fretless
Press [0]	Picked
Press [6] again	Tuba
Press [7] again	Tuba Mix

3. Start playing the bass part with your right hand.

Bass and chord section

The Bass section can be played via the "Stradella" buttons.

Front view of a black electronic device with multiple ports and a grid pattern (no visible text or symbols)

The buttons in this section allow you to play both bass notes and chords. The "real" bass notes are assigned to the two highlighted rows. The remaining buttons are used to play chords.

The FR-3x is supplied with several reference caps (concave and with lines) to help you locate the bass and chord buttons without looking at them. At the factory, three caps are installed on the black buttons in the following illustration. Feel free to remove them and to slide them over other buttons if that feels more comfortable.

(*) This can be changed to 3 bass and 3 chord rows. See “Bass & Chord Mode” on p. 53.

Here is what the caps look like:

The overall sound the bass and chord section produces is determined by the register you pressed last. The bass and chord section can be used to play accordion or orchestral sounds.

Selecting accordion sounds for the left hand

Here is how to select an accordion sound for the bass and chord section (left hand). Accordion sounds for the left hand can be selected using the 7 registers shown below.

NOTE

The numbers shown in the illustrations above and below do not appear on the registers themselves. They have been added for your reference.

1. Switch on the FR-3x.

See "Switching the power on and off" on p. 21.

NOTE

After switching on the FR-3x, the bass registers select accordion sounds.

2. Press one of the 7 bass registers (1\~7) to select the desired sound.

The display shows the number of the selected sound in the "BASS" and "CHORD/FREE BS" columns.

This choice always applies to both the bass and the chord rows. The following accordion sounds can be selected for the bass and chord buttons:

1	2'	5	8'/4'/2'
2	4'	6	16'/8'/8-4'
3	8-4'	7	16'/2'
4	16'/8'/8-4'/4'/2'

Selecting orchestral sounds for the left hand

Here is how to select an orchestral sound for the left hand. While the bass and chord accordion sections always use the same accordion sound, orchestral sounds can be assigned to only the bass buttons, only the chord buttons, or both (in which case you can select different orchestral sounds for the bass and chord rows).

1. Switch on the FR-3x.

See "Switching the power on and off" on p. 21.

2. Do one of the following:

- To select an orchestral sound for the bass rows, simultaneously press the three bass registers labeled "ORCH BASS".

NOTE

If you prefer to assign an accordion sound to the bass rows (bass section) at this stage, again simultaneously press the three bass registers labeled "ORCH BASS".

- To select an orchestral sound for the chord rows, simultaneously press the three bass registers labeled "ORCH CHORD".

The last sound you selected for the section in question is recalled and its number is displayed in the "BASS" (left) or "CHORD/FREE BS" (middle) column of the display.

If you select an orchestral sound, the digit in question is displayed with a dot to its right:

The bass and chord buttons use an accordion sound (no dots).

The bass buttons use an accordion sound (no dot). The chord buttons use an orchestral sound (dot).

NOTE

If you prefer to assign an accordion sound to the chord rows (chord section) at this stage, again simultaneously press the three bass registers labeled "ORCH CHORD".

3. Press one of the 7 bass registers (1\~7) to select the desired sound.

The display shows the number of the selected orchestral sound in the "BASS" or "CHORD/FREE BS" column (see the examples above).

The following sounds can be selected for the bass or chord buttons:

ORCH BASS sounds
1	Acoustic	5	Picked
2*	Bowed	6*	Tuba
3	Fingered	7	Tuba Mix
4	Fretless
ORCH CHORD sounds
1*	Trombone	5*	Jazz Doos
2*	Alto Sax	6	Ac. Guitar
3*	Clarinet	7	Ac. Piano
4*	Jazz Organ

NOTE

The dynamics of sounds marked with an asterisk (*) can only be controlled by bellows movements. Those sounds are not velocity sensitive. For the other sounds, see also "Orchestra Bass/Chord Touch" on p. 48.

NOTE

You can change the volume level of the orchestral bass or chord sound if it is too loud or too soft with respect to the other available sections. See “Orchestra Bass Level, Orchestra Chord Level, Orchestra Free Bass Level” on p. 46.

Switching off the Bass and/or Chord section

1. To switch off a left-hand section you do not want to hear, press and hold any of the seven bass registers for a while.

The section in question must be assigned to the associated registers. See the previous pages for how to decide which section can be muted.

NOTE

Even if you switch off the Bass or Chord section, it still transmits MIDI messages.

2. To switch a muted section back on, briefly press any of the associated registers.

Playing drum/percussion sounds

The FR-3x allows you to play drum and percussion sounds with bass and chord buttons and to trigger the bass and chord sections simultaneously.

NOTE

This function is not available in Free Bass or Orchestra Free Bass mode.

1. To add drum/percussion sounds to the bass and chord section (or to remove them again), hold down the [ORGAN/ORCHESTRA] register and press treble register [6] (DRUMS).

The display shows the number of the last Drum Set you selected ("d-x", where "x" represents a number) or "doF" if you switched off the drum/percussion function.

NOTE

If you hold down [ORGAN/ORCHESTRA] for more than 2 seconds without pressing another register, the FR-3x switches to demo song mode. In that case, press [ORGAN/ORCHESTRA] again to leave demo song mode, then continue with step 1.

2. Start playing in the left-hand section to hear the drum and percussion sounds.

Those sounds are added to the accordion or orchestral notes you play.

NOTE

See page 45 for how to select another Drum Set.

NOTE

The drum/percussion sounds also remain active while an orchestral sound is selected in Bass-to-Treble mode.

Playing only bass notes with your left hand (Free Bass mode)

In Free Bass mode, all buttons of the left-hand keyboard—including the chord buttons—play bass notes.

1. To select (or leave) Free Bass mode, simultaneously press the three bass registers labeled "FREE BASS".

NOTE

The numbers shown in the illustration above do not appear on the registers themselves. They have been added for your reference.

The digit in the middle starts flashing to indicate that Free Bass mode has been activated:

If it does not flash, you are not/no longer in Free Bass mode.

NOTE

See page 52 for the assignment of the bass buttons to the available Free Bass notes.

2. Use the Bass registers to select another registration (if necessary).

Free Bass registers
1	Low	5	Low Low + High
2	High	6	High Low + High
3	Low + High	7	Low High
4	Low + High Low

3. Press the three "FREE BASS" registers again to return to normal Bass mode.

Selecting orchestral sounds in Free Bass mode

1. To select Free Bass mode, simultaneously press the three bass registers labeled "FREE BASS".
2. Simultaneously press the three registers labeled "ORCH FREE BS".

The flashing digit in the middle now shows the number of the last orchestral Free Bass sound you selected, along with a dot.

The dot means that you are in Orchestral Free Bass mode. The number itself flashes to signal that the Free Bass section is active.

3. Press one of the seven bass registers to select the desired sound.

In this mode, the following sounds are available:

ORCH FREE BS sounds
1*	Trombone	5*	Perc Organ
2*	Clarinet	6	Ac Guitar
3*	Oboe	7	Ac Piano
4*	Flute*

The chord rows of the bass & chord buttons now play the selected orchestral sound. (The bass buttons, however, still play the selected accordion sound.)

NOTE

The dynamics of sounds marked with an asterisk (*) can only be controlled by bellows movements. Those sounds are not velocity sensitive. For the other sounds, see also "Orchestra Bass/Chord Touch" on p. 48.

4. To leave this mode, simultaneously press the three "FREE BASS" registers.

NOTE

You can change the volume level of the orchestral Free Bass sound if it is too loud or too soft with respect to the other available sections. See "Orchestra Bass Level, Orchestra Chord Level, Orchestra Free Bass Level" on p. 46.

9. Using the FR-3x's audio player

The FR-3x can play back audio files in the mp3 and WAV formats directly from a USB memory you connect to its USB port. See "About audio files" on p. 10 for a description of the supported file types.

Copying audio files to a USB memory

Before being able to play back audio (mp3 or WAV) on the FR-3x, you must first copy them from your computer's hard disk to a USB memory that can be connected to the FR-3x.

Be aware that the FR-3x can only play back files located in the USB memory's root directory (i.e. on the same level as any folders the USB memory may contain). Never copy audio files to a folder if you wish to be able to play them back on the FR-3x.

Tip for naming audio files

The FR-3x only displays the first three characters of the audio file names. If the USB memory contains several files whose first three characters are the same, we recommend renaming those files on your computer by adding a number to their names.

Here is an example: if the USB memory contains a file named "Amazing Grace.wav" and another one called "Amazing.mp3", consider renaming them as follows to be able to distinguish between them:

1Amazing Grace.wav

2Amazing.mp3

Connecting an optional USB memory

1. Put the FR-3x down and turn it around.
2. Unclip the cushion located between the treble keyboard and the bellows to see the FR-3x's USB port.

The FR-3x's USB port is located next to the battery compartment.

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

1. Press the two sides of the USB compartment cover (where it says "PRESS TO OPEN") and pull the cover open.

The compartment opens, revealing the location where the USB memory needs to be inserted.

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

1. Insert an optional USB memory into the port.

The USB memory can only be connected in one direction. Insert the USB memory without applying excessive force.

NOTE

Use a USB memory sold by Roland. We cannot guarantee operation if any other USB memory is used.

1. Close the USB compartment cover.

Playing back audio files

1. Insert an optional USB memory into the FR-3x's USB port (see left).

The FR-3x automatically loads the first audio file in alphabetical order that it detects in the USB memory's root folder.

1. Hold down the [ORGAN/ORCHESTRA] register and press register [0] to start playback.

Playback of the selected audio file starts and the display shows the first three characters of the audio file's name as well as three dots that flash from left to right:

The "scrolling" dots (alternate flashing from left to right) mean that playback is running.

(In the example above, the display shows the first three characters of a file called "Amazing Grace.wav".)

The FR-3x only displays the first three characters of the audio file names. See "Tip for naming audio files" on p. 34 for how to ensure that you can tell the files apart.

See page 70 for how the FR-3x displays the characters of the selected file name.

NOTE

If you hold down [ORGAN/ORCHESTRA] for more than 2 seconds without pressing another register, the FR-3x switches to demo song mode. In that case, press [ORGAN/ORCHESTRA] again to leave demo song mode, then repeat step 2.

1. If you are using the audio file as your accompaniment, start playing on the FR-3x as you normally would.
2. To pause playback of the audio file, hold down the [ORGAN/ORCHESTRA] register and press register [0].

Playback of the selected audio file stops and the three dots flash simultaneously:

If playback is stopped, the three dots flash simultaneously.

1. To return to the beginning of the current song, hold down the [ORGAN/ORCHESTRA] register and press register [9].

NOTE

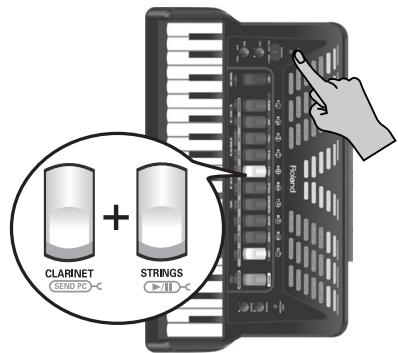

Press registers [9] (◀) and [0] (▶/■) simultaneously to view the name of the currently selected audio file.

Selecting audio files

As stated above, the FR-3x automatically selects the first audio file it detects on the USB memory you insert. To select a different file, proceed as follows:

1. Press and hold the [SET] register to enter PARAMETER mode.

The display shows the name of the last parameter you selected.

1. If necessary, use treble register [3] or [4] (PARAM LIST) to select the following parameter:

NOTE

Pressing registers [3] and [4] (PARAM LIST) simultaneously will select the first parameter, "AUd".

1. Use register [1] (◀ VALUE) or [2] (VALUE ▶) to select the desired audio file.

(In the example above, the display shows the first three characters of a file called "Scarborough.mp3".) The display shows the first three characters of the file name you selected. If you select another audio file while playback of the previously selected file is still running, the audio player stops. See page 70 for how the FR-3x displays the characters of the selected file name.

To check whether you have selected the correct audio file, start playback ([ORGAN/ORCHESTRA] + [0]).

NOTE

The audio files are displayed based on the following sorting order: numbers, capital letters, small letters.

NOTE

You can only select audio files in the USB memory's root directory. Audio files inside folders are not detected.

1. Press the [SET] register to leave the FR-3x's PARAMETER mode.

Adjusting the playback level

1. Press and hold the [SET] register to enter PARAMETER mode.

The display shows the name of the last parameter you selected.

1. Use treble register [3] or [4] (PARAM LIST) to select the following parameter:

NOTE

Pressing registers [3] and [4] (PARAM LIST) simultaneously will select the first parameter, "AUd".

1. Use register [1] (◀ VALUE) or [2] (VALUE ▶) to set the playback level.

The setting range is: OFF, 1\~10. If you select "OFF", the audio file will be inaudible.

1. Press the [SET] register to leave the FR-3x's PARAMETER mode.

10. Highlighting some practical functions

This chapter discusses functions like the metronome, the transposition function, and Musette detuning.

Using the metronome

Your FR-3x contains a metronome that may come in handy when you are practising new pieces, or during your accordion classes.

1. To start or stop the metronome, hold down the [ORGAN/ORCHESTRA] register and press register [4] (METRONOME).

The display now briefly shows "Str" (start) or "StP" (stop) to indicate the status of the metronome.

NOTE

See “Metronome Time Sign” on p. 47 and “Metronome Tempo” on p. 46 as well as “Metronome Level” on p. 47 for how to set the metronome's time signature, tempo and level.

NOTE

If you hold down [ORGAN/ORCHESTRA] for more than 2 seconds without pressing another register, the FR-3x switches to demo song mode. In that case, press [ORGAN/ORCHESTRA] again to leave demo song mode, then continue with step 1.

NOTE

If the metronome does not start counting, check the "Metronome Function" setting on p. 53. It must be set to "1".

Changing the key of the keyboard (transpose)

The Transpose function lets you play a song in a different key. If you're accompanying a singer, you can use the Transpose function to shift the pitch to a key that's comfortable for the singer while you continue playing in the same familiar key (fingering).

The transposition interval can be set in semitones. See "Transpose" on p. 45 for how to set the transposition interval.

Musette Detune

An accordion's 8' treble register may consist of 2 or even 3 reeds that are usually tuned apart to provide a richer sound (accordionists call it the "musette effect"). One reed is tuned slightly above, the other slightly below the correct pitch (and the third, if available, is tuned "properly").

The FR-3x allows you to choose from among 15 different detune settings. These are called "1" (Dry), "2" (Classic), "3" (F-Folk), "4" (American L), "5" (American_H), "6" (North Eur), "7" (German L), "8" (D-Folk L), "9" (Italian L), "10" (German H), "11" (Alpine), "12" (Italian H), "13" (D-Folk H), "14" (French), "15" (Scottish).

See "Musette Detune" on p. 45 for how to select the desired Musette detuning.

NOTE

"Musette Detune" only affects registers that use the 8' reed.

Switching off the internal speakers (Speaker Mode)

When the FR-3x is connected to an external amplification system, it may be convenient to switch off its internal speakers. Doing so has the additional benefit that your batteries will last longer.

See "Speaker Mode" on p. 55 for how to switch off the speakers.

The SPEAKER OFF indicator below the display lights when the speakers are off.

11. Saving your settings (User Program)

Your FR-3x contains 10 User Program memories where you can store the settings listed below. Working with those memories has the advantage that you can recall frequently used settings at the press of a button. The User Program settings also include the "address" of the last Set you selected.

The following settings are saved to the User Programs:

Set	Number of the current Set
Treble section	Register
	Octave setting
	Bass-to-Treble mode
Orchestra	Register
	Octave setting
	Level
Organ	Register
	Octave setting
	Level
Bass & Chord section	Register
Orchestral Bass	On/Off
	Register
	Level
Orchestral Chord	On/Off
	Register
	Level
Orchestral Free Bass	On/Off
	Register
	Level
Drum mode	On/Off
	Drum Set number
	Level
Free Bass	On/Off
	Register

Saving the current settings

Here is how to save the current settings.

1. Press and hold the [USER PROGRAM] button to select write mode.

The display now shows a flashing "UP-" message.

The USER PRG indicator below the display lights to indicate that the FR-3x is now in User Program mode.

NOTE

If you made a mistake and do not want to save your settings, press the [USER PROGRAM] button to leave this function.

2. Press the treble register ([1]\~[0]) that is assigned to the User Program memory where you want to save your settings.

Illustration of a hand interacting with an electronic keyboard (no text or symbols visible)

The "-" to the right of "UP" changes to the number of the selected User Program. This means that the FR-3x is now using the settings you have just saved. The display indication stops flashing.

3. Press the [USER PROGRAM] button again to leave this mode.

The USER PRG indicator below the display goes dark to indicate that the FR-3x is no longer in User Program mode. At this point, the FR-3x returns to the settings you were using before selecting User Program mode, and the display once again shows the main page.

Recalling a User Program

Proceed as follows to recall a User Program you saved earlier:

1. Press the [USER PROGRAM] button.

The display now shows a "UP-" message.

Lights

The USER PRG indicator below the display lights to indicate that the FR-3x is now in User Program mode.

2. Press the treble register ([1]\~[0]) that is assigned to the User Program whose settings you want to use.

Illustration of a hand pointing at an electronic keyboard interface (no text or symbols visible)

The "-" to the right of "UP" changes to the number of the selected User Program.

3. Start playing with the new settings.

If necessary, you can select a different User Program (see step 2 above).

4. Press the [USER PROGRAM] button again to leave this mode.

The USER PRG indicator below the display goes dark to indicate that the FR-3x is no longer in User Program mode. At this point, the FR-3x returns to the settings you were using before selecting User Program mode, and the display once again shows the main page.

NOTE

While the USER PROGRAM indicator below the display lights, it is impossible to select Sets.

Editing a User Program

You can also edit existing User Programs.

1. Recall the User Program you want to edit. See "Recalling a User Program".

2. Press and hold the [USER PROGRAM] button to select User Program Edit mode.

The USER PRG indicator flashes. The display shows the main page where the numbers of the selected registers are displayed.

3. Change the settings you want to correct.

4. Press and hold the [USER PROGRAM] button to enter write mode.

The display now shows a flashing "UPx" message (the "x" refers to the User Program you have been editing thus far).

5. Do one of the following:

• To replace (overwrite) the settings of the User Program you have been editing, press the treble register corresponding to its number.
• To save the new version to a different User Program memory, press the assigned treble register instead.

Illustration of a hand pointing at the back panel of an electronic keyboard (no text or symbols visible)

Your settings are saved to the selected User Program memory.

6. Press the [USER PROGRAM] button again to leave this mode.

The USER PRG indicator below the display goes dark to indicate that the FR-3x is no longer in User Program mode. At this point, the FR-3x returns to the settings you were using before selecting User Program mode, and the display once again shows the main page.

NOTE

While the USER PRG indicator below the display flashes, you can select another Set.

12. Data management via the FR-3x's USB port

The FR-3x allows you to save and import User Program settings to/from an optional USB memory connected to its USB port. You can also import Sets and new sounds copied to your USB memory using your PC. The Sets and sounds are stored internally.

Saving User Program memories to USB memory (optional)

Here is how to archive the contents of the FR-3x's 10 internal User Program memories (file extension ".UP3") to an optional USB memory.

NOTE

Be sure to connect your USB memory before proceeding.

1. Connect an optional USB memory to the FR-3x.

See page 34.

1. Press and hold down the [SET] register.

The display shows the name of the last parameter you selected.

1. Use treble register [3] or [4] (PARAM LIST) to select "SAU" (Save).

1. Use treble register [1] or [2] (VALUE) to see the number of the file where the data will be saved.

The display shows the name of the first empty file on the USB memory.

NOTE

The FR-3x uses numbers as file names to save your User Programs to USB memory. It cannot display the file numbers that already are in the USB memory.

1. Press treble register [7] (ENTER).

The display shows "Urt" (Write), then "don" (Done), after which the FR-3x returns to the main page.

Loading User Program memories from USB memory (optional)

The function discussed here allows you to load the settings of 10 User Programs from a USB memory to the FR-3x's internal memory.

NOTE

Be sure to connect your USB memory before proceeding.

1. Connect an optional USB memory to the FR-3x.

See page 34.

1. Press and hold down the [SET] register.

The display shows the name of the last parameter you selected.

1. Use treble register [3] or [4] (PARAM LIST) to select "UPG" (User Program).

1. Use treble registers [1] and [2] (VALUE) to select the file number of the User Programs you want to load.

The display shows "---" instead of a number.

1. Press treble register [7] (ENTER) to load the selected User Programs.

The display shows "lod" (Load), then "don" (Done), after which the FR-3x returns to the main page.

Loading User Set memories from USB memory (optional)

The FR-3x allows you to copy individual Sets from a USB memory to the four internal "USER" Set locations. The Set files (with the extension ".ST3") must first be copied to a USB memory's root directory before loading them into the FR-3x's "USER" area.

NOTE

Be sure to connect your USB memory before proceeding. See "Connecting an optional USB memory" on p. 34.

1. Press and hold down the [SET] register.

The display shows the name of the last parameter you selected.

1. Use treble register [3] or [4] (PARAM LIST) to select "USt" (User Set).

1. Use treble registers [1] and [2] (VALUE) to select the file number of the Set you want to load.

If the USB memory doesn't contain any Set files, the display will show "---" instead of a number.

1. Press treble register [7] (ENTER) to confirm your selection.

The FR-3x suggests "USER" memory "1" as target for the Set file.

1. Use treble registers [1] and [2] (VALUE) to select the desired target memory (1\~4).

2. Press treble register [7] (ENTER) to load the selected Set.

The display shows "lod" (Load), then "don" (Done) to indicate that the file was loaded successfully. Next, the FR-3x returns to the main page.

NOTE

See "Selecting Sets" on p. 25 for how to recall the settings of the desired User Set.

Loading new sounds from a USB memory (optional)

The FR-3x allows you to add new sounds to the internal sounds. The new sounds (files with the ".BI3" extension) must be copied to a USB memory's root directory, after which you can load them with the FR-3x. "Loading" means that they will be copied to a permanent internal memory area. There are two such memory areas ("1" and "2").

NOTE

Be sure to connect your USB memory before proceeding. See "Connecting an optional USB memory" on p. 34.

1. Press and hold down the [SET] register.

The display shows the name of the last parameter you selected.

1. Use treble register [3] or [4] (PARAM LIST) to select "Snd" (Sound).

1. Use treble registers [1] and [2] (VALUE) to select the number of the sound file you want to load from the connected USB memory.

If the USB memory doesn't contain any sound files, the display will show "---" instead of a number.

1. Press treble register [7] (ENTER) to confirm your selection.

The FR-3x suggests memory area "1" as target for the selected file.

1. Use treble registers [1] and [2] (VALUE) to select the desired target memory area (1 or 2).

2. Press treble register [7] (ENTER) to load the selected sound set.

The display shows "lod" (Load) to indicate that the data are being loaded (this may take 1.5 minutes). Next, the "don" (Done) message appears to signal that the file was loaded successfully.

NOTE

The new sounds can only be used if you also load the associated User Sets and select one of those.

Importing the settings of a previous FR-3 model

This function allows you to load MIDI bulk data of an older FR-3 or FR-3b V-Accordion model from a USB memory's root directory.

CAREFUL! The settings loaded with the "OLd" function will overwrite all of the FR-3x's internal settings.

Preparing the file

Here is what you need to do with the FR-3:

NOTE

If you already have a backup file of the FR-3's settings you are interested in, you only need to make sure that the file with those settings was saved as a Standard MIDI File and that its name and extension conform to the requirements (three digits + ".mid" extension).

• Connect the legacy FR-3 to your computer or your computer's MIDI interface.
• Use a sequencer program and the FR-3's Bulk Dump function ("dMP") to transmit its settings to the computer.
  See the FR-3's owners manual and the documentation of your sequencer program for details.
• Save the resulting sequence as a Standard MIDI File (with the ".mid" extension).

NOTE

The file's name may only consist of three digits and the extension ("001.mid", for example).

- Remove the USB memory from your computer and connect it to the FR-3x (see "Connecting an optional USB memory" on p. 34).

Loading your archived settings into the FR-3x

1. Press and hold down the [SET] register.

The display shows the name of the last parameter you selected.

2. Use treble register [3] or [4] (PARAM LIST) to select "OLd" (Old Data Load).

3. Use treble registers [1] and [2] (VALUE) to select the number of the file you want to load from the connected USB memory.

If the USB memory doesn't contain any archive files, the display will show "----" instead of a number.

4. Press treble register [7] (ENTER) to load the selected archive file.

The display shows "lod" (Load), then "don" (Done) to indicate that the file was loaded successfully. Next, the FR-3x returns to the main page.

13. Other settings

The FR-3x has a mode that allows you to make various settings and perform certain operations. Below please find a list of the parameters you can set in this mode.

Display indication	Full name	Setting range	Default	See page
AUD	Audio file name	(file name, 3 characters)	-	p. 35 *3
RUL	Audio Level	OFF, 1~10	8	p. 36
dEt	Musette Detune	OFF, 0~15	(variable)	p. 45
tUn	Master Tune	15.7~40.0~64.3	40.0	p. 45 *1
trP	Transpose	-6~0~5	0	p. 45 *1
drS	Drum Set	1~8	1	p. 45
drL	Drum Level	Low, Med, Hi, -40~Std~+40	Std	p. 45
OL	Orchestra Level	-40~Std~+40	Std	p. 46
OGL	Organ Level	-40~Std~+40	Std	p. 46
Obl	Orchestra Bass Level	-40~Std~+40	Std	p. 46
OCL	Orchestra Chord Level	-40~Std~+40	Std	p. 46
OFL	Orchestra Free Bass Level	-40~Std~+40	Std	p. 46
trn	Treble Valve Noise	Off, -40~Std~+40	Std	p. 46
bbn	Bass Button Noise	Off, -40~Std~+40	Std	p. 46
brG	Bass Reed Growl	Off, -40~Std~+40	Std	p. 46
Fbn	Free Bass Button Noise	Off, -40~Std~+40	Std	p. 46
FrG	Free Bass Reed Growl	Off, -40~Std~+40	Std	p. 46
nP	Metronome Tempo	20~250	120	p. 46
nS	Metronome Time Sign	1~8	1	p. 47
nL	Metronome Level	OFF, 1~127	80	p. 47
rEU	Reverb Type	1~8	6	p. 47
CHR	Chorus Type	1~8	7	p. 47
Ot	Orchestra Touch	1~10	6	p. 47
Obt	Orchestra Bass/Chord Touch	1~10	8	p. 48
bLC	Bellows Curve	1~8	6	p. 48
STE	Stereo Width	-63~-1, nAt, FUL	-15	p. 48
trN	Treble Mode	1~6	1	p. 48 *2
Fbn	Free Bass Mode	1~5	1	p. 51
bCN	Bass & Chord Mode	1~6	1	p. 53
rFn	Metronome Function	1, 2	1	p. 53
FnS	Function Switch	Off, On	Off	p. 53
APO	Auto Power Off	Off, 1~3	1	p. 55
SP	Speaker Mode	Off, On	On	p. 55 *1
OLA	Output Level Attenuation	-12, -6, Off	Off	p. 55
UST	User Set load	000~999	-	p. 41 *3
UPG	User Program load	000~999	-	p. 40 *3
Snd	Sound Set load	000~999	-	p. 41 *3
OLD	FR-3 compatibility	000~999	-	p. 42 *3
SAU	User Program save	000~999	-	p. 41 *3

The "trn", "FbN" and "bCN" parameters are not reset when you load the factory defaults.
*1 Reset when you switch off the FR-3x *2 Only on the FR-3x button type
*3 These are functions.

Important remark about saving your settings

The FR-3x's internal memory remembers your settings while the FR-3x is switched on. While editing, there is no absolute need to save your settings.

Be aware, however, that all changes are lost when the FR-3x is switched off. This includes situations where the FR-3x is switched off by the "Auto Power Off" function.

Remember to save all settings as soon as you are sure that you want to keep them.

Selecting the desired parameter

1. Press and hold the [SET] register to enter PARAMETER mode.

The display shows the name of the last parameter you selected.

2. Use treble register [3] or [4] (PARAM LIST) to select the desired parameter.

(Here, we selected the "Orchestra Chord Level" parameter.)

NOTE

Pressing registers [3] and [4] (PARAM LIST) simultaneously will select the first parameter, "AUd".

3. Use register [1] (◀ VALUE) or [2] (VALUE ▶) to set the desired value.

To return to the last setting you saved for this parameter, press registers [1] and [2] simultaneously.

4. If you want to use this change only temporarily, press the [SET] register to leave this mode.

Otherwise, proceed to save your changes:

Saving your changes

1. Press and hold the [SET] register until the display looks as follows:

2. Press register [2] (VALUE ▶) to save your settings.

The display now looks as follows:

If you don't want to save your changes, press [1] (◄ VALUE). The display briefly shows the "no" message.

3. Press register [7] (ENTER) to confirm your intention.

The settings are stored internally and the display briefly shows the "y.E.S." message (the three dots flash), then "don" when the settings are stored.

Next, the display returns to the master page.

PARAM LIST parameters

Audio file name

This parameter allows you to select the audio file you want to play back. See "Selecting audio files" on p. 35.

Value	(file name, 3 characters)
	Default setting: —

NOTE

You can only select audio files in the USB memory's root directory. Audio files inside folders are not detected.

Audio Level

This parameter allows you to set the volume level of the selected audio file. See "Adjusting the playback level" on p. 36.

Value	OFF, 1~10
	Default setting: 8

Musette Detune

This parameter allows you to choose the detuning preset. See "Musette Detune" on p. 37 for details. You can select one of the following detuning presets:

Value	Setting	Value	Setting
0	No detune	8	D-Folk L
1	Dry	9	Italian L
2	Classic	10	German H
3	F-Folk	11	Alpine
4	American L	12	Italian H
5	American_H	13	D-Folk H
6	North Eur	14	French
7	German L	15	Scottish

If the "OFF" message is displayed, the selected register cannot be detuned.

NOTE

Musette Detune only affects registers that use more than one 8' reed.

Master Tune

This parameter allows you to change the FR-3x's overall tuning, which may be necessary when you play with acoustic instruments that cannot be tuned easily. default is 440.0Hz. The FR-3x's tuning ca in steps of ±50 cents.

Value	15.7~64.3 (415.7~464.3Hz)
	Default setting: 40.0 (440.0Hz)

NOTE

The display only shows the last three digits. The setting "464.3" is therefore displayed as "64.3".

Transpose

This parameter allows you to transpose all sections of the FR-3x. See "Changing the key of the keyboard (transpose)" on p. 37.

Value	-6~0~+5
	Default setting: 0

Drum Set

This parameter allows you to select the type of drum/percussion instruments you wish to play simultaneously with the bass and chord section. See also "PI cussion sounds" on p. 31.

Value	1~8
	Default setting: 1

Set	Type	Set	Type
1	Folk	5	Pop
2	Jazz	6	Orchestra
3	Tarantel	7	TR-909
4	Latin	8	Ethnic

Drum Level

This parameter allows you to set the audio level of the drum sounds.

Value	Low, Med, Hi, -40~Std~+40
	Default setting: Std

Select "Low" (low), "Med" (medium) or "Hi" (high) to use a preset level value. If you select a value, it is added to, or subtracted from, the standard value ("Std").

Orchestra Level

This parameter allows you to set the level of the orchestral sounds. It can be useful to create the desired "mix" (volume balance) with the treble accordion

Value	-40~Std~+40
	Default setting: Std

This is a relative parameter, which means that its value is added to, or subtracted from, the standard value ("Std").

Organ Level

This parameter allows you to set the level of the organ sounds. It can be useful to create the desired "mix" (volume balance) with the treble accordion sound

Value	-40~Std~+40
	Default setting: Std

This is a relative parameter, which means that its value is added to, or subtracted from, the standard value ("Std").

Orchestra Bass Level, Orchestra Chord Level, Orchestra Free Bass Level

These parameters allow you to set the audio level of the Orchestra Bass, Orchestra Chord and Orchestra Free Bass sections.

Value	-40~Std~+40
	Default setting: Std

Treble Valve Noise

You will probably agree that electronic sounds must not only reproduce the basic timbre of an existing sound, but

also the original instrument's behavior and typical "noises" in order to be perceived as authentic. In the case of a guitar that would be the sliding noise of the fingers. An accordion, on the other hand, produces mechanical valve noises that cannot be suppressed on an acoustic instrument.

Use this parameter to specify how prominent the noise produced by the simulated Treble valves should be.

Value	Off, -40~Std~+40
	Default setting: Std

Bass Button Noise

The bass section of almost all accordion instruments can be played via buttons. Such buttons produce a typical noise when pressed.

Use this parameter to specify how prominent that button noise should be.

Value	Off, -40~Std~+40
	Default setting: Std

Bass Reed Growl

This parameter allows you to simulate the typical noise a bass reed makes just before it stops vibrating altogether (a kind of "musical flatulence" if you will). ment of the accordion family produces growl.

Use this parameter to specify how prominent that growl should be.

Value	Off, -40~Std~+40
	Default setting: Std

Free Bass Button Noise

The bass section of almost all accordion instruments can be played via buttons. Such buttons produce a typical noise when pressed.

Use this parameter to specify how prominent that button noise should be in Free Bass mode.

Value	0ff, -40~Std~+40
	Default setting: Std

Free Bass Reed Growl

This parameter allows you to simulate the typical noise a bass reed makes just before it stops vibrating altogether (a kind of "musical flatulence" if you will). ment of the accordion family produces growl.

Use this parameter to specify how prominent that growl should be in Free Bass mode.

Value	Off, -40~Std~+40
	Default setting: Std

Metronome Tempo

This parameter allows you to set the metronome tempo. See page 37 for how to activate the metronome.

Value	20~250
	Default setting: 120

Metronome Time Sign

This parameter allows you to set the metronome's time signature. See page 37 for how to activate the metronome.

Value	1~8
	Default setting: 1

Here is what the displayed values correspond to:

Value	Time signature	Value	Time signature
1	1/4	5	5/4
2	2/4	6	6/4
3	3/4	7	6/8
4	4/4	8	9/8

Metronome Level

This parameter allows you to change the metronome's level when it is too loud or too soft. See page 37 for how to activate the metronome.

Value	Off, 1~127
	Default setting: 80

Reverb Type

This effect creates the impression that you are playing in a concert hall, a church or a room. It adds "depth" to the sound. This is where you can specify what kind of effect the Reverb processor should generate.

Value	1~8
	Default setting: 6

This parameter is a "Macro" function that recalls suitable preset values for all reverb parameters (which have been preset at the factory). The available options are:

Value	Type	Meaning
1	Room1	These reverbs simulate the reverberation of a room. They provide a well-defined spacious reverberation.
2	Room2
3	Room3
4	Hall1	These reverbs simulate the reverberation of a concert hall with a deeper reverberation than the Room Reverbs.
5	Hall2
6	Plate	This effect type simulates a plate reverb (a studio device using a metal plate to simulate natural Reverb).
7	Delay	This is a conventional delay that produces echo effects.

Value	Type	Meaning
8	PanningDly	This is a special delay in which the delayed sounds move left and right. It is effective when you are listening in stereo.

The overall reverb level can be set with the [REVERB] knob on the front panel.

Chorus Type

Chorus broadens the spatial image of the sound, adding richness. You can choose from 8 types of chorus.

This parameter is a "Macro" function that recalls suitable preset values for all Chorus parameters (which have been preset at the factory).

Value	1~8
	Default setting: 7

The available options are:

Value	Type	Meaning
1	Chorus 1	These are conventional Chorus effects that add spaciousness and depth to the sound.
2	Chorus 2
3	Chorus 3
4	Chorus 4
5	FBack Chr	This is a Chorus with a Flanger-like effect and a soft sound.
6	Flanger	This is an effect that sounds somewhat like a jet airplane taking off or landing.
7	Short Delay	This is a delay with a short Delay time.
8	ShortDly FB	This is a short delay with many repeats.

The overall chorus level can be set with the [CHORUS] knob on the front panel.

Orchestra Touch

This parameter allows you to specify the velocity sensitivity of the treble keys/ buttons when they are used to play orchestral percussive sounds.

Value	1~10
	Default setting: 6

The available options are:

Value	Setting	Value	Setting
1	Fixed Low	5	High
2	Fixed Medium	6	Fixed L + Bellows
3	Fixed High	7	Fixed M + Bellows
4	Low	8	Fixed H + Bellows
5	Medium	10	Bellows

■ Fixed Low, Fixed Medium, Fixed High

These three fixed curves use the same velocity value, no matter how hard or lightly you press the keys. "Low" means that a low value is used, "Med" represents a medium value and "High" a high value.

■ Low, Medium, High

The "Low" curve means that even relatively light presses already allow you to play loud notes. The "High" curve represents the most responsive velocity curve. It requires a considerable amount of strength for fortissimo notes, but it also provides more expressive options. The "Med" curve is in the middle.

■ Fixed L+Bellows, Fixed M+Bellows Fixed H+Bellows

These curves mean that the orchestral sound uses fixed velocity values but can also be controlled by bellows movements.

Bellows

"Bellows" means that the Orchestra section's expression is controlled by the bellows movements – not the velocity values generated by the keys.

NOTE

The "Orchestra Touch" parameter is not used when the "Bellows Curve" parameter is set to "Fixed Low", "Medium" or "High".

Orchestra Bass/Chord Touch

This parameter allows you to specify the velocity sensitivity (curve) of the bass and chord buttons, which are used to play orchestral percussive sounds.

Value	1~10
	Default setting: 8

The available options are: Fixed Low, Fixed Medium, Fixed High, Low, Medium, High, Fixed L + Bellows, Fixed M + Bellows, Fixed H+ Bellows, Bellows. See "Orchestra Touch" on p. 47 for details about these settings.

NOTE

The "Orchestra Bass/Chord Touch" parameter is not used when the "Bellows Curve" parameter is set to "Fixed Low", "Medium" or "High".

Bellows Curve

This parameter allows you to specify how the FR-3x should respond to the bellows' movements. Use it to adapt the

FR-3x's expressive potential to your playing style.

Value	1~8
	Default setting: 6

The available options are:

Value	Setting	Value	Setting
1	Fixed Low	5	Light
2	Fixed Medium	6	Standard
3	Fixed High	7	Heavy
4	X Light	8	X Heavy

■ Fixed Low, Fixed Medium, Fixed High

These three fixed curves always use the same expression value, no matter how hard or lightly you push/pull the bellows (no dynamic control). "Low" means that a low value is used, "Med" represents a medium value and "High" a high value.

■ X Light, Light

"Light" means that you do not need to push/pull hard to achieve a meaningful effect. The "X-Light" requires even less strength (the "X" stands for "extra").

Standard

The "Standard" curve refers to a normal response.

■ Heavy and X Heavy

"Heavy" provides a greater variety of nuances.

"X-Heavy" is even more detailed.

Stereo Width

Much care has been taken to provide a natural stereo image for the accordion sounds. If you think the stereo image is too wide for comfort (or if you prefer to controls on your mixing console difference, use this parameter to reduce the stereo

Value	-63~-1, nAt, Ful
	Default setting: -15

"Ful" (full) represents the widest stereo image.

"nAt" (natural) means that the original stereo image is used.

"-63" corresponds to an extremely narrow stereo image.

All other values represent slight (or increasingly drastic) reductions of the stereo width.

Treble Mode (only on the button type)

Like for the accordion instrument itself, there are different varieties of chromatic instruments, with different treble button layouts.

Value	1~6
	Default setting: 1

The available options are:

Value	Setting	Value	Setting
1	C-Griff Europe	4	B-Griff Fin
2	C-Griff 2	5	D-Griff 1
3	B-Griff Bajan	6	D-Griff 2

Since your FR-3x is an electronic musical instrument, changing the note assignments to the buttons is a matter of selecting the preset that best suits your playing style. You'll probably only change this setting once. But it's nice to know that it exists in case you let a fellow accordion player from another country play your FR-3x. Please look at the illustrations on pages 50 and 51 to identify the setting you need. Pay attention to the note names (all Cs appear on a grey background) and look at how they are arranged, then make your selection. The numbers next to the letters refer to the octave. The numbers below the note names represent the corresponding MIDI note numbers.

You may have noticed that the treble buttons are colored white (for notes without alteration) and black (notes with alteration, i.e. #/b). This coloring doesn't change when you select another system.

The FR-3x is supplied with additional white and black buttons. You can use these additional buttons to adapt the black and white treble buttons to reflect the selected treble mode.

To do this, first remove the button you wish to replace by turning it counterclockwise, then install the new button and screw it clockwise.

Two identical diagrams showing a circular arrangement of coins on a striped surface, with arrows indicating direction (no text or symbols)

NOTE

This parameter is not reset when you load the factory defaults (page 64).

Treble Mode (1/2)

C-Griff Europe
Eb351	C#349	D350	C348	C#349
F#354	E352	F353	Eb351	E352
A357	G355	G#356	F#354	G355
C460	Bb358	B359	A357	Bb358
Eb463	C#461	D462	C460	C#461
F#466	E464	F465	Eb463	E464
A469	G467	G#468	F#466	G467
C572	Bb470	B471	A469	Bb470
Eb575	C#573	D574	C572	C#573
F#578	E576	F577	Eb575	E576
A581	G579	G#580	F#578	G579
C684	Bb582	B583	A581	Bb582
Eb687	C#685	D686	C684	C#685
F#690	E688	F689	Eb687	E688
A693	G691	G#692	F#690	G691
C796	Bb694	B695	A693	Bb694
Eb799	C#797	D798	C796	C#797
F#7102	E7100	F7101	Eb799	E7100

C-Griff 2
Eb351	D350	E352	Eb351	F353
F#354	F353	G355	F#354	G#356
A357	G#356	Bb358	A357	B359
C460	B359	C#461	C460	D462
Eb463	D462	E464	Eb463	F465
F#466	F465	G467	F#466	G#468
A469	G#468	Bb470	A469	B471
C572	B471	C#573	C572	D574
Eb575	D574	E576	Eb575	F577
F#578	F577	G579	F#578	G#580
A581	G#580	Bb582	A581	B583
C684	B583	C#685	C684	D686
Eb687	D686	E688	Eb687	F689
F#690	F689	G691	F#690	G#692
A693	G#692	Bb694	A693	B695
C796	B695	C#797	C796	D798
Eb799	D798	E7100	Eb799	F7101
F#7102	F7101	G7103	F#799	G#7104

B-Griff Bajan
	D350	C#349	Eb351	D350
		E352	F#354	F353
	F353	G355	A357	G#356
	G#356	Bb358	C460	B359
	B359	C#461	Eb463	D462
	D462	E464	F#466	F465
	F465	G467	A469	G#468
	G#468	Bb470	C572	B471
	B471	C#573	Eb575	D574
	D574	E576	F#578	F577
	F577	G579	A581	G#580
	G#580	Bb582	C684	B583
	B583	C#685	Eb687	D686
	D686	E688	F#690	F689
	F689	G691	A693	G#692
	G#692	Bb694	C796	Bb695
	B695	C#797	Eb799	D798
	D798	E7100	F#7102	F7101
	F7101	G7103	G#7104	G7103

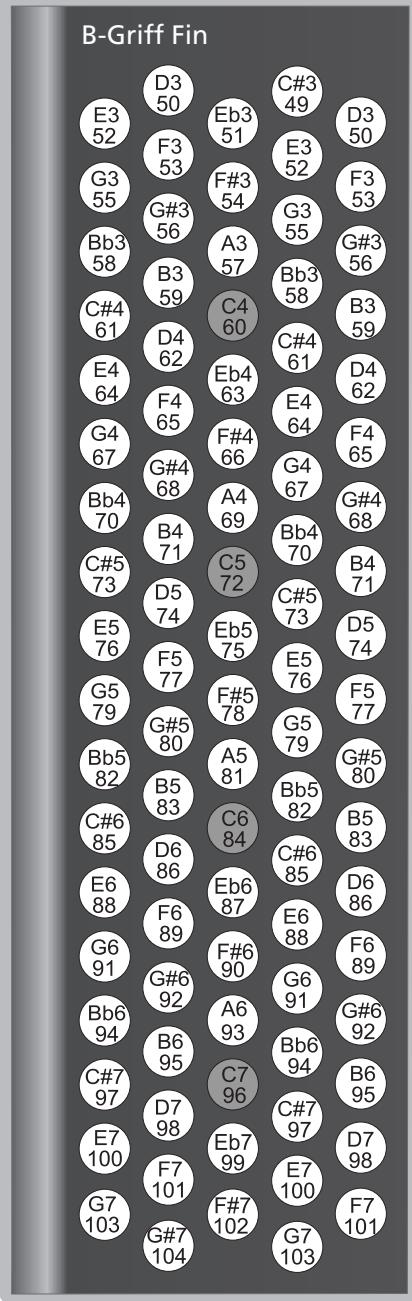

Treble Mode (2/2)

Free Bass Mode

This parameter allows you to choose the note system used in Free Bass mode. We already mentioned that there are a vast number of accordion varieties. The same Bass systems.

Value	1~5
	Default setting: 1

The available options are:

Value	Setting	Value	Setting
1	Minor 3rd	4	N. Europe
2	Bajan	5	Finnish
3	Fifth

Your FR-3x contains the 5 most popular modes (see the illustration on page 52). Be aware that the system you select here is only used when you activate the FR-3x's Free Bass mode. It is of no consequence for "regular" Bass mode.

NOTE

The FR-3x is supplied with several reference caps designed to help you locate the bass buttons without looking at them. See also page 30.

NOTE

This parameter is not reset when you load the factory defaults (page 64).

Free Bass Mode

(C3= note number 48)

NOTE

The note names on the bass buttons correspond to the MIDI note numbers. The note range of the Bass part is 1 octave.

NOTE

The actual sound range depends on the type of reed and footage.

Bass & Chord Mode

This parameter allows you to specify the number of button rows available for playing bass notes. The default is 2 bass rows and 4 chord rows.

Value	1~6
	Default setting: 1

The available options are:

Value	Setting	Value	Setting
1	2 Bass Rows	4	3 Bass Rows B-7th
2	3 Bass Row A-7th	5	3 Bass Rows B-5dim
3	3 Bass Rows A-5dim	6	3 Bass Rows Bx-7th

■ 2 Bass Rows

Using this selection, you have 2 bass rows and 4 chord rows available (default).

■ 3 Bass Rows A-7th, 3 Bass Rows A-5dim 3 Bass Rows B-7th, 3 Bass Rows B-5dim

With this selection you gain 20 bass buttons (an entire row), but you lose the dim chords.

The "A-7th" and "B-7th" options mean that the 6th chord row plays seventh chords ("7") that don't contain the fifth.

In the case of a C7 chord, you therefore hear C-E-Bb (but not the G). "A-7th" and "B-7th" differ in the arrangement of the bass notes (see the illustration on page 54).

The "A-5dim" and "B-5dim" options mean that seventh chords don't contain the root note. A C7 chord is therefore sounded with the notes E-G-Bb (but not the C). "A-5dim" and "B-5dim" differ in the arrangement of the bass notes (see the illustration on page 54).

■ 3 Bass Rows Bx-7th

This option reverses the "B-7th" settings (from right to left), so that the C3 note shifts from 9th to 12th position.

NOTE

The FR-3x is supplied with several reference caps designed to help you locate the bass and chord buttons without looking at them. See also page 30.

NOTE

This parameter is not reset when you load the factory defaults (page 64).

Metronome Function

This parameter allows you to choose the function to combine when you hold down the [ORGAN/ORCHESTRA] register

and press treble register [4] (METRONOME). See "Using the metronome" on p. 37.

Value	1, 2
	Default setting: 1

The available options are:

Value	Setting
1	Metronome
2	MIDI Start/Stop

■ Metronome

Select this setting to take advantage of the internal metronome.

■ MIDI Start/Stop

This option means that the register combination acts as a MIDI remote control that starts and stops playback of an external sequencer or arranger module.

Function Switch

This parameter allows you to use the bass buttons closest to the FR-3x logo to select or control the desired functions.

When this parameter is set to "On", the buttons in question can no longer be used to play notes or chords.

Value	OFF, On
	Default setting: OFF

Front view of a black electronic device labeled 'FR-3X' with control panel and indicator lights (no readable text beyond branding)

[1] [6]

The buttons have the following factory default settings.

Bass button	Function	Bass button	Function
1	Pitch Down	4	Brake Off
2	Pitch Up	5	Brake On
3	Modulation	6	Rotary Slow/ Fast

Auto Power Off

This parameter allows you to specify how long the FR-3x should wait before switching itself off while you are not using it.

Value	OFF, 1~3
	Default setting: 1

The available options are:

Setting	Meaning	Setting	Meaning
OFF	Disabled	2	15 minutes
1	10 minutes	3	20 minutes

WARNING: Be aware that any unsaved changes are lost when the FR-3x is switched off by this function. Be sure to save all important settings as soon as you can (page 44).

Speaker Mode

When you use the FR-3x for live performances and therefore connect it to an external amplification system, it may be convenient to switch off the FR-3x's internal speakers, because doing so preserves battery power. See also "Switching off the internal speakers (Speaker Mode)" on p. 37.

Value	OFF, On
	Default setting: On

The "OFF" setting means that the internal speakers are off. The "On" setting means that the internal speakers are active.

Output Level Attenuation

The FR-3x has a level attenuation function that allows you to adapt its output level to the audio device you wish to connect it to. The attenuation value is e

Value	-12, -6, OFF
	Default setting: OFF

NOTE

This parameter has no effect on the FR-3x's internal speakers.

Other functions

The following functions are covered in the chapter "Data management via the FR-3x's USB port" on p. 40.

■ User Set load

This function allows you to load Sets from a USB memory to one of the four internal User memories. See "Loading User Set memories from US (optional)" on p. 41.

■ User Program load

This function allows you load 10 User Program settings from a USB memory (provided you have already saved User Programs to that USB memory). See a User Program memories from USB me (optional)" on p. 40.

■ Sound Set load

This function allows you to add new sounds to the FR-3x original sounds. See "Loading new sounds from a USB memory (optional)" on p. 41 for details.

■ FR-3 compatibility

This function allows you to import the settings of a legacy FR-3 V-Accordion. See "Importing the settings of a previous FR-3 model" on p. 42 for details

■ User Program save

This function allows you to save the contents of the User Program memories to a USB memory (optional) connected to the USB port. See "Saving U memories to USB memory (optional)"

14. Connecting to MIDI devices

By connecting an external MIDI device and exchanging performance data, you can control one device from another. For instance, you can output sound from other instruments, switch sounds or receive MIDI data from an external sequencer that cause your FR-3x to play.

■ What's MIDI?

MIDI, short for "Musical Instrument Digital Interface", was developed as a universal standard for exchange of performance data with external devices. This connector can be used to connect the FR-3x to an external device for even greater versatility.

Connecting an external MIDI device to the FR-3x

The FR-3x has one MIDI socket that can be used to either transmit (OUT) or receive (IN) MIDI data.

1. Turn the volume all the way down on the FR-3x and the MIDI device you are about to connect.

2. Use a MIDI cable (sold separately) to connect the MIDI sockets to each other.

Connection to transmit MIDI data to an external device:

Connection to receive MIDI data from an external device:

3. Adjust the volume level on the FR-3x and the connected device.

4. Set the "MId" parameter.

See "MIDI Out/In" on p. 58. Select "OUT" to transmit MIDI data to an external device. (This is the default setting.)

Set it to "IN" to receive MIDI data from an external device.

5. Set the MIDI channel on the FR-3x and the external device as needed.

The FR-3x's sections transmit on the following MIDI channels (default):

Part	TX Channel
Treble	1
Bass/Free Bass	2
Chord	3
Orchestra/Organ (Treble)	4
Orchestra Bass	5
Orchestra Chord	6
Orchestra Free Bass	7
Basic channel (for selecting Sets)	13
Control channel (for the "SPC" function)	13

MIDI parameter list

Display indication	Full name	Setting range	Default	See page
Ald	MIDI Out/In	Out, In	Out	p. 58*
trb	Treble TX/RX channel	1~16, OFF	1	p. 59*
tr0	Treble Octave Tx	-3~0~3	0	p. 59
bFr	Bass/Free Bass TX/RX Channel	1~16, OFF	2	p. 59
bFO	Bass/Free Bass Octave TX	-3~0~3	0	p. 59
CHd	Chord TX/RX Channel	1~16, OFF	3	p. 59
CHO	Chord Octave TX	-3~0~3	0	p. 59
O-C	Orchestra/Organ TX/RX Channel	1~16, OFF	4	p. 59
O-O	Orchestra/Organ Octave TX	-3~0~3	0	p. 60
Obs	Orchestra Bass TX/RX Channel	1~16, OFF	5	p. 60
Ob0	Orchestra Bass Octave TX	-3~0~3	0	p. 60
OCH	Orchestra Chord TX/RX Channel	1~16, OFF	6	p. 60
OCO	Orchestra Chord Octave TX	-3~0~3	0	p. 60
OFb	Orchestra Free Bass TX/RX Channel	1~16, OFF	7	p. 60
OF0	Orchestra Free Bass Octave TX	-3~0~3	0	p. 60
bCH	Basic Channel TX/RX	1~16, OFF	13	p. 60
cCH	Control Channel TX	1~16, OFF	13	p. 60
PCH	Program Change TX	Off, On	On	p. 61
bEA	Bellows Expression TX ALL	Off, On	Off	p. 61
bE1	Bellows Expression TX TREBLE	Off, On	Off	p. 61
bE2	Bellows Expression TX BASS/CHORD/FREE BASS	Off, On	Off	p. 61
bE3	Bellows Expression TX ORCHESTRA/ORGAN	Off, On	Off	p. 61
bE4	Bellows Expression TX ORCHESTRA BASS	Off, On	Off	p. 61
bES	Bellows Expression TX ORCHESTRA CHORD	Off, On	Off	p. 61
bE6	Bellows Expression TX ORCHESTRA FREE BASS	Off, On	Off	p. 61
UEL	Velocity TX	On, 1~127	On	p. 61
brE	Bellows TX Resolution	1~4	2	p. 62
bPC	Send Bank PC TX	1~4	1	p. 62
C00	Edit CC00	0~127	0	p. 62
C32	Edit CC32	0~127	0	p. 62

*: Reset when you switch off the FR-3x.

Selecting the desired MIDI LIST parameter

1. Press and hold the [SET] register to enter MIDI LIST mode.

The display shows the name of the last parameter you selected.

2. Use treble register [5] or [6] (MIDI LIST) to select the desired parameter.

(Here, we selected the "Chord TX/RX Channel" parameter.)

NOTE

Pressing registers [5] and [6] (MIDI LIST) simultaneously will select the first parameter, "MId".

3. Use register [1] (◀ VALUE) or [2] (VALUE ▶) to set the desired MIDI channel.

To return to the last setting you saved for this parameter, press registers [1] and [2] simultaneously.

1. If you need to change another MIDI LIST parameter, repeat steps 2 and 3.
2. If you want to use this change only temporarily, press the [SET] register to leave this mode.

Otherwise, proceed to save your changes:

Saving your changes

1. Press and hold the [SET] register until the display looks as follows:

2. Press register [2] (VALUE ▶) to save your settings.

The display now looks as follows:

If you don't want to save your changes, press [1] (◄ VALUE). The display briefly shows the "no" message.

3. Press register [7] (ENTER) to confirm your intention.

The settings are stored internally and the display briefly shows the "y.E.S." message (the three dots flash), then "don" when the settings are stored. Next, the display returns to the master page.

MIDI LIST parameters

MIDI Out/In

This parameter allows you to define the function of the FR-3x's MIDI OUT/IN socket.

Value	Out, In
	Default setting: Out

Out

Select this setting if you want to play on the FR-3x's keyboards and transmit the MIDI data generated by your playing to an external device.

In

Select this setting if you want to receive MIDI data generated by an external device.

If you select "In" here, the FR-3x's sound source can no longer be played via its keyboards. The display therefore shows "---" instead of a set number or register numbers.

NOTE

See "Connecting an external MIDI device to the FR-3x" on p. 56 for the required connection.

Treble TX/RX channel

This parameter allows you to define the MIDI channel for the Treble (accordion) section. The assignment set here applies both to the transmission ("TX") and reception ("RX") of MIDI data.

Value	1~16, OFF
	Default setting: 1

MIDI data are only transmitted when "MId" (see above) is set to "Out", while the "RX" part is only used when "MId" is set to "In".

■ 1\~16

Specifies the treble accordion's MIDI channel.

OFF

Select "OFF" if the treble section should neither receive nor transmit MIDI data.

NOTE

Though it is perfectly possible to assign the same MIDI channel to several sections, the result is usually disappointing and may lead to a lot of confusion.

Treble Octave Tx

This parameter allows you to transpose the Note-on messages transmitted by the treble section up to three octaves up or down.

Value	-3~0~3
	Default setting: 0

This can be used for songs where an accordion register of the Treble section (for example) should be doubled by a piccolo flute played by an external module whose notes would be far too low if they were used as is. As stated above, each MIDI note has a unique number. This parameter allows you to add (or subtract) 12 ("1" octave), 24 ("2" octaves) or 36 ("3" octaves) to (from) the note numbers generated by your playing.

Bass/Free Bass TX/RX Channel

This parameter allows you to define the MIDI channel for the bass buttons or Free Bass (accordion) part, depending on which mode is currently active.

Value	1~16, OFF
	Default setting: 2

The assignment set here applies both to the transmission ("TX") and reception ("RX") of MIDI data.

■ 1\~16

Specifies the bass or Free Bass accordion's MIDI channel.

OFF

Select this setting if the bass or Free Bass section should neither receive nor transmit MIDI data.

Bass/Free Bass Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the bass buttons or Free Bass section up to three octaves up or down.

Value	-3~0~3
	Default setting: 0

Chord TX/RX Channel

This parameter allows you to define the MIDI channel for the chord buttons when they are used to play the selected accordion register.

Value	1~16, OFF
	Default setting: 3

■ 1\~16

Specifies the chord part's MIDI channel.

OFF

Select this setting if the chord part should neither receive nor transmit MIDI data.

Chord Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the chord buttons up to three octaves up or down.

Value	-3~0~3
	Default setting: 0

Orchestra/Organ TX/RX Channel

This parameter allows you to set the MIDI channel for the orchestral/organ part.

Value	1~16, OFF
	Default setting: 4

■ 1\~16

Specifies the orchestral/organ part's MIDI channel.

OFF

Select this setting if the treble orchestral/organ part should neither receive nor transmit MIDI data.

Orchestra/Organ Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the Orchestra section.

Value	-3~0~3
	Default setting: 0

Orchestra Bass TX/RX Channel

This parameter allows you to define the MIDI channel for the ORCH BASS part.

Value	1~16, OFF
	Default setting: 5

■ 1\~16

Specifies the orchestral bass part's MIDI channel.

OFF

Select this setting if the orchestral bass part should neither receive nor transmit MIDI data.

Orchestra Bass Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the orchestral bass part.

Value	-3~0~3
	Default setting: 0

Orchestra Chord TX/RX Channel

This parameter allows you to define the MIDI channel for the orchestral chord part.

Value	1~16, OFF
	Default setting: 6

■ 1\~16

Specifies the orchestral chord part's MIDI channel.

OFF

Select this setting if the orchestral chord part should neither receive nor transmit MIDI data.

Orchestra Chord Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the orchestral chord part.

Value	-3~0~3
	Default setting: 0

Orchestra Free Bass TX/RX Channel

This parameter allows you to define the MIDI channel for the orchestral Free Bass part.

Value	1~16, OFF
	Default setting: 7

■ 1\~16

Specifies the orchestral Free Bass part's MIDI channel.

OFF

Select this setting if the orchestral Free Bass part should neither receive nor transmit MIDI data.

Orchestra Free Bass Octave TX

This parameter allows you to transpose the Note-on messages transmitted by the orchestral Free Bass part.

Value	-3~0~3
	Default setting: 0

Basic Channel TX/RX

This parameter allows you to set the basic MIDI channel.

The "Basic Channel" can be used for selecting Sets from an external MIDI device (using program change numbers). Please see "MIDI implementation" on p. 71 for the program change numbers of the Sets.

Value	1~16, OFF
	Default setting: 13

The assignment set here applies both to the transmission ("TX") and reception ("RX") of MIDI data.

■ 1\~16

Specifies the Basic Channel number.

OFF

Select this setting if no MIDI data should be transmitted/received on the Basic Channel.

Control Channel TX

The "Control Channel" is used for sending program change messages (see p. 62). This parameter allows you to set the control MIDI channel number.

Value	1~16, OFF
	Default setting: 13

The assignment set here applies both to the transmission ("TX") and reception ("RX") of MIDI data.

■ 1\~16

Specifies the Control Channel number.

OFF

Select this setting if no MIDI data should be transmitted/received on the Control Channel.

Program Change TX

The FR-3x transmits program changes when you select Sets (on the Basic Channel) and registers (on the MIDI channel assigned to the section for which you are selecting a different register).

This is the first of a series of MIDI filters, i.e. parameters that allow you to specify whether or not the given MIDI type should be transmitted.

Value	OFF, On
	Default setting: On

OFF

Select this setting if you don't want the FR-3x to transmit program change messages.

On

Select this setting if the FR-3x should transmit program change messages.

This filter has no effect on the "Send PC" function (see p. 62).

Bellows Expression TX Filters

You probably noticed that the strength/speed with which the bellows is pressed or pulled influences the sound – which corresponds to an acoustic accordion's response. This effect can be translated into a MIDI message most external instruments understand.

The MIDI standard provides a message ("control change") for remotely controlling the volume of an external instrument: CC11. It is chiefly used for expression purposes (similar to the way in which a guitarist or organ player uses a volume pedal).

The FR-3x can filter expression messages for the following sections:

■ Bellows Expression TX ALL

Filters (suppresses) expression messages for all channels.

■ Bellows Expression TX TREBLE

Filters (suppresses) expression messages for the treble accordion channel.

■ Bellows Expression TX BASS/CHORD/FREE BASS

Filters (suppresses) expression messages for the bass/chord/Free Bass accordion channel.

■ Bellows Expression TX ORCHESTRA/ORGAN

Filters (suppresses) expression messages for the treble orchestra/organ channel.

■ Bellows Expression TX ORCHESTRA BASS

Filters (suppresses) expression messages for the orchestral bass channel.

■ Bellows Expression TX ORCHESTRA CHORD

Filters (suppresses) expression messages for the orchestral chord channel.

■ Bellows Expression TX ORCHESTRA FREE BASS

Filters (suppresses) expression messages for the orchestral Free Bass channel.

Value	OFF, On
	Default setting: OFF

OFF

Select this setting if you don't want the selected section to transmit expression messages.

On

Select this setting if the selected section should transmit expression messages.

Velocity TX

Your FR-3x is velocity sensitive. That is a very learned term for the fact that the volume and brightness of the notes you play on the treble or bass keyboard depend on how hard (or fast) you press the buttons. Velocity information is transmitted via MIDI.

This parameter allows you to specify whether you want to transmit fixed or dynamic velocity values (i.e. the values translating how hard/fast you press a key or button).

Value	On, 1~127
	Default setting: On

On

Select this setting if you want to transmit MIDI velocity values proportional to the key pressure.

■ 1\~127

Specifies the fixed velocity value to be transmitted for all notes.

Fixed velocity values can be useful for playing organ sounds on an external module.

Bellows TX Resolution

This parameter allows you to specify how many data the FR-3x's bellows may transmit for expression purposes.

Value	1~4
	Default setting: 2

■ 1: Represents the lowest (coarsest) bellows resolution.
■ 2: Represents the normal bellows resolution.
■ 3: Represents a high bellows resolution.
■ 4: Represents the highest bellows resolution (double-byte resolution).

NOTE

If the external sequencer you work with displays a "MIDI buffer overflow" message, select a lower resolution. If your sequencer accepts the complete data amount, use the "4" setting, because it will lead to even more nuances being captured.

Sending program change messages to external devices

Though each register or Set can transmit a program change/bank select cluster when pressed, you can also transmit sound select messages on the fly – without changing registers on the FR-3x. These are MIDI messages that cause an external instrument or device to select a different memory (i.e. another sound or effect). This functionality is mainly intended for selecting setting groups of various sounds on external instruments. Such setting groups may be called "Performances" or "Multis", which you may want to select while playing, because using those multitimbral memories has the advantage that all sound addresses and MIDI channels are configured "automatically" simply by sending the correct "PC" address from the FR-3x.

The "sound select" messages mentioned above are:

■ Program Change messages (PC)

Program change messages allow you to select up to 128 memories on a remote MIDI device.

■ Bank Select messages (CC00 and CC32)

Bank select messages are used to select sound banks (if the receiving instrument contains several banks).

The FR-3x allows you to specify up to four bank select message pairs (CC00 and CC32) that can be transmitted by entering just one number.

The "bPc", "C00" and "C32" parameters are used to prepare 4 memory banks (i.e. CC00 and CC32 pairs).

Memory	bPC	C00/C32
Memory 1	1	Value 0~127 for CC00
		Value 0~127 for CC32

Memory	bPC	C00/C32
Memory 2	2	Value 0~127 for CC00
		Value 0~127 for CC32
Memory 3	3	Value 0~127 for CC00
		Value 0~127 for CC32
Memory 3	4	Value 0~127 for CC00
		Value 0~127 for CC32

Parameters to set before transmitting a program change message to an external device Memory bank selection

As stated above, this parameter allows you to specify which memory (1\~4) you wish to edit.

Value	1~4
	Default setting: 1

Edit CC00

This parameter allows you to specify the LSB bank address for the selected memory (bPC).

Value	0~127
	Default setting: 0

NOTE

Be sure to choose the desired "bPC" memory (1\~4) before editing this parameter.

Edit CC32

This parameter allows you to specify the MSB bank address for the selected memory (bPC).

Value	0~127
	Default setting: 0

NOTE

Be sure to choose the desired "bPC" memory (1\~4) before editing this parameter.

Transmitting a program change message to an external device

To transmit a program change message to an external MIDI device, proceed as follows:

1. Connect the FR-3x's MIDI socket to the MIDI IN port of the module, synthesizer, etc., you wish to control.
2. Set the "MId" parameter (page 58) to "Out".

NOTE

"Out" is the default setting for "MId".

3. Set the MIDI receive channel on the external device to "13".

See its manual for details. If you are unable to change the receiver's MIDI channel, set the FR-3x's control channel to match the external instrument's "RX" channel. See "Control Channel TX" on p. 60.

4. Press and hold the [ORGAN/ORCHESTRA] register and press register [5] (SEND PC).

5. Use treble registers [1]\~[0] to enter the "SPC" number.

You may have to look in the owner's manual of the module or synthesizer you are controlling to find out which number you need to transmit for the sound (or memory) you want to select. You can enter any number from "1" to "512".

See the following table for how to enter numbers.

SPC number	CC00/CC32 values to transmit	Transmitted PC numbers
1~128	Memory 1	1~128
129~256	Memory 2	1~128
257~384	Memory 3	1~128
385~512	Memory 4	1~128

If you enter a number between "129" and "256", the FR-3x transmits the CC00 and CC32 value programmed for memory 2. The program change number, on the other hand will always be a number between "1" and "128".

Example: if you enter "130" for the "SPC" parameter, the FR-3x enters program change number "2" (see the table above).

NOTE

The [0] register acts as "0" here. To enter "502", for example, press registers [5], [0], and [2].

6. If necessary, press the [SET] register to erase the last entry you made.

If you entered "55", for example, while the second figure should have been a "2", press [SET] once (so that the display indicates "--5" again), then press register [2] ("-52").

Note: The FR-3x uses a smart entry system: after entering "52" (or "53", "54", "55", ... "59"), you can't add a third figure, because the highest number supported by the SEND PC function is "512".

7. Press the [ORGAN/ORCHESTRA] register to transmit the CC00, CC32 and PC messages.

15. Restoring the factory defaults

You can reset the FR-3x to its factory settings, which means that your own Global settings are replaced by the settings the FR-3x contained when you first got it. You may wish to archive your settings before initializing the FR-3x (see "Saving User Program memories to USB memory (optional)" on p. 40).

1. Switch on the FR-3x while holding down the treble registers [5] and [0].

The display changes to:

When all settings have been initialized, the display briefly shows the following message:

2. Switch off the FR-3x, then switch it back on again.

The FR-3x now again sounds and behaves like when you first bought it.

16. Troubleshooting

This section provides an overview of points to check and actions to take when the FR-3x does not function as you expect. Feel free to contact your Roland dealer if your issue remains unsolved after reading through this section.

No sound

■Did you turn the [VOL] knob all the way to the small dot?

Set it to a higher value.

■ Did you turn the [BAL] knob all the way to one side?

Change its setting and try again.

■ Are you moving the bellows while triggering accordion sounds?

The Treble and Bass/Free Bass sections only produce sound if you move the bellows while playing notes (like on an acoustic accordion).

No sound is heard when an external amplifier is connected

■Did you switch on the connected amplifier?

Please check this.

■ Did you connect the audio cables to the correct sockets?

If so, check the cables for possible damage.

No sound when you play on the treble keyboard

You may have muted the Treble section. See "Switching off the treble section" on p. 27 for how to activate it again.

No sound when you play on the bass keyboard

You may have muted the Bass/Chord section. See "Switching off the Bass and/or Chord section" on p. 31 for how to activate it again.

No sound and the display shows "---"

■Did you set the "MId" parameter to "In"?

In that case, the FR-3x only responds to MIDI messages. Set the parameter to "Out" (page 58).

No power

■Did you disconnect the adapter?

Connect the supplied adapter, or install optional batteries.

■Did the FR-3x go off after several seconds?

The "Auto Power Off" function may be active. Set it to "Off" (page 55).

The FR-3x does not respond to your playing

■Did you set the "MId" parameter to "In"?

In that case, the FR-3x only responds to MIDI messages. Set the parameter to "Out" (page 58).

■ Are you moving the bellows while triggering accordion sounds?

The Treble and Bass/Free Bass sections only produce sound if you move the bellows while playing notes (like on an acoustic accordion).

Issues related to the bass buttons

■Why do the bass buttons only provide three chord rows?

Because you set the "Bass & Chord Mode" parameter to "2", "3", "4" or "5" (page 53). Set it to "1".

■ Why can't I play diminished chords using the bass buttons?

Because you set the "Bass & Chord Mode" parameter to "2", "3", "4" or "5" (page 53). Set it to "1".

■ In Free Bass mode, the bass buttons play the wrong notes.

You my have changed the "Free Bass Mode" setting. Be sure to select the system that best suits your playing style (page 51).

MIDI-related issues

■What MIDI channels does the FR-3x use by default?

See the table on page 56.

■ The FR-3x does not change sounds when my sequencer transmits program change numbers.

The program change number probably outside the range of the FR-3x's registers (see "Program change messages" on p. 71). Such "excess" program numbers are ignored by the FR-3x.

■ The FR-3x does not receive the MIDI messages I recorded for it.

That's because the "Mld" parameter is currently set to "Out". Set it to "In" (page 58).

■ The external sequencer keeps displaying a "MIDI Buffer Overflow" message

The bellows sends too many data at once (its data are transmitted on five channels simultaneously). Select a different setting ("2" or "1"). This leads to a coarser resolution, and maybe to audible steps, but at least, your sequencer will be able to record the data. See "Bellows TX Resolution" on p. 62.

Other issues

■ Can't read the/write to USB memory

Are you using a USB memory made by another manufacturer than Roland?

17. Error messages

The FR-3x may display one of the following messages to signal that it has detected an error. In that case, please read the following and take the appropriate action.

Message	Meaning	Action
E01	The FR-3x already contains these sounds	The sound set you wanted to load already resides in the FR-3x's internal memory. See "Loading new sounds from a USB memory (optional)" on p. 41.
E02	Missing sound	The User Set (1~4) you recalled requires a sound that the FR-3x no longer contains.
E03	File format error	The file you want to load appears to be corrupt.
E04	USB read/write error	1) You removed the USB memory while the FR-3x was accessing it. Connect it to the FR-3x's USB port.2) The USB memory you connected is not properly formatted or not compatible.3) The data could not be written to the USB memory or the file you selected cannot be read.
E05	Write protected	The USB memory you connected is write protected. See the manual hat came with the storage device for how to disable its protection.
E06	Invalid mp3 or WAV file	The FR-3x doesn't recognize the selected audio file. See "About audio files" on p. 10 for the supported file types.
E07	Internal error	The last operation failed. Please perform it again. If the error persists, please contact your Roland dealer or Roland distributor (see "Information" on page 74).

18. Specifications

■ Keyboards

Piano-type	Right hand: 37 keys, velocity sensitiveLeft hand: 120 velocity-sensitive bass buttonsModes: Standard, Free Bass, Orch.Bass, Orch.Chord, Orch. Free Bass
Button-type	Right hand: 92 buttons, velocity sensitiveTreble modes: C Griff Europe, C Griff 2, B Griff Bajan, B Griff Fin, D Griff 1, D Griff 2Left hand: 120 velocity-sensitive bass buttonsModes: Standard, Free Bass, Orch.Bass, Orch.Chord, Orch. Free Bass

Bellows

New sensor for the detection of bellows pressure (high-resolution pressure sensor)

Bellows resistance regulator: wheel with fine adjustment

■ Sound source

Max polyphony: 128 voices

Wave ROM: 64MB of waveforms (8+8MB expansion sounds)

Tones: 21 accordion Sets + 4 User Sets, each including:

14 treble registers, 7 bass registers, 7 free bass registers, 7

Orchestra Bass registers, 7 Orchestra Chord registers, 7

Orchestra Free Bass registers, 10 orchestral sounds, 10 organ sounds

Treble reed footages: 4

Bass reed footages: 5

Chord reed footages: 3

Free Bass footages: 2

■ PBM (Physical Behavior Modeling)

Noises: stopping-reed growl, closing valve noise, left button noise

Individual reed simulation.

Reed sound wave switching: by bellows acceleration, by note repetition speed

■ Musette tuning

Micro tuning presets: 16 (Off, Dry, Classic, F-Folk, American L/H, North Europe, German L/H, D-Folk L/H, Alpine, Italian L/H, French, Scottish)

■ Effects

Reverb: 8 types, Chorus: 8 types,

Rotary (Slow/Fast) for organ sounds,

Sordina Mellow/Bright

Panel controls

Knobs: VOL, Treble/Bass BAL, Reverb, Chorus

Panel Switches: 10 Treble registers + ORGAN/ORCHESTRA

register, SET register, 7 bass registers, USER PROGRAM button, SORDINA switch, POWER switch

■ Audio player

Plays back mp3 and WAV files on a USB memory

WAV files	16-bit linearSampling frequency: 44.1kHzStereo/mono
mp3 files	MPEG-1 Audio Layer 3Sampling frequency: 44.1kHzBit rate: 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps,VBR (variable bit rate)

■ Operation modes

ORCHESTRA/ORGAN modes: Solo, Dual, High, Low

Bass & Chord modes: 2 Bass Rows, 3 Bass Rows A-7th,

3 Bass Rows A-5dim, 3 Bass Rows B-7th, 3 Bass Rows B-5dim, 3 Bass Rows Bx-7th

Free Bass modes: Minor 3rd, Bajan, Fifth, N. Europe, Finnish

Bass-to-Treble mode: On/off

Bass & Chord with drum/percussion sounds: On/off

Octave: Down, 0, Up (for Treble and Organ/Orchestra)

10 User Program memories

■ Display

LED, 3 x 7 segments

■ Rated power output

2 x 11W RMS

Speakers

2 x 10cm speakers (neodymium transducer magnets)

■ Power supply

AC adaptor (PSB-7U)

Batteries (AA-type rechargeable Ni-MH x 10)

■ Current draw

3000mA

■ Expected battery life under continuous use (using Ni-MH 2000mAh batteries):

Speakers on 5* hours

Speakers off 9* hours

* Actual battery life varies according to usage conditions, the quality of the batteries and the number of charging cycles.

Be sure to only rechargeable Ni-MH batteries.

Connectors

OUTPUT sockets (L/Mono, R/Mono), PHONES socket

USB memory port

MIDI OUT/IN socket (function adjustable via MIDI parameter)

DC IN socket: for supplied Roland PSB-7U AC adaptor

■ Dimensions

FR-3x piano type: 430 (H) x 481 (W) x 270 (D) mm

16-15/16 (H) x 18-15/16 (W) x 10-11/16 (D) inches

FR-3x button type: 390 (H) x 470 (W) x 240 (D) mm

15-3/8 (H) x 18-9/16 (W) x 9-1/2 (D) inches

■ Weight

FR-3x piano type: 8.3kg, 18 lbs 5 oz

FR-3x button type: 8.0kg, 17 lbs 11 oz

■ Supplied accessories

PSB-7U AC adaptor

Owner's Manual

Reference caps for the bass buttons

Reference caps for the treble buttons (only for FR-3x

button type)

Accordion cloth

Straps

Battery holder (pre-installed in compartment)

■ Options

Accordion soft bag

NOTE

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

19. Appendix

Factory Sets

Treble register
1	2	3	4	5
CLASSIC	JAZZ	I FOLK	D FOLK	F FOLK
11 Concerto	21 Jazz	31 I Folk	41 D Folk	51 F Folk
12 Classic	22 Folk Jazz	32 Ciao Roma		52 Old Paris
13 Studio		33 Ballroom
14 Classic 3
Treble register
6	7	8	9	0
SP FOLK	BANDONEON	ALPINE	ETHNIC	USER
61 SP Folk	71 Bandoneon	81 Alpine	91 Diatonic Folk	U1 User 1
			92 Scottish	U2 User 2
			93 Irish	U3 User 3
			94 Celtic	U4 User 4
			95 Cajun
			96 Tex Mex

[*] Copyright ©2010 Roland Europe Spa. All rights reserved.
Unauthorized use of the demo songs for purposes other than private enjoyment is a violation of applicable laws.
Demo Songs
Note: The performance data of the demo songs are not transmitted to the MIDI socket.

#	SONG TITLE*	PERFORMED BY
1	By The Roundeabout by L. Beier	Ludovic Beier
2	Walking In Old Paris by S. Scappini	Sergio Scappini
3	Carnival in Venice - Traditional	Sergio Scappini
4	Passionate Red Rose by S. Scappini	Sergio Scappini
5	Starry Night by L. Beier	Ludovic Beier
6	Funky Night by L. Beier	Ludovic Beier
7	Mad Mouse by L. Beier	Ludovic Beier
8	Bezaubernder Sinaklia by S. Scappini	Sergio Scappini
9	O Sole Mio - Traditional	Sergio Scappini
10	Sonata in C Maj by D. Scarlatti	Sergio Scappini
11	Edelweiss by S. Scappini	Sergio Scappini
12	Mexican Hat Dance - Traditional	Luigi Bruti
13	Smells from Toccata by J. S. Bach	Sergio Scappini
14	Capriccio 13 by N. Paganini	Sergio Scappini
15	Salvador by L. Bruti	Luigi Bruti
16	Scattered Jazz by S. Scappini	Sergio Scappini
17	Figaro by G. Rossini	Sergio Scappini
18	Rêve d'amour by L. Bruti	Luigi Bruti
19	Sugar cane by L. Bruti	Luigi Bruti
20	To my beloved teacher by S. Scappini	Sergio Scappini
21	Dancing in the courtyard by L. Beier	Ludovic Beier
22	Sotto I ponti della Senna	Ludovic Beier
23	Sunny Grasslands by L. Beier	Ludovic Beier
24	Swing Hanging Around by L. Beier	Ludovic Beier
25	Lights And Shadows Of The Moon by L. Beier	Ludovic Beier
26	Acrobat by L. Beier	Ludovic Beier
27	Islands by L. Beier	Ludovic Beier
28	Fence Jumper by L. Beier	Ludovic Beier
29	Passion In The Atmosphere by L. Beier	Ludovic Beier
30	9th Bossa by Y. Sato	Yoshiaki Sato
31	Song From Far East by Y. Sato	Yoshiaki Sato
32	Zak-Zak by Y. Sato	Yoshiaki Sato
33	O&B 4-Beat by Y. Sato	Yoshiaki Sato

Ways in which the FR-3x displays alphabetic characters of file names

Status	2nd byte	3rd byte
8nH	kkH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
kk = note number:		00H~7FH (0~127)
vv = note off velocity:		00H~7FH (0~127)

● Note on

Status	2nd byte	3rd byte
9nH	kkH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
kk = note number:		00H~7FH (0~127)
vv = note on velocity:		01H~7FH (1~127)

● Control Change

- The value specified by a Control Change message is not reset by a Program Change, etc.

○ Bank Select (Controller number 0, 32)

Status	2nd byte	3rd byte
BnH	00H	mmH
BnH	20H	IIH
n = MIDI channel number:		0H~FH (Ch.1~16)
mm = Bank number MSB:		00H~7FH
II = Bank number LSB:		00H~7FH

- Only for Free Bass.

○ Expression (Controller number 11)

Status	2nd byte	3rd byte
BnH	0BH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
vv = Expression:		00H~7FH (0~127)

- This adjusts the volume of a Part. It can be used independently from Volume (CC07) messages. Expression messages are used for musical expression within a performance, e.g., expression pedal movements, crescendo and decrescendo.

○ Program Change

Status	2nd byte
CnH	ppH
n = MIDI channel number:		0H~FH (Ch.1~16)
pp = Program number:		See “3. Program change messages”. For the Sets, see “SET RX” on p. 72

■ System Realtime Messages

○ Active Sensing

Status FEH

- When Active Sensing is received, the FR-3x starts monitoring the intervals of all further messages. While monitoring, if the interval between messages exceeds 420 ms, the same processing will be carried out as when All Sounds Off, All Notes Off and Reset All Controllers are received, and message interval monitoring will be halted.

2. Transmitted data

■ Channel Voice Messages

● Note off

Status	2nd byte	3rd byte
8nH	kkH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
kk = note number:		00H~7FH (0~127)
vv = note off velocity:		00H~7FH (0~127)

● Note on

Status	2nd byte	3rd byte
9nH	kkH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
kk = note number:		00H~7FH (0~127)
vv = note on velocity:		01H~7FH (1~127)

● Control Change

○ Bank Select (Controller number 0, 32)

Status	2nd byte	3rd byte
BnH	00H	mmH
BnH	20H	IIH
n = MIDI channel number:		0H~FH (Ch.1~16)
mm = Bank number MSB:		00H~7FH
II = Bank number LSB:		00H~7FH

○ Mdulation number (Controller number 01)

Status	2nd byte	3rd byte
BnH	01H	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
vv = Modulation depth:		00H~7FH (0~127)

○ Expression (Controller number 11)

Status	2nd byte	3rd byte
BnH	0BH	vvH
n = MIDI channel number:		0H~FH (Ch.1~16)
vv = Expression:		00H~7FH (0~127)

- This adjusts the volume of a Part. Expression messages are used for musical expression within a performance, e.g., expression pedal movements, crescendo and decrescendo.

○ Program Change

Status	2nd byte
CnH	ppH
n = MIDI channel number:		0H~FH (Ch.1~16)
pp = Program number:		00H~7FH: program no. 1~128

○ Pitch Bend Change

Status	2nd byte	3rd byte
EnH	IIH	mmH
n = MIDI channel number:		0H~FH (Ch.1~16)
mm, II= Pitch Bend value		00 00H~40 00H~7F 7FH (-8192~0~+8191)

■ System Realtime Messages

○ Active Sensing

Status FEH Transmitted about every 250ms.

○ Start

Status

FAH

○ Stop

Status FCH

This message is transmitted when the METRONOME switch is pressed after assigning the "2" option to the "MFn" parameter.

This message is transmitted when the METRONOME switch is pressed after assigning the "2" option to the "MFn" parameter.

1. Program change messages

CC00	CC32	Program Change	Register	Name
TREBLE REGISTER TX/RX
0	0	1	1	Bassoon
0	0	2	2a	Bandon
0	0	3	2b	Cello
0	0	4	3	Harmon
0	0	5	4	Organ
0	0	6	5a	Accord
0	0	8	5b	Master
0	0	11	6a	Tremolo
0	0	9	6b	Musette
0	0	7	7	Violin
0	0	13	8	Oboe
0	0	12	9a	Clarinet
0	0	10	9b	Celeste
0	0	14	0	Piccolo
ORCHESTRA (Treble) TX/RX
0	0	1	1	Trombone
0	0	2	2	Trumpet
0	0	3	3	T Sax
0	0	4	4	A Sax
0	0	5	5	Clarinet
0	0	7	6	Harmonica
0	0	9	7	Violin
0	0	11	8	Flute
0	0	26	9	El. Piano
0	0	20	0	Strings
ORGAN (Treble) TX/RX (without rotary effect)
0	0	27	1	Perc Jazz
0	0	28	2	Jazz Ballad
0	0	29	3	Distort Organ
0	0	30	4	Full Organ
0	0	31	5	Overdr Organ
0	0	32	6	Popular Organ
0	0	33	7	Ligh Jazz
0	0	34	8	Bossa
0	0	35	9	Latin
0	0	36	0	Light Latin
ORGAN (Treble) TX/RX (with rotary effect)
0	0	37	1	Perc Jazz
0	0	38	2	Jazz Ballad
0	0	39	3	Distort Organ
0	0	40	4	Full Organ
0	0	41	5	Overdr Organ
0	0	42	6	Popular Organ
0	0	43	7	Ligh Jazz
0	0	44	8	Bossa
0	0	45	9	Latin
0	0	46	0	Light Latin
BASS REGISTER TX/RX
0	0	1	1	2'
0	0	2	2	4'
0	0	3	3	8-4'
0	0	4	4	16'/8'/8-4'/4'/2'
0	0	5	5	8'/4'/2'
0	0	6	6	16'/8'/8-4'
0	0	7	7	16'/2'
FREE BASS REGISTER TX/RX
0	1	1	1	Low
0	1	2	2	High
0	1	3	3	Low + High
0	1	4	4	Low +High Low
0	1	5	5	Low Low + High
0	1	6	6	High Low + High
0	1	7	7	Low High
ORCHESTRA BASS TX/RX
0	0	1	1	Acoustic
0	0	2	2	Bowed
0	0	3	3	Fingered
0	0	4	4	Fretless
0	0	5	5	Picked
0	0	6	6	Tuba
0	0	7	7	Tuba Mix
ORCHESTRA CHORD TX/RX
0	0	1	1	Trombone
0	0	2	2	Alto Sax
0	0	3	3	Clarinet
0	0	4	4	Jazz Organ
0	0	5	5	Jazz Doos
0	0	6	6	Ac. Guitar
0	0	7	7	Ac. Piano
ORCHESTRA FREE BASS TX/RX
0	0	1	1	Trombone
0	0	2	2	Clarinet
0	0	3	3	Oboe
0	0	4	4	Flute
0	0	5	5	Perc Organ
0	0	6	6	Ac. Guitar
0	0	7	7	Ac. Piano
SET RX
1 CLASSIC
0	0	1	Concerto
0	0	2	Classic
0	0	16	Studio
0	0	34	Classic 3
2 JAZZ
0	0	3	Jazz
0	0	33	Folk Jazz
3 I FOLK
0	0	4	“I” Folk
0	0	14	Ciao Roma
0	0	8	Ballroom
4 D FOLK
0	0	5	“D” Folk
5 F FOLK
0	0	6	“F” Folk
0	0	13	Old Paris
6 SP FOLK
0	0	7	“SP” Folk
7 BANDONEON
0	0	9	Bandoneon
8 ALPINE
0	0	10	Alpine

9 ETHNIC
0	0	15	Diatonic Folk
0	0	21	Scottish
0	0	22	Irish
0	0	23	Celtic
0	0	11	Cajun
0	0	12	Tex Mex
0 USER
0	0	77	User 1
0	0	78	User 2
0	0	79	User 3
0	0	80	User 4

MIDI Implementation Chart

[V-Accordion]

Model: FR-3x

Date: January 2010

Version: 1.00

Function...		Transmitted	Recognized	Remarks
Basic Channel	Default Changed	1~16 1~16, Off	1~16 1~16, Off	7 Parts: 1= Treble, 2= Bass/Free Bass, 3= Chord, 4= Orchestra, 5= Orchestra Bass, 6= Orchestra Chord, 7= Orchestra Free Bass, 2 Logical parts: 13= Basic MIDI Channel for SET change, 13= Control MIDI Channel only TX
Mode	Default Message Altered	Mode 3 ***** *****	Mode 3 *****
Note Number	True Voice	0~127 *****	0~127 0~127
Velocity	Note ON Note OFF	O *1 O	O O
After Touch	Key's Ch's	X X	X X
Pitch Bend		O	X
Control Change	0,32 1 7 10 11 64 91 93	O *1 O X X O X X X	O X X X O X X X	Bank Select Modulation Volume Panpot Expression Hold 1 Reverb Send Chorus Send
Program Change	True #	O *1 0~127	O 0~11	Program Number 1~128 transmitted See the table under “3. Program change messages”. See “SET RX” on p. 72. for the Sets
System Exclusive		X	X
System Common	Song Position Pointer Song Sel Tune	X X X	X X X
System Real Time	Clock Commands	X O *2	X X
Aux Messages	All Sounds Off Reset All Controllers Local On/Off All Notes Off Active Sense Reset	X X X X O X	X X X X O X
Notes		*1 O X is selectable *2 Transmit Start (FA) and Stop (FC)

Mode 1: OMNI ON, POLY
Mode 3: OMNI OFF, POLY
Mode 2: OMNI ON, MONO
Mode 4: OMNI OFF, MONO
O: Yes
X: No

20. Information

When you need repair service, call your nearest Roland Service Center or authorized

Roland distributor in your country as shown below.

AFRICA

EGYPT

All Fanny Trading Office

9, EBN Hagar Al Askalany Street,

ARD E1 Golf, Heliopolis,

Cairo 11341, EGYPT

TEL: [phone]

REUNION

MARCEL FO-YAM Sarl

Royal Cape Park, Unit 24

Londonderry Road, Ottery 7800

Cape Town, SOUTH TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics

Co., Ltd.

5F. No.1500 Pingliang Road

Shanghai 200090, CHINA

TEL: [phone]

Roland Shanghai Electronics

Co., Ltd. (BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili

Chaoyang District Beijing

100011, CHINA

TEL: [phone]

HONG KONG

Tom Lee Mu

11/F Silvercord Tower 1

30 Canton Rd

Tsimshatsui, Kowloon,

HONG KONG

TEL: [phone]

Parsons Music Ltd.

8th Floor, Railway Plaza, 39

Chatham Road South, T.S.T,

Kowloon, HONG KONG

TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

411, Nirman Kendra Mahalaxmi

Flats Compound Off. Dr. Edwin

Moses Road, Mumbai-400011,

INDIA

TEL: [phone]

INDONESIA

PT Citra Intirama

JI. Cideng Timur No. 15J-15O

Jakarta Pusat,

INDONESIA

TEL: [phone]

KOREA

Cosmos Corporation

1461-9, Seocho-Dong,

Seocho Ku, Seoul, KOREA

TEL: [phone]

MALAYSIA

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39,

Dataran Prima, 47301 Petaling

Jaya, Selangor, MALAYSIA

TEL: [phone]

VIET NAM

VIET THUONG CORPORATION

386 CACH MANG THANG TAM ST.

DIST.3, HO CHI MINH CITY,

VIET NAM

TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue

Makati, Metro Manila 1200,

PHILIPPINES

TEL:[phone]

MALAYSIA/

SINGAPORE

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39,

Dataran Prima, 47301 Petaling

Jaya, Selangor, MALAYSIA

TEL: [phone]

TAIWAN

ROLAND TAIWAN ENTERPRISE

CO., LTD.

9F-5, No. 112 Chung Shan

North Road Sec. 2 Taipei 104,

TAIWAN R.O.C.

TEL: [phone]

THAILAND

Theera Music Co., Ltd.

100-108 Soi Verng Nakornkasem,

New Road, Sumpantawong,

Bangkok 10100, THAILAND

TEL: [phone]

OCEANIA

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099,

AUSTRALIA

For Australia

TEL: [phone]

For New Zealand

TEL: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires, ARGENTINA

TEL: [phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park

Wildey, St. Michael, BARBADOS

TEL: [phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 211

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHILE

TEL: [phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9

Medellin, COLOMBIA

TEL: [phone]

COSTA RICA

JUAN Bansbach Instrumentos

Musicales

Ave.1. Calle 11, Apartado 10237,

San Jose, COSTA RICA

TEL: [phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30

Curacao, Netherland Antilles

TEL: [phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

Boulevard Andrews, Albrook,

Panama City, REP. DE PANAMA

TEL: [phone]

PARAGUAY

155, New National Road

Patras 26442, GREECE

TEL: [phone]

HUNGARY

Roland East Europe Ltd.

2045 Torokbalint, FSD Park.

building 3., HUNGARY

TEL: [phone]

IRELAND

Roland Ireland

G2 Calmount Park, Calmount

Avenue, Dublin 12,

Republic of IRELAND

TEL: [phone]

21. Index

A

Adapter 20

Alpine....37

American....37

APO 55

AUD 45

Audio files.... 34, 45

AUL 45

Auto Power Off 55

B

B Griff 48

BAL....22

Balance 22

Basic Channel....60

Bass

& Chord Mode....53

Button Noise....46

Panel functions....13

Reed Growl 46

To Treble....29

Touch 48

Using....30

Bassoon....29

Batteries 9

Install 16

bbn 46

bCH....60

bcn....53

Bellows

Curve....48

Expression TX....61

Resistance regulator .....11

TX Resolution 62

bES 61

bFO 59

bFr....59

bLC 48

bPC 62

brE....62

brG 46

brG 46

BS TO TREB....29

btl 25

Button layout....48

Button Noise 46

C

C Griff 48

cCH....60

CHd 59

CHO 59

Chord.... 30, 56

TX/RX Channel....59

Chorus.... 22, 47

CHr....47

Classic 37

Connections....17

Control Channel....60

Curve....48

D

D Griff 48

DC IN 14

Delay 47

Demo songs 24

dEt 45

Detune.... 37, 45

D-Folk 37

Display....23

dNP 42

dn 28

doF 31

drl 45

dr5....45

Drum Level 45

Drum Set....45

Dry 37

Dynamics....47

E

Editing....43

Effect 22,47

F

Factory Setup....64

FbN 51

Fbn 46

F-Folk....37

Fin. 48

Flanger....47

Flash memory....34

Fn5 53

FR-3 42

Free Bass....32

Button Noise 46

Mode....51

Panel functions....13

Reed Growl 46

French 37

FrG 46

Fty 64

Function Switch .....53

G

German 37

Growl....46

H

Hall....47

Headphones 14, 17, 21

HI 28

|

Import 42

Initialize....64

Italian....37

L

LO 28

M

Master Tune 45

Memories. 38

Memorize 38

Metronome.... 46

Function 53

NFn 53

Nid....58

MIDI

Channels.... 56, 59

Filters.... 61

Implementation.... 71

List.... 58

Out/In 58

Socket function.... 58

Mode 53

mp3 34

NtP 46

Nt5 47

765 47

Multi.... 62

Musette Detune.... 37, 45

N

North Eur.... 37

0

0 t.... 47

0bL 46

060 60

065 60

Obt 48

OCH 60

0c0 60

Octave

Bass/Free Bass 59

Chord 59

Orchestra 60

Orchestra Bass.... 60

Orchestra Chord 60

Orchestra Free Bass 60

Treble.... 59

OFb 60

OF0 60

OGL 46

OLA 55

Old 42

OrC 59

Orchestra

Bass TX/RX Channel 60

Chord TX/RX Channel.... 60

Free Bass TX/RX Channel 60

Touch 47

TX/RX Channel.... 59

Velocity.... 48

Volume 46

Organ Level 46

0-r0....60

Output Level Attenuation.... 55

P

Pan....48

Delay....47

Panel functions .....12

PCH....61

Percussion....45

Performance....62

PHONES.... 14, 21

Plate....47

Playback, Accompaniment.....34

Program Change TX ....61

R

Reed Growl....46

Register

Bass....13

Treble 12

Resetting....64

rEu 47

Reverb 22,47

Room....47

S

SAU 40

Save....38

Scottish....37

Set 25

Program change....60

Sordina 27

SP 55

Speaker Mode ....55

Specifications....67

S£E 48

Stereo

Width 48

Straps....18

Switching on/off....21

T

Time Signature....47

Touch.... 47, 48

Transpose ....45

trb....59

Treble....12

Mode....48

Panel functions....12

Playing bass parts....29

Using....26

Valve Noise 46

trn....48

trn....46

tr0....59

trP 45

tün 45

Tuning....45

U

UP 28

UPG 40

Urt....44

USB 34,40

User Prg. 38

USE 41

V

Valve 46

UEL....61

Velocity 47, 48

TX....61

VOL....22

Volume 22

Headphones....21

Orchestra 46

W

WAV....34

Write 38

Brt....44

MEMO

MEMO

For EU countries

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.
