USER MANUAL CY-6 ROLAND

CYMBAL PAD CY-6 PAD PD-6

Owner's Manual

Thank you and congratulations on your choice of the Roland Cymbal Pad CY-6/Pad PD-6.

Before using CY-6/PD-6, you need to make the settings for the percussion sound module (p. 7).

CY-6

Contents of the Package

☐ CY-6 (cymbal pad unit)
☐ Connection Cable (stereo)
□ Wing Nut
Felt Washer
□ Stopper
■ Owner's Manual (this manual)

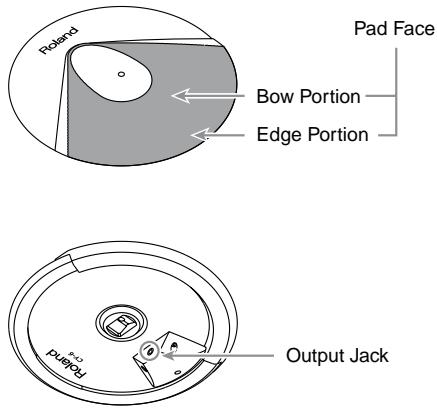

Poland Pad Face Bow Portion Edge Portion Output Jack

Output Jack Penny Penny

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" (p. 2–3) and "IMPORTANT NOTES" (p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

PD-6

Contents of the Package

☐ PD-6 (pad unit)
☐ Connection Cable (monaural)
■ Owner's Manual (this manual)

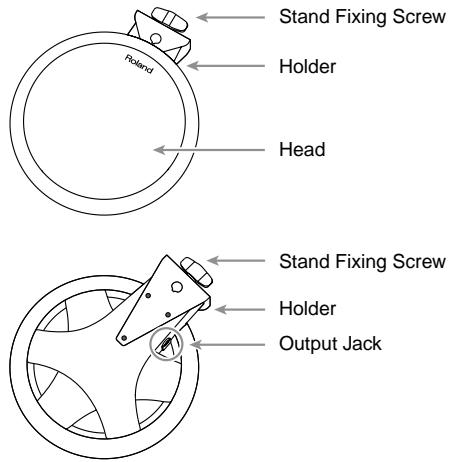

Stand Fixing Screw Holder Head Stand Fixing Screw Holder Output Jack

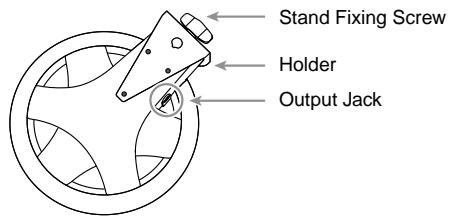

Stand Fixing Screw Holder Output Jack

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

⚠ WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
⚠ CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The ⊙ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

- Before using this unit, make sure to read the instructions below, and the Owner's Manual.

- Do not open or perform any internal modifications on the unit.

- Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

• Never use or store the unit in places that are:

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.

- This unit should be used only with a rack or stand that is recommended by Roland.

WARNING

- When using the unit with a rack or stand recommended by Roland, the rack or stand must be carefully placed so it is level and sure to remain stable. If not using a rack or stand, you still need to make sure that any location you choose for placing the unit provides a level surface that will properly support the unit, and keep it from wobbling.

- Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

- In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

- Protect the unit from strong impact. (Do not drop it!)

CAUTION

- Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

- Never climb on top of, nor place heavy objects on the unit.

CAUTION

- Should you remove wing nut (for CY-6), washers (for CY-6), or stand fixing screw (for PD-6) make sure to put them in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

IMPORTANT NOTES

In addition to the items listed under “USING THE UNIT SAFELY” on page 2–3, please read and observe the following:

Placement

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• To avoid possible breakdown, do not use the unit in a wet area, such as an area exposed to rain or other moisture.
• Do not allow rubber, vinyl, or similar materials to remain on the piano for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.
• Do not put anything that contains water (e.g., flower vases) on the piano. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• This instrument is designed to minimize the extraneous sounds produced when it's played. However, since sound vibrations can be transmitted through floors and walls to a greater degree than expected, take care not to allow these sounds to become a nuisance to neighbors, especially when performing at night and when using headphones.

Features

• Velocity sensitive cymbal pad provides rich expression.
• Designed specially for cymbals, the pad offers superior playing feel. Even the movement caused by playing is simulated.
• You can use bow shots, edge shots, and choking techniques.
• Compatible with all Roland percussion sound modules (p. 7).

Making the Settings

Attaching the Cymbal Pad to a Stand

Attach the CY-6 to a separately sold cymbal mount (MDY series).

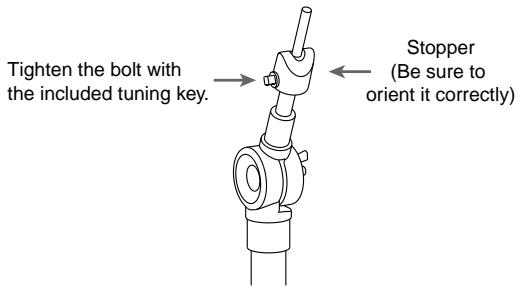

1. Use a commercially available tuning key to tighten the stopper bolt.

The stopper keeps the cymbal pad from turning, and prevents the cables from catching or getting tangled on the stand.

Tighten the bolt with the included tuning key. Stopper (Be sure to orient it correctly)

1. Attach the CY-6 so the unit is oriented as shown in the diagram.

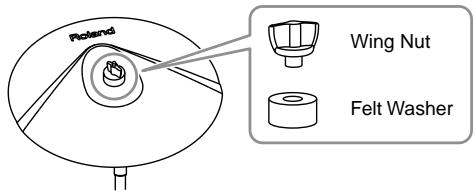

2. Tighten the wing nut to obtain the desired movement.

Use the included felt washer and the wing nut.

Poland Wing Nut Felt Washer

Connecting to a Percussion Sound Module (TD-6, TD-8, TD-10, etc.)

To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

1. Use the included connection cable and connect the output jack of the CY-6 to the trigger input jack of the percussion sound module.

Connect the L-shaped plug of the included cable to the CY-6. This will prevent strain from being applied to the CY-6.

To make use of edge shot and choking play techniques, you'll need to connect to a trigger input jack on the percussion sound module that accommodates rim shots.

2. Make the trigger settings for the percussion sound module. For the recommended values, refer to p. 7.

Should you neglect to make the appropriate settings for the percussion sound module, you could likely experience the following problems:

• Sometimes it does not sound (uneven volume)
• The volume is too low (reduced sensitivity)

For information on how to change the parameters for a percussion sound module, refer to the documentation for the percussion sound module you're using.

Playing the CY-6

Bow Shot

This is the most common playing method, playing the pad face of the cymbal. It corresponds to the sound of the “head-side” of the connected trigger input.

Roland Bow

Edge Shot

This playing method involves striking the edge with the shoulder of the stick. It corresponds to the sound of the “rim-side” of the connected trigger input.

To make use of edge shot, you'll need to connect to a trigger input jack on the percussion sound module that accommodates rim shots.

Poland Edge

Choking

Choking (pinching) the cymbal's edge with the hand immediately after hitting the cymbal makes the sound stop.

To make use of choking play techniques, you'll need to connect to a trigger input jack on the percussion sound module that accommodates rim shots.

Poland

Specifications

CY-6: Cymbal Pad

Pad Size: 12 inches

Triggers: 2 (Bow, Edge)

Dimensions: 290 (W) x 295 (D) x 45 (H) mm 11-7/16 (W) x 11-5/8 (D) x 1-13/16 (H) inches

Weight: 0.6 kg / 1 lb 6 oz

Accessories: Owner's Manual, Connection Cable, Wing Nut, Felt Washer, Stopper

Options: Cymbal Mounts (MDY-10U) Drum Stands (MDS-6, MDS-7U, MDS-8, MDS-10)

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Features

• Velocity sensitive pad provides rich expression.
- Compact, 8.5-inch pad allows for greater versatility when setting up.
- Compatible with all Roland percussion sound modules (p. 7).
- When used with a percussion sound module capable of positional sensing, you can obtain tonal changes by varying the location at which the pad is struck.

For details on positional sensing, refer to the documentation for the percussion sound module you're using.

Making the Settings

Attaching the Cymbal Pad to a Stand

Attach the PD-6 to a separately sold drum stand (MDS-6, MDS-7U, MDS-8, or MDS-10).

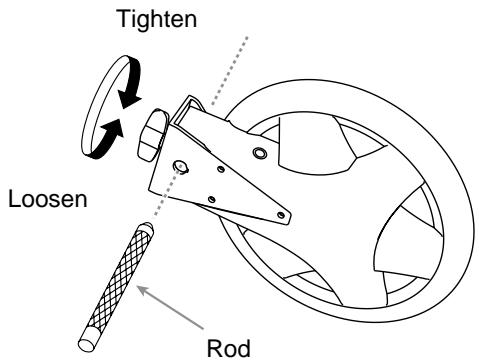

When attaching the PD-6 to the pad mount, be sure to tighten the stand fixing screw securely. If any of them remain loose, the pad could fall off.

Tighten Loosen Rod

Pass the rod through the pipe that is inside the holder.

When attaching the PD-6 to a commercially available tom stand, check the dimensions of the rod. Depending on the dimensions of the rod, it may not be possible to attach the pad to the stand.

Acceptable rod diameters: 8.5–11.5 (3/8 to 1/2 inch)

Connecting to a Percussion Sound Module (TD-6, TD-8, TD-10, etc.)

To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

1. Use the included connection cable and connect the output jack of the PD-6 to the trigger input jack of the percussion sound module.
   Connect the L-shaped plug of the included cable to the PD-6. This will prevent strain from being applied to the PD-6.
2. Make the trigger settings for the percussion sound module. For the recommended values, refer to p. 7.

Should you neglect to make the appropriate settings for the percussion sound module, you could likely experience the following problems:

• Sometimes it does not sound (uneven volume)
• The volume is too low (reduced sensitivity)

For information on how to change the parameters for a percussion sound module, refer to the documentation for the percussion sound module you're using.

Specifications

PD-6: Pad

Pad Size: 8.5 inches

Trigger: 1 (Head)

Dimensions: 221 (W) x 274 (D) x 64 (H) mm 8-3/4 (W) x 10-13/16 x 2-9/16 (H) inches

Weight: 1.2 kg / 2 lbs 11 oz

Accessories: Owner's Manual, Connection Cable

Options: Pad Mounts (MDH-10U) Drum Stands (MDS-6, MDS-7U, MDS-8, MDS-10)

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Recommended Parameters for the Percussion Sound Module

Recommended settings for the trigger parameters when using the CY-6/PD-6 with various percussion sound modules.

• Edge shots and choking techniques are possible with the CY-6 (p. 5).
• The PD-6 can be used with the same settings as the PD-7 and PD-9. When connected to the trigger input jack capable of positional sensing, you can obtain tonal changes by varying the location at which the pad is struck.
• The trigger parameters should be adjusted as necessary to match the actual state of your configuration, and the environment in which it is being used.

TD-10 (TDW-1 V-Cymbal Control, TDW-1)

		CY-6	PD-6
Trigger Type		CrB	P9A
Sensitivity		8	6
Threshold		4	4
Curve		Linear	Linear
Scan Time	(*1)	2.0	0.4
Retrigger Cancel	(*1)	10	4
Mask Time	(*1)	8	8
Xtalk Cancel	(*1)	40	40
Mount Type	(*1)	CymMount	PadMount

TD-10 (Non expanded)

		CY-6	PD-6
Trigger Type		PD9	PD9
Sensitivity		6	3
Threshold		3	2
Curve		Linear	Linear
Scan Time	(*1)	2.0	0.3
Retrigger Cancel	(*1)	1	3
Mask Time	(*1)	12	12
Xtalk Cancel	(*1)	30	30

TD-8

		CY-6	PD-6
Trigger Type		PD9	PD9
Sensitivity		10	5
Threshold		3	3
Curve		Linear	Linear
Scan Time	(*1)	2.0	0.5
Retrig Cancel	(*1)	3	3
Mask Time	(*1)	8	12
Xtalk Cancel	(*1)	40	40

TD-6

		CY-6	PD-6
TrigType		CY6	PD6
Sensitivity		10	7
Threshold		3	3
TrigCurve		LINEAR	LINEAR
Xtalk Cancel		30	40
Scan Time	(*1)	2.0	1.0
Retrig Cancel	(*1)	3	3
Mask Time	(*1)	8	4

TD-7 (*2)

	CY-6	PD-6
Cross Talk Group	OFF	OFF
Velocity Curve	Norm3	Norm3
Choke	ON	OFF
Max Dyna	5	8
MIn Dyna	1	5
Min Velo	1	1
Mask Time	0	0
Threshold	1	1

TD-5

		CY-6	PD-6
Trigger Type		P 1	Pd9
Sensitivity		10	3
Threshold		2	2
Curve		Lnr	Lnr
Scan Time	(*1)	2.0	0.0
Retrigger Cancel	(*1)	4	1
Mask Time	(*1)	12	12
Xtalk Cancel	(*1)	50	50

SPD-20

	CY-6	PD-6
Trig Sens	10	6
Trig Threshold	0	0
Trig Type	Pd5	Pd9
Trig Curve	0	0

SPD-11

	CY-6	PD-6
Trig Sens	10	7
Trig Threshold	2	1
Trig Mask Time	8	0
Trig Scan Time	20	0

HPD-15

	CY-6	PD-6
Input Mode	HD/RM (*3)	TRIGx2
Trig Type	PD-5	PD-9
Trig Sens	10	8
Curve	Linear	Linear
Threshold	3	2
Scan Time	2	1
Retrig Cancel	3	2
Mask Time	8	4
X-Talk Rate	20	20

*1: You need to set each advanced trigger parameter after setting the trigger type.
*2: Each trigger parameter can be set independently for the “head-side” and “rim-side.” Set to the same value for the head and rim. Trigger parameters can be set individually for each patch.
*3: The HPD-15 supports the use of edge shots with the CY-6, but it does not support choking techniques.
