Product Type	Ultra-thin Bluetooth Keyboard
Brand	Logitech
Model	Ultra Thin Keyboard mini
Dimensions (approx.)	28.0 x 10.0 x 0.5 cm
Weight	210 g (with battery)
Connectivity	Bluetooth 4.0 or later
Compatible Devices	Smartphones, tablets, smart TVs, laptops with Bluetooth
Key Type	Scissor-switch membrane
Layout	Compact QWERTY (English)
Number of Keys	78 (including function row)
Battery Type	Rechargeable lithium-ion polymer
Battery Capacity	250 mAh
Charging Interface	Micro USB
Battery Life	Up to 3 months (on a full charge, typical use)
Range	Up to 10 meters
Color	Black (standard)
Device Pairing	Up to 3 paired devices, switch via Fn keys
Special Functions	Media keys, brightness, volume, lock screen
Maintenance	Clean with a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Do not expose to water or extreme temperatures. Avoid dropping.
Spare Parts & Repairability	No user-serviceable parts. Contact Logitech support for issues.
General Information	Manufactured by Logitech. Refer to user manual for detailed instructions.

Frequently Asked Questions - Ultra Thin Keyboard mini LOGITECH

How do I pair the Logitech Ultra Thin Keyboard mini with my device?

Turn on the keyboard. Press and hold the Bluetooth button (or Fn+1/2/3) for 3 seconds until the LED starts flashing. On your device, enable Bluetooth and select 'Logitech Keyboard' from the list. Enter the PIN displayed on your screen if prompted.

What devices are compatible with this keyboard?

The keyboard works with any device supporting Bluetooth HID profile, including iOS, Android, Windows, macOS, and Smart TVs.

How long does the battery last?

The built-in rechargeable battery lasts up to 3 months on a full charge with typical usage (about 2 hours per day). Charging takes approximately 1-2 hours via the Micro USB port.

Can I use the keyboard while it is charging?

Yes, you can use the keyboard while it is plugged into a USB power source. It will function normally.

The keyboard is not connecting to my device. What should I do?

First, ensure the keyboard is turned on and in pairing mode. Check that your device's Bluetooth is enabled. Try re-pairing by forgetting the device on your device and re-scanning. If issues persist, restart both devices or charge the keyboard.

How many devices can I pair with the keyboard?

You can pair up to 3 devices simultaneously. Use the Fn+1, Fn+2, or Fn+3 keys to switch between paired devices.

Is the keyboard waterproof?

No, the keyboard is not waterproof. Avoid exposure to liquids. Spills can damage the keyboard. If liquid is spilled, disconnect immediately and allow to dry completely before use.

How do I clean the keyboard?

Use a soft, dry cloth to gently wipe the surface. For stuck debris, use compressed air. Do not use alcohol, abrasive cleaners, or cloths that shed fibers.

Can I replace the battery myself?

The battery is not user-replaceable. Attempting to open the keyboard may damage it. If the battery no longer holds a charge, contact Logitech support for assistance.

What is the warranty period for this keyboard?

Logitech provides a 1-year limited hardware warranty from the date of purchase. Keep your receipt as proof of purchase. For warranty claims, visit the Logitech support website.

USER MANUAL Ultra Thin Keyboard mini LOGITECH

Ultrathin Keyboard Mini

Setup Guide

Contents

English. 3

繁體中文 11

한국어 19

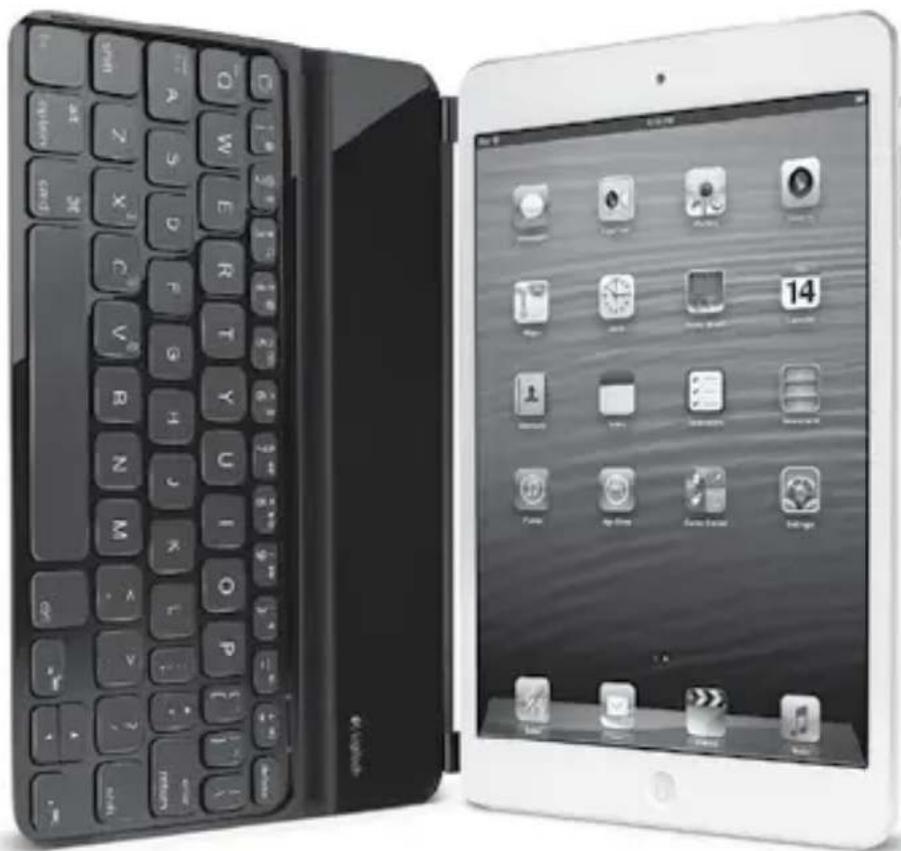

Know your product

1. Protective cover
2. iPad mini holder
3. Keyboard
4. Function keys
5. Bluetooth® light
6. Status light
7. Bluetooth connect button
8. On/Off switch
9. Documentation
10. Micro-USB charging cable

Set up your product

1. Turn on the Keyboard:

- Bluetooth discovery starts automatically and continues for 15 minutes. The Bluetooth light blinks.

- If the Status light briefly turns red, charge the batteries. For more information, see “Charge the batteries.”

1. Make sure your iPad mini's Bluetooth feature is on. Select Settings > Bluetooth > On.
2. Select "Ultrathin Keyboard Mini" on the iPad mini's Devices menu.
3. If your iPad mini requests a PIN, enter the code using the Keyboard and not your iPad mini's virtual keyboard. After the Bluetooth connection is made, the Bluetooth light turns on, and then it turns off.
4. Place the iPad mini landscape on the Keyboard.

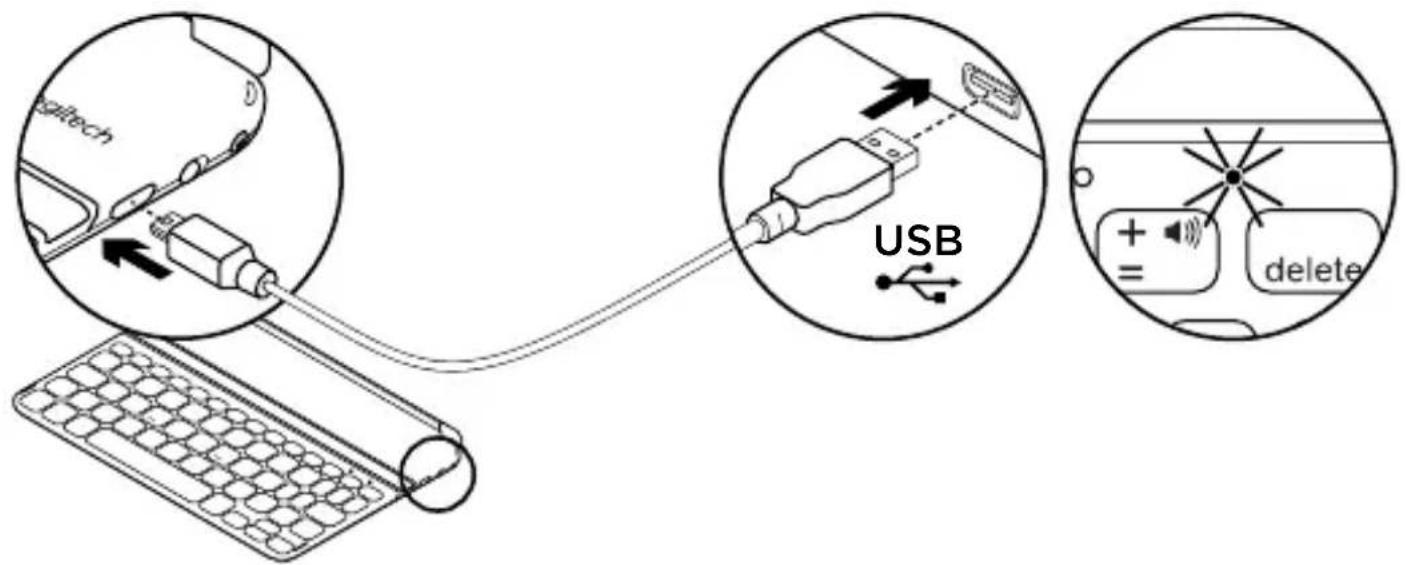

Charge the keyboard battery

1. Plug one end of the micro-USB cable into the charging port, and the other end into a USB port on your computer.

Alternatively, you can use a 5V USB charger, such as that provided with your iPad mini, providing the power output rating is at least 500mA.

The status light blinks green as the battery charges.

1. Charge the battery until the Status light turns solid green.

Battery information:

- A fully charged battery provides about 3 months of power when the Keyboard is used about 2 hours a day.

- Charge the battery when the Status light briefly turns red after the Keyboard turns on.

- When not in use, turn off the Keyboard to conserve battery power.

- The Keyboard enters sleep mode if powered on and not used. Press any key to wake.

Visit Product Central

There's more information and support online for your product. Take a moment to visit Product Central to learn more about your new Keyboard.

Browse online articles for setup help, usage tips, or information about additional features.

Connect with other users in our Community Forums to get advice, ask questions, and share solutions.

At Product Central, you'll find a wide selection of content:

• Tutorials
• Troubleshooting • Support community • Online documentation • Warranty information
• Spare parts (when available)

Go to www.logitech.com/support/ultrathinkeyboardmini

Use your product

Product features

Home

Displays the iPad mini Home screen

Fn + 1 = Lock screen

Locks or unlocks the iPad mini screen

Fn + 2 = Siri

Siri lets you use your voice to send messages, schedule meetings, place phone calls, and more

Fn + 3 = Search*

Launches the iPad mini search function

Fn + 4 = Switch language

Switches the keyboard language

Fn + 5 = Virtual keyboard

Shows/hides the virtual keyboard

Fn + 6 = Slide show*

Fn + 7 = Previous track

Fn + 8 = Play/Pause

Fn + 9 = Next track

Fn + 0 = Mute

Fn + dash = Volume down

Fn + plus = Volume up

Fn + X = Cut

Fn + C = Copy

Fn + V = Paste

Fn + Right cursor = Select right Selects text on the right, word by word

Fn + Space bar = Switch applications

Note: To use the function keys, press and hold the Fn key, then press a key listed above.

* Available only for iPad mini with iOS 6 or earlier.

Status light indications

Light Description
Blinking green The battery is charging.
Solid green The battery is fully charged (100%).
Red Battery power is low (less than 10%). Recharge the battery.

Bluetooth light indications

Light Description
Blinking Fast: The keyboard	cover is in discovery mode, ready for pairing.Slow: The keyboard cover is trying to reconnect to your iPad mini.
Solid Bluetooth pairing or re	connection is successful.

Storing the iPad mini for travel

1. Lift the iPad mini from the Keyboard.
2. Rotate the iPad mini, with the screen side down, so the Home button is on the right.
3. Place the iPad mini on to the Keyboard. A magnetic clip holds the iPad mini in position.

Connecting to a different iPad mini

1. Make sure the Keyboard is turned on.
2. Check that your iPad mini's Bluetooth feature is on. Select Settings > Bluetooth > On.

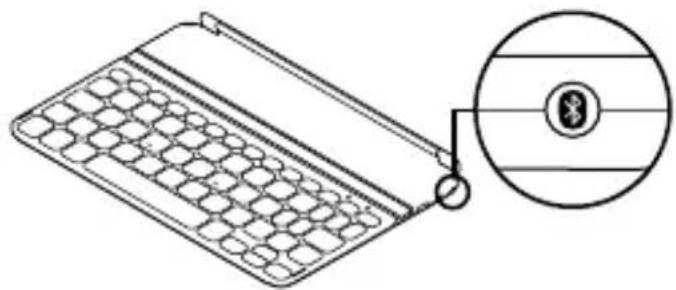

3. Press the Bluetooth Connect Button. The Keyboard is discoverable for 3 min.
4. Select "Ultrathin Keyboard Mini" on the iPad mini's Devices menu.
5. If your iPad mini requests a PIN, enter the code using the Keyboard and not your iPad mini's virtual keyboard. After the Bluetooth connection is made, the Bluetooth light turns on, and then it turns off.
6. Place the new iPad mini on the Keyboard.

Troubleshooting

The Keyboard does not work

- Press any key to wake the Keyboard from sleep mode.

• Turn the Keyboard Off and then back On.

• Recharge the internal batteries.

For more information, refer to "Charge the batteries."

• Re-establish the Bluetooth connection between the Keyboard and iPad mini.

- Verify that iPad mini's Bluetooth feature is turned on.

Choose "Ultrathin Keyboard Mini" from the Devices menu on your iPad mini. The Bluetooth light turns on after the Bluetooth connection is made.

Battery disposal at product end of life

1

3

1. Pry off top cover of keyboard with screwdriver.
2. Detach battery from circuit board and remove battery.
3. Dispose of your product and its battery according to local laws.

Product overview

Connecting another iPad mini

1. Dispose of your product and its battery according to local laws.

3

Product description

Reference: www.logitech.com/support/ultrathinkeyboardmini

Product use

Product features

Home

Connect to another iPad mini

2

3

Complies with IDA Standards DB101104

© 2013 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. Apple and iPad mini are trademarks of Apple Inc., registered in the U.S. and other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

620-004873.004
