RT-RH 20 Kit - Drill EINHELL - Free user manual and instructions

Product type	Corded hammer drill
Brand	Einhell
Model	RT-RH 20 Kit
Power supply	Mains 230 V ~ 50 Hz
Rated power	700 W
No-load speed	0 – 2800 rpm (variable)
Number of speeds	1
Max drilling capacity steel	10 mm
Max drilling capacity wood	25 mm
Max drilling capacity concrete	20 mm
Chuck	Self-tightening, capacity 1 – 10 mm
Weight	1.8 kg
Dimensions (L x W x H)	30 x 20 x 8 cm
Main functions	Drilling, hammer drilling, screwdriving
Safety	Lock-on switch, auxiliary handle included
Kit contents	Drill, auxiliary handle, depth stop, screwdriver bits
Maintenance and cleaning	Clean with a dry cloth, check carbon brushes periodically
Spare parts and repairability	Brushes, chuck, switch available

Frequently Asked Questions - RT-RH 20 Kit EINHELL

How to change the chuck of the RT-RH 20 drill?

To change the chuck, first make sure the tool is unplugged. Use the special key (if supplied) or a hex screw to loosen the chuck. Turn counterclockwise to remove it, then mount the new chuck clockwise. Tighten firmly.

How to use the hammer function?

Set the mode selector to the hammer symbol. Use this function only for drilling in masonry or concrete. For wood or metal, use normal drilling mode.

What is the power of this drill?

The Einhell RT-RH 20 Kit drill has a rated power of 700 W and variable speed from 0 to 2800 rpm. This allows drilling in steel up to 10 mm, in wood up to 25 mm, and in concrete up to 20 mm.

How to adjust the rotation speed?

Press the trigger progressively to increase speed. The harder you press, the faster the rotation. There is no mechanical speed selector; the speed is electronically variable.

How to clean the drill after use?

Unplug the tool. Use a dry cloth or slightly damp cloth to wipe the housing. Never immerse the drill in water. Regularly clean the ventilation slots with a soft brush.

Should I use the auxiliary handle?

Yes, for your safety, always use the auxiliary handle supplied. It provides better control and reduces the risk of injury in case of bit jamming.

What to do if the drill heats up abnormally?

Let it cool down in open air. Check that the ventilation slots are not blocked. If the problem persists, the carbon brushes may be worn; replace them with original parts.

How to drill effectively in concrete?

Use a hammer drill bit suitable for concrete. Set the mode selector to hammer. Apply moderate pressure and let the tool work. Use the depth stop to control depth.

What types of drill bits to use with this drill?

The chuck accepts bits with cylindrical shank from 1 to 10 mm. For wood, use wood bits; for metal, HSS bits; for concrete, hammer bits with carbide tip.

How to store the drill correctly?

Store it in a dry place away from dust. Unplug the power cord. Use the carrying case supplied in the kit to protect the tool.

USER MANUAL RT-RH 20 Kit EINHELL

Mechanical tool with labeled component 6, showing motion arrows and no visible text or symbols

Mechanical assembly diagram showing a drill bit being inserted into a drill bit with directional arrows (no text or symbols)

D

Inhaltsverzeichnis

1. Safety regulations
2. Layout
3. Items supplied
4. Proper use
5. Technical data
6. Before starting the equipment
7. Starting up
8. Replacing the power cable
9. Cleaning, maintenance and ordering of spare parts
10. Disposal and recycling

"Caution - Read the operating instructions to reduce the risk of inquiry"

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Wear a breathing mask.

Dust which is injurious to health can be generated when working on wood and other materials.

Never use the device to work on any materials containing asbestos!

Wear safety goggles.

Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

⚠️ Important!

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout (Fig. 1)

1. Dust guard
2. Locking sleeve
3. Selector switch for drill/hammer drill/chisel
4. ON/OFF switch
5. Handle
6. Additional handle
7. Depth stop
8. Locking button
9. Clockwise/counter-clockwise switch
10. Clamping screw
11. Speed controller

3. Items supplied

Take all the parts out of the packaging. Check that nothing is missing.

●RT-RH 20 hammer drill
●Additional handle
●Depth stop
●Drill bit 5x
●Operating instructions
●Safety regulations

4. Proper use

The tool is designed for drilling with hammer action in concrete, rock and brick, as well as for chiseling work, always using the respective correct drill or chisel bit.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Technical data

Mains voltage: 220-240 V \~ 50 Hz

Power input: 600 W

Idling speed: 0-1200 rpm

Blow rate: 0-5800 rpm

Drilling capacity in concrete/stone (max.): 20 mm

Protection class: II / ☐

Weight: 2.8

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 90 dB(A)

K_pA uncertainty 3

L_WA sound power level 101 dB(A)

K_WA uncertainty 3 dB

The hammer drill is not designed for outdoors use as specified | Article 3 of Directive 2000/14/EC_2005/88/EC.

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

GB

Hammer drilling in concrete

Vibration emission value a_h=10.2 m/s^2

K uncertainty = 1.5 m/s ^4

Chiseling

Vibration emission value a_h=10.5 m/s^2

K uncertainty = 1.5 m/s ^4

Additional information for electric power tools

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

●Only use appliances which are in perfect working order.
●Service and clean the appliance regularly.
●Adapt your working style to suit the appliance.
●Do not overload the appliance.
●Have the appliance serviced whenever necessary.
●Switch the appliance off when it is not in use.
●Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

6. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

Check the drilling point for concealed electrical cables, gas and water pipes using a cable/pipe detector.

6.1 Additional handle (Fig. 2 - Item 6)

For safety reasons you must only use the hammer drill with the additional handle.

The additional handle (6) enables you to achieve better stability whilst using the equipment. Do not use the equipment without the additional handle. The additional handle (6) is secured to the equipment by a clamp. Turning the handle clockwise tightens this clamp. Turning it anti-clockwise will release the clamp.

●The supplied additional handle (6) must first be fitted. To do this, turn the handle until the clamp is opened wide enough for you to slide the additional handle onto the equipment.
●After you have mounted the additional handle (6), swivel it to the most comfortable working position for yourself.
●Now turn the handle in the opposite direction again until the additional handle is secure.
●The additional handle (6) is suitable for both left-handed and right-handed users.

6.2 Depth stop (Fig. 3 - Item 7)

The depth stop (7) is held in place with the locking screw (10) on the additional handle (6) by means of a clamp.

●Undo the locking screw (10) and fit the depth stop (7).
- Set the depth stop (7) to the same level as the drill bit.
●Pull the depth stop (7) back by the required drilling depth.
●Retighten the locking screw (10).
- Now drill the hole until the depth stop (7) touches the workpiece.

6.3. Tool insertion (Fig. 4)

●Clean the tool before insertion and apply a thin coating of drill bit grease to the shaft of the tool.
●Pull back and hold the locking sleeve (2).
- Insert the dust-free tool into the tool mounting as far as it will go whilst turning it. The tool will lock itself.
- Check that it is properly secure by pulling the tool.

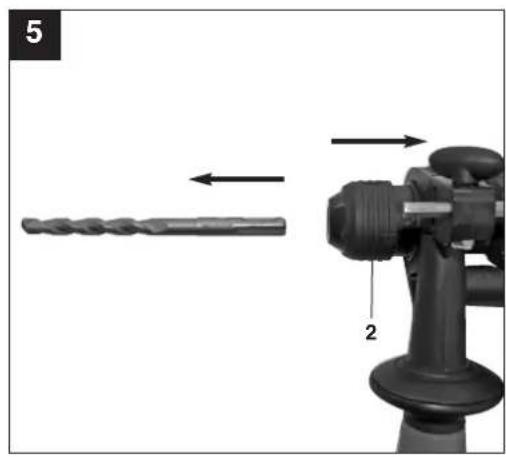

6.4. Tool removal (Fig. 5)

Pull back and hold the locking sleeve (2) and remove the tool.

7. Starting up

Important.

To prevent all danger, the machine must only be held using the two handles (5 / 6). Otherwise there may be a risk of suffering an electric shock if you drill into cables.

7.1 ON/OFF switch (Fig. 6/Item 4)

●First fit a suitable drill bit into the tool (see 6.3).
- Connect the mains plug to a suitable socket.
●Position the drill in the position you wish to drill.

To switch on:

Press the ON/OFF switch (4)

Continuous operation:

Secure the ON/OFF switch (4) with the locking button (8).

Important. It may only be locked if the drill is set to rotate clockwise.

To switch off:

Press the ON/OFF switch (4) briefly.

7.2 Adjusting the speed (Fig. 6/Item 4)

●You can infinitely vary the speed whilst using the tool.
- Select the speed by applying a greater or lesser pressure to the ON/OFF switch (4).
- Select the correct speed: The most suitable speed depends on the workpiece, the type of use and the drill bit used.
●Low pressure on the ON/OFF switch (4): Lower speed
●Greater pressure on the ON/OFF switch (4): Higher speed

Tip: Start drilling holes at low speed. Then increase the speed in stages.

Benefits:

●The drill bit is easier to control when starting the hole and will not slide away.
- You avoid drilling messy holes (for example in tiles).

7.3 Preselecting the speed (Fig. 6/Item 11)

●The speed setting ring (11) enables you to define the maximum speed. The ON/OFF switch (4) can only be pressed to the defined maximum speed setting.
- Set the speed using the setting ring (11) on the ON/OFF switch (4).
- Do not attempt to make this setting whilst the drill is in use.

7.4 Clockwise/Counter-clockwise switch (Fig. 6/Item 9)

●Change switch position only when the drill is at a standstill!
●Switch the direction of the hammer drill using the clockwise/counter-clockwise switch (9):

Direction

Switch

Clockwise (forwards and drill) Pushed in to the right

Counter-clockwise (reverse) Pushed in to the left

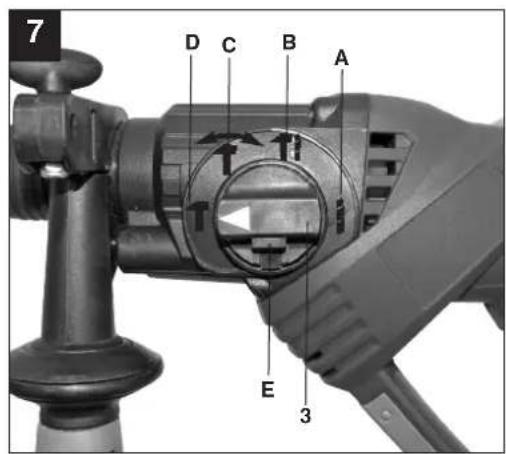

7.5 Drill / Hammer drill / Chisel selector switch (Fig. 7)

●For drilling, press the button (E) on the rotary switch (3) and simultaneously turn the rotary switch (3) to position A.
●For hammer drilling, press the button (E) on the rotary switch (3) and simultaneously turn the rotary switch (3) to position B.
- For chiseling, press the button (E) on the rotary switch (3) and simultaneously turn the rotary switch (3) to position C. In switch position C the chisel is not locked.
●For chiseling, press the button (E) on the rotary switch (3) and simultaneously turn the rotary switch (3) to position D. The chisel is locked in position D.

Important.

Only low pressure is required for hammer drilling.

Excessive pressure will exert an unnecessary force on the motor. Check the drill bits at regular intervals.

Sharpen or replace blunt drill bits.

GB

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

9.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  ●We recommend that you clean the device immediately each time you have finished using it.
  ●Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

9.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

9.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

9.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

●Type of machine
●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

11. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

Table des matières

Boreydelse beton/sten (maks.): 20 mm

Kapslingsklasse: II

Vægt: 2,8

Støj og vibration

⑥ explains the following conformity according to EU directives and norms for the following product

Notified Body: Notified Body No.:

Reg. No.:

2000/14/EC_2005/88/EC

Annex V

□ Annex VI

Noise: measured L_WA = dB(A) ; guaranteed L_WA = dB(A) P = KW: L/ = cm

Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60745-1; EN 60745-2-6; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

First CE: 09 Archive-File/Record: NAPR005347

Art.-No.: 42.584.28 I.-No.: 11012

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Riedel Georg

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

F BULLETIN DE GARANTIE

Chère Cliente, Cher Client,
