Product type	Steam cleaner
Brand	Wagner SprayTech
Model	On-Demand 915 Power Steamer
Power supply	230 V / 50 Hz
Rated power	1500 W
Steam pressure	4 bar
Steam temperature	Up to 100 °C
Water tank capacity	1 L
Heating time	Approximately 3 minutes
Continuous runtime	Approximately 30 minutes
Dimensions (L × W × H)	30 × 20 × 25 cm
Weight	2.5 kg
Main functions	Steam cleaning for floors, surfaces, textiles and windows
Included accessories	Floor nozzle, detail nozzle, round brush, microfiber cloth, funnel
Maintenance and cleaning	Regular descaling recommended with vinegar-water solution
Safety	Automatic shut-off in case of overheating, child lock on steam button
Spare parts and repairability	Available from Wagner after-sales service
General information	Steam appliance for household use, compliant with CE standards

Frequently Asked Questions - On-Demand 915 Power Steamer Wagner SprayTech

How do I fill the water tank of the Wagner On-Demand 915 Power Steamer?

Remove the water tank by lifting it, open the cap, and fill with tap water up to the MAX mark. Do not exceed. Screw the cap back on and replace the tank.

Can I use demineralized water in my steam cleaner?

Yes, you can use demineralized water to reduce limescale. However, a mixture with tap water is also possible. Avoid pure distilled water as it may reduce steam production.

How long does it take for the appliance to heat up and produce steam?

The heating time is approximately 3 minutes. The indicator light turns off when steam is ready.

On what types of surfaces can I use the steam?

The appliance is suitable for tiled floors, laminate, windows, stainless steel surfaces, textiles, and carpets. First test on an inconspicuous area. Do not use on heat-sensitive surfaces.

How do I clean and descale my Wagner Power Steamer?

Descale every 10 fills or as soon as steam decreases. Mix a solution of white vinegar and water (1:3), pour into the tank, heat, and operate the steam until empty. Rinse with clean water.

Can I use chemicals or detergents in the water?

No, never add chemicals, detergents, or fragrances to the tank. Only clean or demineralized water is recommended.

What if the appliance no longer produces steam?

Check that the tank is filled, the child safety lock is disabled, and the appliance is hot. If the problem persists, descale. Consult the manual if needed.

How do I clean the floor nozzle?

Unplug the appliance and let it cool. Remove the microfiber cloth and wash it at 60 °C. The nozzle can be wiped with a damp cloth. Do not use abrasive cleaners.

What are the important safety precautions?

Never direct steam at people or animals. Do not touch the hot nozzle. Use the appliance on a stable surface. Unplug after use. Do not immerse in water.

Where can I find accessories or spare parts?

Accessories and spare parts are available on the Wagner website or through customer service. You can order cloths, nozzles and seals.

USER MANUAL On-Demand 915 Power Steamer Wagner SprayTech

Line drawing of a vacuum cleaner with various cleaning components (no text or labels)

Owner's Manual (page 2)

Read this manual for complete instructions

Read all warnings

Line drawing of a hand pouring liquid into a container (no text or symbols)

Fill container with water (48 oz. max)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Attach handle to accessory

Plug in power cord, switch ON (I)

Diagram of a mechanical component with arrows indicating assembly or force direction (no text or symbols)

Allow unit to heat (green and red lights on)

Technical line drawing of a mechanical component with a black arrow pointing to a small circular feature (no text or symbols present)

Green light only = you are ready to steam.

Illustration of a hand holding a knife and a tool on a tiled surface, with no visible text or symbols

Line drawing of a vacuum cleaner attached to a base (no text or symbols)

perform cleaning job

DO NOT FILL THE STEAMER WITH ANY LIQUIDS EXCEPT CLEAN WATER.

REMLISSEZ LE VAPORISATEUR EN UTILISANT SEULEMENT DE L'EAU PROPRE.

Read all safety information before operating the equipment. Save these instructions

To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and proper usage of the equipment.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

DO NOT FILL THE STEAMER WITH ANY LIQUIDS EXCEPT CLEAN WATER. Do not use household cleaners, bleach or any other chemicals with this steamer. This can result in a dangerous situation, resulting in an explosion.

HAZARD: Hot steam and parts. May cause injury, including skin burns or property damage. Temperatures exceed 212°F (100°C).

PREVENTION:

• Stay clear of steam and steam plate surface. DO NOT place hand in front of steam plate.
• Water drops are hot and may burn skin. Use extreme caution when using steam plate overhead, and routinely empty water from steam plate. Wear eye protection and gloves when using this steamer.
• Spray handle may become warm to the touch during usage.
• Allow parts to cool before changing accessories and /or opening fill cap.
• Never point steam plate or accessories at anyone.
• Hot water may eject from accessories when trigger is activated.
  • DO NOT over fill water container.
• DO NOT strain or kink hose. Never repair a damaged hose.

HAZARD: Fire. May cause severe injury and/or property damage.

PREVENTION:

• DO NOT allow water to boil dry. Boiling dry may cause overheating and fire.
• DO NOT allow water or steam to enter light switches or sockets.

HAZARD: Electrical Shock. May cause severe injury.

PREVENTION:

• Power cord must be connected to grounded (3 prong) outlet.
• DO NOT use the unit if the power cord is worn or damaged. Never repair a power cord.
• DO NOT pull water container by power cord.
• DO NOT allow water or steam to enter light switches or sockets.

HAZARD: General. May cause injury and/or property damage.

PREVENTION:

• DO NOT modify parts or components. Never repair damaged or worn parts.
• Water container must rest on a sturdy, level surface and in upright position.
• Keep power steamer away from children.
  • NEVER leave power steamer unattended.
• Read all instructions and warnings before each use.

Grounding Instructions

This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING! — Improper installation of the grounding plug can result in a risk of electric shock.

If repair or replacement of the cord or plug is necessary, have your nearest Wagner Authorized Service Center replace it.

Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly grounded. Do not modify the plug provided; if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Extension Cords

Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. For lengths up to 100 feet, use 14 AWG extension cords.

Three electrical socket diagrams labeled (A), (B), and (C), showing different connection configurations without any text or symbols.

Thermal Safety Fuse Reset

Always fill the unit before plugging it in. If the steamer is plugged in before it is filled with water, or if the steamer is allowed to run dry, a thermal safety fuse will open, causing the unit to turn off. If this happens, unplug the unit and allow it to cool for at least 10 minutes. The safety fuse will reset itself.

NOTE: The water container, heating element and hose are not serviceable. Should a problem occur with the steamer, contact Wagner Technical Service.

Product Registration

Register your product online at www.wagnerspraytech.com. Proper registration will serve as proof of purchase in the event your original receipt becomes misplaced or lost.

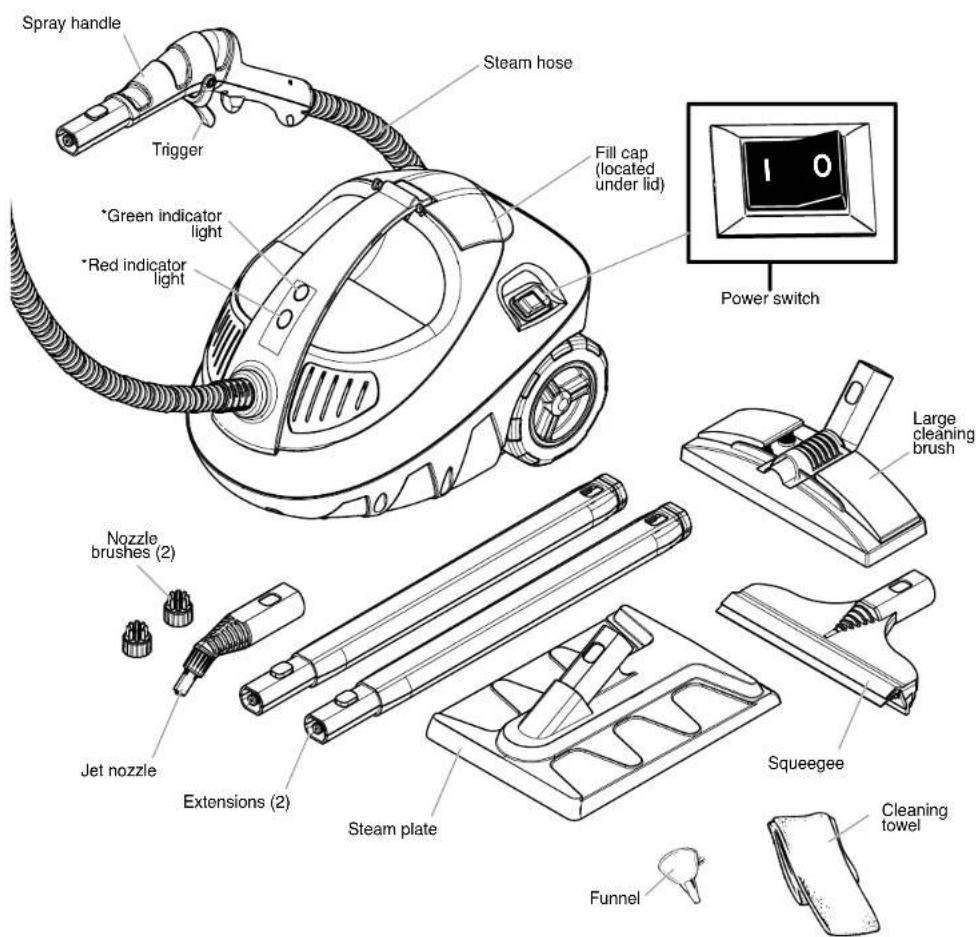

Parts and Components

Start Replaceable parts:

These parts can be ordered or replaced by calling Wagner Technical Service:

Steam plate

Jet nozzle and brushes (2)

Extension (2)

Squeegee

Cleaning brush

Cleaning brush towel

Funnel

\*Indicator lights:

Green and Red light on = unit warming up

Green light only on = ready to steam

Questions?

Call Wagner Technical Service at:

1-800-727-4023

Register your product online at:

www.wagnerspraytech.com

Setup

Start

Before you begin:

DO NOT FILL THE STEAMER WITH ANY LIQUIDS EXCEPT CLEAN WATER. Do not use household cleaners, bleach or any other chemicals with this steamer.

Never use more than two extensions when using the steamer.

Never attach extensions or accessories while unit is emitting steam.

Diagram showing a tool applying material to a component, with no visible text or symbols

1. If using an extension, attach the accessory to the extension.

1. Push the button on the handle (a) and attach the steam plate, extensions, or cleaning accessory to the trigger mechanism.

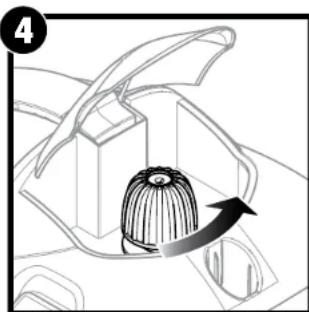

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

1. Flip up filler cap lid and carefully unscrew filler cap. Using the funnel, fill the steamer with clean tap water (distilled water recommended). DO NOT OVERFILL.

Diagram showing a mechanical component being inserted into a terminal housing (no text or symbols present)

1. If using the jet nozzle, assemble the brush onto the nozzle.

Note: When attaching the nozzle brush to the jet nozzle, line up the notch in the jet nozzle end (b) with the guide inside the nozzle brush (c).

Amount of water	Steam time
16 oz.	15 min
32 oz.	30 min
48 oz.	45 min

1. Use the chart above as a guide to determine how much water you will need based on how long you need to use the steamer. Replace fill cap and shut filler cap lid when filled with desired amount.

Line drawing of a steam purifier with labeled component (d), no text or symbols present

1. Plug in the power cord and turn the switch ON (I). Both the green and red indicator lights will turn on.
   Once the red indicator light on the container turns off (d), you are ready to begin steaming.
   Note: When the red light turns back on, you can continue steaming.

Usage

Start

Before you begin:

DO NOT leave steam plate unattended, or face down on any surfaces.

DO NOT operate the steamer once the water container is empty. Make sure to wear gloves and eye protection.

Before unscrewing the filler cap and filling the reservoir, make sure any remaining water has cooled for at least twenty (20) minutes. Empty any remaining water to avoid over-filling.

Do not look directly down into the fill hole when filling. Keep your free hand and others at a safe distance.

The spray handle may become warm to the touch during usage.

Note: Before using, trigger the spray handle into a sink or empty bucket to purge any remaining cold water.

Using the trigger

1. You can control the flow of steam from the accessory by activating the trigger.

The trigger will also relieve any built-up pressure remaining in the system after the steamer has been shut off.

Note: Just turning the power OFF does not relieve steam pressure. During cool down, treat the unit as if it is under pressure. Always activate the trigger before removing the fill cap.

Cooling / refilling

1. Shut the unit OFF.

Activate trigger until all pressure has been released.

1. Unplug power cord.

Allow steamer to cool for at least twenty (20) minutes.

* See NOTE, above.

Line drawing of a hand pouring liquid into a small cup (no text or symbols)

1. Once unit has sufficiently cooled, repeat steps 4-6 in Setup to continue.

Wallpaper removal

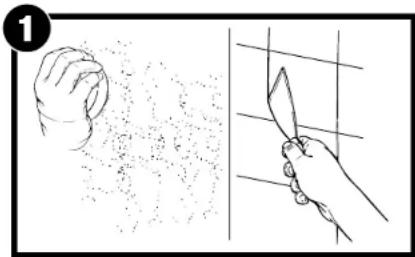

Illustration showing a hand holding a knife next to a textured surface, with no visible text or symbols.

1. For best results, use a scoring tool or a putty knife and gently score the wallpaper in a crisscross pattern before removal. The perforations will allow the steam to penetrate the wallpaper.

1. To remove wallpaper, hold the steam plate flat against the scored wallpaper. Pull the trigger and hold for 15-20 seconds. Move the steam plate to a new section and remove the steamed section with a scraper blade.

English

Steam cleaning

General Notes:

Using Steam on Delicate Materials

Always check the suitability of materials before steam cleaning. Steam is being generated at temperatures in excess of 212^ (100^) . Do not use on any surfaces that cannot withstand this temperature. Always test a small area of the material, preferably an area that is normally out of view. Do not soak materials being cleaned. Only a light application of steam is required. See below for more information on steam cleaning.

DO NOT attempt to use the steam plate included with this unit as a cleaning device. The steam plate is designed for wallpaper removal only. This unit is not recommended to be used on self-adhesive vinyl tiles.

Pressurized steam may bounce back off cleaning surface.

• Using the cleaning accessories generally require less water than wallpaper removal. Using less water will decrease time it takes for the unit to make steam.
• Activate the trigger as needed for sufficient steam supply. Use the soft bristles to brush away dirt, grease, unwanted dried paint, etc. DO NOT overscrub the surface unless you are cleaning tiles or stone.
• Use only clean tap water or distilled water when using the steamer. No detergents or any other additives are needed.
• When cleaning upholstery or clothing, DO NOT soak the material. Try cleaning an inconspicuous area that is normally not in view and wait 24 hours before checking whether the material has been affected. If material has been adversely affected, DO NOT CONTINUE!

Using the Cleaning Accessories:

The accessories are excellent tools for cleaning a variety of surfaces.

Note: Using the optional accessories for cleaning generally requires less water than wallpaper removal. Using less water will decrease time it takes for the unit to make steam.

The Large Cleaning Brush (a)

The large cleaning brush and towel can be used to clean large, solid areas or upholstery. It can be used on surfaces such as ceramic, stone, parquet, marble, linoleum and carpet (see Steam Cleaning Tips, right, before cleaning).

Window / Tile squeegee (b)

The squeegee is an excellent tool for cleaning windows and also tiles. The rubber blade can be used to scrape away dirt and other particles as steam is applied.

The Extensions (c)

The extensions can be used for floor cleaning and to help you reach into higher or harder to reach areas.

The jet nozzle is recommended for steam cleaning smaller, harder to reach areas.

Steam Cleaning Tips - Read before starting

Flooring and Carpeting:

• This unit is not recommended for use on surfaces that can be damaged by heat or water, such as self-adhesive vinyl tiling, or wood flooring as the steam may cause the floor boards to swell. Always check with floor manufacturer before using steamer.
• Some carpets contain stain resistant treatments which may be affected by steam cleaning. Try cleaning a small, normally unseen area of carpet, and allow 24 hours to verify any unusual effects on the carpet. If this occurs, do not continue to use. Check with your carpet supplier for further information.

Windows and Tiles:

• Be careful not to pick up dirt or grit particles on the rubber blade as this could scratch the glass.
• Antique and stained glass may be brittle and may crack under extreme temperatures.
• Do not use on glass when the temperature is below 32^ (0^) . Glass may crack in cold temperatures.
• If your window has been treated or coated in any way, check with manufacturer before using steamer.

Upholstery and Fabrics:

• Some upholstery and fabrics contain stain resistant treatments which may be affected by steam cleaning. Try cleaning a small, normally unseen area and allow 24 hours to verify any unusual effects. If this occurs, do not continue to use. Check with material supplier for further information.
• Always check the suitability of materials before steam cleaning. Do not use on any surfaces that cannot withstand temperatures in excess of 212^ (100^) .
• On clothing, always check the garment label or check with the clothing retailer before steam cleaning.
• When cleaning upholstery or clothing, do not soak the material. Only a small amount of steam is sufficient for cleaning. Too much steam can leave water marks or other damage.

General:

• Activate the trigger as needed for sufficient steam supply. Use the soft bristles on the accessories to brush away dirt, grease, unwanted dried paint, etc. Do not over-scrub the surface unless you are cleaning tiles or stone.
• Use only clean tap water or distilled water when using the steamer. No detergents or any other additives are needed.
• Read this manual for complete instructions. Follow all warnings.

When you are finished steaming

Storage:

When you have completed your steaming job, follow the steps below to store the unit.

1. Shut the unit OFF (O).
2. Activate trigger until all pressure has been released.
3. Unplug power cord.
4. Allow steamer to cool for at least twenty (20) minutes.
5. Activate trigger to release pressure. Remove all accessories from handle.
6. Empty any remaining water in reservoir to prevent overfilling the next time the steamer is used. NEVER store the unit with water in the container.
7. Place the unit in a cool, dry location.

IMPORTANT: ALWAYS store the unit empty.

IMPORTANT: NEVER store the unit temperatures below 40^ F ( 4^ C).

Maintenance:

Over time, the reservoir may experience mineral build-up caused by the high mineral content found in most local water supplies. One way to avoid this is to use distilled water with this steamer. If you are unable to use distilled water, follow the steps below to remove mineral build-up. It is recommended that these steps be performed on a periodic basis.

1. Follow steps 1-6 in Storage, left.
2. Using a measuring cup, mix 8 ounces of vinegar and 8 ounces of water.
3. Slowly pour water/vinegar mixture into the reservoir.
4. Allow the unit to sit for at least thirty (30) minutes.
5. Empty the reservoir of the water/vinegar mixture.
6. Rinse reservoir with fresh water and drain. Repeat until vinegar odor dissipates.
7. Replace fill cap and store unit in a cool, dry place.

Three electrical socket diagrams labeled (A), (B), and (C), showing different connection configurations without any text or symbols.

Appelez le service technique Wagner

1-800-727-4023

Diagram showing a tool applying material to a mechanical component (no text or symbols present)

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

Diagram showing a mechanical component being inserted into a terminal housing (no text or symbols present)

Line drawing of a steam purifier device with labeled parts (d), no text or symbols present

Line drawing of a hand pouring liquid into a cup (no text or symbols)

Illustration showing a hand holding a knife next to a textured surface, with no visible text or symbols

Three electrical socket diagrams labeled (A), (B), and (C), showing different connection configurations without any text or symbols.

Diagram showing a tool applying material to a mechanical component (no text or symbols present)

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating direction, showing a shaft and housing (no text or symbols)

Line drawing of a steam locomotive with labeled component (d), no text or symbols present

Line drawing of a hand pouring liquid into a cup (no text or symbols)

Illustration showing a hand holding a knife near a grid-patterned surface, with no visible text or symbols.

Wagner One Year Limited Warranty

KEEP ON FILE

This product manufactured by Wagner Spray Tech Corporation (Wagner), is warranted to the original retail purchaser against defects in material and workmanship for one year from date of purchase if operated in accordance with Wagner's printed recommendations and instructions. This product is designed for home use only. If this product is used for professional/rental purposes, this warranty applies only for 30 days from date of purchase.

This warranty does not cover damage resulting from improper use, accidents, user's negligence or normal wear. This warranty does not cover defects or damages caused by service or repair performed by anyone other than a Wagner Authorized Service Center. This warranty does not apply to accessories.

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO ONE YEAR FOR HOME USE AND 30 DAYS FOR PROFESSIONAL/RENTAL USE FROM DATE OF PURCHASE.

WAGNER SHALL NOT IN ANY EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER FOR BREACH OF THIS WARRANTY OR ANY OTHER REASON.

If any product is defective in material and/or workmanship during the applicable warranty period, return it with proof of purchase, transportation prepaid to any Wagner Authorized Service Center. Contact Wagner Technical Service at 1770 Fernbrook Lane, Plymouth, MN 55447 or telephone [phone] for authorized service center locations. Wagner's Authorized Service Center will either repair or replace the product (at Wagner's option) and return it to you, postage prepaid.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitation and exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
