5KFPM776 - Food Processor KITCHENAID - Free user manual and instructions

Product type	Food processor (multifunction robot)
Brand	KitchenAid
Model	5KFPM776
Dimensions (W x D x H)	Approx. 40 x 25 x 30 cm
Weight	Approx. 7 kg
Power supply	220-240 V, 50/60 Hz
Power	800 W
Bowl capacity	2.8 L (stainless steel bowl)
Main functions	Chopping, grating, slicing, kneading, emulsifying, blending
Included accessories	Chopping blade, grating/slicing disc, whisk, dough hook
Speeds	2 speeds + pulse
Safety	Bowl locking, automatic shut-off in case of overload
Maintenance and cleaning	Bowl and accessories dishwasher safe
Spare parts and repairability	Available on KitchenAid website and at authorized dealers

Frequently Asked Questions - 5KFPM776 KITCHENAID

What is the bowl capacity of the KitchenAid 5KFPM776?

The bowl has a capacity of 2.8 liters, ideal for preparing large quantities.

Can I put the bowl and accessories in the dishwasher?

Yes, the bowl and most accessories are dishwasher safe. However, the motor unit should be cleaned with a damp cloth.

What accessories are included with the 5KFPM776?

The appliance comes with a chopping blade, a grating/slicing disc, a whisk, and a dough hook.

Does the robot have a pulse function?

Yes, it has a pulse function for precise control during chopping or mixing.

How to clean the motor of the robot?

The motor should not be immersed. Clean it with a damp cloth and dry it immediately.

What to do if the robot does not start?

Check that the bowl is properly locked and the power outlet works. If the problem persists, contact customer service.

Can the 5KFPM776 knead bread dough?

Yes, with the dough hook, it can knead up to 1 kg of bread dough.

What is the motor power?

The motor delivers 800 watts, sufficient for chopping, grating, and kneading.

Where can I buy spare parts?

Spare parts are available on the official KitchenAid website and at authorized dealers.

Is the robot under warranty?

Yes, KitchenAid offers a 2-year warranty on this model. Keep your receipt.

USER MANUAL 5KFPM776 KITCHENAID

ARTISAN™ FOOD PROCESSOR INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™ MODE D'EMPLOI ET RECETTES

Exterior view of a kitchen blender with control panel and digital display (no visible text or symbols)

Models 5KFPM776 (shown), 5KFPM771, 5KFPM775 (not shown)

® Registered Trademark of KitchenAid, U.S.A. ™ Trademark of KitchenAid, U.S.A. © 2009. All rights reserved.

Specifications subject to change without notice.

KitchenAid™

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a modern kitchen blender with control panel and digital display (no visible text or symbols)

Close-up of a toilet with a grater inside, no visible text or symbols

Citruspers

Close-up of a white appliance with three circular buttons and a handle (no visible text or symbols)

Stevig motorblok

White plastic enclosure with a circular vent and internal structure (no text or symbols visible)

3D rendering of a mechanical assembly box containing multiple cylindrical components and a flanged housing (no text or symbols visible)

5KFPM771 5KFPM775 en
5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

1. Steek de 2-delige stamper in de vulopening.

Illustration of a hand holding a cylindrical container with a transparent lid, next to a smaller cylindrical object (no text or symbols visible)

Close-up of a kitchen mixer with handle and control panel (no visible text or symbols)

Hand using a pipette to lift a small cylindrical component into a transparent kitchen appliance (no text or symbols visible)

Illustration of hands cleaning a kitchen appliance with a lid (no text or symbols)

De minikom monteren

Illustration of hands operating a cleaning or cleaning machine with a bowl and handle (no text or symbols visible)

Close-up of a transparent kitchen grater with handle and side panel (no visible text or symbols)

Illustration of hands using a tool to clean or prepare food from a bowl (no text or symbols visible)

De Chefs kom monteren (5KFPM776)

Close-up of a white kitchen blender with a black arrow indicating the blade (no text or symbols visible)

3D mechanical assembly diagram showing a piston-cylinder joint with a downward arrow indicating force or motion (no text or symbols)

Illustration of hands cleaning a container with a rotating ring and plastic components (no text or symbols)

Close-up of a showerhead with a black arrow pointing to a showerhead component (no text or symbols visible)

Close-up of a hand pressing down on a kitchen keyboard (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and side supports (no text or symbols)

2-delige stamper

De 2-delige stamper

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

De foodprocessor demonteren

⚠ WAARSCHUWING

Snijgevaar

Illustration of a hand holding a lid placed on a clear plastic kitchen appliance (no text or symbols visible)

Illustration of hands stirring a bowl over a steamer (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with internal structure and handle (no text or symbols)

White kitchen blender with digital display and control buttons (no visible text or symbols)

Two 3D cutaway views of a white plastic enclosure showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 en
5KFPM776

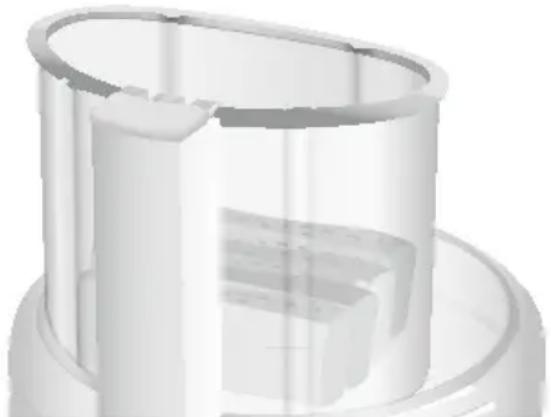

Problemen oplossen

Hand holding a cylindrical container with a transparent lid, partially open to reveal internal structure (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

3D rendered illustration of a cylindrical mechanical component with internal cylindrical features (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

Close-up of a hand holding a magnifying glass over a circular object, no visible text or symbols

475 ml (2 kopjes) melk, in porties

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass casing and black handle (no text or symbols visible)

Models 5KFPM776 (shown),

5KFPM771, 5KFPM775

(not shown)

Table of Contents

Food Processor Safety 3

Electrical Requirements ....3

Important Safeguards 4

Food Processor Features ....5

Preparing the Food Processor for Use Before First Use ....7

Work Bowl Assembly 7

Multipurpose Blade & Dough Blade Assembly 8

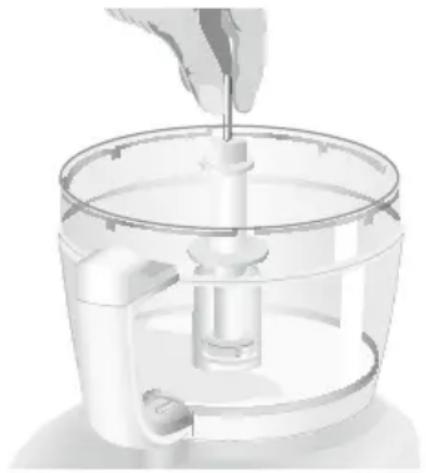

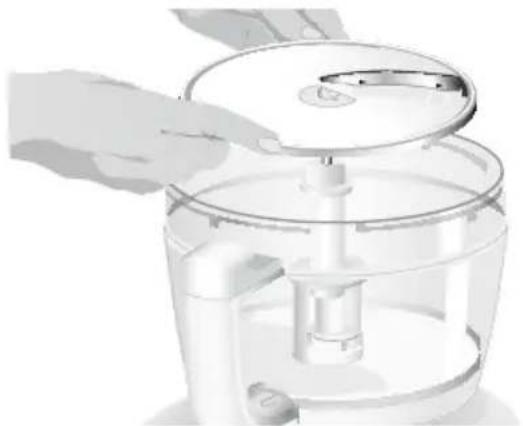

Slicing & Shredding Disc Assembly 8

Mini Bowl Assembly 9

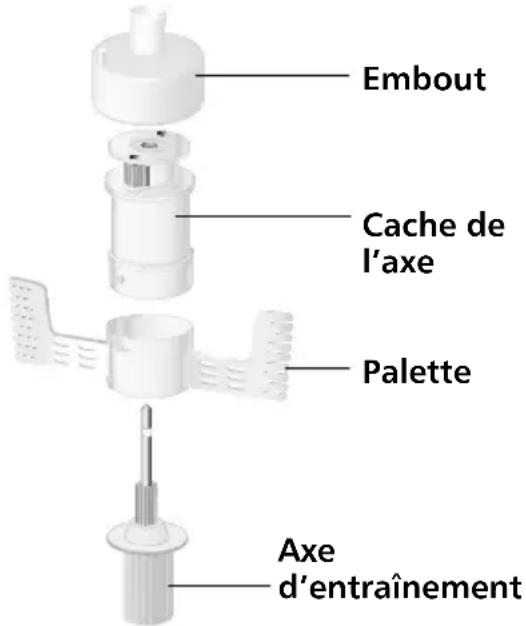

Chef's Bowl Assembly 9

Egg Whip Assembly & Use 10

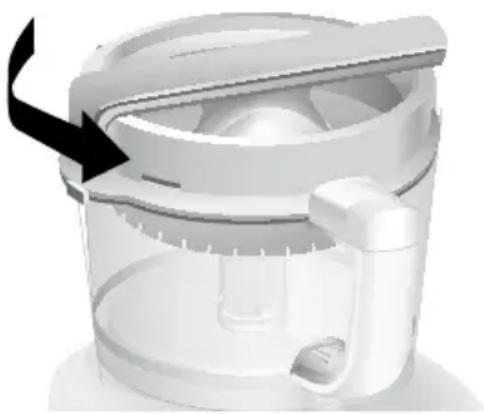

Citrus Press Assembly & Use 10

Using the Food Processor Before Use....12

Food Pusher Interlock 12

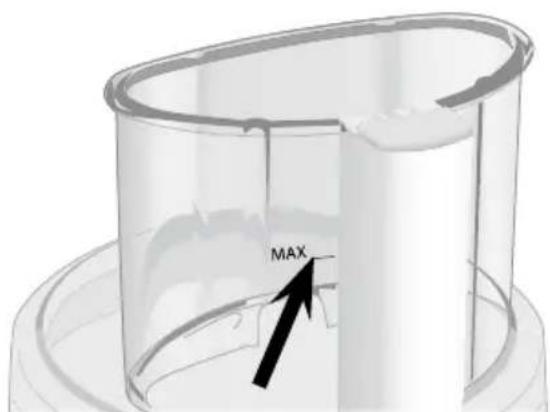

Maximum Liquid Level 12

Turning the Food Processor On and Off 12

Using the Pulse Control 13

2-Piece Food Pusher 13

Disassembling the Food Processor 13

Care and Cleaning 15

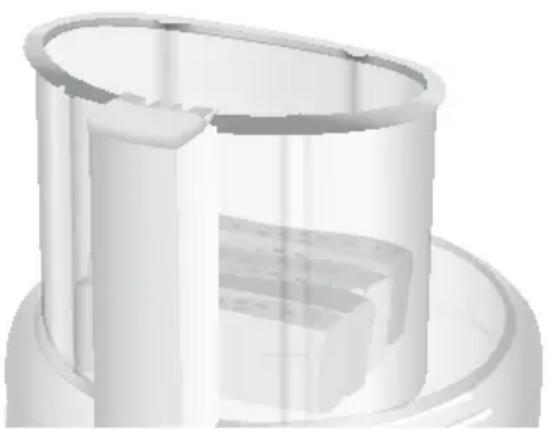

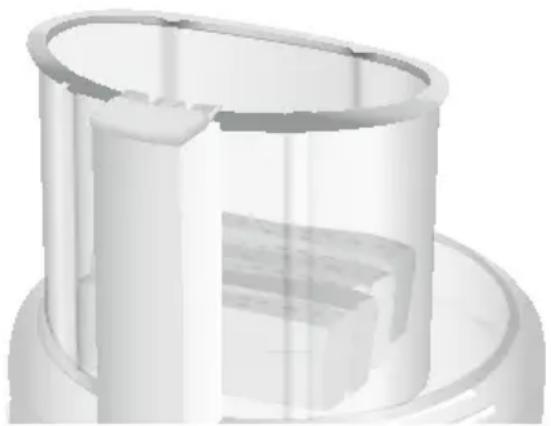

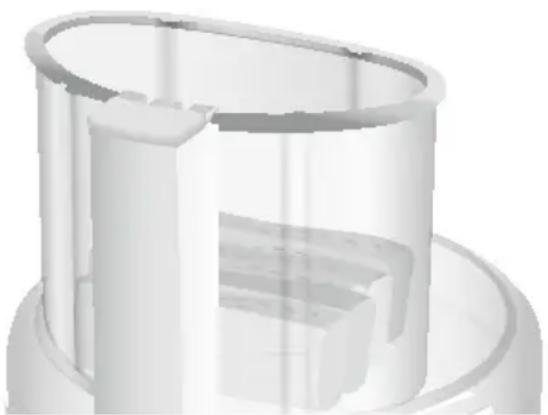

Troubleshooting 16

Food Processing Tips....17

Using the Multipurpose Blade....17

Using a Slicing or Shredding Disc 18

Using the Dough Blade ....19

Using the Egg Whip ....19

Helpful Hints....20

Recipes 22

Warranty and Service Information Household KitchenAid™ Food Processor Warranty ....27

Service Centers 27

Customer Service 28

Food Processor Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Electrical Requirements

Models 5KFPM771, 5KFPM775, 5KFPM776:

230-240 Volts A.C.

Hertz: 50 Hz

NOTE: Models 5KFPM771, 5KFPM775 and 5KFPM776 have a grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put Food Processor in water or other liquid.
3. Unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning.

4. Avoid contacting moving parts.

5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or electrical or mechanical adjustment.

6. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

7. Do not use outdoors.

8. Keep hands and utensils away from moving blades or discs while processing food to reduce the risk of severe injury to persons or damage to the Food Processor. A scraper may be

used but must be used only when the Food Processor is not running.

1. Blades are sharp. Handle carefully.
2. To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.
3. Be certain cover is securely locked in place before operating appliance.
4. Never feed food by hand. Always use the food pusher.
5. Do not attempt to defeat the cover interlock mechanism.
6. This product is designed for household use only.
7. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with the appliance.
9. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

SAvE THESE INSTRUCTIONS

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Food Processor Features\*

Work Bowl Cover with Ultra Wide Mouth Feed Tube

One of the industry's largest, the ultra wide mouth feed tube

accommodates large items – like tomatoes, cucumbers, and potatoes – with a minimum of sectioning or slicing.

2-Piece Food Pusher

For smaller items, remove the small pusher from the central tube in the large pusher. The small pusher and feed tube make it easy to process herbs, nuts, single carrots and celery. The small pusher can also be used as a convenient 115 ml measuring cup.

2.8-Liter Work Bowl

The tough polycarbonate bowl provides capacity for large jobs.

Chef's Bowl

(included only with model 5KFPM776)

Place the 2.4 liter Chef's Bowl inside the Work Bowl, and slice or shred a food item while keeping the Work Bowl clean for another ingredient.

Mini Bowl and Mini Blade

950 ml bowl and stainless steel blade are perfect for small chopping and mixing jobs.

Fine (2 mm) Slicing Disc

Disc produces approximately 1.6 mm slices of most foods, from delicate strawberries to partially frozen meats.

Medium (4 mm) Slicing Disc

Disc produces approximately 3.2 mm slices of most foods.

Medium (4 mm) Shredding Disc

Disc produces approximately 3.2 mm shreds of most firm, vegetables, and cheese.

Julienne Disc

(included with models 5KFPM775 and 5KFPM776) Slices potatoes, carrots, zucchini, squash, and other firm fruits and s into true 3.5 mm x 2.5 mm hatchsticks.

Food Processor Features\*

Disc Stem

Stem fits over the power shaft on the base and into the bottom of a slicing or shredding disc.

Stainless Steel

Multipurpose Blade

Versatile blade chops, minces, blends, mixes, and emulsifies in a matter of seconds.

Dough Blade

The dough blade is specially designed for mixing and kneading yeast dough.

Egg Whip

The egg whip will quickly whip cream and egg whites for meringues, mousses, soufflés, and desserts.

Close-up of a toilet with a lid and seat, labeled 'Citrus (include)' (no other text or symbols visible)

Citrus Press

(included with models 5KFPM775 and 5KFPM776) Press consists of a Strainer Basket, 2-Piece Cone, and Lever Arm. Use the removable outer

cone for larger items, such as grapefruit, and the inner cone for lemons and limes.

Close-up of a white industrial machine with control panel and buttons (no visible text or symbols)

Heavy-Duty Base

The base features the "O", "I", and Pulse Buttons along with the power shaft, which is the blades and discs.

Spatula/Cleaning Tool

Special shape facilitates food removal from bowls, discs, and blades.

Chef's Accessory Case

Stylish and durable slim-line case organizes and protects blades, discs, and accessories The accessory case included with models 5KFPM775 and 5KFPM776 is designed to hold up to five discs. If an additional disc is purchased, it can be stored in the case with the original four discs included with these two models.

White plastic container with a circular lid and internal components (no visible text or symbols)

3D rendering of a mechanical assembly box with multiple components (no visible text or symbols)

5KFPM771 5KFPM775 & 5KFPM776

Preparing the Food Processor for Use

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

Before First Use

Before using your Food Processor for the first time, wash the work bowl, work bowl cover, chef's bowl, mini bowl, feed tube pushers, discs, and blades either by hand or in the dishwasher (see "Care and Cleaning" on page 15).

Work Bowl Assembly

1. Place the Food Processor base on a dry, level countertop with the controls facing forward. Do not plug in the unit until it is completely assembled.
2. With the handle just to the left of center, place the work bowl on the base, fitting the center opening over the power shaft.
3. Grasp the work bowl handle and turn the bowl to the right until it locks into position.

White kitchen blender with control panel and directional arrow (no text or symbols)

1. Insert the desired accessory into the work bowl. See pages 8–11 for accessory instructions.

2. Place the work bowl cover on the work bowl with the feed tube just to the left of the work bowl handle. Grasp the feed tube and turn the cover to the right until it locks into place.

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

NOTE: To avoid damage to the work bowl, do not attach the cover to the work bowl before the work bowl is locked on to the base.

1. Fit the 2-piece food pusher into the feed tube.

Illustration of a hand holding a cylindrical container with a transparent lid, partially open to show internal structure (no text or symbols)

Preparing the Food Processor for Use

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

1. Plug into a proper electrical outlet (see "Electrical Requirements" on page 3).

NOTE: Your Food Processor will not operate unless the work bowl and work bowl cover are properly locked on the base, and the pusher is inserted to the maximum fill line on the feed tube.

To avoid damage to the work bowl, do not remove the work bowl from the base without first removing the work bowl cover.

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

Multipurpose Blade and Dough Blade Assembly

Place the blade on the power shaft. Rotate the blade so it falls into place on the shaft.

Hand pouring liquid into a glass container (no text or symbols visible)

Slicing and Shredding Disc Assembly

1. Place the disc stem on the power shaft.

Illustration of a hand using a pipette to clean or prepare food in a kitchen appliance (no text or symbols visible)

Preparing the Food Processor for Use

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

1. Fit the disc over the metal pin on the disc stem with the raised-blade side up. The disc has a raised nub on the top and grooves underneath to help align it properly. Rotate the disc until it falls fully onto the stem.

Illustration of a hand holding a lid over a transparent kitchen appliance (no text or symbols visible)

Mini Bowl Assembly

1. Place the mini bowl inside the work bowl over the power shaft. Rotate the mini bowl until it falls into place. When properly seated in the work bowl, the mini bowl cannot be rotated.

Illustration of hands operating a kitchen appliance with a bowl and side sink (no text or symbols)

1. Fit the mini blade on the power shaft. It may be necessary to rotate the blade until it falls into place. The mini bowl can also be placed in the chef's bowl in a similar manner.

Close-up of a transparent plastic kitchen grater with handle and lid (no text or symbols visible)

1. To remove the mini bowl after processing, lift the bowl using the two finger grips located along the top edge of the bowl.

Illustration of hands stirring a glass bowl over a cooking pot (no text or symbols visible)

Chef's Bowl Assembly (5KFPM776)

Place the chef's bowl inside the work bowl over the power shaft. Rotate the chef's bowl until it falls into place. When properly seated in the work bowl, the chef's bowl cannot be rotated.

The chef's bowl can only be used with the slicing and shredding discs – the multipurpose blade cannot be used. To remove the chef's bowl after processing, lift the bowl using the two finger grips located along the top edge of the bowl.

Preparing the Food Processor for Use

Egg Whip Assembly and Use

The egg whip is designed to whip egg whites or heavy cream to create toppings or soft meringues. For the best results, at least 237 ml (125 g/1 cup) of heavy cream or 3 egg whites should be whipped at a time. Whipping smaller quantities may not result in maximum volume.

To assemble:

The egg whip consists of 4 pieces – the egg whip stem, stem cover, whip paddle, and cap.

1. Place the egg whip stem on the power shaft. Slowly turn the stem until it drops fully onto the shaft.
2. Align the L-shaped notch on the whip paddle with the small post on the stem cover, and slide the paddle onto the cover. Turn slightly to lock paddle.
3. Fit the stem cover and paddle over the egg whip stem. Push downward to engage the ridges of the stem with the gears of the paddle.

4. Fit the egg whip cap over the egg whip stem. Push downward to lock it into place.

5. Place the work bowl cover on the work bowl with the feed tube just to the left of the handle. Make sure the center pin of the egg whip fits into the center opening of the cover. Grasp the feed tube and turn the cover to the right to lock it into place. Insert the pusher into the feed tube. The egg whip is now ready to operate.

6. Press the "I" Button and whip ingredients to the desired texture and volume. Press the "O" Button when finished.

To disassemble:

1. Unplug the base from the electrical outlet. Remove the work bowl cover with a clockwise turn.
2. Lift the egg whip assembly off the power shaft. Remove whipped ingredients from the work bowl.
3. Pull the cap from the egg whip assembly. Push downward on the stem pin to remove stem from the stem cover. Turn the egg whip paddle to unlock, and slide the paddle from the stem cover.

Citrus Press Assembly and Use (5KFPM775 and 5KFPM776)

1. Position and lock the work bowl on the base.
2. Place the strainer basket in the bowl with the locking clip to the left of the work bowl handle.
3. Turn the basket counter-clockwise until the clip locks into the handle.

3D rendering of a white kitchen blender with a black arrow indicating compression or shift (no text or symbols)

Preparing the Food Processor for Use

1. The 2-piece cone offers two sizes; choose the right size for the fruit you are juicing. Use the outer cone for grapefruit, oranges and other large fruits. Remove the outer cone to reveal a smaller inner cone that's perfect for lemons and limes.

2. Open the lid and place the cone inside the strainer basket over the power shaft. It may be necessary to rotate the cone until it falls into place.

3D rendered mechanical component with a black arrow indicating a specific part (no text or symbols present)

1. Halve the fruit to be juiced.

2. Place fruit half on cone.

3. Close the lid of the strainer basket. Hold the lever arm down firmly with an open palm to maintain even pressure. Operate the citrus press only when the lever arm is in the down position, holding the fruit on the cone.

Illustration of hands operating a mechanical device with a rotating knob (no text or symbols)

NOTE: Use of the citrus press without the clip-on lever arm is not recommended. If you do use it without the lever arm, remove the lever arm from the basket (see step 14).

1. Operate the citrus press by pressing the "I" Button or the "Pulse" Button.

2. When juice is fully extracted, press the "O" Button.

NOTE: Do not exceed the maximum liquid level line (see page 12) on the work bowl, or juice will leak from the bowl.

1. Unplug the Food Processor.

2. Unlock the strainer basket by turning it clockwise. Remove juiced fruit, cone, and strainer basket from the work bowl.

3. Remove the work bowl from Food Processor and pour juice into desired container.

4. The lever arm can be unclipped from the strainer basket for thorough cleaning. To detach, pull the clip at the bottom of the basket away from the basket side and remove the lever arm from the basket.

5. When reattaching the lever arm to the strainer basket, make sure the tab on the handle snaps securely into the slot on the basket.

Using the Food Processor

WARNING

Rotating Blade Hazard Always use food pusher. Keep fingers out of openings. Keep away from children. Failure to do so can result in amputation or cuts.

Before Use

Before operating the Food Processor, be sure the work bowl, blades, and work bowl cover are properly assembled on the Food Processor base (see "Preparing the Food Processor for Use" starting on page 7).

Food Pusher Interlock

The large food pusher is part of the safety interlock system. The Food Processor will not run unless the large pusher is inserted to the maximum fill line on the feed tube.

For continuous operation, insert the large pusher completely into the ultra wide mouth feed tube and use the small food pusher (see page 13 for a complete description).

Maximum Liquid Level

This line on the work bowl indicates the maximum level of liquid that can be processed by the Food Processor.

Close-up of a mechanical device with a cylindrical component and an arrow pointing to a small component (no visible text or symbols)

Turning the Food Processor "I" and "O"

1. To turn on the Food Processor, press the "I" Button. The unit will run continuously and the indicator light will glow.

Close-up of a hand pressing down on a kitchen appliance control panel (no visible text or symbols)

1. To stop the Food Processor, press the "O" Button. The indicator light will go out and an automatic brake will stop the action of the blade or disk within seconds.
2. Wait until the blade or disk comes to a complete stop before removing the work bowl cover. Be sure to turn off the Food Processor before removing the work bowl cover, or before unplugging the Food Processor.

NOTE: If the Food Processor fails to operate, make sure the work bowl and cover are properly locked on the base, and the food pusher is inserted to the maximum fill line on the feed tube (see "Preparing the Food Processor for Use" starting on page 7).

Using the Food Processor

Using the Pulse Control

The pulse control allows precise control of the duration and frequency of processing. It's great for jobs which require a light touch. Just press and hold the "Pulse" Button to start processing, and release it to stop. The indicator light will glow each time the "Pulse" Button is pressed.

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

2-Piece Food Pusher

The 2-Piece Food Pusher

For continuous processing of smaller items, insert the 2-piece food pusher into the feed tube, then turn the small center pusher clockwise to unlock

and remove. Use the center feed tube and pusher to process small or slender items, or to add liquid while the Food Processor is running. When not using the small feed tube, lock the small pusher into place by turning it counter-clockwise.

Disassembling the Food Processor

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

NOTE: If you have difficulty removing the pusher from the feed tube, it is likely that food particles have become lodged in the interlock system. To free the pusher, soak the work bowl cover in warm water or wash it in a dishwasher.

1. Press the "O" Button.
2. Unplug the Food Processor before disassembling.
3. Turn the work bowl cover to the left and remove.

3D rendering of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

Disassembling the Food Processor

1. If using a disc, remove it before removing the bowl. Place two fingers under each side of the disc and lift it straight up. Remove the disc stem.

Illustration of a hand operating a kitchen appliance with a circular lid and central shaft (no text or symbols visible)

1. If using the mini bowl or chef's bowl, grasp and remove the bowl using the finger grips located along the top edge of the bowl.

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

1. Turn the work bowl to the left to unlock it from the base. Lift to remove.

White kitchen blender with control panel and directional arrow (no text or symbols)

1. The multipurpose blade can be removed from the work bowl before the contents are emptied. The blade can also be held in place as you remove food: grasp the work bowl from the bottom and place one finger through the center opening to grip the blade shaft. Then remove food from the bowl and blade with a spatula.

3D rendered diagram of a white plastic kitchen appliance with handle and central shaft (no text or symbols)

Care and Cleaning

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

1. Press the "O" Button.
2. Unplug the Food Processor before cleaning.
3. Wipe the base and cord with a warm, sudsy cloth, and wipe clean with a damp cloth. Dry with a soft cloth. Do not use abrasive cleansers or scouring pads.

4. All the other parts of the Food Processor are dishwasher safe. Be sure to load them away from exposed heating elements in the dishwasher. If washing the Food Processor parts by hand, avoid the use of abrasive cleansers or scouring pads. They may scratch or cloud the work bowl and cover. Thoroughly dry all parts after washing.

5. To prevent damage to the interlock system, always store the work bowl and work bowl cover in the unlocked position when not in use.

White kitchen feeder with digital display and control buttons (no visible text or symbols)

1. Wrap the power cord around the work bowl. Secure the plug by clipping it to the cord.
2. Disassembled discs, shafts, and blades should be stored in the provided storage case, and in a location out of the reach of children.

Two 3D-printed white plastic enclosure cases showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 & 5KFPM776

Troubleshooting

• If your Food Processor should fail to operate, check the following:
• Make sure the work bowl and work bowl cover are properly locked on the base, and the food pusher is inserted to the maximum fill line on the feed tube.
• See if the Food Processor is plugged into a proper electrical outlet (see "Electrical Requirements" on page 3). If it is, unplug the Food Processor, then plug it into the same outlet again.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

If the Food Processor still does not work, check the fuse or circuit breaker on the electrical circuit the Food Processor is connected to and make sure the circuit is closed.

• If your Food Processor should fail to slice or shred when using the disc:
• Make sure the raised-blade side of the disc is positioned face up on the disc stem. The disc has a raised nub on the top and grooves underneath to help align it properly.
• If your Food Processor lid won't close when using the disc:
• Make sure the disc is installed correctly with the raised nub on top, and is positioned properly on the disc stem.

- If the Food Processor shuts off while it is running:

- The Food Processor may be overheated. If the motor exceeds a certain temperature, it will automatically shut off to prevent damage. This should be an extremely rare occurrence. If it happens, press the "O" Button and wait 15 minutes for the Food Processor to cool before resuming. If the Food Processor still refuses to run, wait an additional 15 minutes for the Food Processor to cool.

- If you have difficulty removing the food pusher from the feed tube:

- Food particles are probably lodged in the interlock system. To free the pusher, soak the work bowl cover in warm water or wash it in a dishwasher.

If the problem cannot be corrected with the steps in this section, see the KitchenAid warranty and after sales service section on pages 27-28. Do not return the Food Processor to the retailer – they do not provide service.

USING THE MULTIPURPOSE BLADE

To chop fresh fruits or vegetables:

Peel, core, and/or remove seeds. Cut food in 2.54 to 3.81 cm pieces. Process food to desired size, using short pulses, 1 to 2 seconds each time. Scrape sides of bowl, if necessary.

To puree cooked fruits and vegetables (except potatoes):

Add 60 ml ( 14 cup) liquid from recipe per cup of food. Process food, using short pulses, until finely chopped. Then process continuously until reaching desired texture. Scrape sides of bowl, if necessary.

To prepare mashed potatoes:

Insert chef's bowl (5KFPM776) into the work bowl. Using the shredding disc, shred hot, cooked potatoes. Remove the chef's bowl with potatoes. Place multipurpose blade in work bowl, and add shredded potatoes, softened butter, milk, and seasonings. Pulse 3 to 4 times, 2 to 3 seconds each time, until milk is absorbed and texture is smooth. Do not overprocess. For food processor models other than the 5KFPM776, the work bowl may be used for the entire process.

To chop dried (or sticky) fruits:

The food should be cold. Add 30 g ^1/4 cup) flour from recipe per 60 g ( ^1/2 cup) dried fruit. Process fruit, using short pulses, until reaching desired texture.

To finely chop citrus peel:

With sharp knife, peel colored portion (without white membrane) from citrus. Cut peel in small strips. Process until finely chopped.

To mince garlic or to chop fresh herbs or small quantities of vegetables:

With processor running, add food through the small feed tube. Process until chopped. For best results, make sure work bowl and herbs are very dry before chopping.

To chop nuts or make nut butters:

Process up to 375 g (3 cups) of nuts to desired texture, using short pulses, 1 to 2 seconds each time. For a coarser texture, process smaller batches, pulsing 1 or 2 times, 1 to 2 seconds each time. Pulse more often for finer texture. For nut butters, process continuously until smooth. Store in refrigerator.

To chop cooked or raw meat, poultry or seafood:

The food should be very cold. Cut in 2.54 cm pieces. Process up to 450 g at a time to desired size, using short pulses, 1 to 2 seconds each time. Scrape sides of bowl, if necessary.

To make bread, cookie, or cracker crumbs:

Break food into 3.8 to 5 cm pieces. Process until fine. For larger pieces, pulse 2 to 3 times, 1 to 2 seconds each time. Then process until fine.

To melt chocolate in a recipe:

Combine chocolate and sugar from recipe in work bowl. Process until finely chopped. Heat liquid from recipe. With processor running, pour hot liquid through the small feed tube. Process until smooth.

To grate hard cheeses, such as Parmesan and Pecorino:

Never attempt to process cheese that cannot be pierced with the tip of a sharp knife. You can use the multi-purpose blade to grate hard cheeses. Cut cheese in 2.54 cm pieces. Place in work bowl. Process, using short pulses, until coarsely chopped. Process continuously until finely grated. Pieces of cheese can also added through the small feed tube while the processor is running.

USING A SLICING OR SHREDDING DISC

NOTE: When cutting and packing food items in the ultra wide mouth feed tube, do not exceed the maximum fill line. This will permit the pusher to engage the interlock and the unit to operate.

To cut julienne, or match stick, strips of vegetables and fruits:

Cut food to fit feed tube horizontally. Position food horizontally in feed tube. Process, using even pressure to make plank-like slices. Re-stack slices and position vertically or horizontally in feed tube. Process, using even pressure.

Close-up of hands handling a cylindrical mechanical component (no visible text or symbols)

3D rendered mechanical component with cylindrical and curved features (no text or symbols)

To slice or shred fruits or vegetables that are long and relatively small in diameter, such as celery, carrots, and bananas:

Cut food to fit feed tube vertically or horizontally, and pack feed tube securely to keep food positioned properly. Process using even pressure. Or use the small feed tube in the two-piece food pusher. Position food vertically in the tube and use the small food pusher to process food.

Illustration of a cylindrical container with a lid and internal compartments (no text or symbols)

To slice or shred fruits and vegetables that are round, such as onions, apples, and green peppers:

Peel, core, and/or remove seeds. Cut in halves or quarters to fit feed tube. Position in feed tube. Process, using even pressure.

To slice or shred fruits and vegetables that are small, such as strawberries, mushrooms, and radishes:

Position food vertically or horizontally in layers within the feed tube. Fill feed tube in order to keep food positioned properly, but do not exceed the maximum fill line. Process, using even pressure. Or use the small feed tube in the two-piece food pusher. Position food vertically in the tube and use the small food pusher to process food.

To shred spinach and other leaves:

Stack leaves. Roll up and stand up in feed tube. Process, using even pressure

3D rendered illustration of a cylindrical mechanical component with internal channels (no text or symbols)

To slice uncooked meat or poultry, such as stir-fry meats:

Cut or roll food to fit feed tube. Wrap and freeze food until hard to the touch, 30 minutes to 2 hours, depending on thickness of food. Check to be sure you can still pierce food with the tip of a sharp knife. If not, allow to thaw slightly. Process, using even pressure.

To slice cooked meat or poultry, including salami, pepperoni, etc.:

Food should be very cold. Cut in pieces to fit feed tube. Process food using firm, even pressure.

To shred firm and soft cheeses:

Firm cheese should be very cold. For best results with soft cheeses, such as mozzarella, freeze 10 to 15 minutes before processing. Cut to fit feed tube. Process, using even pressure.

To slice or shred items that are "pear-shaped" like sweet potatoes, eggplant and squash:

Position food horizontally so that the bigger/fatter side is to the left of the feed tube when you are facing the unit. Process, using even pressure on the food pusher.

USING THE DOUGH BLADE

The dough blade is specially designed for mixing and kneading yeast dough quickly and thoroughly. One minute or less of operating time is all that is needed to form a dough ball. Processing longer than one minute will make the dough come apart and stick to the sides of the bowl. For the best results, do not knead recipes which use more than 250 to 375 g (2-3 cups) of flour.

USING THE EGG WHIP

To make soft egg white meringue:

Place 3 egg whites and 14 teaspoon cream of tartar in work bowl fitted with egg whip. Process until foamy, about 30 to 45 seconds. With processor running, slowly add 40 g ( 13 cup) sugar through the small feed tube. Process until stiff peaks form, about 212 to 3 minutes. Stop processor as necessary to check texture of mixture.

To whip cream:

Place heavy cream in work bowl fitted with egg whip. Process 30 seconds. With processor running, add 2 tablespoons powdered sugar through the small feed tube. Process just until soft peaks form, about 30 to 40 seconds. Stop processor as necessary to check texture of mixture. With processor running, add ^1/2 teaspoon vanilla, if desired, through the small feed tube. Process just until mixed. Do not overprocess.

1. To avoid damage to the blade or motor, do not process food that is so hard or firmly frozen that it cannot be pierced with the tip of a sharp knife. If a piece of hard food, such as a carrot, becomes wedged or stuck on the blade, stop the processor and remove the blade. Gently remove food from the blade.
2. When cutting and packing food items in the ultra wide mouth feed tube, do not exceed the maximum fill line. This will permit the pusher to engage the interlock and the unit to operate.
3. Do not overfill work bowl or mini bowl. For thin mixtures, fill work bowl up to 12 to 23 full. For thicker mixtures, fill work bowl up to 34 full. For liquids, fill up to the maximum level as described on page 12. When chopping, the work bowl should be no more than 13 to 12 full. Use the mini bowl for up to 237 ml (1 cup) of liquid or 63 g ( 12 cup) solids.
4. Position slicing discs so the cutting surface is just to the right of the feed tube. This allows the blade a full rotation before contacting the food.
5. To capitalize on the speed of the processor, drop ingredients to be chopped through the small feed tube while the processor is running.

6. Different foods require varying degrees of pressure for best shredding and slicing results. In general, use light pressure for soft, delicate foods (strawberries, tomatoes, etc.), moderate pressure for medium foods (zucchini, potatoes, etc.), and firmer pressure for harder foods (carrots, apples, hard cheeses, partially frozen meats, etc.).

7. Soft and medium-hard cheese may spread out or roll up on the shredding disc. To avoid this, shred only well-chilled cheese.

8. Sometimes slender foods, such as carrots or celery, fall over in the feed tube, resulting in an uneven slice. To minimize this, cut food in several pieces

3D rendered illustration of a cylindrical container with an open lid (no text or symbols)

and pack the feed tube with the food. For processing small or slender items, the small feed tube in the two-piece food pusher will prove especially convenient.

1. When preparing a cake or cookie batter or quick bread, use the multipurpose blade to cream fat and sugar first. Add dry ingredients last. Place nuts and fruit on top of flour mixture to prevent overchopping. Process nuts and fruits, using short pulses, until blended with other ingredients. Do not overprocess.

2. When shredded or sliced food piles up on one side of the bowl, stop the processor and redistribute the food using a spatula.

3. When food quantity reaches the bottom of a slicing or shredding disc, remove the food.

4. A few larger pieces of food may remain on top of the disc after slicing or shredding. If desired, cut these by hand and add to mixture.

5. Organize processing tasks to minimize bowl cleanup. Process dry or firm ingredients before liquid ingredients.

6. To clean ingredients from the multi-purpose blade easily, just empty the work bowl, replace the lid, and pulse 1 to 2 seconds to spin the blade clean.

Helpful Hints

1. After removing the work bowl cover, place it upside down on the counter. This will help keep the counter clean.
2. To remove the contents of the work bowl without removing the multi-purpose blade, grasp the work bowl from the bottom and place one finger through the center opening to hold the blade in place. Then remove food from the bowl and blade with a spatula.

Illustration of hands using a magnifying glass to examine a device (no text or symbols visible)

1. Your Food Processor is not designed to perform the following functions:

2. grind coffee beans, grains, or hard spices

3. grind bones or other inedible parts of food
4. liquefy raw fruits or vegetables

5. slice hard-cooked eggs or unchilled meats.

6. If any plastic parts should discolor due to the types of food processed, clean them with lemon juice.

White Balsamic vinaigrette

1 tablespoon fresh basil leaves
1 tablespoon fresh oregano leaves
1 clove garlic
3 tablespoons white balsamic vinegar*
3 tablespoons white wine vinegar*
^1/2 teaspoon salt
^1/4 teaspoon dry mustard
^1/8 teaspoon ground red pepper
180 ml ( ^3/4 cup) extra virgin olive oil

Position mini bowl and mini blade in work bowl. With processor running, add basil, oregano, and garlic through the small feed tube. Process until chopped, 5 to 8 seconds. Scrape sides of bowl. With processor running, add balsamic vinegar, wine vinegar, salt, mustard, and red pepper. Process until mixed, about 5 seconds. With processor running, slowly drizzle oil through the small feed tube. Process until smooth and thick. Serve with green salads.

Yield: 8 servings (2 tablespoons per serving).

*Three tablespoons each of dark balsamic vinegar and red wine vinegar may be substituted.

Per Serving: about 190 cal.

Cheddar Broccoli Soup

230 g sharp Cheddar cheese, chilled

1 small onion, cut into halves lengthwise

1 rib celery, cut into 6 cm pieces

2 tablespoons butter or margarine

1 large head (about 450 g) broccoli

700 ml (3 cups) chicken broth

475 ml (2 cups) milk, divided

30 g ( 14 cups) all-purpose flour

2 teaspoons Dijon mustard

1 teaspoon curry powder, if desired 18 teaspoon hot pepper sauce

Position 4 mm shredding disc in work bowl. Add cheese. Process to shred. Remove and set aside.

Exchange shredding disc for 2 mm slicing disc in work bowl. Add onion and celery. Process to slice. Melt butter in large saucepan or Dutch oven over medium heat. Remove onion and celery to saucepan. Cook 2 to 3 minutes, or until crisp-tender, stirring occasionally.

Cut stems from broccoli, and peel tough coating from stems. Cut florets into small pieces. Position 2 mm slicing disc in work bowl. Add broccoli stems. Process to slice. Remove to saucepan.

Add broccoli florets and broth to saucepan. Bring to a boil over medium-high heat. Reduce heat; partially cover and simmer 6 to 10 minutes, or until broccoli is crisp-tender, stirring occasionally. Remove from heat.

Exchange slicing disc for multipurpose blade in work bowl. With slotted spoon, remove vegetables from saucepan to work bowl. Add 178 ml ( 34 cup) milk. Process until chopped, 5 to 8 seconds. Set aside.

In medium mixing bowl, whisk flour into remaining 300 ml (1 ^1/4 cups) milk, whisking until smooth. Add mustard, curry powder, if desired, and pepper sauce. Stir until combined.

Add milk mixture to broth in saucepan. Cook and stir over medium-high heat until bubbly and slightly thickened. Reduce heat to low. Add all but 30 g ( 14 cup) shredded cheese; stir until melted.

Add broccoli mixture to saucepan. Heat thoroughly. Garnish with remaining 30 g ( 14 cup) cheese.

Yield: 7 servings (237 ml/1 cup per serving).

Per Serving: About 250 cal.

Spring Mix Basmati Rice

1 clove garlic
1 medium shallot, cut into quarters
1 tablespoon olive oil ^1/_4 pound (about 125 g) fresh green beans, trimmed
1 small carrot, peeled and cut into halves crosswise
356 ml (1 12 cups) chicken broth
237 ml (1 cup) water
1 teaspoon salt 14 teaspoon black pepper 1 teaspoon ground coriander, if desired
170 g (1 13 cups) rice
227 g ( 12 pound) fresh asparagus
2 teaspoons fresh thyme leaves
2 tablespoons loosely packed fresh parsley leaves
14 small red bell pepper, cut into quarters

Position multipurpose blade in work bowl. With processor running, add garlic through the small feed tube. Process 5 seconds. Add shallot. Pulse 2 to 3 times, about 2 seconds each time, or until chopped. In large saucepan over medium heat, heat oil. Add shallot mixture. Cook until tender, 1 to 2 minutes, stirring often. Remove from heat; set aside.

Exchange multipurpose blade for 2 mm slicing disc in work bowl. Add green beans and carrot. Process to slice. Remove to saucepan with shallot mixture. Add broth, water, salt, black pepper, and coriander, if desired. Bring to a boil. Stir in rice. Return to boil; reduce heat. Cover, simmer about 15 minutes, or until liquid is absorbed.

Meanwhile, cut tips from asparagus and reserve stalks; set aside. Exchange slicing disc for multipurpose blade in work bowl. With processor running, add thyme and parsley through the small feed tube. Process until chopped, about 3 seconds. Add bell pepper. Pulse 2 to 3 times, 1 to 2 seconds each time, or until coarsely chopped. Exchange multipurpose blade for 2 mm slicing disc in work bowl. Add asparagus stalks. Process to slice. Remove to saucepan with rice mixture. Add asparagus tips; stir well.

Cover; let stand 10 minutes. Fluff with a fork.

Yield: 6 servings (125 g/1 cup per serving).

Per Serving: About 200 cal.

Chicken Satay with Peanut Sauce

Chicken

2 cloves garlic
1 teaspoon coarsely chopped gingerroot
60 ml ( 14 cups) soy sauce
2 tablespoons peanut or vegetable oil
2 teaspoons brown sugar
455 - 570 g (1- 14 pounds) chicken breast tenders

Position multipurpose blade in work bowl. With processor running, add garlic and gingerroot through the small feed tube. Process until chopped, 5 to 10 seconds. Add soy sauce, oil, and brown sugar. Process until blended and sugar dissolves, 15 to 20 seconds. Remove to plastic resealable food storage bag or shallow pan.

Add chicken; coat with marinade. Marinate 12 hour at room temperature or at least 2 hours in refrigerator. Remove chicken from marinade, reserving marinade.

Thread chicken tenders on soaked wooden or oiled metal skewers. Grill over medium-hot coals or broil on oiled broiler pan 10 to 15 cm from heat for 8 to 10 minutes, or until thoroughly cooked, turning once. Brush with any remaining marinade once during cooking, if desired. Serve with warm or room temperature Peanut Sauce.

Sauce

80 ml ( 13 cup) coconut milk
30 g ( 14 cup) peanut butter
2 tablespoons soy sauce
12 teaspoon red curry paste

Position multipurpose blade in work bowl. Add all ingredients. Process until blended, 5 to 10 seconds.

Yield: 4 servings.

Per Serving: About 290 cal.

Fresh Fruit Tart

Crust

125 g (1 cup) all-purpose flour

2 teaspoons sugar 14 teaspoon salt

30 g ( 14 cup) cold butter, cut into 2.5 cm pieces

1 tablespoon cold shortening

1 egg yolk

2 tablespoons ice water

1 teaspoon lemon juice

1 egg, blended with 1 tablespoon water

Filling

30 g ( 14 cup) sugar

1 tablespoon cornstarch ^1/_8 teaspoon salt

180 ml ( ^3/_4 cup) half-and-half

2 egg yolks, beaten 12 teaspoon vanilla

Topping

1 medium peach, peeled, cut into halves, and pit removed

125 g (1 cup) fresh strawberries, hulled

2 tablespoons apple jelly, melted

Position multipurpose blade in work bowl. Add flour, sugar, and salt. Process until mixed, about 2 seconds. Add butter and shortening. Pulse 3 to 4 times, 2 to 3 seconds each time, or until crumbly. In small bowl, blend 1 egg yolk, 2 tablespoons water, and lemon juice. Sprinkle evenly over flour mixture. Pulse 2 to 4 times, 2 to 3 seconds each time, or until mixture pulls away from sides of bowl and clings together. Remove dough, cover, and chill ^1/2 hour.

Meanwhile, in small saucepan over medium heat, combine sugar, cornstarch, and salt. Add half-and-half and 2 egg yolks. Cook and stir until very thick. Remove from heat. Add vanilla. Whisk until smooth. Cool completely.

Place dough on floured surface. Roll into a circle 5 cm larger than inverted 25 cm tart pan. Fit into tart pan, being careful not to stretch dough. Trim edges of crust. Prick shell thoroughly with fork. Bake at 200^ C for 8 to 12 minutes, or until light golden brown. Brush with egg and water mixture to seal holes. Bake for 1 minute longer to set egg. Cool completely.

Wash processor. Position 2 mm slicing disc in work bowl. Add peach. Process to slice. Remove and set aside. Position 2 mm slicing disc in work bowl. Add strawberries. Process to slice.

Spread custard mixture in crust. Arrange sliced fruit on custard. Carefully brush with melted jelly to cover fruit completely. Refrigerate at least 1 hour before serving.

Yield: 8 servings.

Tip: Tart is best served the same day it is made.

Per Serving: About 230 cal.

Household KitchenAid® Food Processor Warranty

Length of Warranty:	KitchenAidWill Pay For:	KitchenAidWill Not Pay For:
Europe, Australia and New zealand:Three years Full Warranty from date of purchase on the Food Processor. Ten years Full Warranty from date of purchase on the motor.Other:One Year Full Warranty from date of purchase.	Replacement parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by an Authorized KitchenAid Service Center.	A. Repairs when Food Processor is used for operations other than normal household food preparation.B. Damage resulting from accident, alterations, misuse, abuse, or installation/ operation not in accordance with local electrical codes.

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES.

Service Centers

All service should be handled locally by an Authorized KitchenAid Service Center. Contact the dealer from whom the unit was purchased to obtain the name of the nearest Authorized KitchenAid Service Center.

In the U.K.:

Call: 0845 6011 287

In Ireland:

M.X. ELECTRIC

Service Department

25 Alymer Crescent

Kilcock, CO.KILDARE

Call: 1 679 2398/87 2581574

Fax: [phone]

In Australia:

Call: 1800 990 990

In New zealand:

Call: 0800 881 200

For U.K. & Northern Ireland:

Freephone helpline number on:

0800 988 1266

(calls from mobiles are charged

at your standard network rate)

For Southern Ireland:

Helpline number on:

[phone]

Address:

KitchenAid Europa, Inc.

PO BOX 19

B-2018 ANTWERP 11

BELGIUM

www.KitchenAid.co.uk

www.KitchenAid.com

® Registered Trademark/™ Trademark of KitchenAid, U.S.A.

© 2009. All rights reserved.

Specifications subject to change without notice.

KitchenAid™

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a modern kitchen blender with clear glass casing and black handle (no text or symbols visible)

3D rendered image of a showerhead with no visible text or symbols

Presse-agrumes

Close-up of a white industrial machine with control panel and buttons (no visible text or symbols)

Socle renforcé

White plastic enclosure with a circular vent and internal components (no text or symbols visible)

3D rendering of a mechanical assembly with gears and housing (no text or symbols visible)

5KFPM771 5KFPM775 et
5KFPM776

White kitchen blender with clear glass lid and control panel (no visible text or symbols)

Close-up of a white plastic kitchen appliance with a black arrow indicating rotation or movement (no text or symbols visible)

Illustration of a hand holding a cylindrical container with a smaller side panel, no text or symbols present.

3D rendering of a kitchen mixer with handle and control panel (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a small container of liquid into a kitchen appliance (no text or symbols visible)

Illustration of a hand placing a lid onto a transparent kitchen appliance (no text or symbols visible)

Montage du mini bol

Illustration of hands operating a kitchen appliance with a bowl and side sink (no text or symbols visible)

Close-up of a transparent plastic kitchen grater with handle and side panel (no text or symbols visible)

Illustration of hands stirring a glass bowl over a tray (no text or symbols)

Montage du bol 2,4 l (5KFPM776)

Close-up of a white plastic kitchen grater with a black arrow indicating a cutting edge (no text or symbols)

Mechanical assembly diagram showing a joint with a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands placing a circular object into a container with a rotating arrow (no text or symbols)

Close-up of a mechanical device with a transparent cylindrical component and an arrow pointing to a small component (no visible text or symbols)

Close-up of a hand pressing a button on a white kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure (no text or symbols)

Poussoir double

3D rendered mechanical component with a black arrow indicating rotational motion (no text or symbols)

Illustration of a hand operating a cleaning or cleaning tool on a clear stand (no text or symbols visible)

Illustration of hands using a spoon to clean or prepare food from a glass bowl (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a white plastic kitchen or blender with handle and central shaft (no text or symbols visible)

AVERTISSEMENT

Risque de coupure

White kitchen feeder with clear glass control panel and digital display (no visible text or symbols)

Two 3D cutaway views of a white plastic enclosure showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 et 5KFPM776

Dépannage

Close-up of a hand holding a cylindrical mechanical component (no visible text or symbols)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

3D rendered illustration of a cylindrical mechanical component with a base (no text or symbols visible)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

Illustration of hands using a magnifying glass to adjust or inspect a component (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a modern kitchen blender with clear glass casing and black handle (no visible text or symbols)

Close-up of a toilet sink with a lid and ventilation duct (no visible text or symbols)

Zitruspresse

Close-up of a white kitchen blender with control buttons (no visible text or symbols)

Robustes Unterteil

White plastic enclosure with a circular vent and internal components (no text or symbols visible)

3D rendering of a mechanical assembly inside a transparent container (no text or symbols visible)

5KFPM771 5KFPM775 und 5KFPM776

White kitchen blender with control panel and side button (no visible text or symbols)

3D rendering of a white plastic kitchen appliance with a black arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical container with a transparent lid, partially open to show liquid inside (no text or symbols visible)

Illustration of a hand pouring liquid into a transparent container (no text or symbols visible)

Illustration of a hand pouring liquid into a clear container (no text or symbols visible)

Illustration of a hand operating a cleaning or cleaning device with a circular top (no text or symbols visible)

Illustration of hands operating a kitchen sink with a filter and water-filled container (no text or symbols)

Close-up of a transparent kitchen mixer with handle and side blades (no text or symbols visible)

Illustration of hands stirring a bowl over a tray (no text or symbols)

Close-up of a white plastic kitchen appliance with a black arrow pointing to the lid area (no text or symbols visible)

Mechanical assembly diagram showing a joint with a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands using a mechanical device to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Close-up of a white kitchen appliance with a black arrow pointing to a small component (no visible text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a labeled 'MAX' point (no other text or symbols)

Close-up of a hand pressing a button on a white kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

zerlegen des Food Processors

Illustration of a hand using a cleaning or cleaning tool to clean a product (no text or symbols visible)

Illustration of hands stirring a bowl over a small container (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a white plastic kitchen knife with handle and central shaft (no text or symbols)

WARNING

White kitchen blender with digital display and control buttons (no visible text or symbols)

Two 3D-rendered white plastic enclosure cases showing internal mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 und 5KFPM776

Problembewältigung

Illustration of a hand holding a cylindrical device with a transparent internal structure (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

3D sketch of a cylindrical container with an open lid (no text or symbols)

3D rendered mechanical part with cylindrical and curved features (no text or symbols)

3D sketch of a cylindrical container with a lid, showing internal structure (no text or symbols)

Illustration of a hand holding a magnifying glass over a small object, no text or symbols present

KitchenAid Service & Support, Großhandel

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass casing and black handle (no text or symbols visible)

MISURE DI SICUREzzA IMPORTANTI

3D rendered mechanical component with cylindrical and curved features (no text or symbols)

Close-up of a white industrial machine with control buttons and a handle (no visible text or symbols)

Base di Lavoro

White plastic enclosure with a circular vent and internal structure (no text or symbols visible)

3D rendering of a mechanical assembly inside a transparent container (no text or symbols visible)

5KFPM771 5KFPM775 e 5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand holding a cylindrical container with a transparent lid, no text or symbols present

Close-up of a hand using a tool to press or press a cylindrical object into a transparent container (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a small object inside a transparent kitchen appliance (no text or symbols visible)

Illustration of a hand operating a kitchen appliance with a lid and central valve (no text or symbols visible)

Illustration of hands operating a kitchen tool with a bowl and side sink (no text or symbols)

Close-up of a transparent plastic kitchen appliance with handle and central tray (no visible text or symbols)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

Close-up of a white kitchen blender with a black arrow indicating compression or cooling (no text or symbols visible)

3D mechanical assembly diagram showing a piston and wheel assembly with a black arrow indicating force or movement (no text or symbols)

Illustration of hands using a tool to generate a mechanical component, showing a rotating ring and surrounding components (no text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a labeled 'MAX' point (no other text or symbols)

Close-up of a kitchen appliance with a black arrow pointing to a component (no visible text or symbols)

Close-up of a hand pressing a button on a kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal compartments and a base (no text or symbols)

3D rendering of a transparent cylindrical container with lid and side supports (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating direction (no text or symbols)

Illustration of a hand operating a kitchen appliance with a circular lid and central shaft (no text or symbols visible)

Illustration of hands using a spoon to clean a bowl over a food reactor (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with no visible text or symbols

White kitchen feeder with clear glass control panel and digital display (no visible text or symbols)

Two transparent plastic enclosure cases showing internal mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 e 5KFPM776

Ricerca Guasti

Illustration of a hand pressing down a cylindrical mechanical component (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Simple line drawing of a cylindrical container with a lid, no text or symbols present

3D rendered mechanical part with cylindrical and rectangular features (no text or symbols)

Illustration of a hand holding a magnifying glass over a circular object (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a modern kitchen blender with control panel and digital display (no visible text or symbols)

Modelos 5KFPM776 (se muestra), 5KFPM771, 5KFPM775

(no se muestra)

Índice

Close-up of a white electric shaver with control buttons (no visible text or symbols)

Base resistente

White plastic enclosure with a circular top and internal compartments (no text or symbols visible)

3D rendering of a white plastic enclosure containing various mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 y
5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols visible)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand holding a cylindrical device with a transparent casing, no text or symbols visible

Hand placing a white object into a transparent container with liquid (no text or symbols visible)

Illustration of a hand using a pipette to press or install a small cylindrical component into a clear container (no text or symbols visible)

Illustration of a hand holding a lid above a transparent container with internal components (no text or symbols visible)

Illustration of hands operating a kitchen tool with a bowl and sink (no text or symbols)

Close-up of a small white plastic kitchen grater with handle and side panel (no text or symbols visible)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

Close-up of a white kitchen blender with a black arrow pointing to the lid area (no text or symbols visible)

3D mechanical component diagram showing a curved assembly with a black arrow indicating a force or direction (no text or symbols)

Illustration of hands using a mechanical device to interact with a circular component, showing a rotation arrow (no text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a labeled point 'MAX' (no other text or symbols)

Close-up of a kitchen blender with a handle and lid, showing a small container with a black arrow pointing to it (no text or symbols visible)

Close-up of a hand pressing a button on a kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

3D rendering of a transparent cylindrical container with lid and internal compartments (no text or symbols)

3D rendering of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand operating a kitchen appliance with a circular drain and central sink (no text or symbols visible)

Illustration of hands using a tool to process food preparation into a bowl (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with cylindrical and curved features (no text or symbols visible)

Cuidado y lavado

ADVERTENCIA

Riesgo de cortes

White kitchen feeder with clear glass control panel and digital display (no visible text or symbols)

Transparent plastic enclosure with a circular vent and internal components (no text or symbols visible)

3D rendering of a mechanical assembly with internal components (no text or symbols visible)

5KFPM771 5KFPM775 y
5KFPM776

Close-up of a hand holding a cylindrical mechanical device with a transparent casing (no visible text or symbols)

3D rendered mechanical component with cylindrical and stepped features (no text or symbols)

Abstract 3D sketch of a cylindrical container with a lid, no text or symbols present

3D rendered illustration of a cylindrical mechanical component with internal cavities (no text or symbols)

3D rendering of a cylindrical container with an open lid (no text or symbols visible)

Illustration of hands using a magnifying glass to examine a device (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass casing and black handle (no text or symbols visible)

Modell 5KFPM776 (visas ovan), 5KFPM771, 5KFPM775

(visas inte)

3D rendered diagram of a cylindrical object with a curved internal structure, placed on a circular base (no text or symbols)

Close-up of a toilet with a lid and outlet tube (no visible text or symbols)

Citruspress

Close-up of a white electric shaver with control buttons (no visible text or symbols)

Stabil bas

Transparent plastic enclosure containing a circular filter or sensor device with internal components (no text or symbols visible)

3D rendering of a mechanical assembly inside a transparent enclosure, showing internal components like gears and shafts (no text or symbols visible)

White kitchen blender with open lid and control panel, no visible text or symbols

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols visible)

Illustration of a hand holding a cylindrical container with a glass inside, next to a smaller cylindrical object (no text or symbols visible)

Close-up of a hand using a tool to press or press a plastic component into a transparent kitchen appliance (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a small container in a clear plastic kitchen (no text or symbols visible)

Illustration of a hand operating a kitchen appliance with a circular lid and central component (no text or symbols visible)

Miniskål, montering

Illustration of hands operating a kitchen appliance with a bowl and side sink (no text or symbols)

Close-up of a transparent plastic kitchen appliance with handle and central fan (no visible text or symbols)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

3D rendering of a white kitchen blender with a black arrow indicating compression or cooling (no text or symbols)

Mechanical assembly diagram showing a hand pressing down on a cylindrical component with an arrow indicating force or motion (no text or symbols present)

Illustration of hands cleaning a kitchen appliance with a rotating ring and lid (no text or symbols)

Close-up of a kitchen appliance with a handle and a small container, showing no visible text or symbols.

Close-up of a hand pressing a button on a white kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal compartments and a base (no text or symbols)

Tvådelad inmatare

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Demontera matberedaren

! WARNING

Illustration of a hand operating a kitchen appliance with a circular lid and internal components (no text or symbols visible)

Illustration of hands using a spoon to dispense liquid into a glass bowl (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered image of a white plastic kitchen pot with handle and central shaft (no text or symbols)

White kitchen feeder with digital control panel (no visible text or symbols)

Two views of a white plastic enclosure showing internal components and a circular component (no text or symbols visible)

Hand placing a cylindrical container into a stack of containers (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Illustration of a cylindrical container with an open lid and internal compartments (no text or symbols)

3D rendered diagram of a cylindrical mechanical component with internal channels (no text or symbols)

Simple line drawing of a container with an open lid (no text or symbols)

Bra att veta

Illustration of a hand holding a magnifying glass with a tool, no text or symbols present

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with control panel and digital display (no visible text or symbols)

Modell 5KFPM776 (vises), 5KFPM771 og 5KFPM775 (vises ikke)

Innholdsfortegnelse

Sikkerhetsforskrifter for foodprosessoren ....3

3D rendered mechanical component with cylindrical and flanged features (no text or symbols visible)

Close-up of a white electric shaver with three buttons and a handle (no visible text or symbols)

Ekstra kraftig base

White plastic enclosure with a circular vent and internal structure (no text or symbols visible)

3D rendering of a plastic mechanical component box with no visible text or symbols

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand holding a cylindrical container with a smaller side panel, no text or symbols present.

ADVARSEL

Illustration of a hand using a tool to lift a cylindrical component in a clear container (no text or symbols visible)

Kutteskiven og riveskiven

Illustration of a hand pouring liquid into a clear container (no text or symbols visible)

Illustration of a hand holding a lid above a transparent kitchen appliance (no text or symbols visible)

Minibollen

Illustration of hands operating a kitchen appliance with a bowl and side sink (no text or symbols)

1. Sett minikniven på drivakselen. Det kan bli nødvendig å dreie kniven til den faller på plass. Minibollen kan også settes i gourmetbollen på en lignende måte.

Close-up of a transparent mechanical device with a handle and central component (no visible text or symbols)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

Gourmetbollen (5KFPM776)

3D rendering of a kitchen appliance with a black arrow pointing to the lid area (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating force or motion (no text or symbols present)

Illustration of hands cleaning a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a labeled 'MAX' point, no other text or symbols present.

Close-up of a mechanical device with a cylindrical component and an arrow pointing to a small component (no visible text or symbols)

Hand pressing a button on a white kitchen appliance (no visible text or symbols)

1. Trykk på "O"-knappen for å slå av foodprosessoren,. Indikatorlyset slukkes og den automatiske bremsen stopper bevegelse til kniven eller skiven på få sekunder.
2. Vent til kniven eller skiven har stoppet helt, før du fjerner arbeidsbollelokket. Slå alltid av foodprosessoren før du fjerner arbeidsbollelokket, eller før du trekker ut støpslet.

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

Todelt stamper

Den todelte stamperen

For kontinuerlig behandling av mindre biter, setter du den todelte stamperen ned i materøret, så dreier du den lille midtre stamperen med urviseren for å

Demontere foodprosessoren

ADVARSEL

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Demontere foodprosessoren

Illustration of hands operating a kitchen appliance with a circular lid and central shaft (no text or symbols visible)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a white plastic kitchen knife with handle and central knob (no text or symbols)

White kitchen blender with digital display and control buttons (no visible text or symbols)

Two 3D-printed white plastic enclosure cases showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 og 5KFPM776

Feilsøking

Illustration of a hand handling a cylindrical mechanical component (no text or symbols visible)

Illustration of a cylindrical container with an open lid and internal compartments (no text or symbols)

3D rendered mechanical component with cylindrical and curved surfaces (no text or symbols)

3D rendered illustration of a cylindrical mechanical component with internal channels (no text or symbols)

Simple line drawing of a cylindrical container with a lid, no text or symbols present

Nyttige råd

Illustration of hands using a magnifying glass to examine a device (no text or symbols visible)

Cheddar Broccoli Soup

230 g skarp Cheddar, avkjølt

Household KitchenAid™ Garanti for foodprosessoren

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass casing and black handle (no text or symbols visible)

Close-up of a white electric shaver with control buttons (no visible text or symbols)

Vankka runko-osa

White plastic enclosure containing a circular object with internal patterns (no text or symbols visible)

3D rendering of a white plastic enclosure containing various mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 ja 5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols visible)

3D rendering of a white plastic kitchen appliance with a black arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical container with a transparent lid, partially filled with liquid (no text or symbols visible)

Illustration of a hand pouring liquid into a clear container (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a component inside a transparent kitchen appliance (no text or symbols visible)

Illustration of a hand holding a lid over a transparent kitchen appliance (no text or symbols visible)

Illustration of hands operating a kitchen tool with a bowl and side sink (no text or symbols)

Close-up of a transparent plastic kitchen tool with handle and central blade (no text or symbols visible)

Illustration of hands stirring a bowl over a pot on a stand (no text or symbols)

Close-up of a white kitchen blender with a black arrow indicating rotation (no text or symbols visible)

Mechanical assembly diagram showing a joint with a black arrow indicating force or movement (no text or symbols present)

Illustration of hands cleaning a container with a rotating arrow indicating rotation (no text or symbols)

Close-up of a mechanical device with a cylindrical component and an arrow pointing to a small feature (no text or symbols visible)

Close-up of a hand pressing a button on a kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a cleaning or cleaning tool on a clear plastic kitchen appliance (no text or symbols visible)

Illustration of hands stirring a glass bowl over a food reactor (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with no visible text or symbols

Huolto ja puhdistus

VAROITUS

Loukkaantumisvaara

White kitchen feeder with clear glass control panel and digital display (no visible text or symbols)

Two 3D cutaway views of a white plastic enclosure showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 ja 5KFPM776

Vianetsintä

Close-up of a mechanical press or clamping device with transparent casing and handle (no visible text or symbols)

3D rendered mechanical component with cylindrical and curved features (no text or symbols)

Illustration of a cylindrical container with an open lid and internal compartments (no text or symbols)

3D rendered illustration of a cylindrical mechanical component with internal channels (no text or symbols)

Illustration of a cylindrical container with a lid and internal compartments (no text or symbols)

Illustration of hands using a magnifying glass to examine a circular object (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUZIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass casing and black handle (no text or symbols visible)

Model 5KFPM776 (vist), 5KFPM771 og 5KFPM775 (ikke vist)

Indholdsfortegnelse

Food Processor sikkerhed ....3

Elektriske krav 3

3D rendered diagram of a cylindrical object with a curved internal structure, possibly a lid or cover (no text or symbols visible)

Close-up of a white electronic device with three circular buttons and a handle (no visible text or symbols)

Støbejernsbase

Basen har følgende funktionpanel; "O", "I", samt pulse. Motorakslen ørger for rotations kraft livene og skiverne.

Rustfri Universalkniv

Alsidig kniv som hugger, hakker, blander og mikser på få sekunder.

Dejkrog

White plastic enclosure with a circular vent and internal structure (no text or symbols visible)

3D rendering of a white plastic enclosure containing various mechanical components (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols visible)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols visible)

Illustration of a hand holding a cylindrical device with a transparent internal structure (no text or symbols visible)

Klargør Food Processoren

ADVARSEL

Close-up of a hand using a tool to press or press a cylindrical object into a transparent container (no text or symbols visible)

Illustration of a hand using a pipette to handle a cylindrical container (no text or symbols visible)

Klargør Food Processoren

ADVARSEL

Fare. Hak.

Illustration of a hand holding a lid over a transparent kitchen appliance (no text or symbols visible)

Illustration of hands operating a kitchen appliance with a bowl and side sink (no text or symbols)

Close-up of a transparent plastic kitchen grater with handle and lid (no text or symbols visible)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

Close-up of a white industrial blender with a black arrow indicating compression or cooling mechanism (no text or symbols visible)

Klargør Food Processoren

Mechanical assembly diagram showing a joint with a black arrow indicating force or motion (no text or symbols present)

Illustration of hands processing a container with a rotating arrow indicating rotation (no text or symbols)

Close-up of a mechanical device with a black arrow pointing to a component (no visible text or symbols)

Hand pressing a button on a kitchen keyboard (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and side supports (no text or symbols)

2-delt nedstopper

2-delt nedstopper

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Demontering af Food Processoren

Illustration of a hand operating a kitchen appliance with a circular lid and central shaft (no text or symbols visible)

Illustration of hands pouring liquid from a glass bowl into a container (no text or symbols)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with no visible text or symbols

Pleje og rengøring

ADVARSEL

Fare. Hak.

White kitchen feeder with clear glass control panel and digital display (no visible text or symbols)

Two transparent plastic enclosure cases showing internal mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 og 5KFPM776

Fejlfinding

Cross-sectional view of a mechanical assembly (no visible text or symbols)

3D rendered mechanical component with cylindrical and curved sections (no text or symbols)

Illustration of a cylindrical container with an open lid (no text or symbols)

3D rendered illustration of a cylindrical mechanical component with flanges (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

Illustration of hands holding a magnifying glass over a circular object (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass and black handle (no text or symbols visible)

Modelos 5KFPM776 (apresentado),

5KFPM771, 5KFPM775

(não apresentados)

Índice

White portable kitchen appliance with control panel and buttons (no visible text or symbols)

Base Resistente

White plastic enclosure with a circular vent and internal components (no text or symbols visible)

3D rendering of a mechanical assembly inside a transparent container (no text or symbols visible)

5KFPM771 5KFPM775 e
5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols visible)

3D rendering of a white plastic kitchen appliance with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand opening a cylindrical mechanical device with a base and housing (no text or symbols visible)

3D rendering of a kitchen mixer with handle and control panel (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a small container into a clear kitchen appliance (no text or symbols visible)

Illustration of a hand operating a kitchen appliance with a lid and side-mounted stand (no text or symbols visible)

Close-up of hands cleaning a small container with a lid (no text or symbols visible)

Close-up of a transparent kitchen grater with a handle and lid (no visible text or symbols)

Illustration of hands stirring a glass bowl over a pot (no text or symbols visible)

3D rendering of a white kitchen blender with a black arrow indicating compression or shift (no text or symbols)

Mechanical assembly diagram showing a valve or connector with a black arrow indicating direction (no text or symbols present)

Illustration of hands cleaning a container with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a marked point 'MAX' (no text or symbols beyond the label)

Close-up of a white kitchen appliance with a black arrow pointing to a component (no visible text or symbols)

Close-up of a hand pressing a button on a white kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and base (no text or symbols)

3D rendering of a transparent cylindrical container with lid and side compartments (no text or symbols)

Pressionador de Alimentos Pequeno
Pressionador de Alimentos Grande

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand operating a kitchen appliance with a circular lid and central shaft (no text or symbols visible)

Illustration of hands stirring a bowl over a food processor (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered image of a white plastic kitchen tool or blender with handle and spout (no text or symbols visible)

! AVISO

Perigo de Corte

White kitchen feeder with digital display and control buttons (no visible text or symbols)

Two 3D-printed plastic enclosure cases showing internal components (no text or symbols visible)

5KFPM771 5KFPM775 e 5KFPM776

Illustration of a hand holding a cylindrical mechanical component (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Illustration of a cylindrical container with a lid and spout, no text or symbols present

3D rendered illustration of a cylindrical mechanical component with internal cylindrical features (no text or symbols)

Illustration of a cylindrical container with an open lid and internal compartments (no text or symbols)

Conselhos Úteis

Illustration of a hand holding a magnifying glass over a circular object, with no visible text or symbols.

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with control panel and digital display (no visible text or symbols)

Gerðir 5KFPM776 (sýnd), 5KFPM771, 5KFPM775 (ekki sýnd)

Efnisyfirlit

Gerðir 5KFPM771, 5KFPM775, 5KFPM776:

230-240 Volt A.C.

Hertz: 50 Hz

Close-up of a white industrial machine with control panel and buttons (no visible text or symbols)

Prælsterk grunnvél

Á vélinni eru

stillingarnar „O“

White plastic enclosure with a circular vent and internal structure (no text or symbols visible)

3D rendering of a mechanical assembly with internal components (no visible text or symbols)

5KFPM771 5KFPM775 og
5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols visible)

Close-up of a white plastic kitchen appliance with a black arrow indicating rotation or movement (no text or symbols visible)

Illustration of a hand holding a cylindrical device with a transparent casing (no text or symbols visible)

Hand pouring liquid into a container with a cylindrical tube inside (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a container of liquid into a kitchen appliance (no text or symbols visible)

Illustration of a hand holding a lid above a transparent container with a central handle (no text or symbols visible)

Illustration of hands operating a kitchen tool with a bowl and side sink (no text or symbols)

3D rendering of a mechanical device with transparent casing and handle (no visible text or symbols)

Illustration of hands using a spoon to handle a bowl over a food processor (no text or symbols visible)

Samsetning kokkaskálar (5KFPM776)

3D rendering of a kitchen blender with a black arrow indicating the blade (no text or symbols)

3D mechanical assembly diagram showing a joint with a downward arrow indicating force or direction (no text or symbols)

Illustration of hands using a lathe machine to generate a ball, showing the motion of rotation (no text or symbols)

Close-up of a white appliance with a black arrow pointing to a small component, no visible text or symbols.

Hand pressing a button on a kitchen blender (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal structure and base, no text or symbols visible

Tvískiptur troari

Tvískiptur troðari (5KFPM771)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand operating a kitchen appliance with a lid and central valve (no text or symbols visible)

Illustration of hands stirring a glass bowl over a pot (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a white plastic kitchen knife with handle and central shaft (no text or symbols)

Meðferð og hreinsun

! VARÚD

Hætta á skurðsárum.

White kitchen feeder with digital display and control buttons (no visible text or symbols)

White plastic container with a circular lid and internal compartments (no text or symbols visible)

3D rendering of a white plastic enclosure containing various mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 og 5KFPM776

Ef vandamál koma upp

Illustration of a hand holding a cylindrical device with internal components (no text or symbols visible)

3D rendered mechanical component with cylindrical and rectangular features (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

3D rendered diagram of a cylindrical mechanical component with internal cavities (no text or symbols)

Illustration of a cylindrical container with an open lid and internal compartments (no text or symbols)

Gagnleg ráð

Illustration of hands using a magnifying glass to examine a device (no text or symbols visible)

ARTISAN™ FOODPROCESSOR

INSTRUCTIES EN RECEPTEN

ARTISAN™ FOOD PROCESSOR

INSTRUCTIONS AND RECIPES

ROBOT MÉNAGER ARTISAN™

MODE D'EMPLOI ET RECETTES

ARTISAN™ FOOD PROCESSOR

FOOD PROCESSOR ARTISAN™

ISTRUzIONI PER L'USO E RICETTE

PROCESADOR DE

ALIMENTOS ARTISAN™

ARTISAN™ FOOD PROCESSOR

INSTRUKTIONER OG OPSKRIFTER

PROCESSADOR DE

ALIMENTOS ARTISAN™

INSTRUÇÕES E RECEITAS

ARTISAN™ MATVINNSLUVÉL

LEIDBEININGAR OG UPPSKRIFTIR

ARTISAN™ KOyZINOMhXANh

Exterior view of a kitchen blender with clear glass and black handle (no text or symbols visible)

Close-up of a white hair dryer with control panel and buttons (no visible text or symbols)

Ενισχυμένη βάση

White plastic enclosure with a circular vent and internal components (no text or symbols visible)

3D rendering of a white plastic enclosure containing various mechanical components (no text or symbols visible)

5KFPM771 5KFPM775 kai
5KFPM776

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand pressing a cylindrical container with a smaller side panel (no text or symbols visible)

Illustration of a hand pressing down on a transparent kitchen mixer (no text or symbols visible)

Illustration of a hand using a pipette to press or adjust a small component into a clear container (no text or symbols visible)

Illustration of a hand pressing down on a clear kitchen appliance (no text or symbols visible)

Illustration of hands pouring liquid into a clear container (no text or symbols visible)

3D rendering of a mechanical device with transparent casing and internal components (no visible text or symbols)

Illustration of hands using a kitchen mixer to handle a bowl (no text or symbols visible)

3D rendering of a white kitchen blender with a black arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a joint with a black arrow indicating force or movement (no text or symbols present)

Illustration of hands using a mechanical device to press or spread material, showing a rotating component (no text or symbols)

3D diagram of a cylindrical container with an arrow pointing to a labeled 'MAX' point, no other text or symbols present.

Close-up of a mechanical component with a black arrow pointing to a small circular feature (no text or symbols visible)

Close-up of a hand pressing a button on a kitchen appliance (no visible text or symbols)

3D rendering of a transparent cylindrical container with internal compartments and a curved top (no text or symbols)

3D rendering of a mechanical component with a black arrow indicating rotation or movement (no text or symbols)

Illustration of a hand operating a kitchen appliance with a lid and control panel (no text or symbols visible)

Illustration of hands using a kitchen mixer to handle a bowl (no text or symbols visible)

White kitchen blender with control panel and directional arrow (no text or symbols)

3D rendered mechanical component with cylindrical and curved features (no text or symbols visible)

White kitchen feeder with digital display and control buttons (no visible text or symbols)

Two transparent plastic enclosures filled with various mechanical components, no visible text or symbols

5KFPM771 5KFPM775 kai
5KFPM776

Επίλυση προβλημάτων

Illustration of a hand holding a transparent cylindrical device with internal components (no text or symbols visible)

3D rendered diagram of a cylindrical mechanical component with internal cavities and a base plate (no text or symbols)

Simple line drawing of a cylindrical container with an open lid (no text or symbols)

3D rendered diagram of a cylindrical mechanical component with internal cavities (no text or symbols)

Illustration of a cylindrical container with a lid and internal compartments (no text or symbols)

Illustration of hands using a magnifying glass to examine a device (no text or symbols visible)
