USER MANUAL EPILATION CARESSE PERFECTION DOUCEUR 7539 CALOR

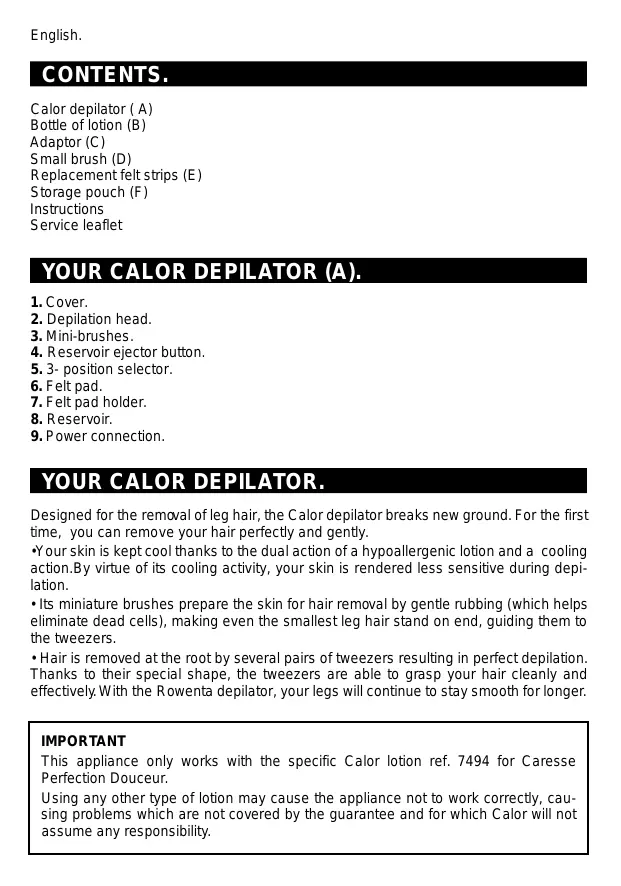

• Calor depilator (A)
• Bottle of lotion (B)
• Adaptor (C)
• Small brush (D)
• Replacement felt strips (E)
• Storage pouch (F)
• Instructions
• Service leaflet

YOUR CALOR DEPILATOR (A).

1. Cover.
2. Depilation head.
3. Mini-brushes.
4. Reservoir ejector button.
   5.3-position selector.
5. Felt pad.
6. Felt pad holder.
7. Reservoir.
8. Power connection.

YOUR CALOR DEPILATOR.

Designed for the removal of leg hair, the Calor depilator breaks new ground. For the first time, you can remove your hair perfectly and gently.

• Your skin is kept cool thanks to the dual action of a hypoallergenic lotion and a cooling action. By virtue of its cooling activity, your skin is rendered less sensitive during depilation.
• Its miniature brushes prepare the skin for hair removal by gentle rubbing (which helps eliminate dead cells), making even the smallest leg hair stand on end, guiding them to the tweezers.
• Hair is removed at the root by several pairs of tweezers resulting in perfect depilation. Thanks to their special shape, the tweezers are able to grasp your hair cleanly and effectively. With the Rowenta depilator, your legs will continue to stay smooth for longer.

IMPORTANT

This appliance only works with the specific Calor lotion ref. 7494 for Caresse Perfection Douceur.

Using any other type of lotion may cause the appliance not to work correctly, causing problems which are not covered by the guarantee and for which Calor will not assume any responsibility.

FOR YOUR SAFETY.

• Operating voltage :230 V • Ensure that this voltage corresponds to that of your mains supply. Incorrect connection may cause irreparable damage which is not covered by the guarantee. • The depilator is intended for personal domestic use only. • It must only be used with the enclosed adaptor ref. 7539. • Do not use the adaptor for any use other than with the appliance. • Do not unplug by tugging on the power lead. • Do not use extension leads. • Do not handle with wet hands. • Never immerse the depilator or the adaptor in the water. • Never use if the appliance (depilator or adaptor) is damaged or in the event of damage after the appliance has been dropped (invisible damage may be dangerous). • This appliance can only be repaired using special tools. In the event of any after sales problem (depilator, adaptor), please consult an approved service agent (see enclosed leaflet) • We decline any responsibility for damage arising from incorrect use of the appliance or use of the appliance in any way other than that specified in these instructions. • When the depilator is in use, it must not come into contact with eyelashes, hair, clothes or any other objects in order to avoid any danger of injury or blockage. • Keep the appliance out of the reach of children.

• Do not use the depilator : • on your face • on broken, burnt or sore skin • on sensitive areas (varicose veins,moles,birthmarks,warts...) • if you suffer from skin complaints (eczema inflammations,acne...) • We advise against using the depilator on your underarms or bikini line.

PREPARING YOUR SKIN.

• Before hair removal : your skin should be clean and dry.
• Do not apply either cream or moisturiser.
• If you ordinarily shave your legs with a razor :

during your first experiences of depilation your skin may feel especially sensitive, as shaving has made hair thicker and harder. This sensation will lessen the more you use your hair remover :the hair will grow back less quickly and will become finer.

• Your depilator will be much more effective and easier to use if you use it regularly. We advise you to use your depilator as soon as your hair starts to grow back
• Only the dual action of the moistened felt pad and the air flow allow a proper cooling of the skin
• The Calor depilator lotion 7494 is hypoallergenic :it has been developed to minimise the risk of allergic reactions.

OPENING AND CLOSING THE BOTTLE OF LOTION.

To open the bottle of lotion :
- Break the protective seal and turn the lid of the bottle one quarter turn anticlockwise (fig.n° 1).
To close the top :
- Turn the lid clockwise.

FILLING THE RESERVOIR.

IMPORTANT: Ensure the felt pad holder is closed.

The green strip should not be visible (fig.n° 2).

• Remove the reservoir.
• Pull the reservoir ejector button at the back towards the depilator head (fig.N° 3)
• Remove the reservoir holding it vertically, its cap directed upwards.
• Open the cap of the reservoir (fig.N° 4).
• Fill the reservoir with the lotion up to the mark (do not overfill) (fig.N° 5).
• Close the reservoir cap.
• Put the reservoir back in place.

First insert the cap of the reservoir into the depilator, then press the felt pad holder to fix the reservoir into place (fig.N° 6).

A little click :the reservoir has been correctly fixed into place.

IMPORTANT :

• Three small openings under the felt pad holder allow the lotion to flow during depilation.

• To wet the felt pad, slide its holder :

• when the green strip is visible, the reservoir is open and the lotion flows (fig.n° 7)

• when it is not visible, the reservoir is closed (fig.n° 2)

REMOVING YOUR HAIR GENTLY.

Depilation takes place in 2 stages, area by area :

• stage 1 :the skin needs to be cooled,
• stage 2 :the hair is removed after cooling

First cool your skin with the moistened felt pad and the airflow.

• Plug the cord of the transformer into the depilator.
• Plug the transformer into a mains electric socket.
• Make sure that the reservoir is open :the green strip is visible, the lotion is flowing (fig. n° 7)
• Hold the depilator firmly in your hand (fig.n° 8)
• hold the unit in a tong-like grip
• the 3 selection selector should always be facing you.
• With your thumb push the selector towards the felt pad position (fig.n° 9)
• the airflow of your depilator is activated ,
• this allows faster lowering of your skin temperature.
• First apply the felt pad to your hand to ensure it moistens your skin.
• Apply the lotion with the moistened felt pad, rubbing over the same area 3 times (fig. n°10).
• Continue for each area of skin.
• Push the selector switch towards the depilator head position (fig.n° 11).
• The airflow and the tweezers of your depilator are activated.
• Remove the hair on the surface of the skin which has just been cooled :hold the depilator slightly tilted towards you, and move it slowly from the bottom up (fig.n°13).
• To avoid a pinching sensation, hold the skin taught where hair growth is sparse, such as the calves

MPORTANT :

If you press your skin too firmly your depilation will not be effective. To ensure an effective depilation, brush the skin lightly.

• Apply the lotion and airflow again and remove your hair.
• To stop the depilator, set the 3 position selector in the middle position (fig. N° 14) and disconnect the power lead and the adaptor.
• After depilation small red Dots may appear :this is a natural reaction. They will disappear quickly; For this reason, it is advisable to use your depilator in the evenings.

IMPORTANT :

When you wish to reapply the lotion, remember to push the 3 position selector power switch towards the felt pad in order to activate the flow of air (fig.N° 9). Using the moistened felt pad without airflow will prevent the skin from cooling down properly.

• Do not moisten the felt strip :
• the green strip should not be visible (fig. N° 2)
• you may clean your depilator.

CLEANING YOUR DEPILATOR.

Cleaning the depilator head.

• Make sure that your depilator is duly disconnected and that the felt pad is duly deactivated.
• The reservoir should be closed. The colour strip should not be visible (fig.N° 2). It is not necessary to empty your reservoir after each depilation.
• Soak the brush in alcohol (ninety %-proof).
• Turn the depilation head with your hand and clean each row of heads with your brush.
• Replace the cover of the depilator.
• Put the depilator and its accessories back in its storage pouch.

Change the felt pad each time you remove your hair.

Important note :do not apply alcohol on either the depilator itself or on its adaptor. If you must clear the air vents,use your brush without alcohol.

CHANGING THE FELT PAD.

Change the felt pad after each depilation.

• Make sure that your depilator is duly disconnect and that the felt pad moistener has been turned off carefully. The green strip should not be visible (fig. N° 2)
• Remove the used felt pad :place your thumb on the used felt pad and push it outward (fig.N° 12)
• Remove a new felt pad from its package
• Insert the new felt pad :
• place the edges of the felt pad snugly within the grooves of the felt holder (fig. N° 15)
• with your thumb, press down on the part of the felt pad thus inserted and gently slide it forward towards the epilator head.
• Put the cover back on and put the depilator and its accessories back in its storage pouch.

GUARANTEE.

Your depilator operates with very low voltage.

Your appliance is guaranteed for one year of personal domestic use, though any malfunction due to faulty installation, any intensive handling or use of the unit for purposes other than depilation render this guarantee null and void. For any after-sales problems with the appliance or the adaptor, contact your usual dealer or authorized repairer (see list enclosed with the appliance).

ANY PROBLEM?

Your depilator is an electrical appliance designed to operate without malfunction in normal conditions of use. However, in case of failure, shock or any technical defect whatsoever, it is advisable to have the unit examined by a qualified technician, who will repair it if need be (see enc-closed Service Information leaflet).

Problem	Solution
Your depilator does not function.	Check to see whether the unit is connec-ted properly or contact a professional.
You have stopped or put your depilator back in its case and the lotion continues to leak through the feld pad.	·The reservoir is improperly closed. Close it again by pushing the holder to the left: the green strip should not be visible (fig.N° 2). ·The felt pad is incorrectly inserted in its casing. See the section on “Changing the felt pad”.
Your depilator is becoming less efficient.	The depilator head is clogged with dirt. See the section on “cleaning your depi-lator”
Your depilator jumps on your leg.	You must use the depilator holding it slightly tilted towards you (fig.N° 13)
Your skin is not cool enough.	Make sure that: ·lotion flows out of the reservoir: the green strip should be visible, ·the airflow is functioning while the lotion is being applied.

SERVICE-SPAREPARTS.

Calor has a network of Service Agents throughout the country. To telephone your nearest Calor Service Centre see enclosed ServiceInformation leaflet.These Service Agents carry out in-guarantee repairs (free of charge) and out of guarantee repairs (chargeable) on behalf of Calor. Should service be required, or the appliance appear faulty, consult your local Calor Service Agent in the first instance. If a product develops a fault during the guarantee period, it is the responsibility of the consumer to supply to the Service Agent proof of the date of purchase of the appliance (eg.completed guarantee card and/or receipt showing the date of purchase).
