USER MANUAL TB 050 DXB0 HOTPOINT

Read this manual thoroughly before using and save it for future reference

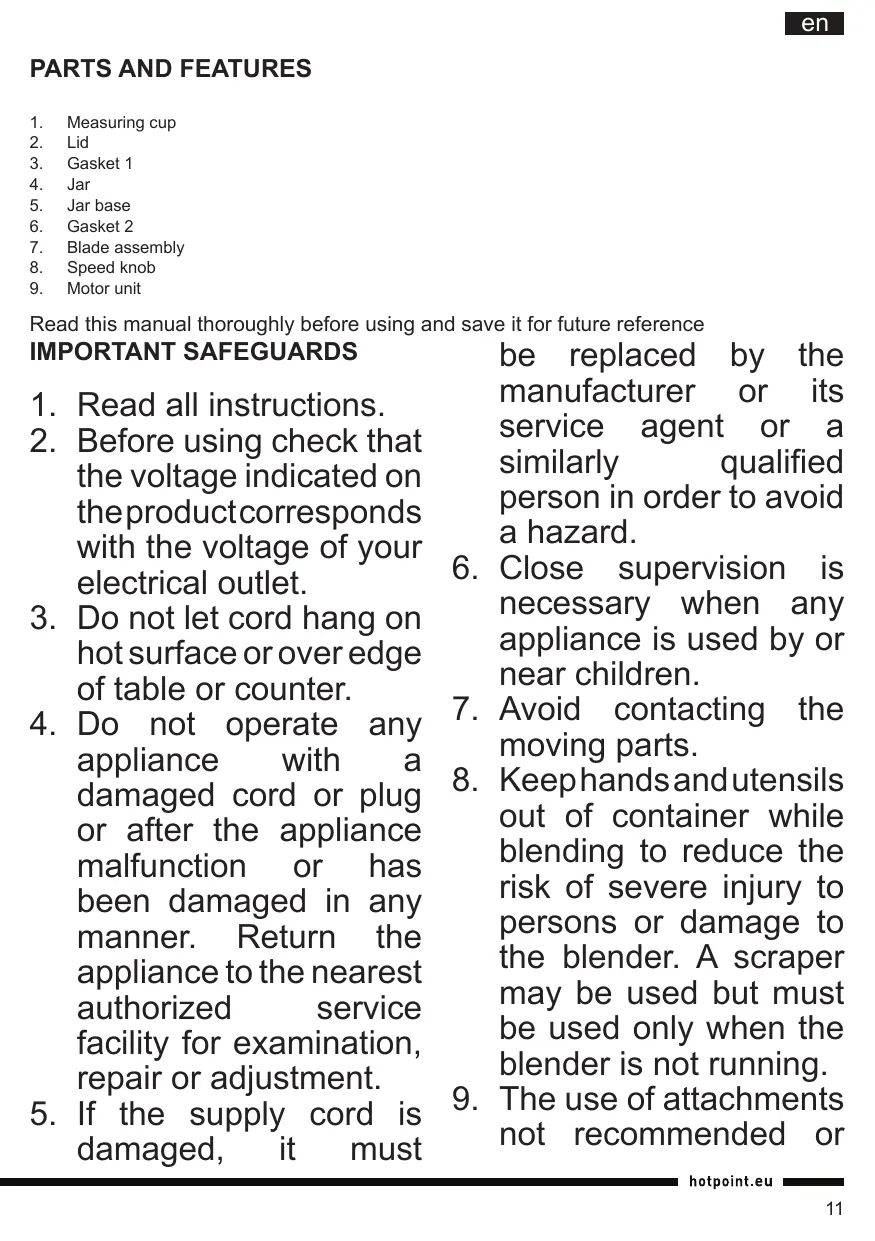

IMPORTANT SAFEGUARDS

1. Read all instructions. 2. Before using check that the voltage indicated on the product corresponds with the voltage of your electrical outlet. 3. Do not let cord hang on hot surface or over edge of table or counter. 4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment. 5. If the supply cord is damaged, it must

be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Close supervision is necessary when any appliance is used by or near children. Avoid contacting the moving parts. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running. The use of attachments not recommended or 11

sold by manufacturer may cause fire, electric shock or injury. 10.Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To disconnect, turn any control to “off”, then remove plug from wall outlet by grasping the plug, not the cord. 11. To reduce the risk of injury, never place blade assembly on motor unit without the jar properly attached. 12.Do not leave the machine on unattended. 13.When removing the blender from the motor unit, wait until the blades have completely stopped. 14.Always operate blender with cover in place. 15.Always use the appliance on a secure, dry level surface. 16.Never place this appliance on or near a 12

hot gas or an electric burner or where it could touch a heated appliance. 17.Do not use outdoors. 18.Do not use appliance for other than its intended use. 19.Be care of potential injury from misuse. 20.Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. 21.Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming. 22.Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. 23.Switch off the appliance and disconnect from supply before changing

accessories or approaching parts that move in use. 24.This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. 25.Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. 26.Children shall not play with the appliance.

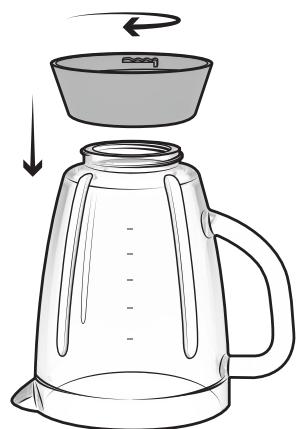

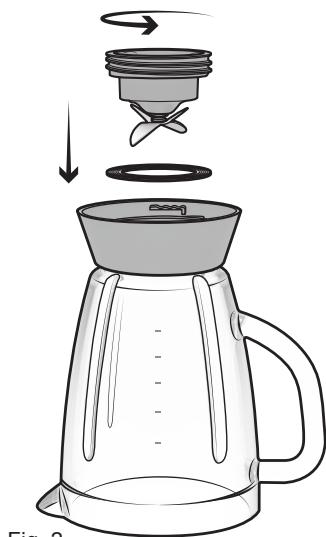

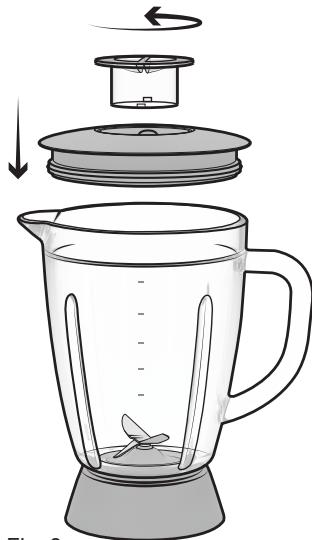

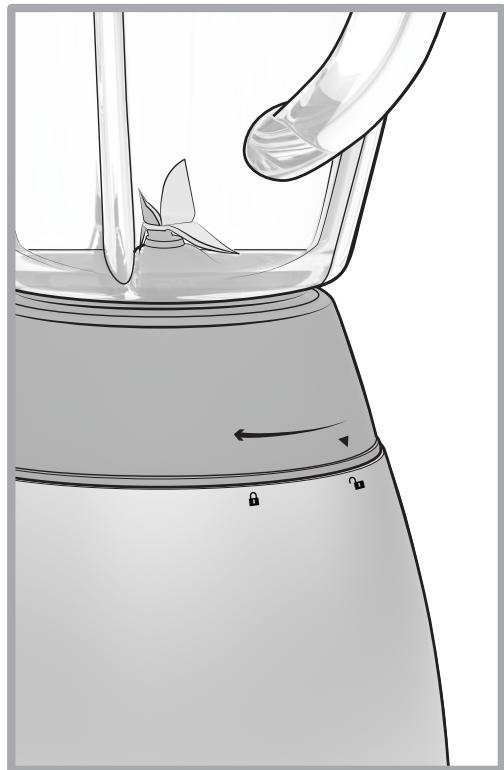

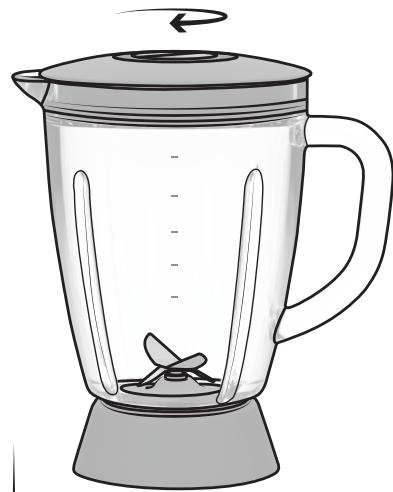

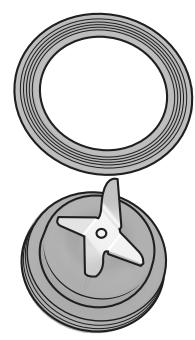

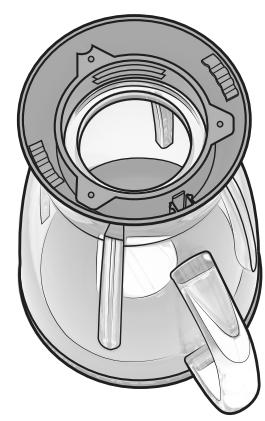

ASSEMBLING THE BLENDER 4. Holding the jar handle, invert the jar onto a level surface, put the jar base onto the jar bottom and secure the jar base by turning it clockwise until tight (See Fig.1). 5. Place the gasket 2 and the blade assembly onto the jar and secure the jar base by turning it anticlockwise until tight (See Fig.2). 6. Place the jar assembly with its opening upwards. Wrap the gasket 1 around the lid bottom and put the lid onto the jar assembly. Place the measure cup exactly into the lid by fitting the small projection on the both sides of the cup into the slots of the lid and turning the cup clockwise until tight. (See Fig.3) 7. Finally, place the assembled jar onto the motor unit by aligning the arrow symbol on the jar base to the unlock symbol on the motor unit and turning the jar clockwise until tight. (See Fig.4 and 4a).

OPERATING INSTRUCTIONS

BEFORE THE FIRST USE 1. Before the first use, unpack the appliance and place all parts on a horizontal surface. 2. The jar assembly (including measuring cup, lid, gasket 1, jar unit, gasket 2 , blade assembly ) has already been assembled into the motor unit. Disassemble to wash all detachable parts except the motor unit. Refer to the chapter CARE AND CLEANING. 3. Once all the pieces have been cleaned and dry thoroughly, reassemble.

Attention: Do not try to twist the jar and jar base onto motor unit.

USING THE BLENDER 1. 2.

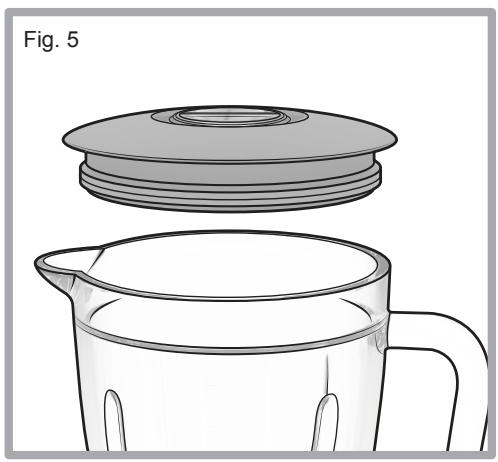

Peel or pit fruit or vegetables and then cut it into small dices. Place the food to be blended into the jar (See Fig.5).

Note: Usually, certain amount of purified water has to be added to make the running of trhe appliance smoother. The suggested proportion of the food and water is 2:3.The amount of mixture should not exceed the max level as indicated on the jar. Attention: never use boiling liquids or run the appliance empty.

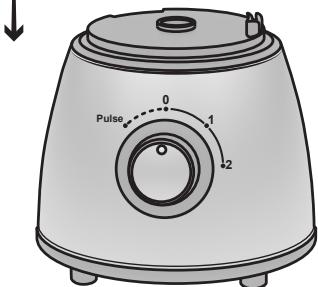

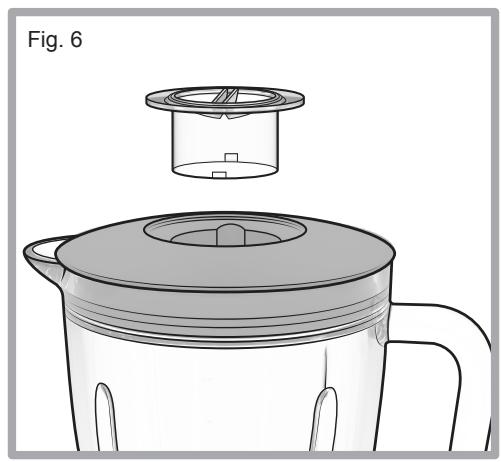

Put the lid on the jar. Be sure the measuring cup is in place. Plug the power cord into a standard wall outlet. Turn the speed knob to the selected speed. For quick or delicate blending tasks, turn the speed knob to P position and hold for a few seconds and then release; the knob will reset to 0 position automatically. Operate several times until the desired consistence. If you want to add ingredients while the blender is working, remove the measuring cup and place through the lid opening. (See Fig.6) When crushing ice or hard food, keep one hand firmly on the lid. When the consistence you desire is obtained,

en it turn the knob to 0 position. Note: For each use, the consecutive operation time should not exceed 3 minutes. At least 10 minutes rest time must be maintained between two continuous cycles. In any case, let the unit cool to room temperature before performing next operation cycle. Note: If you want to stop the machine during operation, turn the knob to O position anytime.

Attention: Don’t immerse the blade assembly in water

IMPORTANT OPERATING TIPS Note: For best circulation of food that are to be blended with some liquid, pour the liquid into the jar first, then add solids. Note: Some of the tasks those cannot be performed efficiently with a blender are: beating egg whites, whipping cream, mashing potatoes, grinding meat, mixing dough, extracting juice from fruit and vegetable. Attention: The following items should never be placed in the unit as they may cause damage: bones, large pieces of solid, frozen food, or tough foods such as turnips. Note: To crush ice, add up to 6 ice cubes. If more ice is needed, remove the cup and add cubes one by one through the lid opening.

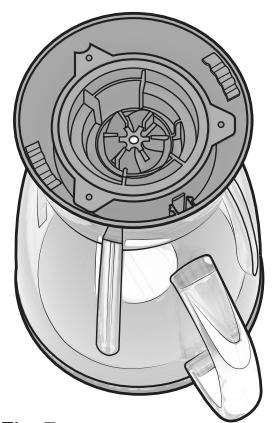

CARE AND CLEANING This product contains no user serviceable parts. Refer to qualified service personnel. 1. Before cleaning, unplug the blender. 2. Always wash immediately after use for easier cleaning. Don’t let food dry on the jar assembly as this will make cleaning difficult. 3. Pour a little warm soapy water into the jar and turn the knob to P position for a few seconds and then empty the jar. Disassemble all detachable parts. Lift the jar assembly off the motor unit, detach the blade assembly by turning it clockwise from the jar base bottom , and remove the gasket 2 and blade assembly (See Fig.7). In addition, detach the jar cover gasket 1 from the jar cover.` 4. Rinse measuring cup, lid, gaskets, jar unit and blade assembly by hands or into the dishwasher and then dry. They are dishwasher safe components, but the temperature setting shall

not exceed 65. Brush the blades using warm soapy water, then rinse thoroughly under the tap. Don’t touch the sharp blades, handle carefully..

Attention: Leave to dry upside down away from children. Wipe the motor unit with a damp cloth and dry thoroughly. Remove stubborn spots by rubbing with a non-abrasive cleaner. If liquids spill into the motor unit; first unplug the unit, then wipe with a damp cloth and dry thoroughly. Attention: Do not immerse the motor unit in liquid to prevent the risk of electric shock. Attention: Do not use rough scouring pads or cleansers on parts or finish.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stre-

Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
