USER MANUAL HLC 9.8 LT X/HA HOTPOINT

Operating Instructions

! Keep this manual for reference. If you sell, transfer or move the unit to another location, make sure to keep the manual with the product.

! Read the instructions carefully - they contain important installation, user and safety information.

! Do not tamper with the electrical or mechanical equipment of the product or its exhaust ducts.

General safety information

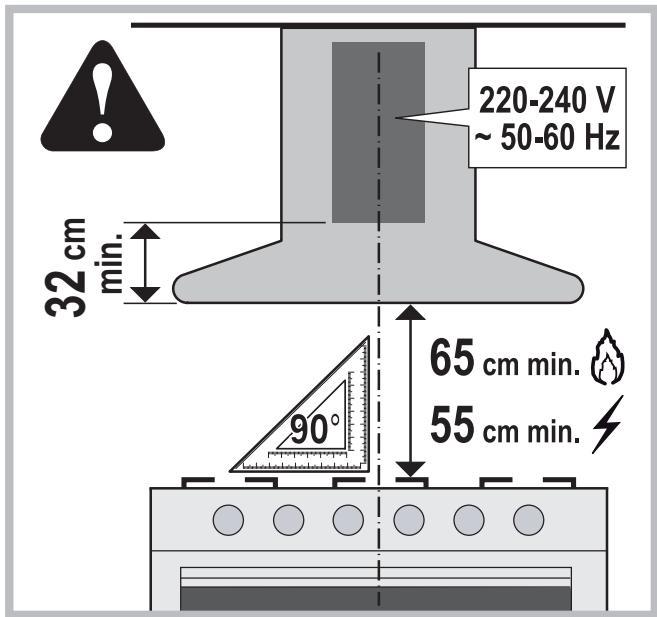

+ The distance between the cookware support surface on top of the cooking appliance and the lowest part of the cooker hood must be at least: 65 cmifthe hoodis installed over a gas cooktop 55 cm if the hood is installed over an electric cooktop. Ifthe installation instruction manual for the gas cooking appliance specifies a greater distance, this measurement should be taken into account.

+ The cooker hood comes with anchor

plugs which are suitable for use with most walls/ceilings. However, you must contact a qualified technician to check the suitability of the materials in relation to the type of wall/ ceiling, which must be strong enough to support the weight of the unit.

+ Caution! Do not hook the unit up to its electrical power supply until the installation has been completed.

+ Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

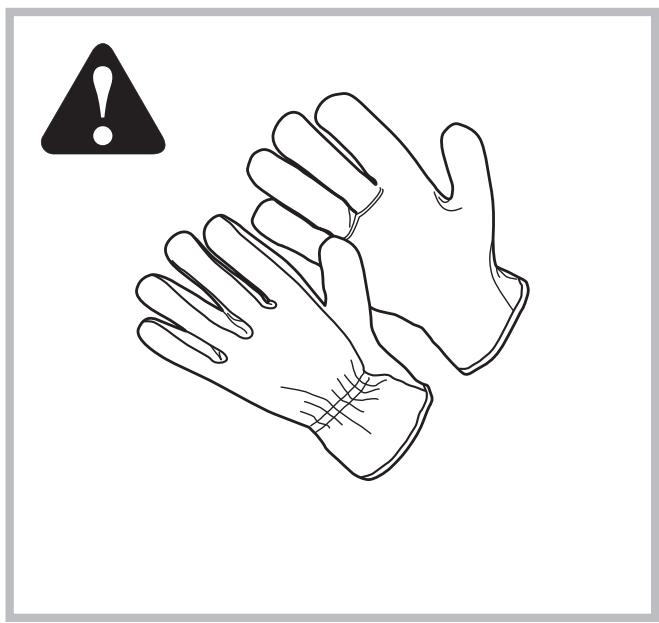

+ Always wear work gloves when installing and servicing the unit.

- Itis not intended for use by children or persons with sensory or mental disability and lack of experience or familiarity, except under the supervision or instruction of a person responsible for their safety.

- Make sure children do not play with the unit.

- Never operate the unit without its grease filter installed!

+ NEVER use the hood as a support, unless expressly instructed to do so.

+ The room must be adequately ventilated ifthe hood is used at the same time with other equipment burning gas or other fuels.

+ Extracted air must not be conveyed into a duct used for exhausting combustion fumes from gas or other fuel-fired equipment.

+ Observe all regulations in relation to air extraction.

+ NEVER cook food with an open flame under the hood; open flames will damage the filters and may cause fires. Never do this.

+ Always supervise frying to make sure the heated oil does not catch fire.

- Strictly observe all local regulations in relation to the technical and safety measures to be employed in fumes extraction.

+ Clean the product frequently, inside and out (AT LEAST ONCE À MONTH, and in observance of the maintenance instruction given in this manual).

+ Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires.

+ Never use the hood without its bulbs properly installed - electrocution hazard.

- The manufacturer is not liable for any inconvenience, damage or fire caused by the unit as a result of failure to observe the instructions given in this manual.

+ Caution! The unit's accessible parts can get very hot when used with cooking equipment.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge ifthey have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Ë attivo 7 giorni su 7, sabato e domenica compresi, e non lascia mai inascoltata una richiesta.

Assistance ! Never use the services of an unauthorised technician.

Please have the following information to hand:

+ __ The type of problem encountered.

*__ The appliance model (Mod.).

+ __ The serial number (S/N).

The latter two pieces of information can be found on the data plate located on the appliance.

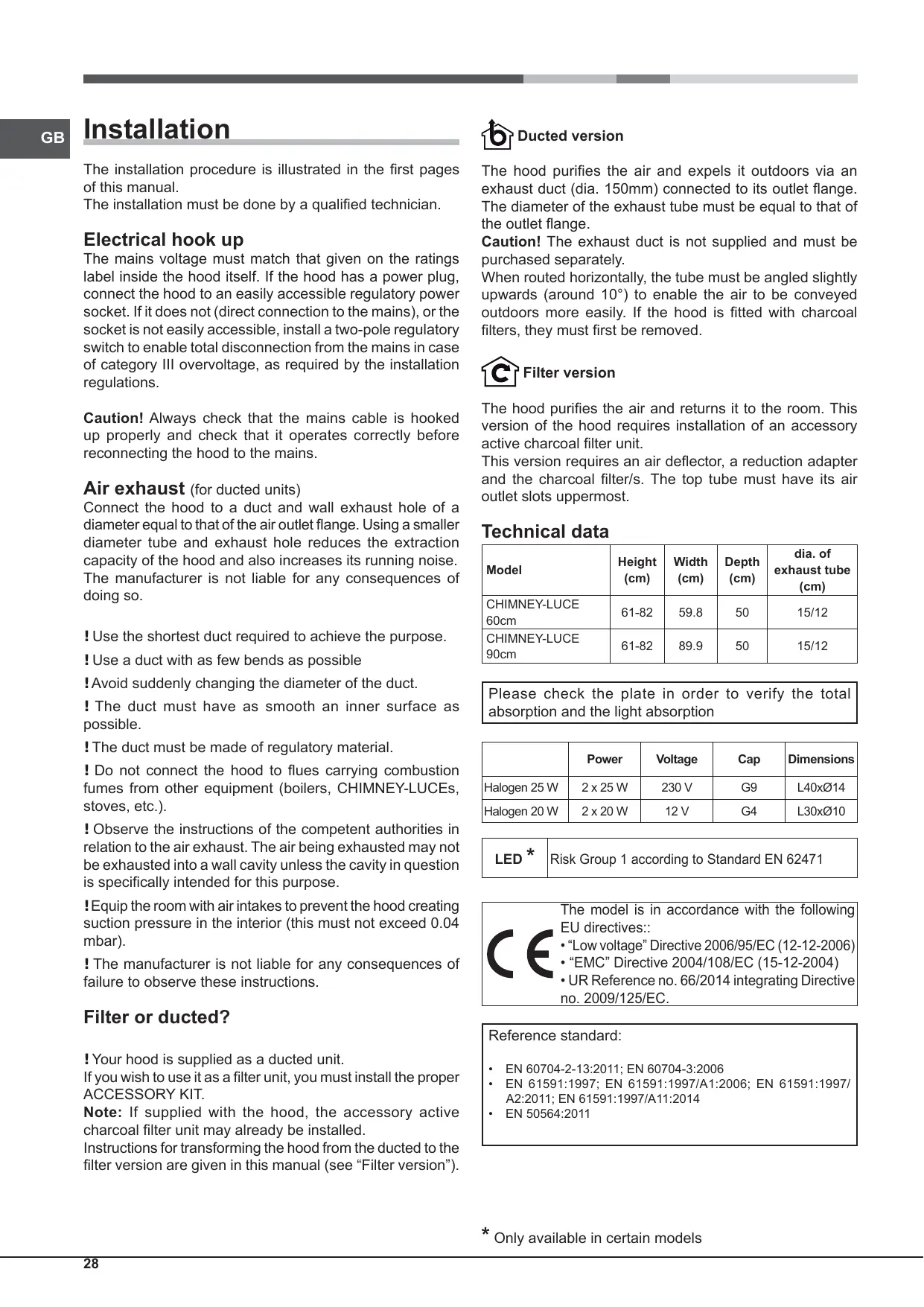

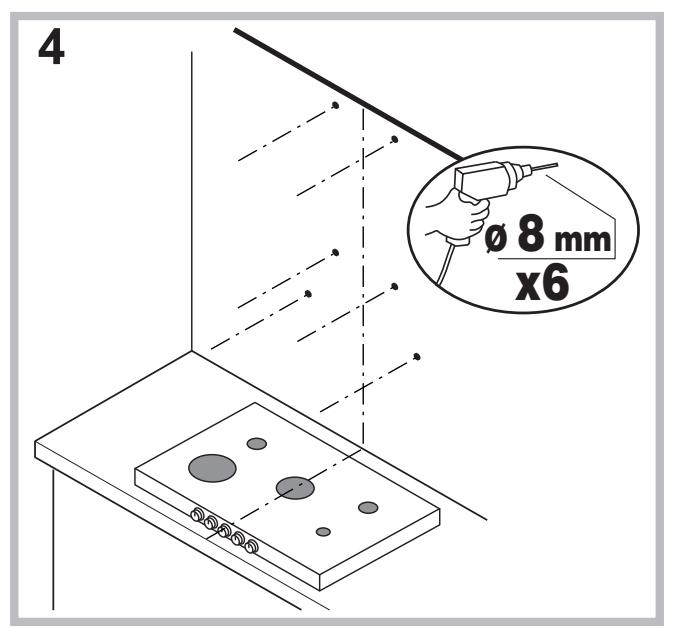

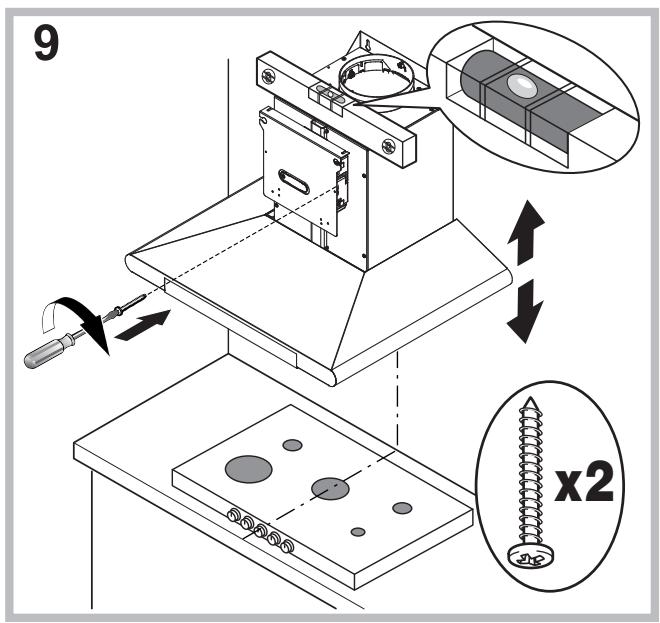

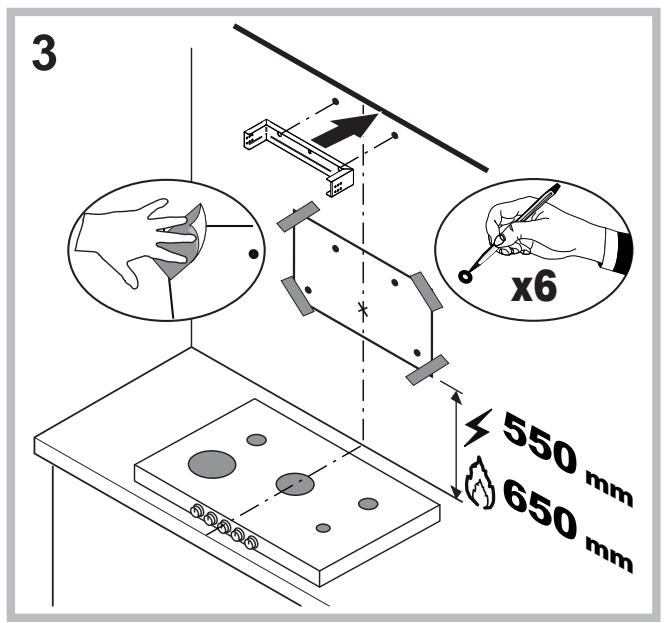

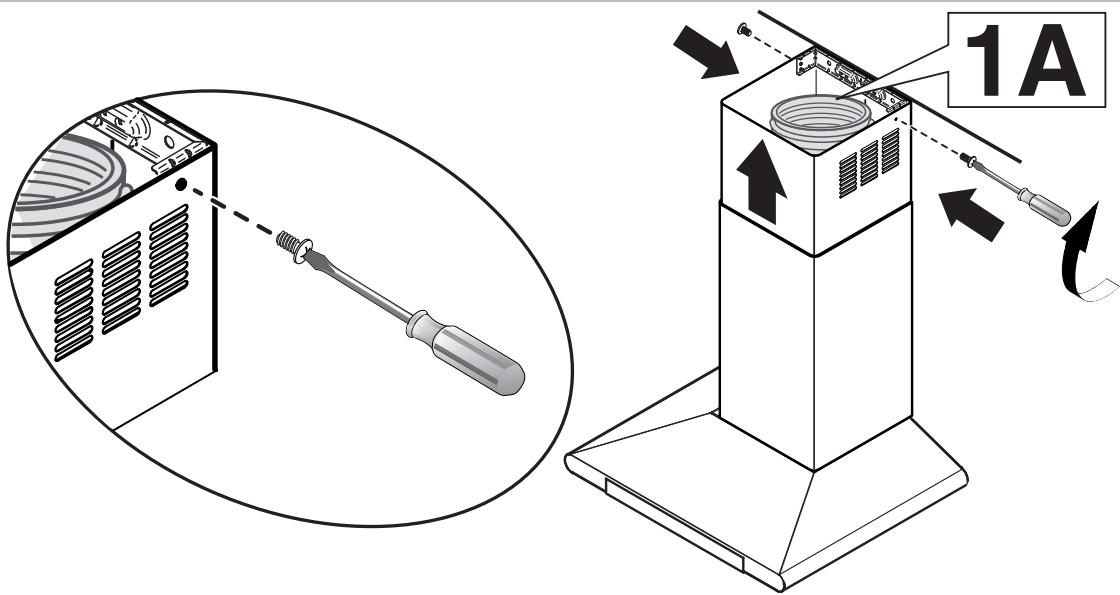

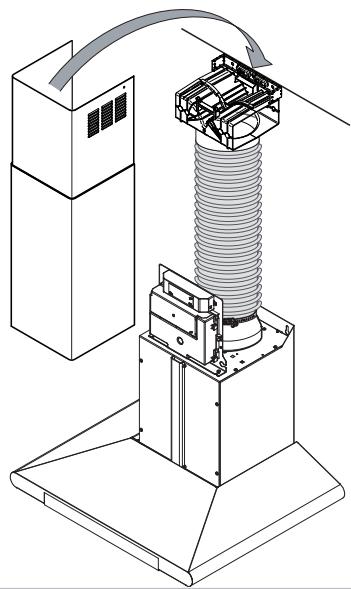

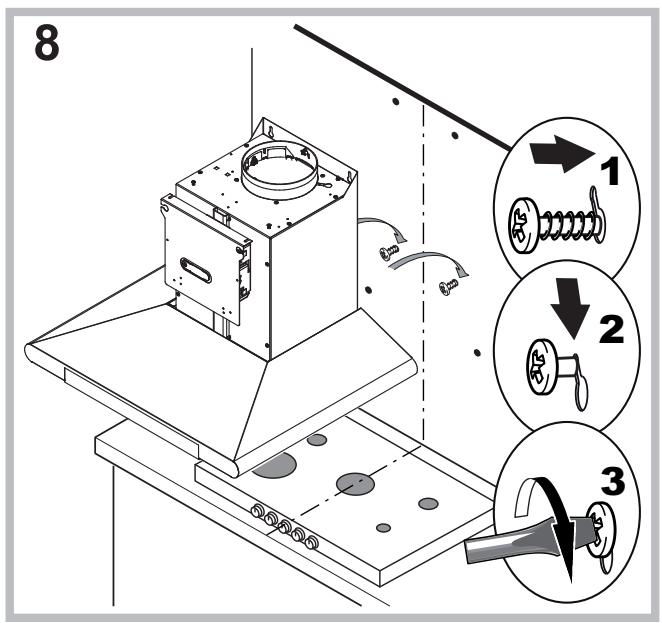

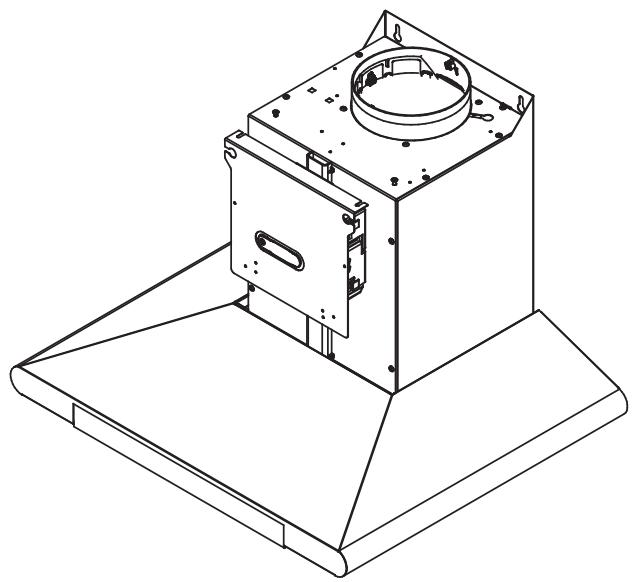

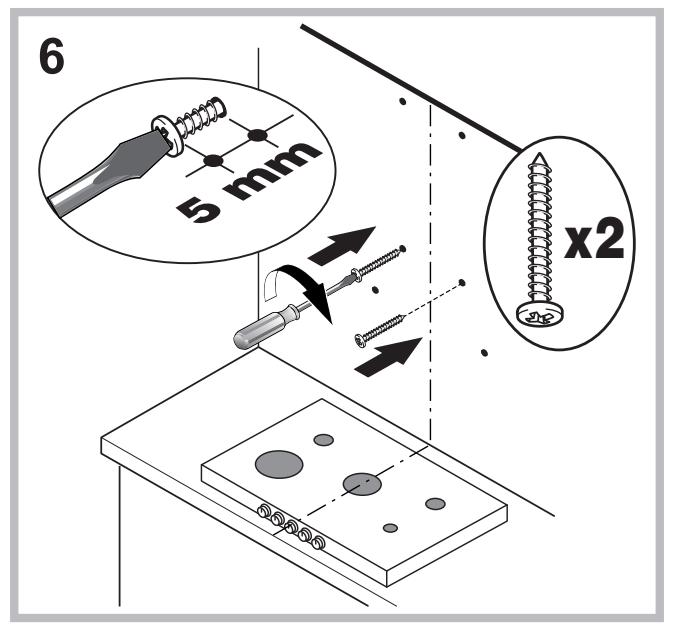

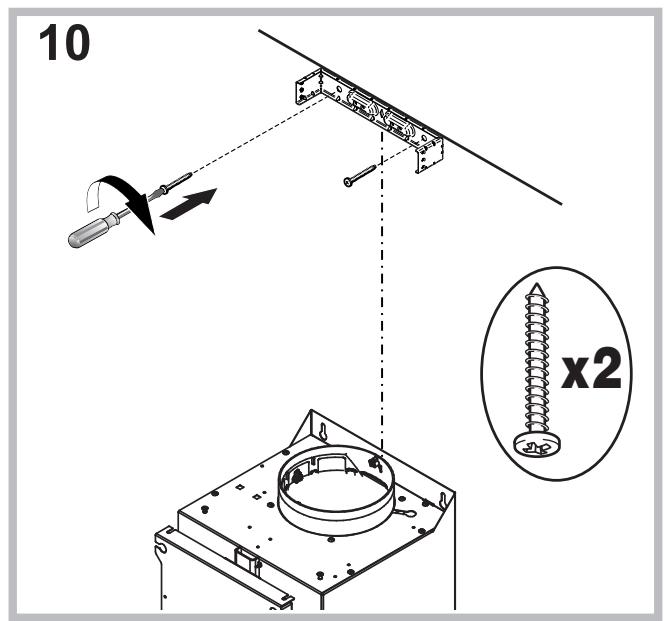

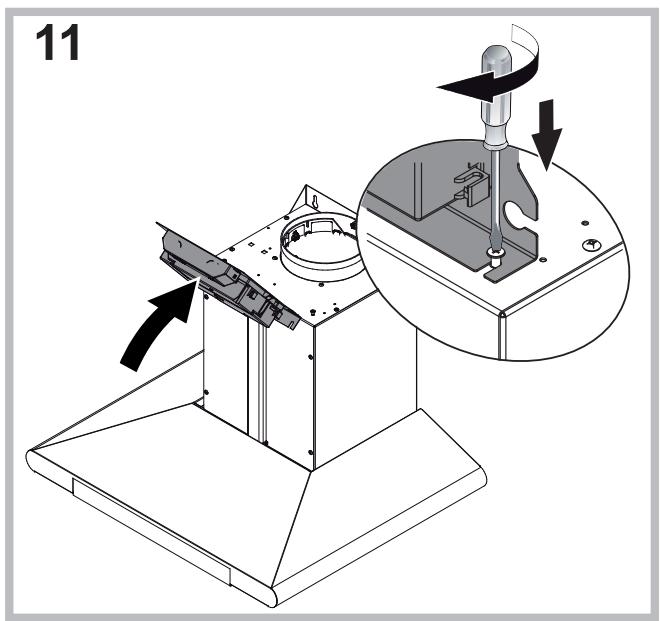

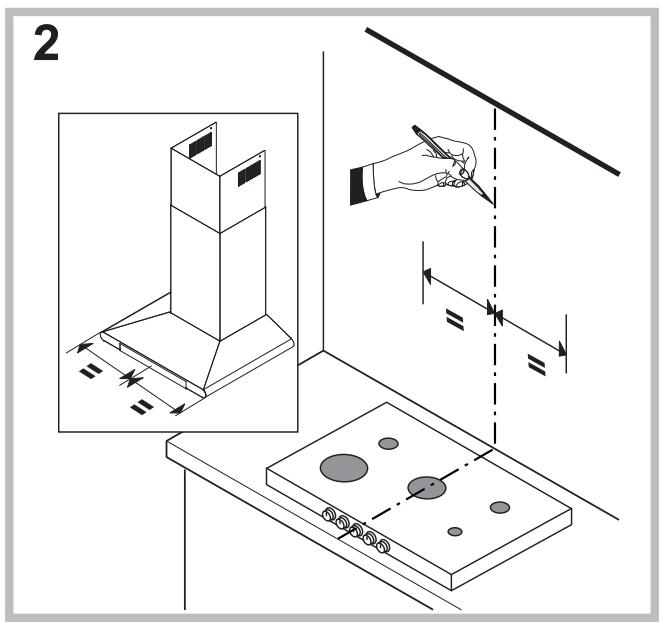

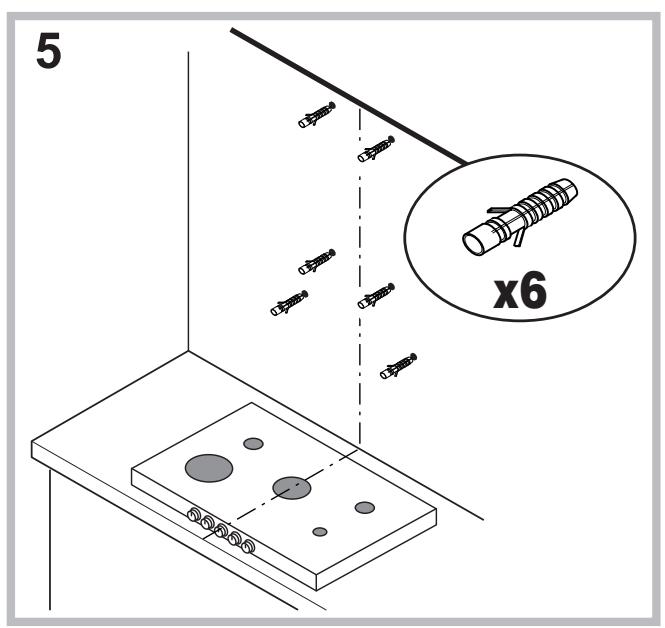

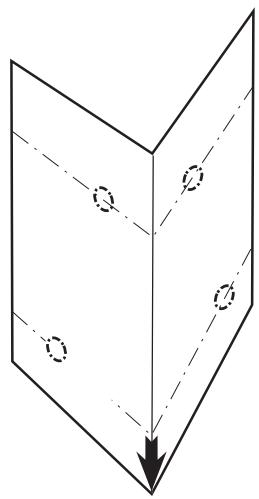

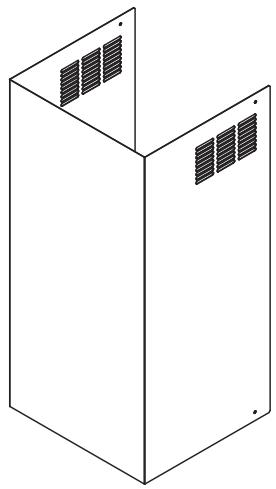

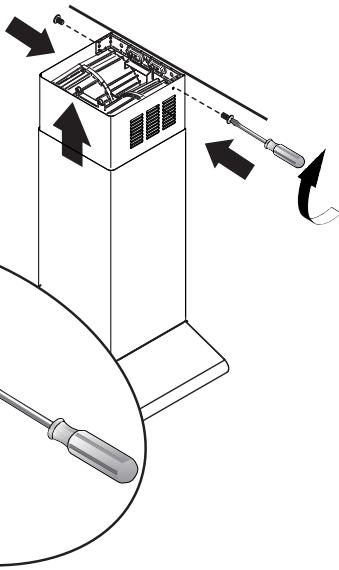

The installation procedure is illustrated in the first pages of this manual. The installation must be done by a qualified technician.

The mains voltage must match that given on the ratings label inside the hood itself. If the hood has a power plug, connect the hood to an easily accessible regulatory power socket. [fit does not (direct connection to the mains), or the socket is not easily accessible, install a two-pole regulatory switch to enable total disconnection from the mains in case of category III overvoltage, as required by the installation regulations.

Caution! Always check that the mains cable is hooked up properly and check that it operates correctly before reconnecting the hood to the mains.

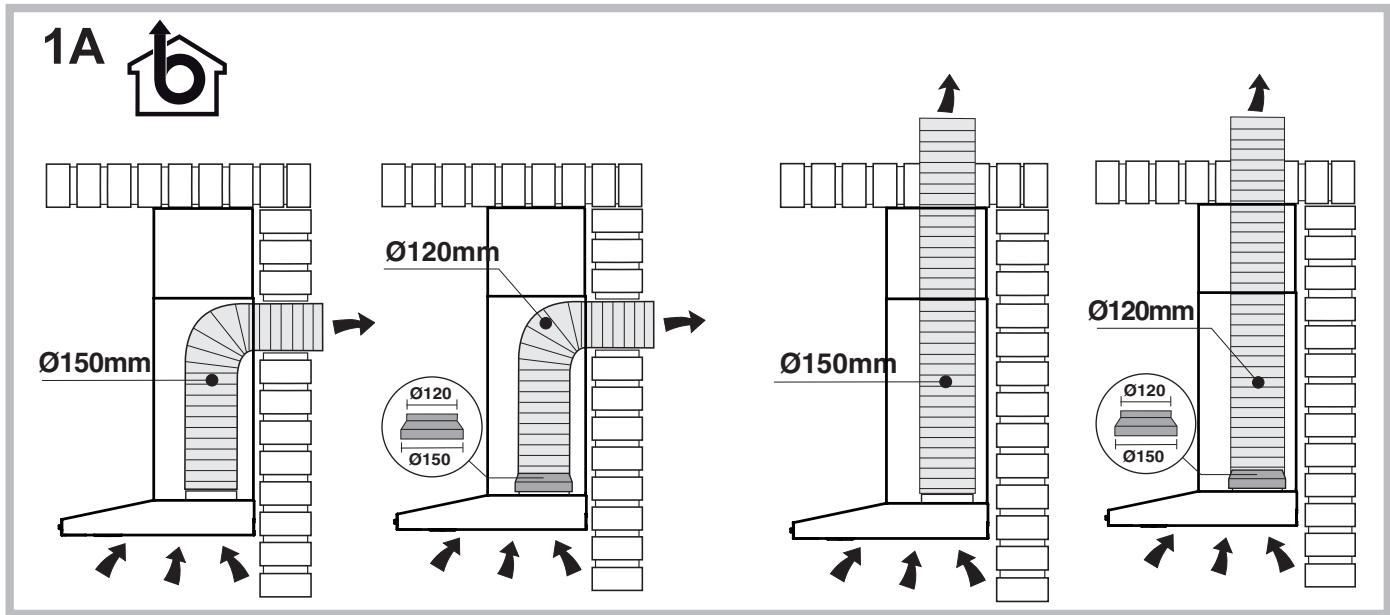

Air exhaust (for ducted units)

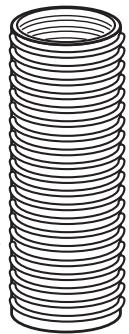

Connect the hood to a duct and wall exhaust hole of a diameter equal to that of the air outlet flange. Using a smaller diameter tube and exhaust hole reduces the extraction capacity of the hood and also increases its running noise. The manufacturer is not liable for any consequences of doing so.

! Use the shortest duct required to achieve the purpose. ! Use a duct with as few bends as possible l'Avoid suddenly changing the diameter of the duct.

! The duct must have as smooth an inner surface as possible.

!The duct must be made of regulatory material.

! Do not connect the hood to flues carrying combustion fumes from other equipment (boilers, CHIMNEY-LUCES, stoves, etc.).

! Observe the instructions of the competent authorities in relation to the air exhaust. The air being exhausted may not be exhausted into a wall cavity unless the cavity in question is specifically intended for this purpose.

!Equip the room with air intakes to prevent the hood creating suction pressure in the interior (this must not exceed 0.04 mbar).

! The manufacturer is not liable for any consequences of failure to observe these instructions.

!Your hood is supplied as a ducted unit.

Ifyou wish to use it as a filter unit, you must install the proper ACCESSORY KIT.

Note: If supplied with the hood, the accessory active charcoal filter unit may already be installed.

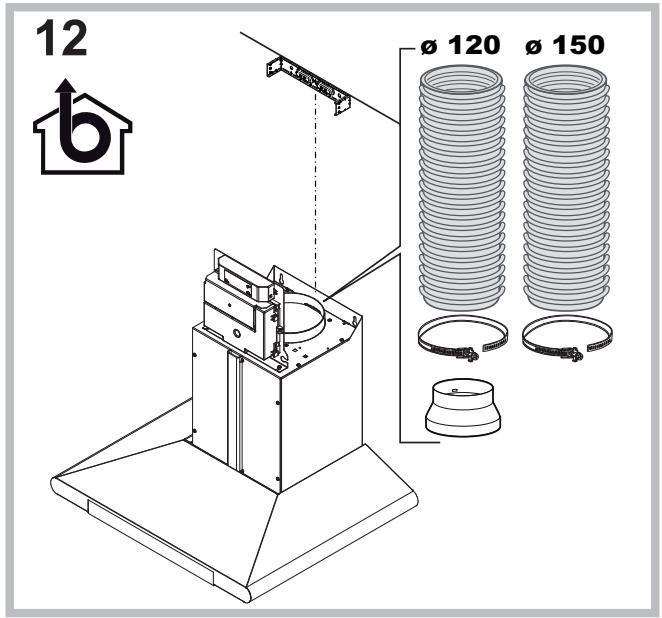

Instructions for transforming the hood from the ducted to the filter version are given in this manual (see “Filter version”).

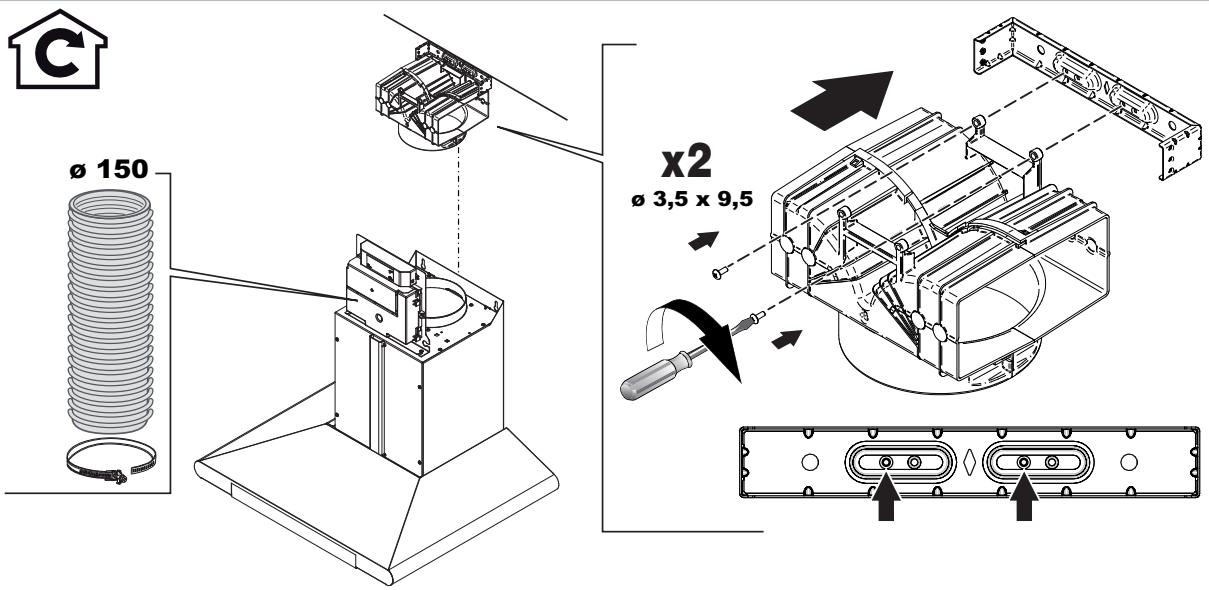

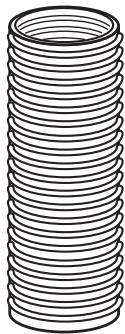

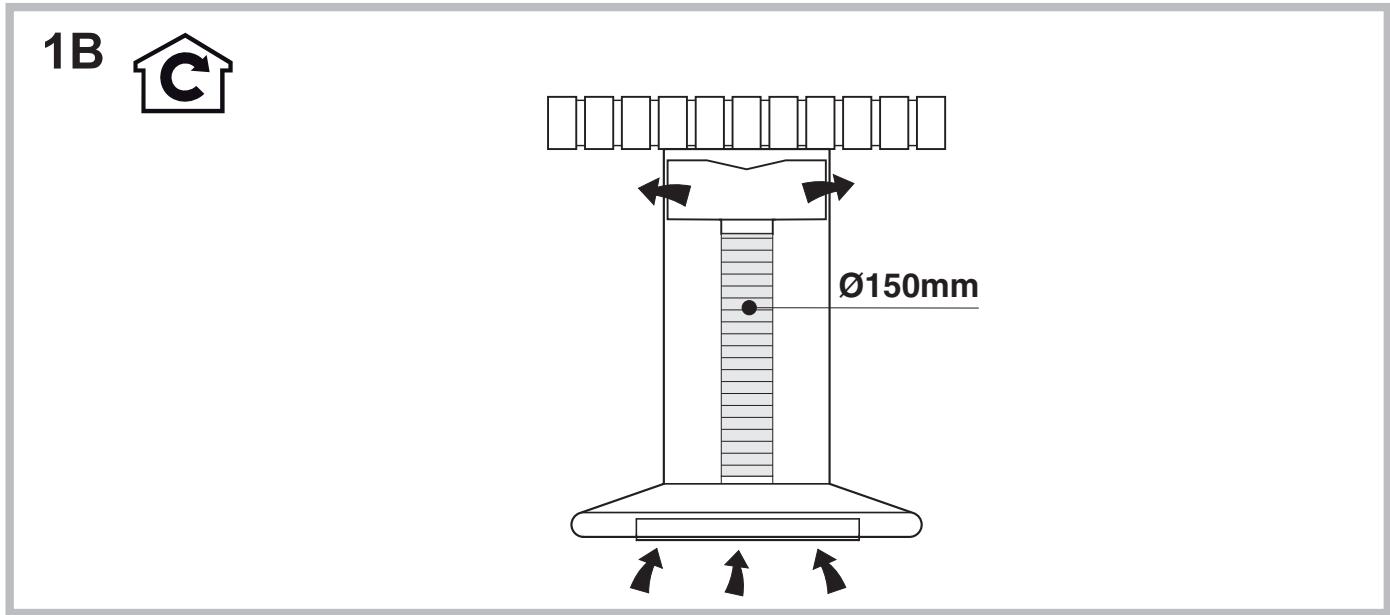

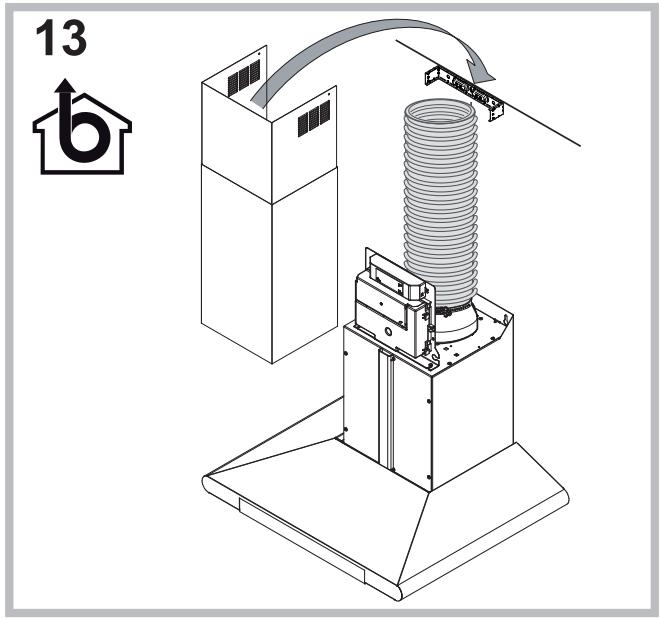

The hood purifies the air and expels it outdoors via an exhaust duct (dia. 150mm) connected to its outlet flange. The diameter of the exhaust tube must be equal to that of the outlet flange.

Caution! The exhaust duct is not supplied and must be purchased separately.

When routed horizontally, the tube must be angled slightly upwards (around 10°) to enable the air to be conveyed outdoors more easily. If the hood is fitted with charcoal filters, they must first be removed.

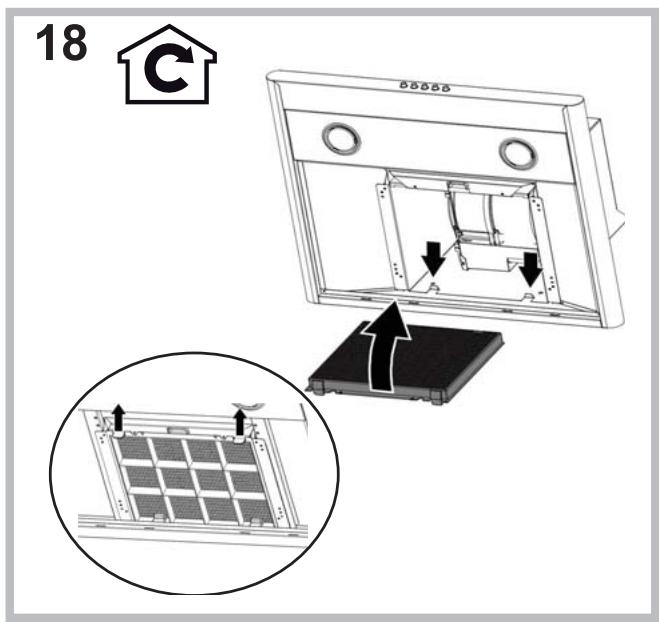

The hood purifies the air and returns it to the room. This version of the hood requires installation of an accessory active charcoal filter unit.

This version requires an air deflector, a reduction adapter and the charcoal filter/s. The top tube must have its air outlet slots uppermost.

Please check the plate in order to verify the total absorption and the light absorption

Power Voltage Cap Dimensions Halogen 25W | 2x25W 230V G9 L40x914 Halogen 20 W | 2x20W 12V G4 L30x910 LED * Risk Group 1 according to Standard EN 62471

The model is in accordance with the following

EU directives: + “Low voltage” Directive 2006/95/EC (12-12-2006) + “EMC" Directive 2004/108/EC (15-12-2004)

+ UR Reference no. 66/2014 integrating Directive no. 2009/125/EC.

# u : : Only available in certain models

CHIMNEY-LUCE controls

Models with Touch control glass (basic)

HLC6.8ATX/HA - HLC6.8LTX/HA - HLC9.8LTX/HA

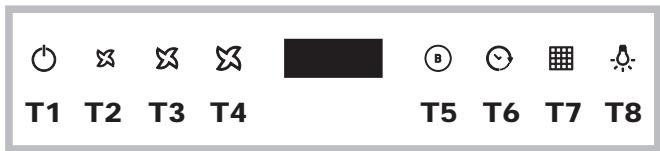

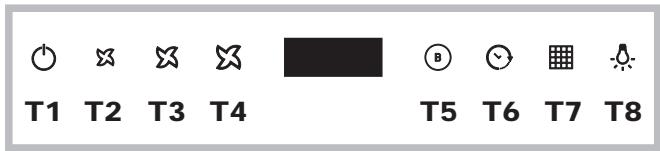

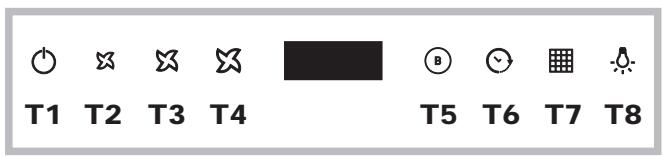

T1 motor ON/OFF When the button is pressed with the hood off, the first speed is set. When the button is pressed during operation, the hood switches OFF.

T2 Speed 1 When the button is pressed the hood switches from the previous status to speed 1.

T3 Speed 2 When the button is pressed the hood switches from the previous status to speed 2.

T4 Speed 3 When the button is pressed the hood switches from the previous status to speed 3.

When the button is pressed the hood switches from the previous status to intense speed. The setting is limited by time; when the time elapses the hood goes back to the speed set previously; when a speed button is pressed (T2, T3 or T4), the selected speed is set as you leave the booster mode.

By pressing T6 once, a timer setting can be associated to each speed V) [v1 — 30 min, v2 — 20 min, v3 — 10 min] , after which the hood turns OFF automatically. The timer can be set for manual speeds only and not for the booster.

T7 Antigrease and odour filter signal

The antigrease (A) and odour (B) filters need cleaning/ replacing after a certain number of hours of use (the latter for filtering hoods only).

The time for cleaning/replacement is signalled by the flashing of the coloured LED associated to the filter (white for antigrease filters, red for odour filter).

The LED is turned off by pressing the T7 button after cleaning/replacing the filters.

T8 lights ON/OFF It turns the work lights of the hood on and off.

The configuration menu is accessed with the product off by pressing T5 and T6 for 6 seconds. T7 turns on at this point to indicate the type of installation through two colours of the LED: white for extractor installation (default), red for filtering installation. The installation type can be changed by pressing T7 cyclically with the consequent alternation of the LED colours.

The hood can be turned off manually by pressing the T1 button (ON/OFF). If the timer is set, the hood turns off automatically when the set time runs out.

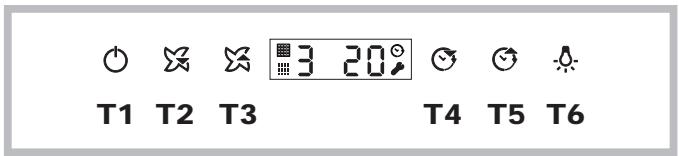

Models with Touch control glass + display (medium)

HLC9.BLAIX/HA Oo & GS G à TL T2 T3 T4 T5 T6

T1 motor ON/OFF When the button is pressed with the hood off, the first speed is set. When the button is pressed during operation, the hood switches OFF.

T2 Speed - When the button is pressed the hood switches to the previous speed.

If the hood is set to speed 3, the intensive speed activates when this button is pressed

The setting is limited by time; when it elapses the hood goes back to the speed set previously.

Set a time to turn OFF the hood with the timer; if the timer is set and the speed is subsequently changed by pressing T2, T3 or T4, the timer is deactivated.

Press T4 to decrease the timer by 5 minutes.

When the button is pressed for the first time, the timer is set to 5 minutes; this value is increased by 5 additional minutes every time the button is pressed after that.

T6 lights ON/OFF It turns the work lights of the hood on and off

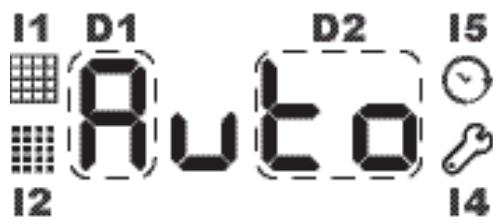

11 D1 _D2 15 “Aut 0%

D2: Assembly of 2 DGT Time 11: Grease Filter Indicator

Antigrease and odour filter signal

The antigrease (A) and/or odour (B) filters need cleaning/ replacing after a certain number of hours of use (the latter for filtering hoods only).

The indicator light 11 on indicates that the antigrease filter is saturated, while the indicator light 12 on indicates that the odour filter is saturated (for hoods in filtering mode only). Press T5 + T4 for 3 seconds with the hood on to reset the counter.

The hood can be set to the ventilation (default) or filtering

mode. To change the setting proceed as follows:

+__withthe hood OFF, the menu is accessed by pressing the T4e T5 buttons for a prolonged time: this is signalled by a sound emitted by the hood and by the 14 icon lighting up and the writing C1-0 appearing on the display;

-_use the buttons T4 and T5 to go through the menu. Use T4 to go through the various menu items (C1, C2, C3, C4, etc) and T5 to select them (0, 1 or 0, 1,2);

+_tosetthe hoodtype, access the menu, selectthe item C6 with T4 and set the value 0 with T5 to set the hood on ventilation mode or 1 for the filtering mode. Press T1 at the end.

The hood can be turned off manually by pressing the T1 button (ON/OFF). If the hood stays on in manual mode, it turns off automatically after a certain “safety” time. If the timer is set, the hood turns off automatically when the set time runs out.

Maintenance and care

Caution! Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

+ _ Remove the protective film

+ _ Clean with a damp sponge and a little neutral soap

+ _Rinse off with a damp cloth

+ Dry with a soft cloth; if the hood is stainless steel, dry along the metal's grain

The hood must be cleaned frequently (at least as often as you service the grease filter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water. Do not use abrasive or corrosive products.

Warning: Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires. Follow the instructions carefully. The manufacturer is not liable for any damage to the motor or fires caused by incorrect care or failure to follow the above instructions.

Servicing the grease filter (A)

The grease filter retains the particles of grease produced during cooking; it must be cleaned at least once a month with a non-aggressive detergent, either by hand or with a low temperature, short dishwasher cycle.

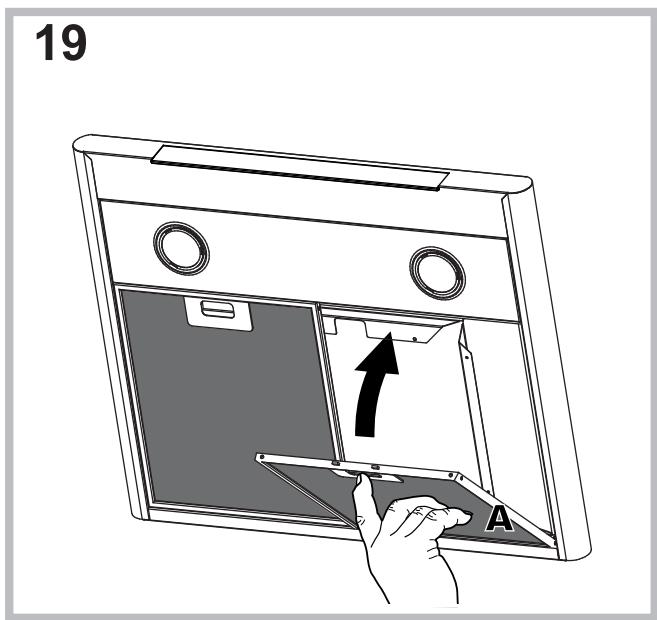

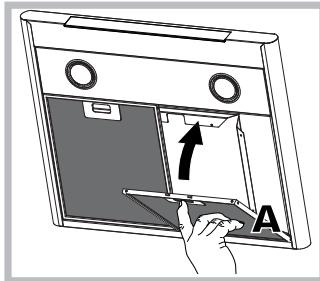

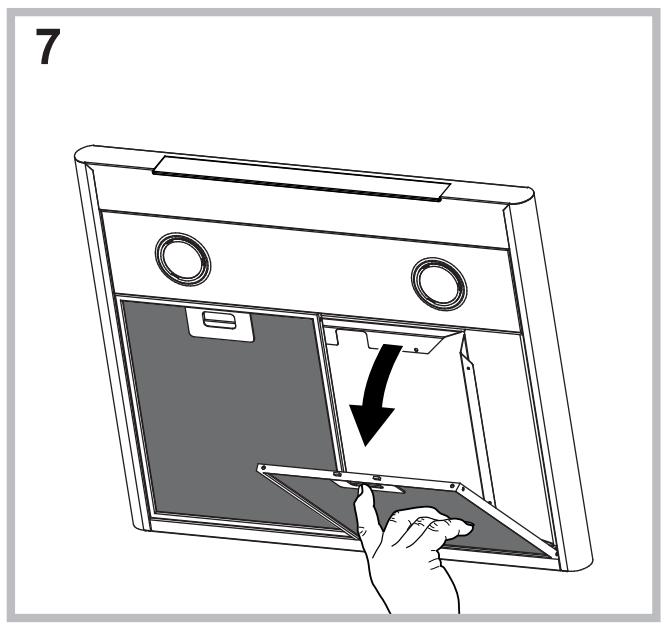

To extract the grease filter, pull the spring loaded handle. If washed in a dishwasher, the metal filter may change colour, but this does not affect its performance.

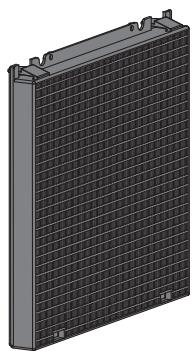

Servicing the charcoal filter (B)

The charcoal filter retains unpleasant cooking odours.

The filter saturates after a variable time, depending on the

type of cooking and how often the grease filter is cleaned.

The cartridge must be replaced at least once every twenty

This filter can NOT be washed or regenerated

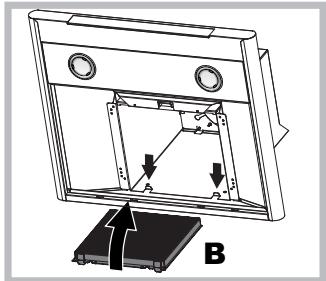

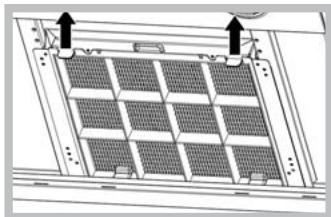

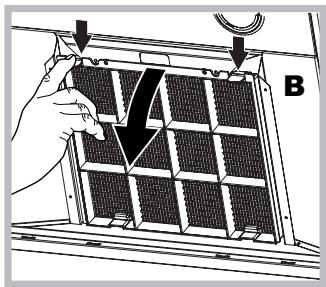

Le] 1 Disassembly: Remove the activated-carbon filter by

B! pressing the two front levers

which secure it to the hood.

Assembly: Secure the activated-carbon filter first in the back using the hood's metal tabs and then in the front by pressing the two levers.

Replacing the bulbs Disconnect the unit from the mains and remove the grease filter. Caution! Make sure the bulbs are cool before touching them.

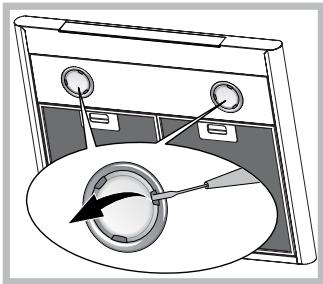

1. Extract the guard by prising === it out with a small flat head screwdriver or something similar.

2. Replace the faulty bulb. Use only bulbs of the same type (for details, see the technical data in the following manual).

3. Refit the guard (push it in).

Replacing the lights LED *

The hood is fitted with a lighting system based on LED technology. The LEDs ensure optimal lighting, longer life and lower consumption compared with traditional lights. To replace them please contact the assistance service.

If the power cable is damaged, it can be replaced by the manufacturer or his technical service, to prevent any attendant risks.

SCRAPPING The unit is marked for conformity with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that the unit is scrapped properly, the user contributes to safeguarding the environment and public health.

The mms symbol on the product or on its accompanying documents indicates that the product may not be treated as domestic waste but must be handed over to a sorting centre for electrical and electronic waste. Dispose of it in accordance with local waste disposal regulations. For further information on the handling, recovery and recycling of this product, contact the local authority, domestic waste disposal service or the reseller from whom you purchased it

Save energy and respect the environment

+_ Please use the hood by setting the speed in line with the real extraction need; please limit the use of the “intensive speed” feature, if present. Using the hood in a rational way allows you to limit energy consumption and to avoid an useless waste of clean and air-conditioned air.

+_ Please don't turn on the hood light unless this is needed to light the cooking area.

If something does not work, make the following simple checks before contacting Technical Service:

If the hood does not operate:

Check that: + _the unit is powered up. + _a speed has been set.

If the hood is not working effectively:

+ the selected motor speed is sufficient to handle the amount of smoke and steam being produced.

+ _the kitchen is adequately ventilated for the unit to take air in.

+ _the charcoal filter is not exhausted (filter version).

If the hood turns off during normal operation:

Check that: + _the unit is powered up. + _the circuit breaker has not tripped.

In case of faulty operation, before contacting Technical service, first disconnect the machine from the mains for at least 5 seconds by pulling its plug, then reconnect it. If the fault persist, contact Technical Service.
