APPIP03P2P - Surveillance Camera Approx - Free user manual and instructions

Product Type	Indoor surveillance camera
Brand	Approx
Model	APPIP03P2P
Video resolution	1920 x 1080 pixels (Full HD)
Viewing angle	110°
Night vision	Yes, up to 10 meters
Connectivity	Wi-Fi 2.4 GHz
Power supply	DC 5V, 1A (AC adapter included)
Storage	microSD card up to 128 GB (not included)
Audio	Built-in microphone and speaker (two-way audio)
Motion detection	Yes, with push notifications
Mobile app	Compatible with iOS and Android (Approx Cam app)
Dimensions	10.5 x 7.2 x 5.0 cm
Weight	180 g
Operating temperature	-10 °C to 50 °C
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or humidity. Use only the provided adapter.

Frequently Asked Questions - APPIP03P2P Approx

How to install the Approx APPIP03P2P camera?

Download the Approx Cam app on your smartphone, create an account, plug in the camera, and follow the app instructions to connect it to your Wi-Fi network.

Why won't my camera connect to Wi-Fi?

Make sure your Wi-Fi network is 2.4 GHz (the camera does not support 5 GHz). Ensure the password is correct and the signal is strong.

How to activate night vision?

Night vision activates automatically in low light. You can also enable it manually from the camera settings in the app.

Which microSD card to use and how to install it?

Use a Class 10 microSD card up to 128 GB. Insert it into the slot on the back of the camera, then format it from the app.

How to reset the camera to factory settings?

Press and hold the Reset button under the camera for 5 seconds until you hear a beep. The camera will restart and be ready for setup.

Can I use the camera without a subscription?

Yes, all basic features (live view, motion detection, local SD card recording) are free without a subscription.

How to set up motion detection?

In the app, go to the camera settings, enable motion detection and adjust sensitivity. You will receive notifications on your phone.

Does two-way audio work?

Yes, the camera has a microphone and speaker. In the app, tap the microphone icon to speak through the camera.

What does the light on the camera mean?

A solid blue light means the camera is connected to Wi-Fi. A blinking light means it is in setup mode or has lost connection.

How to record continuously on the SD card?

In the app, go to settings and enable continuous recording. You can also schedule recording times. Videos will be stored on the microSD card.

USER MANUAL APPIP03P2P Approx

Introduction and product description

Thank you for choosing the IP P2P Camera APPIP03P2P.

The APPIP03P2P has been developed to monitor a private home, office, shop or any other room both day and night in excellent quality. Its PnP technology enables automatic installation without configuring your router to access the camera externally.

It incorporates a micro SD slot with which you can insert micro SD cards and record directly to the storage and access to real-time video over the Internet on a desktop or laptop or Smartphone, with their own applications.

The APPIP03P2P includes 2 audio channels to communicate by voice in both directions as well as other practical functions and many alarm functions. All this makes it an excellent solution in the field of video surveillance.

• APPIP03P2P
• Installation Cd
• Power Adaptor
• Quick installation guide
• Wall support

Make sure your package contains the elements described above. If you find something is missing or damaged, please contact your dealer.

System Requirements

• Router with a LAN connection available (for installation)
  • Computer or Smartphone
  • Electrical outlet

Hardware installation for RJ-45 connection

For its first installation connect the camera to the router as shown in the following figure.

Connect a RJ-45 cable between the output Lan of the router and the Lan input of the camera, then connect the power adapter into an electrical outlet in your home and the DC input of the camera.

Smartphone Software EYECLOUD installation and configuration

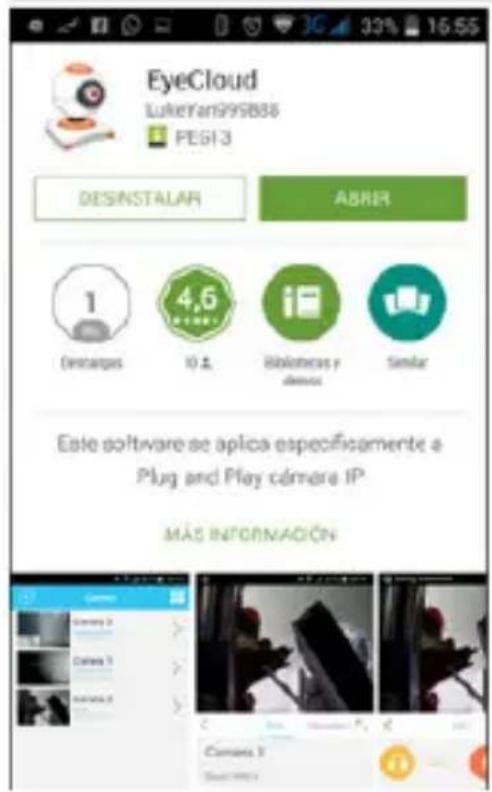

Access to Google Play Store from Android or Apple Store on iPhone, download and install it on your smartphone.

You can see the application icon in the list of applications on your smartphone, run it. The first thing you need is to create an account and register. Insert your email and enter a password to register.

English

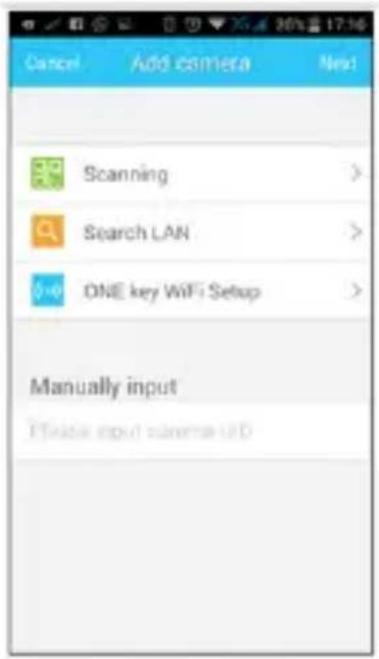

Click the + button in the top left corner, press in Scanning and scan the QR code on the back of the camera, the data will be entered automatically.

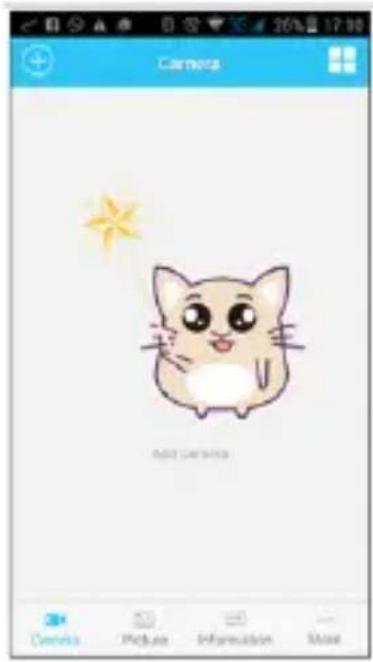

Cartoon illustration of a cute cat with a star and sun in the background (no text or symbols)

Insert the password (default password) Default 888888.

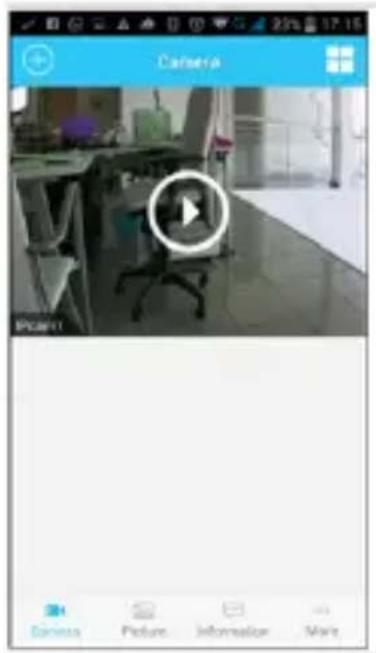

You can check the state (status) of the camera is on line, click on the camera and automatically displayed. If you click on the camera image, you can access it. And if you click operation, you will have access to all functions.

Software PC installation

Insert the installation CD in your drive and double-click on the icon in My Computer or My PC, double-click in the drive where you placed the CD and run autorun.exe.

Install the software EyeCloud Client PC.

Once installed you the IP camera icon appears Eye Cloud.

Run it and you will see the following picture. You should enter the same account and password created earlier.

If you have added in your Smartphone cameras they will appear later in the PC without adjusting anything.

English

If you don't have any added or want to add new cameras click the + button to add devices and the following picture.

Click Find to locate the camera on your local network.

Select the found camera and press the OK button.

English

Press the Set button Wi-Fi if you want to establish a wireless connection.

Click the Search button to search for wireless networks and enter the Wi-Fi password.

Finally, the following message will appear if everything was set up correctly.

Press the ok button to complete the configuration.

Enter the default password 888888. The following image will appear and press the Connect button

You can view the image offered by the camera.

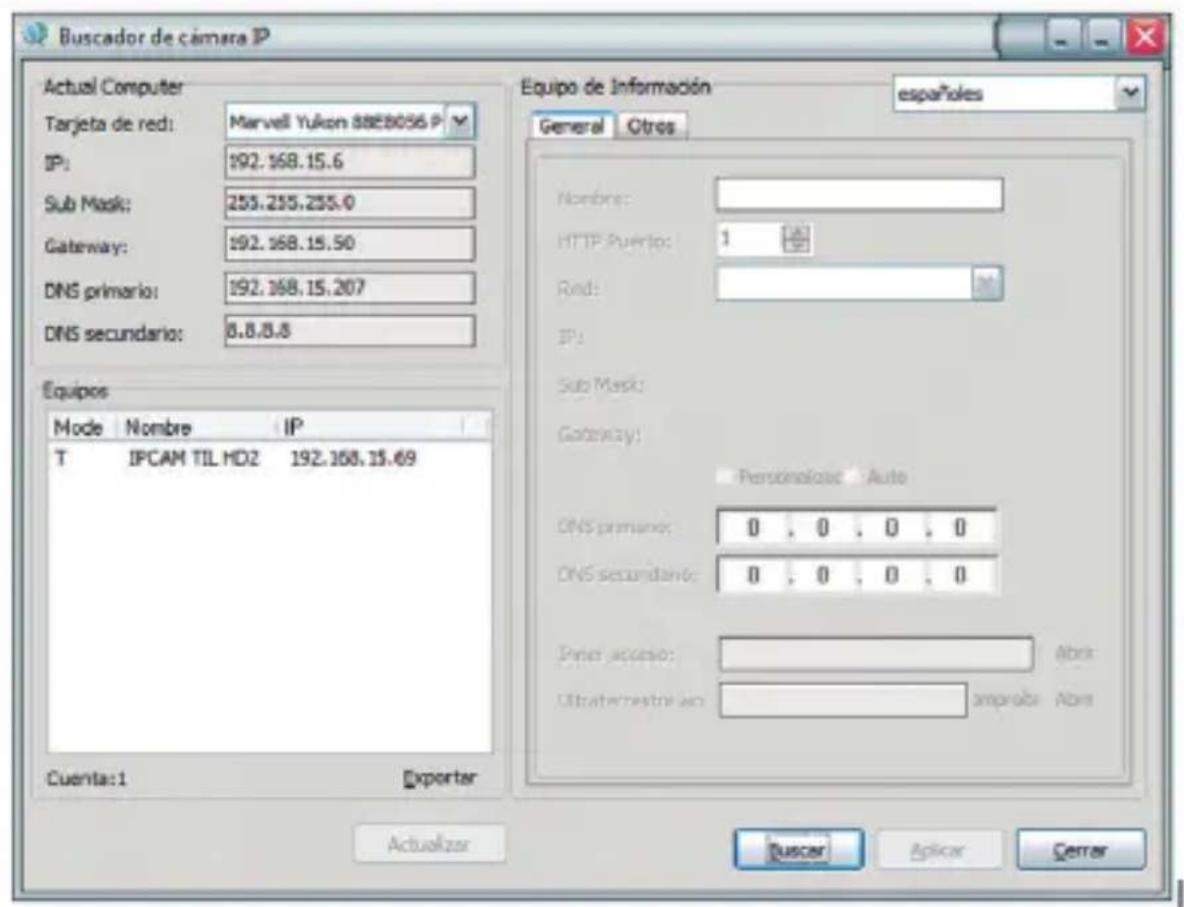

Note: If you cannot find the camera in your Wi-Fi network, run the application included in the installation CD-find app, and set it in your network range.

Enter the ip camera in your web browser, followed by a colon and the port. Example: 192.168.1.17:82.

For username type admin and password 888888.

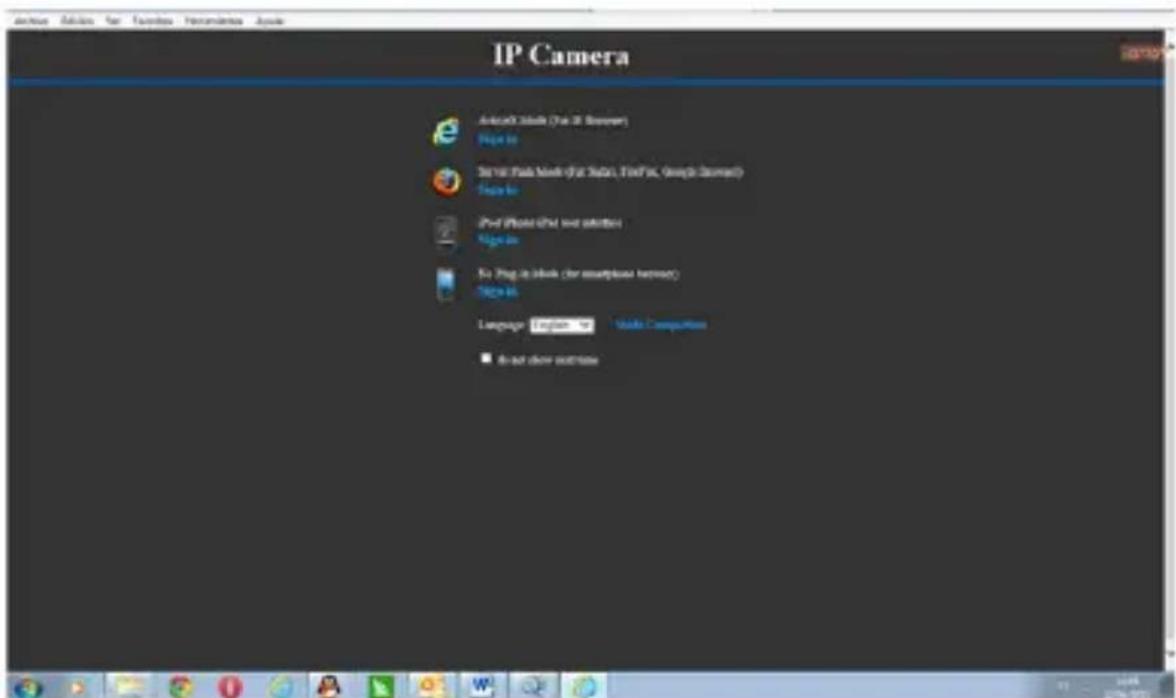

Run the icon according to your browser.

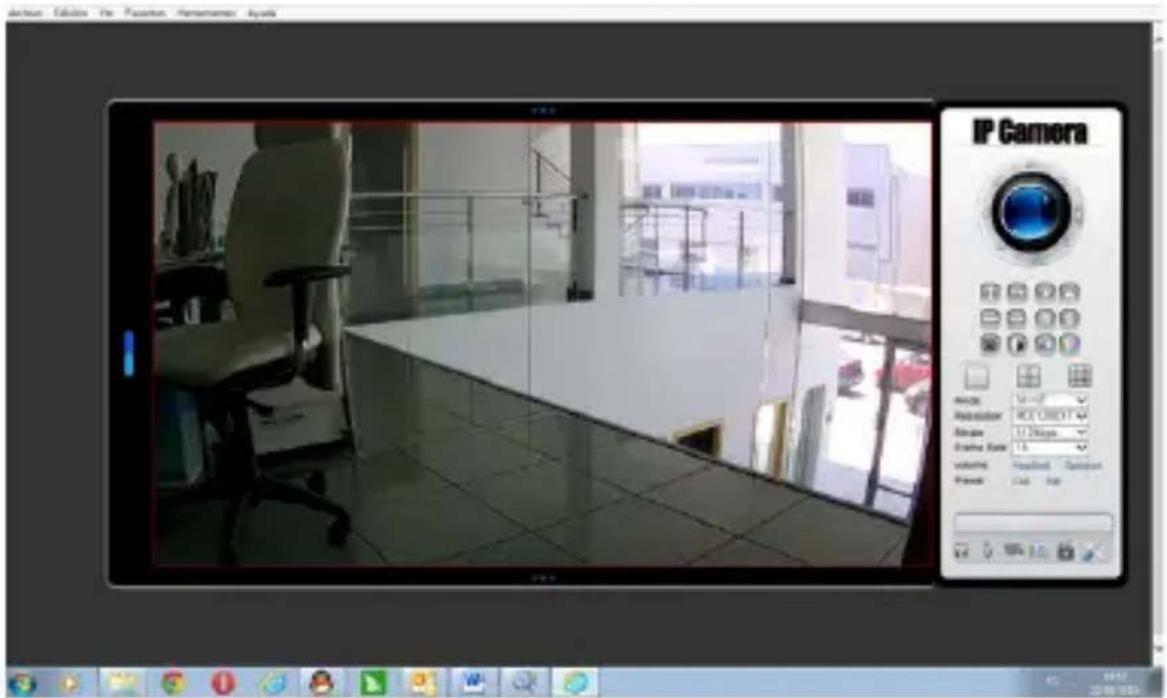

The web environment, in which has full access to all camera functions opens..

Technical support

For more information on installing and configuring this product go to our website www.approx.es support section or write an email to [e-mail].

Español

Français

Cute cartoon cat illustration with a star and sparkles, displayed in an app interface (no text or symbols on the cat itself)

Support technique

SAFETY, MAINTENANCE AND RECYCLING INSTRUCTIONS

1. Caution: Never open the device. The internal parts are shock hazard.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation, or any area classified as a wet location.
3. Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.
4. Do not spill any liquid on the unit. Danger of short circuits.
5. Always use cables approved by the manufacturer.
6. Before connecting make sure the voltage of the country of origin: 230VAC maximum.
7. The adapter is 5VDC / ^2 A maximum. Never use other, it could be dangerous for explosions.
8. To mount on ceiling or wall, always contact a professional, risk of falls from heights
9. Clean the product with a soft dry cloth. Always with the device turned off!
10. Follow local regulations for disposing of the product.

aqprox

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: APPROX IBERIA S.L.

Model no: APPIP03P2P

Product description: Wireless IP Camera

The measurements shown in this test report were made in accordance with the procedures given in the:

- RoHS DIRECTIVE: 2011/65/EU

- RTTE DIRECTIVE: 1999/5/EC

- LVD DIRECTIVE: 2006/95/EEC

To which this declaration is based on with full conformance to the following European norms and standards:

- ETSI EN 300 328 V.1.7.1 (2006-10)

- ETSI EN301 489-1 V.1.9.2 (2011-09)

- ETSI EN301 489-17 V2.2.1 (2012-09)

- EN 62479: 2010

- EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011

- EN 62311: 2008

Signed July 8, 2015

Jose Luis Ruiz Gómez

Director

APPROX IBERIA SL.

ADD: Polígono Industrial Guadalquivir

Gelves (Sevilla), Spain.

Website: www.approx.es

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

MADE IN PRC

The content of this guide is subject to typographical errors
