Product type	American combined refrigerator
Brand	Sharp
Model	SJXP700GSL
Color	Stainless steel (silver)
Height (mm)	1790
Width (mm)	910
Depth (mm)	770
Net weight (kg)	120
Total net capacity (L)	700
Refrigerator capacity (L)	420
Freezer capacity (L)	280
Energy class	F (according to EU regulation)
Annual consumption (kWh)	380
Cooling type	No Frost (fan-assisted)
Water and ice dispenser	Built-in (filtered water, ice cubes)
Main functions	Freshness zone, digital display, door alarm, vacation mode
Lighting	LED
Noise level (dB)	42
Voltage / Frequency	220-240 V ~ 50 Hz
Maintenance and cleaning	Clean surfaces with a soft cloth and soapy water. Automatic defrost.
Safety	Child lock on the dispenser
Spare parts and repairability	Available through Sharp after-sales service

Frequently Asked Questions - SJXP700GSL SHARP

How to adjust the temperature of the refrigerator and freezer?

Use the '+' and '-' buttons on the control panel. The recommended temperature is +4°C for the refrigerator and -18°C for the freezer.

What to do if the water dispenser does not work?

Check that the water tank is correctly installed and that the water supply is on. If the problem persists, refer to the Troubleshooting section of the manual.

How to clean the water filter?

The water filter should be replaced every 6 months. To clean it, remove it and rinse with clean water. Reinstall it following the instructions in the manual.

Why is my refrigerator making noise?

A slight noise is normal (compressor, fan). If the noise becomes loud, check that the appliance is level and not in contact with furniture. Refer to the manual for more details.

How to activate vacation mode?

Press the Mode button until you see the vacation icon. This mode maintains a lower temperature to save energy. Deactivate it upon your return.

What to do if the door alarm goes off?

The audible alarm indicates that the door has been left open too long. Close it completely. If the alarm persists, check the seals and proper door alignment.

Can I install the refrigerator next to a heat source?

No, avoid placing the appliance near a stove, radiator, or in direct sunlight. Maintain a distance of at least 30 cm to ensure proper ventilation.

How to defrost the freezer?

The No Frost system automatically manages frost. No manual defrosting is necessary. If frost appears, check the door seal.

What is the warranty on this refrigerator?

Sharp offers a 2-year warranty (parts and labor). Keep your purchase invoice and contact your retailer for any claims.

How to replace the LED lamp?

The LED lighting has a long lifespan. If a malfunction occurs, call a qualified technician. Do not attempt to replace it yourself.

USER MANUAL SJXP700GSL SHARP

SJ-XP680G SJ-XP700G

SJ-XE680M SJ-XE700M

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

Refrigerator-Freezer Operation manual .... 5

ES

Frigorifico-Congelador Manual de manejo.... 18

IT

• Safety information 5
• Installation 7 • Description 8
• Useful modes 9 • Control panel 10 (SJ-XP680G, SJ-XP700G) • Control panel 12 (SJ-XE680M, SJ-XE700M)
• Storing food 14 • Care and cleaning 15
• Before you call for service 16
• Product FICHE 17

ES Contenido

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

• This refrigerator is intended for making ice cubes, refrigerating and freezing foods.
• This refrigerator is for household use only, with ambient temperature indicated in the table. The climate class is specified on the rating plate. The refrigerator is fully functional at the ambient temperature range of the indicated climate class. If the refrigerator is used at colder temperatures, the refrigerator will not be damaged up to a temperature of +5°C.
• The refrigerator should not be subjected to temperatures of -10°C or below for a long period of time.

Household use only

Climate class	Acceptable range of ambient temperature
SN +10°C to 32°C
N +16°C to 32°C
ST +16°C to 38°C
T +16°C to 43°C

EN

Safety information

Warning	This means that there are high risks of death or serious injury.
Caution	This means that there are high risks of material damage or personal injury.

Warning

Refrigerant

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

■ Do not allow any sharp objects to have contact with the refrigeration system. The refrigeration system behind and inside the refrigerator contains refrigerant. ■ Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.) ■ Do not use electrical appliances inside the refrigerator. ■ Do not block the space around the refrigerator. ■ Do not use flammable sprays, such as spray paint near the refrigerator. ■ In the case of failure of the refrigeration system, do not touch the wall socket and use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for service.

Installation

■ Do not install the refrigerator in a damp or wet location. It may cause the damage to the insulation or electrical leak. Dew may also appear on the outer cabinet and it causes rust. ■ The refrigerator should be installed flatly and firmly on the floor.

Power cord, Plug, Socket

Read carefully the following rules to prevent electric shock or fire.

■ Connect the power plug into the wall socket firmly and directly. Do not use an extension cord or adapter plug. ■ Connect the power plug to the socket with the required rated voltage. ■ Connect the earth pin to the earth terminal properly.

■ Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. ■ Do not touch the power plug with wet hands. ■ Disconnect from the main electricity supply by removing the main plug from the socket. Do not remove by pulling the power cord. ■ Dust deposited on the power plug may cause fire. Wipe it off carefully. ■ Pull out the plug if the refrigerator is not used for a long time. ■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP, a special cord is required.

In use

■ Do not store volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are easy to explode. ■ Do not store temperature-sensitive products such as pharmaceutical products in the refrigerator. There are high risks of changes in product quality. ■ Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury. ■ Do not place any object on the top of refrigerator. If the object falls down from the top, it may cause injury. This appliance can be used by children aged from 8 years or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way or understanding the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

Care and Cleaning

■ Unplug the refrigerator first to prevent electric shock. ■ Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

Trouble

■ If you smell something burnt, pull out the power plug immediately. Then ask a service agent approved by SHARP for service. ■ In case of gas leak, ventilate the area by opening window. Do not touch the refrigerator or the power socket.

Caution

Transportation

■ When you install or move your refrigerator, use curing mat to protect the floor from being damaged. - Carry the refrigerator by holding the handles located on the rear and bottom side. If you lift up the refrigerator improperly, it may cause injury.

Disposal

■ Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.) ■ This refrigerator should be disposed appropriately. Take the refrigerator to a professional recycling plant for flammable refrigerant and insulation blowing gases.

In use

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury. Do not touch foods or metal containers in the freezer compartment with wet hands. This may cause frostbite. Do not place bottled drinks and cans in the freezer compartment. Especially when “Express cool” is in operation, there is a high risk that glass bottles may burst. Do not use other than potable water to make ice cubes. Do not open or close the door when other people put a hand near the door. There is a risk that the other people may get their fingers caught in the door. Do not put oversized objects in the pockets of the door. If the object falls down from the pockets, it may cause injury.

Indicator of temperature

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height isn't the coldest zone.)

Symbol

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

BLUE

WHITE

Correct setting Temperature too high, adjust the refrigerator temp. control.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

1 Keep adequate ventilation space around the refrigerator.

- The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

- By keeping greater space, the refrigerator may consume a less amount of power consumption.

- If use the refrigerator in the smaller space dimension than figured, it may cause temperature rise in the unit, loud noise and failure.

- The space between the rear of the refrigerator and the wall should be 60mm or more, and less than 75mm. If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation.

Overall space required in use

2 Turn the two adjustable feet of the front side to make the spaces to insert the foot supports.

(The foot supports are packed inside the refrigerator compartment.) After inserting the supports, adjust the two feet to stabilize the refrigerator.

- The refrigerator is slightly tilted backward by inserting the supports. It is effective to install the refrigerator firmly.

3 Remove the 2 screws of the lower part of the cabinet and use these screws to set the foot cover.

(The foot cover is packed inside the refrigerator compartment.)

Note

- Place your refrigerator to access the plug. - Keep your refrigerator out of direct sunlight and do not place next to heat generating appliance.

- Do not place your refrigerator directly on the ground. Insert suitable stand such as wooden board under the refrigerator.

- When you insert the power plug with the door opened, door alarm sounds but it is not abnormal. This sound stops after closing the door.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

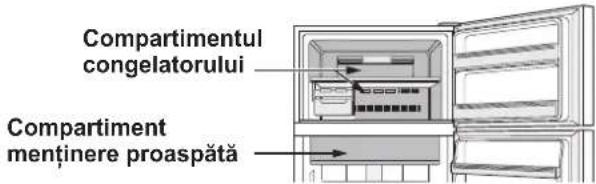

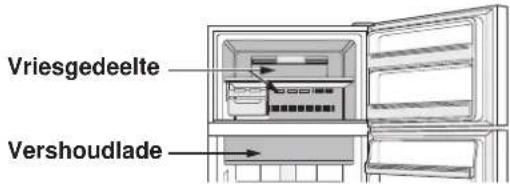

Description

1. Freezer light
2. Freezer shelf
3. Ice cube maker

1) Do not overfill this tray with water. Otherwise the ice cubes will join together when frozen. 2) When ice cubes are made, turn the lever clockwise to put the ice into the Ice cube box.

1. Ice cube box Note

To prevent the ice cube box from being damaged, do not pour oil into the box or make ice in it.

1. Fresh case & door (Chill compartment)
2. Control panel
3. Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. There is no need to operate and clean.

1. Refrigerator light
2. Smooth access shelf

You can pull out this shelf.

1. Refrigerator shelf

SJ-XP680G, SJ-XE680M : 1 pc SJ-XP700G, SJ-XE700M : 2 pcs

1. Hybrid cooling panel

The panel cools the refrigerator compartment indirectly from the rear. In this way, food is cooled gently without being exposed to cold air flow.

1. Fruit and vegetable shelf
2. Fruit and vegetable crisper (2 pcs)
3. Adjustable foot (2 pcs)

1. Caster(4 pcs) The casters allow the refrigerator to move back and forth.
2. Foot cover
3. Magnetic door seal (2 pcs)
4. Freezer door pocket (2 pcs)
5. Egg holder
6. Egg pocket

SJ-XP680G, SJ-XE680M: 2 pcs

SJ-XP700G, SJ-XE700M: 1 pc

Casters

SJ-XP680G, SJ-XE680M

1. Refrigerator pocket (Upper) (Only for SJ-XP700G, SJ-XE700M)
2. Bottle pocket
3. Refrigerator pocket (Bottom)

More food can be stored by taking out the internal accessories with normal cooling operation.

You may remove following accessories.

1. Freezer shelf
2. Ice cube maker
3. Ice cube box
4. Smooth access shelf
5. Refrigerator shelf
6. Fruit and vegetable crisper

Extra cool

Express freezing

Express cool

	Extra cool Express freezing Express cool
Feature This mode	is to cool beverages or foods to ice-cold.Note : Food with high-moisture may freeze.	This mode speeds up the time to freeze food.	This mode is to cool beverages or foods quickly.
Point of use Fresh	case Freezer compartment	Freezer compartment	Caution : Do not place glass bottles. There is a high risk that they may burst.
Operating time 6 hours	* 1	2 hours *1	30 minutes
	• This mode ends automatically.• The alarm does not sound.		• This mode ends automatically.• The alarm sounds.To stop the alarm *2Press enter or Press “Express button. freezing” button.
After the operation completed	• There is no need for taking beverages or foods out.		• Be sure to take the beverages and foods out when the alarm sounds.• If the beverages and foods are left in the freezer compartment over approximately 30 minutes, they may freeze.
At the time of power failure during the operation	• This mode is automatically cancelled.		• This mode is automatically restarted from the previous state at the time of re-power.

*1 It may take more time to complete if the operation overlaps with defrosting. This mode starts after defrosting is completed. *2 If you do not stop the alarm, it sounds for 30 minutes continuously.

Plasmacluster

Use this feature when you want to keep the inside of the refrigerator clean.

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment. These ion clusters inactivate airborne mold fungus.

Note

- There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal and quickly disappears in the refrigerator.

Note

• Extra cool, Express freezing, and Express cool are not available at the same time while one of the modes is in operation.
• Avoid opening the door as much as possible during the operations of these modes.

Energy saving

(Only for SJ-XP680G, SJ-XP700G)

Use this feature when you want to switch the appliance to energy-saving operation.

While this feature is operating, the inside temperature of the refrigerator and freezer compartment becomes higher than the normal operation as follows.

The displayed temperature is not changed.

	Freezer compartment	Refrigerator compartment
Under “Energy saving” mode	Approx. 1°C plus	Approx. 2°C plus

(When the temperature is set at F: -18°C, R: 3°C.)

Cancel this mode when you feel the beverages are not cooled enough or ice making takes longer time.

Note

- The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food).

Control panel (SJ-XP680G, SJ-XP700G)

Operations of useful modes

		Display
1	Select the mode icon.	(e.g. Extra cool) Flashing
2	Select on/off.		(off)
3	Complete the setting. (Beep) "Express cool"only Complete the setting by pressing for 3 seconds or more. (Beep, Beep, Beep)	Mode icon turns on. "Express cool" only (Flashing)	Mode icon turns off on the standby display.

Operation of additional modes

	Summary Cancel operation Display
Door alarm	When the refrigerator door is left open for over 1 minute,door alarm sounds once, and again after 1 minute.If the door is left open for approx. 3 minutes, the alarmsounds continuously.The alarm stops after close the door.	Press ⏻ and ⬇simultaneouslyfor 3 seconds or more.(Beep, Beep, Beep)	The indicatorturns off.
Sound of button operation	When you want to switch off button operation sound.	Press ⏻ and ⬇simultaneouslyfor 3 seconds or more.(Beep, Beep, Beep)	The indicatorturns off.

Note • When you want to turn on the additional mode, follow the same step again. (The indicator turns on.)

Controlling temperature

The refrigerator controls its temperature automatically. However, you can adjust the temperature as below.

EN

How to check the current temperature setting

Press button to select aF icoR.

Default setting

Freezer compartment Refrigerator compartment
-10	3

Setting of Freezer/Refrigerator compartment

Freezer compartment

: Adjustable between -13°C and -21°C in step of 1°C

Refrigerator compartment

: Adjustable between 0°C and 6°C in step of 1°C

Basic operations

Basic operations			Display
1	Select Rr icon.		Freezer compartment	Refrigerator compartment
			{ - 10} { F } Flashing	{ 3} { R } Flashing
2	Set the temperature.		▲ (up)	Flashing
			( down)
3	Complete the setting. (Beep)		- 17

When press 📄 button, the icons change in the order shown as below.

Advanced Setting of Freezer/Refrigerator compartment

The temperature of freezer compartment and refrigerator compartment can be adjusted in step of 0.5 °C by following the steps a to c.

a. After the step 1 of "Basic operations",

press ◆ 3 seconds or more.

The current preset temperature returns to "Default setting"

(The display is indicated as the picture on the right.)

b. Press ▲ or and set the temperature.

C. Complete the setting. (Same as step 3 of "Basic operations".)

Follow steps a to c again if you want to adjust the temperature in steps of 1°C.

Useful modes

	Button Meaning Default setting
	Extra cool	OFF
	Express freezing
	Express cool
	Plasmacluster ON *
Controlling temperature
[ R ]	Controlling temperature of Refrigerator compartment	MIN MAX COLDEST
F	Controlling temperature of Freezer compartment

Button Meaning Default setting
	Extra cool	OFF
	Express freezing
	Express cool
——	Plasmacluster ON *

Controlling temperature

Button Meaning Default setting
	Controlling temperature of Refrigerator compartment
	Controlling temperature of Freezer compartment

* The Plasmacluster operates automatically when the refrigerator is powered on.

There is no need to switch it on/off.

Note

- If you want to light up the indicator, press the "F" or "R" button.

Operations of useful modes (Except for "Plasmacluster")

	Start operation		Cancel operation
Extra cool Press the mode button.(Beep)			Press the mode button.(Beep)
Express freezing	Press the mode button.(Beep)		Press the mode button.(Beep)
Express cool Press the mode button for 3 seconds or more.(Beep, Beep, Beep)			Press the mode button.(Beep)

Door Alarm

• When the refrigerator door is left open for over 1 minute, the door alarm sounds once, and again after 1 minute.
• If the door is left open for approximately 3 minutes, the alarm sounds continuously. The alarm stops after closing the door.

If the door alarm does not stop

If the door alarm does not stop after closing all doors, it is a defect.

Contact the SHARP service center for service.

Method of stopping the door alarm temporarily

• Press "R" button and "F" button simultaneously and continuously for 3 seconds or more.
• The door alarm sounds again after approximately 2 days.

Controlling temperature

The refrigerator controls its temperature automatically. However, you can adjust the temperature as below.

How to check the current temperature setting

The indicator lights up to show the current temperature level by pressing "F" or "R" button.

Freezer compartment : Press "F" button.

Refrigerator compartment : Press "R" button.

Setting of Freezer/Refrigerator compartment

Freezer compartment

1. Press "F" button.

1. Press "F" button to change the temperature level.

Refrigerator compartment

1. Press "R" button.

1. Press "R" button to change the temperature level.

- Temperature indicator changes as the picture below (3→4→5→1→2→3) by pressing "F" or "R" button.

Level	Indicator
1
2
3Default setting
4
5

Note

• After adjusting the temperature level, the indicator turns off approximately 5 seconds later.
• The temperature setting remains the same even after power failure.

Advanced Setting of Freezer/Refrigerator compartment

The temperature of refrigerator compartment and freezer compartment can be adjusted in 9 levels (level 1 \~ 9) by following the steps a to b.

Freezer compartment

a. Press "F" button first. Hold down "F" button and then press "Express freezing" button for 3 seconds or more.

The indicator returns to "Default setting".

b. Press "F" button to change the temperature level.

Follow the steps a to b if you want to adjust the temperature in 5 levels.

Refrigerator compartment

a. Press "R" button first. Hold down "R" button and then press "Express freezing" button for 3 seconds or more.

The indicator returns to "Default setting".

b. Press "R" button to change the temperature level.

Follow steps a to b if you want to adjust the temperature in 5 levels.

- Temperature indicator changes as shown in the picture below (5→6→7→8→9→1→2→3→4→5) by pressing "F" or "R" button.

° ... OFF - ... Lighting - ... Flashing

Level	Indicator
1
2
3
4
5Default setting
6
7
8
9

Storing food

Refrigeration reduces the rate of food spoilage.

Ensure that the food is of the freshest possible quality to maximize the shelf life of perishable foods.

The following is a general guide to help promote longer food storage.

Fruit / Vegetables

Fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and placed in the Fruit and vegetable crisper to minimize moisture loss.

Dairy Products & Eggs

• Most dairy products have their best-before date on the outer packaging which informs the recommended temperature and shelf life of the foods.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or a dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

For best freezing

• Quality of foods should be fresh. - Freeze small quantities of food at a time in order to freeze them quickly. - Food should be properly sealed or covered tightly. - Place foods in the freezer evenly. - Label bags or containers to keep an inventory of freezing food.

Advice for preventing dew or frost inside the refrigerator

• Keep the door securely closed. If the food falls down, it may cause a gap between the cabinet and the door. Move it back to the shelf or the pocket.
• Food with high-moisture should be stored in airtight container or sealed tightly.

Note

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods is not be evenly cooled throughout the refrigerator.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

Tips for saving energy

• Keep the ventilation space as much as possible around the refrigerator.
• Keep your refrigerator out of direct sunlight, and do not place it next to heat generating appliance. ■ Avoid opening the door as much as possible. ■ Hot foods should be cooled before storing. ■ Place the food evenly on the shelves to allow the cool air to circulate efficiently.

Power consumption

Power consumption of this model is measured according to the international standard of refrigerator performance.

If the refrigerator is operated with the accessories (shaded area) taken out, it works under the most energy efficient condition.

• The amount of power consumption of this model is measured with these accessories taken out as indicated shaded area.

- The amount of power consumption of this model is measured under the space dimensions on the right picture.

Important

To prevent cracks on inside surfaces and plastic components, follow these tips.

• Wipe out food oil adhered to plastic parts.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, it may result in cracks of plastic parts.

Cleaning

■ Remove the accessories (e.g. shelves) from the cabinet and the door. Wash them by warm soapy dishwashing water. After that, rinse them in clean water and dry. (Only fruit and vegetable shelf is not removable.) ■ Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water thoroughly. ■ Wipe the exterior with a soft cloth each time it gets dirty. ■ Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water. ■ Wipe the control panel with a dry cloth.

Note

• Do not use heavy-duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.) which may cause damages.
• If you pull out the power plug once, wait 5 minutes at least before connecting the power plug again.
• The glass shelves weigh approximately 3 kg each. Hold them firmly when removing them from the cabinet and while carrying.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause cracks on the inner surface.

Defrosting

Defrosting is automatically operated by a unique energy-saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to replace the light. The light is not to be replaced by anyone other than qualified service personnel.

Before transporting

Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the power plug because the refrigeration cycle equipment is extremely hot.

(The evaporating pan is located on the rear of the product.)

Switching off your refrigerator

If you want to switch off your refrigerator for an extended period, remove the foods from the refrigerator and clean the inside thoroughly. Pull out the power plug from the socket and keep all doors open.

Before you call for service

Before calling for service, check the following points.

Problem Solution
The outside of the cabinet is hot when touching.		It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.		It is normal for the refrigerator to make the following sounds.Loud noise is made by the compressor when its operation starts-- Sound becomes quieter after a while.The compressor makes loud noise once a day.-- Operating sound is made immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound)-- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound-- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frost or dew appears inside or outside the refrigerator.		This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	SJ-XP680G,SJ-XP700G	Is the refrigerator operated for a long time with refrigerator temperature control set at 0°C?-- Change the temperature control back to around 3°C.Is the refrigerator operated for a long time with freezer temperature control set at -21°C?-- Change the temperature control back to around -18°C.If ambient temperature is low, foods may freeze even if the refrigerator compartment is set at 6°C.
	SJ-XE680M,SJ-XE700M	Is the refrigerator operated for a long time with refrigerator temperature control set MAX COLDEST?-- Change the temperature control to the other setting.Is the refrigerator operated for a long time with freezer temperature control set MAX COLDEST?-- Change the temperature control to the other setting.If ambient temperature is low, foods may freeze even if the refrigerator compartment is set MIN.
Odors in the compartment.		Wrapping is required for the foods with strong odors.Deodorizing unit cannot remove all odors.

If you still require service

Refer to your nearest service agent approved by SHARP.

Product fiche

ANNEX III(EU) Regulation No.1060/2010
ATrade mark		SHARP
B	Model name SJ-XP680G	SJ-XE680M	SJ-XP700GSJ-XE700M
CCategory 7
DEnergy efficiency class A		++
EEU Ecolabel award —
F	Annual energy consumption *1[KWh/year]	350 360
G	Storage volume of all compartments that do not merit a star rating *2[L]	388 430
H	Storage volume of all frozen-foodstorage compartments that merit a star rating [L]	*** 148 148	***
I	The design temperature of “other compartment” warmer than +14°C	—
JFrrost free YES
K	Temperature rise time [h]	19	19
L	Freezing capacity [Kg/24h]	7.0	7.0
M	Climate class	T	T
N	Airborne acoustic noise emission [dB(A)]	36	36
OBuilt-in appliance		No (Free-standing type)

*1 Energy consumption "XYZ" kWh per year, based on standard test results for 24 hours.

Actual energy consumption will depend on how the appliance is used and where it is located.

*2 Includes Chill 31L

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

SJ-XP680G, SJ-XE680M

Extra cold

Quick freeze

Quick cooling

Notes

b. Press "R" button to change the temperature level.

INLET OUTLET

Attention:

SJ-XP680G, SJ-XE680M

1. Egg tray (Upper) (Only for models SJ-XP700G, SJ-XE700M)
2. Bottle rack
3. Refrigerator balcony (Lower)

Note

Temperature control

SJ-XP680G, SJ-XE680M

Extra cold

Express freezing

Express cooling

INLET OUTLET

Evaporation tray

Caution:

SJ-XP680G, SJ-XE680M

1. Refrigerator compartment (Upper) (Only for models SJ-XP700G, SJ-XE700M)
2. Bottle holder
3. Refrigerator compartment (Bottom)

Remarks

Temperature control

IN OUT

Caution:

SJ-XP680G, SJ-XE680M

Super freeze

Quick freeze

Fast freeze

Freezer compartment

Compartment

for fresh products

Note

IN OUT

Caution:

SJ-XP680G, SJ-XE680M: 2 pcs.

SJ-XP700G, SJ-XE700M: 1 pc.

SJ-XP680G, SJ-XE680M

Extra cooling

Notes

INLET OUTLET

Evaporation basin

SJ-XP680G, SJ-XE680M

1. Refrigerator compartment (upper)

Extra cool

Quick freeze function

Quick cool

Note

Caution:

SJ-XP680G, SJ-XE680M

Extra cooling

Quick freezing

Quick cooling

Caution

INLET OUTLET

Caution:

SJ-XP680G, SJ-XE680M: 1 pc

SJ-XP700G, SJ-XE700M: 2 pcs

1. Hybrid cooling panel

SJ-XP680G, SJ-XE680M: 2 pcs

SJ-XP700G, SJ-XE700M: 1 pc

SJ-XP680G, SJ-XE680M

Extra cooling

Express freezing

Express cooling

Note

ON OFF

SJ-XP680G, SJ-XE680M

Extra Cooling

Quick Freezing

Quick Cooling

Note

IN OUT

Evaporation plate

Caution:

Product

SJ-XP680G, SJ-XE680M: 2 pcs

SJ-XP700G, SJ-XE700M: 1 pc

SJ-XP680G, SJ-XE680M

Power Cooling

Quick Freezing

Quick Cooling

Freezer compartment

Note

Temperature setting

INSIDE OUTSIDE

SJ-XP680G, SJ-XE680M: 1 pc

SJ-XP700G, SJ-XE700M: 2 pcs

1. Hybrid cooling panel

SJ-XP680G, SJ-XE680M: 2 pcs

SJ-XP700G, SJ-XE700M: 1 pc

SJ-XP680G, SJ-XE680M

1. Refrigerator shelf (Upper) (Only SJ-XP700G, SJ-XE700M)
2. Bottle rack
3. Refrigerator shelf (Lower)

Extra cooling

Express freezing

Express cooling

Freezer compartment

Crisper drawer

Note

(Only SJ-XP680G, SJ-XP700G)

DNU VON

Caution:

SJ-XP680G, SJ-XE680M

Additional cooling

Quick freezing

Accelerated cooling

Freezer compartment

Note

Attention:

SJ-XP680G, SJ-XE680M

Additional cooling

Quick freezing

Quick cooling

Note

Care and cleaning

Important information

SJ-XP680G, SJ-XE680M : 1 pc

SJ-XP700G, SJ-XE700M : 2 pcs

SJ-XP680G, SJ-XE680M : 2 pcs

SJ-XP700G, SJ-XE700M : 1 pc

SJ-XP680G, SJ-XE680M

1. Refrigerator pocket (Upper) (only on models SJ-XP700G, SJ-XE700M)
2. Bottle pocket
3. Refrigerator pocket (Lower)

Extra cooling

Express freezing

Express cooling

Note

ON OFF

SJ-XP680G, SJ-XE680M

1. Chill compartment (Upper) (Only for SJ-XP700G, SJ-XE700M)
2. Bottle rack
3. Chill compartment (Lower)

Extra cold

Express freezing

Quick cooling

Note

Temperature control

- Energy consumption for this model is measured in the spatial conditions shown in the figure on the right.

Leg support

SJ-XP680G, SJ-XE680M

Note

B 13

Caution:

SJ-XP700G, SJ-XE700M : 2 pcs.

SJ-XP680G, SJ-XE680M : 2 pcs.

SJ-XP700G, SJ-XE700M : 1 pc.

SJ-XP680G, SJ-XE680M

1. Refrigerator shelf (Upper) (For SJ-XP700G, SJ-XE700M)
2. Bottle rack
3. Refrigerator shelf (Lower)

Note

IN OUT

Caution:

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 1EZ, U.K.

Printed in Thailand
