Product type	Refrigerator-freezer
Brand	HOTPOINT
Model	EBOH 18201 F
Total net capacity	Approx 300 L (refrigerator 200 L, freezer 100 L)
Dimensions (H x W x D)	180 x 60 x 65 cm
Net weight	65 kg
Power supply	220-240 V, 50 Hz, 150 W
Energy class	A+
Cooling system	No Frost (frost-free)
Quick Freeze function	Fast freezing of fresh food
Food Care Zone	Compartment for meat and fish maintaining a low temperature
Lighting	Dual LED
Easy Ice	Flexible and stackable ice cube tray
Door reversibility	Yes (depending on model)
Temperature setting	Electronic with display
Freezing capacity	4 kg/24 h
Storage time in case of power failure	9 to 14 hours
Maintenance	Cleaning with warm water and baking soda; no solvents
Light bulb replacement	LED not replaceable by user (contact after-sales service)
Safety	Motor protection, automatic stop, child lock not specified
Number of shelves	4 (including 1 for bottles)
Number of drawers	1 vegetable drawer, 1 Food Care Zone drawer, 3 freezer drawers

Frequently Asked Questions - EBOH 18201 F HOTPOINT

How to adjust the refrigerator temperature?

Use the temperature adjustment button (button 3 on the panel). Press cyclically to select the desired value. The temperature is displayed on the indicator (button 2). Wait 10 hours for stabilization.

How to activate the Quick Freeze function?

Press the Quick Freeze button (button 5) 24 hours before introducing fresh food. The yellow indicator lights up. The function automatically deactivates after 24 hours.

What to do if the refrigerator is not cooling enough?

Check that the door closes properly and that the seals are not damaged. Make sure the appliance is not near a heat source and that the ventilation grilles are not blocked. Check the temperature setting.

How to clean the interior of the appliance?

Unplug the appliance. Clean the compartments and accessories with a sponge soaked in warm water with baking soda or mild soap. Rinse and dry thoroughly. Never use solvents or abrasive products.

How to reverse the door opening direction?

Door reversibility is possible on some models. Refer to the specific instructions provided with the installation kit. It describes the steps to disassemble and reposition the hinges.

What to do in case of a power cut?

Do not open the freezer door. Frozen food can be stored for 9 to 14 hours. If the power cut lasts longer, check the condition of the food and quickly consume thawed products.

How to replace the LED lighting?

The LED lighting is not user-replaceable. In case of failure, contact authorized after-sales service. Do not attempt to disassemble the cover yourself.

How to save energy with this appliance?

Install the appliance in a cool, ventilated place, away from heat sources. Open the door only as needed. Do not introduce hot food. Defrost as soon as a layer of ice forms (although No Frost reduces this need).

What foods to place in the Food Care Zone?

The Food Care Zone is designed for storing fresh meat and fish. Thanks to a lower temperature, it can extend freshness for up to a week.

How to install the appliance correctly?

Place the appliance on a flat, firm floor, in a well-ventilated room. Leave at least 10 cm above and 5 cm on the sides. Wait 3 hours after transport before plugging in. Use the supplied spacers for the rear distance.

USER MANUAL EBOH 18201 F HOTPOINT

Operating Instructions

Operating Instructions, 1

Assistance, 3

Description of the appliance, 6

Description of the appliance, 11

Start-up and use, 21

Maintenance and care, 22

Precautions and tips, 23

Troubleshooting, 24

DE

Deutsch

KOEL/DIEPVRIESCOMBINATIE

Inhoud

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

type of malfunction
- appliance model (Mod.)
- serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

FR

Assistance

Description of the appliance

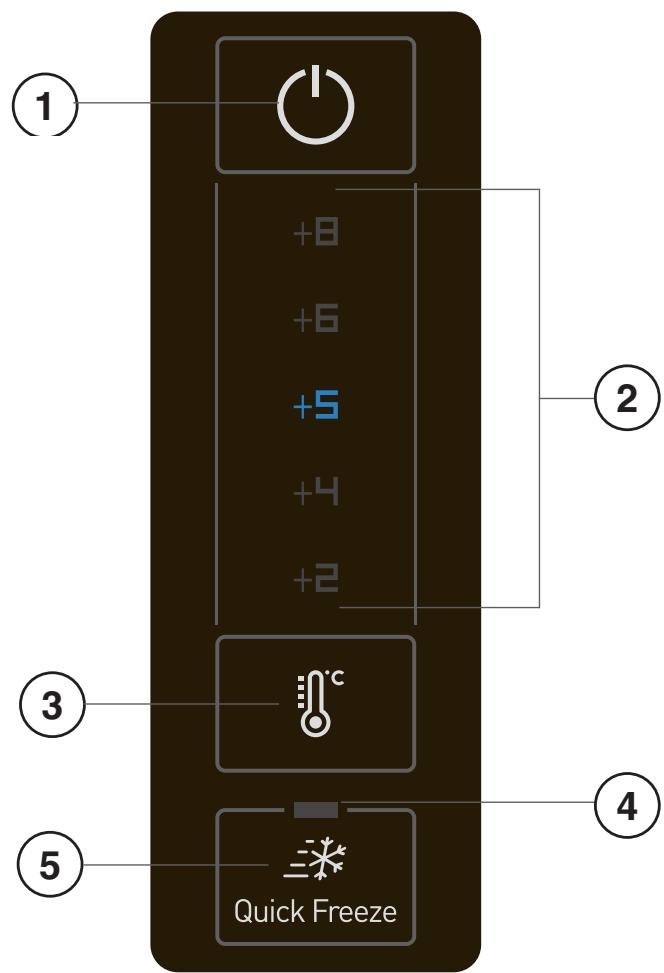

Control panel

1. ON/OFF

The whole product (both fridge and freezer compartments) can be turned on by pressing this button for 2 seconds.

The last set value is indicated on the interface. Press this button to turn off the device. An audible signal will confirm the "off commutation of the product".

2. FRIDGE temperature indicator

It shows the temperature of the fridge compartment.

3. FRIDGE temperature setting

It allows you to change the fridge temperature value, in a cyclical way; it also confirms the selected temperature on the interface.

4 QUICK FREEZE indicator light (rapid freezing) illuminates when the QUICK FREEZE button is pressed.

5 QUICK FREEZE button (rapid freezing)

To be used to freeze fresh foods. When it is pressed, the QUICK FREEZE indicator light illuminates (see Start-up and use).

FR

Description of the appliance

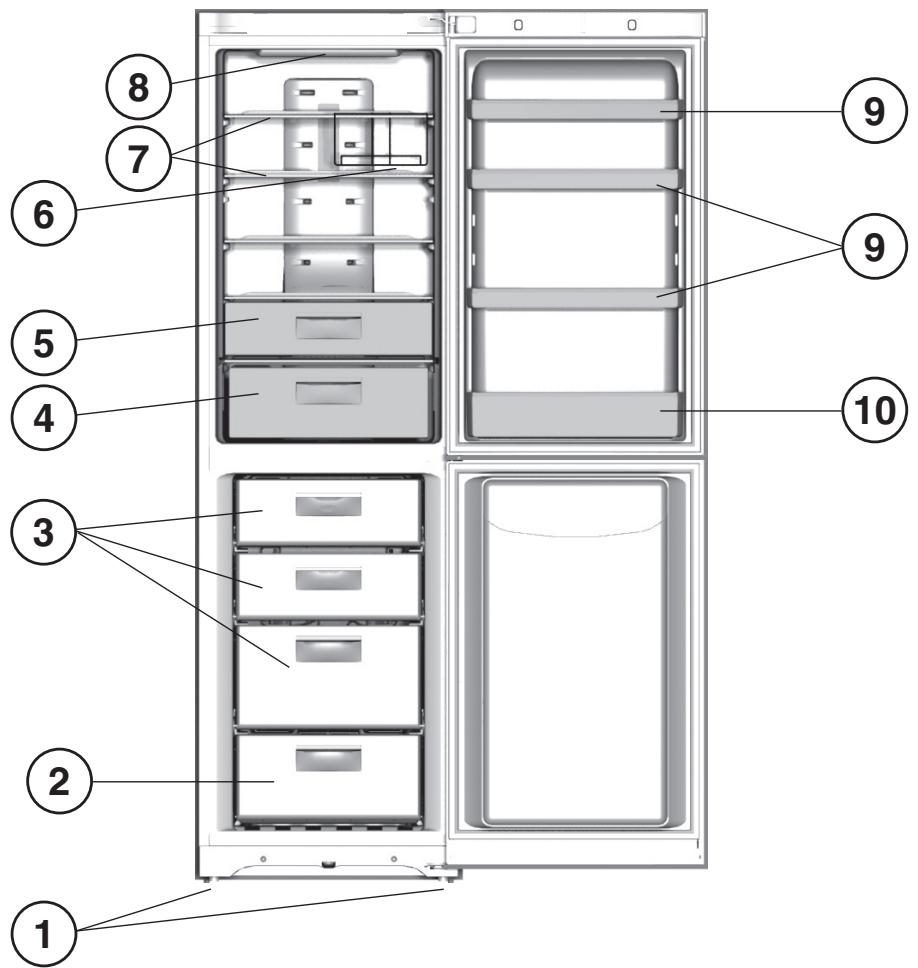

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 FREEZER and STORAGE compartment
3 STORAGE compartment
4 FRUIT and VEGETABLE bin
5 FOOD CARE ZONE for MEAT and CHEESE *
6 WINE RACK
7 SHELVES
8 LAMP (see Maintenance).
9 Removable multipurpose SHELVES
10 BOTTLE shelf

• Varies by number and/or position, available only on certain models.

FR

• Available only on certain models.

FR

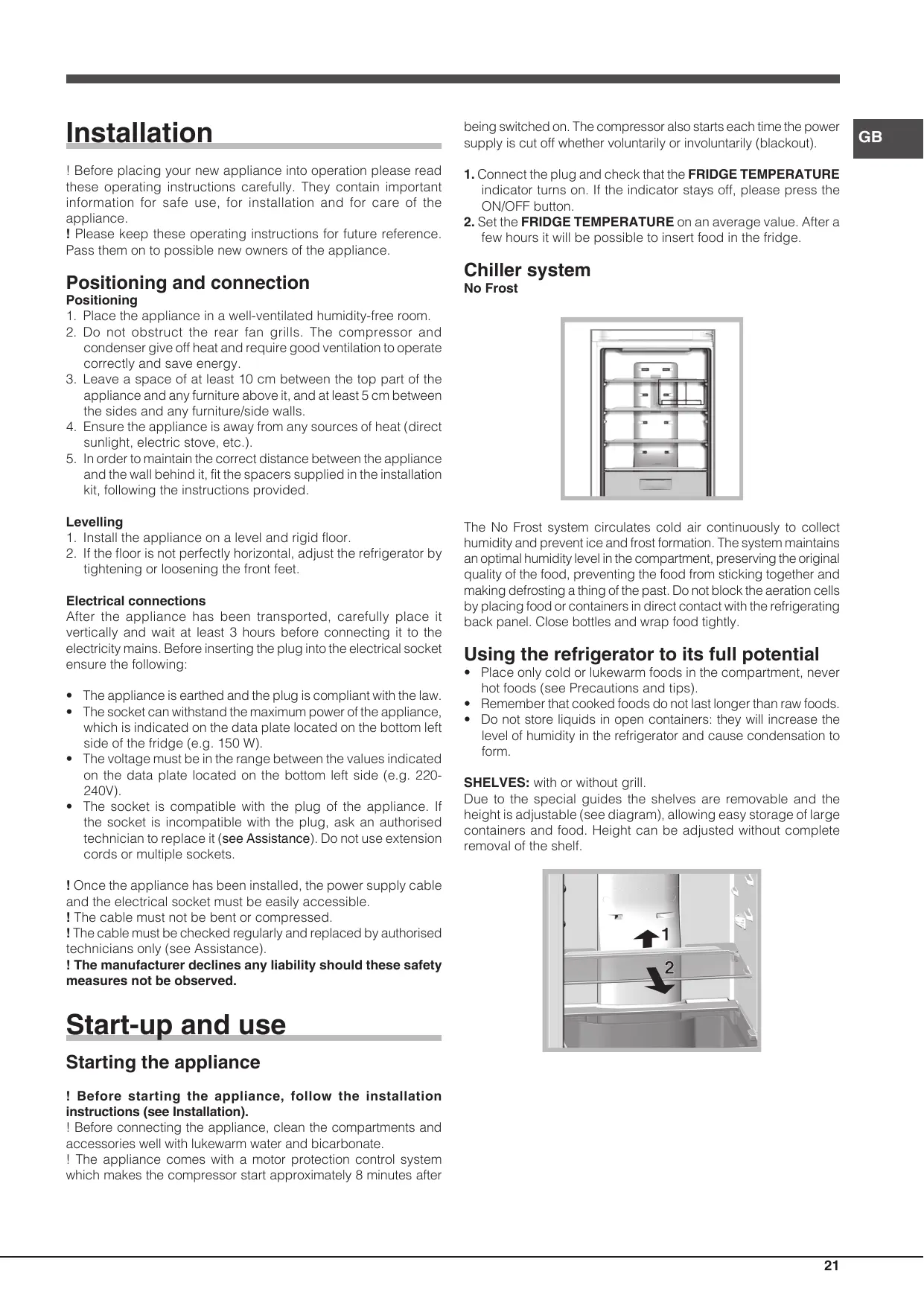

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10cm between the top part of the appliance and any furniture above it, and at least 5cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after

being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Connect the plug and check that the FRIDGE TEMPERATURE indicator turns on. If the indicator stays off, please press the ON/OFF button.
2. Set the FRIDGE TEMPERATURE on an average value. After a few hours it will be possible to insert food in the fridge.

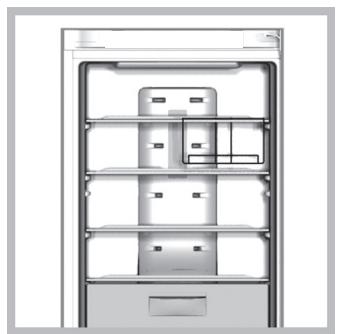

Chiller system

No Frost

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, never hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers: they will increase the level of humidity in the refrigerator and cause condensation to form.

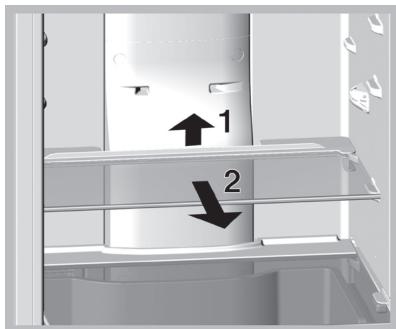

SHELVES: with or without grill.

Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: set the FRIDGE TEMPERATURE on a colder value, and then wait 10 hours until the temperature becomes stable.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before you set the FRIDGE temperature on a colder value.

Food Care Zone

Area dedicated to the storage of fresh food, such as meat and fish. Thanks to the low temperature inside the compartment, the Food Care Zone extends the period of time for which the food can be stored, keeping it fresh for up to a week.

Dual led \*

Thanks to the powerful light it emits, the new dual LED lighting system offers a clear view of all foods, with no shadowy areas. If the LEDs need to be replaced, please contact the Technical Assistance Service.

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. They must be put in the lower compartment, FREEZING and STORAGE where temperature goes below -18^ thus guaranteeing a good freezing speed.
• To freeze fresh food in the best and safest way possible, activate the QUICK FREEZE function 24 hours before placing the food in the freezer. After placing the food inside, activate the QUICK FREEZE function again; it will be deactivated automatically after 24 hours;
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).

! To avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.
! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.
! To maximise space inside the freezer, all drawers [with the exception of the bottom drawer] can be removed from their positions and the food placed directly on the racks/glass shelves supplied [where present].

Easy Ice

The double tub was designed to optimise space in the freezer compartment and to ensure that ice is always readily available. The trays can be stacked or filled and used separately.

Furthermore, the special fastening system makes Easy Ice an extremely flexible solution, as it can be positioned in the right or left part of the top drawers.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. Press the ON/OFF button to turn off the device
2. pull the plug out of the socket

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.

• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

• Varies by number and/or position, available only on certain models.

Replacing the light bulb *

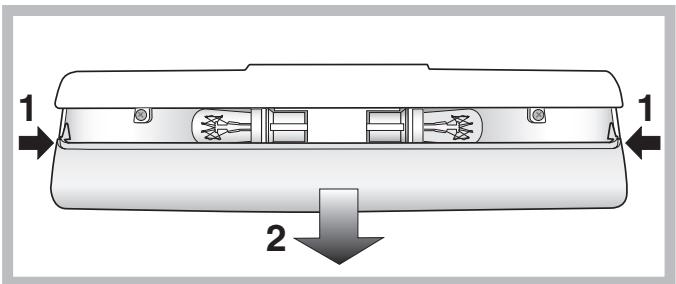

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover.

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

• 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. -It is not enough to turn off the device (with the ON/OFF button) to eliminate all electric contacts.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given Supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be Supervised to
• Varies by number and/or position, available only on certain models.

ensure that they do not play with the appliance.
- Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The interface is off.

• The plug is not inserted in the outlet, or it is not powerful enough to create a contact, or there is no electricity in the house.

The motor does not start.

• The appliance comes with a motor protection control (see Start-up and use).

The interface is weakly on.

Pull out and reverse the plug before putting it back in the socket.

a) The alarm sounds.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The FRIDGE TEMPERATURE is not correct (see Description).
• The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

• The FRIDGE TEMPERATURE is not correct (see Description).
• The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

• The QUICK FREEZE button was pressed: the yellow QUICK FREEZE indicator is on (see Description).
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The back wall of the refrigerator unit is covered in frost or droplets of water

• This shows the appliance is operating normally.

Installation
