US2-PH61159 - Audio/video converter PHILIPS - Free user manual and instructions

Product type	Audio/video converter
Brand	Philips
Model	US2-PH61159
Dimensions (approx.)	10 x 6 x 2 cm
Weight	~100 g
Power supply	USB 5V (cable included)
Video inputs	HDMI, RCA (CVBS)
Video outputs	HDMI, RCA (CVBS)
Audio inputs	HDMI, stereo RCA
Audio outputs	HDMI, stereo RCA
Maximum resolution	1080p (Full HD)
Main functions	Analog-to-digital conversion, bidirectional HDMI/RCA
Compatibility	NTSC, PAL, 50/60 Hz
Maintenance and cleaning	Unplug before cleaning. Use a soft dry cloth.
Safety	Do not expose to moisture or extreme temperatures.
Spare parts and repairability	No user-serviceable parts. Contact customer service.
General information	Domestic use. Compliant with CE standards.

Frequently Asked Questions - US2-PH61159 PHILIPS

How to connect the Philips US2-PH61159 converter?

Plug in the USB cable for power, then connect your video/audio sources (HDMI or RCA) to the corresponding inputs and the outputs to your screen or audio system.

The converter does not detect my device, what should I do?

Check that the cables are properly plugged in and that the source device is turned on. Make sure the video format (NTSC/PAL) is compatible. Try restarting the converter by unplugging it.

What is the maximum resolution supported by the converter?

It supports a maximum resolution of 1080p (Full HD) in input and output.

Can I use the converter without USB power?

No, the device requires USB 5V power to operate. Use the provided cable or a USB power adapter.

Does the converter work with game consoles?

Yes, it is compatible with most consoles (PS4, Xbox, etc.) via HDMI. Make sure the console is set to a compatible resolution (up to 1080p).

How to clean the converter?

Unplug it before any cleaning. Use a soft dry cloth. Never use liquid or abrasive products.

Can I plug an RCA source into the HDMI input?

No, the inputs are specific: RCA for analog signals, HDMI for digital. Use the converter in the appropriate direction (RCA to HDMI or HDMI to RCA).

Does the converter support surround sound?

It supports PCM stereo audio. For surround sound, check that your source is set to stereo PCM.

What to do if the image is black and white?

This often indicates a color standard incompatibility (NTSC/PAL). Check your source and converter settings.

Where to find spare parts or repair?

No parts are user-repairable. In case of failure, contact Philips after-sales service or an authorized technician.

USER MANUAL US2-PH61159 PHILIPS

Video RF Modulator Owner's Manual

INTRODUCTION

Your Video RF Modulator is designed to convert the separate audio and video signals (from a video camera, computer, portable VCR, satellite receiver, DVD player, etc.) into normal VHF TV signals that you can see on any regular TV set.

Warning: For indoor use only; to reduce risk of fire or shock hazard, do not expose this product to rain or moisture.

	CAUTION
	RISK OF ELECTRIC SHOCK.DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

This symbol is intended to alert you to the presence of uninsulated dangerous voltage within the RF Modulator's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the RF Modulator's case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this RF Modulator.

THE FCC WANTS YOU TO KNOW

This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation.

Even under optimum conditions, your Video RF Modulator may cause undesirable interference. We suggest the following methods for trouble shooting:

1. Use an AC outlet that is not the same circuit as the receiver.
2. Place the RF Modulator in a location further away from your receiver.
   In the event that interference still occurs after the above steps have been taken, you are required by FCC regulations to discontinue use of this product.

Important Safety Information

1. Before beginning installation of your Video RF Modulator read all instructions and follow exactly throughout the installation.
2. After installation is complete, keep all instructions in a safe place so they may be referred to in the future if necessary.
3. Please note the ideal environment for this device is on a hard flat surface away from all heat sources and moisture.

PARTS REQUIRED

You need the following items, not supplied with your Video RF Modulator, to connect it between a video input source (video game, video camera, satellite receiver, DVD player, etc.) and your TV.

• Two 75-ohm coaxial cables with F-type connectors
• If your TV does not have a VHF 75-ohm F-connector, you will also need a 75-ohm-to-300-ohm matching transformer
• One video shielded cable with RCA Plugs and one audio (stereo) cable with RCA Plugs OR Dubbing Cable for VCR/DVD with RCA Plugs OR 3 shielded cables with RCA Plugs
• One S-Video Cable

CONNECTIONS

Follow these steps to connect your RF Modulator:

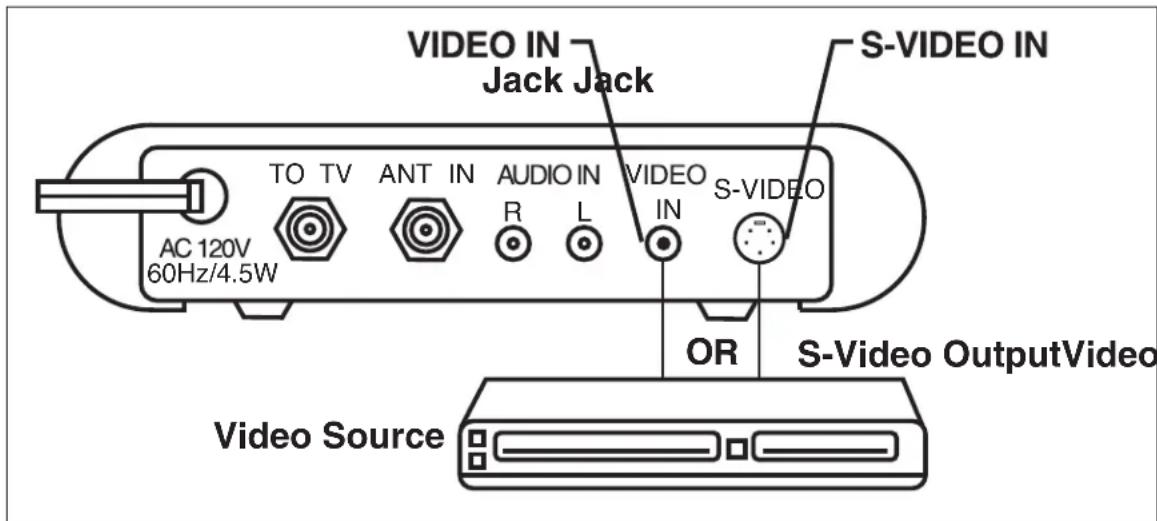

1. Connect an S-Video or video cable between the S-Video or video output jack on your video source and the RF Modulator's S-VIDEO or VIDEO IN jack.

Note: If both the S-Video and standard video are hooked up, the S-Video will be given priority

1. Connect an audio cable between the audio output jacks on your video source and the RF Modulator' AUDIO IN jacks.

1. Connect the 75-ohm coaxial cables to the RF Modulator using one of these two (2) options:

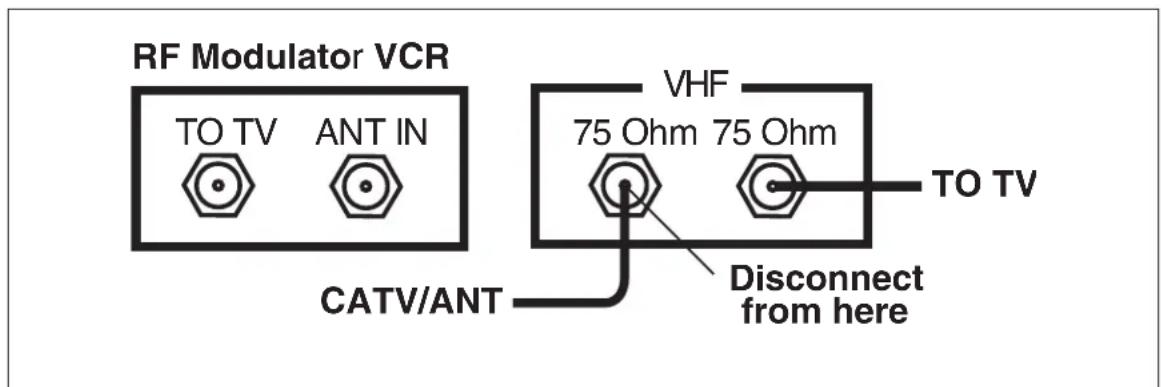

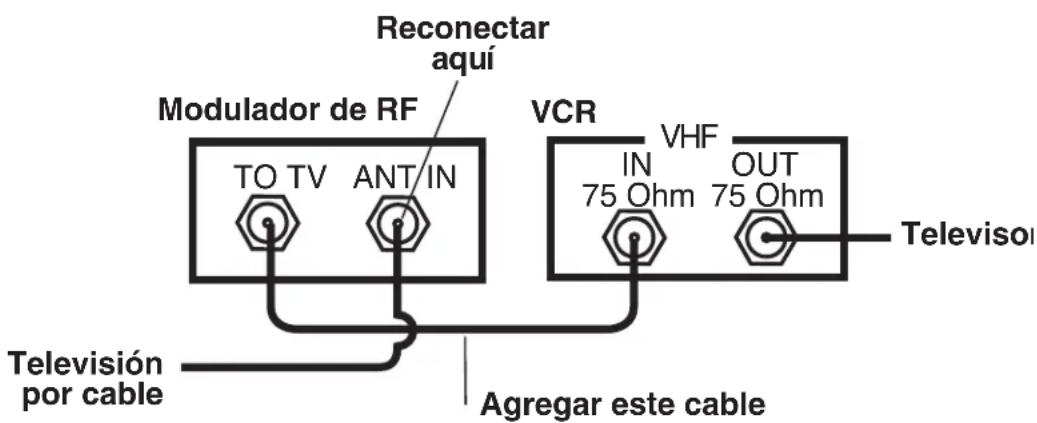

Option 1: If your TV is already connected to another VHF input source (such as cable TV, VCR, etc.):

a. Disconnect the current CATV/antenna connection from the 75-ohm input terminal of your VHF source, and reconnect it to the RF Modulator's ANT IN terminal.
b. Then add a 75-ohm coaxial cable connected between the TV terminal of the RF Modulator and the 75-ohm input terminal of your VHF source.

CONNECTIONS continued

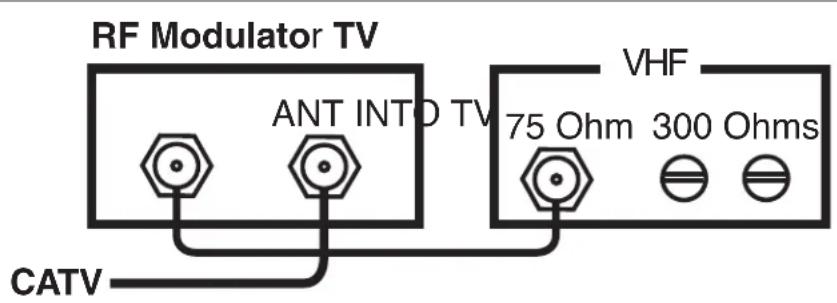

Option 2: If your TV is not already connected to another VHF source:

a. Disconnect the current CATV/antenna cable from the 75-ohm input terminal of your TV, and reconnect it to the RF Modulator's ANT IN terminal.
b. Then add a 75-ohm coaxial cable connected between the TO TV terminal of the RF Modulator and the 75-ohm VHF input terminal on your TV.

Note: If your TV has only 300-ohm VHF screw terminals, use a 75-ohm-to-300-ohm matching transformer to complete the connection.

1. Plug the RF Modulator's power cord into a standard AC outlet.

OPERATION

1. Turn on the TV and set it to either Channel 3 or 4, whichever of the two is not used for regular broadcasts in your area.
2. Set the RF Modulator'S CHANNEL 3 or 4 switch to the same channel you set on the TV (3 or 4)

1. Turn on the connected video source, the modulator will deliver the video/audio signal to the TV set and the red light MOD. ON will be ON.
2. Turn off the connected video source, the modulator will be switched automatically to deliver the ANT/Cable signal to the TV set and the red led of MOD. ON will be off.

SPECIFICATIONS

Video Carrier Output Level 63 dB uV 63 dB uV

RF Output Channels 3 or 4 3 or 4

RF Output Impedance 75 ohms 75 ohms

Video Input Impedance 75 ohms/1 kohms/1 k ohms

Audio Input Impedance 13 13 ± 3 k ohms

Specifications are typical, individual units might vary. Specifications are subject to change and improvement without notice.

Limited Lifetime Warranty The Manufacturer warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifications and warnings, for the life of the product. This warranty extends only to the original purchaser and is non-transferable. Defective products must be returned with the dated proof of purchase to the place of purchase for replacement. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. Incidental or consequential damages are disclaimed where permitted by law.

PRECAUCIÓN

PELIGRO DE ELECTROCHOQUE NO ABRIR

CONNECTIONS continued

ATTENTION

RISQUE DE CHOC ÉLECTRIQUE. ÉVITEZ D'OUVRIR.

ATTENTION: POUR AMOINDRIR LE RISQUE DE CHOC ÉLECTRIQUE, ÉVITEZ DE RETIRER LE COUVERCLE OU LA PARTIE ARRIÈRE. AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIEZ L'ENTRETIEN OU LES RÉPARATIONS À DU PERSONNEL QUALIFIÉ.
