Product type	Micro-cut document shredder (cross-cut)
Brand	Intimus
Model	Crypto 45 CC6
Security level	P-6 (confidential)
Cut width	2 mm x 15 mm (micro-cut)
Shredding capacity (A4, 70 g/m²)	8 to 10 sheets per pass
Feed opening width	220 mm (A4)
Dimensions (W x D x H)	Approximately 350 x 500 x 250 mm
Weight	Approximately 6 kg
Power supply	220-240 V, 50-60 Hz
Motor power	Approximately 200 W
Cut type	Cross-cut (micro-cut)
Noise level	~60 dB(A) during operation
Bin volume	Approximately 20 liters
Reverse function	Yes, to clear paper jams
Thermal protection	Automatic shutdown in case of overheating
Child safety	Narrow feed slot to prevent contact
Materials	Resistant plastic and steel for blades
Maintenance	Special shredder oil (every 3 months or after 30 minutes of continuous use)
Spare parts available	Bin, blades, motor, electronic board
Repairability	Repairability index not disclosed
Warranty	2 years (except misuse)
Country of origin	Germany

Frequently Asked Questions - Crypto 45 CC6 Intimus

How do I empty the bin of my Intimus Crypto 45 CC6 shredder?

Unplug the device. Pull the bin outward. Empty it. Replace the bin by properly engaging the guides.

What to do in case of paper jam?

Activate the reverse function to free the paper. If necessary, disconnect the power and manually remove the jammed sheets.

What type of cut does this shredder perform?

It performs a micro-cut cross-cut of 2 mm x 15 mm, offering a P-6 security level.

How many sheets can it shred at once?

It can shred up to 8 to 10 sheets of A4 size (70 g/m²) in a single pass.

How to maintain the blades of my shredder?

Apply special shredder oil to the blades through the paper feed every 3 months or after 30 minutes of continuous use.

Can this shredder destroy credit cards?

Yes, it can destroy credit cards (plastic), but not CDs/DVDs. Insert the card in the center of the feed.

Why does my shredder stop during use?

The device has a thermal protection. It stops in case of overheating. Let it cool for 20 to 30 minutes before restarting.

What are the dimensions and weight of the Crypto 45 CC6?

It measures approximately 350 x 500 x 250 mm (W x D x H) and weighs approximately 6 kg.

Where to find spare parts?

Contact an authorized Intimus dealer or visit the official website. Common parts like the bin or blades are available.

Is this shredder suitable for professional use?

Yes, thanks to its security level P-6 and its capacity of 8-10 sheets, it is suitable for offices handling confidential documents.

USER MANUAL Crypto 45 CC6 Intimus

Before operating, please read the Operating Instructions!

Operating Instructions

Symbol Modell
45/60SC2
45/60CC3
45/60CC4
45/60CC5	X		X	X
45/60CC6	X	X	X	X

Abb. 2

Abb. 3

BEDIENUNG

BEDIENUNGSELEMENTE:

Abb. 4

STÖRUNG

MATERIALSTAU IM GERÄT:

<< The machine may not be operated by more than one person at any given time! The machine was designed for safe operation by "one person only".

<< During the shredding process no other work may be performed on the machine (for example cleaning, etc.)!

<< The machine is not a toy, and is not suitable for use by children! The overall technical safety concept of this machine (dimensions, feed openings, emergency shutdown devices etc.) does not provide for any guarantee regarding hazard-free operation by children.

<< Danger of injury! Keep all loose articles of clothing, ties, jewelry, long hair or other loose objects away from opening!

<< Danger of injury! Never insert fingers into opening!

<< In case of danger switch the machine off with the mains switch, or with the emergency switch, or unplug the machine!

<< Always unplug the machine from the mains power supply before opening the machine! Repairs may only be performed by trained personnel!

Special materials

SymbolModel
45/60SC2
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

X = not applicable for shredding

INITIATION

AREA OF APPLICATION:

The intimus 45/60SC2/CC3/CC4/CC5/CC6 data shredder is a machine used for shredding general documents.

Generally the machine may only be used to shred paper (deviations see table below "special materials")! Shredding of other types of data carriers may lead to injuries (for example due to splintering of hard materials etc.) and damage to the machine (for example destruction of the cutter etc.).

INSTALLATION:

• Unpack the machine and put it together.
• Fit the plastic bag onto the bag frame.
• Connect the machine to the power with the plug (1) (Fig. 2) (For information on the right fuse for the plug see "TECHNICAL DATA").

The socket outlet shall be installed near the equipment and shall be easily accessible!

Only operate the machine in enclosed rooms at temperatures between 10°C and 25°C!

OPERATION

CONTROLS:

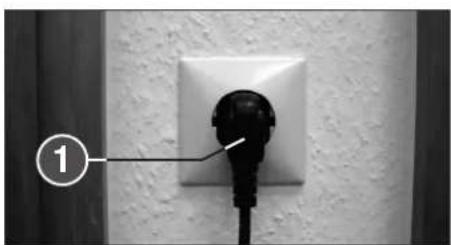

1 = Main plug (fig. 2)

When the machine is first plugged in it is not on.

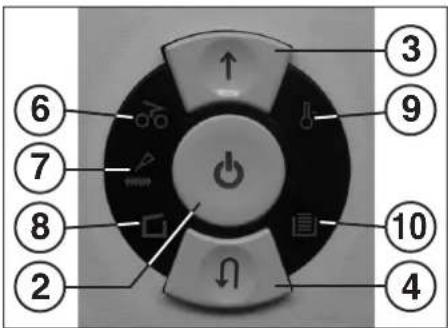

2 = Function button (fig. 1)

"Ready"/ "Off"/ "Stop"

This button has three functions:

a) "Ready"

The machine changes to "Ready" if you press this button briefly. At the same time the integral LED display comes on.

b) "Off"

The machine switches off if it is in the "Ready" mode and the button is held down for about 3 seconds.

Note: The machine switches off automatically if it is not used for about 5 minutes.

c) "Stop"

If you press this button briefly when the cutters are running they switch off and stop.

3 = Forwards button (fig. 1)

This button has two functions:

a) If this button is pressed briefly, the cutting mechanism runs forwards for a few seconds, e.g. to remove remaining material from the cutting mechanism. At the same time the integrated LED display lights up.
b) If this button is pressed and held for approx. two secs., the cutting mechanism runs forwards continually and materials to be shredded can be fed into the machine. At the same time the integrated LED display lights up.

4 = Reverse button (fig. 1)

If you press this button the cutters run backwards for a short time. At the same time the integral LED display ⚙ comes on.

5 = Light barrier (Forward motion) (fig. 3) The shredding procedure starts as soon as material is fed into the feed slot. At the same time the integral forward button LED display ↑ comes on.

6 = Control display (fig. 1)

"Material jam in machine" / "Light barrier covered when door opens or when machine turned on"

For the procedures see the relevant description under the "MALFUNCTION" section.

a) "Material jam in machine"

Comes on when too much material has been fed into the cutters. The cutters jam, then run in reverse for a short time and stop. The motor switches off.

b) "Light barrier covered

when door open"

Comes on when there is still material in the feed slot when the door is opened. The cutters stop. The motor switches off.

c) "Light barrier covered

when machine turned on"

Comes on when there is still material in the feed slot when the machine is switched on.

fig. 1

fig. 2

fig. 3

OPERATION

CONTROLS:

7 = Control display (Fig. 1) "Oil cutters"

Comes on when the cutters in the cross cut version must be oiled. The lubrication procedure must be acknowledged on the reverse button (4) (see description in "CUTTER MAINTENANCE").

8 = Control display (Fig. 1)

"Door open"/ "Door malfunction" a) "Door open"

Comes on if the door on the lower part of the machine is opened. The machine switches off automatically and cannot be started as long as the door remains open.

b) "Electrical fault"

Flashes when there is an electrical fault in the door sensor. The machine switches off. Please contact your dealer.

9 = Control display (Fig. 1)

"Motor overload" /

"Electrical fault"

To find out what to do see the relevant description under the "MALFUNCTION" section.

a) "Motor protection"

Comes on when the motor has been overloaded and has switched off. The machine cannot be started while the motor is cooling down.

b) "Electrical fault"

Flashes when there is an electrical fault inside the control board. At the same time the function button (2) LED display ⏻ flashes. The machine switches off. Please contact your dealer.

10 = Control display

"Paper collection bag full" (Fig. 1)

Comes on when the paper collection bag is full and must be emptied. The cutting unit for reducing paper switches off.

11 = Paper feed slot (Fig. 3)

12 = Paper collection bag (Fig. 4)

13 = Oil reservoir (Fig. 4 and 6)

The shredder may not be used as a step ladder or as a seat. Danger of falling due to breakage!

SWITCHING THE MACHINE ON:

Proceed as follows to switch the machine to "Ready":

• Press the function button (2) briefly.
• The function button (2) LED display comes on for "Ready".
• The machine can be loaded.

MATERIAL FEED:

Feed paper into the cutting mechanism through the paper feed slot (11) (fig. 3).

The machine automatically switches to forwards running, draws the material in and automatically switches off after shredding.

Note: For shredding transparent films, the machine must be manually switched to forwards running (press and hold the forwards button (3) for approx. 2 secs.).

By briefly pressing the function button (2) (Stop function), the shredding process can be stopped at any time. To continue, press and hold the forwards button (3) for approx. 2 secs. If the machine is not used for a period of approx. 5 mins., it automatically switches off.

Never feed the shredder with a quantity of material exceeding the maximum indicated. Refer to the TECHNICAL DATA section!

Should the machine become overloaded, follow the instructions under "MATERIAL JAM IN MACHINE" under "MALFUNCTIONS".

EMPTYING THE

PAPER COLLECTION BAG (Fig. 4):

If the paper collection bag is full the machine switches off. The control display (10) comes on. Proceed as follows:

• Open the door. The control display □ (8) comes on. If there is still material in one of the feed slots, the control display □(6) also comes on.
• Take the collection bag (12) and the frame out of the bottom part of the housing. Remove the bag and dispose of the contents. The control display (10) goes out.
• Fit the emptied bag onto the bag frame and insert the bag and the frame into the bottom part of the housing again. Close the door. The control display (8) goes out.
• If the control display ⚫(6) comes on, press the forward button (3) briefly. The remaining material in the feed slot is shredded and the display go out.

Note: The machine will only run if the door is closed.

DYNAMIC LOAD DISPLAY:

To prevent a material jam and thus ensure a continual, effective destruction of the data carriers, the current load level of the motor is displayed during the shredding process by a coloured, diffuse light in the feed slot as follows:

Green light: load < 50%

Yellow light: load 50 - 75%

Red light: load 75 - 100%

fig. 1

fig. 3

fig. 4

MALFUNCTIONS

MATERIAL JAM IN THE MACHINE:

(Auto reverse function)

If a jam is caused by too much material being fed in the following happens:

- The cutters jam, then run in reverse for a short time (material is released) and stop. The motor switches off. The control display ⚙(6) comes on.

Proceed as follows:

Paper jam in paper feed slot (11)

• Remove the paper that has been fed back.
• The cutters now run forwards automatically and shred the remaining paper in the cutters. During the forward run the forward button (3) LED display ↑ comes on. The control display ⚫ (6) goes out.
• Continue shredding with less paper.
• If necessary, switch the cutters manually alternately from forward to reverse until the material has gone through completely and been shredded.

LIGHT BARRIER COVERED

WHEN DOOR OPENED:

Should there still be material in the feed slot when the door is opened, the motor switches off and the cutters stop. The control display ⚫ (6) comes on.

Close the door and acknowledge the status by pressing the forward button (3) briefly. The existing material is fed to the cutters and shredded.

LIGHT BARRIER COVERED

WHEN MACHINE TURNED ON:

Should there still be material in the feed slot when the machine is switched on the control display ⚙ (6) comes on.

Remove the material and acknowledge the status by pressing the forward button (3) briefly.

MOTOR PROTECTION:

Should the motor be overloaded it switches off. The control display ♂ (9) comes on.

The machine can be started again after a cooling down period of about 25 - 40 minutes.

ELECTRICAL FAULT:

If the control display (9) flashes together with the function button (2) LED display or only the control display (8) flashes there is an electrical fault. The machine cannot be started. In this case please contact your dealer.

FAULT CHECK LIST:

Should the machine not work, check the following points:

• is the plug connected to the power supply?
• is the door closed?
• is the paper collection bag full? Follow the instructions for "EMPTYING THE PAPER COLLECTION BAG".
• Is there a material jam in the machine? Follow the instructions in "MATERIAL JAM IN THE MACHINE".
• Is the motor overloaded? See "MOTOR PROTECTION".

If none of these test points apply, please contact your dealer.

MAINTENANCE / DISPOSING

CLEANING THE PHOTOCELLS (Fig. 5):

If paper particles should come to rest in the inlet guide (for example after a paper jam) it is possible that the machine will not turn off, due to the broken light barrier.

To remove these paper strips and also to clean the photocell, pass another sheet of paper through the feed slot, or switch the machine to reverse and wipe both "eyes" of the photocell with a brush.

fig. 5

fig. 6

CUTTER MAINTENANCE (CROSS CUT):

Cross cut cutters must be oiled after a specific operating time. If the control display (7) comes on proceed as follows:

Open the door. The control display (8) comes on and the reverse button (4) LED display as well as the control display (7) flashes.

Remove the oil reservoir (13) (Fig. 6) from the holder in the door and close the door again.

Pour a little oil onto a sheet of paper and then feed this through the paper feed slot (11) onto the cutters.

The paper is drawn in and in this way the oil is distributed to the cutters.

Note: This procedure is acknowledged as follows to turn off the display after the cutters have been oiled:

• Open the door until the control display □(8) lights up. The control displays ⬆(7) and (4) flash.
• Press the reverse button ⬆(4) and keep it held down until the control display ⬆(7) goes out.

- Close the door again.

The cutters now start a cleaning cycle automatically (forward and reverse run) and then switch off. The machine is ready for use again. Should you need to re-order the special oil see "SPECIAL ACCESSORIES".

AUTOMATIC ENERGY SAVING:

If the machine is not used for a while it automatically switches off after about 5 minutes. The function button (2) LED display ⏻ for "Ready" goes out. Press the function button briefly to turn it on again.

DISPOSING OF THE MACHINE:

Dispose of the machine in an environmentally friendly fashion at the end of its useful service life. Do not dispose of any of the parts included in the machine or its packaging with household waste.

TECHNICAL DATA SPECIAL ACCESSORIES

Model	Power supply datasupply voltage/frequency · current consumption · power
intimus 45/60SC2	220-230V/50Hz · 3.0 amps · 0,7 kW	120V/60Hz · 5,6 amps · 0,7 kW	100V/50/60Hz · 7,0 amps · 0,7 kW
intimus 45/60CC3+CC4+CC5	220-230V/50Hz · 3.0 amps · 0,55 kW	120V/60Hz · 5,6 amps · 0,55 kW	100V/50/60Hz · 7,0 amps · 0,55 kW
intimus 45/60CC6	220-230V/50Hz · 3.0 amps · 0,7 kW	120V/60Hz · 5,6 amps · 0,7 kW	100V/50/60Hz · 7,0 amps · 0,7 kW

Pre-fusing (slow-blow): 220-230V = 10 amps / 120V = 15 amps / 100V = 15 amps

Description Order-No.

Plastic bag, 440x330x600x0.05 mm (45) 83079

Plastic bag, 440x330x950x0.05 mm (60) 99977

Lubricant, 110 ml bottle 88035

Note: For orders of special accessories and spare parts, please contact your dealer.

Model	Type	Cutting width paper	Cutting capacity paper	Working width	Noise level	Dimensions W x D x H	Weight
intimus 45SC2	278-4S	3.8 mm	22-24 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 650 mm	31 kg
intimus 45CC3	278-4C	3.8x30 mm	13-15 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 650 mm	32 kg
intimus 45CC4	278-2C	1.9x15 mm	10-11 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 650 mm	32 kg
intimus 45CC5	278-1C	0.8x12 mm	5-6 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 650 mm	32 kg
intimus 45CC6	278-1CF	0.8x4.5 mm	5-6 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 650 mm	32 kg
intimus 60SC2	279-4S	3.8 mm	22-24 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 770 mm	33 kg
intimus 60CC3	279-4C	3.8x30 mm	13-15 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 770 mm	34 kg
intimus 60CC4	279-2C	1.9x15 mm	10-11 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 770 mm	34 kg
intimus 60CC5	279-1C	0.8x12 mm	5-6 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 770 mm	34 kg
intimus 60CC6	279-1CF	0.8x4.5 mm	5-6 sheets*	235 mm	app. 55 dB(A)	450 x 390 x 770 mm	34 kg

RECOMMANDATIONS IMPORTANTES DE SÉCURITÉ

fig. 2

fig. 3

UTILISATION

ELEMENTS DE COMMANDE :

fig. 4

COMMENT REMEDIER AUX PETITES PANNES

BOURRAGE DE

MATERIAU DANS L'APPAREIL: [Fonction Auto-Reverse]

DYSFONCTIONNEMENT ELECTRIQUE:

ELIMINATION DE LA MACHINE:

SymbolModel
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

3 = Vooruittoets (afb. 1)

6 = Controlelampje (afb. 1)

afb. 2

afb. 3

BEDIENING

BEDIENINGSELEMENTEN:

7 = Controlelampje (afb. 1)

8 = Controlelampje (afb. 1)

9 = Controlelampje (afb. 1)

„Overbelasting motor“ /

13 = Oliereservoir (afb. 6)

afb. 4

STORING

MATERIAALOPHOPING IN HET APPARAAT: (Auto-Reverse-functie)

Fig. 2

Fig. 3

MANEJO

ELEMENTOS DE MANDO:

7 = Indicador de control (Fig. 1)

"Engrasar mecanismo de corte"

Fig. 4

AVERIA

Fig. 2

Fig. 3

UTILIZAÇÃO

ELEMENTOS DE COMANDO:

7 = Indicador de controlo (Fig. 1)

"Olear o mecanismo de corte"

Fig. 4

AVARIAS

CONGESTIONAMENTO

DE MATERIAL NO APARELHO:

Modello\Symbolo
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

Fig. 2

Fig. 3

USO

ELEMENTI DI COMANDO:

Fig. 4

Eik. 2

Eik. 4

ВЛАВН

SymbolModel
45/60SC2
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

1 = Netstik (afb. 2)

3 = Fremad-tast (afb. 1)

afb. 2

afb. 3

BETJENING

BETJENINGSELEMENTER:

7 = Kontrol-indikator (afb. 1)

„Smøre skæreenhed“

13 = Oliebeholder (afb. 6)

OPSTART AF APPARATET:

afb. 4

FEJL

MATERIALESTOP I APPARATET:

VEDLIGEHOLD SKÆREENHED (CROSS-CUT):

Symbol Modell
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

bilde 2

bilde 3

BETJENING

BETJENINGSELEMENTER:

7 = Kontroll-indikator (bilde 1)

INNKOBLING AV MASKINEN:

Maskinen kobles inn til „driftsklar“ på denne måten:

• Trykk kort på funksjonsknappen (2).
• LED-indikatoren 📊or funksjonsknappen (2) lyser opp for „driftsklar“.
• Maskinen kan mates.

MATERIALMATING:

bilde 4

FUNKSJONSFEIL

MATERIALOPPHOPNING I MASKINEN: (Auto-reverse-funksjon)

VEDLIKEHOLD / DEPONERING

VEDLIKEHOLD SKJÆREVERKT∅Y

(CROSS-CUT):

Symbol Modell
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

bild 2

bild 3

HANDHAVANDE

REGLAGE:

7 = Kontrollangivelse (bild 1) "Olja skärverk"

bild 4

STÖRNING

MATERIALSTOCKNING I MASKINEN: (Auto-reverse-funktion)

SymboliMalli
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

kuva 2

kuva 3

KÄYTTÖ

HALLINTAELEMENTIT:

kuva 4

„HAIRIÖ“

MATERIAALIRUUHKA KONEESSA:

Sulake (hidas):

220-230V = 10 A / 115-125V = 15 A / 100V = 15 A

Nimike

Tilaus-nro.

SymbolModel
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

rys. 2

rys. 4

ZAKŁÓCENIE PRACY

SymbolModel
45/60SC2				X
45/60CC3				X
45/60CC4				X
45/60CC5	X		X	X
45/60CC6	X	X	X	X

obr. 2

obr. 3

OBSLUHA

OVLÁDACÍ PRVKY:

obr. 4

PORUCHA

1. kéb

1. kéb

KEZELÉS

KEZELŐELEMEK:

1. kéb

ÜZEMZAVAR

ANYAGTORLÓDÁS A GÉPBEN:

A GÉP MEGSEMMISÍTÉSE:

Фиг. 2

Фиг. 3

РАБОТА С МАШИНАТА

УПРАВЛЯВАЩИ ЕЛЕМЕНТИ:

Фиг. 4

ПОВРЕДИ

ЗАДРЪСТВАНЕ НА УРЕДА С

РАЗДРОБЕН МАТЕРИАЛ:

Рис. 2

Рис. 3

ЭКСПЛУАТАЦИЯ

Рис. 4

НЕИСПРАВНОСТИ

251 Wedoor Avenue fax +1 / 260 563-4575

Wabash, IN 46992 [e-mail]

www.martinyale.com

Germany MARTIN YALE INTERNATIONAL GmbH +49 / (0) 7544 60-0

Borzheimer Straße 6-12 fax +49 / (0) 7544 60-248

57 James Street, Halfway House [e-mail]

Marshall Town, Johannesburg

P. O. BOX 1291, Houghton 204

www.martinyale.co.za

United Kingdom MARTIN YALE International +44 / (0) 1293 44 1900

Unit C 2 The Fleming Centre, Fleming Way fax +44 / (0) 1293 61 11 55

Crawley, West Sussex, RH10 9NN [e-mail]

www.intimus.co.uk

France MARTIN YALE International S.A.R.L. +33 / (1) 70 00 69 00

40 Avenue Lingenfeld fax +33 / (1) 70 00 69 24

77200 Torcy [e-mail]

Spain MARTIN YALE Ibérica S.L. +34 / 9 02 22 31 31

Chaoyang District, Beijing 100027, PRC

www.martinyale.com.cn
