USER MANUAL AQL 160 HT HOTPOINT

GB Installation, 2-3

Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3

Washing machine description, 4-5 Control panel, 4 Leds, 5

Starting and Programmes, 6 Briefly: how to start a programme, 6 Programme table, 6

Setting the temperature, 7 Setting the spin cycle, 7 Functions, 7

Detergents and laundry, 8 Detergent dispenser, 8 Preparing your laundry, 8 Special items, 8 Woolmark Platinum Care, 8

Precautions and advice, 9

General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Cleaning the detergent dispenser, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10

Troubleshooting, 11 Service, 12

Before calling for Assistance, 12

GB Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety.

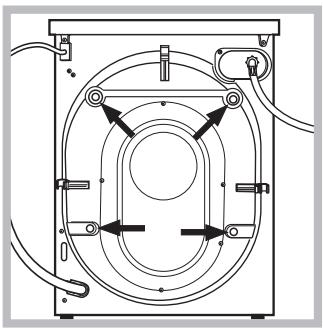

Unpacking and levelling

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

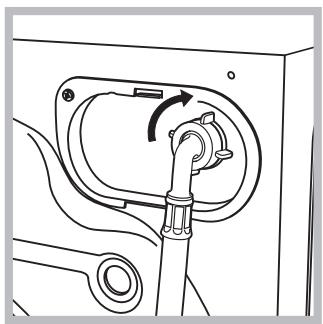

Electric and water connections Connecting the water inlet hose

1. Unpack the washing machine. 2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer. 3. Remove the 4 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided. 5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other. 2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear. 2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Do not use extensions or multiple sockets.

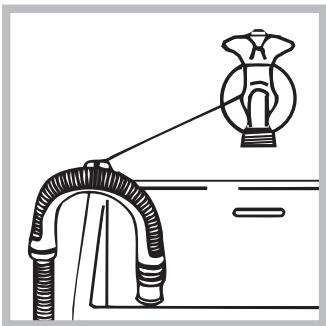

Connecting the drain hose

GB The power supply cable must never be bent or dangerously compressed.

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

The power supply cable must only be replaced by an authorised serviceman. Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Before plugging the appliance into the mains socket, make sure that: • the socket is earthed and in compliance with the applicable law;

• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

When the washing machine is installed, the mains socket must be within easy reach.

Electric connections

voltage 220/230 Volts 50 Hz

maximum absorbed power 1850 W Water connections

Control programmes according to IEC456 directive

programme 3; temperature 60°C; run with a load of 5 kg. This appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

- 2002/96/CE Service

The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

• the supply voltage is included within the values i ndicated on the Technical details table (on the right);

• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

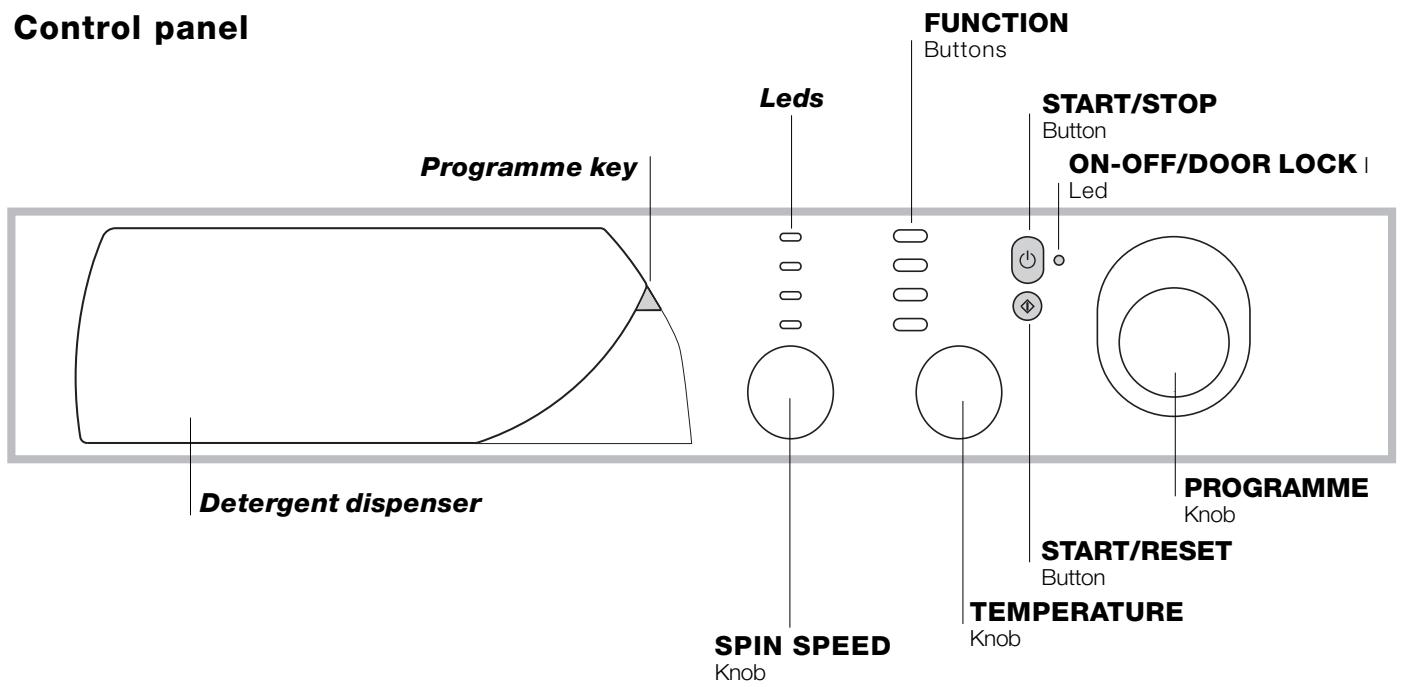

Detergent dispenser: to add detergent and fabric softener (see page 8).

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7).

Programme key: to consult a straightforward chart of the different programmes available: pull the grey tab outwards to open it.

START/STOP button: to turn the washing machine on and off.

LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5). SPIN SPEED knob: to set the spin speed or exclude the spin cycle completely (see page 7). FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

START/RESET button: to start the programmes or cancel any incorrect settings. ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5). PROGRAMME knob: to select the wash programmes. The retractable control knob: press the centre of the knob for it to pop out. The knob stays still during the cycle.

Delay set: If the Delay Timer function has been enabled (see page. 7), once you have started the programme, the LED corresponding to the delay set will begin to flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

The LEDS provide important information. This is what they can tell you:

Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Precautions Care Troubleshooting Service

ON-OFF/DOOR LOCK led: If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance. 5

Starting and Programmes

GB Briefly: starting a programme

6. Add the detergent and any fabric softener (see page 8). 7. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds. 8. When the programme is finished, the ON-OFF/ DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button .

1. Switch the washing machine on by pressing button . All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash. 2. Load your laundry into the washing machine and shut the appliance door. 3. Set the PROGRAMME knob to the programme required. 4. Set the wash temperature (see page 7). 5. Set the spin speed (see page 7).

Programme table Type of fabric and degree of soil

Cycle length (minutes)

Description of wash cycle

Cottons Extremely soiled whites (sheets, tablecloths, etc.) Extremely soiled whites (sheets, tablecloths, etc.) Heavily soiled whites and fast colours Slightly soiled whites and delicate colours (shirts, jumpers, etc.)

Slightly soiled delicate colours

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics Heavily soiled fast colours (baby linen, etc.) Fast colours (all types of slightly soiled garments) Heavily soiled fast colours (baby linen, etc.) Delicate colours (all types of slightly soiled garments) Delicate colours (all types of slightly soiled garments)

Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wash cycle, rinse cycles and delicate spin cycle

Delicates Wash cycle, rinse cycles and delicate spin cycle Wash cycle, rinse cycles, anti-crease or draining cycle

PARTIAL PROGRAMMES Rinse

Rinse cycles and spin cycle Rinse cycles, anti-crease or draining

Draining and heavy duty spin cycle

Draining and delicate spin cycle

Notes For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent.

Personalisations Setting the temperature

GB Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected. The maximum spin speeds for each programme are as follows: Programmes Maximum spin speed Cottone 1400 rpm Synthetics 800 rpm Wool 600 rpm Silk no

. The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

To enable a function: 1. press the button corresponding to the desired function, according to the table below; 2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Enabled with programmes:

Delays the start of the wash by up to 9 hours.

Press the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.

Allows for an impeccable wash, visibly whiter than a standard Class A wash.

This option reduces the amount of creasing on fabrics, making them easier to iron.

When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash. - to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.

All programmes except for 1, 2, 9, 10 and Draining.

Increases the efficiency of the rinse.

Recommended when the appliance has a full load or with large quantities of detergent.

1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles.

Care Troubleshooting

Detergents and laundry

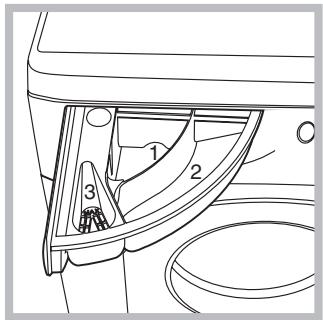

GB Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. 1 2 3

Woolmark Platinum Care compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid.

Do not use hand wash detergent because it may form too much foam.

Preparing your laundry • Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. • Empty all pockets and check for loose buttons. • Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh?

sheet 400-500 g pillow case 150-200 g tablecloth 400-500 g bathrobe 900-1,200 g towel 150-250 g

As gentle as a hand wash. Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): Set programme 10 for all "Hand wash" garments, using the appropriate detergent.

Precautions and advice

General safety • This appliance has been designed for nonprofessional, household use and its functions must not be changed.

the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• Never touch the washing machine when barefoot or with wet or damp hands or feet.

Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. • Do not open the detergent dispenser while the appliance is in operation. • Do not touch the drain water as it could reach very high temperatures.

• The appliance door tends to get quite hot during the wash cycle. • Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. • Before loading your laundry into the washing machine, make sure the drum is empty.

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.

• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly. • If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce

• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

• Always keep children well away from the appliance while in operation.

• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.

• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.

Saving on detergent, water, energy and time • To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

Saving energy and respecting the environment

• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.

The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

Care and maintenance

GB Cutting off the water or electricity supply • Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. • Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

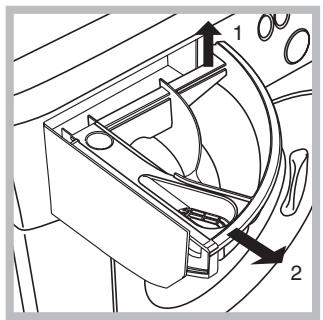

Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

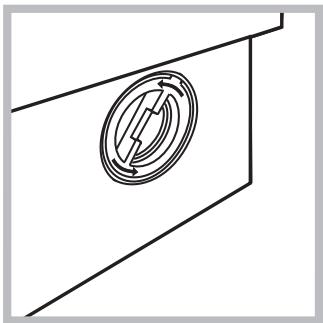

Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber: 1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum • Always leave the appliance door ajar to prevent unpleasant odours from forming.

3. clean the interior thoroughly; 4. screw the lid back on; 5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Never use hoses that have already been used.

Troubleshooting Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

GB Possible causes/Solution:

The washing machine won't start.

• The appliance is not plugged into the socket, or not enough to make contact. • There has been a power failure.

The wash cycle won't start.

The appliance door is not shut properly. button has not been pressed. The The START/RESET button has not been pressed. The water tap is not turned on. A delayed start has been set (using the Delay Timer, see page 7).

The washing machine fails to load water.

The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed.

The washing machine continuously loads and unloads water.

• The drain hose is not fitted between 65 and 100 cm from the floor (see page 3). • The free end of the hose is underwater (see page 3). • The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

The washing machine does not drain or spin.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6). • The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7). • The drain hose is bent (see page 3). • The drain duct is clogged.

The washing machine vibrates too much during the spin cycle.

• The drum was not unblocked correctly during installation (see page 2). • The washing machine is not level (see page 2). • The washing machine is closed in between furniture cabinets and the wall (see page 2).

The washing machine leaks.

• The water inlet hose is not screwed on correctly (see page 2). • The detergent dispenser is obstructed (to clean it, see page 10). • The drain hose is not secured properly (see page 3).

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

• Call for Assistance because this means there is an abnormality.

There is too much foam.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). • You used too much detergent.

Service Before calling for Assistance: • Check whether you can solve the problem on your own (see page 11); • Restart the programme to check whether the problem has been solved; • If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

GB Always request the assistance of authorised servicemen.

Notify the operator of: • the type of problem; • the appliance model (Mod.); • the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
