Product type	Heat gun
Brand	Skil
Model	8003 CA
Power consumption	2000 W
Temperature range	50 °C – 650 °C (electronic control)
Air flow rate	300 L/min (variable speed)
Power supply	230 V ~ 50 Hz
Cable length	2.5 m
Dimensions (L × W × H)	255 × 190 × 85 mm
Weight	0.85 kg
Main functions	Hot air blowing, rapid cooling (stop), two temperature levels, cold air blowing
Safety	Overheat protection, automatic shutdown in case of overheating
Housing material	Heat-resistant plastic
Included accessories	Reducing nozzle, wide nozzle, reflector nozzle
Maintenance and cleaning	Unplug before cleaning; clean nozzles with a dry cloth; do not use abrasive products
Spare parts	Available on Skil website (nozzles, heating element)
Repairability	Repairability index: 8/10 (according to French standard)
Certifications	CE, RoHS

Frequently Asked Questions - 8003 CA SKIL

How to adjust the temperature of the Skil 8003 CA heat gun?

Use the adjustment wheel on the handle. Turn it to select the desired temperature between 50 °C and 650 °C. An LED display indicates the selected level.

Can I use the heat gun to remove paint?

Yes, it is one of the main uses. Set the temperature between 300 °C and 500 °C and use the wide nozzle. Work in a ventilated area and protect sensitive surfaces.

The heat gun turns off by itself, is this normal?

Yes, the Skil 8003 CA is equipped with overheat protection. If the device detects excessive internal temperature, it shuts down automatically. Let it cool for a few minutes before reusing.

How to clean the heat gun nozzles?

Unplug the device and let it cool completely. Wipe the nozzles with a dry or slightly damp cloth. Do not use chemical or abrasive products.

What accessories are included with the Skil 8003 CA?

The kit includes three nozzles: a reducing nozzle for precision work, a wide nozzle for large surfaces, and a reflector nozzle for pipe welding.

Can the heat gun blow cold air?

Yes, after use in hot mode, switch to the 'cold air' position to quickly cool the workpiece or the device itself.

What is the power of the Skil 8003 CA?

The nominal power is 2000 W, allowing it to quickly reach the maximum temperature of 650 °C.

Where to find spare parts for this model?

Spare parts (nozzles, heating element, switch) are available on the official Skil website or from authorized dealers. Use the reference 8003 CA.

What safety precautions should I take?

Wear protective gloves, work in a well-ventilated area, never direct the air flow at people or flammable materials, and turn off the device after use.

Is the heat gun suitable for plastic welding?

Yes, with the supplied reflector nozzle, you can weld PVC or polyethylene pipes. Set the temperature between 250 °C and 350 °C depending on the material.

USER MANUAL 8003 CA SKIL

Illustration of a SKIL handheld electric heater with a black handle and cable (no text or symbols on the device itself)

ME77

GB ORIGINAL INSTRUCTIONS 5
F NOTICE ORIGINALE 8
D ORIGINALBETRIEBSANLEITUNG 13
NL ORIGINELE GEBRUIKSAANWIJZING 18
S BRUKSANVISNING I ORIGINAL 22
DK ORIGINAL BRUGSANVISNING 26
N ORIGINAL BRUKSANVISNING 30
FIN ALKUPERÄISET OHJEET 34
E MANUAL ORIGINAL 38
P MANUAL ORIGINAL 43
I ISTRUZIONI ORIGINALI 47
H EREDETI HASZNÁLATI UTASÍTÁS 52
CZ PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 56
TR ORİJINAL İŞLETME TALİMATI 61
PL INSTRUKCJA ORYGINALNA 65
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 69

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 75
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 80
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 85
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 90
SK PÔVODNÝ NÁVOD NA POUŽITIE 95
HR ORIGINALNE UPUTE ZA RAD 99
SRB ORIGINALNO UPUTSTVO ZA RAD 103
SLO IZVIRNA NAVODILA 107
EST ALGUPÄRANE KASUTUSJUHEND 112
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 116
LT ORIGINALI INSTRUKCIJA 120
AR دليل الاستعمال 132
④ RAHENMAI AUSLI 129

www.skileurope.com

① 8003

③

④

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a tool or device with a curved handle and cable (no text or symbols)

50° 250 ltr/min

Line drawing of a medical or surgical device with labeled parts (no text or symbols present)

400° 250 ltr/min

570° 500 ltr/min

Line drawing of a handheld electric shaver with label 'ZKS' and number 5, no text or symbols on the device itself

Four technical line drawings of mechanical components labeled F, G, H, and J, with no visible text or symbols.

Line drawing of a hand holding a spray gun with a label 'SKL III' (no other text or symbols)

Line drawing of a hairdryer and a knife cutting through a curved blade, no text or symbols present

GB

Heat gun 8003

INTRODUCTION

• This tool is intended for the removal of paint, the forming and welding of plastic, and the warming of heat-shrinkable tubing; the tool is also suitable for soldering and tinning, loosening adhesive joints and defrosting water pipes
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

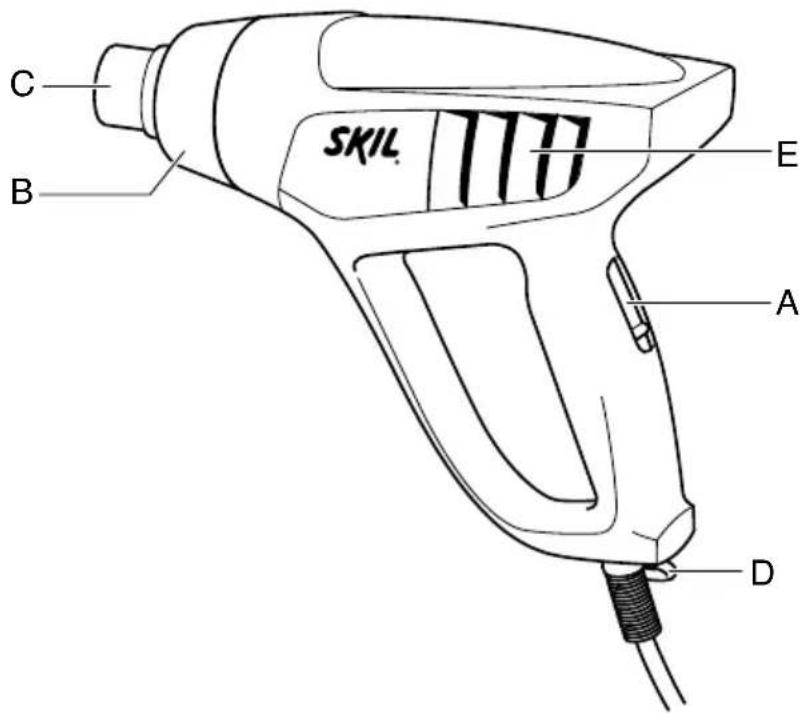

TOOL ELEMENTS ②

A On/off switch
B Protection ring
C Air outlet/nozzle
D Hanging ring
E Ventilation slots
F Glass protection nozzle
G Flat nozzle
H Reflector nozzle
J Reduction nozzle

SAFETY

GENERAL SAFETY INSTRUCTIONS

A WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR HEAT GUNS

BEFORE USE:

• Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself
• Inspect tool cord and plug before each use and, if damaged, have them replaced by a qualified person
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• Inspect the extension cord periodically and replace it, if damaged
• Use the tool and its accessories in accordance with this instruction manual and in the manner intended for the tool; use of the tool for operations, different from those normally expected to be performed by the tool, could result in a hazardous situation
• This tool should not be used by people under the age of 16 years
• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Be sure tool is switched off when plugging in

DURING USE:

- Handle the tool with care; prevent fire and burns

• do not touch the air outlet/nozzle and the heated object; they become extremely hot
• do not hold the air outlet/nozzle too close to the object to be worked on
• do not direct the hot air flow towards the same surface for too long
• never look down the air outlet/nozzle
• wear protective gloves and use safety glasses
• never direct the hot air flow towards persons or animals
• never use the tool for drying hair
• do not leave the tool unattended

• never use the tool in the proximity of inflammable gases or combustible materials (risk of explosion)

• when working with plastic, paint, varnish and similar materials, inflammable and poisonous gases may be produced; inform yourself beforehand about the materials to be worked on

• take into account, that heat may be transferred to combustible materials out of eyesight
• to be on the safe side, have a bucket of water or a fire extinguisher handy, in case any material catches fire

• Prevent electrical shock

• never poke anything down the air outlet/nozzle
• avoid body contact with earthed surfaces (e.g. pipes, radiators, ranges, refrigerators)
• ensure the tool does not get wet
• do not use the tool in damp locations
• when used outdoors, connect the tool via a fault current (FI) circuit breaker with a triggering current of 30 mA maximum, and only use an extension cord which is intended for outdoor use and equipped with a splashproof coupling-socket

- Handle the cord with care

• always keep away the cord from the hot air flow and the air outlet/nozzle
• keep the cord away from heat, oil and sharp edges
• do not carry the tool by the cord, and do not yank the cord to disconnect it from the socket

• do not suspend the tool by the cord

• Never use the tool in conjunction with chemical solvents

• Make sure work area is adequately ventilated
• Keep work area clean and well lit
• Keep children away from work area
• Ensure that children do not play with the tool
• Inrush currents cause short-time voltage drops; under unfavourable power supply conditions, other equipment may be affected (if the system impedance of the power supply is lower than 0,127 + j0,079 Ohm, disturbances are unlikely to occur); if you need further clarification, you may contact your local power supply authority
• Stay alert; watch what you are doing, use common sense and do not operate the tool when you are tired
  • Take a secure stance; do not overreach, especially on ladders and stages
• Ensure that the tool is switched off, before putting it aside
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug

AFTER USE:

• Switch off the tool and disconnect the plug
• Allow the tool to cool down for at least 30 minutes before storage
• Suspend the tool on hanging ring D ② or set it down on its rear in an upright position; when doing so, make sure no combustible materials or inflammable gases are in the proximity
• Do not store/leave the tool outdoors
• Store the tool in a dry and locked-up place, out of reach of children

USE

- On/off switch with 3 temperature settings ④

! check if switch A is in position "0" before plugging in

- switch on the tool by pushing switch A in desired position:

1 = 50°C, air flow 250 litres/minute

2 = 400°C, air flow 250 litres/minute

3 = 570°C, air flow 500 litres/minute

- when using it for the first time, some smoke may emit from the tool; this is normal and will soon cease

- switch off the tool by pushing switch A in position "0"

- General use

- determine the right temperature by testing out on an inconspicuous part of the workpiece; start with a low temperature setting

- the temperature drops as the distance between the air outlet/nozzle and the workpiece increases

- the temperature required depends on the material to be worked on

- Stationary use ⑤

- set the tool down on its rear in an upright position

- make sure the surface is clean and dustfree; polluted air damages the motor

- make sure the air flow is directed away from you

- secure the cord to prevent pulling down the tool

- do not touch the air outlet/nozzle

- make sure nothing drops into the air outlet/nozzle

- carefully hold the tool with one hand while switching it off with the other hand, and then allow it to cool down

- Use at hard-to-reach places

- remove ring B ②, thus releasing the metal air outlet over a greater distance

! pay attention to increased risk of fire and burns

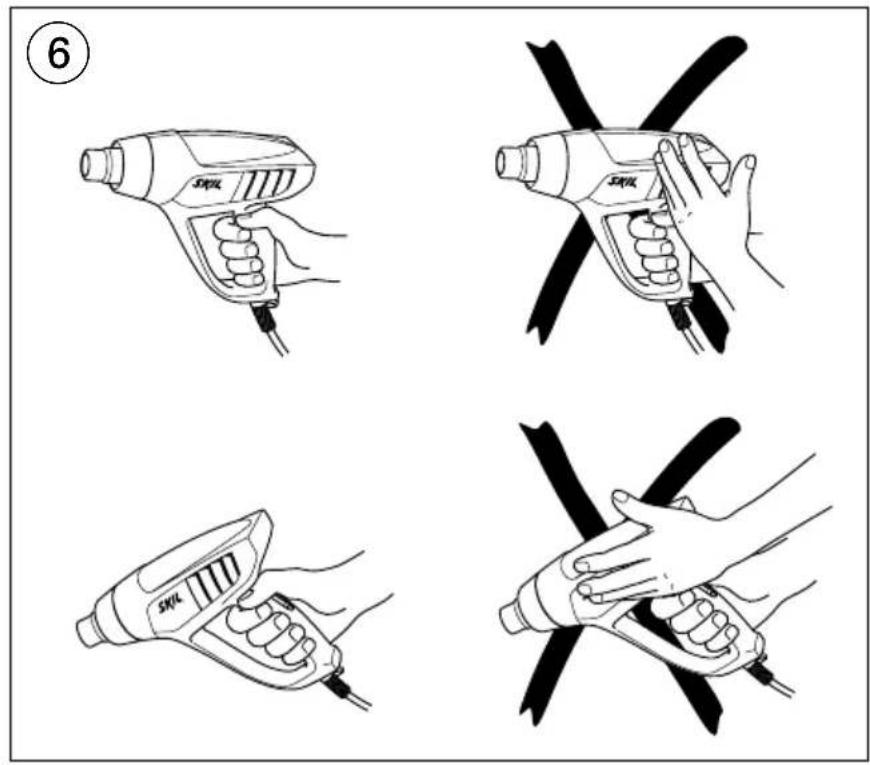

- Holding and guiding the tool ⑥

- hold the tool with one hand

- keep ventilation slots E ② uncovered

- SKIL accessories (not standard included) ⑦

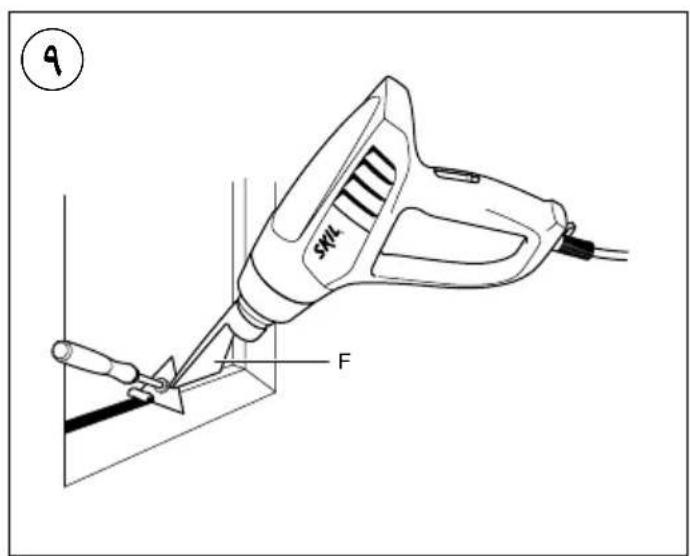

- glass protection nozzle F (for deflecting air flow)

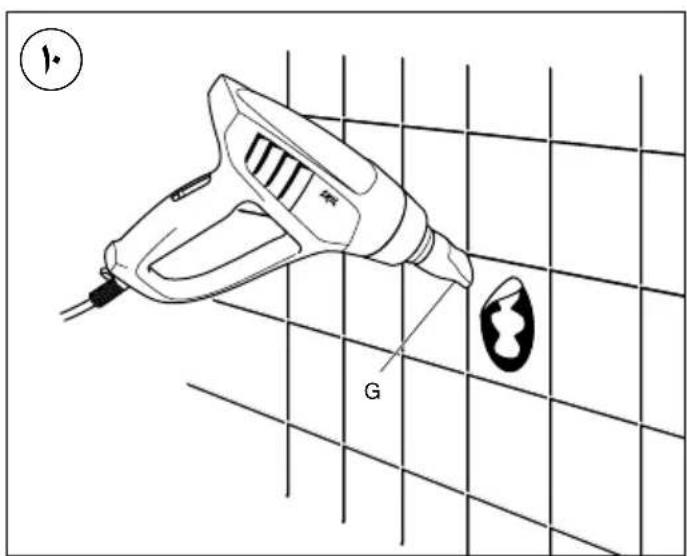

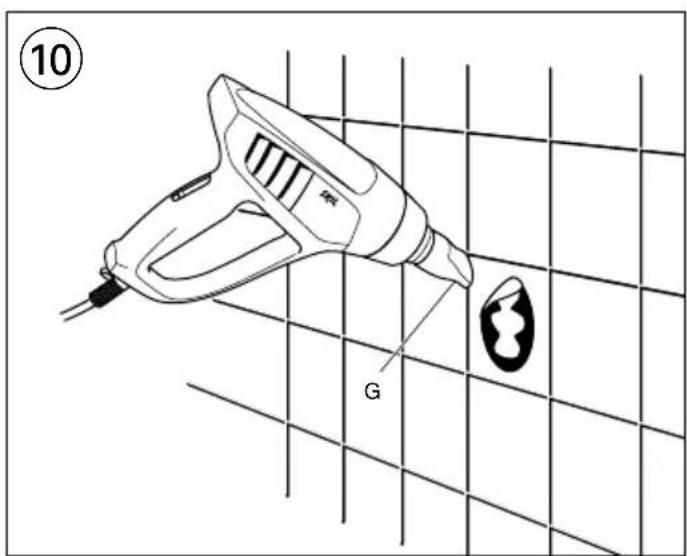

- flat nozzle G (for broadening air flow)

- reflector nozzle H (for reflecting air flow)

- reduction nozzle J (for concentrating air flow)

All application examples (except removing paint next to glass) can be performed without accessories; however, using the appropriate accessory simplifies the work and significantly improves the quality of the results

- Mounting/removing accessories (not standard included)

- simply fit the accessory onto air outlet C ②

- remove an accessory by pulling it off to the front after it has cooled down

! mount an accessory only when the air outlet is cold, when the switch is in position "0" and when the plug is disconnected

- Constant heat control (overload protection)

Protects heating element from damage when tool is overloaded without having to stop it and/or let it cool down for a period of time

- when the temperature gets too high, the heating element switches itself off, while the motor continues to run and produces cold air

- when the temperature has dropped sufficiently (taking only a few seconds), the heating element will be switched on automatically

APPLICATION ADVICE

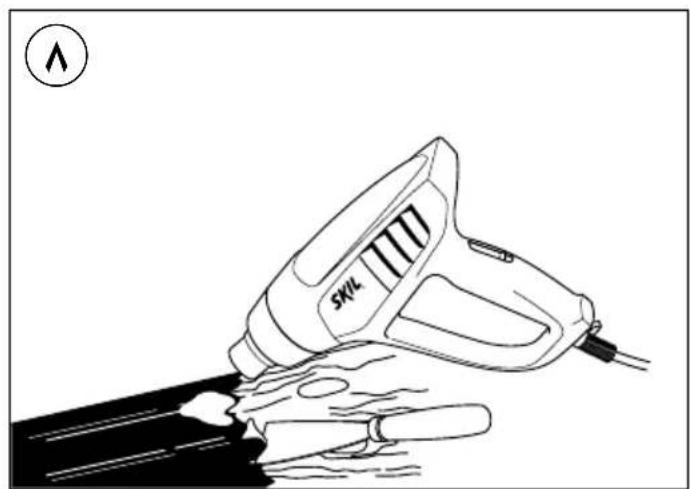

- Removing paint/lacquer ⑧

- use a clean, sharp scraper

- scrape firmly, when the paint softens

- experiment to establish the length of time necessary to apply the heat for optimal results

- scrape the softened paint immediately, or it will harden again

- keep a 30^ to 40^ angle between the tool and the workpiece

- remove paint and debris immediately from the scraper to prevent them from ignition

- scrape with the grain of the wood, wherever possible

- do not direct the hot air flow towards the same surface for too long

- dispose of all paint debris safely

- thoroughly clean the work area after completing the job

! be careful when removing layers of paint in old buildings; in the past the building may have been painted with paint containing lead, which is highly poisonous

! exposure to even low levels of lead can cause serious brain and nervous system damage; young and unborn children are particularly vulnerable

! have lead-based paint removed by a professional without using a heatgun

OTHER APPLICATION EXAMPLE:

★ removing (synthetic) wall covering

- Removing paint/lacquer next to glass ⑨

- always use glass protection nozzle F when working next to glass

- remove the paint with a hand scraper

! do not use the tool for removing paint on metal-framed windows; metal is heat-conducting which might lead to breaking of the glass

- Removing stickers (use flat nozzle G) ⑩

- many adhesives become softer when heated, allowing adhesive bonds to be separated and superfluous adhesive to be removed

! heat sticker on the upper side

! always take care not to overheat the underlying surface

OTHER APPLICATION EXAMPLES:

★ removing linoleum and vinyl carpeting

★ removing carpet tiles made of synthetic fibres

★ removing veneers/applying veneer strips

★ softening/melting tar, tin, bitumen, wax (use flat nozzle G)

★ waxing (skis, furniture) (use flat nozzle G) ⑪

★ removing resin

★ loosening rusty/too tightly fastened metal screws, nuts and bolts

★ removing candle wax (do not overheat the underlying surface)

★ repairing broken candles/restoring bent candles to their original shape

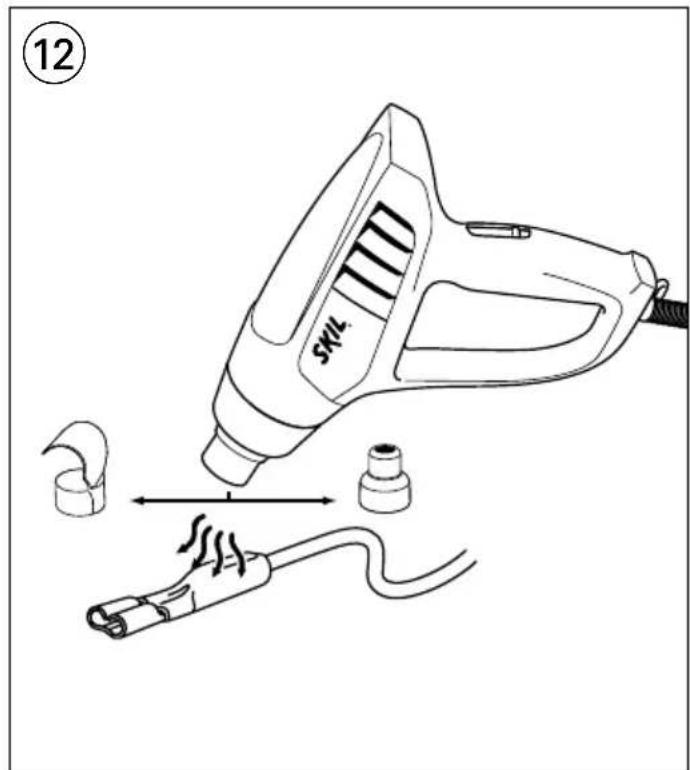

- Shrink fitting ⑫

- use reflector nozzle H or reduction nozzle J

- select a shrink-fit tube with a diameter matching that of the workpiece

- heat the shrink-fit tube evenly

OTHER APPLICATION EXAMPLE:

★ shrink-wrapping

- Soldering water pipes ⑬

This tool is most suitable for working with soft solders (melting point below 400°)

• use reflector nozzle H
• thoroughly clean both joining sections before soldering
• pre-heat both sections and apply soldering wire (do not use lead-based soldering wire)

- Thawing out frozen water pipes ⑭

- use reflector nozzle H

- heat the frozen area evenly

! do no thaw out water pipes made of PVC

! water pipes are often difficult to distinguish from gas pipes; heating gas pipes is extremely dangerous – risk of explosion

OTHER APPLICATION EXAMPLES:

★ thawing out frozen car locks (use reduction nozzle J)

★ defrosting freezers (do not damage the plastic housing)

★ thawing out ice-covered steps and pavements

- Shaping plastic tubes

- use reflector nozzle H

- fill the tube with sand and seal it at both ends, to avoid kinking of the tube

- heat the tube evenly by moving it from side to side OTHER APPLICATION EXAMPLES:

★ shaping all plastics with a low melting-point (polyethylene, PVC etc.)

★ shaping all plastics with a high melting-point (acrylic glass, Plexiglas etc.)

★ shaping and bending carpet tiles made of synthetic fibres

★ shaping and bending of wood (model-building)

- Welding plastics

- the weld seam must be clean and grease-free

- keep welding rod close to weld seam and apply heat, until the welding rod gets tacky

- remove heat, when weld seam is filled up OTHER APPLICATION EXAMPLES:

★ repairing of surfboards, skis and other synthetic sports goods (use flat nozzle G)

★ welding PVC-materials

★ smoothening blisters after sticking PVC-labels

★ connecting garden hoses (use reflector nozzle H)

- Drying

! only dry with a low or medium temperature setting (position 1 or 2) and with an increased distance between the tool and the workpiece

- drying of paint, varnish, gypsum, mortar and plaster

- drying wet timber prior to filling

- drying thickly applied filler or adhesive quickly

- drying building joints before spraying insulation or sealant

- drying joints and cracks in boatbuilding

- Cleaning/disinfecting

- disinfecting rabbit hutches, dove cotes, etc. (remove your pet first)

- combatting ant colonies

- combatting woodworms and boring beetles (hold the tool at an adequate distance from the wood)

- eliminating weeds

.MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool and cord clean (especially ventilation slots E ②)

- This tool is not intended for professional use - Always keep tool and cord clean (especially ventilation slots E ②)

- Never use easy inflammable liquids for cleaning the heat gun in general and the air outlet/nozzle in particular

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- Never use easy inflammable liquids for cleaning the heat gun in general and the air outlet/nozzle in particular - If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ^15 will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

- We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60335, EN 61000-3, EN 55014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC

• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Arno van der Kloot

Jan Trommelen

Vice President

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Pistolet chauffant 8003

INTRODUCTION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

NL

Heteluchtpistool 8003

INTRODUCTIE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Värmepistol 8003

INTRODUKTION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

DK

Varmluftpistol 8003

INLEDNING

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Varmepistol 8003

INTRODUKSJON

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Pistola de calor 8003

INTRODUCCIÓN

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

P

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Pistola termica 8003

INTRODUZIONE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

H

Hőlégfúvó 8003

BEVEZETÉS

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

TR

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

PL

Opalarka 8003

WSTEP

Arno van der Kloot
Vice President
Operations & Engineering
Jan Trommelen
Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

RU

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

RO

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

BG

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

SK

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

HR

Puhalo vrućeg zraka 8003

UVOD

• Ovaj je uređaj predviđen za skidanje starih slojeva boje, oblikovanje i zavarivanje plastike i zagrijavanje cijevi na toplo skupljanje; uređaj je pogodan i za lemljenje i kositrenje, otpuštanje zalijepljenih spojeva i odmrzavanje vodovodnih cijevi
• Ovaj uređaj nije namijenjen profesionalnoj upotrebi
• Pažljivo pročitajte i sačuvajte ove upute za rukovanje ③

TEHNIČKI PODACI ①

DIJELOVI ALATA ②

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

SRB

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

SLO

Grelnik zraka 8003

UVOD

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

EST

Kuumāhupuhur 8003

SISSEJUHATUS

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

LV

APKALPOŠANA / APKOPE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 10.05.2011

Techninis fenas 8003

IVADAS

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

10.05.2011

سشوار صنعتی ۸۰۰۳

مقدمه

Line drawing of a hairdryer and a knife cutting through a curved blade (no text or symbols)

Line drawing of a handheld electric shaver with a warning symbol (no text or labels)

Four technical line drawings of mechanical components labeled F, G, H, and J, with no visible text or symbols.

Line drawing of a hand holding a SKL 13D scanner, no text or symbols present

①

8003

1

The image contains a graphical symbol (a stylized number or symbol) inside a circle, which is not standard alphanumeric text. According to the instructions, non-text figures/diagrams are to be ignored. Therefore, no OCR output is generated.

∑

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a medical or surgical device with a curved arm and attached tubing (no text or symbols)

50° 250 ltr/min

Line drawing of a medical or surgical instrument with labeled parts (no text or symbols present)

400° 250 ltr/min

570° 500 ltr/min

المسندس الحراوي

8003

SKIL®

Illustration of a SKIL handheld hair dryer with a black handle and cable (no text or symbols on the device itself)
