USER MANUAL PREPLINE TEFAL

F NL GB D E I P N FIN S DK GR AR

2544991 PREPLINE:2544991 PREPLINE

2544991 PREPLINE:2544991 PREPLINE

2544991 PREPLINE:2544991 PREPLINE

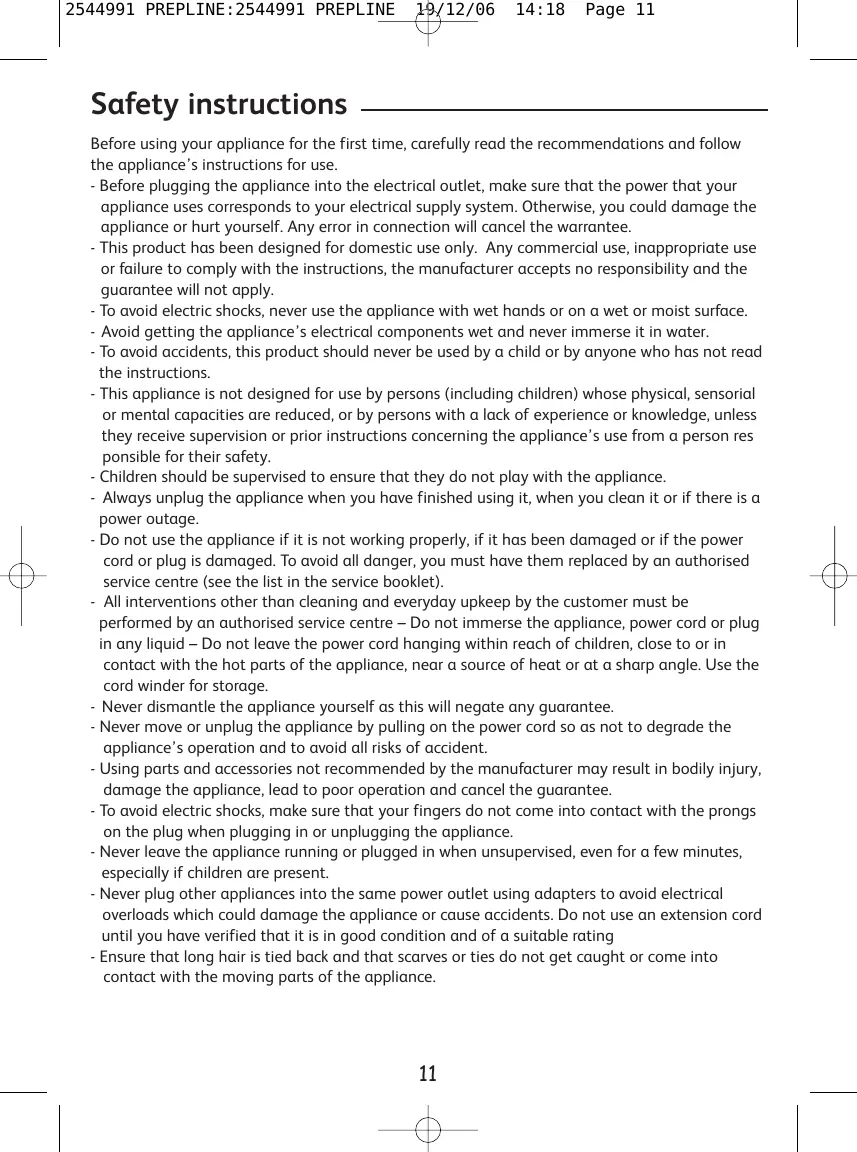

Before using your appliance for the first time, carefully read the recommendations and follow the appliance’s instructions for use. - Before plugging the appliance into the electrical outlet, make sure that the power that your appliance uses corresponds to your electrical supply system. Otherwise, you could damage the appliance or hurt yourself. Any error in connection will cancel the warrantee. - This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. - To avoid electric shocks, never use the appliance with wet hands or on a wet or moist surface. - Avoid getting the appliance’s electrical components wet and never immerse it in water. - To avoid accidents, this product should never be used by a child or by anyone who has not read the instructions. - This appliance is not designed for use by persons (including children) whose physical, sensorial or mental capacities are reduced, or by persons with a lack of experience or knowledge, unless they receive supervision or prior instructions concerning the appliance’s use from a person res ponsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. - Always unplug the appliance when you have finished using it, when you clean it or if there is a power outage. - Do not use the appliance if it is not working properly, if it has been damaged or if the power cord or plug is damaged. To avoid all danger, you must have them replaced by an authorised service centre (see the list in the service booklet). - All interventions other than cleaning and everyday upkeep by the customer must be performed by an authorised service centre – Do not immerse the appliance, power cord or plug in any liquid – Do not leave the power cord hanging within reach of children, close to or in contact with the hot parts of the appliance, near a source of heat or at a sharp angle. Use the cord winder for storage. - Never dismantle the appliance yourself as this will negate any guarantee. - Never move or unplug the appliance by pulling on the power cord so as not to degrade the appliance’s operation and to avoid all risks of accident. - Using parts and accessories not recommended by the manufacturer may result in bodily injury, damage the appliance, lead to poor operation and cancel the guarantee. - To avoid electric shocks, make sure that your fingers do not come into contact with the prongs on the plug when plugging in or unplugging the appliance. - Never leave the appliance running or plugged in when unsupervised, even for a few minutes, especially if children are present. - Never plug other appliances into the same power outlet using adapters to avoid electrical overloads which could damage the appliance or cause accidents. Do not use an extension cord until you have verified that it is in good condition and of a suitable rating - Ensure that long hair is tied back and that scarves or ties do not get caught or come into contact with the moving parts of the appliance.

2544991 PREPLINE:2544991 PREPLINE

- To avoid accidents, make sure that your hair, clothes and other objects do not get caught in the unit’s moving parts. - Do not touch the beaters or mixers and do not insert any object (knife, fork, spoon, etc.), so as not to get injured, cause accidents to others or damage the appliance. You may use a spatula once the product is no longer in operation. - To avoid damaging the appliance, never place it and its accessories in a freezer, traditional oven or microwave. - The accessories are designed for preparing food products. Do not use them for any other products. - Do not leave the appliance connected to the power supply before assembly, disassembly or cleaning and when you move away from it, even for just a few moments, especially when children are around.

F. Blender shaft (only with Ref. 8142) G. Measuring bowl (only with Ref. 8142) H. Strip beaters (Option. Available from your authorised service centre Ref. SA192377) I. Foolproof system

A. Multi-blade beaters for light preparations

B. Speed control C. Eject button (to remove beaters or mixers) D. Mixers for heavy dough E. Turbo button

Bringing into service

Remove the accessories from their packaging and wash them in hot water.

Caution: The blender shaft (F) includes a very sharp blade. Be careful when handling it.

In beater function with beaters or mixers 1. Check that the speed control (B) is on the “0” position 2. Introduce the rods of each beaters (A) or mixer (D) into their holes and lock them into place. The beater and mixer equipped with a foolproof device (I) must be fitted to the larger hole (Fig.1). Both beaters must have the same length. They are properly inserted in place when you hear a click.

Important : Never use beaters or mixers at the same time as the mixer accessory

2544991 PREPLINE:2544991 PREPLINE

3. Connect the appliance.

. Preferably use a deep bowl. . Immerse the beaters in the preparation before starting to avoid splattering. . Start up using the speed control (B) (fig.2), first on speed 1 then 2,3,4,5 as the preparation thickens. Use the “Turbo” position (E) if the recipe requires more power. . Stop the appliance before removing the beaters from the preparation (this will avoid splattering).

1. Check that the speed control (B) is in the “0” position. 2. Raise the door located at the back of the appliance and screw in the mixer shaft (F) anti-clockwise without forcing until the red points are aligned (you will hear a light “click” as you go through the red point to tell you that the shaft is correctly screwed in) (fig3). 3. Connect the appliance . Preferably use a deep bowl. . Immerse the blender shaft in the preparation before starting up to avoid splashing. . Start up using the speed control (B) (fig.2), first on speed 1 then 2,3,4,5. Use the “Turbo” position (E) if the recipe requires more power. . Stop the appliance before removing the blender shaft from the preparation (to avoid splattering).

If you feel resistance when screwing in, this means the shaft is not correctly aligned. Withdraw it completely and screw it in again correctly.

Do not use the blender shaft:

- In a saucepan on the gas ring or hotplate. - Empty or with ice cubes, to chop raw meat or dried fruit (almonds, hazelnuts, etc.)

2544991 PREPLINE:2544991 PREPLINE

Preparation quantities and times

Bread Dough Shortcrust pastry

Waffle batter or pancake mix

Egg whites beaten to peaks

20cl / approx. 2min. – Stop before the cream turns into butter.

1 to 3 egg yolks / 3 to 5 min.

Start on speed 1 to avoid splattering then continue on speed 3, 4, 5 and Turbo. Start on speed 1 to avoid splattering then continue on speed 3, 4, 5 as the preparation thickens

With the measuring bowl (G) -Milk shakes and cocktails, soups 0.6 litre / 60s in small quantities Directly in a recipient 2 litres / 60s - soups

Start on speed 1 to avoid splattering then continue at speed 3, 4, 5 and

For this recipe, use the strip beaters, available from your authorised service centre Ref. SA192377. 250g wheat flour + 150g rye flour + 1 packet (11g) baking powder 150g sugar + 1 packet ( 7.5g) vanilla sugar spices: cinnamon (4g), cardamon ( 1g), aniseed (1g), nutmeg (0.2g, 1 pinch) 250g liquid honey, 1 whole egg, 50 ml milk - pour the 2 flours, baking powder and 2 sugars into a salad bowl. - grind the spices and add to the preparation - add the honey, egg and milk - mix using position “5” for 1 minute, then set aside for 10 minutes before mixing for 10 seconds in the “Turbo” position. Pour the batter in a buttered cake pan and bake in the oven for 1 hour on thermostat set to position 5.

2544991 PREPLINE:2544991 PREPLINE

Removing beaters or mixers

Once stopped, unplug. In position 0, push the eject button (c) forward to eject the beaters or mixers.

Removing the blender shaft

Stop the mixer on position 0, disconnect the appliance and unscrew the blender shaft, turning it clockwise.

1. Make certain that the appliance is correctly unplugged. 2. Clean the beaters, mixers or blender shaft immediately after use to keep the remaining oil or egg mixture from sticking or drying out. 3. You can clean the accessories under the tap with a sponge and washing up liquid. - They can also been washed in the dishwasher. 4. Clean the body of the appliance using a moist sponge only and dry carefully. 5. Never wash the appliance in the dishwasher. 6. Do not use abrasive sponges or objects with metal parts. 7. Never immerse the motor unit in water. Wipe with a dry or barely moistened cloth.

The blender shaft has a very sharp blade. Precautions must be taken when cleaning it.

For any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

HELPLINE 0845 6021454 – UK (01) 461 0390 – Ireland or consult our website – www.tefal.co.uk

Electrical or electronic product at end of service life

Do your part to protect the environment! Your appliance contains valuable materials which can be recovered or recycled. Take it to a local civic waste collection point.

2544991 PREPLINE:2544991 PREPLINE

6 eggehviter / 3 min
