Product Type	Car Stereo
Brand	Philips
Model	CE130
Dimensions (W x H x D)	178 x 50 x 155 mm
Weight	1.2 kg
Power Supply	12 V DC (car battery)
Maximum Power Output	4 x 45 W
Radio Bands	FM, AM
Radio Presets	30 (FM: 18, AM: 12)
RDS	Yes (Radio Data System)
CD Player	Yes
USB Playback	Yes (MP3/WMA)
Auxiliary Input	3.5 mm front
Bluetooth	No
Display	LCD with white backlight
Equalizer	Preset EQ (Rock, Pop, Classic, etc.)
Remote Control	Included (wired)
Detachable Faceplate	Yes
Steering Wheel Control Compatible	Yes (adapter required)
Care and Cleaning	Wipe with dry cloth; avoid liquids
Spare Parts Availability	Faceplate, remote, wiring harness (contact support)
Safety	Fuse protected; do not expose to moisture

Frequently Asked Questions - CE130 PHILIPS

How do I install the Philips CE130 car stereo?

Connect the wiring harness to your car's ISO connectors. Mount the unit using the supplied brackets and screws. Ensure the faceplate is attached before powering on.

Why is there no sound from the speakers?

Check speaker wire connections and ensure the unit is not muted. Verify that the fader and balance settings are correct. Also confirm the 12V power and ground wires are properly connected.

Can I play music from my phone via USB?

Yes, connect your phone via USB. The stereo supports MP3 and WMA files. For iPhones, you may need a specific cable or adapter.

How do I set the clock?

Press and hold the MENU button until the time flashes. Use the volume knob to adjust hours, then press MENU again to switch to minutes. Adjust and press MENU to save.

Does this stereo have Bluetooth?

No, the Philips CE130 does not include Bluetooth. Use the AUX input or USB for external audio sources.

How can I improve FM radio reception?

Ensure the antenna cable is firmly connected. If reception is poor, try moving the vehicle to an open area. A powered antenna may be needed for weak signals.

The faceplate is loose. How do I fix it?

Check the locking mechanism on the main unit. If it doesn't click into place, the faceplate may be damaged. Contact Philips support for a replacement.

Can I connect an external amplifier?

Yes, use the RCA preamp outputs (if available) to connect an external amplifier. Check the manual for specific output locations.

How do I reset the stereo to factory settings?

Press the RESET button on the front panel using a pointed object. This will clear all settings and presets.

The CD won't play. What should I do?

Check if the disc is inserted correctly (label side up). Clean the disc with a soft cloth. If the unit displays 'ERROR', try a different CD. Internal laser issues may require service.

USER MANUAL CE130 PHILIPS

2 Your car audio system 6

Introduction 6

What's in the box 6

Overview of the main unit 7

3 Get started 8

Install the car audio 8

Turn on 12

Set clock 12

4 Listen to radio 12

Tune to a radio station 12

Store radio stations in memory 13

Tune to a preset station 13

5 Play audio files 13

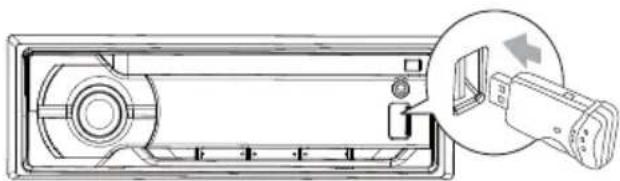

Play from USB 13

Insert a card 13

Play options 14

Connect external sound source 15

6 Adjust sound 15

Adjust volume 15

Mute 15

Turn Dynamic Bass Boost (DBB) on/off 15

Tunr on/off max sound 15

Select preset equalizer 16

Switch music listening zone 16

Other sound settings 16

7 Adjust system settings 17

Turn beep sound on/off 17

Select blackout setting 17

Turn demo mode on/off 17

Dimmer 17

Dance 17

Rear Aux 18

Reset

8 Additional information

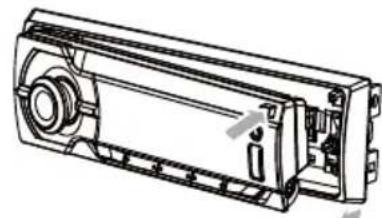

Detach the front panel 18

Replace fuse 18

Remove the unit 19

9 Product information

10 Troubleshooting

11 Glossary

1 Important

Safety

Read and understand all instructions • before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

This apparatus is designed for negative • ground (earth) 12 V DC operation only.

To ensure safe driving, adjust the volume • to a safe and comfortable level.

Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Use only the supplied mounting hardware • for a safe and secure installation.

To avoid short circuit, do not expose the • apparatus, remote control or remote control batteries to rain or water.

Never insert objects into the ventilation • slots or other openings on the apparatus.

Clean the apparatus and frame with a • soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

Never place any objects other than discs • into the apparatus.

Never use solvents such as benzene, • thinner, cleaners available commercially, or anti-static sprays intended for discs.

Visible and invisible laser radiation when open. Avoid exposure to beam.

- Risk of damage to the apparatus screen! Never touch, push, rub or strike the screen with any object.

Caution

- Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

The apparatus shall not be exposed to • dripping or splashing.

Do not place any sources of danger on • the apparatus (e.g. liquid filled objects, lighted candles).

Notice

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This apparatus includes this label:

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

This product complies with the radio interference requirements of the European Community.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

2011 © Koninklijke Philips Electronics N.V. All rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

2 Your car audio system

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the in-car audio system, you can enjoy your drive while listening to:

FM or AM (MW) radio•

Audio from USB devices•

Audio from SD/SDHC card•

Audio from other external devices•

The unit supports the following media format:

What's in the box

Check and identify the contents of your package:

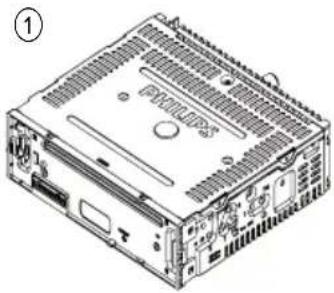

① Main unit (with a sleeve)
② Front panel
③ Trim plate
④ Carrying case
⑤ ISO male connector
⑥ Rubber cushion
⑦ Screws x 4 pcs

⑧ Disassembly tools x 2 pcs
⑨ User manual
⑩ Quick start guide

Line drawing of a computer drive chassis showing rear panel, ventilation slots, and ports (no text or labels)

Three technical illustrations of electronic components: a connector, a circular component, and three screws (no text or symbols present)

Simple line drawing of a pen and its blank cover, no text or symbols present

Simple line drawing of a two-bladed rectangular object with no text or symbols

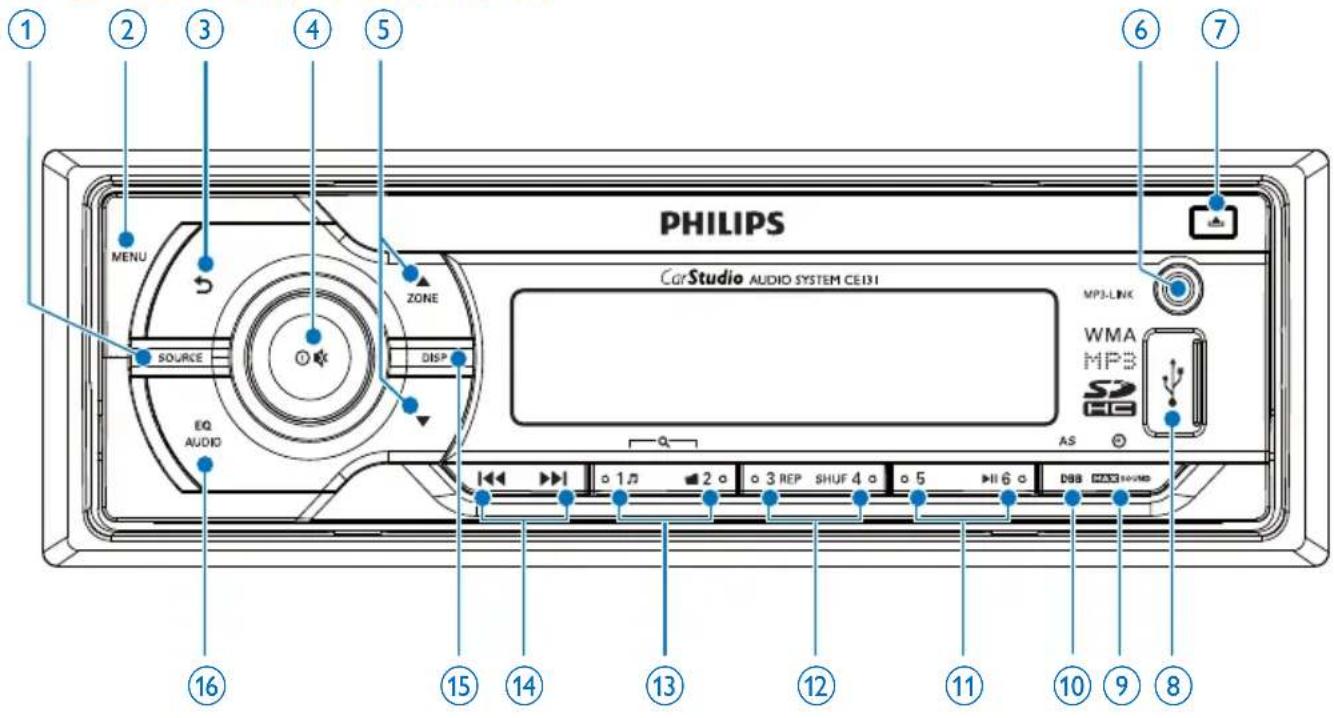

Overview of the main unit

① SOURCE

Select audio source.

② MENU

Access system menu.

③

Return to previous menu.

④ ① /

Turn the unit on or off.

Confirm selection.

Mute or unmute sound.

Rotate to adjust volume.

⑤ ZONE ▲ /▼

Select tuner band.

Select MP3/WMA folder.

Switch music listening zone.

⑥ MP3 LINK

Connect external audio device.

⑦

Unlock the panel.

⑧

USB socket.

9 MAX SOUND

Turn on or off Maximizing volume.

- View clock.

⑩ DBB

• Turn on or off Dynamic Bass Boost (DBB) sound.
• Access to tuner auto store.

11 ▶ II

• Start play.
• Pause or resume play.

⑫ RPT / SHUF

• Access to repeat play.
- Access to random play.

⑬

• Search for track/folder.

14 |◀◀/▶▶|

• Tune for radio station.
- Skip/search for track.
• Fast forward/backward playback.

⑮ DISP

• Display current status.

⑯ EQ / AUDIO

• Select equalizer (EQ) setting.
• Access audio setting menu.

⑰ RESET

Use the controls only as stated in this user • manual.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here:

Model No. ____ Serial No. ____

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

This unit is designed for negative ground (earth) 12 V DC operation only.

• Always install this unit in the car dashboard. Other locations can be dangerous as the rear of the unit heats up during use.

• To avoid short-circuit: before you connect, ensure that the ignition is off.

- Ensure that you connect the yellow and red power supply leads after all other leads are connected.

- Ensure that all loose leads are insulated with electrical tape.

- Ensure that the leads do not get caught under screws orin parts that will move (e.g. seat rail).

- Ensure that all ground (earth) leads are run to a common ground (earth) point.

- Use only the supplied mounting hardware for a safe and secure installation.

- Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

• Never connect speaker wires to the metal body or chassis of the car.

• Never connect speaker wires with stripes to one another.

Connect wires: ISO male connectors

Caution

- Ensure that all loose leads are insulated with electrical tape.

Note

- Consult a professional to connect CE131 as instructed below.

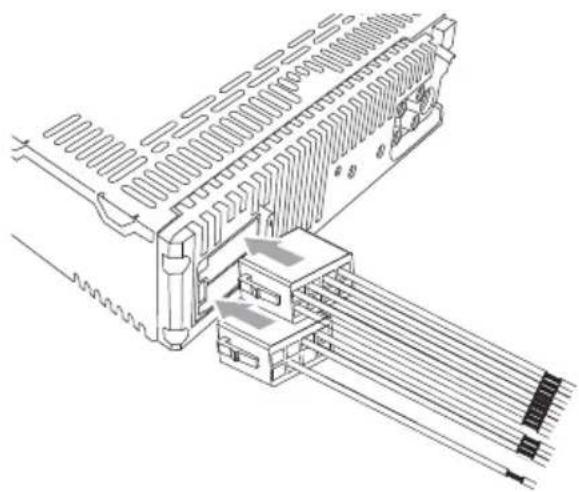

1 Connect the supplied male connector to the unit.

Technical line drawing of an electronic device with internal components and wiring (no text or symbols)

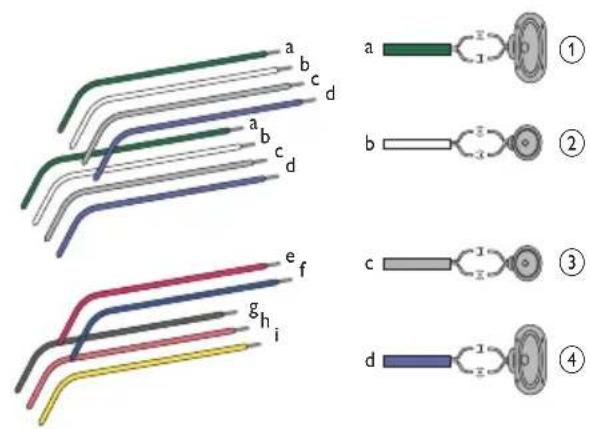

2 Check the car's wiring carefully and connect them to the supplied male connector.

Note

- Risk of danger! Please consult a professional to perform the below steps!

1	G strip	r	Left speaker (Rear)	n
2	White/black strip		Left speaker (Front)
3	Gray/black strip		Right speaker (Front)
4	P strip	u	Right speaker (Rear)	l
e	Red Ignition key +12V DC when ON/ACC
f	Blue Motor/electric antenna relay control lead/ Amplifier relay control lead
g	B	l	a	c
h	Orange/ White		Illumination switch
i	Yellow To the +12V car battery which is energized at all times

3 Connect the antenna and amplifier as illustrated, if applicable.

Connector Connect to
1 ANTENNA Antenna
2 FRONT LINE OUT R (Socket)		Front right speaker
3 FRONT LINE OUT L (Socket)		Front left speaker
4 REAR LINE OUT R (Socket)		Rear right speaker
5 REAR LINE OUT L (Socket)		Rear left speaker
6 OE REMOTE (Pink) OE Remote
7 T E (Orange)	L	To cellular phone system
8 SUBWOOFER (Blue)		Subwoofer
9 REAR AUX (Yellow) Aux right/left

Tip

The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Be sure to make proper connections to prevent damage to the unit.

Mount into the dashboard

1 If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

If you disconnect the car battery in • a car that has an on-board drive or navigation computer, the computer may lose its memory.

If the car battery is not disconnected, to avoid short-circuit, ensure that the bare wires do not touch each other.

2 Ensure that car dashboard opening is within these measurements:

U

3 Remove the mounting sleeve with the supplied disassembly tools.

Technical line drawing of an electronic device with two labeled components (no text or symbols present)

4 Install the sleeve into the dashboard and bend the tabs outward to fix the sleeve.

Note

If the unit is not fixed by sleeve but by the supplied screws, skip this step.

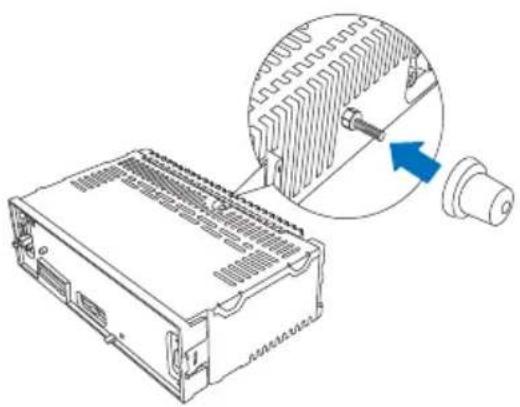

5 Place the supplied rubber cushion over the end of the mounting bolt.

Technical illustration of an electronic device with a magnified inset showing internal structure and a blue arrow indicating a component (no text or symbols present)

6 Slide the unit into the dashboard until you hear a click sound.

Technical line drawing showing a device with an open rear panel and a separate internal component (no text or symbols visible)

7 Reconnect the negative terminal of the car battery.

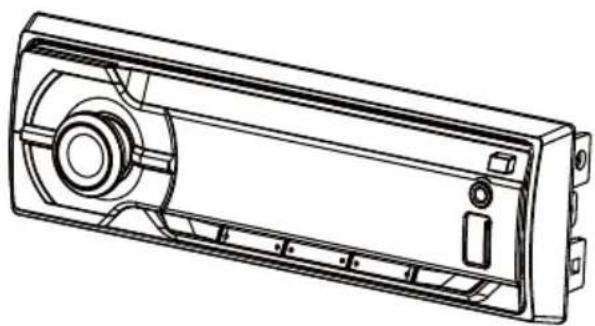

Attach the front panel

1 Attach the trim plate.

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

2 Insert the left side of the panel in the chassis until it is correctly engaged.
3 Press the right side of the panel until it is locked into place.

Technical line drawing of a mechanical housing or enclosure component (no text or symbols visible)

Turn on

To turn on the unit,

• Press ①. To turn off the unit,
• press and hold ① until the unit is turned off.

Set clock

1 Press MENU repeatedly until current time is flashed.
2 Rotate ① to set hour.
3 Press ① to confirm.
4 Rotate ① to set minute.
5 Press ① to confirm.

View clock

In any mode, press and hold MAX SOUND until the clock is displayed.

- Press any key to cancel the clock display.

4 Listen to radio

Tune to a radio station

1 Press SOURCE repeatedly to select radio mode.
2 Press ZONE ▲ / ▼ repeatedly to select band: [FM1], [FM2], [FM3], [AM1], or [AM2].
3 Press and hold to tune to a radio station manually. The radio station is broadcast. → To search for a radio station → automatically, press◀◀ or ▶▶

Select tuner region

You can select suitable country/region of the radio.

1 Press SOURCE to select radio mode.
2 Press MENU repeatedly until [AREA] is displayed..
3 Rotate to select: [• EUR] (Western Europe) [• RUS] (Russia) [• ASI] (Asia Pacific) [• USA] (United States) [• LAT] (Latin America)

Select tuner sensitivity

To receive more radio stations or only stations with strong signal, you can adjust the tuner sensitivity.

1 Press MENU repeatedly until [LOCAL] is displayed.

2 Rotate ① to select a setting:

- [LOCAL ON] (local on): Only stations with strong signal can be broadcast.

- [LOCAL OFF] (local off): Stations with strong and weak signals can be broadcast.

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations automatically

1 In Radio mode, press and hold DBB until [STORE - - -] is displayed.
2 Press ① to confirm. The six strongest stations of the selected band are saved in preset channel automatically.

Store stations manually

1 Tune to a station that you want to store. (see 'Tune to a radio station' on page 12)
2 Press a numeric button for 3 seconds. The station is saved in the selected channel.

Tune to a preset station

1 Press ZONE ▲ / ▼ to select band.
2 Press the numeric button to select a preset station.

5 Play audio files

Play from USB

Note

Ensure that the USB device contains playable music.

Insert the USB device

1 Slide the USB socket cover marked to the left.
2 Insert the USB device into the USB socket.
The unit starts to play from the USB → device automatically.

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Remove the USB device

1 Press ① to turn off the unit.
2 Remove the USB device.

Insert a card

Note

This unit supports SD and SDHC cards.

1 Press ▲ to release the panel.
2 Push the left side of the panel rightward, then pull the panel towards you to disengage it from the chassis.

3 Insert the card into the card slot. The unit starts playing from the card automatically.

Remove the card

1 Press ① to turn off the unit.
2 Press the card until you hear a click sound.
The card is now disengaged.
3 Remove the card.

Play options

• To pause, press ▶II.
• To resume play, press ▶II again.
• To skip to the previous/next track, press ◄◀ / ▶▶.
• To search backward/forward rapidly within the current track, press ◀◀/▶▶ for 3 seconds.

Search for an MP3/WMA track

Search within the current folder

1 Press ♩.
The name of the current track is displayed.

2 Rotate to select anther track in current folder.

3 Press ① to confirm.

Search in other folder

1 Press The name of the current folder is displayed.

2 Rotate ① to navigate through all folders.
3 Press ① to access the selected folder.
4 Rotate ① to select a track in the folder.
5 Press ① to start play.

Tip

To go back to upper level of a folder, press 🔒.

View play information

During playing, press DISP repeatedly to view: Track number and elapsed play time• Folder •

File •

Album•

Artist•

Title•

Repeat play

1 During play, press RPT. → [REP] is displayed.
2 Rotate ① to select a setting.

• [RPT TRK] (repeat one track): play current track repeatedly.

• [RPT FLD] (repeat a folder): play all tracks in the current folder repeatedly.

• [RPT ALL] (repeat all tracks): play all tracks repeatedly.

Random play

You can play the tracks in random order:

1 During play, press SHUF. → [SHUF] is displayed.

2 Rotate ① to select a setting:

• [SHUF FLD]: start random play for all tracks in the current folder.
• [SHUF ALL]: start random play for all tracks.
• [SHUF OFF]: turn off random play.

Connect external sound source

1 Connect the external sound source to MP3 LINK socket with a 3.5 mm cable.
2 Press SOURCE repeatedly until [MP3 LINK] is displayed.
3 Operate the external component (refer to the instructions supplied with the external component).

6 Adjust sound

Adjust volume

Turn clockwise/counterclockwise to increase/decrease volume.

Mute

You can turn off the sound of your audio.

During play, press ①.

To resume sound, press Ⓧ again.

Turn Dynamic Bass Boost (DBB) on/off

1 Press DBB and the current setting is displayed:
→[DBB ON] : The Dynamic Bass Boost (DBB) function is on.
→[DBB OFF] : The DBB function is off.

2 Press DBB again to change the DBB setting.

Tunr on/off max sound

1 Press MAX SOUND The current setting displays →

→[MAX ON]: The maximum sound (max sound) function is on.

→[MAX OFF]: The maximum sound function is off.

2 Press MAX SOUNDagain to select an option.

Select preset equalizer

1 Press EQ / AUDIO.

Current Equalizer setting is displayed.

2 Press EQ / AUDIO again to select a preset EQ setting:

• [FLAT] (flat)
• [POP] (pop)
- [USER] (user)
- [TECHNO] (techno)
• [ROCK] (rock)
- [CLASSIC] (classic)
• [JAZZ] (jazz)
• [OPTIMAL] (optimal)

Switch music listening zone

Philips' innovative Zone technology enables driver or passengers to enjoy music with the best speakers balance and experience more vivid spacial effect as the artist is intended to create. You can switch the music listening zone from driver to passengers for the best speaker sound settings in car.

1 Press ZONE.

The current setting is displayed. ↗

2 Rotate ① to select a setting:

• [ZONE ALL]
• [FRONT -L] (Front left)
• [FRONT -R] (Front right)
• [FRONT]

Other sound settings

You can also adjust the preset EQ / AUDIO settings.

1 Press EQ / AUDIO for 3 seconds.

2 Press ▲ or ▼ repeatedly to select the item to be adjusted:

• [BAS] (bass) range: -7 to +7.
• [TRE] (treble) range: -7 to +7.
• [BAL] (balance) range: 12L to 12R. (L = left speaker, R = right speaker)
- [FAD] (fader) range: 12R to 12F. (R = rear speaker, F = front speaker)
- [SUBW ON/OFF] (subwoofer): turn on or off the subwoofer function.

3 Rotate ① to select a value.

7 Adjust system settings

Turn beep sound on/off

Each time you press a button, the unit beeps. You can turn off/on this beep sound.

1 Press MENU.
2 Press ▲ or ▼ repeatedly until [BEEP] is displayed.
3 Rotate ① to select a setting:

• [BEEP ON]: Turn on the beep sound.

• [BEEP OFF]: Turn off the beep sound.

Select blackout setting

You can set the screen to turn off automatically after the unit is idle for 10 or 20 seconds.

1 Press MENU.
2 Press ◀◀/▶▶I repeatedly until [BKO] is displayed.
3 Rotate ① to select a setting:

• [BKO 10 S] : Turn off the screen automatically 10 seconds after last operation.
• [BKO 20 S] : Turn off the screen automatically 20 seconds after last operation.
  • [BKO OFF] : Never turn off the screen.

Turn demo mode on/off

1 Press MENU.
2 Press ◀◀ / ▶▶I repeatedly until [DEMO] displays.
3 Rotate to select a setting:

- [DEMO ON] : Turn on the demo mode. When the unit is idle for more than 10 seconds, all functions are displayed.

- [DEMO OFF] : Turn off the demo mode.

Dimmer

1 Press MENU.
2 Press ▲ or ▼ repeatedly until [DIMMER] is displayed.
3 Rotate ① to select a setting:

• [DIMMER HIGHT] (dimmer hight)
• [DIMMER LOW] (dimmer low)

Dance

You can turn on or off the spectrum on the LCD display.

1 Press MENU.
2 Press ▲ or ▼ repeatedly until [DANCE] is displayed.
3 Rotate ① to select a setting:

• [DANCE ON] : Turn on the spectrum.
• [DANCE OFF] : Turn off the spectrum.

Rear Aux

1 Press MENU.
2 Press ▲ or ▼ repeatedly until [REAR AUX] is displayed.
3 Rotate ① to select a setting:

• [AUX] : Auxiliary audio input.

• [Telephone] : Telephone call input.

Note

To support telephone call with this unit, • connect TEL MUTING wire to your hands-free kit and audio out jack to the REAR AUX in jack of the unit.

Reset

You can reset the unit to its default setting.

1 Detach the front panel.
2 Press the reset button by using a ball-point pen or a similar tool. Preset adjustments such as preset channels and sound adjustments are erased.

8 Additional information

Detach the front panel

You can detach the front panel to deter theft.

1 Press ▲ to release the panel.
2 Push the left side of the panel rightward.
3 Pull the panel towards you to disengage it from the chassis.
4 Store the panel in the supplied carry case to protect it from dirt or damage.

Technical line drawing of a mechanical housing or enclosure component (no text or symbols visible)

Technical line drawing of a rectangular electronic device casing with internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

Replace fuse

If the fuse is damaged,

1 Check the electric connection.
2 Buy a fuse that matches the voltage of the damaged fuse.

3 Replace the fuse.

Note

If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer.

Remove the unit

You can remove the unit from the dashboard.

1 Detach the front panel and the trim plate.
2 Pull out the unit by using the disassembly tools.

Technical line drawing of a device housing with a magnified view showing internal components (no text or symbols)

9 Product information

Note

Product information is subject to change • without prior notice.

Power supply 12 V DC (11 V - 16 V), negative ground
Fuse 15 A
Suitable speaker impedance	4 - 8 Ω
Maximum power output	45 W × 4 channels
Continuous power output	22 W × 4 RMS (4 Ω 10% T.H.D.)
Pre-Amp output voltage	2.5 V
Aux-in level	≥ 500 mV
Dimensions (W × H × D)	188 × 58 × 140 mm
Weight 0.8 kg

Radio

Frequency range - FM	87.5 - 108.0 MHz (100kHz per step in auto search and 50kHz per step in manual search)
Frequency range - AM (MW)	522 - 1620 KHz (9 kHz)530 - 1710 kHz (10 kHz)
Usable sensitivity - FM	8 μV
Usable sensitivity - AM(MW) (S/N = 20 dB)	30 μV

Compatible USB devices:

USB flash memory: USB 1.1 host • with interface reading all speed support (1.1, 2.0)

• USB flash players: USB 1.1 host with interface reading all speed support (1.1, 2.0)
• Memory cards (SD / SDHC)

Supported formats:

• USB or memory file format: FAT16, FAT32
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA V4, V7, V8, V9 (L1, L2)
• ISO9660, Joliet
• Maximum title number: 512 (depending on file name length)
• Maximum album number: 255
• Supported sampling frequencies: 2 kHz, 44.1 kHz, 48 kHz
• Supported Bit-rates: 2\~256 (kbps), variable bit rates
• Directory nesting up to a maximum of 8 levels
• Number of albums/ folders: CD maximum 99, USB maximum 199
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum length 64 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/WMA files, and is not be shown in the display.

• Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.

• AAC, WAV, PCM audio files

- DRM protected WMA files (.wav, .m4a, .m4p, .mp4, .aac)

• WMA files in Lossless format

10 Troubleshooting

Caution

Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.

No power or no sound.

Car engine is not on. Turn the car engine • on.

Cable is not correctly connected. Check • connections.

Fuse is burnt. Replace fuse.

Volume is too low. Adjust volume.

If the above solutions cannot help, press the RESET button.

Ensure that the track played is of a • compatible format.

Noise in broadcasts.

• Signals are too weak. Select other stations with stronger signals.
• Check the connection of the car antenna.
• Change broadcast from Stereo to mono.

Preset stations lost.

- Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Display show ERR-12

• USB data error. Check the USB device.

Display show ERR-3

• USB/SD data error.

11 Glossary

M

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

S

SD

Secure Digital. A type of memory card with a flash memory.

SDHC

Secure Digital High Capacity (SDHC) is a type of flash memory card based on the SDA 2.00 specification. The SDA 2.00 specification enables SD cards to reach higher capacities from 4GB to 32GB, and growing.

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

Contenido

1 Importante 24

Seguridad 24

Aviso 24

Be responsible Respect copyrights

Reciclado

Line drawing of a computer drive chassis showing internal components and ventilation slots (no text or labels)

Three technical illustrations: a connector, a circular component with threaded holes, and three screw-like components (no text or symbols)

Simple line drawing of two identical mechanical parts labeled 8 and 9, next to a blank rectangular frame (no text or symbols)

Simple line drawing of two stacked rectangular panels, no text or symbols present

① SOURCE

Technical line drawing of an electronic component with internal channels and wiring (no text or symbols)

Technical illustration of an electronic device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of an electronic device showing internal components and a close-up view of the base panel (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a mechanical device housing with internal components and mounting holes (no text or symbols)

Encendido

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the component (no text or symbols)

Technical diagram of a device rear panel showing internal components and a close-up view of the interior (no text or symbols)

Technical line drawing of a device housing with an arrow indicating a component detail (no text or symbols present)
