DVM1400 - Multimeter VELLEMAN - Free user manual and instructions

Product Type	Digital Multimeter
Brand	Velleman
Model	DVM1400
Measured Voltages	Direct Current (DC) and Alternating Current (AC)
Maximum Voltage	1000 V DC / 750 V AC
Measured Current	10 A (max) AC/DC
Resistance	Up to 40 MΩ
Capacitance	Up to 100 µF
Frequency	Up to 10 MHz
Temperature	-20 °C to 1000 °C (with K-type thermocouple)
Continuity Test	Yes, with beeper
Diode Test	Yes
Display	Digital, 4 digits (6000 counts)
Backlight	Yes
Safety Category	CAT III 1000 V / CAT IV 600 V
Power Supply	9 V battery (6LR61 type)
Dimensions	190 x 88 x 53 mm
Weight	400 g (approx., with battery)
Maintenance and Cleaning	Wipe with a dry cloth; do not use solvents
Safety	Do not exceed measurement limits; use appropriate test leads
Spare parts and repairability	Repair must be carried out by a professional

Frequently Asked Questions - DVM1400 VELLEMAN

How to measure DC voltage?

Set the switch to DC V function. Plug the black probe into the COM jack and the red probe into the V jack. Connect the test leads to the circuit terminals. Read the value on the display.

How to test continuity of a wire?

Turn the switch to continuity mode (diode/wave symbol). Connect the probes to both ends of the wire. If continuity is good, the device emits a beep.

How to replace the battery?

Turn off the device. Remove the battery compartment cover on the back. Replace the used 9V battery with a new one, observing polarity. Close the cover.

What is the accuracy of the DVM1400?

Accuracy varies by function: for example, in DC voltage it is ±(0.5% + 5 digits). Refer to the manual for full details.

Can I measure AC current?

Yes, select the AC A function and plug the red probe into the 10A or mA jack depending on the current. Respect the maximum range (10A).

What does 'OL' on the display mean?

OL stands for Over Load. It indicates that the measurement exceeds the capacity of the selected range or that the circuit is open in resistance mode.

How to measure capacitance of a capacitor?

Set the switch to Capacitance function. Discharge the capacitor, then insert its leads into the dedicated jacks (usually Cx). Read the value after stabilization.

What type of thermocouple to use for temperature?

Use a K-type thermocouple with a suitable connector. Plug it into the COM and V/Ω jacks. Select °C or °F mode.

Is the device suitable for automotive use?

Yes, the DVM1400 can measure battery voltages (12V/24V), sensor resistances, and test diodes. Make sure not to exceed the voltage limits.

How to use the HOLD function?

Press the HOLD button to freeze the displayed measurement. Press again to return to normal mode. Useful for reading a value in a hard-to-reach place.

USER MANUAL DVM1400 VELLEMAN

DIGITAL MULTIMETER 5 IN 1 - TEMP - HUMIDITY - SOUND - LUX

DIGITALE MULTIMETER 5-IN-1 - MULTIMETER - TEMPERAT UUR - VOCHTIGHEID - GELUID - LUX

MULTIMÈTRE NUMÉRIQUE 5 EN 1 - MULTIMÈTRE - TEMPÉRATURE - HUMIDITÉ - SON - LUX

MULTÍMETRO 5 EN 1: MULTÍMETRO - TERMÓMETRO - HIGRÓMETRO - SONÓMETRO - LUXÓMETRO

MULTIMETER 5-IN-1: MULTIMETER - THERMOMETER - HYGROMETER - SCHALLPEGELMESSGERÄT - LUXMETER

CYFROWY MULTIMETR UNIWERSALNY 5 W 1 - TEMPERATURA - WILGOTNOŚĆ - DŻWIĘK - ŚWIATŁO

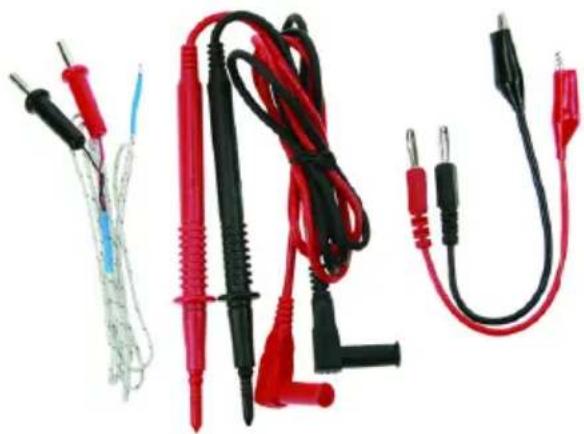

Three types of electrical probes and wires: two red and black with leads, one white and blue, and one black with two terminals (no text or symbols visible)

USER MANUAL 3

GEBRUIKERSHANDLEIDING 14

NOTICE D'EMPLOI 26

MANUAL DEL USUARIO 38

User manual

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

Contents: 1 x multi-meter, 1 x set of test leads, 1 x thermo couple type K, 1 x set of test leads for capacitance measurements, 1 x 9V battery and this manual.

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

2. Used symbols

	This symbol indicates: Read instructionsNot reading the instructions and manual can lead to damage, injury or death.
	This symbol indicates: DangerA hazardous condition or action that may result in injury or death
	This symbol indicates: Risk of danger/damageRisk of a hazardous condition or action that may result in damage, injury or death
	This symbol indicates: Attention; important informationIgnoring this information can lead to hazardous situations.
	AC (Alternating Current)DC (Direct Current)
	Both AC and DCDouble insulation (class II-protection)
	EarthFuse
	CapacitorDiode
●●●●	Continuity

	Read this manual thoroughly. Familia rise yourself with the functions of the device before actually using it.
	Only use the device for its intended purpose. Using the device in an unauthorized way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
	Follow the instructions below to guarantee a safe use of the meter and all its functionalities.
	During use of the meter, respect all directives concerning protection against electroshocks and misuse. Never exceed the indicated limits.
DVM1400 Rev. 02
	WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing.Remark: refer to the warning on the back of the meter
	Keep the device away from children and unauthorised users.
	Protect this device from shocks and abuse. Avoid brute force when operating.
	Avoid cold, heat and large temperature fluctuations. When the unit is moved from a cold to a warm location, leave it switched off until it has reached room temperature. This to avoid condensation and measuring errors.
	This is an installation category CAT III 600V measuring instrument. Never use this equipment in a higher category than indicated. Refer to §4 Overvoltage /installation category.
	Pollution degree 2-device. For indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Not for industrial use. Refer to §5 Pollution degree.
	Before each use, make sure the test probes are in good condition. Always place your fingers behind the protective edges of the test probes while measuring! Never touch free terminals when the meter is connected to a circuit.
	Make sure the meter is in the appropriate measuring range before connecting it to a test circuit.
	Risk of electric shock during operation. Be very careful when measuring live circuits. Use extreme caution when measuring voltages higher than 60Vdc or 30Vac rms.
	Do not measure circuits that may contain voltages >1000V
	Do not measure current in circuits with voltages >600V
	Do not conduct resistance, diode, capacity or continuity measurements on live circuits.
	When measuring currents up to 10A, max. 15s continuous measurement followed by a 10 minutes break between 2 measurements.
	When carrying out measurements on a TV set or switching power circuits, always be aware that high amplitude voltage pulses at the test points might damage the meter.
	Do not replace internal parts yourself. Replace damaged or lost accessories by identical ones with the same specifications. Orders pare accessories e.g. test probes at your dealer.
	Switch off the meter and remove test probes prior to replacing the battery or fuses.
	All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

4. Overvoltage/installation category

DMMs are categorized depending on the risk and severity of transient overvoltage that might occur at the point of test. Transients are short-lived bursts of energy induced in a system, e.g. caused by lightning strike on a power line.

The existing categories according EN 61010-1 are:

CAT I		A CAT I-rated meter is suitable for measurements on protected electronic circuits which are not directly connected to mains power, e.g. electronics circuits, control signals...
CAT II		A CAT II-rated meter is suitable for measurements in CAT I-environments and monophase appliances which are connected to the mains by means of a plug and circuits in a normal domestic environment, provided that the circuit is at least 10m apart from a CAT III- or 20m apart from a CAT IV-environment. E.g. household appliances, portable tools...
DVM1400		Rev. 02
CAT III	A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) mono- or poly-ph ased appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment (fuse boxes, lighting circuits, electric ovens).
CAT IV	A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level.Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation category CAT III 600V. This implies that certain restrictions in use apply that are related to voltages and voltage peaks which can occur within the environment of use. Refer to the table above.

This device is suitable for measurements up to 600V on:

• Protected electronic circuits which are not directly connected to mains power, e.g. electronics circuits, control signals, circuits behind isolating transformer...
  • circuits which are directly connected to mains power, but limited to:

• measurements on mono-phase appliances which are connected to the mains by means of a plug
  ○ mono-phase appliances and circuits directly connected to the mains in a normal domestic environment, provided that the circuit is at least 10m apart from a CAT III- or 20m apart from a CAT IV-environment. E.g. household appliances, portable tools, light circuits at more than 10m from a distribution board ...

• measurements in/on low-voltage distribution boards (distribution boards behind meter box)

• measurements on (fixed) mono- or poly-phased appliances and circuits except in CAT IV-environments (e.g. mains outlets, electric overs, lighting circuits, bus bars, low-voltage distribution boards and circuit breakers).

This device is NOT suitable for:

• Volt ages above 6010V
- Mea surements on 1 distribution equipment and outdoor installations including meter boxes and equipment/circuits outside or remote from the domestic environment e.g.circuits in shed s, garden houses and free-standing garages , or circuits using underground wiring e.g. gard en lighting, pool-pump ...

This device is only suitable for measurements up to 600V in CAT III environments.

5. Pollution degree

IEC 610 10-1 specifies different types of pollution environments, for which different protective measures are necessary to ensure safety. Harsher environments require more protection, and the protection against the pollution which is to be found in a certain environment depends mainly on the insulation and the enclosure properties. The pollution degree rating of the DVM indicates that which environment the device may be used.

Pollution degree 1	Nopollution or only dry, nonconductive pollution occurs. The pollution has no influence (only to be found in hermetically sealed enclosures).
Pollution degree 2	Only nonconductive pollution occurs. Occasionally, temporary conductivity caused by condensation is to be expected (home and office environments fall under this category).
Pollution degree 3	Conductive pollution occurs, or dry nonconductive pollution occurs that becomes conductive due to condensation that is to be expected (industrial environments and environments exposed to outside air - but not in contact with precipitation).
Pollution degree 4	The pollution generates persistent conductivity caused by conductive dust or by rain or snow. (exposed outdoor environments and environments where high humidity levels or high concentrations of fine particles occur)

Warning:

This device was designed in accordance with EN 61010-1 pollution degree 2. This implies that certain restrictions in use apply that are related to pollution which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements in Pollution degree class 2 environments.

6. Description

Refer to the illustrations on page 2 of this manual.

a. Mul timeter

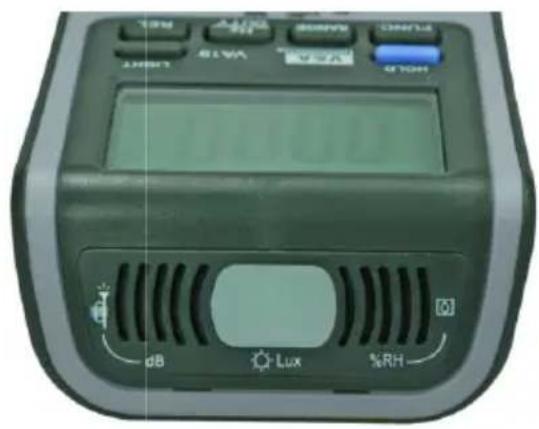

1. Sensors for sound, licht and humidity measurements
2. LCD
3. Function keys
4. rotary switch
5. 10A terminal
6. mA and thermo couple terminal
7. COM terminal
8. capacity, diode, frequency, resistance and voltage terminal
9. battery cover
10. stand

b. LCD

Symbol	Description
	Low battery.Warning: To avoid false readings, which could lead to possible electric shocks or personal injury, replace the battery as soon as the battery indicator appears.
	negative value
AC~	Indicator for alternating current or voltage
DC~	Indicator for direct current or voltage
AUTD	The meter is in auto-ranging mode.
	The meter is in diode test mode.
	The meter is in continuity check mode.
H	data hold function enabled
REL	relative measurement function enabled
LUX light me asuring mode
x10 Lux x10 ligh t measurement mode
dB sound m easuring mode (deciBell)
%RH humidit y measurement mode
1°C: tempera ture measuring mode (precision 1°C)
0.1°C tempera ture measuring mode (precision 0.1°C)
% °C °FkMΩHznμm F'AV	Measurement units.
OL	Overrang e indication

c. Key pad

Key	Mode	Description
SELECT	, , ·, , , V, mA, A	Select resistance, diode, cont inuity or capacity test.Select DC or AC current.
HOLD	All	Press to enter and exit the data hold mode.
RANGE	V, , mA	Press to enter the manual ranging mode and select the range (press multiple times to browse through the available ranges).

DVM1400			Rev. 02
		Press and hold for 2 seconds to return to auto-ranging mode.
REL	V, Ω, ‰, †, %RH, dB, LUX, mA, A	°C, Press to enter and exit the relative measurement function.
Hz/DUTY	V, Hz, mA, A	Press to start frequency/cyclic ratio measurement. ((press multiple times to browse through the available functions).
LIGHT	All	Press to switch LCD backlight on or off.

7. Operation

Risk of electric shock during operation. Be very careful when measuring live circuits.

Before measuring, always make sure the meter and/or test probes are not damaged and verify the connections, selected function and range. Use measuring probes that are suitable for the selected rmeasuring mode.

• Nev or exceed the limit value for protection. This limit value is listed separately in the specifications for each range of measurement.
• Do not touch unused terminals when the meter is linked to a circuit which is being tested.
• The capacity measuring probes are only suitable for capacity, diode and resistance measurements on circuits that are not under tension. Remove all measuring probes when measuring temperature, humidity, sound level or light measurements.
• Only use the meter in the indicated overvoltage/installation category. Never measure voltages that might exceed the indicated category values.
• Disc onnect the test leads from the tested circuit before rotating the range selector in order to change functions.
• When carrying out measurements on a TV set or switching power circuits, always remember that high amplitude voltage pulses at the test points might damage the meter.
• Alw ays be careful when working with voltages above 60Vdc or 30Vac rms. Keep your fingers behind the probe barriers at all times during measurement.
• Do not measure current in circuits with voltages > 250V
• Never perform resistance, diode, continuity or capacitance measurements on live circuits. Make sure all capacitors in the circuit are discharged.

"Hold" Function:

Press the "HOLD" button to freeze the value onto the display. The Hymb ol appears on the display. Press again to resume normal operation.

"RANGE" function:

Press the RANGE button to switch between automatic and manual range selection. When switching on the meter it will be in auto-ranging mode; the AUTO icon is shown on the display. The meter chooses the most suitable range for the selected function. When desired the range can be selected manually by pressing the RANG E button. Press multiple times to scroll through the available ranges. To return to auto-ranging press; and hold the RANGE button for 2 seconds.

"Hz/DUTY" function:

Push the Hz/DUTY button in V, 400mA en 10A modeto display the frequency or duty cycle of the measured signal. In Hz mode this button is used to switch between frequency and duty cycle display.

"REL" function: (not available in frequency measuring mode)

Press the REL button during measurement to start the relative measurement function. The currently measured value is stored as reference and the display shows 000.0. Every change in the circuit is now displayed as the difference compared to the reference value. The REL symbol is shown on the display when the meter is in relative measuring mode. Press the REL button again to quit this function.

"Light" Function:

Press the LIGHT button to switch on the backlight. The backlight will switch off automatically after 5 seconds.

Automatic battery saving mode:

This function switches the meter to battery saving mode after 15 min. Push any button or move the rotary switch to reactivate the meter.

7.1 Voltage measurements

Do not measure circuits in a CATIV environment or where voltages > 600V may occur.

Always be careful when working with voltages above 60Vdc or 30Vac rms. Keep your fingers behind the probe barriers at all times during measurement. Do not touch unused terminals when the meter is linked to a circuit which is being tested.

• Con nect the black test lead to the COM jack and the red test lead to the HzVΩ jack.
• Set the rotary selector to a rd press the FUNC. button to choose between AC measurements AC or DC measurements DC.
• Con nect the test leads to the circuit under test.
• The measured value appears on the display.
• When desired, select a range manually with the RANGE button.
• Pres is the Hz/DUTY button to see the frequency or duty cycle of the measured voltage (frequency range 40Hz\~400Hz). Press again to return to voltage display.

Notes:

• For DC-measurements: when a negative polarity is present at the red test lead, the indicated value is preceded by a "-" sign.
• When the measured value is higher than the selected range limit, the display will show "OL". Select a higher range.

7.2 Current measurements

Do not measure current in circuits with voltages > 600V

Current measurements: 400mA jack max. 400mA; for measurements up to 10A use the 10A jack. When measuring currents up to 10A, max. 15s continuous measurement followed by a 10 minutes break between 2 measurements.

Always be careful when working with voltages above 60Vdc or 30Vac rms. Keep your fingers behind the probe barriers at all times during measurement.

• For measurements up to 400 mA: connect the red test lead to the "mA°C" jack and the black lead to the "COM" jack.
• For measurements up to 10A: connect the red test lead to the "10A" jack and the black lead to the "COM" jack.
• Set the rotary selector to 10A for measurements up to 10A on the 10A jack. Warning: the 10A jack is not fuse protected.
• Set the rotary selector to 400mA for measurements up to 400mA on the mA°C jack.
• When the range is unknown, always select the highest possible range and lower to the appropriate range.
• Select the AC or DC range with the FUNC. button (AC alter nating current, direct current).
• Con nect the test probes in series with the circuit.
• Read the measured value from the display.
• When desired, select a range manually with the RANGE button.
• Pres is the Hz/DUTY button to see the frequency or duty cycle of the measured voltage (frequency range 40Hz\~400Hz). Press again to return to voltage display.

Notes:

• For DC-current measurements, when a negative polarity is present at the red test lead, the indicated value is preceded by a "-" sign.
• The 400mA-range is protected against over-current with an F500mA 600V fuse; the 10A-range is not protected.
• When measuring up to 10A, max. 15s continuous measurement followed by a 10 minutes break between 2 measurements.

- When the measured value is higher than the selected range limit, the display will show "OL". Select a higher range.

7.3 Resistance measurements

Do not perform resistance measurements on live circuits.

• Con nect the red test lead to the "-H≥VΩ" j ack and the black lead to the "COM" jack.
• Set the rotary switch to
• When necessary, push the FUNC. button to select resistance measurement (Ω).
• Con nect the test probes to the circuit/component under test.
• The measured value appears on the display.
• When desired, select a range manually with the RANGE button.

Notes:

• N ever perform resistance measurements on a live circuit and make sure all capacitors are completely discharged.
  To increase accuracy when measuring low resistance values, first hold the tips of the measuring probes together. Press the REL button to set the display to 000.0.
• Fo r resistance measurements a bove 1MΩ the meter needs a few seconds to stabilize the read-out.
• Sh ould the measured resistance exceed the selected range or in case of an open circuit, the display will show "OL".

7.4 Continuity & diode test

Do not perform continuity or diode measurements on live circuits.

• Con nect the black test lead to the COM jack and the red test lead to the -HzVΩ jack.
• Set the rotary selector to + + + .

Continuity test

• Press the FUNC. button until the symbol I appears on the display.
• Connect the test leads to the circuit undertest.
• When the measured resistance is less than 40Ω a continuous beep is produced and the resistance value is showed on the display. Should the measured resistance exceed the 400Ω or in case of an open circuit, the display will show "OL".

Diode test

• Press the FUNC. button until the symbol appears on the display.
• Connect the red test lead to the anode; connect the black test lead to the cathode of the diode. The meter will display the approximate forward voltage drop. If the lead connection is reversed, the meter will display "OL".

Notes:

• Never perform continuity or diode measurements on a live circuit and make sure all capacitors are completely discharged.
• Measuring diodes that are part of a circuit might produce faulty results. Consider disconnecting them from the circuit.

7.5 Capacitance measurements

Do not perform capacitance measurements on live circuits.

• Con nect the red test lead to the "-|→HzVΩ" jack and the black lead to the "COM" jack.
• Set the rotary switch to + +
• Push the FUNC. button to select capacitancem easurement (1 F).
• Con nect the test probes to the capacitor. Mind the polarity when measuring polarized capacitors (red = "+", black = "-").
• The capacitance value is shown on the display.

Notes:

- It takes a few seconds before the meter stabilizes. This is normal behaviour.

To increase accuracy when measuring low capacitance values (<50nF), first hold the tips of the measuring probes together. Then press the REL button to set the display to 000.0.
- When the capacity is higher than the measuring range, the display shows 'OL'.
- Never perform capacitance measurements on a live circuit and make sure all capacitors are completely depleted.

7.6 Frequency measurements

Voltage range frequency measurements: 0.5Vrms \~ 10Vrms

Always be careful when working with voltages above 60Vdc or 30Vac rms. Keep your fingers behind the probe barriers at all times during measurement. Do not touch unused terminals when the meter is linked to a circuit which is being tested.

• Con nect the red test lead to the "-||►HzVΩ" jack and the black lead to the "COM" jack.
• Set the rotary switch to Hz.
• Con nect the test probes to the circuit.
• The frequency is shown on the display.

Notes:

• When the frequency is higher than the measuring range, the display shows 'OL'.
  Frequency and duty-cycle can also be measured by pressing the Hz/DUTY button when in alternating current or voltages measuring mode (see §7.1 or §7.2)
• Use a shielded cable for measuring small signals in a noisy environment.

7.7 Temperature measurements

Do not touch any live parts with the temperature measuring probe. Only use the included the rmocouple.

• Con nect the black plug with the COM and the red plug to mA°C- bus.
• Set the rotary switch to the 1^ range or select the 0.1^ range for more accurate measurements.
• Hold the tip of the thermo couple against the object under test.
• The temperature is shown on the display.

Note:

- When no temperature measuring probe is connected, the current environmental temperature is displayed.

7.8 Measuring relative humidity, sound level and illumination

Remove all test probes from the jacks when measuring humidity, sound level or illumination.

- Set the rotary switch to:

• %RH for measuring relative humidity. The relative humidity of the environment is shown on the display.
  o dB for measuring sound level. The sound level of the environment is shown on the display.
• x10Lux for measuring strong illuminations. The intensity of the light that hits the sensor is shown on the display. Multiply this value by 10 to get the correct value.
  o Lux for measuring low level illuminations. The intensity of the light that hits the sensor is shown on the display. When in doubt about the intensity range, first select the x10Lux range and switch to the Lux range when possible.

- Not es:

- Illuminance may vary strongly without being perceived with the eye. For reference only:

Sunlight: 100 000 - 130 000 lu x

Daylight (indirect sunlight): 10 0 00 - 20 000 lux

Clouded day: 1000 lux

Office: 500 lux

Twilight: 10 lux

Full moon: 0.1 lux

Clo udu night without moon: 0,000 01 lux

8. Cleaning and maintenance

Do not replace internal parts yourself. Replace damaged or lost accessories by identical cnes with the same specifications. Order spare accessories e.g. test probes at your dealer.

WARNING:

To prevent fire, use proper fuses

Remark: refer to the warning on the back of the meter (top).

Switch off the meter and remove test leads prior to replacing the battery or fuses.

WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing.

Remark: refer to the warning on the back of the meter

a. General mainenance:

- Wip ∈ the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.

b. Fuse Replacement

• Remove test probes from the circuit under test. Remove the test probes from the input jacks.
• Switch off the multi-meter.
• Remove the 4 screws at the back and gently open the meter.
• Remove the fuse from the fuse holder and replace it with a new fuse of the same type and with the same specifications (F500mA/600V, ∅ 5 x 20mm).
• Clos e the meter carefully.

c. Battery Replacement

• Remove the battery as soon as the "indication appears on the display.
• Remove test probes from the circuit under test. Remove all test leads from the input jacks.
• Swit ch off the multi-meter.
• Release the two screws at the back of the meter and open the battery compartment.
• Replace the battery by a new battery of the same type and with the same specifications (6LR61/6F22 9V alkaline, do not use rechargeable batteries)
• Clos e the battery compartment carefully.

Notes:

• Never open the housing when test leads are connected to the input jacks.
• Do not try to repair or calibrate the meter yourself; contact your dealer.
  ○ Replace damaged accessories immediately; order them at your local dealer.
• Do not use the meter when t is damaged.
• When the meter is not used for a longer period of time, the battery should be removed to avoid leakage.

Accessories:

• Use this device only with the included or similar measuring probes.
• Spe cifications:

o Test lead with measuring probes: 1000V CAT III - 10A - Class II, double insulated
o Temperature probe: Type K thermocouple Chromel/Alum e I

9. Technical specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

• Use this meter only for measurements in CAT I, CAT II and CAT III environments (see §4)
• Use this meter only in a pollution degree 2 environment (see §5)

Ideal temperature		18 -28°C
Ideal relative humidity		75 %
Max. altitude		20 00m
Overvoltage/installation category		6 0 0V CAT. III
Pollution degree		Po llution degree 2
Operating temperature		0°C~40°C (RH<80%)
Storage temperature		-10°C~60°C (RH<70, store without batteries!)
fuses		mA range F500mA / 600V, 5 × 20mm
DVM1400		Rev. 02
display	3 5/6-digit LCD
sampling frequency	2x/sec.
Overrange indication	yes ('OL')
Low battery indication	yes ( )+
Polarity indication	'- automatic incication
"Hold" function	yes
Backlight function	yes (white)
Automatic switch off	yes
Power	1 x 9V 6LR61 / 6F22 battery (do not use rechargeable batteries)
Dimensions	180 x 85 x 45mm
Weight	± 280g (battery incl.)
Accessoires	user manual, test probes, battery, temperat ure probe

9.1 Voltage

Function	Range	Resolution	Accuracy
DC-voltage V	400mV	0.1mV	± 0.7% + 2 digits
	V	1mV
	40V	10mV
	400V	100mV
	600V	1V	± 1.0% + 2 digits
AC voltage^1,2 V~	V	1mV	± 0.8% + 3 digits
	40V	10mV
	400V	100mV
	600V	1V	± 1.5% + 5 digits

^1 Frequency range: 40Hz \~ 400Hz
^2 Response: average, RMS
Max. input voltage: 600V
Input impedance: 10MΩ

9.2 Current

Function	Range	Resolution	Accuracy
DC 400mA~	40mA	0.01mA	±1.2% + 3 digits
	400mA	0.1mA
DC 10A~	10A	10mA	±2.0% + 10 digits
AC ^1,2 400mA~	40mA	0.01mA	±1.5% + 5 digits
	400mA	0.1mA
AC ^1,2 10A~	10A	10mA	±3.0% + 10 digits

^1 Frequency range: 40Hz\~400Hz
^2 Response: average, rms
Overload protection: F500mA/600V fuse for 400mA range, 10A range not protected
Max. Input current: 10Arms for 10A range, 400mArms for 400mA range
For measurements up to 10A: max. 15sec. continuous measurement with a 10 minutes break between 2 measurements

9.3 Resistance

Function	Range	Resolution	Accuracy
Resistance Ω	400Ω	0.1Ω	± 1.2% + 2 digits
	4kΩ	1Ω
	40kΩ	10Ω
	400kΩ	100Ω
	4MΩ	1kΩ
	40MΩ	10kΩ	± 2.0% + 5 digits

Open circuit test voltage: 0.25Vdc
Max. user safe input voltage: 250Vrms

9.4 Diode/continuity

Function	Range	Resolution
Diode test ➤	-	0.001V	approximate forward voltage drop
Continuity ➤	400Ω	0.1Ω	Buzzer when R: ≤ 40Ω

DC forward current: ± 1mA
DC reverse voltage: ± 1.5V
Max. user safe input voltage: 250Vrms
Open circuit test voltage ± 0.5V

9.5 Capacity

Function	Range	Resolution	Accuracy
Capacity ‡	4nF	1pF	± 3.0% + 3 digits
	40nF	10pF
	400nF	100pF
	4μF	1nF
	40μF	10nF
	200μF	100nF	± 8.0% + 10 digits

Max. user safe input voltage: 250Vrms

9.6 Frequency/ Duty-cycle

Function	Range	Resolution	Accuracy
Frequency Hz(0Hz~200kHz)	9.999Hz	0.001Hz	±2.0% + 5 digits
	99.99Hz	0.01Hz	±1.5% + 5 digits
	999.9Hz	0.1Hz
	9.999kHz	1Hz
	99.99kHz	10Hz	±2.0% + 5 digits
	1999KHz	100Hz
	>200kHz	-	reference
Duty-cycle %	0.1~99%	0.1%	±0.3%

Voltage range: 0.5 \~ 10Vrms
Frequency range: 0-200kHz
Max. user safe input voltage: 250Vrms

9.7 Temperature

Function	Range	Resolution	Accuracy
Temperature °C1	-20C°~0°C	0.1°C	±5.0% + 3 digits
	0°C~20°C		±3.0% + 3 digits
	20°C~400°C		±2.0% + 3 digits
	-20C°~0°C	1°C	±5.0% + 5 digits
	0°C~20°C		±1.0% + 3 digits
	20°C~400°C		±2.0% + 3 digits

^1 Temperature specifications do not include errors in the thermocouple.
Max. user safe input voltage: 250Vrms

9.8 Relative humidity, sound level and illumination

Function	Range	Resolution	Accuracy
relative humidity %RH	30~90%	0.1%	± 5.0%RH
sound level dB	35~100dB	0.1 dB	±5.0% @ 94dB
illumination Lux	4000	1 Lux	±5.0% + 10 digits
illumination x10 Lux	40000	10 Lux

Operating temperature: 0°C\~40°C
Response time:
45%RH > 90%RH: ≤ 10min
90%RH > 45%RH: ≤ 15min
Sound level calibrated with sine, frequency 1 kHz

Frequency range: 100 Hz\~10 kHz

Illumination calibrated at colour temperature of 2856K (incandescent lamp)

Max. user safe input voltage: 250Vrms

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For more info concerning this product and the latest version of this user manual, please visit our website www.velleman.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman rv. All worldwide rights reserved. No part of this manual or may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

DVM1400				Rev. 02
	40MΩ	10kΩ	± 2.0% + 5 digits

© INFORMACJA O PRAWACH WŁASNOŚCI.

Velleman® Service and Quality Warranty

Velleman ^® has over 35 years of experience in the electronics world and distributes its products in more than 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- frequently replaced consumable goods, parts or accessories such as batteries, lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc.;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article; - all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman ^ dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs. - The above conditions are without prejudice to all commercial warranties. The above enumeration is subject to modification according to the article (see article's manual).

NL
