USER MANUAL Calatrava Patek Philippe
MANUALLY WOUND MOVEMENTS
ENGLISH 5
FRANÇAIS 21
DEUTSCH 37
ITALIANO 53
ESPAÑOL 69
日本語. 85
繁體中文....101
简体中文....117
MANUALLY WOUND MOVEMENTS
16-250
177 SQU
215
215 PS
215 PS LU
25-21 REC
25-21 REC PS
17" SAV PS
17" SAV PS IRM
17" LEP PS IRM
17" LEP PS
bar
| Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of bars] / [values] * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars). The values in the table represent the sum of the bars and the corresponding sum of the bars. There is no additional data series or categories specified in the code.INSTRUCTIONS

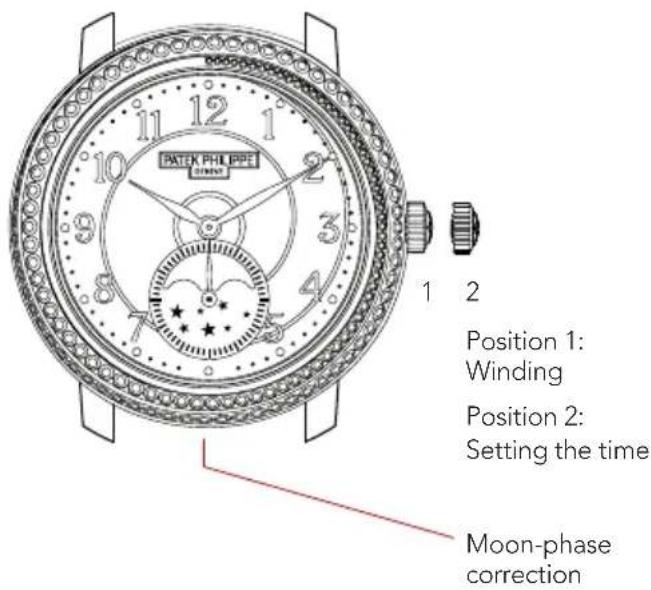

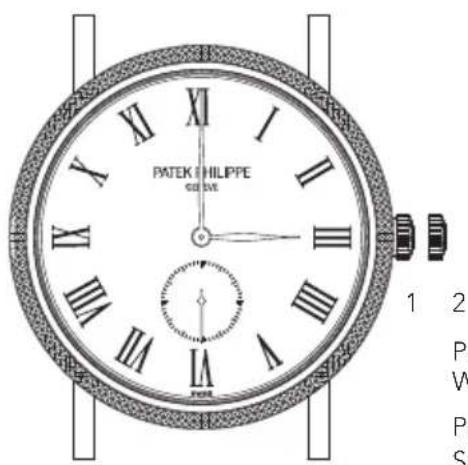

WINDING CROWN
The winding crown is used to wind the watch (position 1) and to set the time (position 2).
Position 1:
Winding
Position 2:
Setting the time
MANUAL WINDING
Crown pushed home: To wind the watch. We recommend that you wind your watch daily at about the same time, preferably in the morning. Please wind the watch before you put it on. This way, you can avoid lateral pressure on the winding stem, which in the course of the years could damage the stem tube.
SETTING THE TIME
To set the time, gently pull the winding crown all the way out and turn it clockwise or counterclockwise. Once the correct time is set, press the crown home again.
8
Caution: Please set the time before you put the watch on. This prevents lateral pressure on the winding stem. Please use your fingernails to pull the crown out and turn it gently between two fingertips.
Never pull the crown out in a humid environment or underwater: the water resistance of your watch is assured only when the crown is pushed home.
SETTING THE MOON PHASE
Before you set the moon-phase display, make sure the watch is wound and set to the correct time.
We recommend that you set the moon phase between 8 a.m. and 4 p.m. or between 8 p.m. and 4 a.m. Outside these time windows, the automatic moon-phase switching mechanism might be active and prevent correct setting. However, this would not damage the movement.
Note: The moon-phase corrector of the Ref. 7121 is located at 8 o'clock, not at 6 o'clock.
The moon-phase display can be advanced in steps of 24 hours by pressing the push piece at 6 o'clock all the way in. If you press the push piece only half-way in, the moon-phase display will be advanced in steps of 12 hours.
Begin by advancing the lunar disc until the full moon is displayed in the aperture. Now, determine the date of the last full moon in the “Full Moon Calendar” brochure or in a moon-phase calendar. To correctly set the moon phase, press the push piece all the way in as many times as days have elapsed since the last full moon.
The exact moon phase for a given date can also be found at www.patek.com. Click on: >Collection >Movements-Complications> The moonphase indicator.
Caution: The push piece should be actuated only with the correction stylus delivered with the watch. The use of any other tool could damage your timepiece.
TAKING CARE OF YOUR WATCH
CERTIFICATE OF ORIGIN
Your watch is delivered with a certificate of origin that indicates the movement and case numbers. The certificate is valid only if it is dated, signed by an Authorized Patek Philippe Retailer, and completed with your name. It guarantees the authenticity of your watch and validates your warranty privileges for a period of two years after the date of sale. The unique movement and case numbers of each watch are transcribed into the workshop journals. With this information, you may have yourself entered in the “Patek Philippe Register of Owners” and will obtain the International Patek Philippe Magazine free of charge.
PATEK PHILIPPE SEAL
As an all-encompassing hallmark of quality, the Patek Philippe Seal applies to the entire watch, including the movement, case, dial, hands, pushers, strap, and clasp as well as to all other facets that contribute to the precision and aesthetic perfection of the timepiece. It covers the technical, functional, and aesthetic factors, but also rate accuracy, dependability, and customer service quality. Additionally, it reflects the maker's know-how and all other assets needed for the development, production, and long-term maintenance of an extraordinary timekeeping instrument.
The movements and completely assembled watches are subject to a series of technical tests and visual inspections to verify their rate accuracy, winding speed, power reserve, reliability, water resistance, and overall appearance. After it was assembled, your manually wound watch will already have run for 14 days before leaving the workshops; it fully complies with the stringent criteria of the Patek Philippe Seal.
RATE ACCURACY
The rate accuracy of Patek Philippe watches is verified in several phases of manufacturing, both with uncased and fully cased movements. The final test is performed with a wrist motion simulator and the results must conform to the following Patek Philippe precision benchmarks:
The rate accuracy of calibers with a diameter of 20 mm or larger must range within -3 and +2 seconds per 24 hours.
The rate accuracy of calibers with a diameter of less than 20 mm must range within -5 and +4 seconds per 24 hours.
The precision of a watch is determined by how accurately it keeps the time. A watch that is fast or slow is considered precise if the amount by which it is fast or slow remains constant. Such a deviation can be easily corrected. The last test of accuracy takes place on your wrist. Your temperament or the nature of your physical activities can cause slight irregularities. Fluctuations in position, temperature, or air pressure, the presence of magnetic fields (as produced by most electronic devices, metal detectors, household appliances, etc.) as well as vibrations and other factors may also affect its accuracy.
If you notice that your watch exhibits such irregularities, please do not hesitate to take it to an Authorized Patek Philippe Retailer or an Authorized Service Center where no effort will be spared to assure that it is adjusted to meet your expectations.
WATER RESISTANCE
Your watch is fitted with different types of seals to protect the movement against the ingress of dust and moisture and to prevent damage if it is immersed in water. Nonetheless, we recommend that you prevent direct contact with water if your watch has a leather strap.
SERVICE
We recommend that you have your watch serviced every three to five years. For this purpose, we suggest that you bring or send your watch to an Authorized Patek Philippe Retailer or an Authorized Service Center. This gives you the assurance that your watch will be entrusted to hands of a qualified Patek Philippe watchmaker in Geneva or at one of the Authorized Service Centers worldwide.
The watchmaker will completely disassemble the movement and then clean and inspect all parts and lubricate them in the reassembly process. All functions of the watch will also be tested in detail and the escapement regulated if necessary. Finally, its rate accuracy will be monitored and precision-adjusted for a further period of two weeks. The entire process may take several weeks because each watch must undergo a complete series of tests to fulfill the strict quality criteria of Patek Philippe.
If you have any questions regarding the maintenance of your watch or need the address of the Authorized Patek Philippe Service Center nearest you, contact our International Customer Service department in Geneva, or visit www.patek.com.


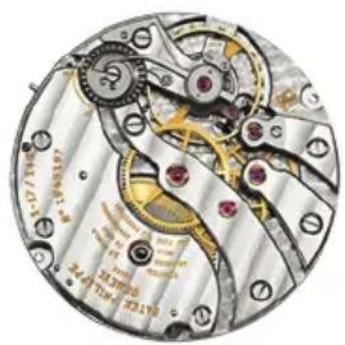

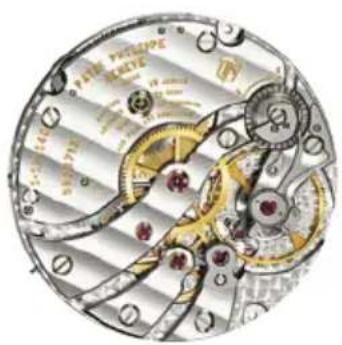

MANUALLY WOUND MECHANICAL MOVEMENT
CALIBER 16-250
Patek Philippe's smallest mechanical movement, developed especially for ladies' watches.
DIAMETER 16.3 mm
HEIGHT 2.5 mm
NUMBER OF PARTS 101
NUMBER OF JEWELS 18
POWER RESERVE Min. 38 hours
BALANCE Annular
FREQUENCY 28,800 semi-oscillations/hour (4 Hz)
BALANCE SPRING Flat
HALLMARK Patek Philippe Seal
DISPLAYS Hours and minutes


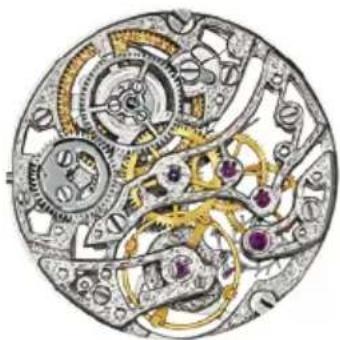

ULTRA-THIN MANUALLY WOUND MECHANICAL MOVEMENT CALIBER 177 SQU
The skeletonized caliber 177 SQU ranks among the thinnest and technically most sophisticated mechanical movements currently in production. The skeletonizing and chamfering work is performed entirely by hand.
| DIAMETER 20.8 mm | ||
| HEIGHT 1.77 mm | ||
| NUMBER OF PARTS | 112 | |
| NUMBER OF JEWELS | 18 | |
| POWER RESERVE Min. 43 hours | ||
| BALANCE | Gyromax® | |
| FREQUENCY | 21,600(3 Hz) | semi-oscillations/hot |
| BALANCE SPRING | Flat | |
| DISPLAYS Hours and minutes | ||


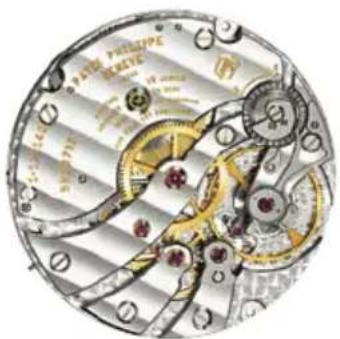

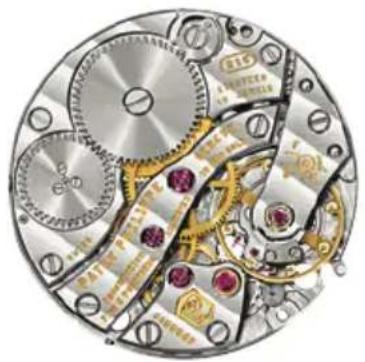

MANUALLY WOUND MECHANICAL MOVEMENT
CALIBERS 215 AND 215 PS
Most manually wound men's wristwatches are equipped with the caliber 215 that thanks to its longevity, reliability, and rate accuracy made a significant contribution to the solid reputation of Patek Philippe watches.
DIAMETER 21.9 mm
HEIGHT 2.55 mm
NUMBER OF PARTS 130
NUMBER OF JEWELS 18
POWER RESERVE Min. 44 hours
BALANCE Gyromax®
FREQUENCY 28,800 semi-oscillations/hour (4 Hz)
BALANCE SPRING Spiromax®
HALLMARK Patek Philippe Seal
DISPLAYS 215 Hours and minutes
215 PS Hours, minutes, seconds
at 6 o'clock


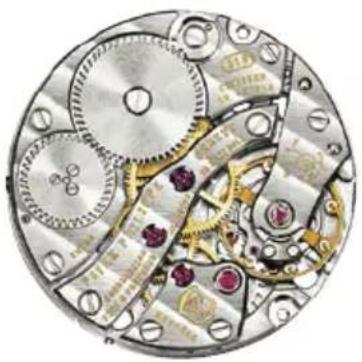

MANUALLY WOUND MECHANICAL MOVEMENT
CALIBER 215 PS LU
As the latest movement in the 215 family, the caliber 215 PS LU stands out with an extremely precise moon-phase display.
DIAMETER 21.9 mm
HEIGHT 3 mm
NUMBER OF PARTS 157
NUMBER OF JEWELS 18
POWER RESERVE Min. 39 hours - max. 44 hours
BALANCE Gyromax®
FREQUENCY 28,800 semi-oscillations/hour (4 Hz)
BALANCE SPRING Spiromax®
HALLMARK Patek Philippe Seal
DISPLAYS Hours, minutes, moon phases
and seconds at 6 o'clock


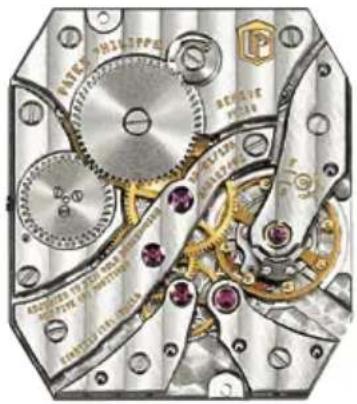

MANUALLY WOUND MECHANICAL MOVEMENT
CALIBERS 25-21 REC AND 25-21 REC PS
The architecture of Patek Philippe's manually wound rectangular caliber 25-21 REC reflects the technical and aesthetic finesse that made the Chronometro Gondolo a feast for the eyes in the early 20th century.
DIMENSIONS 25×21.9 mm
HEIGHT 2.57 mm
NUMBER OF PARTS 142
NUMBER OF JEWELS 18
POWER RESERVE Min. 44 hours
BALANCE Gyromax®
FREQUENCY 28,800 semi-oscillations/hour (4 Hz)
BALANCE SPRING Flat
HALLMARK Patek Philippe Seal
DISPLAYS 25-21 REC Hours and minutes
25-21 REC PS Hours, minutes, seconds at 6 o'clock


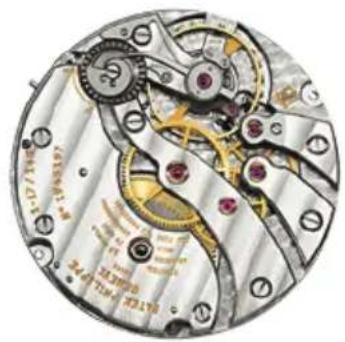

MANUALLY WOUND MECHANICAL MOVEMENT
CALIBERS 17" SAV PS AND 17" LEP PS
DIAMETER 38.65 mm
HEIGHT 3.8 mm
NUMBER OF PARTS 137
NUMBER OF JEWELS 18
POWER RESERVE Min. 50 hours
BALANCE Plain with screws
FREQUENCY 18,000 semi-oscillations/hour (2.5 Hz)
BALANCE SPRING Breguet
HALLMARK Patek Philippe Seal
DISPLAYS Hours, minutes, seconds at 6 o'clock
MANUALLY WOUND MECHANICAL MOVEMENT
CALIBERS 17" SAV PS IRM AND 17" LEP PS IRM
DIAMETER 38.65 mm
HEIGHT 3.8 mm
NUMBER OF PARTS 17" SAV PS IRM 154
17" LEP PS IRM 158
NUMBER OF JEWELS 20
POWER RESERVE Min. 36 hours
BALANCE Plain with screws
FREQUENCY 18,000 semi-oscillations/hour
(2.5 Hz)
BALANCE SPRING Breguet
HALLMARK Patek Philippe Seal
DISPLAYS Hours, minutes, seconds
at 6 o'clock, power-reserve
indication at 12 o'clock
