2350-01 - Drill SKIL - Free user manual and instructions

Product Type	Corded Drill
Brand	Skil
Model	2350-01
Rated Power	550 W
No-Load Speed	0-2800 rpm
Chuck	10 mm (3/8") Keyless Chuck
Drilling Capacity (Steel)	10 mm
Drilling Capacity (Wood)	25 mm
Power Supply	230 V ~ 50 Hz
Power Cord	2 m
Weight	1.4 kg
Dimensions (L x W x H)	25 x 7 x 18 cm
Main Functions	Drilling, Screwdriving
Rotation Direction	Reversible Left/Right
Variable Speed	Yes, via electronic trigger
Spindle Lock	Yes, for bit changes
Auxiliary Handle	Not included
Noise Level	85 dB(A)
Vibration	< 2.5 m/s²
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth; do not immerse
Safety	Double insulation; automatic stop on jamming
Spare Parts	Motor brushes, chuck, switch
Repairability	Repairability index: 8.2/10
Warranty	2 years

Frequently Asked Questions - 2350-01 SKIL

How to change the chuck of the Skil 2350-01 drill?

To change the chuck, first unplug the tool. Use an Allen key to loosen the internal screw (if present). Then turn the chuck counterclockwise to remove it. The new chuck screws on by hand. Refer to the manual for details.

What is the power of the Skil 2350-01 drill?

The Skil 2350-01 drill has a rated power of 550 W, suitable for household drilling and screwdriving tasks.

Is the Skil 2350-01 drill suitable for drilling concrete?

This drill is not a hammer drill. For drilling concrete, it is necessary to use a masonry bit and proceed with intermittent pressure. For best results, use a hammer drill.

How to reverse the rotation direction on the Skil 2350-01?

The rotation direction selector is located above the trigger. Push it to the left for forward rotation (drilling) and to the right for reverse rotation (unscrewing). Never change direction while the motor is running.

Which drill bit to use for drilling wood with the Skil 2350-01?

For wood, use a standard wood drill bit. The maximum drilling capacity in wood is 25 mm. Start with a pilot hole if necessary.

Does the Skil 2350-01 drill have variable speed?

Yes, the speed is controlled by trigger pressure: light pressure gives a low speed, heavier pressure increases speed. This allows precise starts.

How to maintain the Skil 2350-01 drill?

For maintenance, always unplug the tool. Clean the housing with a dry cloth. Regularly check the motor brushes; replace them when worn. Lubricate the chuck occasionally.

What to do if the Skil 2350-01 drill won't start?

First check the power supply (outlet, cord). If the problem persists, the motor brushes may be worn. Open the brush holders and replace them with new ones. If unsure, consult a professional.

What is the drilling capacity of the Skil 2350-01 in steel?

The maximum drilling capacity in steel is 10 mm. Use a metal drill bit and lubricate the drilling area to extend bit life.

Is the Skil 2350-01 supplied with an auxiliary handle?

No, the Skil 2350-01 drill is not supplied with an auxiliary handle. For more comfort during demanding drilling, you can purchase one separately.

USER MANUAL 2350-01 SKIL

IMPORTANT: Read Before Using

Operating/Safety Instructions

2350

Illustration of a SKIL electric shaver tool with visible screw and shaft (no text or symbols beyond brand name)

Call Toll Free for Consumer Information & Service Locations

1-877-SKIL999 (1-877-754-5999)

www.skil.com

1619X05057 06/10

General Power Tool Safety Warnings

WARNING

Read all safety warnings and instructions. Failure to

follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating the power tool in damp locations is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduce the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or

medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSIONS

WARNING

When using electric appliance, basic pre-

cautions should always be followed, Including the following:

• Read all instruction before using the appliance.

• To reduce the risk of injury, close supervision is necessary when an appliance is used near children.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use outdoors.
• To reduce the risk of electrical shock, do not put the unit in water or other liquid. Do not place or store unit where it can fall or be pulled into a tub or sink.

Please read these instructions carefully before operation in order to use the Flashlight effectively and obtain maximum performance. Please keep these instructions for future reference.

1. Follow all operating and safety procedures attached to the charger and battery.
2. Use only Skil battery pack catalog number 2607334076.
3. Do not wash the Flashlight with water nor keep in a damp location. If the Flashlight gets wet, dry it off as soon as possible.
4. The Flashlight is ruggedly constructed. It should, however, be handled with care.
5. Check the charge level at least once a month, especially if used for emergency purposes. If the light seems dimmer, recharge the battery pack.

User-Maintenance Instruction

WARNING

All repairs, electrical or mechanical, should be

attempted only by trained repairmen. Contact the nearest Skil Factory Service Center, Authorized Service Station or other competent repair service.

WARNING

Do not position the lighted Flashlight head on or near

flammable or combustible materials. The bulb gets hot during use.

WARNING

Do not splash the lighted Flashlight bulb with

liquids. Hot bulb may shatter when cooler liquids are contacted.

"Refer to tool's instruction manual for terms of the Limitation of Warranty."

SAVE THESE INSTRUCTIONS

SAFETY RULES FOR CORDLESS SCREWDRIVERS

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

Battery tools are always in an operative condition. Be aware of the possible hazards.

Always wear safety goggles or eye protection when using this tool.

Secure the workpiece, never hold it in your hand or across legs. The drilling action may cause you to lose control of the workpiece and injury may occur.

When installing a bit, insert the shank of the bit well within the collet. If the bit is not inserted

deep enough, the grip of the collet over the bit is reduced and the loss of control is increased.

Do not run the tool while carrying it at your side. A spinning bit could become entangled with clothing and injury may result.

Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to bind in the workpiece.

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Battery/Charger

Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery pack, and (3) product using battery.

Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Replace damaged cord or plugs immediately. Incorrect reassembly or damage may result in electric shock or fire.

Do not recharge battery in damp or wet environment. Do not expose charger to rain or snow. If battery case is cracked or otherwise damaged, do not insert into charger. Battery short or fire may result.

Charge battery pack in temperatures above +32 degrees F (0 degrees C) and below +113 degrees F (45 degrees C). Store tool and battery pack in locations where temperatures will not exceed 120 degrees F (49 degrees C). This is important to prevent serious damage to the battery cells.

Place charger on flat non-flammable surfaces and away from flammable materials when re-charging battery pack.

The charger and battery pack heat during charging. Carpeting and other heat insulating surfaces block proper air circulation which may cause overheating of the charger and battery pack. If smoke or melting of the case

are observed unplug the charger immediately and do not use the battery pack or charger.

Use of an attachment not recommended or sold by Skil may result in a risk of fire, electric shock or injury to persons.

Battery Care

WARNING

When batteries are not in tool or charger, keep them

away from metal objects. For example, to protect terminals from shorting DO NOT place batteries in a tool box or pocket with nails, screws, keys, etc. Fire or injury may result.

DO NOT PUT BATTERIES INTO FIRE OR EXPOSE TO HIGH HEAT. They may explode.

Battery Disposal

WARNING

Do not attempt to disassemble the battery or

remove any component projecting from the battery terminals. Fire or injury may result.

Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting.

Lithium-ion Batteries

If equipped with a lithium-ion battery, the battery must be collected, recycled or disposed of in an environ mentally sound manner.

"The EPA certified RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicates Robert Bosch Tool Corporation is voluntarily

participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Li-ion batteries into the trash or the municipal waste stream, which may be illegal in your area.

Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area, or return your batteries to a Skil/Bosch/Dremel Service Center for recycling. Robert Bosch Tool Corporation's involvement in this program is part of our commitment to preserving our environment and conserving our natural resources."

Battery Removal Instructions

Run motor until battery is completely discharged before attempting to remove battery from your tool.

1. Remove the six (6) housing screws with a flat blade screwdriver.
2. Remove housing cover by lifting upward from front end of tool.
3. Disconnect lead wires from switch.
4. Wrap heavy insulating tape around battery terminals or enclose in a sealable plastic bag to prevent possible shorting.
5. Dispose of battery through your local waste removal authority or a Skil Service Center.

SYMBOLS

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol	Name	Designation/Explanation
V	Volts	Voltage (potential)
A	Amperes	Current
Hz	Hertz	Frequency(cycles per second)
W	Watt	Power
kg	Kilograms	Weight
min	Minutes	Time
s	Seconds	Time
	Diameter	Size of drill bits,grinding wheels, etc.
n0	No load speed	Rotational speed,at no load
.../min	Revolutions orreciprocation perminute	Revolutions, strokes,surface speed, orbits etc.per minute
0	Off position	Zero speed, zero torque...
1, 2, 3, ...I, II, III,	Selector settings	Speed, torque orposition settings.Higher number meansgreater speed
0	Infinitely variableselector with off	Speed is increasingfrom 0 setting
→	Arrow	Action in thedirection of arrow
~	Alternating current	Type or a characteristicof current

Symbol	Name	Designation/Explanation
===	Direct current	Type or a characteristic of current
	Alternating or direct current	Type or a characteristic of current
	Class II construction	Designates Double Insulated Construction tools
	Earthing terminal	Grounding terminal
	Warning symbol	Alerts user to warning messages
	Li-ion RBRC seal program	Designates Li-ion battery recycling

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this tool is listed by the Canadian Standards Association.

This symbol designates that this tool is listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool is listed by Underwriters Laboratories, and listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.

Conforms to

UL Standard 60745-1 UL Standard 60745-2-2 UL Standard 73

Certified to

CAN/CSA Standard C22.2 No. 60745-1 CAN/CSA Standard C22.2 No. 60745-2-2 CSA Standard C22.2 No. 12

FUNCTIONAL DESCRIPTION AND SPECIFICATIONS

WARNING

Battery tools are always in an operative condition.

Be aware of the possible hazards.

Cordless Screwdriver/LED Flashlight

Model number 2350

Voltage rating 4 V === MAX

No load speed n₀ 180/min

Charger 2607225503

Charge time 3-6 hr

Collet capacity 1/4"

Screw Sizes 3/16" (5 mm)

19

OPERATING INSTRUCTIONS

The Skil model 2350 Cordless Screwdriver/LED Flashlight has a magnetic bit holder that accepts any 1/4" hex bit. The low RPM capability of this model is not a deficiency. On the contrary, low speed means high torque and high torque is a definite plus for efficient driving. The low speed also provides more control to prevent stripout of the screw and damage to the work surface.

FORWARD/REVERSE BUTTON

This button allows you to change the direction of rotation of the tool. For clockwise or forward rotation, push the button that has an arrow pointing toward the bit. For reverse rotation push the button that has an arrow pointing away from the bit. The reverse position will provide the counterclockwise rotation needed to remove screws. To stop in either direction just release the button (Fig. 1).

FLASHLIGHT ON/OFF BUTTON

This button allows you to activate the LED flashlight.

When operating the LED flashlight, the screwdriver function is disabled. The LED flashlight must be in the off position in order to activate the screwdriver. Conversely, the LED flashlight will be disabled while operating the screwdriver. The screwdriver must be in the off position in order for the LED flashlight to function.

SITE-LIGHT™

Your tool is also equipped with a light that turns on automatically when the switch is activated for better visibility during operation (Fig. 1). The Site-Light™ is maintenance free and was designed to last the life of your tool.

CHARGING THE TOOL

For Model # F012235000: Plug charger into your standard power outlet, then insert charger plug into tool (Fig. 2).

The tools Site-Light™ will slowly blink. This indicates that the battery is receiving a fast charge. Fast-charging will automatically stop when the battery is fully charged.

When the indicator light turns "OFF" fast charging is complete.

After normal usage, the battery requires approximately 3 to 6 hours charging time to reach full capacity.

The purpose of the light is to indicate that the battery is fast-charging. It does not indicate the exact point of full charge. The light will turn off in less than 3-6 hours if the battery was not completely discharged.

When the battery is fully charged, unplug the charger (unless you're charging another tool).

When the battery is completely discharged, or is overheated the tools Site-Light™ will quickly blink. Allow the tool to return to room temperature before beginning the charging process.

INSERTING BITS

Your tool is equipped with an magnetic bit holder. Simply push the bit into the bit holder as far as it will go. To remove, simply pull bit from bit holder (Fig. 3).

FASTENING WITH SCREWS

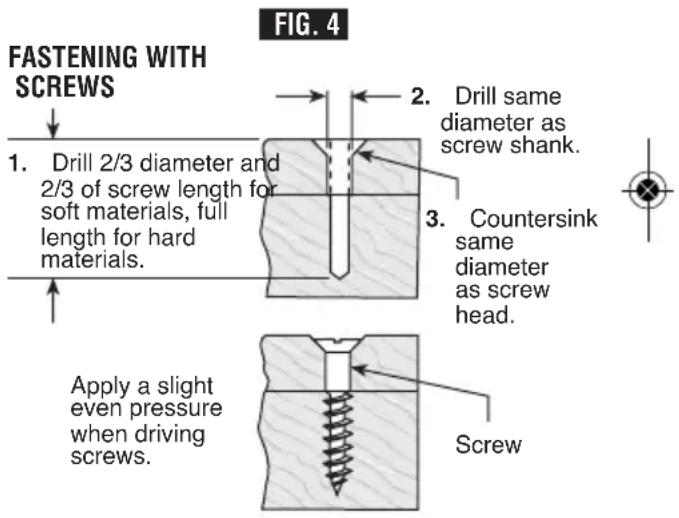

The procedure shown in figure. 4 will enable you to fasten materials together with your Cordless Screwdriver without stripping, splitting, or separating the material.

First, clamp the pieces together and drill the first hole 2/3 the diameter of the screw. If the material is soft, drill only 2/3 the proper length. If it is hard, drill the entire length.

Second, unclamp the pieces and drill the second hole the same diameter as the screw shank in the first or top piece of wood.

Third, if a flat head screw is used, countersink the hole to make the screw flush with the surface. Then, simply apply even pressure when driving the screw. The screw shank clearance hole in the first piece allows the screw head to pull the pieces tightly together.

MAINTENANCE

Service

WARNING

NO USER SERVICE ABLE PARTS INSIDE. Preventive

maintenance performed by un authorized personnel may result in misplacing of internal wires and components which could cause serious hazard.

TOOL LUBRICATION

Your Skil tool has been properly lubricated and is ready for use.

D.C. MOTORS

The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Skil replacement motor specially designed for your tool should be used.

Cleaning

WARNING

To avoid accidents, always disconnect the tool and/or

charger from the power supply before cleaning. The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through opening.

CAUTION

Certain cleaning agents and solvents damage

plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

LIMITED WARRANTY OF SKIL CONSUMER PORTABLE, BENCHTOP AND HD AND SHD HEAVY DUTY POWER TOOLS

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all SKIL consumer portable, benchtop and HD and SHD Heavy Duty power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SKIL Benchtop and consumer portable power tool models will be free from defects in material or workmanship for a period of ninety days if the tool is used for professional use.

SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete product, transportation prepaid, to any SKIL Factory Service Center or Authorized Service Station. For Authorized SKIL Power Tool Service Stations, please visit www.skil.com or call 1-877-SKIL-999 (1-877-754-5999). THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME

CANADIAN PRO V INCESDO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL DEALER OR IMPORTER.

© Robert Bosch Tool Corporation 1800 W. Central Road Mt. Prospect, IL 60056-2230

Illustration of a SKIL electric shaver with visible screw and blade (no text or symbols)

SKIL

Illustration of a SKIL electric shaver tool with threaded body and power input (no text or symbols on the device itself)

73
