USER MANUAL WIN 82 INDESIT

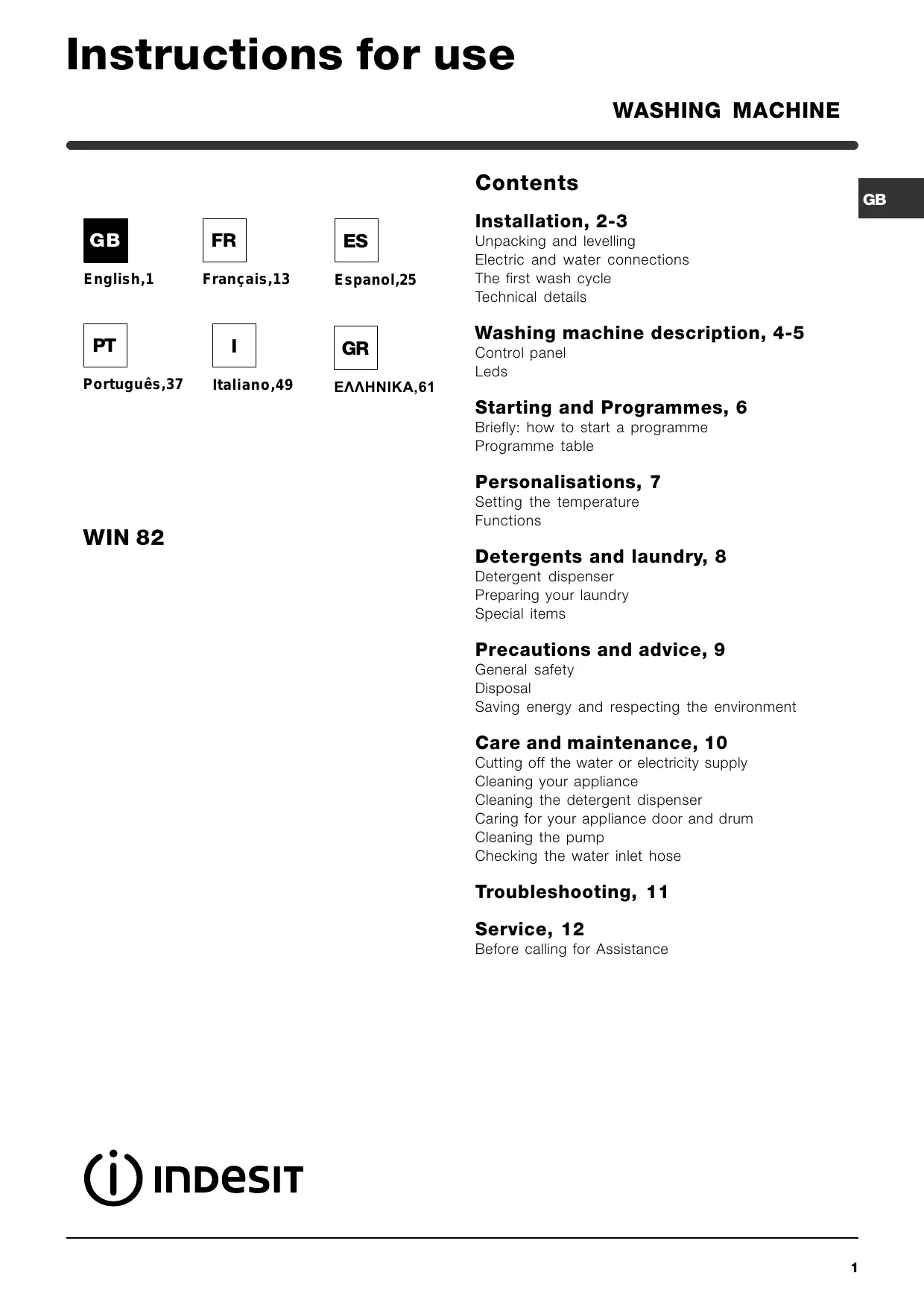

Instructions for use WASHING MACHINE Contents ee Installation, 2-3 [se | FR ES Unpacking and levelling Electric and water connections English,1 Français,13 Espanol,25 The first wash cycle Technical details Washing machine description, 4-5 PT 1 GR Control panel h Leds Português,37 Italiano,49 EAAHNIKA,61 Starting and Programmes, 6 Briefly: how to start a programme Programme table Personalisations, 7 Setting the temperature Functions WIN 82 Detergents and laundry, 8 Detergent dispenser Preparing your laundry Special items Precautions and advice, 9 General safety Disposal Saving energy and respecting the environment Care and maintenance, 10 Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose Troubleshooting, 11 Service, 12 Before calling for Assistance (Dinpesir

Installation {Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. !Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been

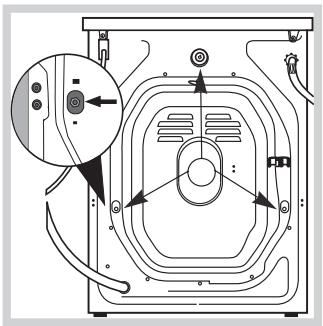

damaged during transport. If this is the case, do not install it and contact your retailer. 1 8. Remove the 3 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location. {Packaging materials are not children's toys Levelling

1. Install the washing machine on a flat sturdy floor,

without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2° Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to a cold water tab using a 8/4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

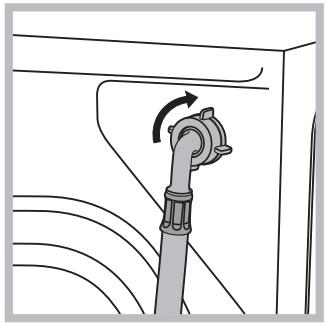

2. Connect the other end

of the water inlet hose to the washing machine, (2 screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

8. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). ! Ifthe water inlet hose is not long enough, contact a specialist store or an authorised serviceman ! Never use hoses that have already been used

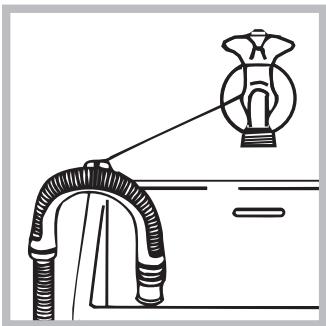

Connecting the drain hose Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor; alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length Electric connection Before plugging the appliance into the mains socket, make sure that: + the socket is earthed and in compliance with the applicable law; + the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right); + the supply voltage is included within the values i ndicated on the Technical details table (on the right); + the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug ! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms. ! When the washing machine is installed, the mains socket must be within easy reach. (Dinvesir ! Do not use extensions or multiple sockets. !The power supply cable must never be bent or dangerously compressed. ! The power supply cable must only be replaced by an authorised serviceman Warning! The company denies all liability if and when these norms are not respected The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle. Technical details Model WIN 82

Dimensions 85 cm high 52,5 cm deep Capacity from 1 to 5 kg Electric please refer to the technical data plate connections fixed to the machine maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres Water connections Spin speed up to 800 rpm Control programmes programme 3: temperature 60°C; according to run with a load of 5 kg. EN 60456 directive This appliance is compliant with the following European Community Directives: - 89/386/CEE of 03/05/89 (Electromagnetie Compatibility) and X subsequent amendments - 2006/95/CE (Low Voltage)

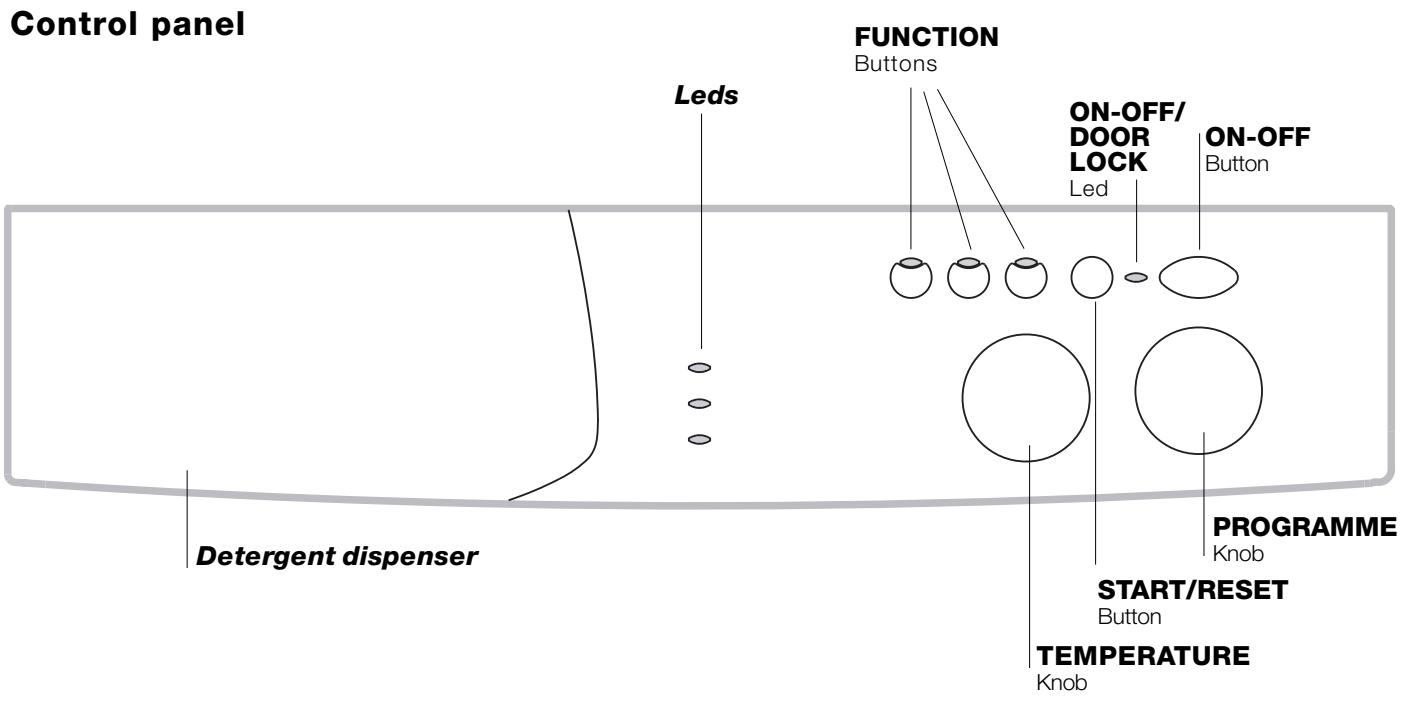

Washing machine description |) Control panel Detergent dispenser Detergent dispenser: to add detergent and fabric softener (see page 8). LEDS: to find out which wash cycle phase is under Way. FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on. TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7). START/RESET button: to start the programmes or cancel any incorrect settings. ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5) ON/OFF button: to turn the washing machine on and off. PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle. Leds

FUNCTION Buttons \ ON-OFF/ DOOR ON-OFF LOCK Button Led 900 0-© PROGRAMME Knob START/RESET Button TEMPERATURE Knob Standby mode This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

(Dinvesir Leds The LEDS provide important information es This is what they can tell you Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way: É9 :&° Wash

Æ] Le] Rinse © < Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled. oN-oFF/DO0R LOCK led If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door. ! The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality {see page 11)

Starting and Programmes Briefly: starting a programme 5. Add the detergent and any fabric softener . . (see page 8).

1. Switch the washing machine on by pressing button @O 6. Start he programme by pressing the START/RESET

All the LEDS will light up for a few seconds and button the ON-OFF/DOOR LOCK Led will begin to flash. To cancel it, keep the START/RESET button pressed

2. Load your laundry into the washing machine and for at least 2 seconds.

Shut the appliance door. 7. When the programme is finished, the ON-OFF/

8. Set the PROGRAMME knob to the programme DOOR LOGK Led wi flash to indicate tnat the

required appliance door can be opened. Take out your

4. Set the wash temperature (see page 7). laundry and leave the appliance door ajar to allow

• the drum to dry thoroughly. Turn the washing Programme table machine off by pressing button (O) - Detergent ï [Cycle Type of fabric and degree of soil |Program- [Wash abrio. [length |Description of wash cycle perat Dre ch {minutes) wash Cotton Extremely soiled whites 1 90°C p. 67
• [Pre-wash, wash cycle, rinse cycles, (sheets, tablecloths, etc.) intemediate and final spin cycles Extremely soiled whites 2 90°C p. 152
• [Wash cycle, rinse cycles, intermediate {sheets, tablecloths, etc.) and final spin cycles Heavily soiled whites and fast 3 60°c p. 133
• [Wash cycle, rinse cycles, intermediate colours and final spin cycles Heavy soiled whites and delcate 3 40°0 [Wash cycle, rinse cycles, intermediate colours and final spin cycles Siightiy soiled whites and delicate 4 40°0 oo [Wash cycle, rinse cycles, intermediate colours (shirts, jumpers, etc.) and final spin cycles B p. 143
• Wash cycle, rinse cycles, intermediate Siightly soiled delicate colours 5 30°C 92 land final spin cycles Synthetics Foi soiled fast colours 6 60°C p. 80
• Wash cycle, rise cycles, anti-crease or aby linen, etc. llicate spin cycle Fast colours (all types of slightiy 6 40°C p. 73
• [Wash cycle, rinse cycles, anti-crease or soiled garments) delicate spin cycle Foi soiled rest colours 7 50°C p. 75
• Wash cycle, re cycles, anti-crease or aby linen, etc. llicate spin cycle Daloste Golours (all np of 8 40°0 p. 71
• Wash cycle, rise cycles, anti-crease or slightiÿ soiled garments) llicate spin cycle Delicate colours (all types of 9 30°C [Wash cycle, rinse cycles and delicate slightiy soiled garments) spin cycle Delicates : Wash cycle, rinse cycles and delicate Wool 10 40°C 50 | Spin cycle Very delicate fabrics u Wash cycle, rinse cycles, anti-crease or 1 30°C 52 {curtains, silk, viscose, etc.) draining cycle PARTIAL PROGRAMMES Rinse Ly . Rinse cycles and spin cycle Light rinse cycle Le . Rinse cycles, anti-crease or draining Spin cycle [©] Draining and heavy duty spin cycle Light spin cycle G] Draining and delicate spin cycle Drain H Draining Notes For the anti-crease function, please see page 7. The information contained in the table is purely indicative. Special programme Daily (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. p. 30

Personalisations (Dinvesir EI Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6) CS The temperature can be lowered, or even set to a cold wash (%). Functions To enable a function

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. ; Enabled with Function Effect Comments programmes: Cuts the duration of the wash cycle L 2 ÿ & by 30%. » 6,7, Hoare dlêhe Recommended when the appliance has a full load or with large Le 4 ÿ 45 Extra Rinse |rinse quantities of detergent. Rinse cycles. The washing machine will not @ carry out a spin AII cycle: but rather de recommend that you use it when washing garments which are programmes a drum spin a ifficult to iron. except for medium speed to and draining. Spin assist water exclusion draining. Anti-crease This function interrupts the wash programme, and the washing is left to soak in water before the appliance is drained. It is enabled in programmes 6 - 7 - 8 - 11 and Delicate rinse cycle. To conclude the cycle, press the START/RESET button. To run the draining cycle alone, set the knob to the relative symbol kg and press the START/RESET button. Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

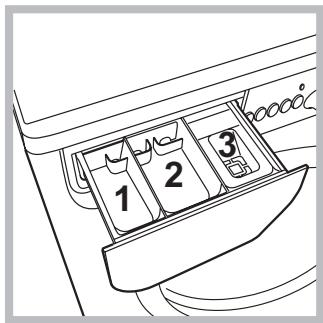

Detergents and laundry Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid. ! Do not use hand wash detergent because it may form too much foam Preparing your laundry + Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites + Empty all pockets and check for loose buttons + Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Precautions and advice ! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety This appliance has been designed for non- professional, household use and its functions must not be changed.

This appliance is not intended for use by persons {including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance Never touch the washing machine when barefoot or with wet or damp hands or feet.

Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.

Do not open the detergent dispenser while the appliance is in operation.

Do not touch the drain water as it could reach very high temperatures.

Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.

In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.

Always keep children well away from the appliance while in operation.

The appliance door tends to get quite hot during the wash cycle.

Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

Before loading your laundry into the washing machine, make sure the drum is empty. Disposal + Disposing of the packaging material observe local regulations, so the packaging can be re-used + The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be (Dinvesir disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time + To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. + The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. + Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. + Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. + _lf you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. +_lf your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

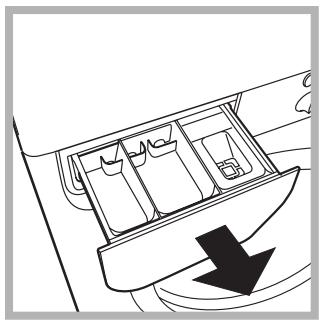

Care and maintenance Cutting off the water or electricity supply + Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. + Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by pulling it out (see figure). Wash it under running water; this operation should be repeated frequently. Caring for your appliance door and drum + Always leave the appliance door ajar to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same. ! Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber:

1. using a screwdriver,

remove the cover panel on the lower front of the washing machine (see figure);

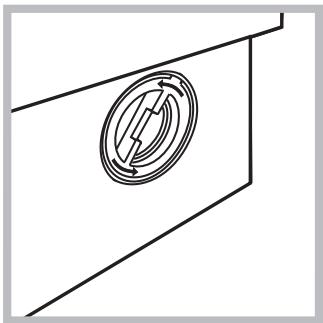

rotating it anti- clockwise (see figure): a little water may trickle out. This is perfectly normal;

8. clean the interior thoroughly;

4. screw the lid back on:

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use hoses that have already been used

Troubleshooting (Dinvesir Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list. Problem Possible causes/Solution: The washing machine won't * The appliance is not plugged into the socket, or not enough to start. make contact. + There has been a power failure. The wash cycle won't start. + The appliance door is not shut properly. + The O button has not been pressed. + The START/RESET button has not been pressed. + The water tap is not turned on. The washing machine fails to + The water inlet hose is not connected to the tap. load water. + The hose is bent. + The water tap is not turned on + There is a water shortage. + The water pressure is insufficient. + The START/RESET button has not been pressed. The washing machine * The drain hose is not fitted between 65 and 100 cm from the floor continuously loads and unloads (see page 3). water. + The free end of the hose is underwater (see page 3). + The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The washing machine does not + The programme does not foresee the draining: some programmes drain or spin. require enabling the draining manually (see page 6). + The “Anti-crease” function is enabled: to complete the programme, press the START/RESET button (see page 7). + The drain hose is bent (see page 3). + The drain duct is clogged The washing machine vibrates + The drum was not unblocked correctly during installation (see page 2). too much during the spin cycle. + The washing machine is not level (see page 2). + The washing machine is closed in between furniture cabinets and the wall (see page 2) The washing machine leaks. + The water inlet hose is not screwed on correctly (see page 2). + The detergent dispenser is obstructed (to clean it, see page 10) + The drain hose is not secured properly (see page 8). The ON-OFF/DOOR LOCK Led + Switch off the machine and unplug the appliance; wait for flashes rapidly at the same approximately 1 minute then switch it on again time as at least one other LED. If the problem persists, contact Assistance. There is too much foam. + The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like) + You used too much detergent.

Service Before calling for Assistance: + Check whether you can solve the problem on your own (see page 11); + Restart the programme to check whether the problem has been solved: + _Ifthis is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. Always request the assistance of authorised servicemen. Notify the operator of: + the type of problem; + the appliance model (Mod); + the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
