TWK86104RU - Kettle BOSCH - Free user manual and instructions

Product type	Cordless electric kettle
Brand	Bosch
Model	TWK86104RU
Capacity	1.7 liters
Power	2400 W
Material	Stainless steel
Base type	Cordless (360°)
Main functions	Automatic shut-off, dry boil protection
Water level indicator	Yes, with graduated scale
Limescale filter	Removable stainless steel filter
Lid opening	By button, wide opening
Dimensions (L x W x H)	Approx. 23 x 16 x 26 cm
Weight	Approx. 1.2 kg
Power supply	220-240 V, 50/60 Hz
Power cord length	Approx. 70 cm (base)
Care and cleaning	Regular descaling recommended with vinegar or citric acid
Safety	Automatic shut-off, overheat protection
Spare parts and repairability	Limescale filter and lid gasket available
General information	User manual included, 102 pages

Frequently Asked Questions - TWK86104RU BOSCH

How do I descale my Bosch TWK86104RU kettle?

To descale, fill the kettle with a mixture of water and white vinegar (1:1) or use citric acid. Bring to a boil, let it sit for 15 minutes, then rinse thoroughly. Repeat if necessary.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters, indicated on the graduated scale. Do not exceed the 'MAX' mark.

Why does the kettle turn off before boiling?

This may be due to excess limescale. Descale the appliance. Also check that the lid is properly closed and the water level is sufficient.

How to clean the limescale filter?

Remove the filter by pressing the side clips. Wash it under running water with a soft brush. You can also soak it in white vinegar to remove stubborn limescale.

Can I heat other liquids than water?

No, this kettle is designed only for water. Milk, coffee, or other liquids can damage the appliance and void the warranty.

Is the kettle compatible with a charging base?

Yes, the kettle is cordless and sits on a 360° rotating base that allows it to be placed in any direction. The base should only be used with this model.

How to maintain the stainless steel finish?

Clean the exterior with a soft damp cloth. Do not use abrasive products or steel wool. For limescale marks, a little vinegar on a cloth is enough.

What to do if the kettle does not turn on?

Check the electrical outlet, power cord, and connection on the base. Make sure the on/off button is pressed. If the problem persists, contact customer service.

Can I open the lid during operation?

It is not recommended to open the lid during boiling due to the risk of steam burns. Wait until the appliance has switched off automatically.

Where can I find spare parts?

Parts such as the limescale filter and lid gasket are available on the Bosch website or from authorized dealers. Use your model number: TWK86104RU.

USER MANUAL TWK86104RU BOSCH

Cordless electric kettle

TWK86..

[en] Instruction manual

[fr] Mode d'emploi

Cordless electric kettle 7

Bouilloire sans cordon 12

Vannkoker "cordless" 32

Vattenkokare sladdlös 37

Hand placing a small object into a container with arrows indicating motion (no text or symbols)

Illustration of a kettle with an open lid and handle, no text or symbols present

Close-up of a black electronic device with a button and cable, no visible text or symbols

Illustration of a black kettle with a silver lid and an hourglass beside it, next to a cable (no text or symbols)

Illustration of a teapot pouring liquid from a cup (no text or symbols)

Sicherheitshinweise

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

⚠️Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water.

Use the kettle only with the included base.

Use only if power cord and appliance show no signs of damage.

Should a fault occur, pull the plug or disconnect from the mains immediately.

en

⚠️Risk of fire!

Do not place the base or kettle on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.

⚠️Risk of scalding!

The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged.

If the appliance is filled above the “max” marking, there could be a risk from splashes of boiling water.

⚠️Risk of burns!

After the use the heating element surfaces can be subjected to residual heat.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

⚠️Risk of suffocation!

Do not allow children to play with packaging material.

⚠️Risk of injury!

A misuse of the appliance can potentially lead to injury.

Caution!

Cleaning surfaces which come into contact with foodstuffs!

Please note the special information on cleaning in the instructions.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Parts and operating controls

1 Kettle (with water level indicator)
2 Lid
3 Lid release button
4 ① ON/OFF switch
5 Temperature indicator (illuminated)
6 + - button (temperature setting)
7 keep warm button
8 Limescale filter (removable)
9 Base
10 Cable tidy

Important: Use the kettle only with its included base.

■ Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle without water and do not overfill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Before using for the first time

■ Remove any stickers or film.
■ Unroll the right amount of cable from the cable tidy and plug it in.
■ Fill the kettle with water. Bring the water to a boil and discard it. Repeat the procedure. This will make sure that the kettle is clean for normal use.
■ When the water comes to a boil for the first time, add a tablespoon of white vinegar.

Boiling water

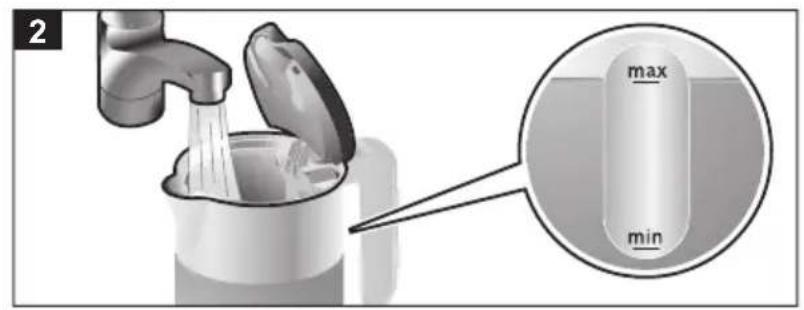

■ Fill the kettle with fresh water through the spout or the open lid (press lid release button).
■ Check the amount by reading the water level indicator markings min and max.

■ Close the lid until it locks and place the kettle on the base.

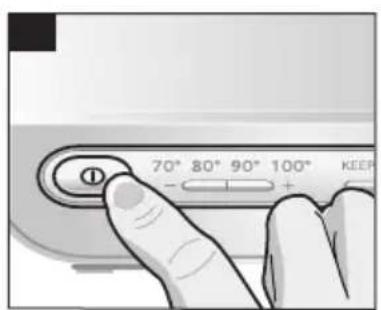

■ Press the ① ON/OFF switch. The kettle emits a signal, and the factory-set temperature (100°C) lights up. The water is being heated.
■ By pressing button + or – you can set the temperature to ca. 70^ C, ca. 80^ C, ca. 90^ C or ca. 100^ C.
■ When the water has reached the selected temperature, the kettle will switch off automatically, the temperature indicator goes off, and a signal sounds.

Note: The selected temperature can be changed at any time while the kettle is heating up. While the kettle heats up, the current temperature lights up; the preset temperature flashes until it has been reached.

If the temperature cannot be set, this indicates that the water in the kettle is hotter than the desired temperature. The current temperature will light up.

You can turn off the kettle at any time by pressing the ① ON/OFF switch again.

Warning: If you remove the kettle from the base and replace it before the heating process is over, the kettle will not continue to heat the water. The selected settings will be lost (reset to factory setting).

N.B.: Use the kettle only while the lid is closed and the limescale filter is in place. For physical reasons, the base may collect some condensation water. This is normal; it does not mean that the kettle leaks. When you set the temperature to 100^ C, the kettle will turn off only after the water has reached the boiling point, i.e. it will bubble for a short period of time. After boiling, let the kettle cool down for 5 minutes before refilling it with water.

Do not turn on the appliance if the kettle is empty, otherwise the overheat control will engage and the appliance will switch itself off automatically.

Keep warm setting

You can turn on the keep warm with any temperature setting.

Press button keep warm. keep warm lights up, and the function is activated.

To turn it off, press button keep warm again. The keep warm indicator goes off.

Note: The keep warm feature switches off automatically after 30 minutes. The kettle emits a signal.

Cleaning and maintenance

⚠️ Risk of electric shock!

Never immerse the device in water or place it in the dishwasher!

Do not steam-clean the appliance.

■ Before cleaning, unplug the appliance from the power outlet.
■ Clean the outside of the kettle and base with a damp cloth. Do not use strong or abrasive cleaning agents.
■ Remove the limescale filter, soak it in a little vinegar, then rinse clean with clear water.
■ Rinse the kettle and the limescale filter with clear water.

Tip: Clean the stainless steel surface with a commercial stainless steel care product.

Descaling

Regular descaling

■ makes your kettle last longer;
■ ensures proper function;
■ saves energy.

Descale the kettle with vinegar or a commercial descaling agent.

■ Fill the kettle with water up to the
1.5 mark and bring to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer's instructions.
■ Rinse the kettle and the limescale filter with clear water.

Warning: Never use hard objects to remove limescale residue as this will damage the seal.

Tip: If you use the kettle daily, descale more frequently.

Troubleshooting

The kettle does not heat up; the temperature indicator does not light up.

– The overheat control has tripped.

■ Let the kettle cool down for some time so that the appliance can be switched on again.

The unit turns off before the water comes to a boil.

– The kettle contains too much scale.
■ Descale the kettle as per the instructions.

Technical data

Electrical connection 220-240 V~50/60 Hz
Output 2000-2400 W
Appliance height 263 mm
Appliance width 175 mm
Appliance depth 210 mm
Water capacity 1.50 l

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
