Product Type	Cordless Electric Kettle
Model	TWK7S04GB
Brand	Bosch
Capacity	1.7 Liters
Power	2400 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	230 x 170 x 240 mm
Weight	1.2 kg
Material	Stainless Steel Housing, Plastic Lid
Color	Stainless Steel
Cord Length	0.75 m
Limescale Filter	Removable, washable
Keep Warm Function	Yes, up to 30 minutes
Boil-Dry Protection	Yes
Auto Shut-Off	Yes
Concealed Heating Element	Yes
360° Rotatable Base	Yes
Water Level Indicator	Yes, with scale
Lid Opening	One-touch button
Cleaning	Descale regularly with vinegar or citric acid
Spare Parts	Limescale filter, lid seal
Repairability Index	High (replaceable parts available)

Frequently Asked Questions - TWK7S04GB BOSCH

How do I descale the Bosch TWK7S04GB kettle?

Use a descaling solution or a mixture of vinegar and water. Fill the kettle with 500 ml water and 50 ml white vinegar, boil, and let it soak for 30 minutes. Rinse thoroughly.

Can I use the kettle with a voltage converter?

The kettle operates at 220-240 V. If your local voltage is different, a step-up/down converter is required to avoid damage.

Does the kettle have a keep-warm function?

Yes, after boiling, the keep-warm function maintains the water temperature for up to 30 minutes. Press the keep-warm button to activate.

How do I clean the limescale filter?

Remove the filter by lifting it out from the spout. Wash under running water with a soft brush. For stubborn scale, soak in descaling solution.

What is the capacity of the TWK7S04GB?

The kettle has a capacity of 1.7 liters, suitable for up to 7 cups of water.

Is the kettle cordless?

Yes, the kettle is cordless with a 360° rotating base for easy lifting and placing.

What safety features does the kettle have?

It includes auto shut-off after boiling and boil-dry protection to prevent damage if operated without water.

Can I boil less than the minimum water level?

No, always fill above the minimum mark (0.5 L) to avoid damage and ensure proper function.

How do I replace the lid seal?

The lid seal is a spare part. Remove the old seal and fit the new one into the groove inside the lid. Ensure it is fully seated.

Where can I find spare parts for the kettle?

Spare parts such as the limescale filter and lid seal are available from Bosch service centers or online retailers.

USER MANUAL TWK7S04GB BOSCH

MyBosch now and get free benefits:

bosch-home.com/ welcome

Cordless electric kettle

TWK7S0..GB

[en] User manual Cordless electric kettle 6

[en] Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.

2

3

4

5

6

7

8

9

10

The image is too blurry to recognize any text content.

12

	√	√	×	√	×
	√	√	×	×	×
	√	×	×	×	×

Safety

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ for applications described in these instructions.
■ Under supervision.
■ In private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ Up to an altitude of max. 2000 m above sea level.
■ for bringing water to the boil.
■ with the base supplied.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never immerse the appliance, the base or the power cord in water or clean them in the dishwasher.
- Liquids must not be spilled on the appliance plug connection.

▶ Never use the appliance near water contained in a bath, sink or other vessels.
▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.
▶ Never place the appliance on or near hot surfaces.
▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
▶ Only hold the jug by the handle.
▶ Only use the appliance with the lid closed and the limescale filter in place.
▶ Never exceed the maximum quantities specified.
▶ To avoid injuries, only use the appliance for its intended purpose.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

Preventing material damage

▶ Only use the appliance with fresh, cold, non-carbonated water. Never add milk, ready-made drinks or instant products.
▶ Never operate the appliance when empty or overfilled. Observe the water level indicator.
Leave the appliance to cool down for at least 5 minutes after each use.
▶ Never remove limescale residues using hard or metal objects.

Overview

→ Fig. 1

1

Kettle

2	Lid
3	Lid-opening button
4	Handle
5	Water level indicator
6	Limescale filter, removable
7	On/off switch, illuminated
8	Base
9	Cord store

Preparing the appliance for first use

1. Remove any packaging material.

en Boiling water

1. Remove any stickers or film.
2. Unwind the power cord to the required length.
3. Insert mains plug.
4. Fill the kettle with fresh, cold water, add a tablespoon of vinegar and bring to the boil.

→ "Boiling water", Page 8

Repeat the process without adding vinegar.

1. Rinse the kettle thoroughly.

Boiling water

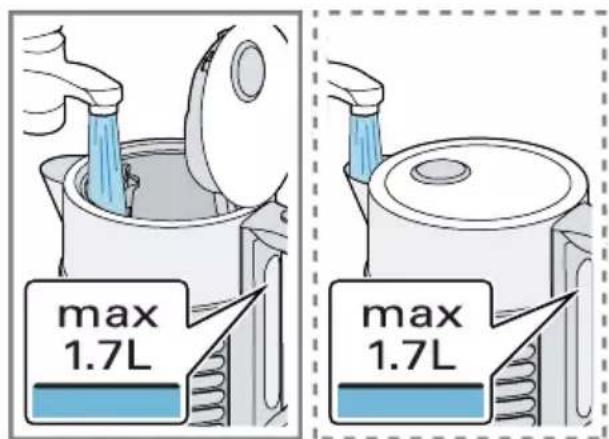

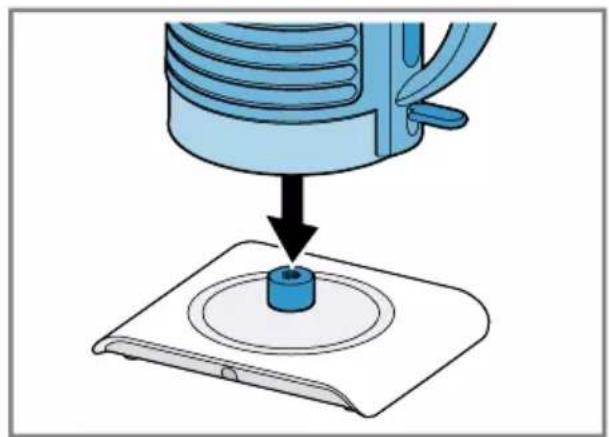

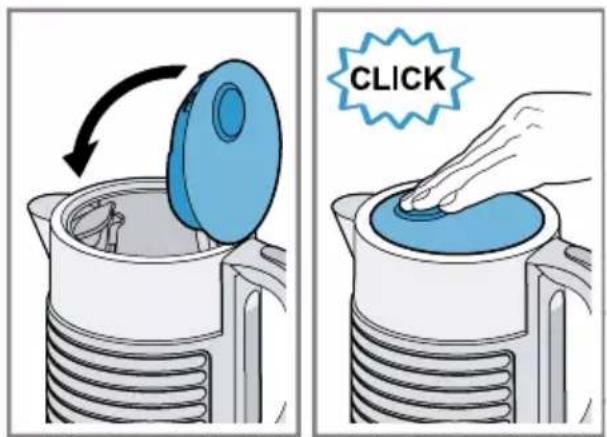

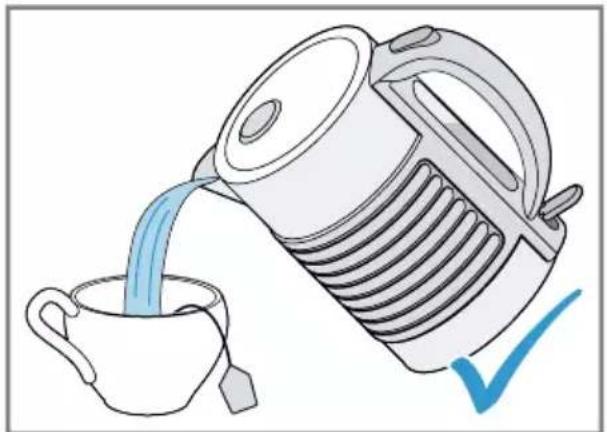

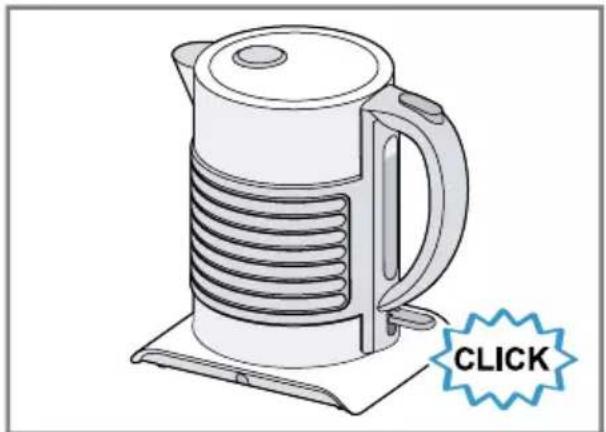

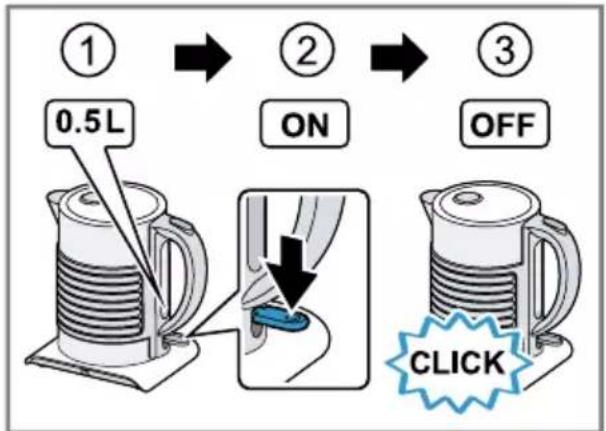

→ Fig. 2 - 9

Notes

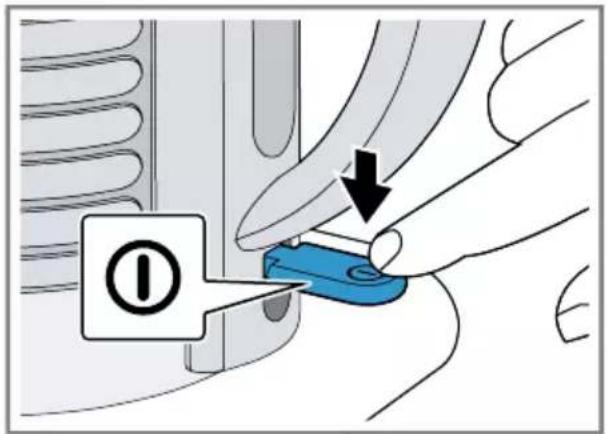

■ To end the heating process early, move the on/off switch up.
■ If you lift the kettle from the base and put it down again, the boiling process will not continue.

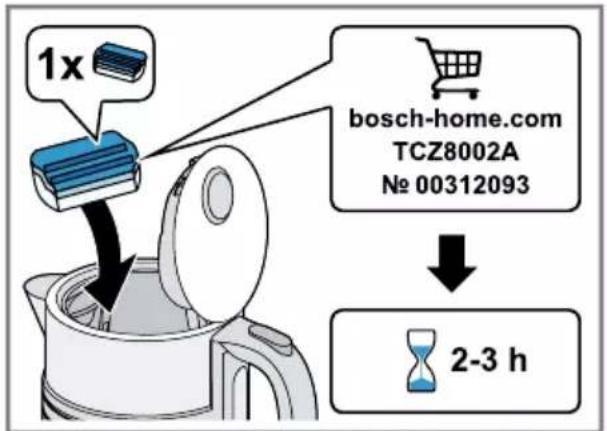

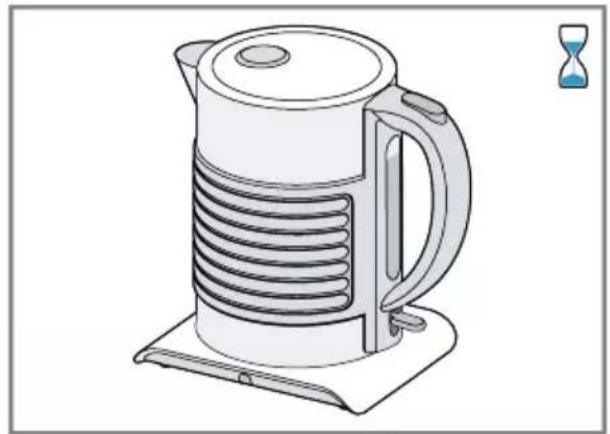

Descaling the appliance

Notes

■ Regular descaling:

– prolongs the life of the appliance
– ensures proper functioning
- saves energy

If you are descaling the appliance with a commercially available descaler, follow the manufacturer's instructions for use and safety.

■ If you descale the appliance with vinegar, insert 2 tablespoons of vinegar into the water that has been boiled instead of the descaling tablet.
■ If you use the kettle every day, descale it in shorter intervals.

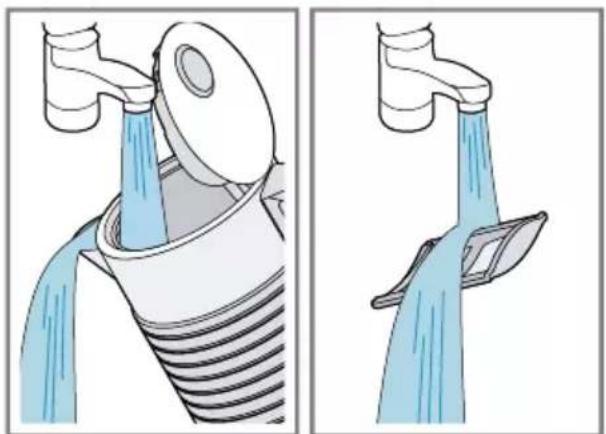

■ After descaling, remove the limescale filter and place in a little vinegar.

→ Fig. 10 - 12

Overview of cleaning

• Do not use cleaning agents containing alcohol or spirits.

• Do not use sharp, pointed or metal objects.

• Do not use abrasive cloths or cleaning agents.
  → Fig. 13

Troubleshooting

The appliance does not heat up and the on/off switch does not light up.

Overheating protection is active.

Leave the appliance to cool down for a long time before switching it on again.

The appliance switches off before the water has boiled.

Build-up of limescale in the appliance.

▶ Descale the appliance.

Water collects at the base.

Condensation may form for reasons of physics.

▶ Note: The formation of condensation is normal and harmless.

Pull out the mains plug and dry the base with a cloth.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
