Product Type	Electric Kettle
Brand	Bosch
Model	TWK7S05GB
Capacity	1.7 L
Power	2200-2400 W
Voltage	220-240 V ~ 50-60 Hz
Dimensions (W x D x H)	23.5 x 18.5 x 26.5 cm
Weight	1.2 kg
Cordless Design	Yes, with 360° swivel base
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Removable Limescale Filter	Yes
Water Level Indicator	Yes, with clear markings
Housing Material	Stainless steel
Lid Opening	One-button opening with large spout
Safety Features	Overheat protection, boil-dry protection
Care and Cleaning	Descale regularly; wipe with damp cloth; do not immerse
Spare Parts Availability	Replaceable filter and base available
Warranty	2 years (vary by region)

Frequently Asked Questions - TWK7S05GB BOSCH

How do I descale my Bosch TWK7S05GB kettle?

Use a descaling solution approved for kettles or a mixture of water and vinegar. Fill the kettle, boil, let it sit for 15 minutes, then rinse thoroughly. Repeat if needed.

Why does my kettle make noise while boiling?

Noise is normal due to boiling water and steam. If it's excessively loud, it may be due to limescale buildup; descaling should help.

Can I open the lid while the kettle is boiling?

It is not recommended to open the lid during boiling as steam can cause burns. Wait until the kettle has automatically shut off.

What is the capacity of the Bosch TWK7S05GB?

The kettle has a capacity of 1.7 liters, suitable for about 7 cups of water.

Does the kettle have a warranty?

Yes, Bosch offers a standard 2-year warranty on this model, but warranty terms may vary by region. Check your purchase documentation.

How do I clean the limescale filter?

Remove the filter from the spout, rinse it under running water while brushing gently, or soak it in a descaling solution. Reattach when clean.

The kettle turns off before boiling, what's wrong?

This could be due to limescale buildup on the heating element, causing overheating. Descale the kettle thoroughly. If problem persists, contact support.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360-degree swivel base for easy lifting and placing.

What type of water should I use?

Use cold tap water. Do not exceed the maximum fill line. Using filtered water can reduce limescale buildup.

Can I boil milk or other liquids in the kettle?

No, this kettle is designed for boiling water only. Other liquids can damage the appliance and cause safety hazards.

USER MANUAL TWK7S05GB BOSCH

MyBosch now and get free benefits:

bosch-home.com/ welcome

Cordless electric kettle

TWK7S0..GB

[en] User manual Cordless electric kettle 6

[en] Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.

Illustration of a hand pressing down on a blue liquid in a container with an arrow indicating rotation (no text or symbols)

2

3

4

Illustration of a blue mechanical device being inserted into a circular base, with no visible text or symbols.

5

6

Line drawing of a water heater with side-mounted cooling fins and a side-mounted base, accompanied by an hourglass icon (no text or symbols)

7

Illustration of a modern electric kettle with a spring and handle, labeled 'CLICK' with a decorative starburst (no text on the device itself)

8

Illustration of a cup pouring liquid from a can into a thermosacifier with a checkmark indicating inspection (no text or symbols)

9

10

The image is too blurry to recognize any text content.

Illustration of a faucet with water flowing through a pipe, showing two different stages of drainage or cleaning (no text or symbols present)

12

	√	√	×	√	×
	√	√	×	×	×
	√	×	×	×	×

Safety

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ for applications described in these instructions.
■ Under supervision.
■ In private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ Up to an altitude of max. 2000 m above sea level.
■ for bringing water to the boil.
■ with the base supplied.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never immerse the appliance, the base or the power cord in water or clean them in the dishwasher.
- Liquids must not be spilled on the appliance plug connection.

▶ Never use the appliance near water contained in a bath, sink or other vessels.
▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.
▶ Never place the appliance on or near hot surfaces.
▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
▶ Only hold the jug by the handle.
▶ Only use the appliance with the lid closed and the limescale filter in place.
▶ Never exceed the maximum quantities specified.
▶ To avoid injuries, only use the appliance for its intended purpose.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

Preventing material damage

▶ Only use the appliance with fresh, cold, non-carbonated water. Never add milk, ready-made drinks or instant products.
▶ Never operate the appliance when empty or overfilled. Observe the water level indicator.
Leave the appliance to cool down for at least 5 minutes after each use.
▶ Never remove limescale residues using hard or metal objects.

Overview

→ Fig. 1

1

Kettle

2	Lid
3	Lid-opening button
4	Handle
5	Water level indicator
6	Limescale filter, removable
7	On/off switch, illuminated
8	Base
9	Cord store

Preparing the appliance for first use

1. Remove any packaging material.

en Boiling water

1. Remove any stickers or film.
2. Unwind the power cord to the required length.
3. Insert mains plug.
4. Fill the kettle with fresh, cold water, add a tablespoon of vinegar and bring to the boil.

→ "Boiling water", Page 8

Repeat the process without adding vinegar.

1. Rinse the kettle thoroughly.

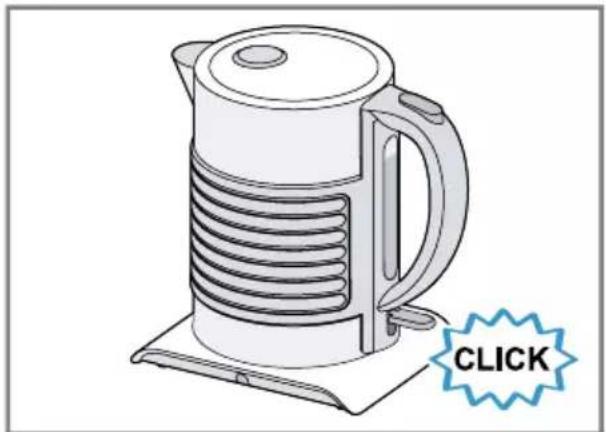

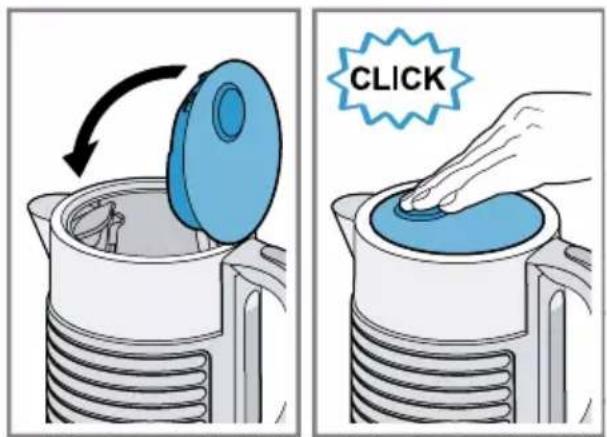

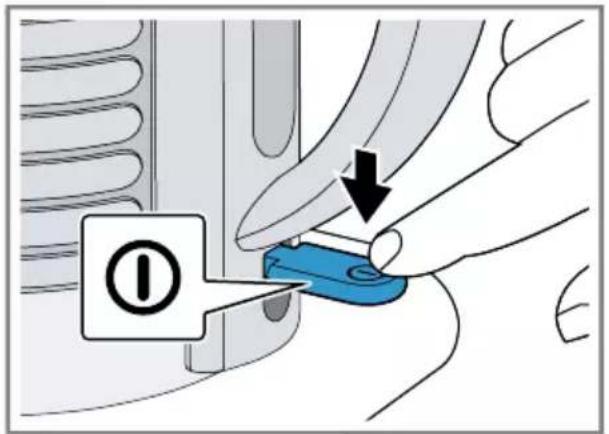

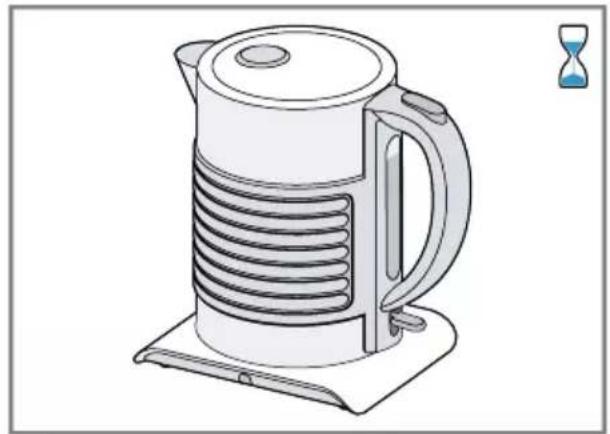

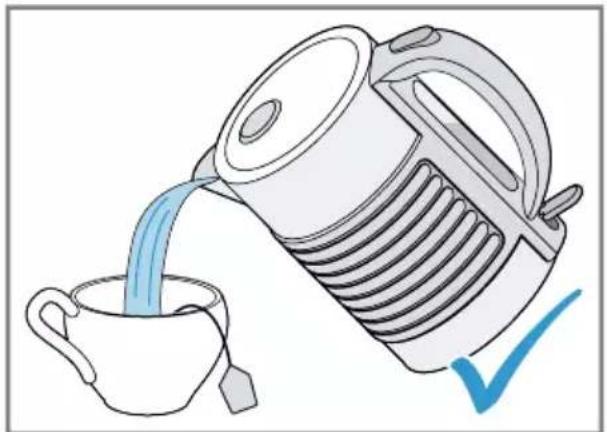

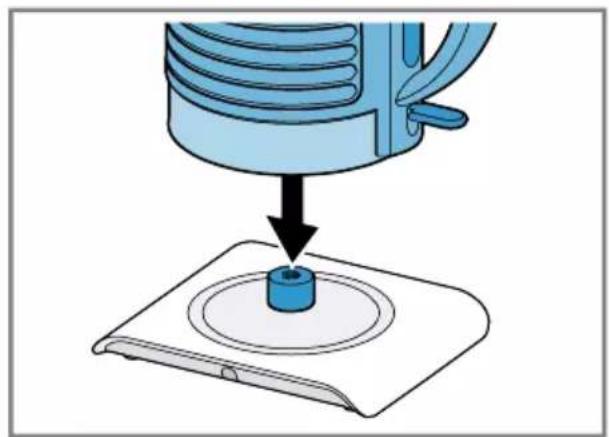

Boiling water

→ Fig. 2 - 9

Notes

■ To end the heating process early, move the on/off switch up.
■ If you lift the kettle from the base and put it down again, the boiling process will not continue.

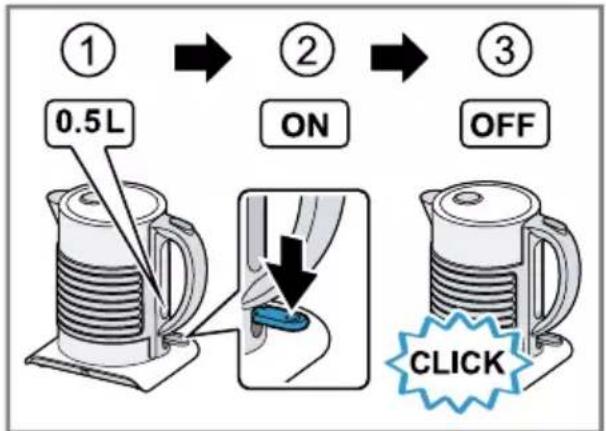

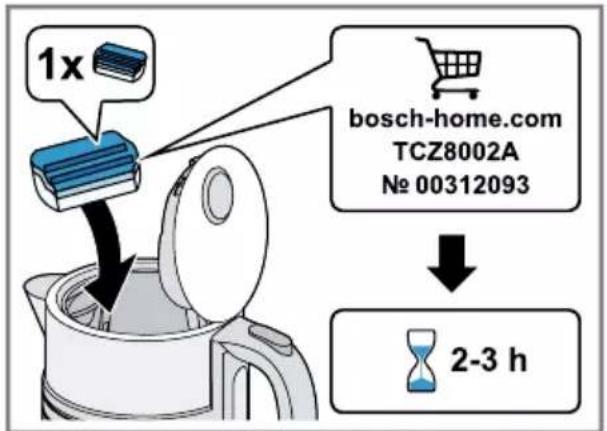

Descaling the appliance

Notes

■ Regular descaling:

– prolongs the life of the appliance
– ensures proper functioning
- saves energy

■ If you are descaling the appliance with a commercially available descaler, follow the manufacturer's instructions for use and safety.
■ If you descale the appliance with vinegar, insert 2 tablespoons of vinegar into the water that has been boiled instead of the descaling tablet.
■ If you use the kettle every day, descale it in shorter intervals.

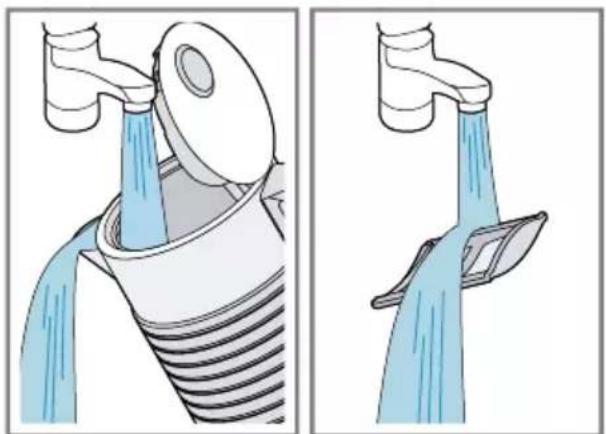

■ After descaling, remove the limescale filter and place in a little vinegar.

→ Fig. 10 - 12

Overview of cleaning

▶ Do not use cleaning agents containing alcohol or spirits.
▶ Do not use sharp, pointed or metal objects.

▶ Do not use abrasive cloths or cleaning agents.

→ Fig. 13

Troubleshooting

The appliance does not heat up and the on/off switch does not light up.

Overheating protection is active.

▶ Leave the appliance to cool down for a long time before switching it on again.

The appliance switches off before the water has boiled.

Build-up of limescale in the appliance.

▶ Descale the appliance.

Water collects at the base.

Condensation may form for reasons of physics.

▶ Note: The formation of condensation is normal and harmless.

Pull out the mains plug and dry the base with a cloth.

Disposing of old appliance

▶ Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
