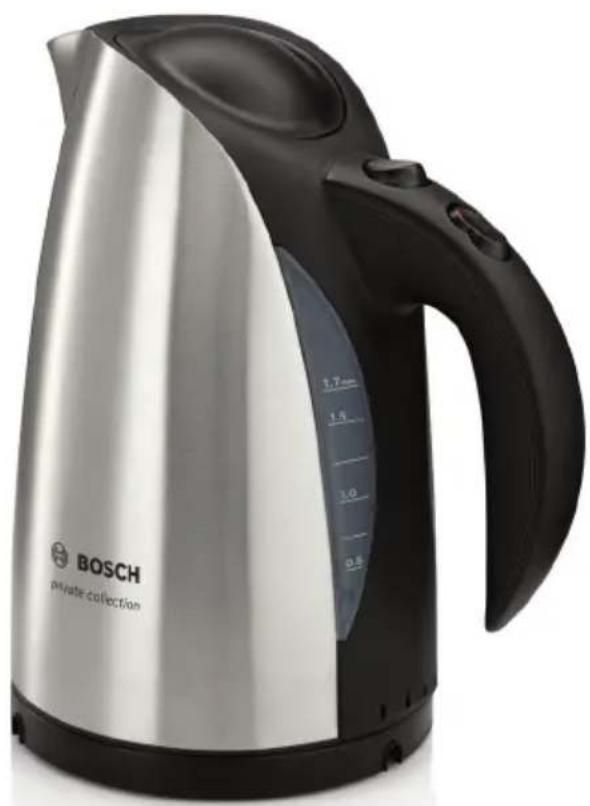

TWK6L132 - Kettle BOSCH - Free user manual and instructions

Product type	Electric kettle
Brand	Bosch
Model	TWK6L132
Capacity	1.5 liters
Power	2400 W
Supply voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	22.7 x 15.9 x 24.1 cm
Weight	1.2 kg
Main material	Stainless steel and plastic
Color	Brushed stainless steel and black
Main functions	Automatic shut-off, overheating protection, 360° swivel base, automatic opening lid, water level indicator, removable scale filter
Care and cleaning	Regular descaling with vinegar or citric acid; clean the exterior with a damp cloth; do not immerse the base
Safety	Automatic shut-off when boiling, dry boil protection, double wall insulation (optional, if applicable)
Spare parts and repairability	Spare parts available: filter, base, lid; repairability index: 8.2/10
General information	German brand, quality manufacturing, 2-year warranty

Frequently Asked Questions - TWK6L132 BOSCH

What is the capacity of the Bosch TWK6L132 kettle?

The capacity is 1.5 liters, ideal for preparing up to 6 cups of tea or coffee.

How to descale the kettle?

Use a mixture of white vinegar and water (1:2) or citric acid (as per instructions). Bring to a boil, let sit for 15 minutes, rinse thoroughly. Repeat monthly.

Does the kettle turn off automatically?

Yes, it is equipped with automatic shut-off when the water boils, and dry boil protection that cuts off the power if the kettle is empty.

What is the power of the kettle?

The power is 2400 W, allowing rapid boiling.

How to clean the outside of the kettle?

Use a damp cloth and a mild detergent. Never immerse the kettle or base in water. Avoid abrasive products.

Does the kettle have a scale filter?

Yes, it has a removable scale filter located in the spout. Clean it regularly under running water.

Is the base 360° swivel?

Yes, the kettle sits on a 360° swivel base, allowing it to be placed and lifted in any position.

Does the indicator light stay on during heating?

Yes, a light indicator (blue or white, depending on model) lights up when the kettle is heating and turns off with automatic shut-off.

Can I open the lid with one hand?

Yes, the lid opens automatically with one press of the button, making filling easier without using both hands.

What is the warranty of the Bosch TWK6L132 kettle?

The kettle comes with a 2-year manufacturer's warranty. Keep the proof of purchase. For repairs, contact Bosch customer service.

USER MANUAL TWK6L132 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

TWK 6...

BOSCH

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

Safety instructions ....6 Before using your appliance for the first time....7 Important....7 Boiling the water....7 Cleaning and descaling....7 Eliminating minor faults yourself....8 Technical specifications....8 Disposal....8 Warranty conditions....8

Safety instructions

Please read, follow and retain the operating instructions!

When passing on the appliance, enclose these instructions.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Risk of electric shock!

Connect and operate the appliance only in accordance with the specifications on the rating plate. To prevent injury, repairs to the appliance, such as replacing a damaged power cord, should be carried out by our customer service only.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children under 8 years of age must be kept away from the appliance and the power cord and must not operate the appliance. Children shall not play with the appliance.

Cleaning and descaling must not be performed by children unless they are 8 years of age or older and are supervised.

Never immerse the appliance, base or power cord in water.

Use the jug with the enclosed base only.

Do not use the appliance if the power cord and/or appliance are damaged.

If there is a fault, pull out the mains plug immediately or switch off the power supply.

Risk of fire!

Do not place base or jug on or near hot surfaces, e.g. hotplates.

Risk of scalding!

The appliance heats up during use. Therefore, take hold of the appliance by the handles only and open the lid only when cold.

Use appliance only with lid attached.

If the appliance is filled above the max. mark, there is a risk of boiling water spurting out.

Do not use near water which is in the bath, washbasin or other vessels.

Risk of suffocation!

Do not let children play with packaging material.

These operating instructions refer to several models: 2400 W/240 V and 3100 W/240 V.

Before using your appliance for the first time

- To clean the kettle thoroughly, fill with clear water, bring to the boil and repeat. The first time you fill the kettle, add a tablespoon of household vinegar.

Important

Use the kettle only with the base which is marked with Type ☑type CTWK11, CTWK13 for 2400 W and Type CTWK12, CTWK14 for 3100 W.

High power appliances may have a louder boiling noise.

Fill the kettle with water only. Milk or instant products will burn and damage the appliance.

Boiling the water

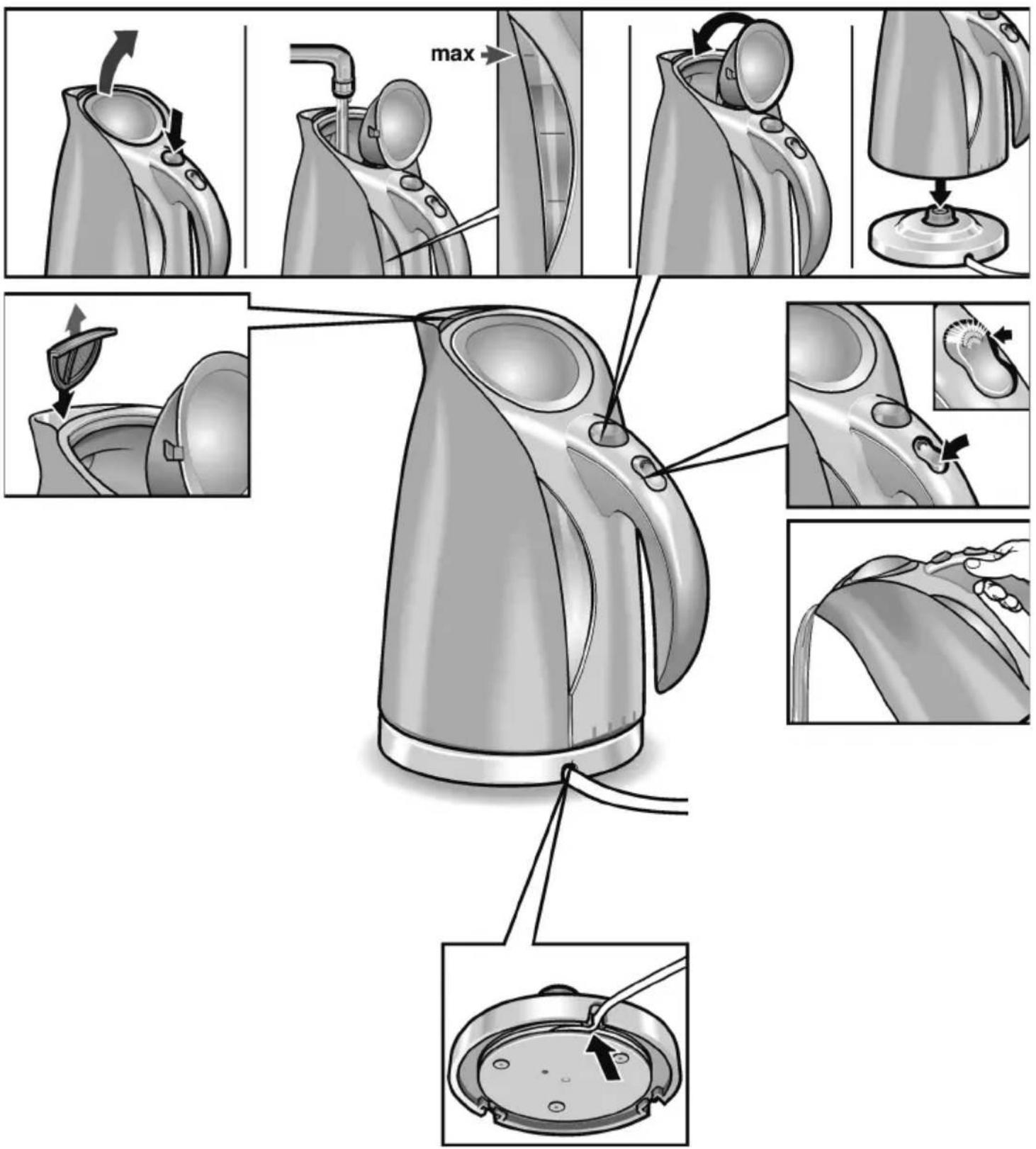

Please fold out the illustrated page!

Do not switch an appliance on when empty as it could be damaged.

Observe the max mark!

Before boiling water, close the lid and insert the filter, otherwise the automatic steam stop will not function!

Risk of scalding!

Do not open lid whilst it is hot.

Leave the appliance to cool down for 5 minutes before refilling with water.

Information:

The appliance switches off as soon as the boiling process ends.

Note:

For physical reasons condensation may form on the base. This is a normal process and the kettle is not leaking.

Cleaning and descaling

Electric shock risk

Never immerse the kettle or the base in water or put in the dishwasher!

Do not use a steam cleaner.

- Remove mains plug.

- Descale the kettle with vinegar or a commercially available descaling agent. Do not use sharp or abrasive detergents.

- Rinse out the kettle and scale filter with clear water.

Regular descaling

– prolongs the service life of the appliance,
- ensures that the kettle functions properly,
- reduces the boiling time,
- saves energy.

Descale the kettle with vinegar or a commercially available descaling agent.

• Fill the kettle up to the max mark with water and bring to the boil.
  Then add approx. 1 cup of household vinegar and leave to react for several hours.
• Or use descaling agent according to the manufacturer's instructions, never bring to the boil.
• Remove the scale filter and place in a little vinegar.
• Then rinse the kettle and scale filter with clear water.

Attention: Never remove calcification residue with hard implements, otherwise the seal will be damaged.

Eliminating minor faults yourself

The appliance is not heating up.

The indicator light does not come on → the overheating protection system has actuated.

- Switch in Off position, take the kettle off the base (after the kettle has cooled down for a fairly long time) and put back on again. The appliance can be switched on again.

The appliance switches off before the boiling process ends → the appliance is calcified.

- Descale the appliance according to the instructions.

Technical specifications

TWK6... TWK6...GB

Voltage 220–240 V~ 220–240 V~

Frequency 50/60 Hz 50/60 Hz

Power 2000–2400 W 2600–3100 W

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective

EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
