CDM1062 - Drill Ferm - Free user manual and instructions

Product type	Hammer drill
Brand	Ferm
Model	CDM1062
Rated power	600 W
Power supply	Corded, 230 V AC, 50 Hz
No-load speed (min⁻¹)	0 - 3000 rpm
Number of speeds	2 mechanical speeds
Max. drilling diameter (steel)	13 mm
Max. drilling diameter (wood)	40 mm
Chuck type	Self-tightening chuck, 13 mm
Weight	1.8 kg
Dimensions (L × W × H)	280 × 70 × 180 mm
Hammer function	Yes, switchable on/off
Left/right rotation	Yes
Electronic variable speed	Yes
Trigger lock	Yes
Auxiliary handle	Included, adjustable
Maintenance and cleaning	Regular dust removal, lubricate chuck, clean ventilation slots
Safety	Double insulation, emergency stop by releasing trigger
Spare parts and repairability	Carbon brushes, chuck, auxiliary handle available online
General information	60-page user manual available for download

Frequently Asked Questions - CDM1062 Ferm

How to change the chuck of the Ferm CDM1062 drill?

To change the chuck, insert an Allen key into the chuck opening and turn counterclockwise. Some models require prior unlocking. Consult the user manual for detailed instructions.

My drill is not turning anymore, what should I do?

First check the power supply and the cable. Then, check the motor carbon brushes: if they are worn, replace them. If the problem persists, contact Ferm customer service.

How to adjust the speed of the drill?

The Ferm CDM1062 drill is equipped with an electronic variable speed trigger. Press the trigger more or less firmly to adjust the speed. To select the speed range, use the speed selector on top of the housing.

Can I use the drill for screwing?

Yes, it can be used for screwing. Set the selector to rotation only mode (without hammer) and use a suitable screwdriver bit. Adjust the torque if your model is equipped with it.

How to clean and maintain my drill?

Regularly dust the ventilation slots with a brush. Clean the chuck with a dry cloth. Lightly lubricate the chuck jaws with oil. Never use aggressive solvents.

What is the maximum drilling diameter in wood?

The maximum drilling diameter in wood is 40 mm with a suitable drill bit. For steel, do not exceed 13 mm. Use quality drill bits and reduce speed for large diameters.

The drill makes an abnormal noise, is this normal?

An abnormal noise may indicate a problem. Check that the chuck is tight, the drill bits are correctly inserted, and the drill is not obstructed. If the noise persists, stop use and consult a professional.

How to activate the hammer function?

Set the mode selector to the hammer symbol. For drilling into masonry, use hammer drill bits. Disable the hammer function for drilling wood or metal.

Where to find spare parts for the CDM1062?

Spare parts such as carbon brushes, chuck, or auxiliary handle are available on the official Ferm website or from authorized dealers. Use the model number CDM1062 to identify compatible parts.

How to download the user manual?

Go to notice-facile.com, search for Ferm CDM1062, and download the manual free in PDF. You can also request a translation into your language via the form.

USER MANUAL CDM1062 Ferm

Blue and black power tool with orange handle and 14.4V label, no readable text or symbols beyond branding

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 08
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 13
FR Traduction de la notice originale 18
ES Traducción del manual original 23
PT Tradução do manual original 28
IT Traduzione delle istruzioni originali 33
SV Översättning av bruksanvisning i original 38
FI Alkuperäisten ohjeiden käännös 43
NO Oversatt fra orginal veiledning 47
DA Oversættelse af den originale brugsanvisning 52

Fig. A

Fig. B

Fig. C

Fig. D

Fig. E

Hand placing a small electronic device into a black plastic housing, with an open electrical plug and cord being inserted (no text or symbols visible)

Fig. F

CORDLESS DRILL

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2-3.

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Machine information
2. Safety instructions
3. Mounting accessories
4. Operation
5. Service & maintenance

1. MACHINE INFORMATION

Technical specifications

Voltage 14.4 V

=

Charger voltage 230 V

Charger frequency 50 Hz

Battery output 1.3 Ah

Charging time 3-5 hour

Drill speeds 2

Max. torque (low speed) 12 Nm

No-load speed Position I 0-400/min

Position II 0-1150/min

Chuck capacity 0.8 - 10 mm

Weight (incl. battery) 2.0 kg

Lpa (acoustic pressure) 80.0 dB(A)+3

Lwa (acoustic power) 91.0 dB(A)+3

Vibration 1.399 m/s²+1,5

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Contents of packing

1 Cordless drill
2 Batteries
1 Battery charger
2 Double-sided bits
1 Operating instructions
1 Safety instructions
1 Warranty card

Check the appliance, any loose parts and accessories for damage caused during transport.

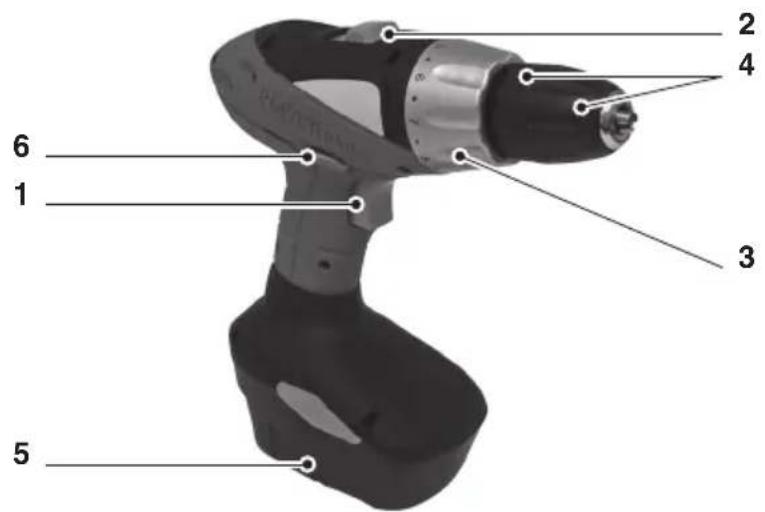

Product information

Fig. A

1. On/off switch
2. Speed selector switch
3. Torque setting ring
4. Chuck
5. Battery
6. Direction switch

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

The number of revolutions of the machine can be electronically set.

Do not use in rain.

Indoor use only.

Ni-Cad batteries can be recycled. Drop them off at a disposal center for chemical wastes, so that they can be recycled or disposed of in an eco-friendly manner.

Always recycle batteries

Important safety notes on charger and battery block

If you come in contact with acid from the battery block, rinse it off with water immediately. If acid gets into your eyes, rinse out your eyes at once with water and contact a doctor immediately!

1. Read and note the operating instructions and safety notes for the charger and battery block before use!
2. NB! Only use the charger and battery block that were supplied by the manufacturer - otherwise you will risk an accident.
3. Protect the charger, battery block and power tool from moisture, e.g. rain or snow.
4. Always check that all cables are connected correctly before using the charger.
5. If you discover that a cable is damaged, you should not use the charger again. Have the damaged cable replaced immediately.
6. When the charger is not in use, the mains plug should be removed from the power socket. Do not pull out the plug by grasping the cable.
7. If the charger has been dropped or has otherwise been exposed to high mechanical stresses, you should have it checked for damage by an authorised dealer before using it again. Damaged parts should be repaired.
8. Exercise caution when handling the battery block and do not drop it or expose it to impacts.
9. Never attempt to repair the charger or battery block yourself. Repairs must always be carried out by an authorised dealer - otherwise you

risk an accident.

1. Before cleaning or servicing the charger or battery block, always pull the plug from the charger socket.

2. Never charge the battery block when the ambient temperature is below 5^ C or above 40^ C.

3. The air vents in the charger must never be blocked.

4. The battery block must not be short-circuited.

A short-circuit will cause a high current to flow. This may result in overheating, the danger of fire or explosion of the battery block. This may damage the battery block or the user may risk an accident.

Therefore:

• Do not connect any cables to the poles of the battery block.
  • Take care that there are no metal objects (nails, paper clips, coins, etc.) on the contact surface of the battery block.
• Do not expose the battery block to water or rain.

• Only use the battery block supplied in combination with this cordless drill/ screwdriver so as to avoid faults and/or risks to persons.

• A damaged battery block or one that can no longer be charged must be disposed of as special waste. Do not discard it with household waste.

• Never throw the battery block onto a fire or into water. This will risk explosion!

Electrical safety

Always check that the voltage on the battery block corresponds to the voltage on the rating plate. Also check that your mains voltage corresponds to the input voltage of the battery charger.

Class II machine – Double insulation – You don't need any earthed plug.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones.

• Remove the battery block when the power tool is not being used and prior to maintenance.
• The tool is suitable for use as a screwdriver and drill. Any other application is specifically excluded.

3. MOUNTING ACCESSORIES

Prior to mounting an accessory always remove the battery.

Fitting and removing drill cutters

Fig. B

In addition to screwdriver bits with a hexagonal shaft, this tool can also accommodate drill bits with a hexagonal shaft.

• Loosen the drill chuck (4) by rotating the hand-grip (9).
• Insert the shaft of the drill cutter into the chuck.
• Tighten the drill chuck so that the drill cutter is firmly clamped.
• Rotate the drill chuck in the opposite direction when you wish to change the cutter.

Connecting and removing the battery

Fig. C

Ensure that the exterior of the battery block or tool is clean and dry before connecting the charger.

• Ensure that the direction reversing switch (6, Fig. A) is in the central position in order to prevent the appliance from being switched on unexpectedly.
• Insert the battery (5) into the base of the appliance, as shown on the illustration. Push the battery until it latches in.
• Press the locking buttons (10) on both sides before removing the battery, and disengage the battery from the base of the appliance.

4. OPERATION

Always follow the safety notes and the relevant safety code.

Hold the appliance firmly and press the drill steadily onto the workpiece. Do not overload the appliance. Only use drills with no visible wear. Worn drills will have a bad effect on the functioning of the appliance.

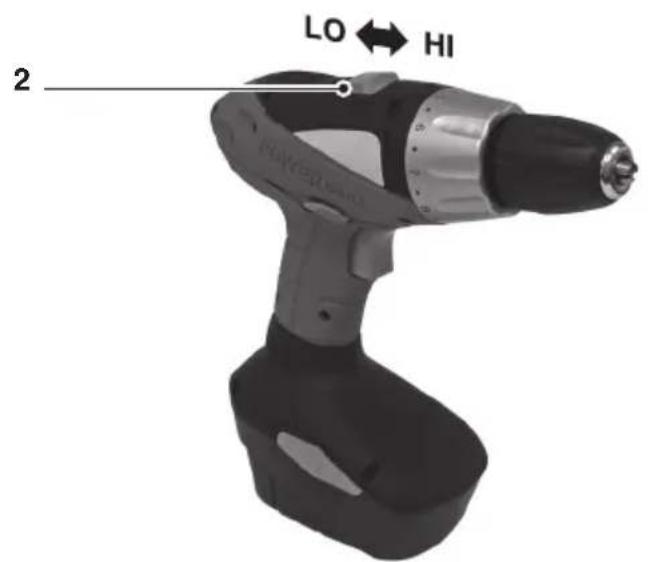

Adjusting the speed

Fig. D

The appliance has two drill speeds.

• For slow drilling or for driving or removing screws, set the speed selection switch (2) to '1'.
• For fast drilling set the speed selection switch to '2'.

Never switch over when the motor is running!

Adjusting the torque

Fig. E

The appliance has 16 different torque settings with which to set the power for driving and removing screws.

• Set the torque adjustment ring (3) to the desired position. The available torque settings are indicated on the adjustment ring by the numbers 1 to 8 and by dots between the figures to define intermediate settings (16 in total).
• You should preferably choose a setting as low as possible when using the screwdriver. Select a higher setting if the motor slips.

Driving and removing screws

• Set the direction reversing switch (6) to position 'R' in order to drive screws.
• Set the direction reversing switch to position 'L' in order to remove screws.

Drilling

- Rotate the torque adjustment ring (3) to the drilling position.

Ensure that the direction reversing switch (6) is always set to 'R' during drilling.

Switching the device on and off

Fig. A

• Depress the on/off switch (1). It regulates the speed of the appliance by transmitting power to the switch.
• Release the on/off switch (1) to halt the drill chuck immediately which will no longer run on.

- Move the direction reversing switch (6) to the centre in order to lock the appliance in its disabled state.

Only lay down the appliance when it has stopped running completely. Do not place it on a dusty surface as particles of dust could get into the mechanism.

Charging the battery

• The included battery is delivered in partly charged condition.
• Only use the battery charger in a temperature range between +5 °C to +40 °C.
• Only use the battery charger in dry, ventilated rooms.

Charging

Fig. F

• Place the battery holder on a flat table and put the battery in the battery holder. Pay attention to + and - pole markings.
• Put the adapter plug of the net adapter in the connector on the side of the battery holder.
• Put the net adapter in the socket.
• The red charging lamp on the battery holder will illuminate indicating the battery is being charged.
• The charging process of a fully discharged battery will take approximately 5 hours the first time and afterwards approximately 3 hours.

After the charging time the red light will not switch off automatically! Remove the battery within 5 hours from the charger. If the battery is not removed from the charger after the charging period it may become overheated.

Discharging the battery

Not only charging batteries is important, discharging is of equal importance or even greater importance.

• When the battery is charged the cordless drill has to be used until you start noticing that the power of the drill is diminishing and that the maximum rotational speed is not reached.
• The battery is almost discharged now. Only now you can start charging the battery.
• Charging the battery while it is still charged for say one-third of capacity, the so-called 'memory effect' can occur. Since during

charging only the discharged part of the battery capacity of the battery is being charged now, the battery can start crystallizing in the one-third that is still charged. This part of the battery capacity can never be used afterwards.

- Do not discharge the battery to the minimum. As soon as you notice that the power or the maxi mum rotational speed is diminishing, you have to charge the battery. When you proceed using the drill and the battery becomes fully discharged, the so-called 'switch of poles effect' can occur. The polarity of the battery poles will be switched: the '+'will become '-' and the '-' will become the '+'. Once this has occurred the polarity will remain switched during loading and this will damage the battery irreparable.

When the cordless drill is not being used over a longer period of time, the battery has to be charged fully first. The battery has to be stored in charged condition.

5. SERVICE & MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

These machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

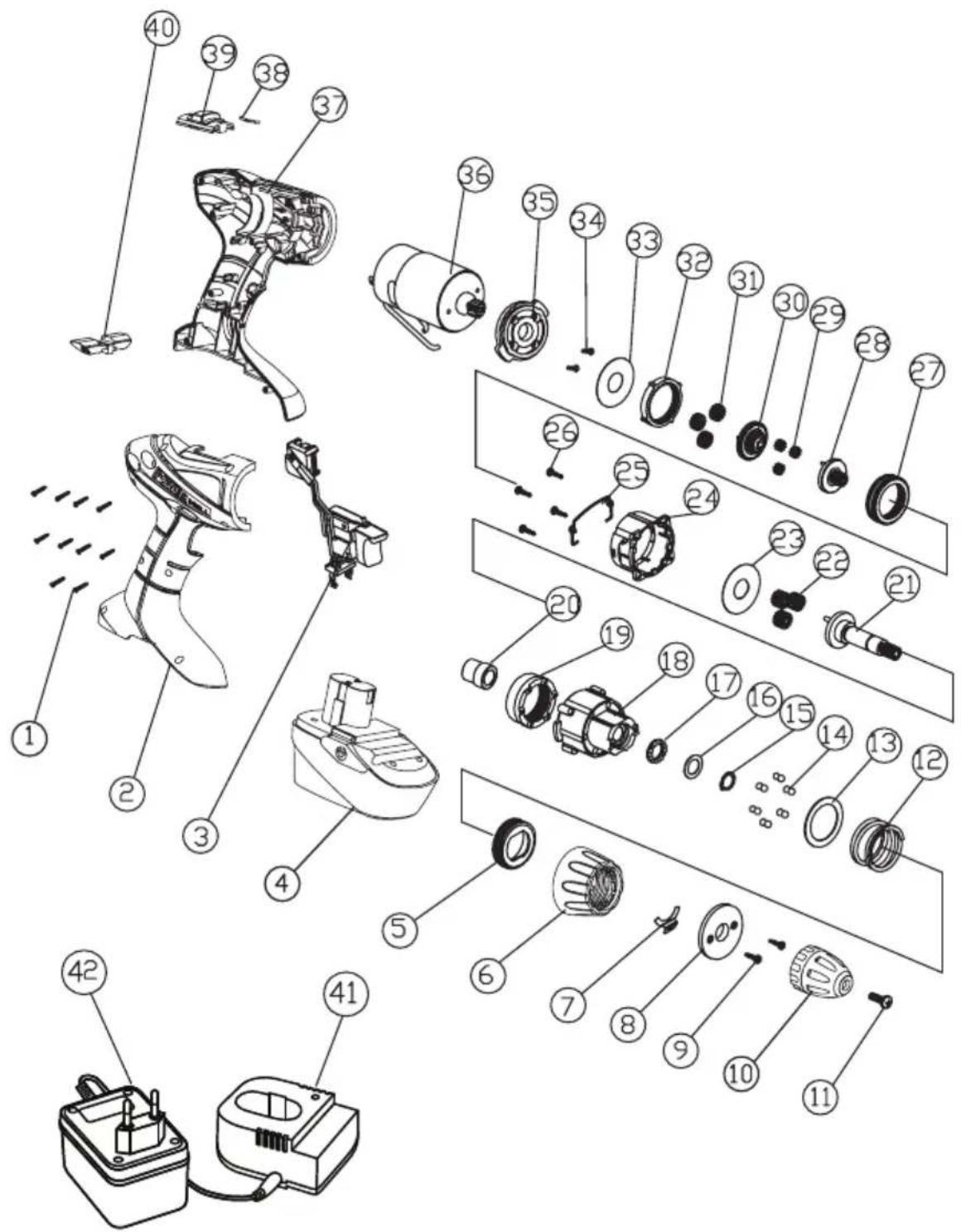

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find

an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

AKKU-BOHRSCHRAUBER

5. SERVICE OG VEDLIKEHOLD

DECLARATION OF CONFORMITY CDM1062 - CORDLESS DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnicí 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.

(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícímlí standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja nasledn. jim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parla mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau pinänetus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem stand - artiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL)Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявпяємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωταϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον πειρορισμό της χρήσης ορισμένων επικλίνδυνων συσιών σε ηλεκτρικό και ηλεκτρονικό εξόπλισμό

EN60745-1, EN60745-2-1, EN60745-2-2, EN55014-1, EN55014-2, EN 61558-1, EN 61558-2-6, EN61000-3-2, EN61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/96/EC, 2011/65/EU

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list

No.	Description	Position
400768	Left/right button 40
400769	Speed button 39
400805	Chuck	10
400807	Charger base 41
400810	Charger adapter 42
400811	Switch	3
400813	Gearbox assembled 5|9|12..35
400823	Motor	36
409283	Left screw M5 X 20 11
CDA1035	Drill/bit set, 27pcs
CDA1043	FDCDB-1440 Battery, 14.4V, 4
CDA1060	Drill set HSS
CDA1062	Drill set
CDA1063	Flat wood bit set

Exploded view
