DO7039BG - Beard trimmer DOMO - Free user manual and instructions

Product type	Beard trimmer
Brand	DOMO
Model	DO7039BG
Dimensions (L x W x H)	17 x 4 x 4 cm
Weight	200 g
Power supply	Rechargeable Li-ion battery
Battery life	60 minutes
Charging time	8 hours
Blade material	Stainless steel
Cutting length adjustment	0.5 to 10 mm (with comb attachment)
Cordless use	Yes
Washable	Detachable washable blades
Maintenance	Clean with brush provided after each use
Safety	Automatic shutdown in case of overheating
Spare parts available	Cutting comb, cutting head, USB cable
Repairability	Spare parts available on request
Protection rating	IPX4 (splash resistant)
Package contents	Trimmer, cutting comb, USB charging cable, cleaning brush, user manual
Color	Black / Silver

Frequently Asked Questions - DO7039BG DOMO

How to adjust the cutting length of the DO7039BG beard trimmer?

Use the provided comb attachment. You can adjust the length from 0.5 to 10 mm by sliding the comb. Refer to the user manual for more details.

What type of battery does the DO7039BG use and how long does the charge last?

It uses a rechargeable Li-ion battery. A full charge takes about 8 hours for a 60-minute runtime.

Can I use the DO7039BG trimmer in the shower?

The trimmer is splash resistant (IPX4 rating) but not designed for underwater use. It is not recommended to use it in the shower.

How to clean the beard trimmer?

Remove the cutting head, rinse it under running water and brush it with the provided brush. Let it dry completely before reassembling. The body can be cleaned with a damp cloth.

Are the blades replaceable?

Yes, the cutting head is removable and replaceable. Contact DOMO customer service to order spare parts.

How to know if the battery is charging?

An LED indicator on the trimmer shows the charging status: red while charging, green or off when fully charged. Refer to the manual for details.

What to do if the trimmer no longer cuts effectively?

Check that the blades are clean and lightly oiled. If the problem persists, replace the cutting head. Also ensure the battery is sufficiently charged.

Can I use the DO7039BG trimmer with a comb for other body parts?

This trimmer is mainly designed for beard and facial hair. For other areas, use appropriate attachments if available. Follow the recommendations of the manual.

How to download the manual for the DO7039BG?

You can download the manual for free in PDF format on the notice-facile.com website by searching for the DOMO model DO7039BG.

Is the trimmer under warranty?

Yes, the DOMO product has a 2-year legal warranty of conformity. Keep your proof of purchase for any claim.

USER MANUAL DO7039BG DOMO

Product photo of a Domio electric shaver with various filter designs (no text or symbols visible)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

* Enkel in België, Nederland, Luxemburg, Frankrijk en Duitsland.
* Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
* Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

OPLADEN

Close-up of a black hairdryer brush with serrated blade and handle (no text or symbols visible)

Close-up of a metallic tool tip with threaded end (no visible text or symbols)

Close-up of a black and silver mechanical tool tip (no visible text or symbols)

SCHEREN EN TRIMMEN

CHARGEMENT

Close-up of a black hairbrush with serrated blade and handle (no text or symbols visible)

Close-up of a black plastic brush tip with threaded end, no visible text or symbols

Close-up of a black pen tip with metallic handle and pointed tip (no text or symbols visible)

AUFLADEN

Close-up of a black hairbrush with serrated blade and handle (no text or symbols visible)

Close-up of a black and metallic object with threaded end, possibly a hairdryer or brush (no visible text or symbols)

Close-up of a black pen tip with metallic handle and pointed tip (no text or symbols visible)

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.

• Only use the appliance for its intended use.
  • Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Do not use the appliance near a bath tub, shower or pool, above a sink filled with water or another object filled with water. Also when the appliance is switched off, this still poses a risk near water. So keep the appliance away from water at all times.
• Protect the appliance against humidity and splashing water and never use it with wet hands.
• Regularly check the appliance and the accessories for any damages. Do not use the appliance if it is damaged. Also if the appliance has been dropped on a hard surface it should not be used anymore. Invisible damage could also affect the safety of the appliance.

• Switch off the appliance and remove the plug from the power outlet after each use, in case of malfunction and before cleaning the appliance.

• Never leave an operating appliance unattended.

• Be careful: the blades are sharp.

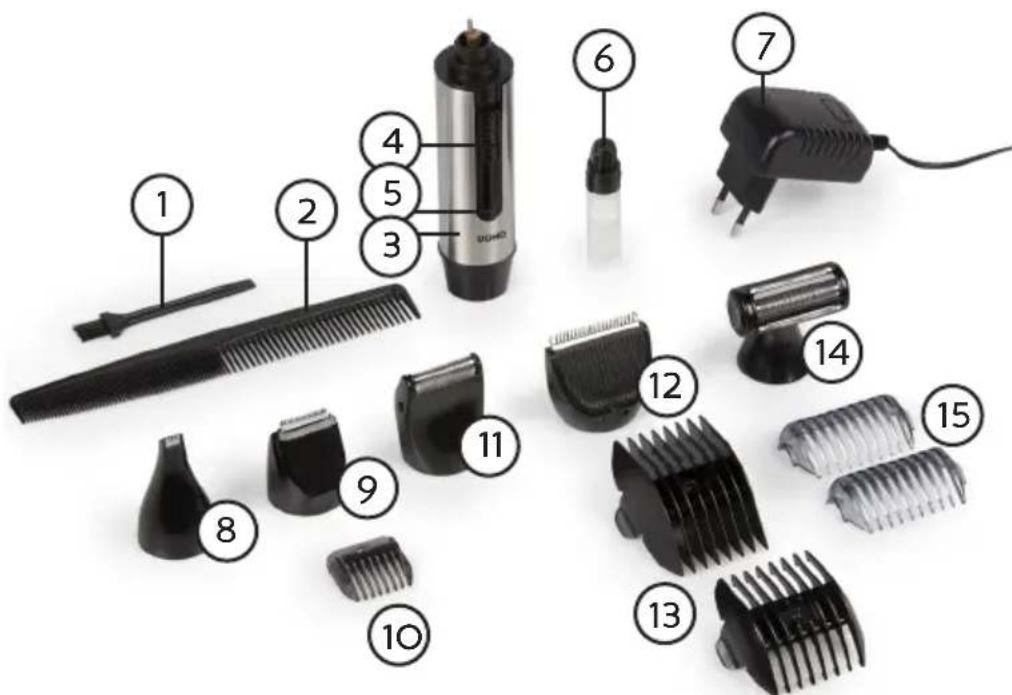

PARTS

1. Cleaning brush
2. Comb
3. Stainless steel body
4. On/off button
5. Indicator light for charging
6. Oil bottle
7. Adapter: IP20 and dual voltage: 120-240V
8. Trimmer for details
9. Sideburn trimmer
10. Comb attachment for sideburn trimmer
11. Shaver head with foil
12. Hair clipper

13. Body trimmer

14. Comb attachments for hair clipper

15. Comb attachments for body trimmer

CHARGING

• Fully charge the battery before the first use. This takes approximately 12 hours.
• The appliance can also remain in charging status for a longer time without getting damaged, although this is not recommended.
• With a fully charged battery the appliance can operate for about 30 minutes.
• If the performance of the appliance decreases noticeably, switch of the appliance and charge the battery.

• The appliance can also be used by connecting it directly to the power net with the adapter. In this case the battery should be charged briefly for about 10 minutes. Be sure that the appliance is switched off. The battery only charges when the appliance is switched off.

• Make sure that the appliance is switched off.

• Plug the small connection at the end of the adapter cord into the base of the trimmer.
• Connect the adapter to the power outlet. The battery will automatically start to charge and the red indicator light will light up for as long as the adapter is plugged in.
• When the battery is charged, first pull the adapter from the power outlet, before removing the connection from the base of the appliance.
• During charging the adapter will feel warm. This is perfectly normal and safe.
• If the appliance is not used for a long time, the battery capacity may decrease a bit. However, the capacity is restored after a few cycles of fully charging and fully discharging the battery.

USE

Replacing the shaver heads

To remove the shaver head: turn it counterclockwise to unlock.

To place the shaver head: place the shaver head onto the body so you can press it down and turn it clockwise to lock.

Attaching the comb attachments

Trimmer: the trimmer has 2 comb attachments for 4 different lengths: 3, 6, 9 and 12 mm. Place the comb attachment onto the trimmer, onto the side with the grooves, and click the comb attachment into the small holes at the sides of the shaver head. The attachment should be firmly locked. To remove the comb attachment: press the clip at the side of the attachment out of the small hole.

Close-up of a black hairbrush with serrated blade and handle (no text or symbols visible)

Body trimmer: the body trimmer has 2 comb attachments: 1,5 mm and 2,5 mm. Click the attachment onto the top of the body trimmer, the comb over the shaving foil, so that it locks into place.

Sideburn trimmer: the sideburn trimmer has 1 comb attachment. Slide the attachment into the grooves at the side of the sideburn trimmer, until it clicks into place. You can lock this attachment into 2 positions: 3,5 mm and 7 mm.

When placing the comb attachments, always make sure that the attachment is locked firmly into place.

Close-up of a metallic tool tip with threaded end (no visible text or symbols)

Close-up of a fountain pen nib with metallic handle and pointed tip (no text or symbols visible)

Shaving and trimming

Caution: this appliance must never be used under water!

• Before use, apply a few drops of acid-free oil between the trimming comb and the blade.
• It is recommended to always start shaving with the largest comb attachment. This way you can gradually shorten the hair.
• Shave against the hair growth direction.
• Keep the shaver head/comb attachment flat against the head. Shave upwards.

CLEANING AND MAINTENANCE

• Switch off the appliance and pull the plug from the power outlet before cleaning and oiling the trimmer.
• Make sure that the appliance and the adapter are not immersed in water and do not come into contact with water or any other liquid.
• If necessary the outer surfaces of the trimmer and the adapter can be wiped clean with a dry, lint-free cloth.
• Use the cleaning brush after every use to remove the remaining hairs between the trimming comb and the blade.
• Caution: the trimming comb and blade are sharp.
• Oil the trimmer before use and after every 15 minutes of use. Apply a few drops of acid-free oil between the trimming comb and the blade. Afterwards, switch on the trimmer to make sure that the oil is distributed evenly. Regular oiling guarantees good shaving performances during a long period of time and is beneficial for the lifecycle of the appliance.

PRECAUCIONES IMPORTANTES

CARGA

Close-up of a black hairbrush with serrated blade and handle (no text or symbols visible)

Close-up of a black and metallic object with threaded edge, possibly a hairdryer or brush (no text or symbols visible)

Close-up of a black and silver mechanical tool tip (no visible text or symbols)

Uso

NABÍJENÍ

Close-up of a black hairbrush with serrated blade and handle (no text or symbols visible)

Close-up of a black plastic tool with threaded end, no visible text or symbols

Close-up of a black pen tip with metallic handle and pointed tip (no text or symbols visible)

HOLENÍ A ZASTŘIHOVÁNÍ
