LA130402 - Beard trimmer LANAFORM - Free user manual and instructions

Product type	Beard trimmer
Brand	Lanaform
Model	LA130402
Dimensions (L x W x H)	16 x 4 x 4 cm
Weight	150 g
Power supply	Rechargeable Li-ion battery, 5 V DC via USB cable
Battery life	60 minutes
Charging time	8 hours
Blades	Stainless steel, self-sharpening
Adjustment levels	3 cutting combs (1, 3, 5 mm)
Main functions	Cut, trim and maintain beard, mustache and sideburns
Care and cleaning	Removable blades washable under water; clean with provided brush
Safety	Automatic shut-off in case of overheating; protected blade
Spare parts and repairability	Replacement combs and blades available (ref. LA130402-ACC)
Included accessories	3 combs, cleaning brush, USB cable, user manual
Warranty	2 years
Country of manufacture	China
Color	Black and silver
Recommended use	Domestic

Frequently Asked Questions - LA130402 LANAFORM

How to charge the Lanaform LA130402 beard trimmer?

Connect the provided USB cable to the trimmer and to a USB power adapter (5 V, not included). The indicator light shows charging status. Allow about 8 hours for a full charge.

Can I use the trimmer in the shower?

No, the trimmer is not waterproof. It is only splash resistant. Clean the blades under water after removing them, but do not immerse the device.

How to adjust the cutting length?

Use the provided cutting combs (1, 3, 5 mm). Snap the chosen comb onto the cutting head for an even length. Without a comb, the cut is close to the skin (0.5 mm).

What to do if the trimmer won't turn on?

Check that the battery is charged. If the problem persists, clean the blades and ensure no hair is blocking the mechanism. Contact customer service if necessary.

How to clean the blades?

Remove the cutting head by pressing the side buttons. Brush off residue with the provided brush. Rinse the head under running water, dry it thoroughly before reattaching.

Are the blades replaceable?

Yes, the blades are removable and can be replaced with the Lanaform LA130402-ACC replacement kit. Refer to the manual for the procedure.

Can I cut a wet beard?

It is best to cut a dry beard. Wet hair can stick to the blades and reduce efficiency. Dry your beard before use.

What to do if the trimmer overheats abnormally?

Immediately turn off the device and let it cool down. Check that the blades are clean and properly mounted. If overheating persists, contact technical support.

How do I know if the battery is low?

The LED light flashes when the battery is low. Recharge the trimmer as soon as possible to avoid interruption during use.

Where to find spare parts?

Replacement combs and blades are available on the Lanaform website and from authorized dealers. Use reference LA130402-ACC to order.

USER MANUAL LA130402 LANAFORM

Rechargeable Electric Trimmer

LANAFORM®

Close-up of a smiling shirtless man with a visible chest area, against a blurred background with indistinct vertical lines (no text or symbols)

04081210202428

32364044485256

606468727680

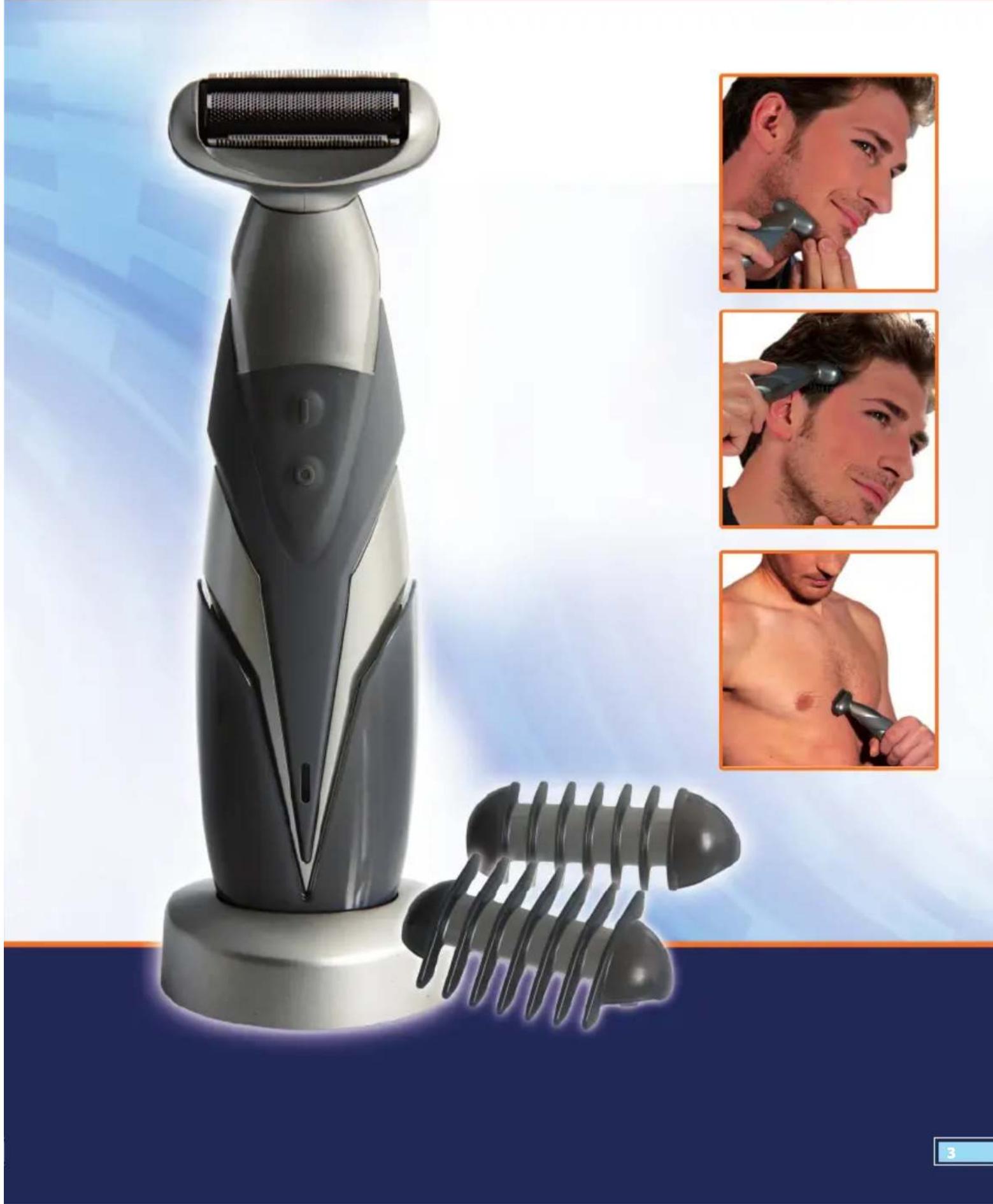

Body Hair ClipperB

Product photo of a black-and-white hairbrush with mesh filter, accompanied by three inset photos showing facial styling techniques (no text or symbols visible)

Introduction

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands holding a small black object with a thin wire, possibly a medical or laboratory device (no visible text or symbols)

Close-up of hands assembling a small electronic component with a pipette (no visible text or symbols)

Person washing a faucet in a white sink with wooden table background (no text or symbols visible)

Close-up of hands holding a silver and black electric shaver tool (no visible text or symbols)

Close-up of hands using a pipette to apply liquid into a small black object (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Person washing a white faucet in a modern bathroom sink (no text or symbols visible)

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands using a pipette to apply liquid into a small black object (no text or symbols visible)

Close-up of hands holding a small electronic component with a pipette inserted (no visible text or symbols)

Person washing a white sink with a metal faucet, no visible text or symbols

May we take this opportunity of thanking you for choosing the rechargeable Body Hair Clipper from Lanaform. Robust and easy to use, the Body Hair Clipper is intended for domestic use. Its different removable combs mean you can easily cut your hair to the length you wish, and also shave yourself, or trim your beard, arms or body. You may use the Body Hair Clipper under both dry and damp conditions. We hope that this product will give you entire satisfaction. Please read the following instructions carefully before using the Body Hair Clipper.

Utilisation

1) Attach one of the combs to the razor (2 or 4mm).
2) Use the clipper first of all to shorten the hair. Then to obtain the best results, remove the comb and finish with the razor.
3) Le Body Hair Clipper may be used either dry or under the shower; it must not, however, be immersed in a bath.

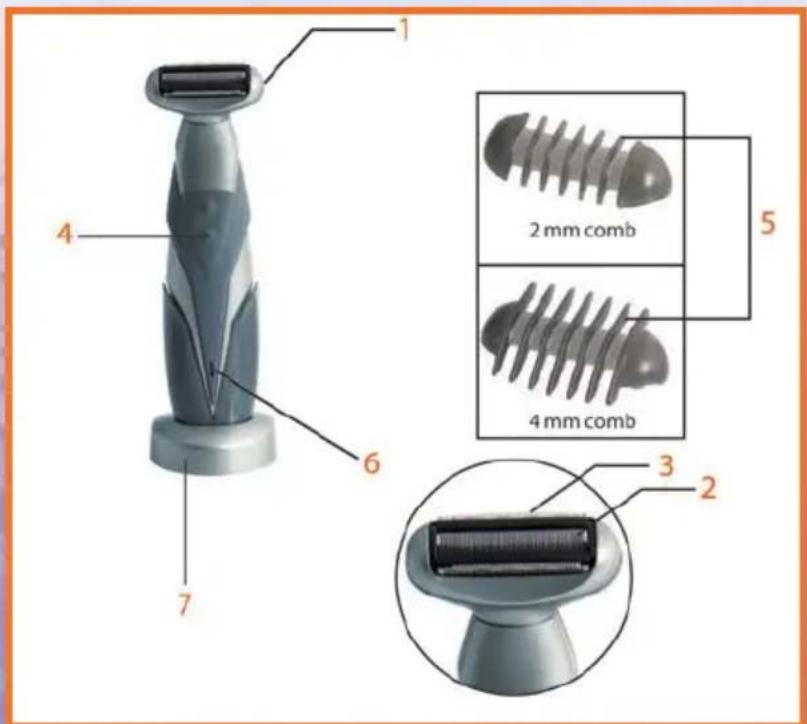

Technical characteristics

1. Cutting head assembly
2. Razor grille
3. Hair aligner
4. On/Off switch
5. Clipper combs (2 or 4 mm)
6. Charging indicator light
7. Charging base

Body Hair Clipper

Charging the clipper-razor

1) Plug the DC plug from the charger into the DC socket situated at the extremity of the charging base.
2) Connect the charger to the mains power supply.
3) Switch off the unit and place it in its charging support cradle.
4) The red indicator light will glow; it indicates that the unit is being charged.
5) Before using the unit for the very first time, it must be charged for at least 24 hours.
6) After several uses, when the battery is weak, recharge it for a period of at least 7 hours.
7) To conserve battery capacity, you should discharge the battery completely every three months and then recharge it completely.
8) If the charging light does not come on, check that the plug is making good contact with the socket on the base

Cleaning and storage

1) After use, switch off the unit and disconnect it, remove the cutting head while holding the front edge. Rinse the blades under the tap, or clean them using the cleaning brush provided (see figure A).
2) Always use fresh water only to clean the Body Hair Clipper, without any additional cleaning products.
3) Dry the unit using a dry cloth.
4) Always store the unit in a dry place out of the reach of children.
5) Do not submerge the Body Hair Clipper in order to clean it.

Close-up of hands using a silver and silver hairbrush to apply a small black tool (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Person washing a faucet in a white sink with wooden flooring (no text or symbols visible)

Important safety instructions

Whenever you use electrical equipment, always observe basic safety advice.

DANGER

To reduce the risk of electrocution:

1. Never try to recover any electrical equipment that has fallen into water. Disconnect it immediately.
2. Do not place, store, or charge the Body Hair Clipper in a position where it might fall or be pulled into a bath or washbasin.
3. After charging, disconnect the unit.
4. Disconnect the unit before cleaning it.
5. This unit is water-resistant but cannot be immersed in water.

ATTENTION

To reduce the risk of burns, electrocution or injury:

1. Care should be taken whenever The Body Hair Clipper is used in the vicinity of children.
2. Only use the unit for purposes described in the manual.
3. The Body Hair Clipper must never be exposed to temperatures less than 0°C or greater than 41°C.
4. Never use this unit if the cable or plug is damaged, if it does not operate normally take it for repair to your supplier or his after-sales service.
5. Never put foreign objects into any of the openings in the Body Hair Clipper.
6. Keep the cable clear of very hot surfaces.
7. Do not use abrasive substances or aggressive cleansers.
8. Do not use this unit with a damaged or split grille.
9. This unit is not intended to be used by persons (including children) with reduced physical, sensorial or mental capacities, or by persons lacking experience or knowledge unless they have been provided, by a person in charge of safety, with supervision or prior instructions concerning the use of the unit. Children should be supervised to ensure that they do not play with the unit.

Body Hair Clipper

Protection of the environment

The Body Hair Clipper contains rechargeable Ni-Cd batteries. Once their useful life is at an end, remove the cutter head by pulling from the front, taking care to protect your fingers with a cloth. Unscrew the head retaining screws. Withdraw the head first of all. Tap the unit on a hard surface covered with a thick, protective cloth, to open the housing. Unsolder the joints and remove the batteries for correct disposal. Return the batteries to your reseller, or dispose of them correctly at a designated site in accordance with the legal requirements in force in your region.

LIMITED GUARANTEE

LANAFORM® guarantees that this product is free of all manufacturing and material defects for a period of two years from the date of purchase, except under the following circumstances: this guarantee for a LANAFORM® product does not cover damage resulting from incorrect or improper use, accidental damage, the addition of an unapproved accessory, any modification to the product or any other situation outside the control of LANAFORM®.

LANAFORM® is not liable for any accidental, consequential or special damage.

All implicit guarantees covering product suitability are limited to a period of two years from the date of initial purchase.

On reception, LANAFORM® will, as it deems fit, repair or replace your personal razor-clipper and will return it to you carriage paid. This guarantee is only valid through the LANAFORM® Service Centre. In the event that this unit is repaired by any person other than the LANAFORM® Service Centre, the guarantee is null and void.

Introducción

Close-up of hands using a silver and silver hairbrush to apply a small black tool (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Person washing a faucet in a white sink with wooden flooring (no text or symbols visible)

Close-up of hands holding a small electric shaver tool (no visible text or symbols)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands holding a small electronic component with a pipette inserted (no visible text or symbols)

Person washing a white sink with a metal faucet, no visible text or symbols

Close-up of hands using a silver and black electric shaver tool to apply a small black tip (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Person washing a white sink with a metal faucet, no visible text or symbols

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands using a pipette to apply liquid into a small black object (no text or symbols visible)

Close-up of hands holding a small electronic component with a pipette inserted (no visible text or symbols)

Person washing a white sink with a metal faucet, no visible text or symbols

Close-up of hands using a silver and black electric shaver tool to apply a small black tip (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Turvavaroitus

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands using a pipette to apply liquid into a small black object (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands using a pipette to apply liquid into a small black object (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a faucet in a white sink with wooden flooring (no text or symbols visible)

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands holding a silver and black electric shaver (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands holding a silver and black electric shaver (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Bezpečnostní pokyny

Close-up of hands holding a silver and black electric shaver (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands holding a silver and black electric shaver (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands using a silver and black electric shaver tool to apply a small black tip (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands using a silver and black electric shaver tool to apply a small black tip (no text or symbols visible)

Close-up of hands holding a small black object with a small white object inserted, against a plain background (no text or symbols visible)

Close-up of hands assembling a small mechanical component with a plastic clip (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands holding a small black object with a thin wire, possibly a tool or device (no visible text or symbols)

Close-up of hands assembling a small mechanical component with a pipette (no visible text or symbols)

Hand washing a white sink with a hand holding a water tap, no text or symbols visible

تعليمات سلامة هامة

Close-up of hands holding a silver and black electric shaver (no visible text or symbols)

Close-up of hands holding a small black object with a thin wire or pipette inserted (no visible text or symbols)

Close-up of hands assembling a small mechanical component with a pipette (no visible text or symbols)

Hand washing a faucet into a white sink with a circular drain (no text or symbols visible)

نکات ايمنى مهم
